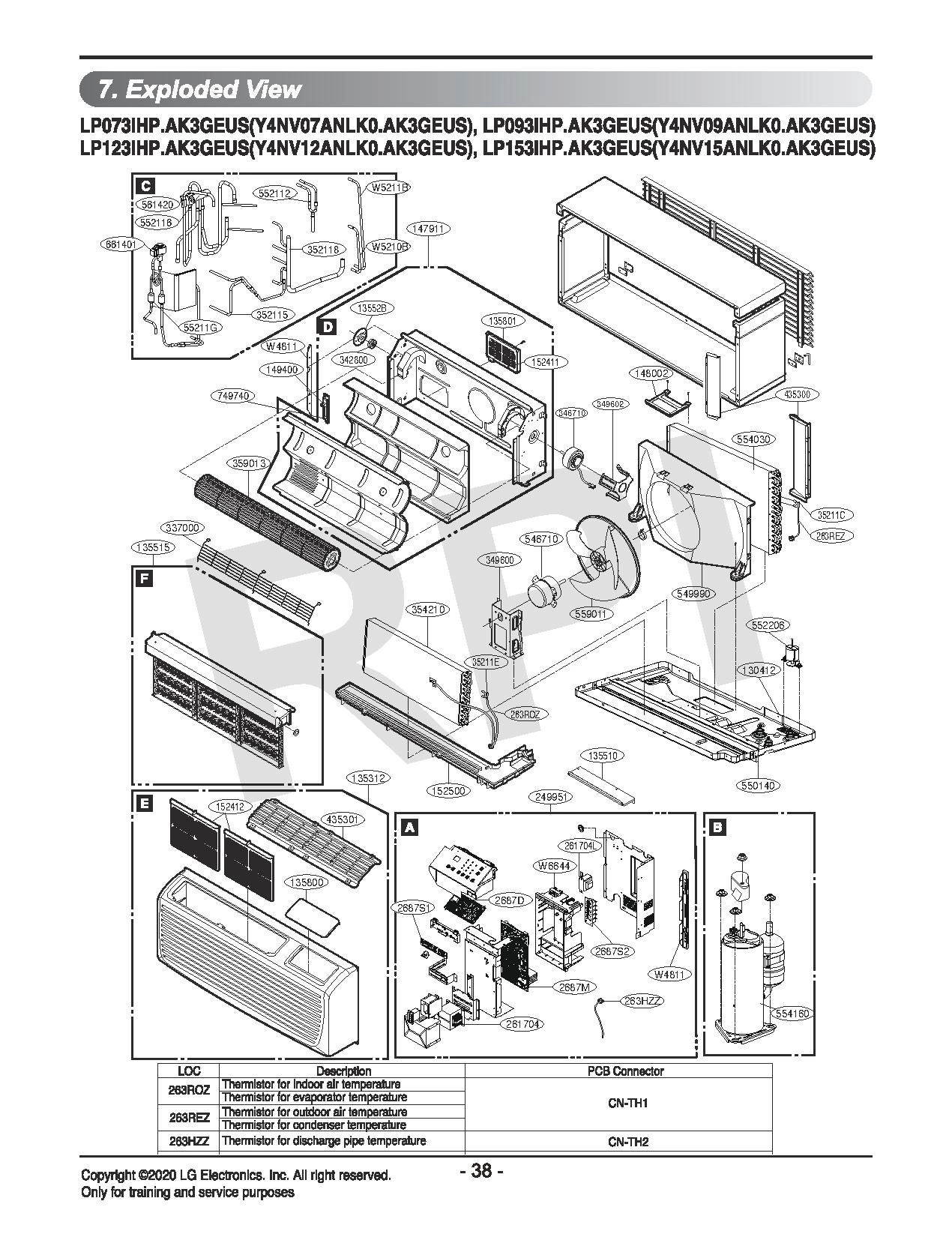

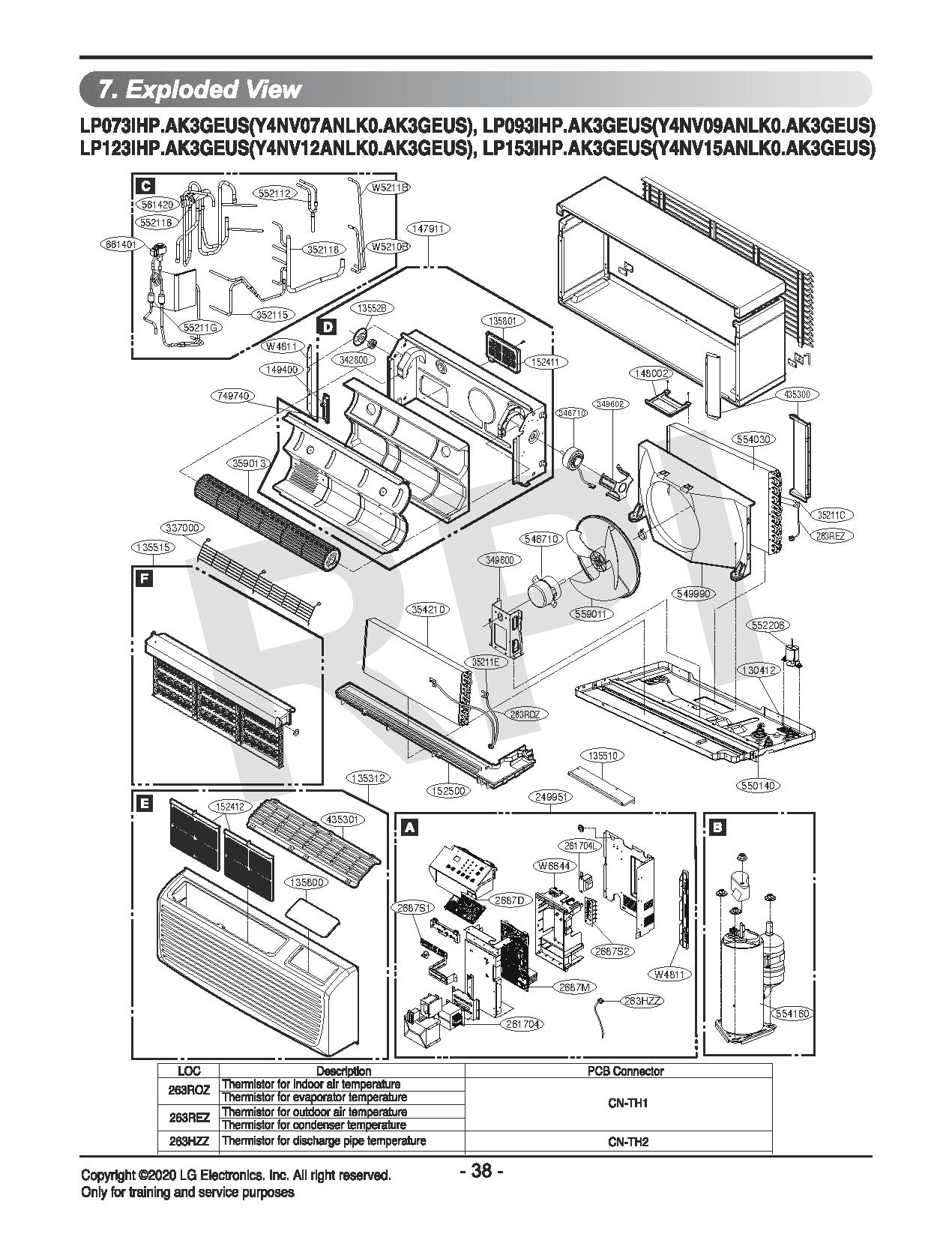

Model LG LP093IHP – Common Parts & Diagrams
0
Common parts from model LG LP093IHP
263HZZ
Thermistor Assembly,NTC LGE EBG61285804 Contact Us For Availability
263ROZ
Thermistor Assembly,NTC LGE EBG61107024 Contact Us For Availability
35211E
Tube Assembly,Connector LGE 5211A21904N Contact Us For Availability
55211G
Tube Assembly,Expansion LGE AJR30001502 Contact Us For Availability
130412
Base Assembly,Weld LGE 3041A20028Z Contact Us For Availability
135312
Grille Assembly,Front LGE 3531A10149J Contact Us For Availability
135510
Cover Assembly,Control LGE 3551A20062J Contact Us For Availability
135515
Cover Assembly,Top(Indoor) LGE ACQ86642102 Contact Us For Availability
135800
Door LGE 3580A20021G Contact Us For Availability
135801
Door LGE MCV62754502 Contact Us For Availability
147911
Barrier Assembly,Indoor LGE AAM73751402 Contact Us For Availability
148002
Supporter LGE 4800A20002D Contact Us For Availability
149400
Knob LGE 4940A30037A Contact Us For Availability
152411
Filter,Air LGE 5230A20016B Contact Us For Availability
152412
Filter,Air LGE 5230A20021E Contact Us For Availability
152500
Pan,Drain LGE 3086A20011F Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ30005603 Contact Us For Availability
261704
Transformer,Reactor LGE EBJ64450001 Contact Us For Availability
261704L
Transformer,Linear LGE 6170A20012A Contact Us For Availability
337000
Mesh,Metal LGE 3700A20009H Contact Us For Availability
342800
Bearing LGE 4280A20004M Contact Us For Availability
346710
Motor Assembly,DC,Indoor LGE EAU62843025 Contact Us For Availability
349600
Bracket,Motor LGE MAZ63728003 Contact Us For Availability
349602
Bracket,Motor LGE 4960A20032C Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR30001701 Contact Us For Availability
352118
Tube Assembly,Manifold(Indoor) LGE AJR30001601 Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421A20114L Contact Us For Availability
359013
Fan Assembly,Cross Flow LGE 5901A10027B Contact Us For Availability
435300
Grille,Rear LGE MDX33964102 Contact Us For Availability
435301
Grille,Discharge LGE 3530A20040E Contact Us For Availability
546710
Motor Assembly,DC,Outdoor LGE EAU57945719 Contact Us For Availability
549990
Shroud Assembly LGE 4999A20004F Contact Us For Availability
550140
Damper,Compressor LGE MCQ62508902 Contact Us For Availability
552112
Tube Assembly,Condenser(In) LGE AJR30001901 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR30002102 Contact Us For Availability
552206
Valve,Drain LGE 5220A30006A Contact Us For Availability
554030
Condenser Assembly,First LGE 5403A20076Q Contact Us For Availability
554160
Compressor Set,China LGE TBZ39180401 Contact Us For Availability
559011
Fan,Axial LGE 5900A10009E Contact Us For Availability
561420
Solenoid LGE 6141A20017D Contact Us For Availability
661401
Coil,Expansion LGE EAP63107114 Contact Us For Availability
749740
Guide LGE 4974A30049C Contact Us For Availability
W4811
Bracket Assembly LGE 4811A20019A Contact Us For Availability
W5210B
Tube,Connector LGE MJU66748120 Contact Us For Availability
W5211B
Tube,Connector LGE MJU66748115 Contact Us For Availability
W6644
Connector,Terminal Block LGE 3H00390A Contact Us For Availability
× ![]()
