Model LG LP0626PGSF AC – Common Parts & Diagrams

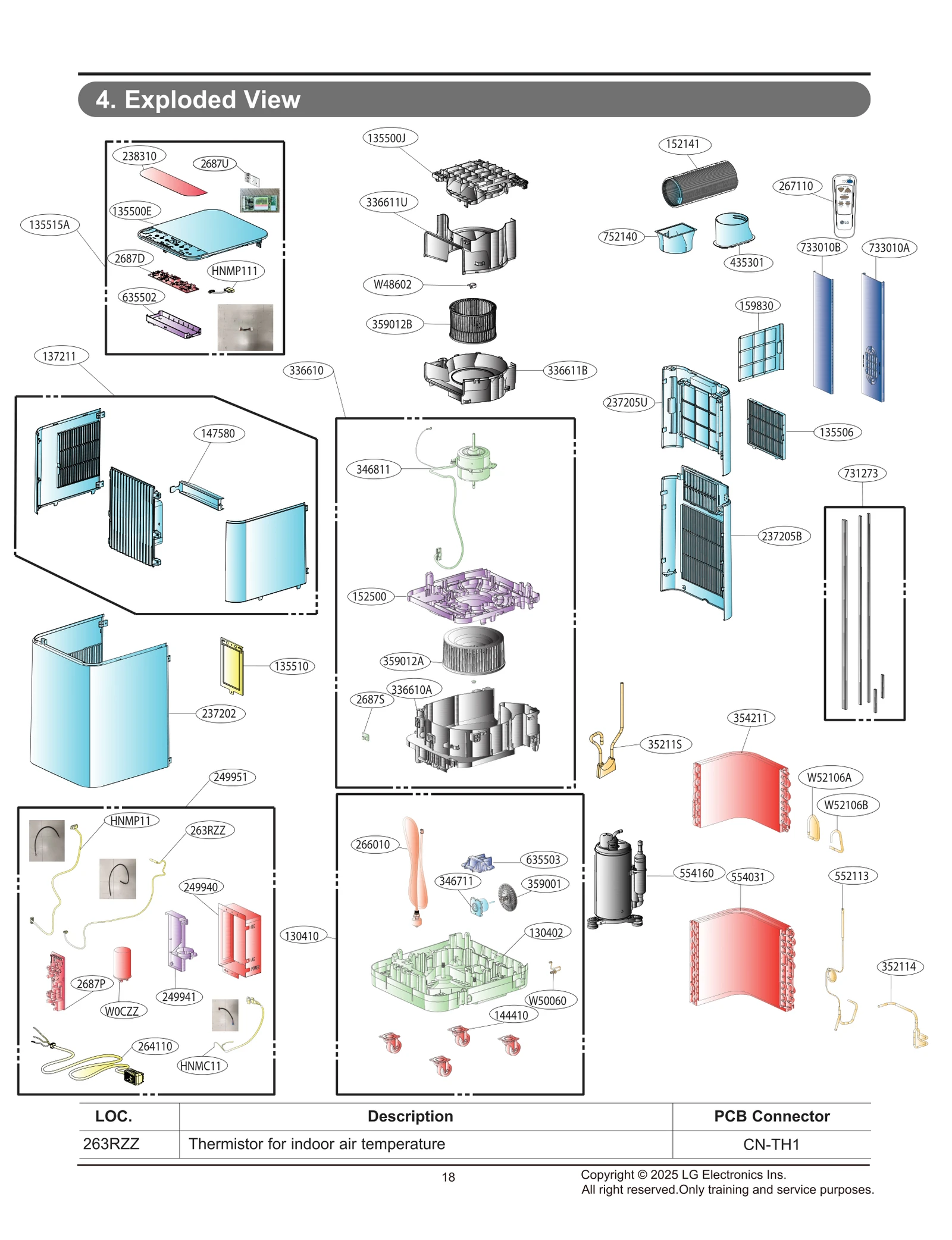

Diagram 0
Common parts from model LG LP0626PGSF AC
263RZZ
Thermistor Assembly,NTC LGE EBG61406011 Contact Us For Availability
2687D
PCB Assembly,Display LGE EBR25256302 Contact Us For Availability
2687P
PCB Assembly,Power LGE EBR25256201 Contact Us For Availability
2687S
PCB Assembly,Sub LGE EBR86313003 Contact Us For Availability
35211S
Tube Assembly,Suction LGE AJR30148501 Contact Us For Availability
130402
Base,Single LGE MAM30128001 Contact Us For Availability
130410
Base Assembly,Single LGE AAN00859701 Contact Us For Availability
135500E
Cover,Upper LGE MCK30084501 Contact Us For Availability
135500J
Cover,Housing LGE MCK30084401 Contact Us For Availability
135506
LGE MCK30084702 LGE MCK30084702 Contact Us For Availability
135510
Cover Assembly,Control LGE ACQ30794401 Contact Us For Availability
135515A
Cover Assembly,Top LGE ACQ30795702 Contact Us For Availability
137211
Panel Assembly,Front LGE AGL30268202 Contact Us For Availability
144410
Roller LGE MHA63833003 Contact Us For Availability
147580
Louver,Horizontal LGE MFH31087002 Contact Us For Availability
152141
Hose,Drain LGE MEJ64164705 Contact Us For Availability
152141
Hose,Drain LGE MEJ64164709 Contact Us For Availability
152500
Pan Assembly,Drain LGE AGK30266201 Contact Us For Availability
159830
LGE ADQ30043202 LGE ADQ30043202 Contact Us For Availability
237202
Panel,Front LGE MGC30043202 Contact Us For Availability
237205B
Panel,Rear LGE MGC30043301 Contact Us For Availability
237205U
Panel,Rear LGE MGC30043702 Contact Us For Availability
238310
Escutcheon LGE MDD30039202 Contact Us For Availability
249940
Case,Control LGE MBN00649601 Contact Us For Availability
249941
Case,Control LGE MBN00649701 Contact Us For Availability
249951
Case Assembly,Control LGE ABQ30408301 Contact Us For Availability
264110
Power Cord Assembly LGE EAD66043115 Contact Us For Availability
266010
Switch Assembly LGE 6601A20001S Contact Us For Availability
336610
Housing Assembly LGE AEN30375301 Contact Us For Availability
336610A
Housing Assembly LGE AEN30376003 Contact Us For Availability
336611B
Housing Assembly LGE AEN30376001 Contact Us For Availability
336611U
Housing Assembly LGE AEN30376002 Contact Us For Availability
346811
Motor Assembly,AC LGE EAU30130601 Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR30126001 Contact Us For Availability
354211
Evaporator Assembly,Bending LGE ADL30044701 Contact Us For Availability
359001
Disk,Lower LGE MCT39443701 Contact Us For Availability
359012A
Fan Assembly,Blower LGE ADP30240701 Contact Us For Availability
359012B
Fan Assembly,Blower LGE ADP30240801 Contact Us For Availability
435301
Grille,Discharge LGE MDX30070101 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR30126401 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG00129801 Contact Us For Availability
554160
Compressor Set,China LGE TBZ00229401 Contact Us For Availability
635502
Cover,Display LGE MCK30084601 Contact Us For Availability
635503
Cover,Motor LGE MCK30084101 Contact Us For Availability
731273
Install Part Assembly,Single LGE AET73732416 Contact Us For Availability
733010A
Plate Assembly,Installation LGE AGU30151301 Contact Us For Availability
733010B
Plate Assembly,Installation LGE AGU30151302 Contact Us For Availability
752140
Connector,Hose LGE MCD30215301 Contact Us For Availability
HNMC11
Harness,Multi LGE EAD60954031 Contact Us For Availability
HNMP11
Harness,Multi LGE EAD61880790 Contact Us For Availability
HNMP111
Harness,Multi LGE EAD61880791 Contact Us For Availability
W50060
Cap LGE MBL30058801 Contact Us For Availability
W52106A
Tube,Evaporator LGE MJU00758401 Contact Us For Availability
W52106B
Tube,Evaporator LGE MJU00758402 Contact Us For Availability
× ![]()
