Model LG LP0623WSR.AWYAOSH 6,000 BTU (SACC) / 9,700 BTU (ASHRAE) Portable Air Conditioner – Common Parts & Diagrams

Common parts from model LG LP0623WSR.AWYAOSH 6,000 BTU (SACC) / 9,700 BTU (ASHRAE) Portable Air Conditioner

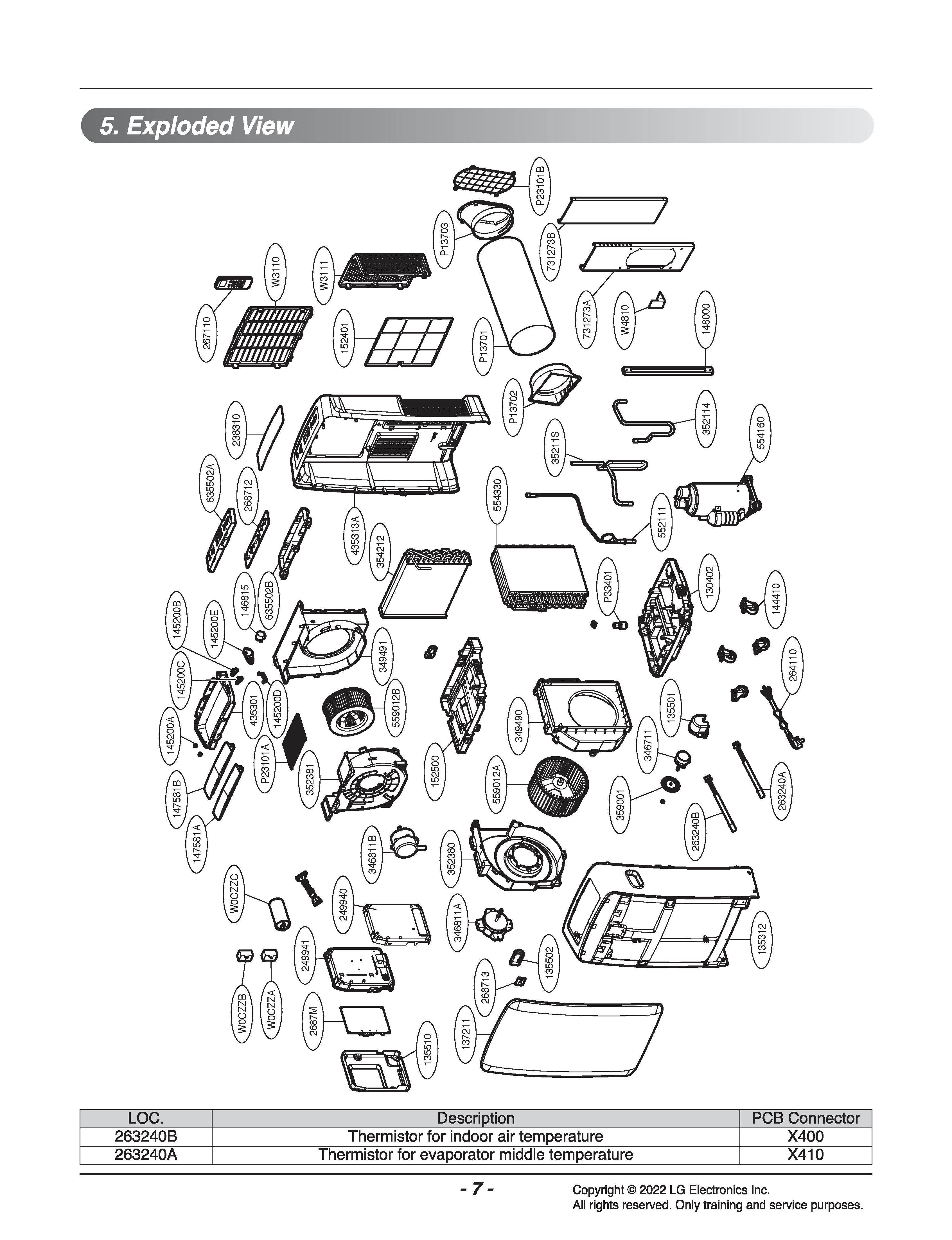

DIAGRAM 1

Print

• This Diagram
• All Diagrams

2687M

PCB Assembly,Main,Outsourcing LGE COV37291301 Contact Us For Availability

View on Model

35211S

Tube Assembly,Suction,Outsourcing LGE COV37294401 Contact Us For Availability

View on Model

130402

Base,Outsourcing LGE COV36744701 Contact Us For Availability

View on Model

135312

Grille Assembly,Front(Indoor),Outsourcing LGE COV37290301 Contact Us For Availability

View on Model

135501

Cover,Outsourcing SVC Backorder LGE COV36745001 View Details $5.27

View on Model

135502

Cover,PCB,Outsourcing LGE COV36736601 Contact Us For Availability

View on Model

135510

Cover,Outsourcing SVC Backorder LGE COV36737701 View Details $26.57

View on Model

137211

Panel Assembly,Front,Outsourcing LGE COV37289401 Contact Us For Availability

View on Model

144410

Roller,Outsourcing LGE COV36744901 Contact Us For Availability

View on Model

145200A

Link,Outsourcing LGE COV36738901 Contact Us For Availability

View on Model

145200B

Link,Outsourcing LGE COV36739201 Contact Us For Availability

View on Model

145200C

Link,Outsourcing LGE COV36739301 Contact Us For Availability

View on Model

145200D

Link,Outsourcing LGE COV36739501 Contact Us For Availability

View on Model

145200E

Link,Outsourcing LGE COV36739801 Contact Us For Availability

View on Model

146815

Motor Assembly,DC,Stepping,Outsourcing LGE COV36739901 Contact Us For Availability

View on Model

147581A

Louver,Horizontal,Outsourcing LGE COV37292101 Contact Us For Availability

View on Model

147581B

Louver,Outsourcing SVC Backorder LGE COV37292201 View Details $22.29

View on Model

148000

Supporter,Outsourcing SVC Backorder LGE COV37294601 View Details $26.57

View on Model

152401

Filter,Outsourcing SVC Backorder LGE COV36743201 View Details $10.91

View on Model

152500

Pan,Drain,Outsourcing LGE COV37290401 Contact Us For Availability

View on Model

238310

Escutcheon,Outsourcing LGE COV37293401 Contact Us For Availability

View on Model

249940

Case Assembly,Control,Outsourcing LGE COV36738001 Contact Us For Availability

View on Model

249941

Case Assembly,Control,Outsourcing LGE COV36737901 Contact Us For Availability

View on Model

263240A

Thermistor Assembly,Outsourcing LGE COV36745501 Contact Us For Availability

View on Model

263240B

Thermistor Assembly,Outsourcing LGE COV36745601 Contact Us For Availability

View on Model

264110

Power Cord Assembly,Outsourcing LGE COV36745401 Contact Us For Availability

View on Model

267110

Remote Controller,Outsourcing Backorder LGE COV37289801 View Details $68.76

View on Model

268712

PCB Assembly,Display,Outsourcing LGE COV37293101 Contact Us For Availability

View on Model

268713

PCB Assembly,Outsourcing SVC Backorder LGE COV36735701 View Details $34.75

View on Model

346711

Motor,Outsourcing SVC Backorder LGE COV36745101 View Details $68.76

View on Model

346811A

Motor Assembly,AC,Outsourcing LGE COV36738101 Contact Us For Availability

View on Model

346811B

Motor Assembly,AC,Outsourcing LGE COV36737201 Contact Us For Availability

View on Model

349490

Orifice,Mech OS SVC Others Backorder LGE COV36736901 View Details $55.80

View on Model

349491

Orifice,Outsourcing SVC Backorder LGE COV36738501 View Details $45.05

View on Model

352114

Tube,Outsourcing SVC Backorder LGE COV37294801 View Details $39.47

View on Model

352380

Guide,Air,Outsourcing LGE COV36737101 Contact Us For Availability

View on Model

352381

Guide,Air,Outsourcing LGE COV36738201 Contact Us For Availability

View on Model

354212

Evaporator Assembly,Final,Outsourcing LGE COV37289701 Contact Us For Availability

View on Model

359001

Disk,Mech OS SVC Others Backorder LGE COV36745301 View Details $3.40

View on Model

435301

Grille,Discharge,Outsourcing LGE COV36739101 Contact Us For Availability

View on Model

435313A

Panel Assembly,Rear,Outsourcing LGE COV37293301 Contact Us For Availability

View on Model

552111

Tube Assembly,Capillary,Outsourcing LGE COV37294501 Contact Us For Availability

View on Model

554160

Compressor Set,Outsourcing LGE COV37294701 Contact Us For Availability

View on Model

554330

CONDENSER,OUTSOURCING SVC Backorder LGE COV37290001 View Details $257.10

View on Model

559012A

COV36738301 LG Blower Fan Assembly Backorder LGE COV36738301 View Details $39.47

View on Model

559012B

COV36737001 LG Fan Blower Assembly Backorder LGE COV36737001 View Details $45.05

View on Model

635502A

Cover,Outsourcing SVC Backorder LGE COV36740301 View Details $10.91

View on Model

635502B

Cover,Display,Outsourcing LGE COV36740801 Contact Us For Availability

View on Model

731273A

COV36743901 LG Install Part Assembly - Outsou Backorder LGE COV36743901 View Details $34.75

View on Model

731273B

COV36743801 LG Outsourcing Installation Part Backorder LGE COV36743801 View Details $26.57

View on Model

P13701

COV36743601 LG Hose Assembly Backorder LGE COV36743601 View Details $50.56

View on Model

P13702

COV36743501 LG Outsourcing Connector Backorder LGE COV36743501 View Details $18.12

View on Model

P13703

COV36743701 LG Connector Assembly Backorder LGE COV36743701 View Details $18.12

View on Model

P23101A

Plate,Protector,Outsourcing LGE COV36738601 Contact Us For Availability

View on Model

P23101B

Plate,Outsourcing SVC Backorder LGE COV36743401 View Details $14.15

View on Model

P33401

Float Level Switch,Outsourcing LGE COV36748201 Contact Us For Availability

View on Model

W0CZZA

Capacitor,Outsourcing LGE COV36737501 Contact Us For Availability

View on Model

W0CZZB

Capacitor,Outsourcing LGE COV36737601 Contact Us For Availability

View on Model

W0CZZC

Al Capacitor,Radial,Outsourcing LGE COV36737301 Contact Us For Availability

View on Model

W3110

Case,Outsourcing LGE COV37289901 Contact Us For Availability

View on Model

W3111

Case,Outsourcing LGE COV37293601 Contact Us For Availability

View on Model

W4810

Bracket,Outsourcing LGE COV36744001 Contact Us For Availability

View on Model

×
