Model LG LOBG630 – Common Parts & Diagrams

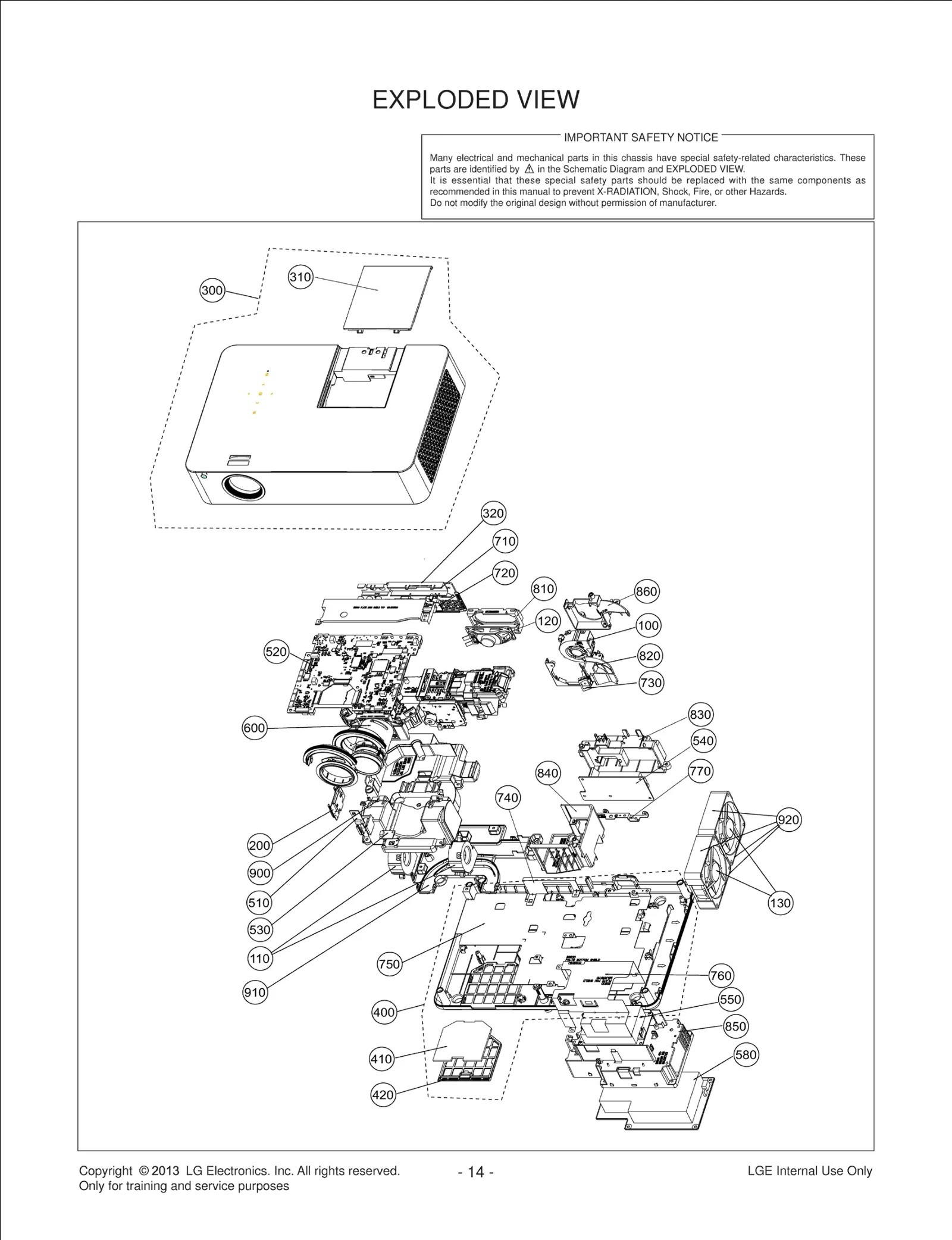

Diagram 0
Diagram 1
Common parts from model LG LOBG630
120
Speaker,MID,Range LGE EAB61188601 Contact Us For Availability
130
Fan Module LGE EAL61201301 Contact Us For Availability
200
Module,WLAN LGE EAT61813801 Contact Us For Availability
300
Case Assembly LGE ABQ74261204 Contact Us For Availability
310
Cover Assembly LGE ACQ86470704 Contact Us For Availability
320
Bracket Assembly LGE ABA74548302 Contact Us For Availability
510
Chassis Assembly LGE EBT62310602 Contact Us For Availability
520
Chassis Assembly LGE EBT62310402 Contact Us For Availability
530
Chassis Assembly LGE EBT62591602 Contact Us For Availability
540
Power Supply Assembly LGE EAY62932001 Contact Us For Availability
550
Ballast LGE EAY62949901 Contact Us For Availability
580
Power Supply Assembly LGE EAY62932101 Contact Us For Availability
600
Chassis Assembly LGE EBT62600501 Contact Us For Availability
610
Motor Assembly,Outsourcing LGE COV31823101 Contact Us For Availability
620
Lamp,Outsourcing LGE COV31822701 Contact Us For Availability
630
Engine Assembly,Outsourcing LGE COV31857201 Contact Us For Availability
710
Plate,Metal LGE MGJ63550603 Contact Us For Availability
720
Plate,Shield LGE MGJ63550303 Contact Us For Availability
730
Plate,Metal LGE MGJ63550502 Contact Us For Availability
750
Plate,Shield LGE MGJ63550202 Contact Us For Availability
760
Plate,Shield LGE MGJ63571002 Contact Us For Availability
770
Plate,Metal LGE MGJ63571102 Contact Us For Availability
810
Bracket LGE MAZ62265901 Contact Us For Availability
820
Bracket LGE MAZ63697402 Contact Us For Availability
830
Bracket LGE MAZ63697202 Contact Us For Availability
840
Bracket LGE MAZ63697502 Contact Us For Availability
850
Bracket LGE MAZ63732102 Contact Us For Availability
860
Bracket LGE MAZ63732302 Contact Us For Availability
900
Cover LGE MCK67527302 Contact Us For Availability
910
Cover LGE MCK67527202 Contact Us For Availability
920
Gasket LGE MDS62912932 Contact Us For Availability
A1
Manual,Owners LGE MFL67840303 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73616408 Contact Us For Availability
AR101
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR110
Resistor,Array LGE 0RR0822B621 Contact Us For Availability
AR1011
Resistor,Array LGE EBC32260501 Contact Us For Availability
BU400
Buzzer,Magnetic LGE 6908000014A Contact Us For Availability
C219
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C314
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C400
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C433
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
C440
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C510
CAPACITOR,FIXED ELEC LGE 0CE476WC6DC Contact Us For Availability
C513
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C525
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C530
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C533
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C546
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C738
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C829
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C911
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C918
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C939
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C1028
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1034
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C1110
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1122
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C1126
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1166
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C1187
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1217
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C1524
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1527
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C1537
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
D202
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D1101
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
IC100
Receiver Module LGE EAV60663601 Contact Us For Availability
IC101
Receiver Module LGE EAV37989902 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62651201 Contact Us For Availability
IC104
IC,EEPROM LGE EAN62389501 Contact Us For Availability
IC105
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC106
IC,Reset LGE EAN62787601 Contact Us For Availability
IC301
IC,Audio Amplifier LGE EAN62668201 Contact Us For Availability
IC401
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC402
IC,STANDARD LOGIC LGE 0ISTLON023B Contact Us For Availability
IC404
IC,Ethernet LGE EAN58379401 Contact Us For Availability
IC405
IC,Multiplexer LGE 0IPH744053E Contact Us For Availability
IC406
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC408
IC,Motor Driver LGE EAN62643301 Contact Us For Availability
IC500
IC,ROHM LGE 0IRH765700B Contact Us For Availability
IC503
IC,Voltage Regulator LGE EAN60131401 Contact Us For Availability
IC504
IC,Buffer LGE 0IPRPBB005A Contact Us For Availability
IC506
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC600
IC,Video Processors LGE EAN62657801 Contact Us For Availability
IC701
IC,Tx/Rx LGE EAN32174003 Contact Us For Availability
IC706
IC,LINEAR LGE 0ILNR00038A Contact Us For Availability
IC901
IC,DDR2 SDRAM LGE EAN61834602 Contact Us For Availability
IC1000
IC,Display Driver LGE EAN62682801 Contact Us For Availability
IC1101
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC1102
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
IC1104
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC1105
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC1108
IC,DC,DC Converter LGE EAN62574801 Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
JK100
Jack,Phone LGE 6612F00099F Contact Us For Availability
JK102
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
JK103
Connector,DSUB LGE 6630G00001A Contact Us For Availability
JK201
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK201
Connector,HDMI LGE EAG63012401 Contact Us For Availability
JK203
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK401
Connector,USB LGE EAG62571101 Contact Us For Availability
JK402
Jack,Modular LGE EAG38015702 Contact Us For Availability
JK500
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
L205
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L213
Filter,Bead LGE EAM54407902 Contact Us For Availability
L302
Inductor,Wire Wound,Chip LGE EAP62326601 Contact Us For Availability
L402
Filter,Bead LGE EAM38769505 Contact Us For Availability
L1113
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
LV1
Cable,FFC LGE EAD36774205 Contact Us For Availability
LV2
Cable,FFC LGE EAD61670709 Contact Us For Availability
M509
Gasket LGE MDS62110204 Contact Us For Availability
NR03
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
P405
Connector,FFC/FPC/PI LGE 6630VA00730 Contact Us For Availability
P408
Connector,Wafer LGE 6630V90141M Contact Us For Availability
P410
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P503
Connector,FFC/FPC/PIC LGE EAG61090202 Contact Us For Availability
P1100
Connector,Wafer LGE 6630VK19611 Contact Us For Availability
Q206
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q403
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q404
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q503
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1103
FET LGE EBK60752501 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R246
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R248
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R250
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R258
Resistor,Chip LGE ERHZ0000461 Contact Us For Availability
R260
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R278
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R288
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R419
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R480
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R492
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R499
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R527
Resistor,Chip LGE EBC32176601 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R761
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R762
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R852
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R901
Resistor,Chip LGE 0RH1800D422 Contact Us For Availability
R903
RESISTOR,METAL GLAZE LGE 0RJ1500D477 Contact Us For Availability
R904
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R949
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1106
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R1107
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R1109
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R1110
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R1115
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R1125
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R1127
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R1129
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R1131
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R1132
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R1136
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1238
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1510
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R1512
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R1519
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1522
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
S1
Harness,Single LGE EAD62429801 Contact Us For Availability
S2
Harness,Single LGE EAD62429702 Contact Us For Availability
S5
Harness,Single LGE EAD60732912 Contact Us For Availability
SW200
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
VA203
Varistor LGE EAF61530301 Contact Us For Availability
X401
Crystal LGE 6212AB2015C Contact Us For Availability
X600
Crystal LGE EAW61003801 Contact Us For Availability
X800
Crystal LGE EAW61645505 Contact Us For Availability
× ![]()
Login and Registration Form
