Model LG LN835 – Common Parts & Diagrams

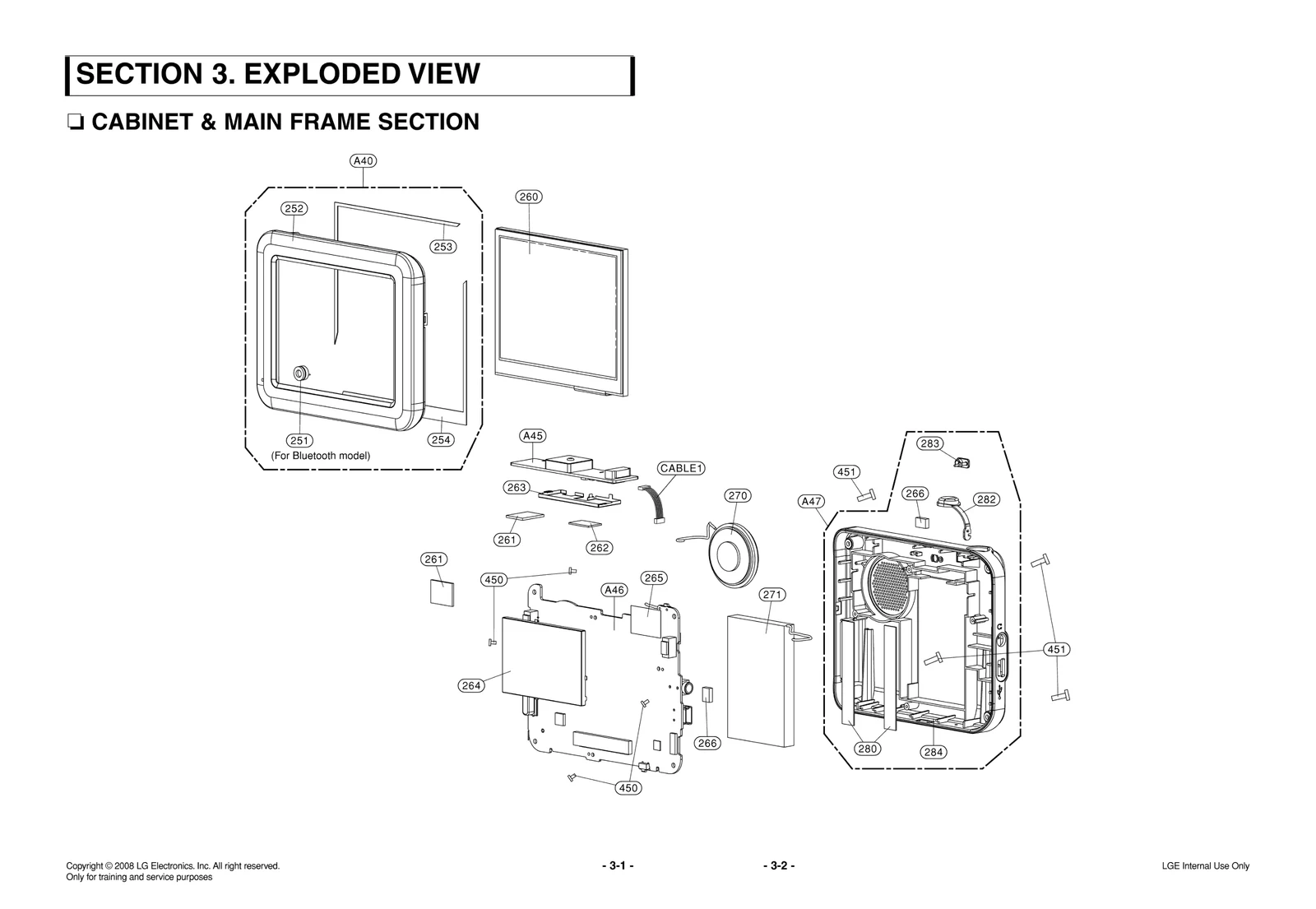

Diagram 0
Diagram 1
Common parts from model LG LN835
251
Microphone,Condenser LGE EAB30616702 Contact Us For Availability
253
Damper LGE MCQ39873601 Contact Us For Availability
254
Damper LGE MCQ39873501 Contact Us For Availability
260
LCD,Module-TFT LGE EAJ39001001 Contact Us For Availability
261
Gasket LGE MDS40654903 Contact Us For Availability
264
Plate LGE MGJ35348502 Contact Us For Availability
270
Speaker,Full Range LGE EAB39683802 Contact Us For Availability
271
Battery,Assembly LGE EAC35931001 Contact Us For Availability
280
Sheet LGE MHK35989001 Contact Us For Availability
282
Knob LGE MEY39559301 Contact Us For Availability
283
Cap LGE MBL39559401 Contact Us For Availability
284
Case LGE MBN39559102 Contact Us For Availability
450
Screw,Customized LGE 1SZZR-0122A Contact Us For Availability
451
Screw,Customized LGE 353-632E Contact Us For Availability
801
Manual Assembly,Owners LGE AFN36113928 Contact Us For Availability
825
Cable,Assembly LGE 6851B09288G Contact Us For Availability
827
Adapters LGE EAY42291502 Contact Us For Availability
830
Accessory Assembly LGE AAA33311902 Contact Us For Availability
835
Title LGE SAC30741162 Contact Us For Availability
A45
PCB Assembly LGE EBR42119301 Contact Us For Availability
A46
PCB Assembly LGE EBR42122806 Contact Us For Availability
ANT100
Antenna,GPS LGE EAA39988001 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE ECCH0000901 Contact Us For Availability
C110
Capacitor,Ceramic,Ch LGE 0CK270BKFDA Contact Us For Availability
C117
Capacitor,Ceramic,Ch LGE 0CK103BHG6A Contact Us For Availability
C118
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C130
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C153
Capacitor,Ceramic,Ch LGE 0CK060BK5FA Contact Us For Availability
C159
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C163
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C164
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C168
Capacitor,Ceramic,Ch LGE 0CK330BK4DA Contact Us For Availability
C206
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C301
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C303
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C511
Capacitor,Ceramic,Ch LGE EAE32183101 Contact Us For Availability
C519
Capacitor,Ceramic,Ch LGE EAE32208601 Contact Us For Availability
C608
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C612
Capacitor,Ceramic,Ch LGE 0CC100BKG1A Contact Us For Availability
C616
Capacitor,Ceramic,Ch LGE 0CK224CH94A Contact Us For Availability
C701
Capacitor,Ceramic,Ch LGE 0CK220BK5DA Contact Us For Availability
C714
Capacitor,Ceramic,Chip LGE EAE36145701 Contact Us For Availability
C730
Capacitor,Ceramic,Ch LGE ECZH0003104 Contact Us For Availability
C733
Capacitor,Ceramic,Chip LGE 0CK821BKG6A Contact Us For Availability
C734
Capacitor,TA,Niobium LGE 0CS227HB6DC Contact Us For Availability
C740
Capacitor,Ceramic,Chip LGE 0CK226ED94A Contact Us For Availability
C800
Capacitor,TA,Niobium LGE 0CS106DD6DC Contact Us For Availability
C806
Capacitor,Ceramic,Ch LGE 0CH1123K562 Contact Us For Availability
C808
Capacitor,Ceramic,Chip LGE 0CH1393F512 Contact Us For Availability
C829
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C833
Capacitor,Ceramic,Ch LGE 0CK225CD94A Contact Us For Availability
C842
Capacitor,Ceramic,Ch LGE 0CK1R5BK0DA Contact Us For Availability
C850
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C907
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1057
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
CABLE1
Harness,Single LGE EAD35863001 Contact Us For Availability
CN500
Connector,USB LGE 6630S70049A Contact Us For Availability
CN700
Connector,Wafer LGE 561-241B Contact Us For Availability
CN1000
Connector,FFC/FPC/PIC LGE EAG30179801 Contact Us For Availability
CN1001
Connector,FFC/FPC/PIC LGE EAG33887101 Contact Us For Availability
D500
Diode,Switching LGE 0DSKE00298B Contact Us For Availability
D502
Diode,Schottky LGE 0DRTB00028A Contact Us For Availability
D503
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D505
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D700
Diode,Schottky LGE EAH30471001 Contact Us For Availability
D1007
Diode,TVS LGE 0DTKE00068A Contact Us For Availability
FL100
Filter,Saw LGE EAM30978201 Contact Us For Availability
FL500
FILTER(CIRC),EMC LGE 6200J000058 Contact Us For Availability
FL801
Filter,LCR LGE EAM40271201 Contact Us For Availability
IC100
IC,Microprocessors LGE EAN37926502 Contact Us For Availability
IC100A
S/W,Firmware LGE SAA30505501 Contact Us For Availability
IC101
IC,RF Amplifier LGE EAN39094001 Contact Us For Availability
IC101A
S/W Package LGE SAB31582124 Contact Us For Availability
IC101A
S/W,System Program LGE SAA31582203 Contact Us For Availability
IC102
IC,LDO Voltage Regulator LGE EAN38690602 Contact Us For Availability
IC103
IC,LDO Voltage Regulator LGE EAN38670701 Contact Us For Availability
IC104
IC,Voltage Detector LGE EAN39688601 Contact Us For Availability
IC200
IC,DDR SDRAM LGE 0IMMR00045B Contact Us For Availability
IC401A
S/W,Firmware LGE SAA30591312 Contact Us For Availability
IC501
IC,Voltage Detector LGE 0IPMGON022A Contact Us For Availability
IC502
IC,DC,DC Converter LGE 0IPMGMX032A Contact Us For Availability
IC503
IC,Charge Pump LGE EAN32218301 Contact Us For Availability
IC600
IC,PMIC LGE 0IPMG78476B Contact Us For Availability
IC702
IC,DC,DC Converter LGE 0IPMG78479A Contact Us For Availability
IC703
IC,Audio Amplifier LGE EAN36286101 Contact Us For Availability
IC800
IC,LDO Voltage Regulator LGE EAN38670901 Contact Us For Availability
IC802
IC,Sound/Audio Processor LGE EAN39212301 Contact Us For Availability
IC804
IC,Bluetooth LGE EAN39299701 Contact Us For Availability
IC805
IC,LDO Voltage Regulator LGE EAN38671001 Contact Us For Availability
JK101
Connector,RF LGE EAG36370101 Contact Us For Availability
JK700
Jack,Phone LGE 6612F00104A Contact Us For Availability
L102
Inductor,Multilayer,Chip LGE EAP32186301 Contact Us For Availability
L113
Inductor,Multilayer, LGE EAP30395901 Contact Us For Availability
L116
Inductor,Multilayer, LGE EAP32185701 Contact Us For Availability
L503
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
L505
INDUCTOR,CHIP LGE 0LCTA00008A Contact Us For Availability
L506
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L602
Inductor,Wire Wound,Chip LGE EAP39645901 Contact Us For Availability
L705
Filter,Bead LGE 0LCTD00034A Contact Us For Availability
L712
INDUCTOR,CHIP LGE 0LCCE00049A Contact Us For Availability
L809
Inductor,Multilayer, LGE EAP35677801 Contact Us For Availability
L810
Inductor,Multilayer,Chip LGE 0LCCE00013H Contact Us For Availability
L902
Filter,Bead LGE EAM33531101 Contact Us For Availability
L903
Filter,Bead LGE 0LCCE00031B Contact Us For Availability
MIC800
Microphone,Condenser LGE EAB37151401 Contact Us For Availability
Q501
FET LGE 0TFVI80042A Contact Us For Availability
Q701
FET LGE 0TFVI80065A Contact Us For Availability
Q900
FET LGE 0TFVI80061A Contact Us For Availability
R100
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R201
Resistor,Chip LGE EBC37969401 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ3401C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ1101D477 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R531
Resistor,Chip LGE 0RJ0132C478 Contact Us For Availability
R537
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R553
Resistor,Chip LGE EBC40336401 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ8203C478 Contact Us For Availability
R613
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ6803C478 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ3003C478 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ3303C478 Contact Us For Availability
R717
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R722
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R800
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R827
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R828
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R849
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R900
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R910
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R1016
Resistor,Chip LGE 0RH4700B622 Contact Us For Availability
SW500
Tact Switch LGE 6600R000030 Contact Us For Availability
V500
Varistor LGE EAF30745101 Contact Us For Availability
X100
Oscillator,VCXO LGE EAW35295001 Contact Us For Availability
X300
Crystal LGE EAW32860901 Contact Us For Availability
X301
Crystal LGE 6212AB2327X Contact Us For Availability
X302
Oscillator,Crystal LGE EAW32601804 Contact Us For Availability
X700
Crystal LGE EAW30176101 Contact Us For Availability
X800
Crystal LGE EAW37968902 Contact Us For Availability
X801
Crystal LGE EAW31362301 Contact Us For Availability
× ![]()
