Model LG LN790 NAVIGATION – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2

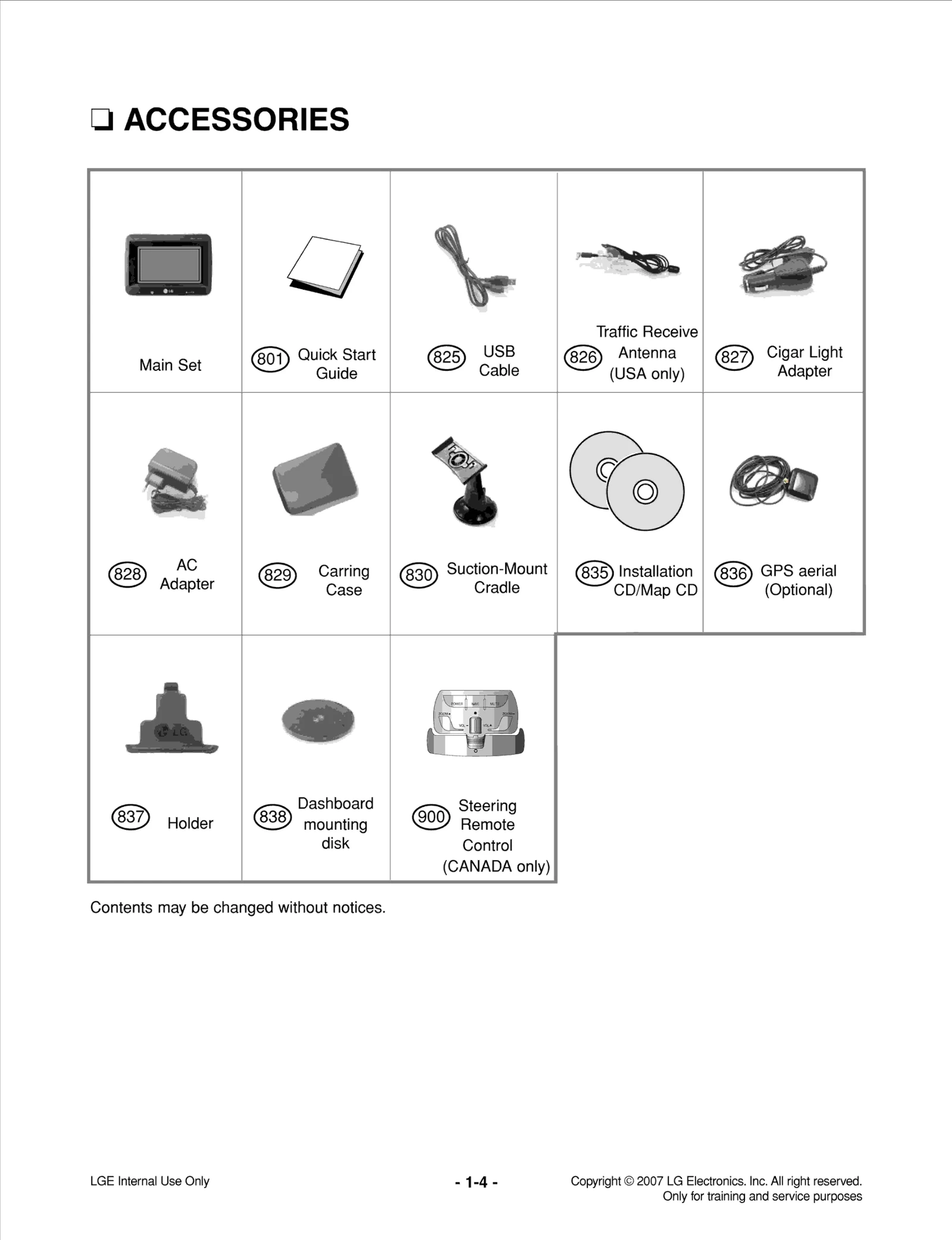

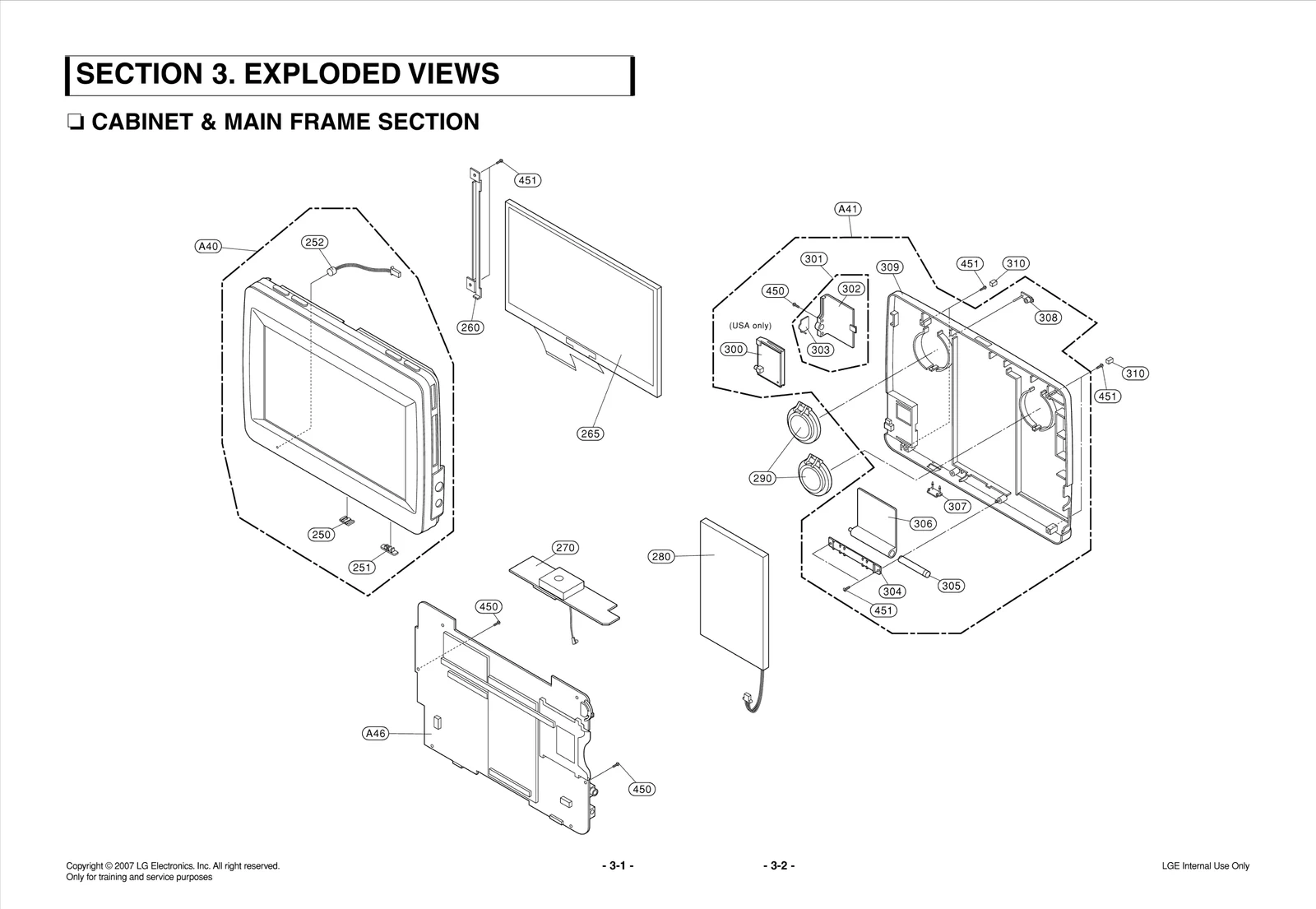

Common parts from model LG LN790 NAVIGATION
250
Knob LGE MEY32387502 Contact Us For Availability
251
Button LGE MBG36920301 Contact Us For Availability
252
Microphone,Condenser LGE EAB30660502 Contact Us For Availability
260
Bracket LGE MAZ37459301 Contact Us For Availability
261
Sheet LGE MHK41526401 Contact Us For Availability
265
LCD,Module-TFT LGE EAJ38087101 Contact Us For Availability
270
Antenna,GPS LGE EAA38586801 Contact Us For Availability
280
Battery,Assembly LGE EAC38144301 Contact Us For Availability
290
Speaker,Full Range LGE EAB32819703 Contact Us For Availability
300
Tuner,Analog LGE EBL36622401 Contact Us For Availability
301
Cover Assembly LGE ACQ33836901 Contact Us For Availability
302
Cover LGE MCK36922001 Contact Us For Availability
304
Cover LGE MCK36922101 Contact Us For Availability
305
Hinge LGE MEF37459901 Contact Us For Availability
306
Stopper LGE MJB36922201 Contact Us For Availability
307
Cap LGE MBL37464701 Contact Us For Availability
308
Cover LGE MCK34188601 Contact Us For Availability
451
Screw,Customized LGE 353-632E Contact Us For Availability
801
Manual Assembly,Owners LGE AFN36198703 Contact Us For Availability
825
Cable,Assembly LGE 6851B09288G Contact Us For Availability
826
Antenna,Rod LGE EAA37141301 Contact Us For Availability
827
Adapters, Car LGE EAY38302301 Contact Us For Availability
827
Adapters LGE EAY41999501 Contact Us For Availability
828
Adapters, AC Power cord LGE 6708BA0071A Contact Us For Availability
830
Accessory Assembly LGE AAA33311902 Contact Us For Availability
835
Title LGE SAC30904201 Contact Us For Availability
837
Holder LGE MEG36922901 Contact Us For Availability
838
Supporter Assembly LGE AJJ33312401 Contact Us For Availability
A40
Case Assembly LGE ABQ33954806 Contact Us For Availability
A41
Case Assembly LGE ABQ33960702 Contact Us For Availability
A46
PCB Assembly LGE EBR39526201 Contact Us For Availability
ANT1200
Antenna,Bar LGE 5010R-B002A Contact Us For Availability
C332
Capacitor,Ceramic,Ch LGE 0CK220BK5DA Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C505
Capacitor,Ceramic,Ch LGE 0CK270BKFDA Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C722
Capacitor,Ceramic,Ch LGE EAE30281601 Contact Us For Availability
C1016
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C1030
Capacitor,Ceramic,Chip LGE 0CK221BK56A Contact Us For Availability
C1039
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
C1105
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C1106
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
C1109
Capacitor,Ceramic,Ch LGE 0CK330BK4DA Contact Us For Availability
C1204
Capacitor,Ceramic,Chip LGE 0CZZB00055A Contact Us For Availability
C1306
Capacitor,Ceramic,Ch LGE ECZH0003104 Contact Us For Availability
C1405
Capacitor,Ceramic,Ch LGE 0CK102BKG6A Contact Us For Availability
C1411
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C1415
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C1419
Capacitor,Ceramic,Chip LGE ECCH0000901 Contact Us For Availability
C1420
Capacitor,Ceramic,Ch LGE 0CK060BK5FA Contact Us For Availability
C1425
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C1428
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1434
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
CN200
Connector,Wafer LGE 6630V90135A Contact Us For Availability
CN1100
Connector,FFC/FPC/PI LGE EAG31036202 Contact Us For Availability
CN1103
Socket,Card LGE 6630CL00711 Contact Us For Availability
CN1200
Connector,Wafer LGE 6630V90161A Contact Us For Availability
CN1300
Connector,BtoB LGE EAG36246902 Contact Us For Availability
CN1400
Connector,RF LGE EAG35813201 Contact Us For Availability
CT301
Capacitor,Ceramic,Ch LGE EAE32183101 Contact Us For Availability
CT802
Capacitor,TA,Niobium LGE 0CS226ED5DC Contact Us For Availability
CT1001
Capacitor,TA,Niobium LGE 0CS227HB6DC Contact Us For Availability
D204
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D1004
Diode,Switching LGE 0DD226009AA Contact Us For Availability
D1102
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D1300
DIODE,DETACTOR LGE 0DTSE00018A Contact Us For Availability
FL1301
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
FL1400
Filter,Saw LGE 6200QL3003R Contact Us For Availability
IC201
IC,Voltage Detector LGE 0IPMGON022A Contact Us For Availability
IC202
IC,Charge Pump LGE EAN32218301 Contact Us For Availability
IC307
IC,LDO Voltage Regul LGE EAN34129801 Contact Us For Availability
IC309
IC,LDO Voltage Regul LGE EAN34129501 Contact Us For Availability
IC310
IC,DC,DC Converter LGE EAN32965001 Contact Us For Availability
IC404
IC,Microcontrollers LGE EAN36355601 Contact Us For Availability
IC404A
S/W,System Program LGE SAA31008101 Contact Us For Availability
IC500
IC,Digital Signal Pr LGE EAN33789304 Contact Us For Availability
IC501
IC,I/O Support Chip LGE EAN36353601 Contact Us For Availability
IC801
IC,DDR2 SDRAM LGE EAN37266201 Contact Us For Availability
IC902
IC,NAND Flash Memory LGE EAN31008201 Contact Us For Availability
IC902A
S/W,System Program LGE SAA31008001 Contact Us For Availability
IC907
IC,Buffer LGE EAN36356201 Contact Us For Availability
IC1000
IC,Audio Codec LGE 0IPRP00607C Contact Us For Availability
IC1004
IC,Audio Amplifier LGE 0IPRP00676A Contact Us For Availability
IC1100
IC,DC,DC Converter LGE 0IPMGMX032C Contact Us For Availability
IC1200
Module,Bluetooth LGE EAT38907201 Contact Us For Availability
IC1400
IC,LDO Voltage Regul LGE 0IPMG78496A Contact Us For Availability
IC1402
TR,Bipolar LGE EBK35326801 Contact Us For Availability
IC1403
IC,GPS LGE EAN38069401 Contact Us For Availability
IC1403A
S/W,System Program LGE SAA31008201 Contact Us For Availability
JK200
Jack,DC Power LGE EAG31020201 Contact Us For Availability
JK1001
Jack,Phone LGE 6612F00021B Contact Us For Availability
JK1300
Connector,USB LGE 6630S70012A Contact Us For Availability
L314
Inductor,Wire Wound, LGE EAP30631701 Contact Us For Availability
L501
Filter,Bead LGE EAM30232801 Contact Us For Availability
L1007
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
L1100
Inductor,Wire Wound, LGE EAP32187201 Contact Us For Availability
L1204
Filter,Bead LGE 0LC11608D01 Contact Us For Availability
L1402
Inductor,Multilayer, LGE EAP32185701 Contact Us For Availability
L1406
Inductor,Multilayer, LGE EAP35161701 Contact Us For Availability
L1409
Inductor,Multilayer, LGE EAP30395901 Contact Us For Availability
L1410
Filter,Bead LGE 0LCCE00003C Contact Us For Availability
LD201
LED LGE 0DLAU0098AA Contact Us For Availability
Q201
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q205
FET LGE 0TFVI80042A Contact Us For Availability
Q1001
FET LGE 0TFVI80065A Contact Us For Availability
R203
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R213
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ8201C477 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ8873C478 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ3003C478 Contact Us For Availability
R406
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ3401C478 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R938
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1010
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R1014
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1023
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R1100
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1113
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R1223
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R1327
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R1401
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R1414
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1424
RESISTOR,METAL GLAZE LGE 0RJ3000C678 Contact Us For Availability
SW401
Switch,Slide LGE EBF33599701 Contact Us For Availability
SW1300
Switch,Slide LGE EBF36354901 Contact Us For Availability
SW1303
Switch,Tact LGE 6600R000058 Contact Us For Availability
V401
Varistor LGE EAF30745101 Contact Us For Availability
V1102
Varistor LGE 6102R7C001E Contact Us For Availability
X500
Crystal LGE EAW32741901 Contact Us For Availability
X501
Crystal LGE EAW30067101 Contact Us For Availability
X502
Crystal LGE EAW32860903 Contact Us For Availability
X1000
Crystal LGE EAW30176101 Contact Us For Availability
X1400
Oscillator,Crystal LGE EAW30179101 Contact Us For Availability
× ![]()
