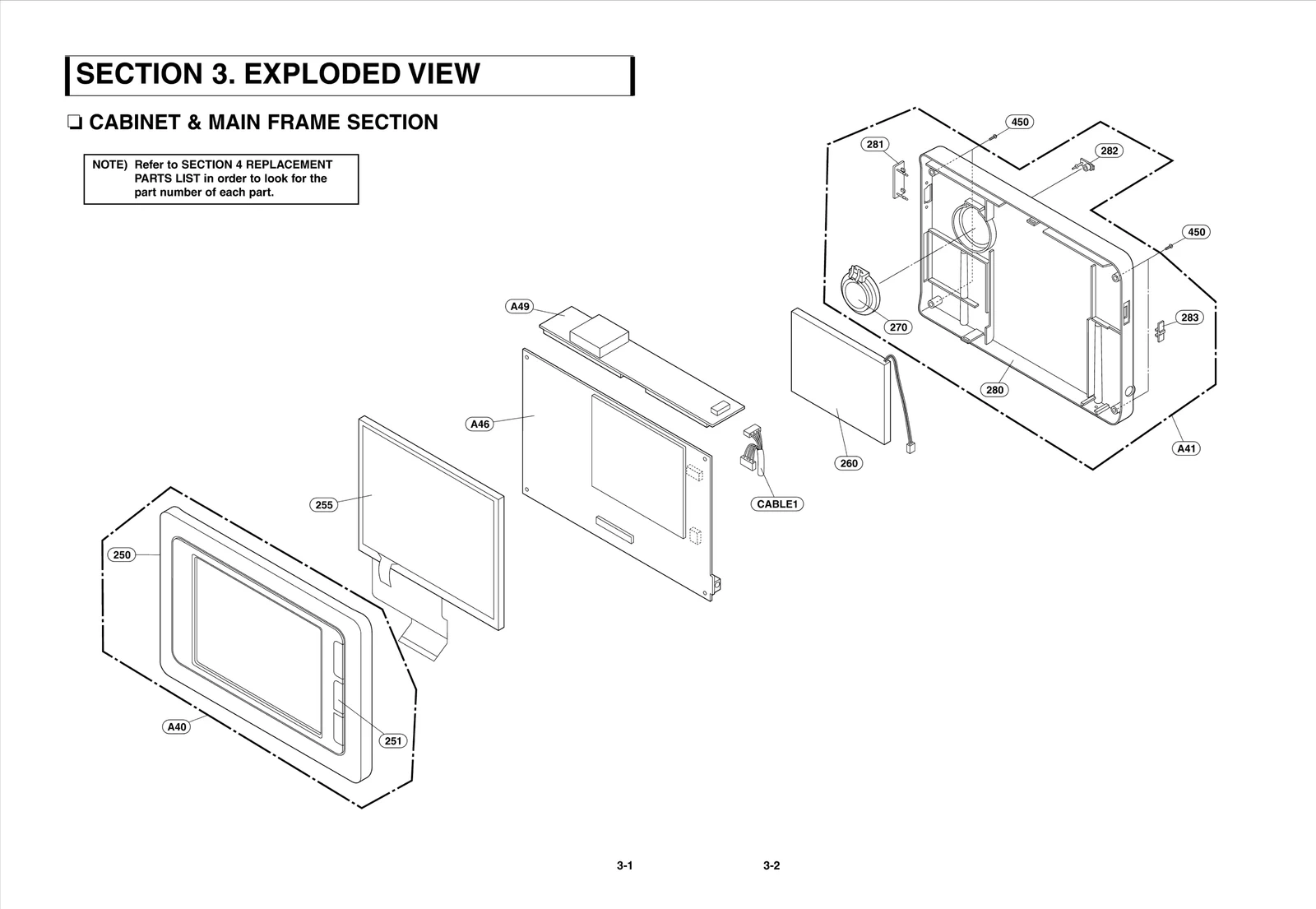

Common parts from model LG LN735
251
Button LGE MBG34188201 Contact Us For Availability
255
LCD,Module-TFT LGE EAJ35298201 Contact Us For Availability
260
Battery,Assembly LGE EAC35931001 Contact Us For Availability
270
Speaker,Full Range LGE EAB32819702 Contact Us For Availability
280
Case LGE MBN36353801 Contact Us For Availability
281
Cover LGE MCK34188501 Contact Us For Availability
282
Cover LGE MCK34188601 Contact Us For Availability
283
Button LGE MBG34188101 Contact Us For Availability
450
Screw,Customized LGE 353-632E Contact Us For Availability
801
Manual Assembly,Owne LGE AFN32082727 Contact Us For Availability
825
Cable,Assembly LGE 6851B09288E Contact Us For Availability
827
Adapters LGE EAY33653701 Contact Us For Availability
828
Adapters, AC Power cord LGE 6708BA0071A Contact Us For Availability
829
Case LGE MBN37918701 Contact Us For Availability
830
Accessory Assembly LGE AAA33311901 Contact Us For Availability
835
Title LGE SAC30580127 Contact Us For Availability
A40
Case Assembly LGE ABQ31834204 Contact Us For Availability
A41
Case Assembly LGE ABQ33319801 Contact Us For Availability
A46
PCB Assembly,Main LGE EBR37276816 Contact Us For Availability
A49
Option Code Assembly LGE EBR36416604 Contact Us For Availability
ANT100
Antenna,Chip LGE EAA30180702 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE ECCH0000901 Contact Us For Availability
C105
Capacitor,Ceramic,Ch LGE 0CK330BK4DA Contact Us For Availability
C110
Capacitor,Ceramic,Ch LGE 0CK270BKFDA Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C118
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C120
Capacitor,Ceramic,Ch LGE ECZH0003104 Contact Us For Availability
C123
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C125
Capacitor,Ceramic,Ch LGE 0CK102BKG6A Contact Us For Availability
C128
Capacitor,Ceramic,Ch LGE 0CK103BHG6A Contact Us For Availability
C148
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C153
Capacitor,Ceramic,Ch LGE 0CK060BK5FA Contact Us For Availability
C517
Capacitor,Ceramic,Ch LGE 0CK104CK66A Contact Us For Availability
C518
LGE 0CH1225H944 LGE 0CH1225H944 Contact Us For Availability
C520
Capacitor,Ceramic,Ch LGE EAE32208601 Contact Us For Availability
C524
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C600
Capacitor,Ceramic,Ch LGE 0CK220BK5DA Contact Us For Availability
C602
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C603
Capacitor,Ceramic,Ch LGE EAE32185001 Contact Us For Availability
C606
Capacitor,Ceramic,Ch LGE EAE30282201 Contact Us For Availability
C614
Capacitor,Ceramic,Ch LGE 0CK472BHG6A Contact Us For Availability
C615
Capacitor,Ceramic,Ch LGE 0CK224CH94A Contact Us For Availability
C632
Capacitor,Ceramic,Ch LGE 0CK105CD67A Contact Us For Availability
C634
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C700
Capacitor,Ceramic,Chip LGE 0CH1475D946 Contact Us For Availability
C801
Capacitor,Ceramic,Ch LGE EAE32183101 Contact Us For Availability
C806
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C904
Capacitor,Ceramic,Ch LGE 0CK476FF56A Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE 0CH1226D944 Contact Us For Availability
C1012
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
C1017
Capacitor,Ceramic,Chip LGE 0CH1106F944 Contact Us For Availability
CABLE1
Harness,Single LGE EAD35863001 Contact Us For Availability
CN501
CONNECTOR (CIRC),FFC LGE 6630HXE440E Contact Us For Availability
CN700
Connector,FFC/FPC/PI LGE EAG31019601 Contact Us For Availability
CN800
Connector,Wafer LGE 6630V90161D Contact Us For Availability
CN900
Connector,Wafer LGE 6630V90135A Contact Us For Availability
D401
DIODE,DETACTOR LGE 0DTSE00018A Contact Us For Availability
D600
Diode,Schottky LGE EAH30471101 Contact Us For Availability
D901
Diode,Switching LGE 0DSKE00298B Contact Us For Availability
D902
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D903
Diode,Switching LGE 0DSON00198A Contact Us For Availability
FL100
Filter,Saw LGE 6200QL3003R Contact Us For Availability
FL700
Filter,Line Noise LGE 6200J000039 Contact Us For Availability
IC100A
S/W,Firmware LGE SAA30505502 Contact Us For Availability
IC101
FET LGE EBK35328301 Contact Us For Availability
IC102
IC,LDO Voltage Regul LGE 0IPMG78496A Contact Us For Availability
IC104
TR,Bipolar LGE EBK35326801 Contact Us For Availability
IC200
IC,Analog Switch LGE EAN32218001 Contact Us For Availability
IC401A
S/W,System Program LGE SAA30583918 Contact Us For Availability
IC401B
S/W,System Program LGE SAA30583917 Contact Us For Availability
IC500
IC,DC,DC Converter LGE 0IPMGMX032A Contact Us For Availability
IC600
IC,DC,DC Converter LGE 0IPMG78479A Contact Us For Availability
IC601
IC,Audio Codec LGE 0IPRP00607C Contact Us For Availability
IC605
IC,LDO Voltage Regul LGE EAN32695101 Contact Us For Availability
IC800
IC,Reset LGE 0IPMG78481B Contact Us For Availability
IC801
IC,Microcontrollers LGE EAN32749901 Contact Us For Availability
IC901
IC,Charge Pump LGE EAN32218301 Contact Us For Availability
IC1000
IC,DC,DC Converter LGE EAN32965001 Contact Us For Availability
IC1001
IC,LDO Voltage Regul LGE EAN33775401 Contact Us For Availability
IC1002
IC,Power Generator LGE 0IPMG78480A Contact Us For Availability
IC1003
IC,DC,DC Converter LGE EAN36285001 Contact Us For Availability
IC1006
IC,LDO Voltage Regul LGE 0IPMGA1022A Contact Us For Availability
IC1201
IC,Digital Signal Pr LGE 0ILNR00274A Contact Us For Availability
JK100
Connector,RF LGE EAG35294802 Contact Us For Availability
JK700
Connector,USB LGE 6630S70012A Contact Us For Availability
JK900
Jack,DC Power LGE EAG31020201 Contact Us For Availability
L102
Inductor,Multilayer, LGE EAP32187101 Contact Us For Availability
L111
Inductor,Multilayer, LGE EAP35161701 Contact Us For Availability
L113
Inductor,Multilayer, LGE EAP30395901 Contact Us For Availability
L114
Inductor,Multilayer, LGE EAP35677801 Contact Us For Availability
L115
Inductor,Multilayer, LGE EAP32186401 Contact Us For Availability
L116
Inductor,Multilayer, LGE EAP32185701 Contact Us For Availability
L202
Filter,Bead LGE 0LCCE00003C Contact Us For Availability
L600
Inductor,Wire Wound, LGE EAP32187201 Contact Us For Availability
L800
Filter,Bead LGE EAM30232801 Contact Us For Availability
L1002
Inductor,Wire Wound, LGE EAP30631701 Contact Us For Availability
Q800
FET LGE 0TFVI80065A Contact Us For Availability
Q900
FET LGE 0TFVI80042A Contact Us For Availability
Q901
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q1001
FET LGE EBK36283401 Contact Us For Availability
R117
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ1004C477 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ5100C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R303
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ3003C478 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ9102C678 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R811
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R904
RESISTOR,METAL GLAZE LGE 0RH1101C422 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R915
Resistor,Chip LGE 0RJ0000C477 Contact Us For Availability
R919
Resistor,Chip LGE 0RH1203C422 Contact Us For Availability
R920
Resistor,Chip LGE 0RJ4303C477 Contact Us For Availability
R1002
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R1202
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
SW803
Switch,Tact LGE EBF30329201 Contact Us For Availability
SW900
Switch,Slide LGE 6600Q000026 Contact Us For Availability
X100
Oscillator,Crystal LGE EAW30179101 Contact Us For Availability
X101
Crystal LGE EAW30067101 Contact Us For Availability
X200
Crystal LGE 6212AB4120C Contact Us For Availability
X600
Crystal LGE EAW30176101 Contact Us For Availability
× ![]()
