Model Electrolux LMW850-1 MICROWAVE – Common Parts & Diagrams

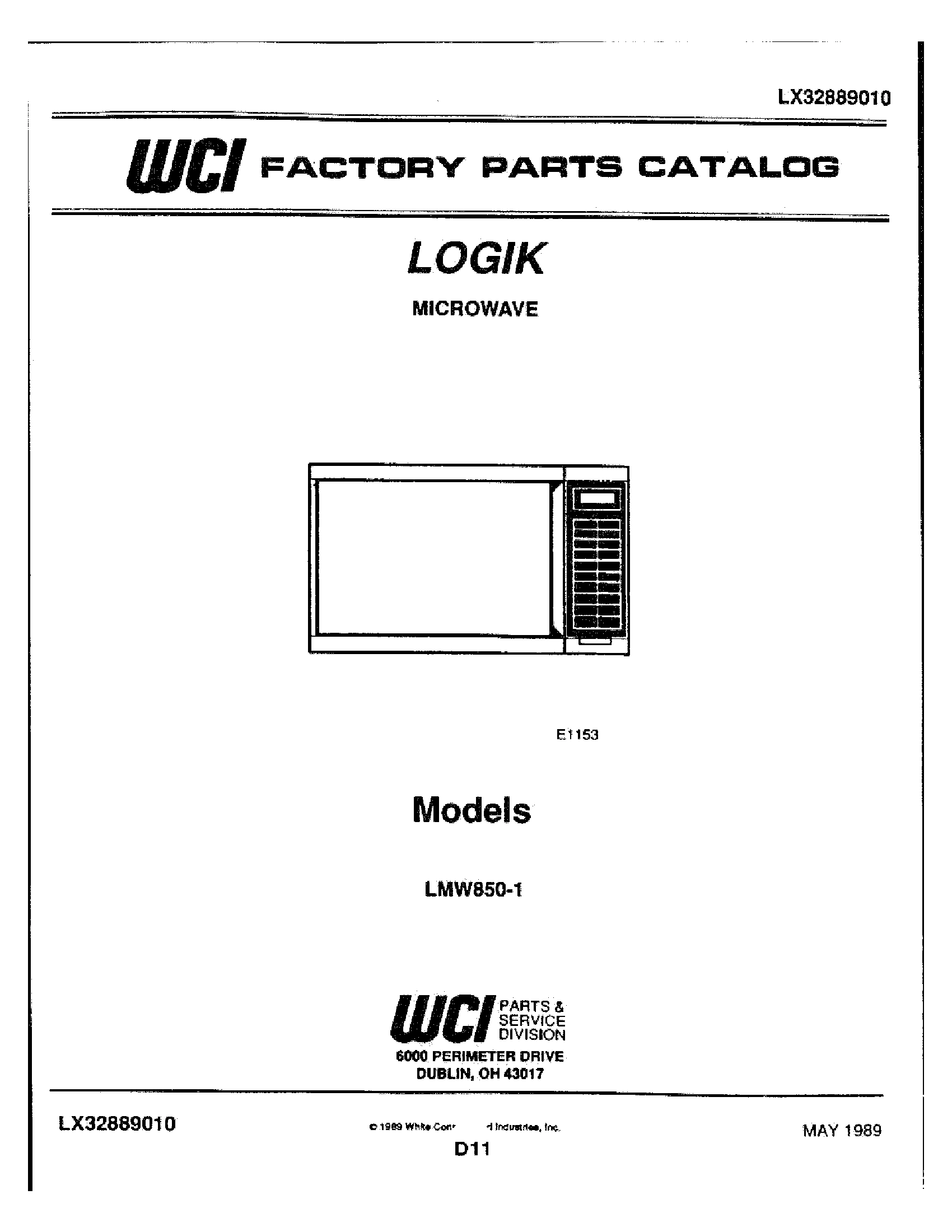

01 - COVER

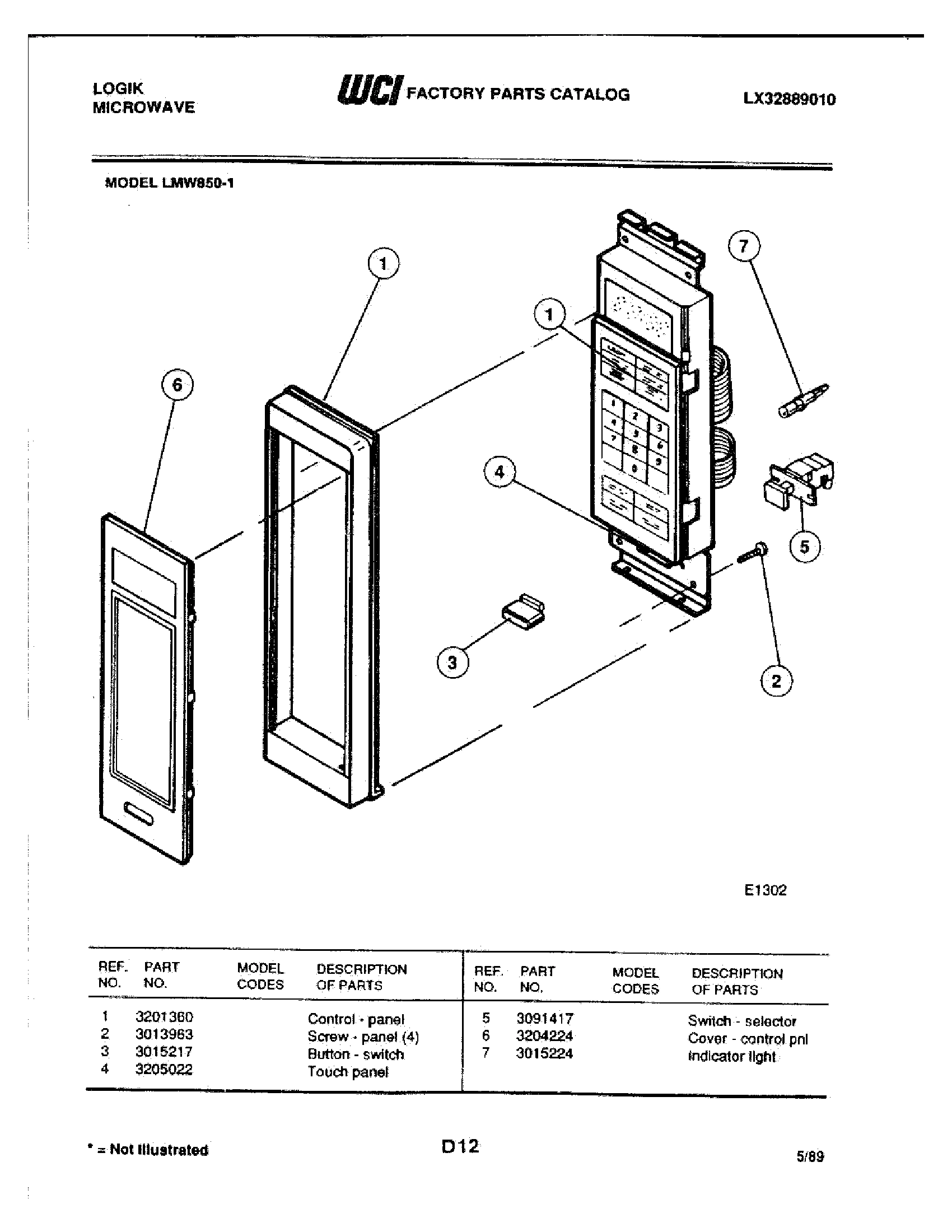

02 - CONTROL PANEL

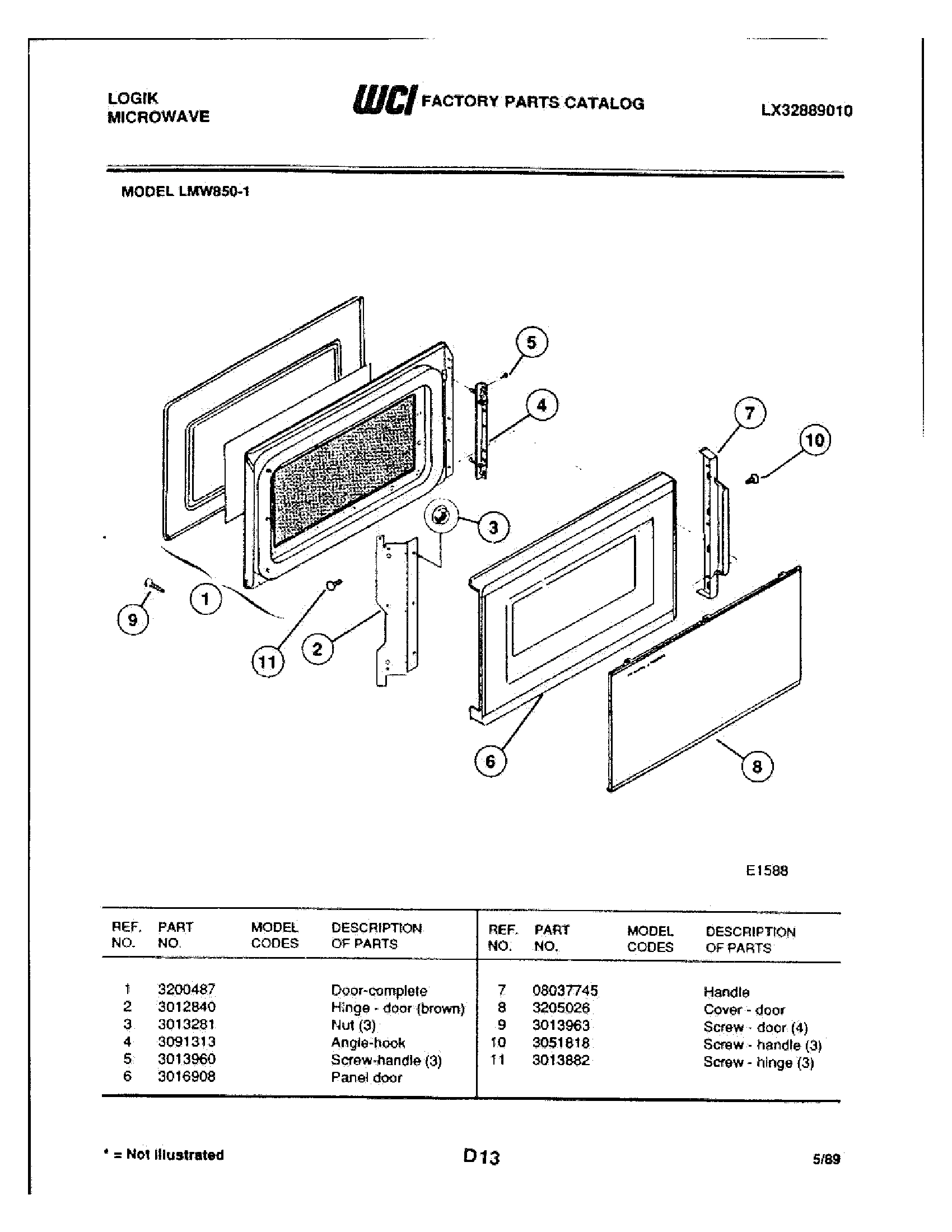

03 - DOOR

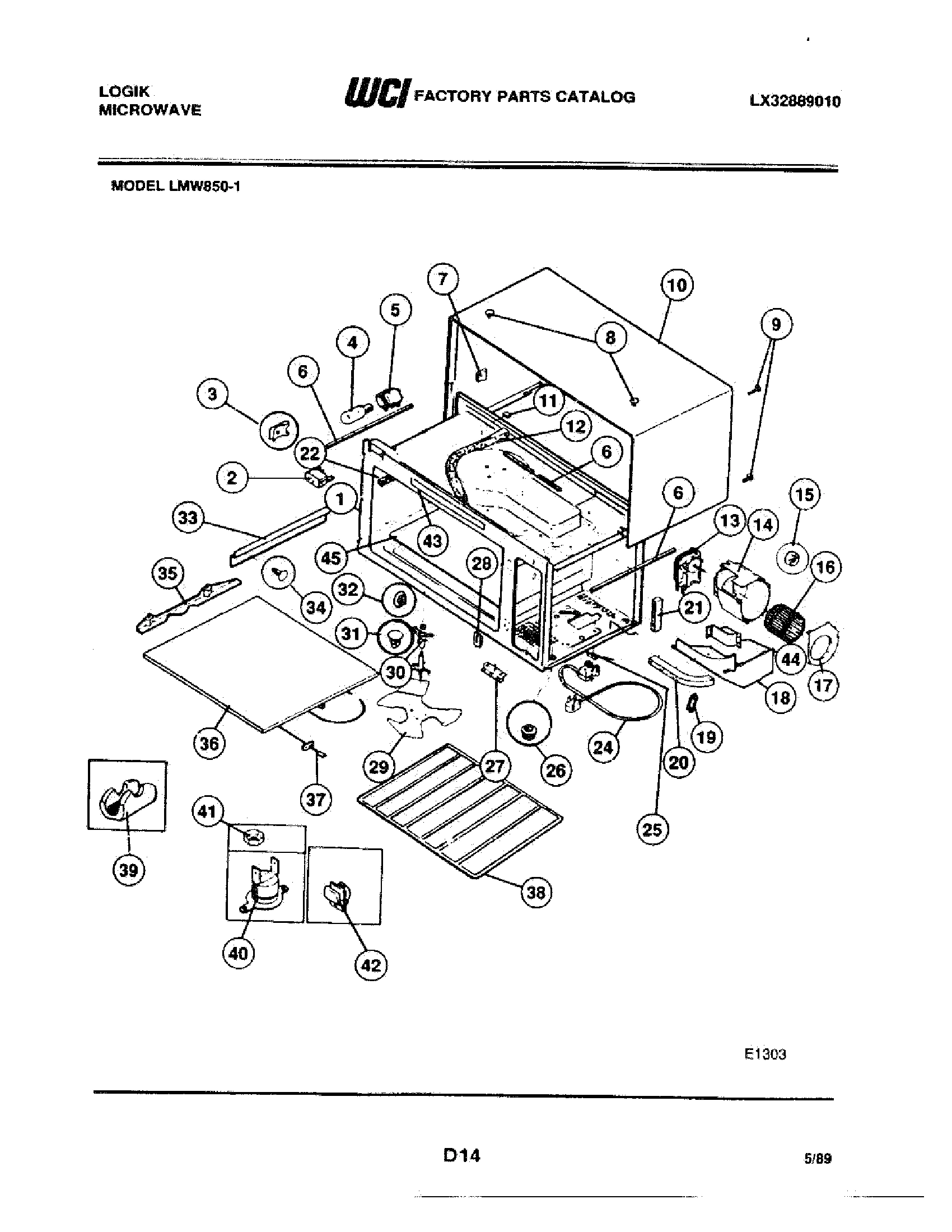

04 - CABINET

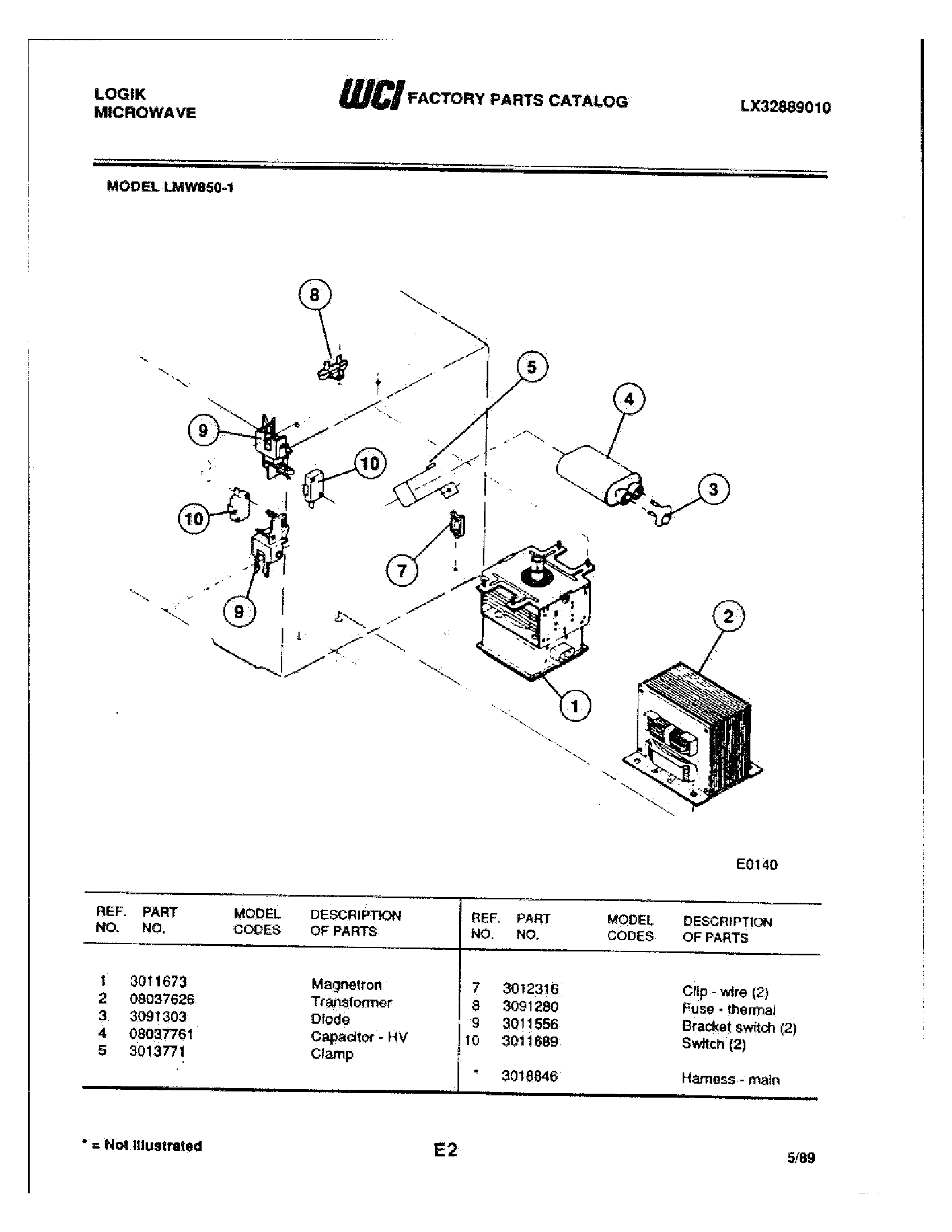

05 - TRANSFORMER
Common parts from model Electrolux LMW850-1 MICROWAVE
WCI 3018850 WCI 3018850 Contact Us For Availability
HARNESS - MAIN WCI 3018846 Contact Us For Availability
1
WCI 3201360 WCI 3201360 Contact Us For Availability
1
WCI 3200487 WCI 3200487 Contact Us For Availability
1
LINER-WHITE WCI N/A Contact Us For Availability
1
WCI 3011673 WCI 3011673 Contact Us For Availability
2
HINGE - DOOR (BROWN) WCI 3012840 Contact Us For Availability
2
WCI 3201602 WCI 3201602 Contact Us For Availability
2
WCI 08037626 WCI 08037626 Contact Us For Availability
3
WCI 3015217 WCI 3015217 Contact Us For Availability
3
NUT WCI 3013281 Contact Us For Availability
3
WCI 3091303 WCI 3091303 Contact Us For Availability
4
WCI 3205022 WCI 3205022 Contact Us For Availability
4
WCI 3091313 WCI 3091313 Contact Us For Availability
4
BULB 25 WATTS WCI 08037734 Contact Us For Availability
4
WCI 08037761 WCI 08037761 Contact Us For Availability
5
WCI 3091417 WCI 3091417 Contact Us For Availability
5
SCREW-HANDLE WCI 3013960 Contact Us For Availability
5
WCI 3014074 WCI 3014074 Contact Us For Availability
5
WCI 3013771 WCI 3013771 Contact Us For Availability
6
WCI 3204224 WCI 3204224 Contact Us For Availability
6
PANEL - DOOR WCI 3016908 Contact Us For Availability
6
WCI 3017864 WCI 3017864 Contact Us For Availability
7
INDICATOR LIGHT WCI 3015224 Contact Us For Availability
7
WCI 08037745 WCI 08037745 Contact Us For Availability
7
CLIP - WRAPPER WCI 3012322 Contact Us For Availability
7
CLIP - WIRE WCI 3012316 Contact Us For Availability
8
WCI 3205026 WCI 3205026 Contact Us For Availability
8
PLUG - BUTTON WCI 3091555 Contact Us For Availability
8
WCI 3091280 WCI 3091280 Contact Us For Availability
9
SCREW - DOOR WCI 3013963 Contact Us For Availability
9
SCREW - WRAPPER WCI 3091100 Contact Us For Availability
9
BRACKET-SWITCH WCI 3011556 Contact Us For Availability
10
WCI 08037809 WCI 08037809 Contact Us For Availability
10
SWITCH WCI 3011689 Contact Us For Availability
11
WCI 3013882 WCI 3013882 Contact Us For Availability
11
SPACER WCI 08037724 Contact Us For Availability
12
WCI 3015213 WCI 3015213 Contact Us For Availability
14
WCI 3012868 WCI 3012868 Contact Us For Availability
15
WCI 3013270 WCI 3013270 Contact Us For Availability
16
WCI 3091501 WCI 3091501 Contact Us For Availability
17
WCI 3091309 WCI 3091309 Contact Us For Availability
18
WCI 3018201 WCI 3018201 Contact Us For Availability
20
WCI 3017865 WCI 3017865 Contact Us For Availability
21
SEAL-FOAM MAG WCI 3091131 Contact Us For Availability
22
WCI 3018200 WCI 3018200 Contact Us For Availability
24
WCI 08037629 WCI 08037629 Contact Us For Availability
25
FUSE WCI 3011670 Contact Us For Availability
26
FOOT WCI 3014907 Contact Us For Availability
27
WCI 3011555 WCI 3011555 Contact Us For Availability
28
BEZEL LATCH (WHITE) WCI 3200551 Contact Us For Availability
29
WCI 3201598 WCI 3201598 Contact Us For Availability
30
SPT - STIRRER (INCLUDES SUPPORT, COLLAR, AND WCI 3922010 Contact Us For Availability
31
PLUG - BUTTON TRAY WCI 3013628 Contact Us For Availability
32
WCI 3201365 WCI 3201365 Contact Us For Availability
33
WCI 3091289 WCI 3091289 Contact Us For Availability
34
CLIP WCI 3012309 Contact Us For Availability
35
WCI 3015214 WCI 3015214 Contact Us For Availability
35
WCI 3015215 WCI 3015215 Contact Us For Availability
36
WCI 3015229 WCI 3015229 Contact Us For Availability
37
WCI 3015216 WCI 3015216 Contact Us For Availability
38
WCI 3018845 WCI 3018845 Contact Us For Availability
39
SPACER WCI 3018581 Contact Us For Availability
40
NUT - CHANNEL WCI 3202458 Contact Us For Availability
41
WCI 3018205 WCI 3018205 Contact Us For Availability
42
SUPPORT - RACK WCI 3014221 Contact Us For Availability
43
COOKING GUIDE LABEL WCI 3018849 Contact Us For Availability
44
WCI 3012200 WCI 3012200 Contact Us For Availability
45
GLASS - TRAY WCI 3091188 Contact Us For Availability
× ![]()
