LG LMVM1945SBQ MONITOR BETTER Parts List

1002

SEAL TAPE LGE 3536WRA001T Contact Us For Availability

View on Model

1004

CHOKE COVER LGE 3552W0A001B Contact Us For Availability

View on Model

1006

4026W2A019A LG Microwave Door Latch Hook - Bl In Stock LGE 4026W2A019A $6.11

View on Model

1007

4970WRA001G LG Spring Backorder LGE 4970WRA001G $6.11

View on Model

3002

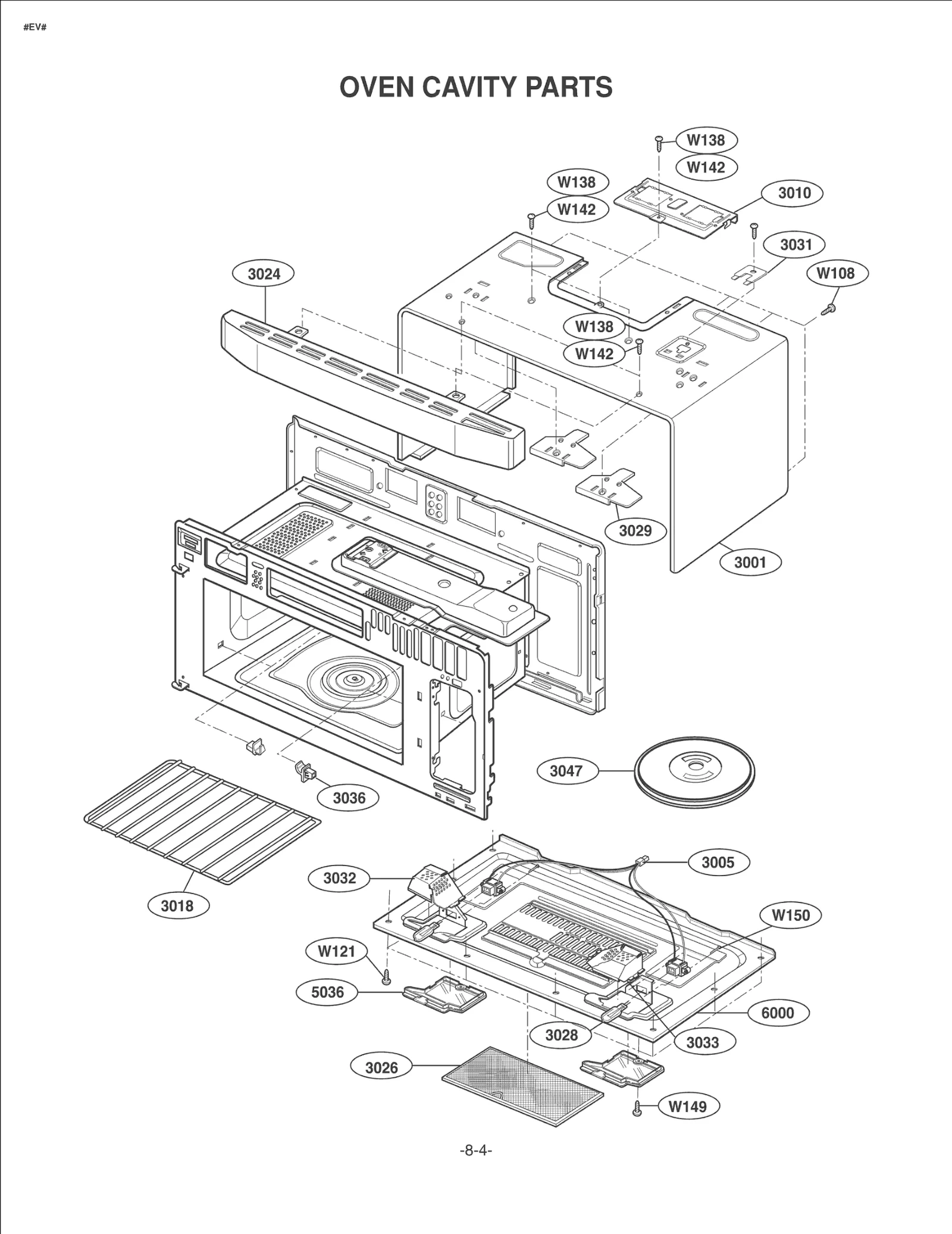

GLASS TRAY LGE 3390W0A001A Contact Us For Availability

View on Model

3004

4051W3A001A LG Connector Assembly Backorder LGE 4051W3A001A $2.03

View on Model

3007

GUIDE,AIR LGE 4974W1A021A Contact Us For Availability

View on Model

3008

ROTATING RING ASSEMBLY LGE 5889W1A007A Contact Us For Availability

View on Model

3009

6549W1S013D LG AC Synchronous Motor Backorder LGE 6549W1S013D $30.60

View on Model

3017

RING ASSEMBLY LGE 4351W1A001C Contact Us For Availability

View on Model

3018

SHELF LGE 5026W1A052B Contact Us For Availability

View on Model

3026

FILTER(MECH) LGE 5230W2A004A Contact Us For Availability

View on Model

3027

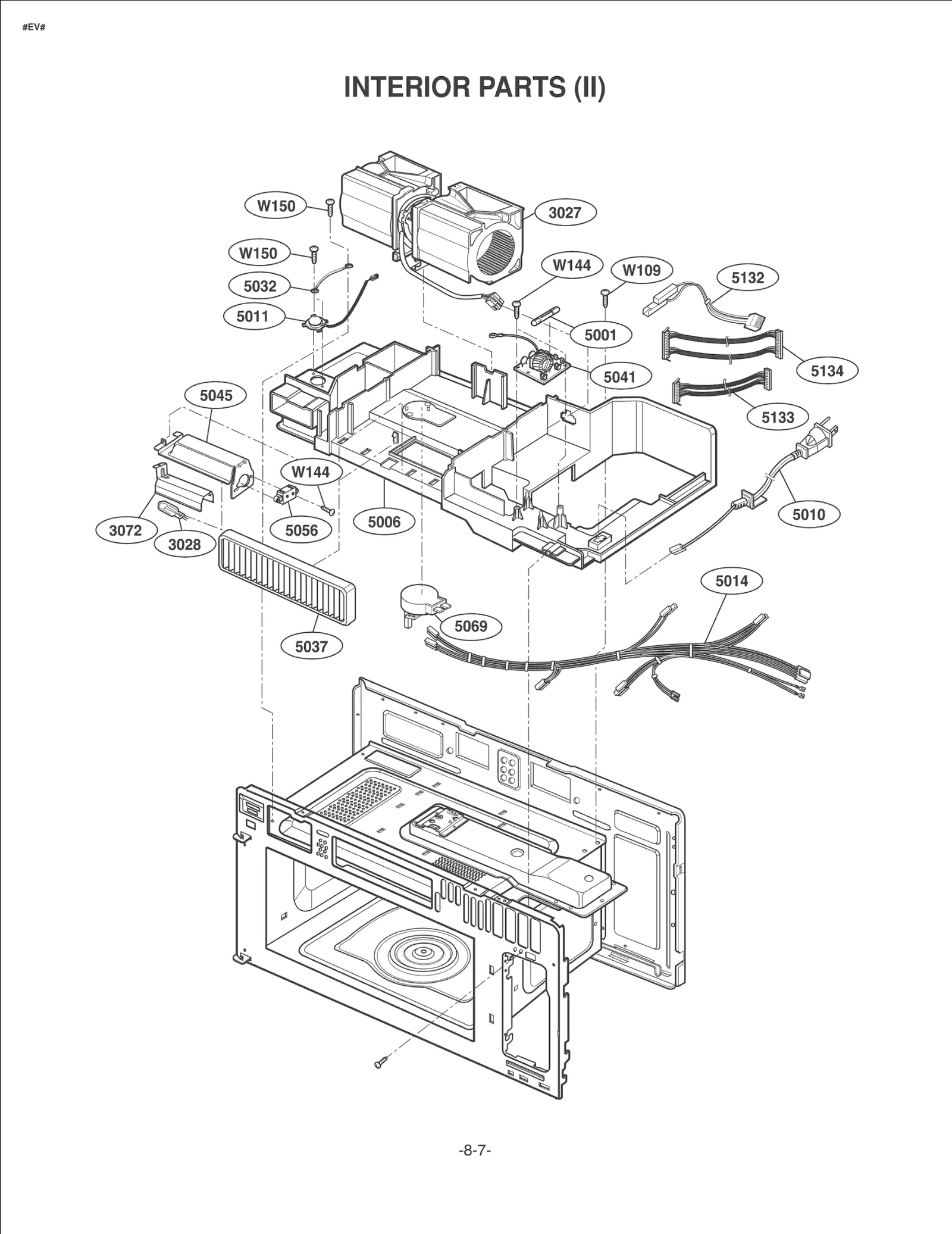

6549W1V011A LG Ventilation AC Motor Backorder LGE 6549W1V011A $45.66

View on Model

3028

LAMP,HALOGEN LGE 6912A40002D Contact Us For Availability

View on Model

3029

BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability

View on Model

3031

COVER ALL MV-1320,COVER,POWER LGE 3550W3A084A Contact Us For Availability

View on Model

3032

REFLECTOR LEFT LGE 3034W2A003B Contact Us For Availability

View on Model

3033

REFLECTOR RIGHT LGE 3034W2A002B Contact Us For Availability

View on Model

3036

HOLDER,COOK AUXILIARY LGE 4930W1A026A Contact Us For Availability

View on Model

3047

TRAY,PLASTIC LGE 3390W1A023B Contact Us For Availability

View on Model

3054

RIVET ASSEMBLY LGE 4051W3A001C Contact Us For Availability

View on Model

3072

REFLECTOR LGE 3034W1A004A Contact Us For Availability

View on Model

4000

3500W1A013R LG Locker Holder Backorder LGE 3500W1A013R $14.57

View on Model

4001

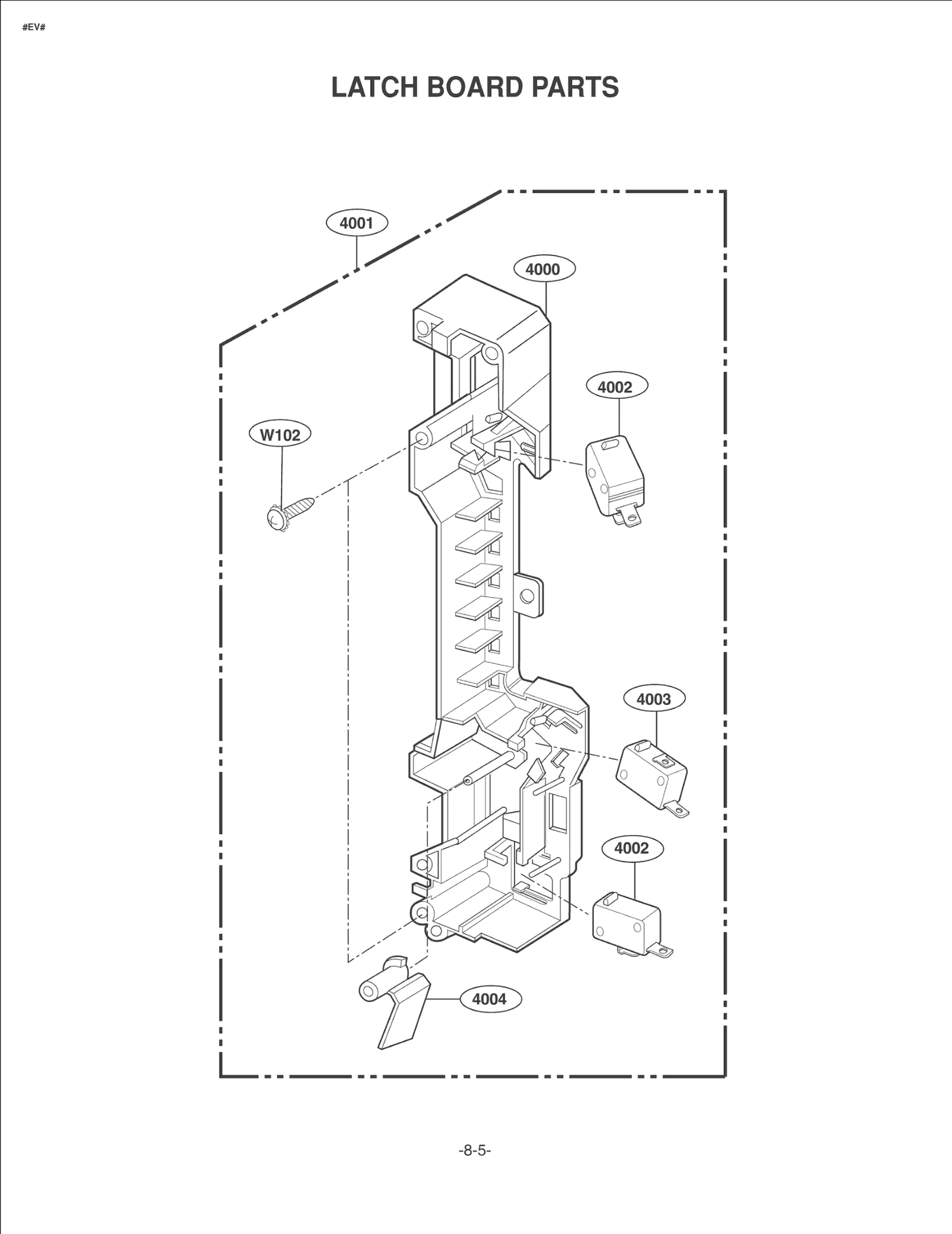

AEJ75540901 LG Locker Holder Assembly In Stock LGE AEJ75540901 $6.11

View on Model

4001

BOARD ASSY,[LATCH] LGE 3501W1A019A Contact Us For Availability

View on Model

4002

6600W1K001D LG Microwave Oven Door Micro Swit Backorder LGE 6600W1K001D $9.72

View on Model

4002

MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability

View on Model

4002

SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability

View on Model

4003

3B73361E LG Microwave Oven Micro Switch Backorder LGE 3B73361E $9.72

View on Model

4003

MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability

View on Model

4003

SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability

View on Model

4004

LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability

View on Model

5000

0CZZW1M001A LG Microwave Motor Capacitor Draw Backorder LGE 0CZZW1M001A $14.57

View on Model

5000

Capacitor,Film,Box LGE 3B72440A Contact Us For Availability

View on Model

5001

3B74133H LG Fuse Time Delay Backorder LGE 3B74133H $6.11

View on Model

5001

3B74133K LG Microwave Oven Time Delay Fuse Backorder LGE 3B74133K $4.74

View on Model

5003

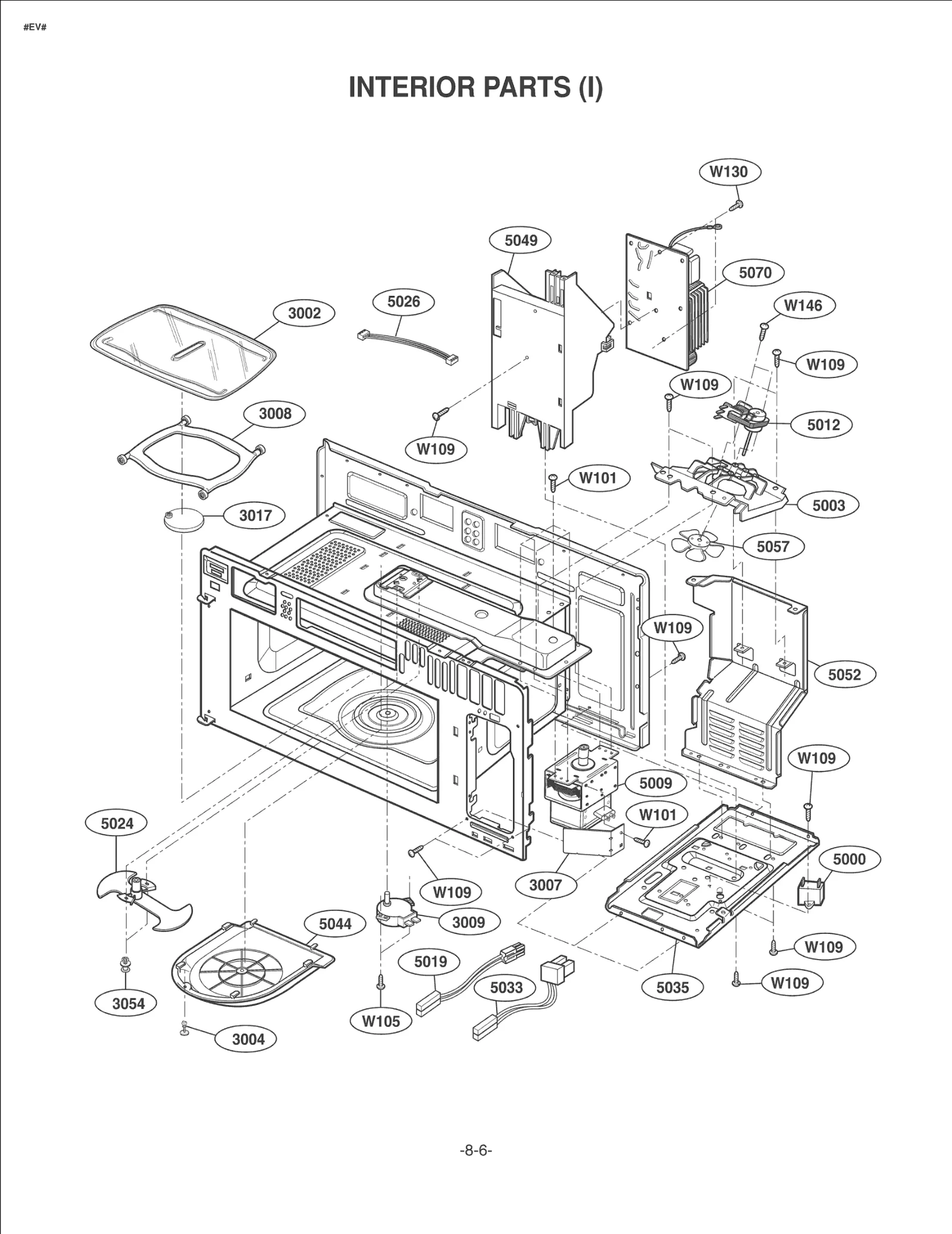

GUIDE,SUCTION LGE 4974W1A019A Contact Us For Availability

View on Model

5006

DUCT LGE 5208W0A009A Contact Us For Availability

View on Model

5009

MAGNETRON LGE 6324W1A002C Contact Us For Availability

View on Model

5010

POWER CORD ASSY A-Z SJT,AWG16/ LGE 6411W2A002E Contact Us For Availability

View on Model

5010

POWER CORD ASSEMBLY LGE 6411W1A014N Contact Us For Availability

View on Model

5011

6501W1A004A LG Sensor Assembly Backorder LGE 6501W1A004A $63.26

View on Model

5012

6549W1F001W LG AC Fan Motor Backorder LGE 6549W1F001W $44.78

View on Model

5014

HARNESS LGE 6877W1A450D Contact Us For Availability

View on Model

5016

6930W1A003J LG Microwave Oven High Limit Ther In Stock LGE 6930W1A003J $9.72

View on Model

5016

THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability

View on Model

5016

THERMOSTAT,BIMETAL LGE 6930W1A002D Contact Us For Availability

View on Model

5019

HARNESS LGE 6877W1A452A Contact Us For Availability

View on Model

5024

FAN ASSEMBLY LGE 5901W1A002A Contact Us For Availability

View on Model

5026

HARNESS LGE 6631W3A003S Contact Us For Availability

View on Model

5032

HARNESS LGE 3B72342U Contact Us For Availability

View on Model

5033

CABLE,HIGH VOLTAGE LGE 6850W1A001A Contact Us For Availability

View on Model

5035

PLATE,[BOTTOM PLATE] LGE 3300W1B001A Contact Us For Availability

View on Model

5036

COVER,[LAMP COVER] LGE 3550W2L001A Contact Us For Availability

View on Model

5037

5230W1A003A LG Microwave Charcoal Filter In Stock LGE 5230W1A003A $18.81

View on Model

5041

NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability

View on Model

5044

COVER,STIRRER FAN LGE 3550W1A169A Contact Us For Availability

View on Model

5045

3550W1A171B LG Lamp Cover Backorder LGE 3550W1A171B $14.57

View on Model

5049

4974W0A007A LG Air Guide Backorder LGE 4974W0A007A $6.95

View on Model

5052

GUIDE,AIR LGE 4974W1A020A Contact Us For Availability

View on Model

5056

HOLDER ASSEMBLY LGE 4931W1A011D Contact Us For Availability

View on Model

5057

PROPELLER LGE 2B72125A Contact Us For Availability

View on Model

5069

6549W1S002G LG AC Synchronous Motor Backorder LGE 6549W1S002G $30.60

View on Model

5070

PWB(PCB) ASSEMBLY,SUB LGE 6871W1S019A Contact Us For Availability

View on Model

5132

HARNESS LGE 6877W2S002F Contact Us For Availability

View on Model

5133

HARNESS LGE 6877W1A453E Contact Us For Availability

View on Model

5134

6877W1A453F LG Harness Assembly Backorder LGE 6877W1A453F $20.75

View on Model

6000

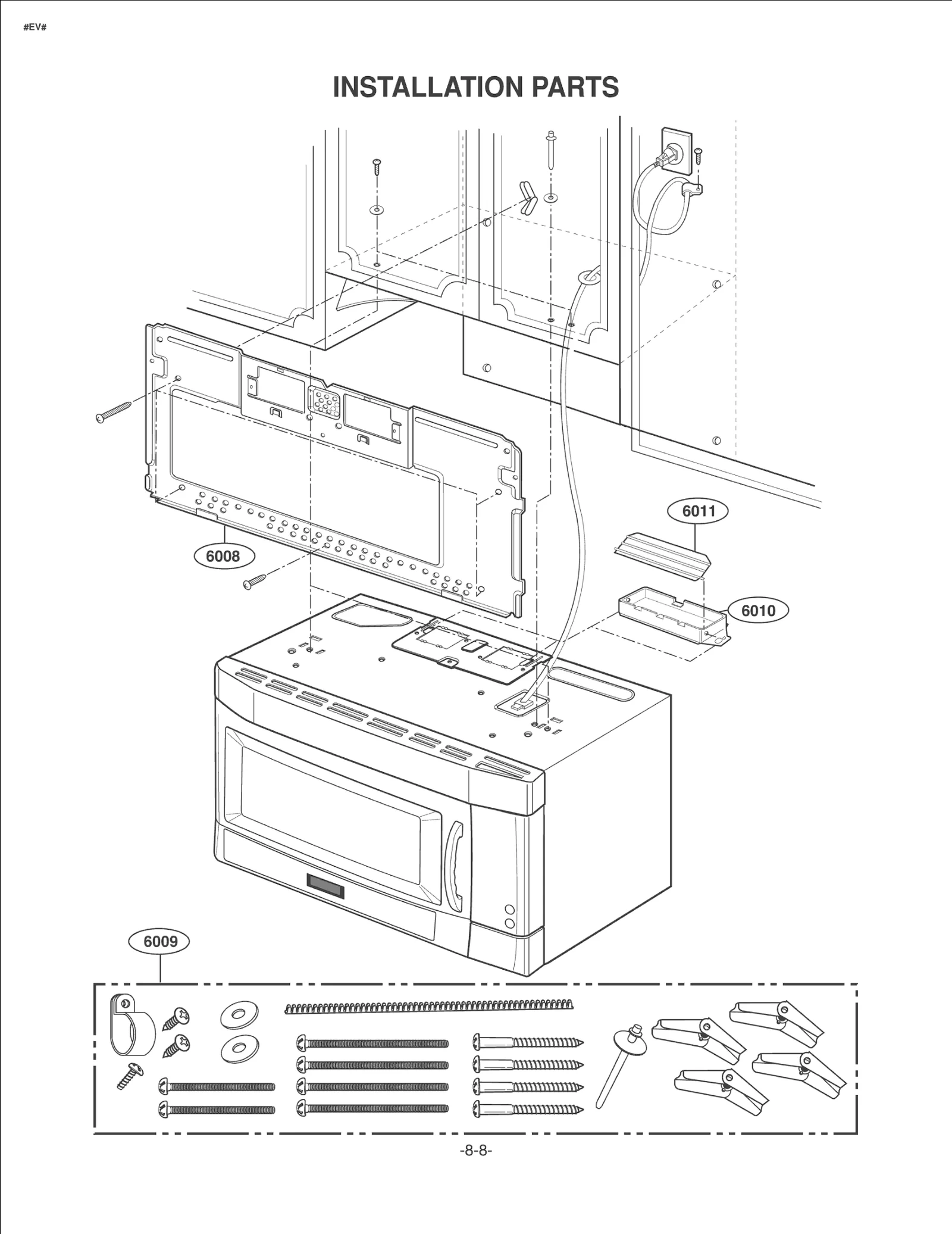

BASE PLATE LGE 3302W0A038B Contact Us For Availability

View on Model

6008

Plate,Mount LGE 3300W0A030C Contact Us For Availability

View on Model

6008

PLATE ASSEMBLY LGE 3301W0A003A Contact Us For Availability

View on Model

6009

KIT ASSEMBLY LGE 2B72771J Contact Us For Availability

View on Model

6009

MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability

View on Model

6010

4810W1A151A LG Microwave Oven Idle Bracket In Stock LGE 4810W1A151A $7.56

View on Model

6011

EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability

View on Model

MAY1

BOX,YELLOW LGE 3890W3Y874L Contact Us For Availability

View on Model

MBM2

Card,Technical LGE 3840W1T008B Contact Us For Availability

View on Model

MBM4

TEMPLATE LGE 4922W1A029A Contact Us For Availability

View on Model

MBM5

TEMPLATE LGE 4922W5A060A Contact Us For Availability

View on Model

MEZ1

Label,Cooking Guide LGE 3850W1D097A Contact Us For Availability

View on Model

MFL1

MANUAL,OWNERS LGE 3828W5A3267 Contact Us For Availability

View on Model

MFL3

MANUAL,INSTALLATION LGE 3828W5U0448 Contact Us For Availability

View on Model

W101

1SBF0402418 LG Laptop Screw Backorder LGE 1SBF0402418 $6.11

View on Model

W102

4B70188C LG Customized Screw Backorder LGE 4B70188C $6.11

View on Model

W105

1TPL0402418 LG Tapping Screw Backorder LGE 1TPL0402418 $14.57

View on Model

W108

1TTL0402418 LG Microwave Tapping Screw Backorder LGE 1TTL0402418 $4.74

View on Model

W109

1TTL0402818 LG Oven Microwave Tapping Screw Backorder LGE 1TTL0402818 $6.11

View on Model

W121

TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability

View on Model

W130

1TPL0402618 LG Tapping Screw Backorder LGE 1TPL0402618 $6.11

View on Model

W138

1TTL0402822 LG Tapping Screw Backorder LGE 1TTL0402822 $6.11

View on Model

W144

1TTL0402618 LG Tapping Screw Backorder LGE 1TTL0402618 $6.11

View on Model

W146

1TTL0403418 LG Tapping Screw Backorder LGE 1TTL0403418 $6.11

View on Model

W149

1TTL0402622 LG Tapping Screw Backorder LGE 1TTL0402622 $9.72

View on Model

W150

1TPL0302618 LG Tapping Screw Backorder LGE 1TPL0302618 $6.11

View on Model

Model LG LMVM1945SBQ MONITOR BETTER – Common Parts & Diagrams

Common parts from model LG LMVM1945SBQ MONITOR BETTER
