Model LG LMVM1935SBQ monitor good – Common Parts & Diagrams
Diagram 0

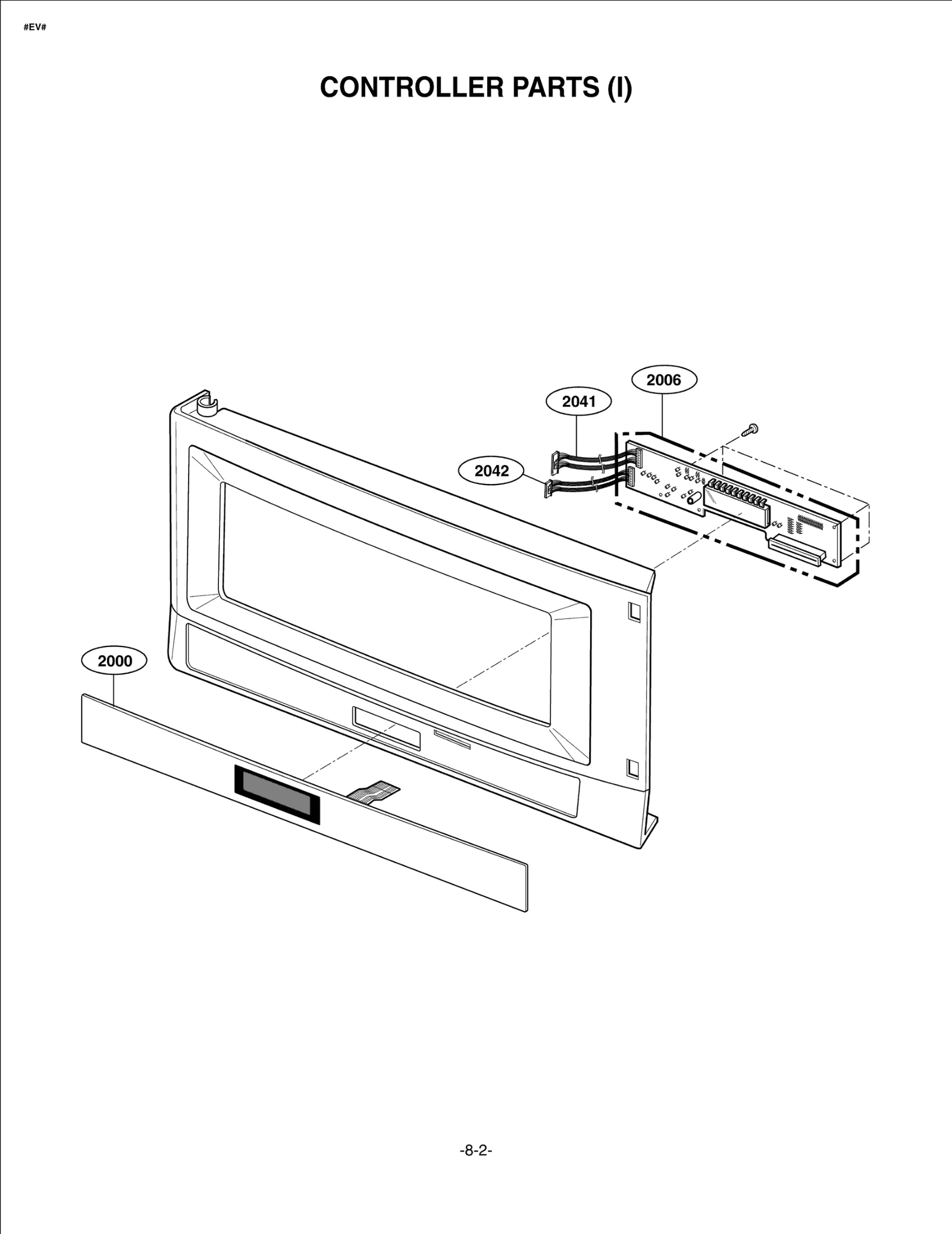

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG LMVM1935SBQ monitor good
1002
SEAL TAPE LGE 3536WRA001T Contact Us For Availability
1004
CHOKE COVER LGE 3552W0A001B Contact Us For Availability
3002
TRAY,[GLASS] LGE 3390W1G014A Contact Us For Availability
3009
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011D Contact Us For Availability
3026
FILTER(MECH) LGE 5230W2A004A Contact Us For Availability
3026
FILTER(MECH),GREASE LGE 5230W2A004B Contact Us For Availability
3028
LAMP[OVEN/BASELESS] LGE 6912W3Q001D Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3031
COVER ALL MV-1320,COVER,POWER LGE 3550W3A084A Contact Us For Availability
3032
REFLECTOR LEFT LGE 3034W2A003B Contact Us For Availability
3033
REFLECTOR RIGHT LGE 3034W2A002B Contact Us For Availability
3036
HOLDER,COOK AUXILIARY LGE 4930W1A027A Contact Us For Availability
3900
DEFROST NET MA-6515E GSUK,44MM LGE 1B71435C Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET,[CAPACITOR] LGE 4810W3C006A Contact Us For Availability
5007
PROPELLER LGE 2B72125A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D052D Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D035A Contact Us For Availability
5009
MAGNETRON LGE 6324W1A001A Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014N Contact Us For Availability
5010
POWER CORD ASSY A-Z SJT,AWG16/ LGE 6411W2A002E Contact Us For Availability
5014
HARNESS LGE 6877W1A349B Contact Us For Availability
5015
BULB, LIGHT LGE 3B70067E Contact Us For Availability
5016
THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability
5016
THERMOSTAT,BIMETAL LGE 6930W1A002D Contact Us For Availability
5017
FUSE HOLDER LGE 4930W3B025B Contact Us For Availability
5018
DIODE ASSY DIODE+CAB LGE 6021W3B001K Contact Us For Availability
5019
LEAD WIRE ASSY LGE 6877W2S002E Contact Us For Availability
5022
FUSE ASSY THERMAL T109 MOLDI LGE 3B72974C Contact Us For Availability
5024
Fan Assembly LGE 5893W3A002A Contact Us For Availability
5032
HARNESS LGE 3B72342U Contact Us For Availability
5035
PLATE,[BOTTOM PLATE] LGE 3300W1B001A Contact Us For Availability
5036
COVER,[LAMP COVER] LGE 3550W2L001A Contact Us For Availability
5037
Filter,Charcoal LGE 5230W2A003B Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5044
COVER,[STIRRER FAN COVER] LGE 3550W1S001A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5049
GUIDE,[AIR GUIDE] LGE 5238W1A003A Contact Us For Availability
5058
STIRRER FAN LGE 5892W3A006A Contact Us For Availability
5132
HARNESS LGE 6877W1A453E Contact Us For Availability
6000
BASE PLATE LGE 3302W0A021B Contact Us For Availability
6001
BASE PLATE ASSY LGE 3303W1A047B Contact Us For Availability
6008
Plate,Mount LGE 3300W0A030C Contact Us For Availability
6008
PLATE ASSEMBLY LGE 3301W0A003A Contact Us For Availability
6009
KIT ASSEMBLY LGE 2B72771J Contact Us For Availability
6009
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
MFL3
MANUAL,INSTALLATION LGE 3828W5U0448 Contact Us For Availability
× ![]()
