Model LG LMU30CHV.AWGBEUS Air Conditioners – Common Parts & Diagrams

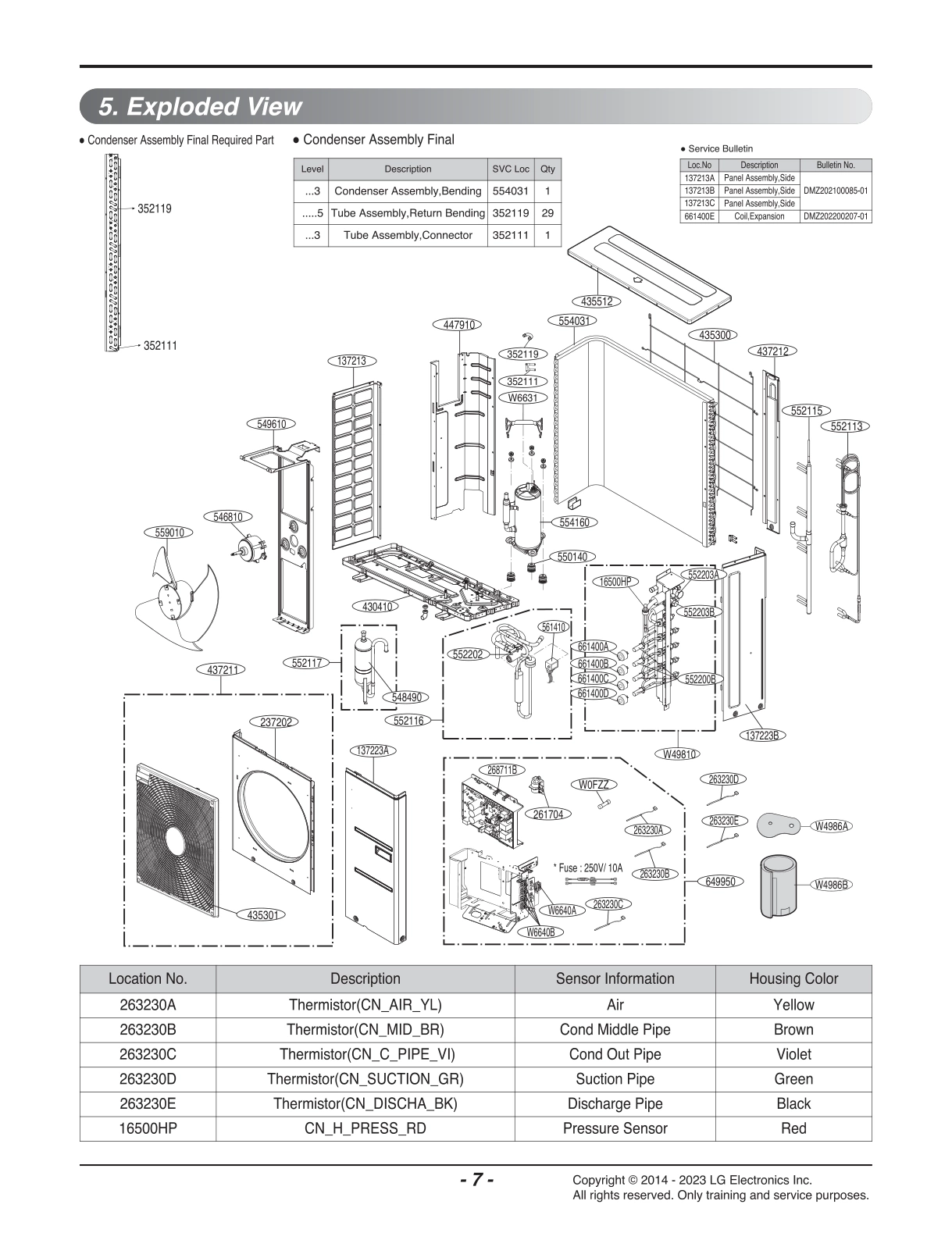

CONDENSER ASSEMBLY
Common parts from model LG LMU30CHV.AWGBEUS Air Conditioners
237202
Panel,Front LGE MGC66162402 Contact Us For Availability
261704
Transformer,Reactor LGE EBJ61970005 Contact Us For Availability
263230C
Thermistor Assembly,NTC LGE EBG61445812 Contact Us For Availability
263230D
Thermistor Assembly,NTC LGE EBG61405904 Contact Us For Availability
268711B
PCB Assembly,Inverter LGE EBR83831208 Contact Us For Availability
352111
Tube Assembly,Connector LGE 5211A20349Z Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN74512228 Contact Us For Availability
435300
Grille,Rear LGE MDX61843728 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131832 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL72770351 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL72770354 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL72341118 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM72909120 Contact Us For Availability
548490
Accumulator LGE 4848A20007P Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA74032401 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR73068708 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR73326604 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR65521322 Contact Us For Availability
552117
Tube Assembly,Suction(Outdoor) LGE AJR65507705 Contact Us For Availability
552203A
Valve,Service LGE 5220A20035C Contact Us For Availability
552203B
Valve,Service LGE 5220A20029P Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ37955001 Contact Us For Availability
561410
Coil Assembly,Reverse LGE EAP64467708 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ76600805 Contact Us For Availability
661400A
Coil Module,Expansion LGE EAP65270704 Contact Us For Availability
661400A
Coil,Expansion LGE EAP63107115 Contact Us For Availability
661400B
Coil Module,Expansion LGE EAP65270705 Contact Us For Availability
661400B
Coil,Expansion LGE EAP63107105 Contact Us For Availability
661400C
Coil Module,Expansion LGE EAP65270709 Contact Us For Availability
661400C
Coil,Expansion LGE EAP63107110 Contact Us For Availability
661400D
Coil Module,Expansion LGE EAP65270712 Contact Us For Availability
661400D
Coil,Expansion LGE EAP63107111 Contact Us For Availability
661400E
Coil,Expansion LGE EAP63107112 Contact Us For Availability
W0FZZ
Fuse,Time Delay LGE EAF61090201 Contact Us For Availability
W4986A
Sound proof LGE MMC00280404 Contact Us For Availability
W4986B
Sound proof LGE MMC00280304 Contact Us For Availability
W6631
Harness Assembly LGE EAD65614302 Contact Us For Availability
W6640A
Connector,Terminal Block LGE EAG38884408 Contact Us For Availability
W6640B
Connector,Terminal Block LGE EAG38884401 Contact Us For Availability
W49810
Supporter Assembly LGE AJJ76558203 Contact Us For Availability
× ![]()
