Model LG LMU180HHV.AWGBEUS Air Conditioners – Common Parts & Diagrams

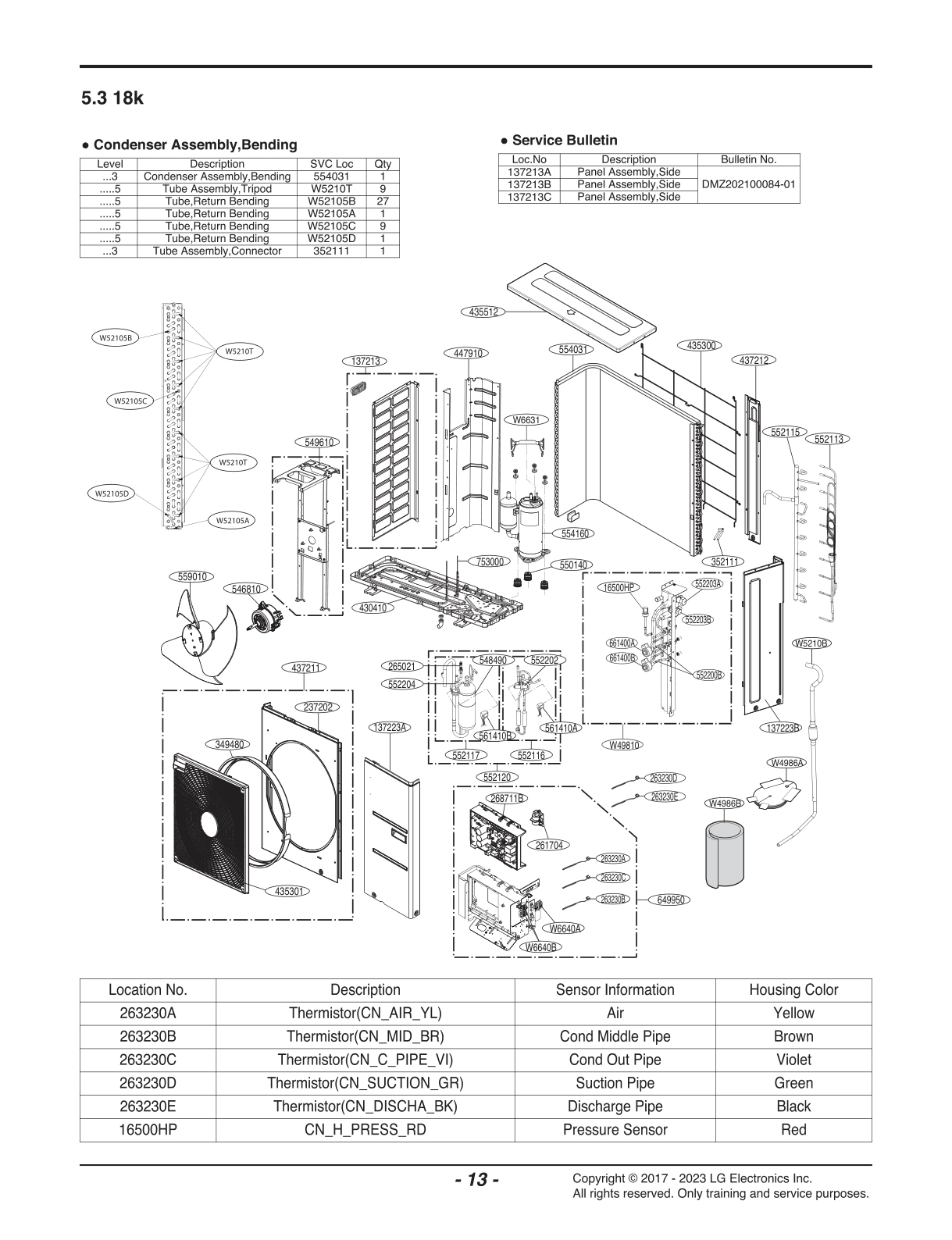

DIAGRAM 1
Common parts from model LG LMU180HHV.AWGBEUS Air Conditioners
137223A
Panel Assembly,Side LGE AGL72909447 Contact Us For Availability
137223B
Panel Assembly,Side LGE AGL72341012 Contact Us For Availability
237202
Panel,Front LGE MGC53382930 Contact Us For Availability
261704
Filter,Line Noise LGE EAM62950002 Contact Us For Availability
263230C
Thermistor Assembly,NTC LGE EBG61445805 Contact Us For Availability
263230D
Thermistor Assembly,NTC LGE EBG61405904 Contact Us For Availability
268711B
PCB Assembly,Inverter LGE EBR83831201 Contact Us For Availability
349480
Orifice LGE 4948A20011F Contact Us For Availability
352111
Tube Assembly,Connector LGE AJR30044402 Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN75870701 Contact Us For Availability
435300
Grille,Rear LGE MDX61843728 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131832 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL72770350 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL72341117 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM72909130 Contact Us For Availability
548490
Accumulator LGE 4848A20007Q Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA71610517 Contact Us For Availability
550140
Damper,Rubber LGE MCQ68888201 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR75786801 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR75786701 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR75786901 Contact Us For Availability
552117
Tube Assembly,Suction(Outdoor) LGE AJR75765601 Contact Us For Availability
552120
Tube Assembly LGE AJR76122301 Contact Us For Availability
552202
Valve,Reverse LGE MJX65075502 Contact Us For Availability
552203A
Valve,Service LGE 5220A20035C Contact Us For Availability
552203B
Valve,Service LGE 5220A20029P Contact Us For Availability
552204
Valve,Solenoid LGE MJX61841306 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG75285003 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ36856701 Contact Us For Availability
559010
Fan,Propeller LGE MDG62002904 Contact Us For Availability
561410B
Solenoid LGE EBE61441605 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ75340904 Contact Us For Availability
661400A
Coil,Expansion LGE EAP63107115 Contact Us For Availability
661400A
Coil Module,Expansion LGE EAP65270704 Contact Us For Availability
661400B
Coil,Expansion LGE EAP63107105 Contact Us For Availability
661400B
Coil Module,Expansion LGE EAP65270705 Contact Us For Availability
753000
Heater,Electric LGE MEE63124903 Contact Us For Availability
W4986A
Sound proof LGE MDS63978811 Contact Us For Availability
W4986B
Sound proof LGE MDS63978801 Contact Us For Availability
W5210B
Tube,Connector LGE MJU64829104 Contact Us For Availability
W6640A
Connector,Terminal Block LGE EAG38884408 Contact Us For Availability
W6640B
Connector,Terminal Block LGE EAG38884401 Contact Us For Availability
W49810
Supporter Assembly LGE AJJ76558205 Contact Us For Availability
× ![]()
