Model LG LMH1517CVST Microwave – Common Parts & Diagrams
Diagram 0
Diagram 1

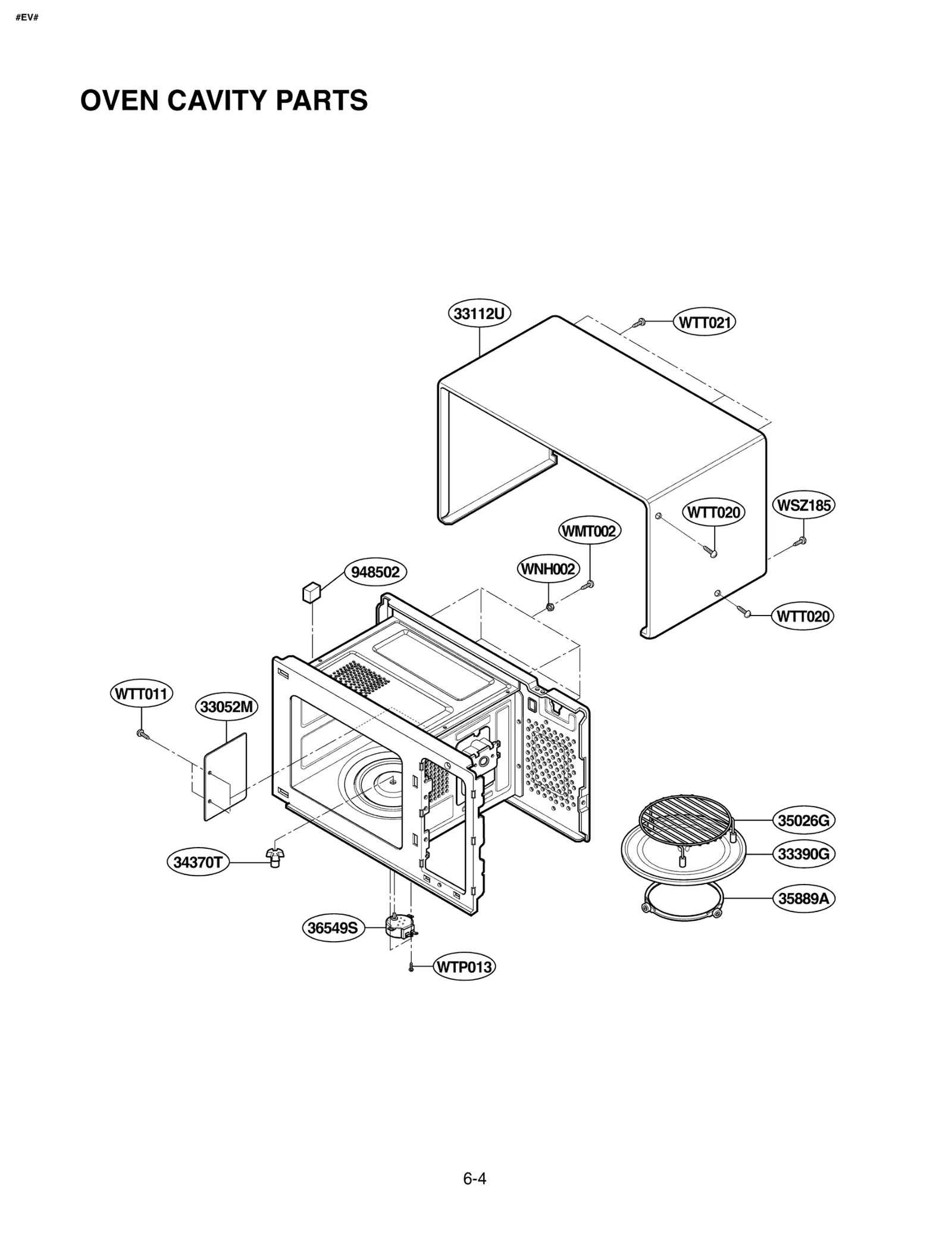

Diagram 2

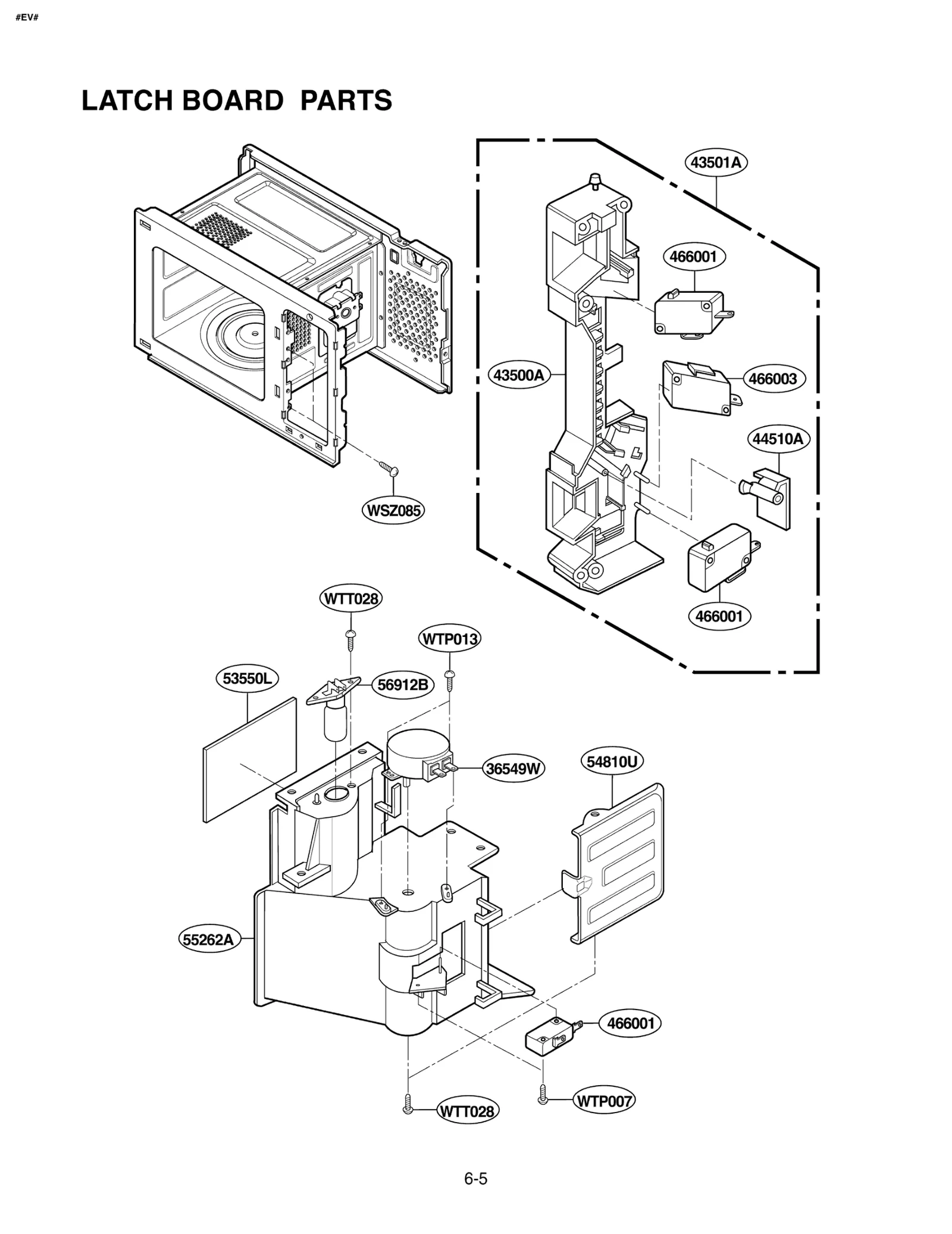

Diagram 3

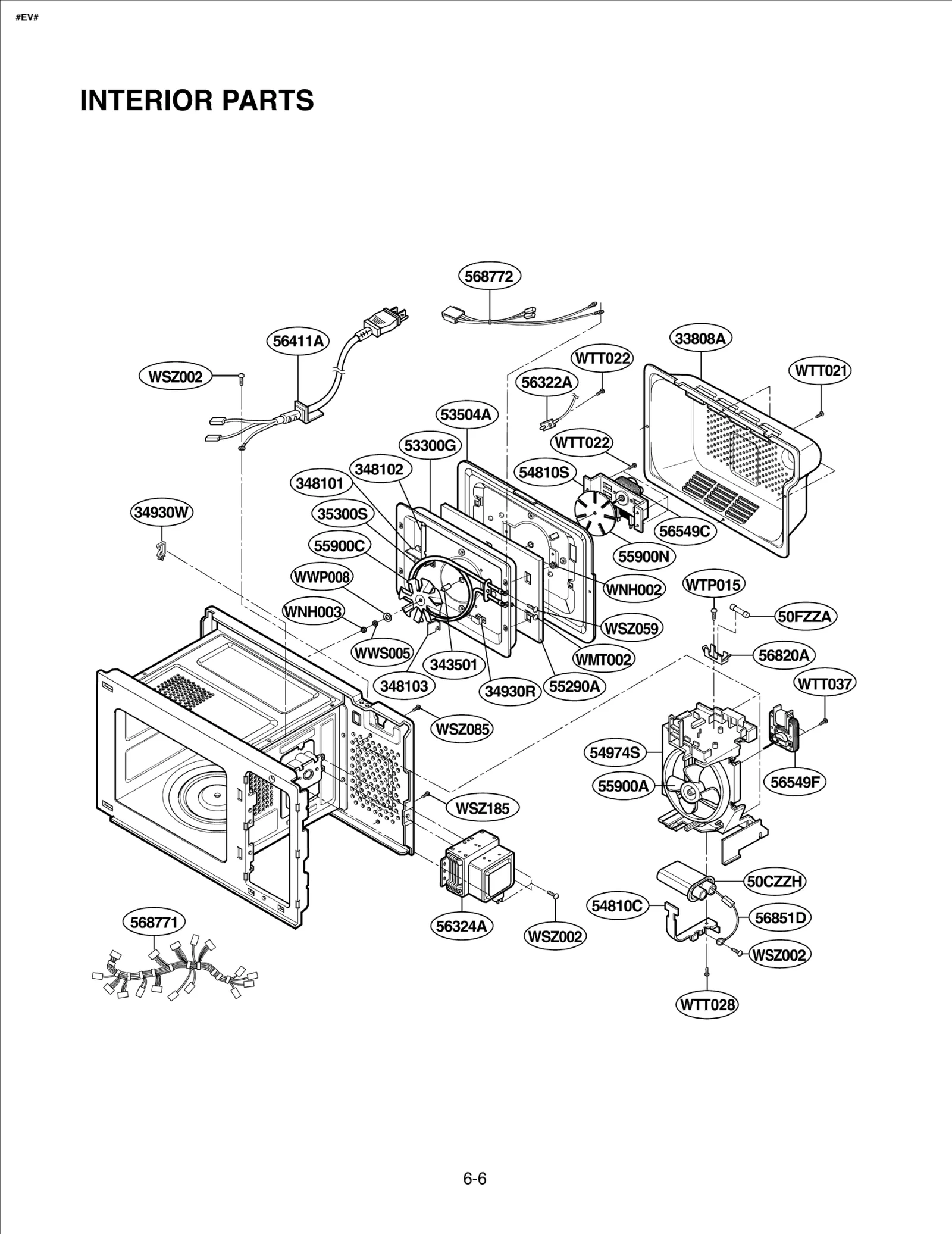

Diagram 4

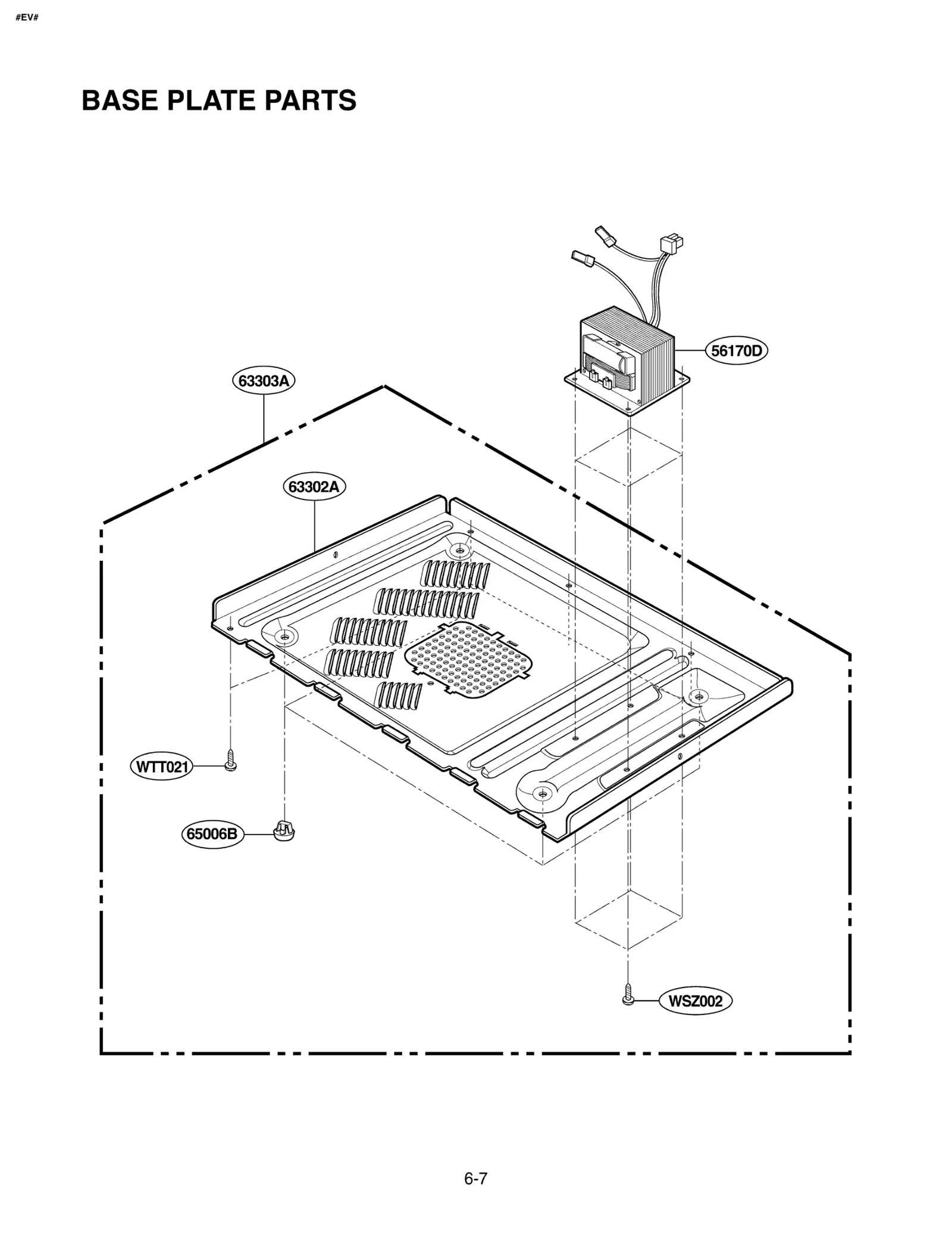

Diagram 5

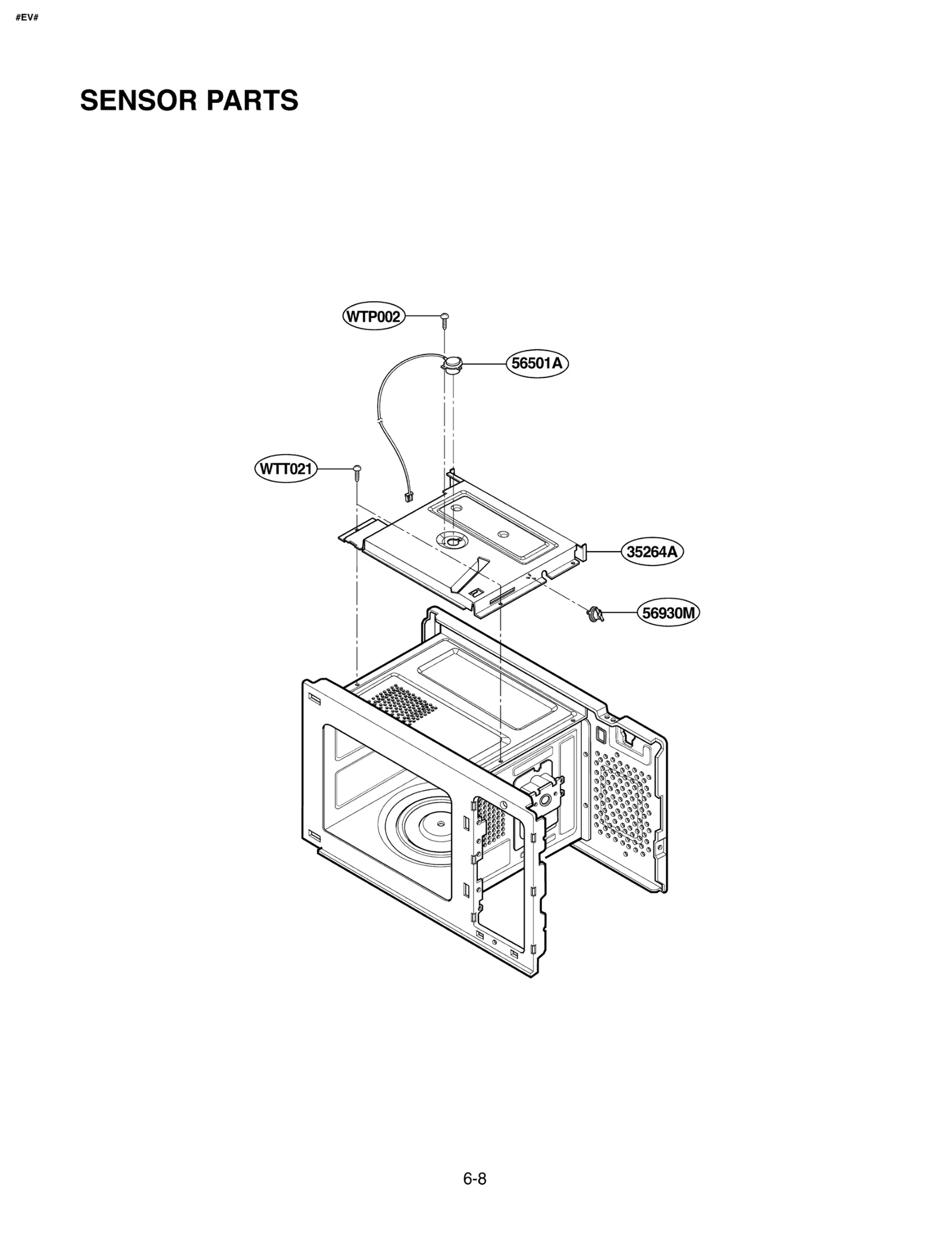

Diagram 6
Diagram 7
Common parts from model LG LMH1517CVST Microwave
*02
MANUAL,SERVICE LGE 3828W5S2144 Contact Us For Availability
*10
BOX,YELLOW LGE 3890W3Y375B Contact Us For Availability
23506A
KEY MEMBRANE LGE 3506W1A192A Contact Us For Availability
34930R
HOLDER LGE 4930W3A014A Contact Us For Availability
35264A
AIR TUNNEL LGE 5264W1A015A Contact Us For Availability
35300S
HEATER,SHEATH LGE 5300W1S006G Contact Us For Availability
53504A
PLATE,[INNER] LGE 3300W1G087A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
55290A
GLASS WOOL LGE 5290W1A001B Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023J Contact Us For Availability
56411A
Power Cord Assembly LGE 6411W1A019K Contact Us For Availability
56820A
FUSE HOLDER LGE 4930W3B025C Contact Us For Availability
56930M
THERMOSTAT,BIMETAL LGE 6930W1A002C Contact Us For Availability
63303A
BASE PLATE ASSY LGE 3303W1A045C Contact Us For Availability
348101
BRACKET,[HEATER] LGE 4810W3H003A Contact Us For Availability
348102
BRACKET,[HEATER] LGE 4810W3H002A Contact Us For Availability
348103
BRACKET,[HEATER] LGE 4810W3H004A Contact Us For Availability
568771
LGE 6877W1A240A LGE 6877W1A240A Contact Us For Availability
568772
LEAD WIRE ASSY LGE 6877W2A002A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C08
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C65
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C84
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
LGE 6630W5V012B LGE 6630W5V012B Contact Us For Availability
CN2
LGE 6630W5YA10B LGE 6630W5YA10B Contact Us For Availability
CN3
LGE 6630W5YA19E LGE 6630W5YA19E Contact Us For Availability
CN4
CONNECTOR (CIRC) LGE 6630W5V013A Contact Us For Availability
CN5
CONNECTOR WAFER YW396-03AVY,#2 LGE 6630WRYA01A Contact Us For Availability
CU4
CUSHION DIGITRON 5MM MS-91BRV LGE 4850W4C001B Contact Us For Availability
D02
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D31
DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability
DP1
LGE 6302W5A016A LGE 6302W5A016A Contact Us For Availability
PT1
TRANS POWER 120V/60HZ 13V/320M LGE 6010W2P012A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q30
TRANSISTOR LGE 0TR320209BA Contact Us For Availability
Q31
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q40
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R03
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R05
LGE 0RD0102G608 LGE 0RD0102G608 Contact Us For Availability
R10
LGE 0RD0751G608 LGE 0RD0751G608 Contact Us For Availability
R11
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R21
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R31
RESISTOR FIXED CARBON FILM MV- LGE 0RD2701G608 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R33
LGE 0RD5601G608 LGE 0RD5601G608 Contact Us For Availability
R36
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R40
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R41
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R43
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R44
LGE 0RN1003F408 LGE 0RN1003F408 Contact Us For Availability
R50
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R61
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R62
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R63
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R64
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R68
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R70
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R71
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R72
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R73
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R74
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R75
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R89
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R101
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
RY4
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
RY6
RELAY LGE 6920W5A008A Contact Us For Availability
U01
LGE 0IZZW5A059B LGE 0IZZW5A059B Contact Us For Availability
U02
LGE 0ITO200400A LGE 0ITO200400A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
WTT022
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
