Model LG LMDN096HV.EWHBEUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG LMDN096HV.EWHBEUS Air Conditioners

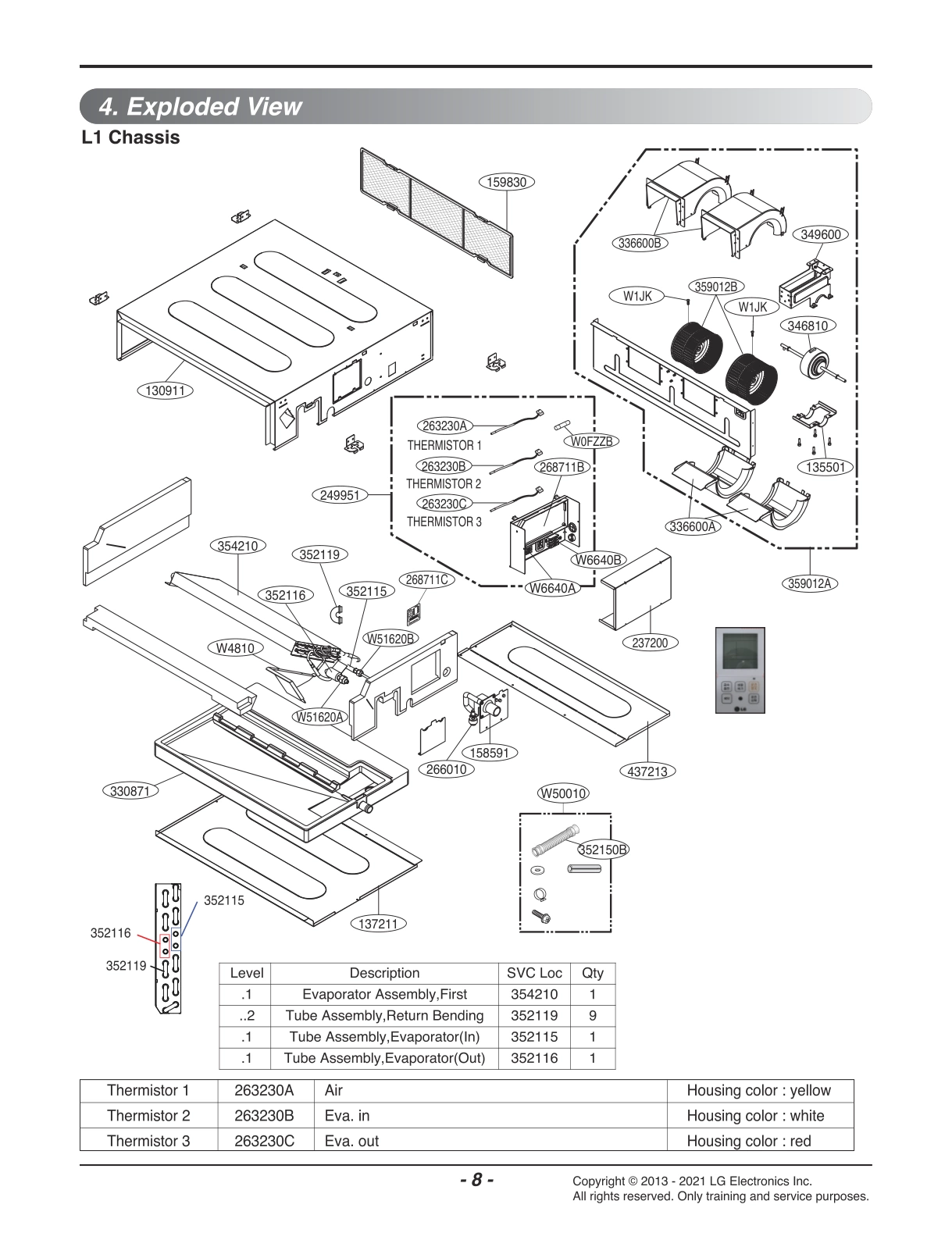

DIAGRAM 1

Print

• This Diagram
• All Diagrams

137211

Panel Assembly,Front(Indoor) LGE AGL73859103 Contact Us For Availability

View on Model

158591

AHA73673401 LG Water Pump Assembly Backorder LGE AHA73673401 View Details $109.29

View on Model

159830

ADQ73493503 LG Air Cleaner Filter Assembly Backorder LGE ADQ73493503 View Details $15.76

View on Model

237200

Panel,Control LGE MGC63188601 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ73941909 Contact Us For Availability

View on Model

263230A

Thermistor Assembly,NTC Backorder LGE EBG61106819 View Details $18.59

View on Model

263230B

EBG61287708 LG Thermistor Temperature Sensor In Stock LGE EBG61287708 View Details $23.97

View on Model

263230C

EBG61325803 LG Temperature Sensor Thermistor Backorder LGE EBG61325803 View Details $23.97

View on Model

266010

Switch Assembly LGE 6601A20001L Contact Us For Availability

View on Model

268711B

PCB Assembly,Main Backorder LGE EBR66367411 View Details $123.05

View on Model

268711C

PCB Assembly,Sub LGE EBR78258501 Contact Us For Availability

View on Model

330871

Pan Assembly,Drain Backorder LGE AGK73330503 View Details $59.89

View on Model

336600A

Housing,Wrapper LGE 3660A20059A Contact Us For Availability

View on Model

336600B

Housing,Wrapper LGE 3660A20060A Contact Us For Availability

View on Model

346810

4681A20198G LG Indoor DC Motor Assembly Backorder LGE 4681A20198G View Details $231.49

View on Model

349600

MAZ65110001 LG Bracket,Motor Backorder LGE MAZ65110001 View Details $23.97

View on Model

352115

Tube Assembly,Evaporator(In) LGE AJR74203404 Contact Us For Availability

View on Model

352116

Tube Assembly,Evaporator(Out) LGE AJR74284503 Contact Us For Availability

View on Model

352119

3H02787A LG Air Conditioner Return Tube Bendi Backorder LGE 3H02787A View Details $3.40

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $19.42

View on Model

354210

Evaporator Assembly,First LGE ADL73741603 Contact Us For Availability

View on Model

359012A

Fan Assembly,Final LGE ADP73513615 Contact Us For Availability

View on Model

359012A

Fan Assembly,Final LGE ADP73513603 Contact Us For Availability

View on Model

359012B

Fan Assembly,Blower LGE 5901A20049A Contact Us For Availability

View on Model

437213

Panel Assembly,Rear(Indoor) LGE AGL73957003 Contact Us For Availability

View on Model

W0FZZB

6900AQ9028D LG Time Delay Fuse Backorder LGE 6900AQ9028D View Details $8.99

View on Model

W1JK

Screw,Set LGE 4H00516B Contact Us For Availability

View on Model

W4810

Bracket LGE MAZ63470401 Contact Us For Availability

View on Model

W6640A

Connector,Terminal Block LGE EAG63452304 Contact Us For Availability

View on Model

W6640B

Connector,Terminal Block LGE EAG38884441 Contact Us For Availability

View on Model

W50010

Accessory Assembly LGE AAA73031501 Contact Us For Availability

View on Model

W51620A

Socket,Flare LGE 3A00375A Contact Us For Availability

View on Model

W51620B

Socket,Flare LGE 4010AR3071C Contact Us For Availability

View on Model

×
