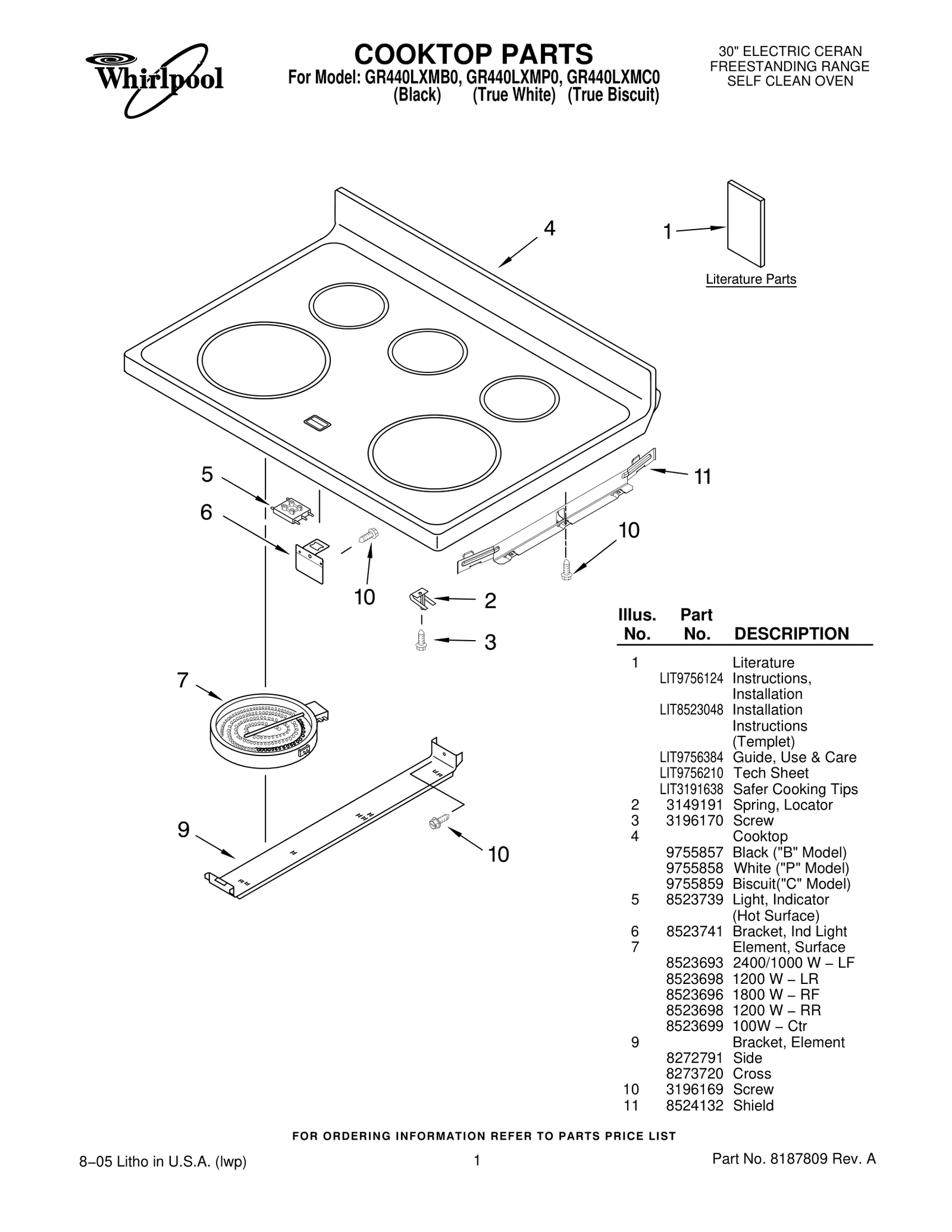

Model Whirlpool LIT9756210 30&quot; Electric Ceran Freestanding Range Self Clean Oven – Common Parts &amp; Diagrams

1

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $54.13

1

Trim, Door Top WPL 8272243 Contact Us For Availability

1

Trim, Door Top — White WPL 8522433 Contact Us For Availability

1

Trim, Door Top — Black WPL 3196819 Contact Us For Availability

1

Trim, Door Top — Biscuit WPL 8522434 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $48.47

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.74

2

Spring, Locator WPL 3149191 Contact Us For Availability

2

Support, Corner LR WPL 8273905 Contact Us For Availability

3

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $94.26

3

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $64.43

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $192.17

3

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.60

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $143.47

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $115.16

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $87.63

3

Handle, Door — Biscuit WPL 8522445 Contact Us For Availability

4

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $34.81

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $100.19

4

Liner, Door WPL 3186292 Contact Us For Availability

4

Drawer, Storage WPL 8272605 Contact Us For Availability

5

W10838990 Whirlpool Mounting Bracket Backorder WPL W10838990 $36.59

5

WP8523265 Whirlpool Indicator Light In Stock WPL WP8523265 $35.57

5

Seal, Window WPL 8522414 Contact Us For Availability

5

Light, Indicator WPL 8523739 Contact Us For Availability

5

Rod, Latch WPL 3196961 Contact Us For Availability

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.12

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.60

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.60

6

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $72.93

6

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $98.24

6

Rivet, Push (2) — Almond WPL 3196815 Contact Us For Availability

7

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 $97.93

7

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $102.83

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $82.06

7

W11230476 Whirlpool Drawer Panel Backorder WPL W11230476 $82.06

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $82.06

7

WP8522565 Whirlpool Knob In Stock WPL WP8522565 $12.20

7

WP8522566 Whirlpool Knob Backorder WPL WP8522566 $11.57

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $33.29

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $124.58

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $46.78

8

Handle, Drawer WPL 8053949 Contact Us For Availability

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $93.04

9

WP9781235 Whirlpool Clip Backorder WPL WP9781235 $5.42

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $42.60

9

Screw WPL 4449746 Contact Us For Availability

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $23.77

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.60

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $49.45

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $129.61

Hinge, Door (2) WPL 8272822 Contact Us For Availability

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $30.91

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.06

WPW10118454 Whirlpool Range Outer Door Glass In Stock WPL WPW10118454 $218.28

WPW10118455 Whirlpool Door Glass Assembly In Stock WPL WPW10118455 $226.08

Switch, Rocker — Black WPL 8524090 Contact Us For Availability

Glass, Outer Door WPL 9756435 Contact Us For Availability

Glass, Outer Door — Biscuit WPL 9756416 Contact Us For Availability

W10761014 Whirlpool Right Door Trim In Stock WPL W10761014 $30.72

W10761018 Whirlpool Dishwasher Left Door Trim In Stock WPL W10761018 $30.72

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $67.81

WP8523166 Whirlpool Door Trim In Stock WPL WP8523166 $42.03

WP8523167 Whirlpool Door Trim Assembly Backorder WPL WP8523167 $40.93

WP8523172 Whirlpool Left Door Trim In Stock WPL WP8523172 $41.93

WP8523173 Whirlpool Door Trim Backorder WPL WP8523173 $40.98

Control, Range — White WPL 8524254 Contact Us For Availability

Liner, Drawer WPL 8272311 Contact Us For Availability

13

W10491985 Whirlpool Screw Backorder WPL W10491985 $2.60

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.84

13

WP8274021 Whirlpool Range Rack Backorder WPL WP8274021 $95.86

W11594186 Whirlpool Door Trim In Stock WPL W11594186 $24.38

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $30.61

WP8523177 Whirlpool Door Trim Assembly In Stock WPL WP8523177 $51.77

WP8523178 Whirlpool Door Trim Backorder WPL WP8523178 $60.25

WP8523180 Whirlpool Door Trim Assembly Backorder WPL WP8523180 $60.72

Rack, Insert WPL 8274022 Contact Us For Availability

Knob, Keep Warm — Black WPL 8522570 Contact Us For Availability

Frame, Front WPL N/S Contact Us For Availability

Clip, Glass (4) WPL 3196025 Contact Us For Availability

Panel, Stainless WPL 8053951 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.74

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $33.29

16

Trim, Bottom WPL 8053950 Contact Us For Availability

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

18

RAIL-BASE In Stock WPL W11818353 $26.75

18

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.74

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.84

19

Clip, Door Stop WPL 3196925 Contact Us For Availability

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

Retainer, Side (2) WPL 8523803 Contact Us For Availability

22

Bracket, Window(2) WPL 3196794 Contact Us For Availability

23

WPW10181986 Whirlpool Range Sensor In Stock WPL WPW10181986 $66.20

24

Support, Front (2) WPL 3195736 Contact Us For Availability

25

Support, Corner RR WPL 3195987 Contact Us For Availability

26

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $17.82

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.98

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $33.14

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.60

30

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $15.05

31

Back, Main WPL 8274034 Contact Us For Availability

33

WPW10134285 Whirlpool Vent Tube Backorder WPL WPW10134285 $179.63

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $39.14

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

36

Button, Plug WPL 3196439 Contact Us For Availability

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.60

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.60

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.60

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

45

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.96

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.60

47

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.60

49

8053915 Whirlpool Range Insulation Backorder WPL 8053915 $7.89

49

W11311894 Whirlpool Insulation Backorder WPL W11311894 $42.96

49

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.60

OPT-1

Wire, Black WPL 242828 Contact Us For Availability

OPT-2

Wire, Black WPL 8316781 Contact Us For Availability

OPT-3

Wire, Blue WPL 242821 Contact Us For Availability

OPT-4

Wire, Brown WPL 242822 Contact Us For Availability

OPT-5

Wire, Brown WPL 242830 Contact Us For Availability

OPT-6

Wire, Green WPL 242823 Contact Us For Availability

OPT-7

Wire, Orange WPL 242824 Contact Us For Availability

OPT-8

Wire, Red WPL 242829 Contact Us For Availability

OPT-9

Wire, Red WPL 242825 Contact Us For Availability

OPT-10

Wire, Red WPL 242831 Contact Us For Availability

OPT-11

Wire, White WPL 242826 Contact Us For Availability

OPT-12

Wire, Yellow WPL 242827 Contact Us For Availability

OPT-13

Wire, Yellow WPL 242832 Contact Us For Availability

OPT-14

Kit, Porcelain WPL 799832 Contact Us For Availability

OPT-15

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $37.05

OPT-16

Grease WPL 261582 Contact Us For Availability

OPT-18

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $33.29

OPT-20

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

OPT-21

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.93

OPT-22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.95

OPT-23

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

OPT-24

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

OPT-25

285006 Whirlpool Spray In Stock WPL 285006 $46.08

OPT-26

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

OPT-27

White (Uncut) WPL 799344 Contact Us For Availability

OPT-28

Biscuit (Uncut) WPL 4392900 Contact Us For Availability

OPT-29

Foil, Aluminum WPL 241430 Contact Us For Availability

OPT-31

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $12.14

OPT-32

Harness, Wire WPL 8524072 Contact Us For Availability

OPT-33

Harness, Wire WPL 8524070 Contact Us For Availability

OPT-34

8528351 Whirlpool Clip Backorder WPL 8528351 $30.29

OPT-35

Harness, Oven WPL 9756202 Contact Us For Availability

OPT-36

3196696 Whirlpool Clip Backorder WPL 3196696 $6.86

OPT-37

Harness, Wire WPL 4454240 Contact Us For Availability

OPT-38

Harness, Wire WPL 8273266 Contact Us For Availability

OPT-39

Shield, Wiring WPL 8523717 Contact Us For Availability

OPT-40

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $33.29

OPT-41

Clip, Ground Wire WPL 313660 Contact Us For Availability

OPT-42

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.96

OPT-43

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.60

OPT-44

814381 Whirlpool Pin Backorder WPL 814381 $3.84
