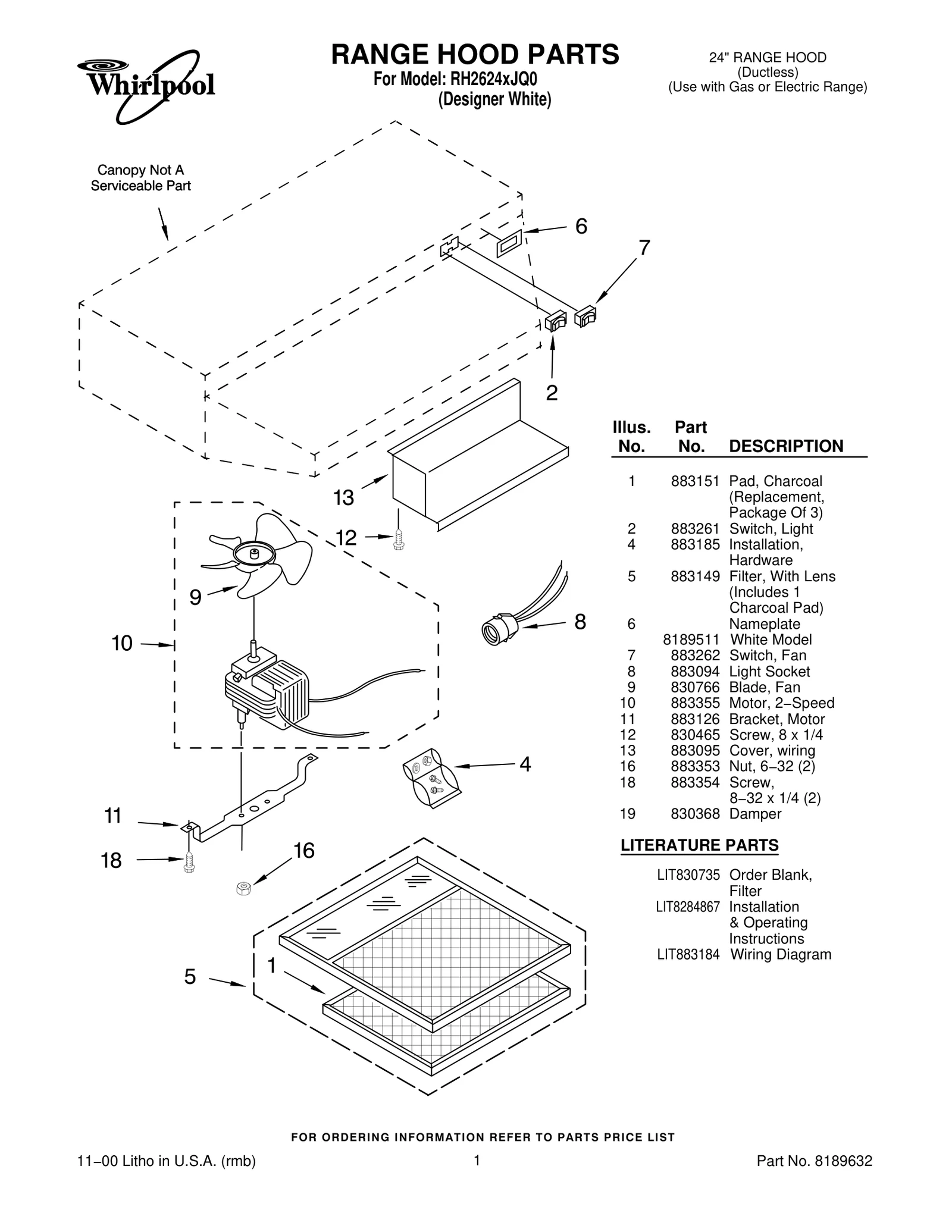

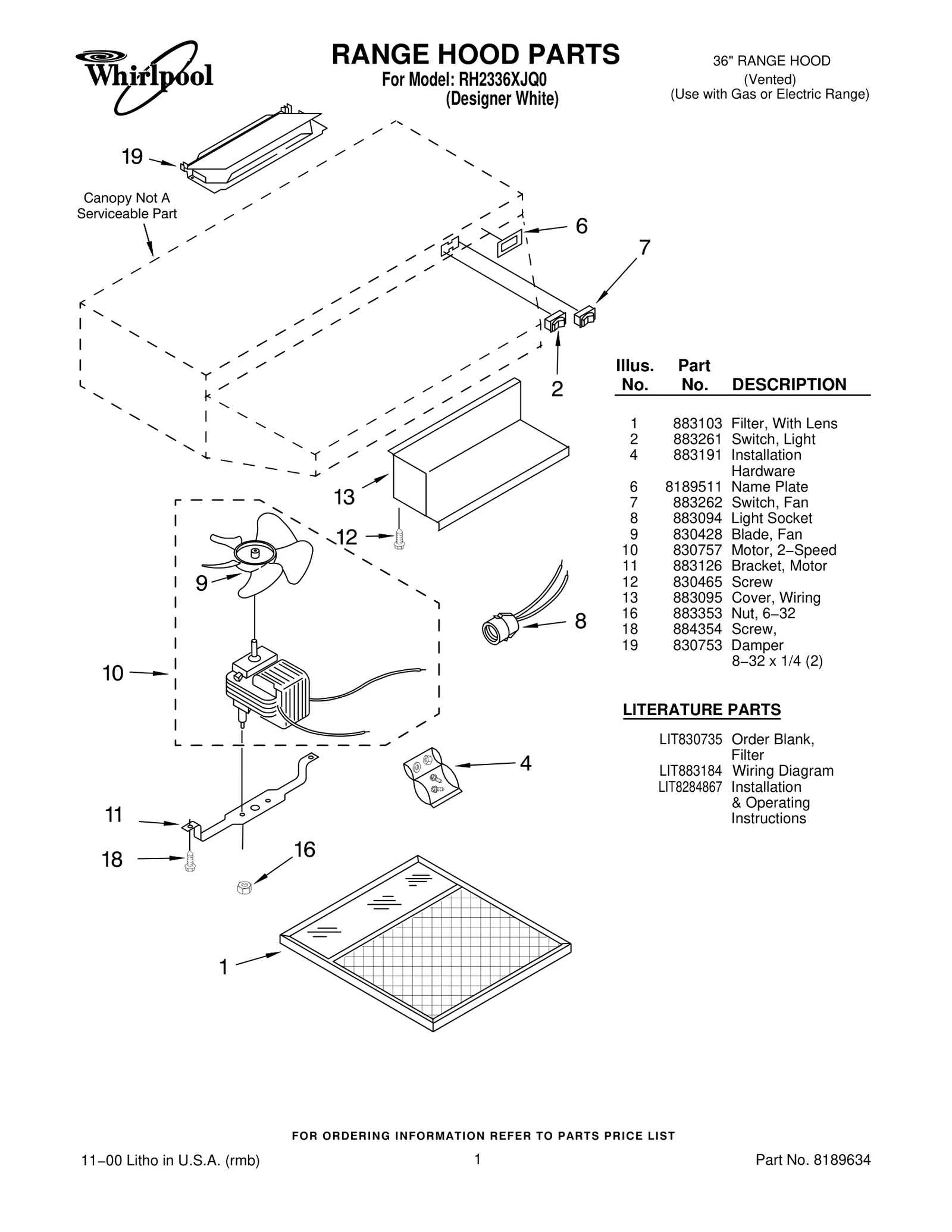

Model Whirlpool LIT8284867 24" Range Hood (Ductless) (Use With Gas Or Electric Range) – Common Parts & Diagrams

1
Pad, Charcoal (Replacement, Package Of 3)
Pad, Charcoal (Replacement, Package Of 3) WPL 883151 Contact Us For Availability
View on Model
2
Switch, Light
Switch, Light WPL 8189843 Contact Us For Availability
View on Model
2
Switch, Light
Switch, Light WPL 883261 Contact Us For Availability
View on Model
2
Switch, Light — Almond Model
Switch, Light — Almond Model WPL 883335 Contact Us For Availability
View on Model
2
Switch, Light — Biscuit
Switch, Light — Biscuit WPL 8189515 Contact Us For Availability
View on Model
2
Switch, Light — Black Model
Switch, Light — Black Model WPL 8189845 Contact Us For Availability
View on Model
2
Switch, Light — Almond Model
Switch, Light — Almond Model WPL 8189844 Contact Us For Availability
View on Model
2
Switch, Light — Biscuit Model
Switch, Light — Biscuit Model WPL 8189846 Contact Us For Availability
View on Model
4
Installation Hardware
Installation Hardware WPL 883191 Contact Us For Availability
View on Model
4
Installation Hardware
Installation Hardware WPL 883185 Contact Us For Availability
View on Model
5
Filter, With Lens (Includes 1 Charcoal Pad)
Filter, With Lens (Includes 1 Charcoal Pad) WPL 883149 Contact Us For Availability
View on Model
6
Name Plate
Name Plate WPL 8189511 Contact Us For Availability
View on Model
6
Nameplate — Almond Model
Nameplate — Almond Model WPL 8189512 Contact Us For Availability
View on Model
6
Nameplate — Black Model
Nameplate — Black Model WPL 8189513 Contact Us For Availability
View on Model
6
Nameplate — Biscuit Model
Nameplate — Biscuit Model WPL 8189514 Contact Us For Availability
View on Model
7
Switch, Fan — Black Model
Switch, Fan — Black Model WPL 883202 Contact Us For Availability
View on Model
7
Switch, Fan — Almond Model
Switch, Fan — Almond Model WPL 883334 Contact Us For Availability
View on Model
7
Switch, Fan — Biscuit
Switch, Fan — Biscuit WPL 8189516 Contact Us For Availability
View on Model
7
Switch, Fan
Switch, Fan WPL 8189847 Contact Us For Availability
View on Model
7
Switch, Fan — Black Model
Switch, Fan — Black Model WPL 8189849 Contact Us For Availability
View on Model
7
Switch, Fan — Almond Model
Switch, Fan — Almond Model WPL 8189848 Contact Us For Availability
View on Model
7
Switch, Fan — Biscuit Model
Switch, Fan — Biscuit Model WPL 8189850 Contact Us For Availability
View on Model
8
Light Socket
Light Socket WPL 883094 Contact Us For Availability
View on Model
9
Blade, Fan
Blade, Fan WPL 830428 Contact Us For Availability
View on Model
9
Blade, Fan
Blade, Fan WPL 883382 Contact Us For Availability
View on Model
9
Blade, Fan
Blade, Fan WPL 883381 Contact Us For Availability
View on Model
10
Motor/Fan Assembly
Motor/Fan Assembly WPL 883378 Contact Us For Availability
View on Model
10
Motor, 2−Speed
Motor, 2−Speed WPL 830757 Contact Us For Availability
View on Model
10
Motor, Blade Assy
Motor, Blade Assy WPL 883377 Contact Us For Availability
View on Model
11
Bracket, Motor
Bracket, Motor WPL 883126 Contact Us For Availability
View on Model
11
Bracket, Motor
Bracket, Motor WPL 883397 Contact Us For Availability
View on Model
13
Cover, Wiring
Cover, Wiring WPL 883095 Contact Us For Availability
View on Model
13
Cover, wiring — Almond/Biscuit
Cover, wiring — Almond/Biscuit WPL 883096 Contact Us For Availability
View on Model
13
Cover, wiring — Black
Cover, wiring — Black WPL 883169 Contact Us For Availability
View on Model
16
Nut, 6−32 (2)
Nut, 6−32 (2) WPL 883353 Contact Us For Availability
View on Model
18
Screw,
Screw, WPL 884354 Contact Us For Availability
View on Model
18
Wiring Diagram
Wiring Diagram WPL 883184 Contact Us For Availability
View on Model
19
Damper 8−32 x 1/4 (2) LIT830735 Order Blank
Damper 8−32 x 1/4 (2) LIT830735 Order Blank WPL 830753 Contact Us For Availability
View on Model
19
Damper LIT830735 Order Blank, Filter LIT82848
Damper LIT830735 Order Blank, Filter LIT82848 WPL 830368 Contact Us For Availability
