Model Whirlpool LIT4317161 30" Electronic Range Freestanding Designer Style Self−Clean Oven Ceramic Cooktop – Common Parts & Diagrams

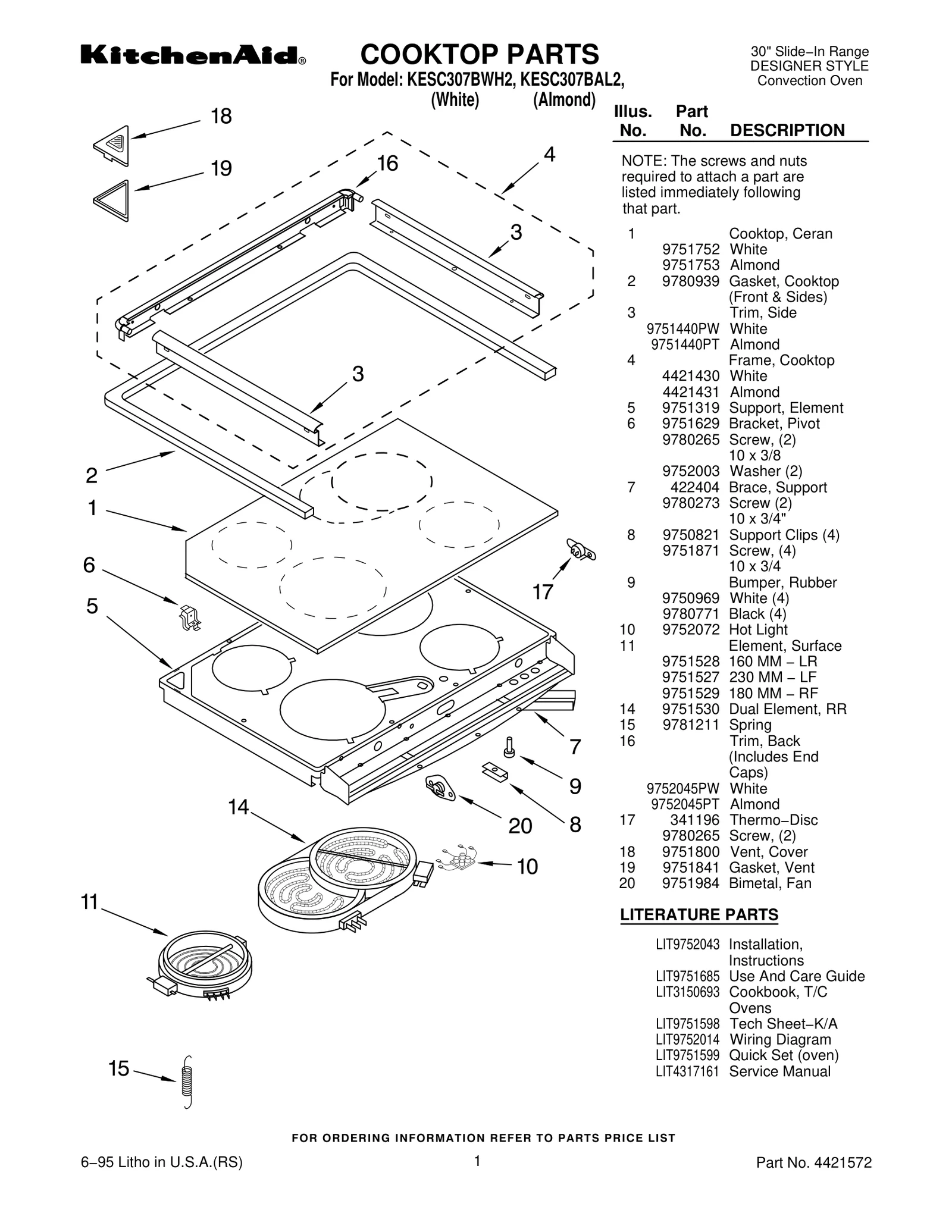

COOKTOP PARTS

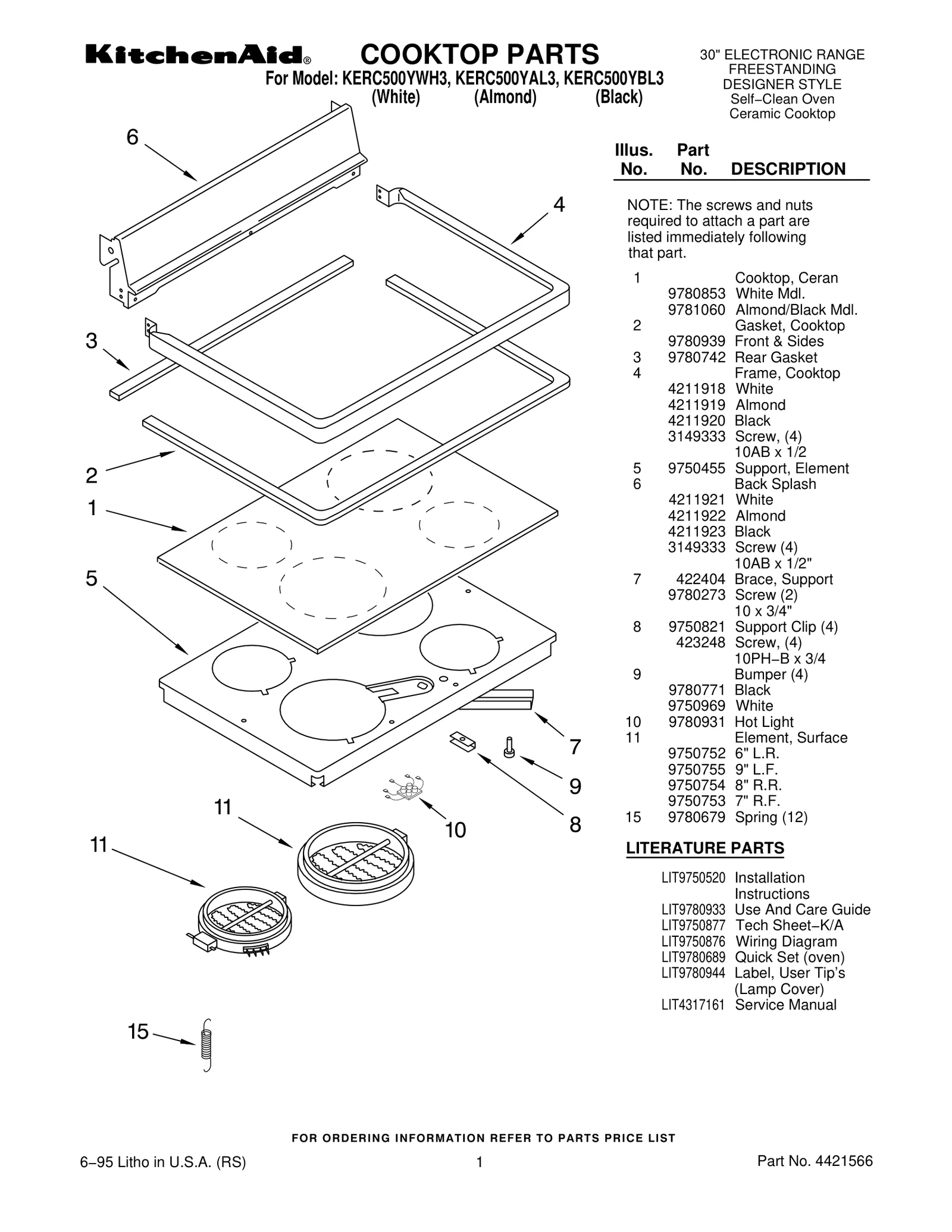

COOKTOP PARTS
COOKTOP PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
WIRING HARNESS PARTS
WIRING HARNESS PARTS
REAR CHASSIS PARTS
REAR CHASSIS PARTS
REAR CHASSIS PARTS
OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool LIT4317161 30" Electronic Range Freestanding Designer Style Self−Clean Oven Ceramic Cooktop
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Lamp Cover — White WPL 9780732 Contact Us For Availability
1
Lamp Cover — Almond WPL 9780733 Contact Us For Availability
1
Lamp Cover — Black WPL 9780579 Contact Us For Availability
1
Console, Glass — White WPL 9751898 Contact Us For Availability
1
Console, Glass — Almond WPL 9751903 Contact Us For Availability
1
Console, Glass — Black WPL 9751900 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Harness, Wire WPL 9781213 Contact Us For Availability
1
Harness, Wire WPL 9752074 Contact Us For Availability
1
Back panel,Chassis WPL 9751051 Contact Us For Availability
2
Element, Bake WPL 9750213 Contact Us For Availability
2
Timer, Electronic WPL 9781054 Contact Us For Availability
2
Trim, Door−Left — White WPL 4211912 Contact Us For Availability
2
Trim, Door−Left — Almond WPL 4211914 Contact Us For Availability
2
Trim, Door−Left — Black WPL 4211899 Contact Us For Availability
2
Trim, Door−Left — White WPL 4212028 Contact Us For Availability
2
Trim, Door−Left — Almond WPL 9750631PT Contact Us For Availability
2
Chassis, Front WPL 4212002 Contact Us For Availability
2
Harness, Wire WPL 9781214 Contact Us For Availability
2
L−2, 4 Wire WPL 9751839 Contact Us For Availability
2
L−2, 5 Wire WPL 9751837 Contact Us For Availability
2
Rear Access Cover WPL 9750490 Contact Us For Availability
3
Trim, Door−Right — White WPL 4211910 Contact Us For Availability
3
Trim, Door−Right — Almond WPL 4211911 Contact Us For Availability
3
Trim, Door−Right — Black WPL 4211900 Contact Us For Availability
3
Trim, Door−Right — White WPL 4212029 Contact Us For Availability
3
Trim, Door−Right — Almond WPL 9750632PT Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Harness, Wire WPL 9751111 Contact Us For Availability
3
Harness, Wire WPL 9751519 Contact Us For Availability
3
Rear Panel WPL 9750245 Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability
3
Panel, Rear Cover WPL 9751354 Contact Us For Availability
4
End Cap — White WPL 4211934 Contact Us For Availability
4
End Cap — Almond WPL 4211933 Contact Us For Availability
4
End Cap — Black WPL 4211935 Contact Us For Availability
4
End Cap — White WPL 4211937 Contact Us For Availability
4
End Cap — Almond WPL 4211936 Contact Us For Availability
4
End Cap — Black WPL 4211938 Contact Us For Availability
4
End Cap — White WPL 4421439 Contact Us For Availability
4
End Cap — Almond WPL 4421440 Contact Us For Availability
4
End Cap — White WPL 4421436 Contact Us For Availability
4
End Cap — Almond WPL 4421437 Contact Us For Availability
4
End Cap — Black WPL 4421441 Contact Us For Availability
4
End Cap — Black WPL 4421438 Contact Us For Availability
4
Trim, Door Bottom — White WPL 4211925 Contact Us For Availability
4
Trim, Door Bottom — Almond WPL 4211926 Contact Us For Availability
4
Trim, Door Bottom — Black WPL 4211924 Contact Us For Availability
4
Trim, Door Bottom — White WPL 4212030 Contact Us For Availability
4
Trim, Door Bottom — Almond WPL 9750236PT Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
Nut WPL 4173237 Contact Us For Availability
4
Harness, Wire WPL 9750910 Contact Us For Availability
4
Harness, Wire WPL 9752036 Contact Us For Availability
5
Glass, Door — White WPL 9780314 Contact Us For Availability
5
Glass, Door — Almond WPL 9780328 Contact Us For Availability
5
Glass, Door — Black WPL 9750850 Contact Us For Availability
5
Glass, Door — White WPL 9751769 Contact Us For Availability
5
Glass, Door — Almond WPL 9751770 Contact Us For Availability
5
Glass, Door — Black WPL 9751771 Contact Us For Availability
5
Oven Liner WPL 4211948 Contact Us For Availability
5
Oven Liner WPL 4211892 Contact Us For Availability
5
Fan WPL 9751117 Contact Us For Availability
5
Harness, Wire WPL 9750376 Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
6
Screw (2) WPL 3149333 Contact Us For Availability
6
Panel, Control — White WPL 9780727 Contact Us For Availability
6
Panel, Control — Almond WPL 9780728 Contact Us For Availability
6
Panel, Control — Black WPL 9780516 Contact Us For Availability
6
Screw, (2) 8 x 3/8 WPL 9780852 Contact Us For Availability
6
Vent, Door — White WPL 4211907 Contact Us For Availability
6
Vent, Door — Almond WPL 4211908 Contact Us For Availability
6
Vent, Door — Black WPL 4211898 Contact Us For Availability
6
Vent, Door — x 1/2 WPL 10AB Contact Us For Availability
6
Vent, Door — White WPL 4212224 Contact Us For Availability
6
Vent, Door — Almond WPL 4421443 Contact Us For Availability
6
Vent, Door — Black WPL 4212225 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
6
Shim Ring WPL 4173238 Contact Us For Availability
6
Harness, Wire WPL 9752088 Contact Us For Availability
6
Oven Lock Assembly WPL 9750522 Contact Us For Availability
7
Vent Back WPL 9750898 Contact Us For Availability
7
Oven , Side L or R — White WPL 4211896 Contact Us For Availability
7
Oven , Side L or R — Almond WPL 4211897 Contact Us For Availability
7
Oven , Side L or R — Black WPL 4211895 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
8
Knobs, Control — Almond WPL 4211913 Contact Us For Availability
8
Knobs, Control — Black WPL 4211901 Contact Us For Availability
8
Knobs, Control — Black WPL 4211983 Contact Us For Availability
8
Handle, Door — White WPL 4212234 Contact Us For Availability
8
Handle, Door — Almond WPL 4212235 Contact Us For Availability
8
Handle, Door — Black WPL 4212236 Contact Us For Availability
8
Screw, 10 x 1/2 WPL 9780272 Contact Us For Availability
8
Handle, Door — White WPL 4212069 Contact Us For Availability
8
Handle, Door — Almond WPL 4421442 Contact Us For Availability
8
Handle, Door — Black WPL 4212058 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Assembly, Fan WPL 9751259 Contact Us For Availability
8
Solenoid WPL 9750524 Contact Us For Availability
8
Screw, (2) 10−32 x 5/16 WPL 4211945 Contact Us For Availability
8
Washer WPL 4211875 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
9
Gasket, Door Glass WPL 9750694 Contact Us For Availability
9
Screw, (2) 8 x 3/8 WPL 9780270 Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
9
Baffle, Convection WPL 4211894 Contact Us For Availability
9
Fuse, Safety WPL 3149652 Contact Us For Availability
10
Wire Guard WPL 9780585 Contact Us For Availability
10
Screw, Anchor (2) WPL 915720 Contact Us For Availability
10
Bracket,Power Cord WPL 9750491 Contact Us For Availability
10
Lock−Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Grommet, Harness WPL 9751868 Contact Us For Availability
11
Element, Surface — 230 MM − LF WPL 9751527 Contact Us For Availability
11
Element, Surface — 180 MM − RF WPL 3182862 Contact Us For Availability
11
Light Module WPL 9750964 Contact Us For Availability
11
Heat Channel WPL 9750693 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
Burner Box WPL 9751166 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Block, Balance WPL 312804 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interloc WPL 9751763 Contact Us For Availability
13
Shield Door WPL 4211941 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
13
Bracket, Spring WPL 9750834 Contact Us For Availability
14
Dual Element, RR WPL 9751532 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Spacer, Tubing WPL 3179672 Contact Us For Availability
14
Spring, Door Lock WPL 9750833 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Spring (14) WPL 9781211 Contact Us For Availability
15
Oven Control Assembly — White WPL 9750919 Contact Us For Availability
15
Oven Control Assembly — Almond WPL 9750918 Contact Us For Availability
15
Oven Control Assembly — Black WPL 9750716 Contact Us For Availability
15
Window Pack WPL 9751245 Contact Us For Availability
15
Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Trim, Side Frame — White WPL 9751440PW Contact Us For Availability
16
Trim, Side Frame — Almond WPL 9751440PT Contact Us For Availability
16
Trim, Side Frame — Black WPL 9751440PB Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Screw (2) 8 x 1/4 WPL 9780271 Contact Us For Availability
16
Seal, Glass WPL 9751135 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Screw, (3) #8 x 1" WPL 9751808 Contact Us For Availability
17
Thermo−Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Screw, (2) 10−16 x 1 WPL 98884 Contact Us For Availability
18
Vent, Cover WPL 9751800 Contact Us For Availability
18
Ground Strap WPL 308498 Contact Us For Availability
18
Clip, (1) WPL 313660 Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
20
Trim, Rear Frame — White WPL 9752045PW Contact Us For Availability
20
Trim, Rear Frame — Almond WPL 9752045PT Contact Us For Availability
20
Trim, Rear Frame — Black WPL 9752045PB Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
20
Rack, Roasting WPL 3181534 Contact Us For Availability
21
1700W, RF WPL 9751363 Contact Us For Availability
21
2100−2600W, LF WPL 9751362 Contact Us For Availability
21
1250−1500W, LR WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Nut, Mounting — Single Element WPL 4211830 Contact Us For Availability
22
Nut, Mounting — Dual Element WPL 9751711 Contact Us For Availability
22
Trim,Drawer Bottm. — White WPL 4211905 Contact Us For Availability
22
Trim,Drawer Bottm. — Almond WPL 4211906 Contact Us For Availability
22
Trim,Drawer Bottm. — Black WPL 4211902 Contact Us For Availability
22
Hinge, Cktp.−Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.−Right WPL 9750416 Contact Us For Availability
22
Screw, (1) 8−32 x 3/8 WPL 9780269 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Screw (8) 8−32 x 3/16 WPL 9780268 Contact Us For Availability
23
Seal, Switch (4) WPL 4211860 Contact Us For Availability
23
Trim, Drawer Top — White WPL 4211931 Contact Us For Availability
23
Trim, Drawer Top — Almond WPL 4211932 Contact Us For Availability
23
Trim, Drawer Top — Black WPL 4211930 Contact Us For Availability
24
Front, Drawer — White WPL 4211916 Contact Us For Availability
24
Front, Drawer — Almond WPL 4211917 Contact Us For Availability
24
Front, Drawer — Black WPL 4211915 Contact Us For Availability
24
Front, Drawer — White WPL 4211992 Contact Us For Availability
24
Front, Drawer — Almond WPL 4211993 Contact Us For Availability
24
Front, Drawer — Black WPL 4212056 Contact Us For Availability
25
Glass, Drawer Face — White WPL 9750612 Contact Us For Availability
25
Glass, Drawer Face — Almond WPL 9780326 Contact Us For Availability
25
Glass, Drawer Face — Black WPL 9750611 Contact Us For Availability
25
Vent, Tube WPL 9750736 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw WPL 9780806 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Vent Gasket WPL 9750767 Contact Us For Availability
29
Door Switch WPL 9750897 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
Anti−Tip Kit WPL 9751745 Contact Us For Availability
OPT-1
Wire, Black WPL 242828 Contact Us For Availability
OPT-2
Wire, Black WPL 242820 Contact Us For Availability
OPT-3
Wire, Blue WPL 242821 Contact Us For Availability
OPT-4
Wire, Brown WPL 242822 Contact Us For Availability
OPT-5
Wire, Brown WPL 242830 Contact Us For Availability
OPT-6
Wire, Green WPL 242823 Contact Us For Availability
OPT-7
Wire, Orange WPL 242824 Contact Us For Availability
OPT-8
Wire, Red WPL 242829 Contact Us For Availability
OPT-9
Wire, Red WPL 242825 Contact Us For Availability
OPT-10
Wire, Red WPL 242831 Contact Us For Availability
OPT-11
Wire, White WPL 242826 Contact Us For Availability
OPT-12
Wire, Yellow WPL 242827 Contact Us For Availability
OPT-13
Wire, Yellow WPL 242832 Contact Us For Availability
OPT-17
Coffee WPL 72108 Contact Us For Availability
OPT-19
Toast WPL 72112 Contact Us For Availability
OPT-24
New Avocado WPL 261888 Contact Us For Availability
OPT-25
Coffee WPL 261886 Contact Us For Availability
OPT-26
Harvest Gold WPL 261890 Contact Us For Availability
OPT-27
Toast WPL 285365 Contact Us For Availability
OPT-28
Platinum WPL 285366 Contact Us For Availability
OPT-31
White (Uncut) WPL 799344 Contact Us For Availability
OPT-32
Almond (Uncut) WPL 978883 Contact Us For Availability
OPT-33
Harvest Gold WPL 261891 Contact Us For Availability
OPT-34
Toast (Uncut) WPL 285367 Contact Us For Availability
OPT-35
Platinum (Uncut) WPL 285368 Contact Us For Availability
OPT-36
Kit, Porcelain WPL 799832 Contact Us For Availability
OPT-38
Grease WPL 261582 Contact Us For Availability
OPT-42
Foil, Aluminum WPL 241430 Contact Us For Availability
× ![]()
Login and Registration Form
