Model Whirlpool LIT3189944 30" Electric Range Coil Cooktop E−Z Clean Oven – Common Parts & Diagrams

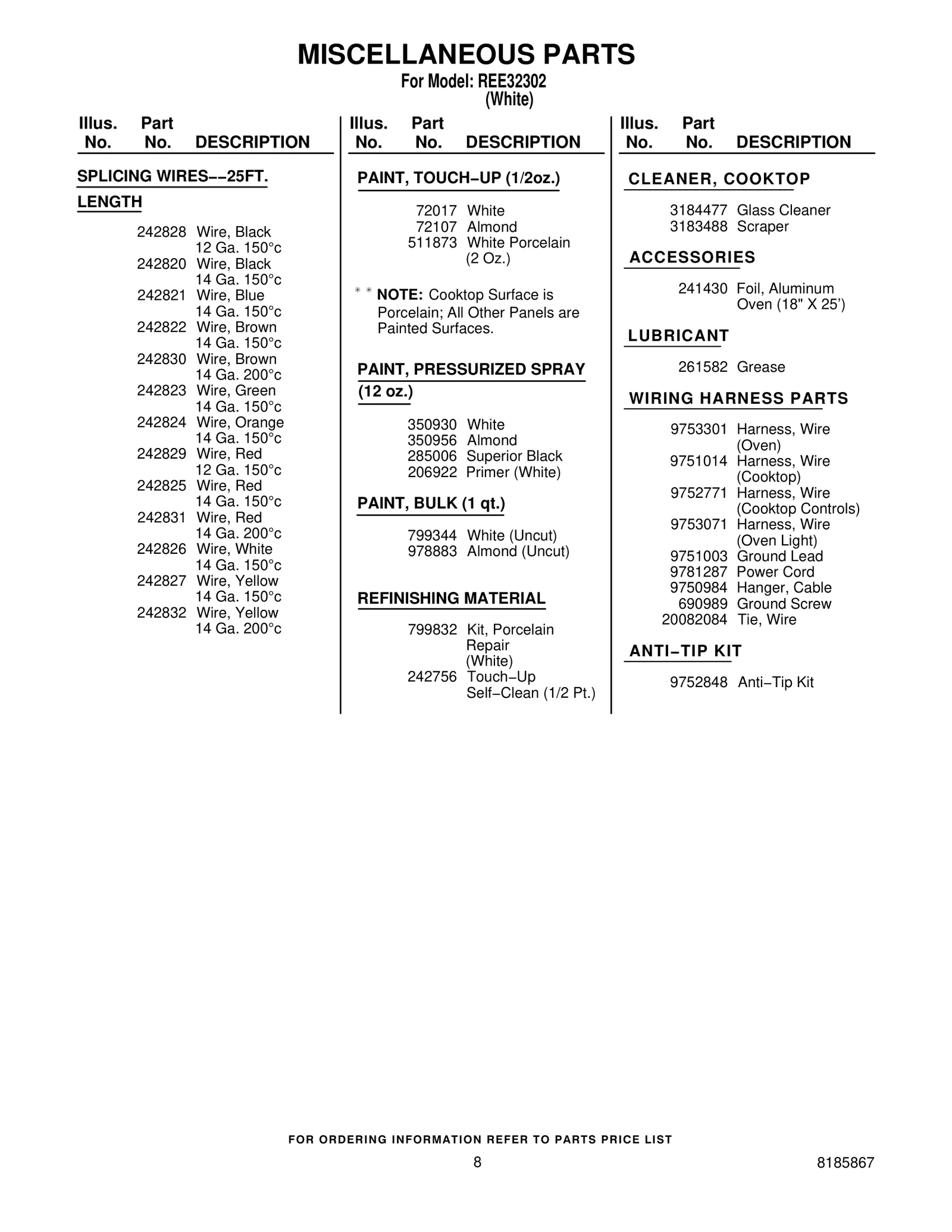

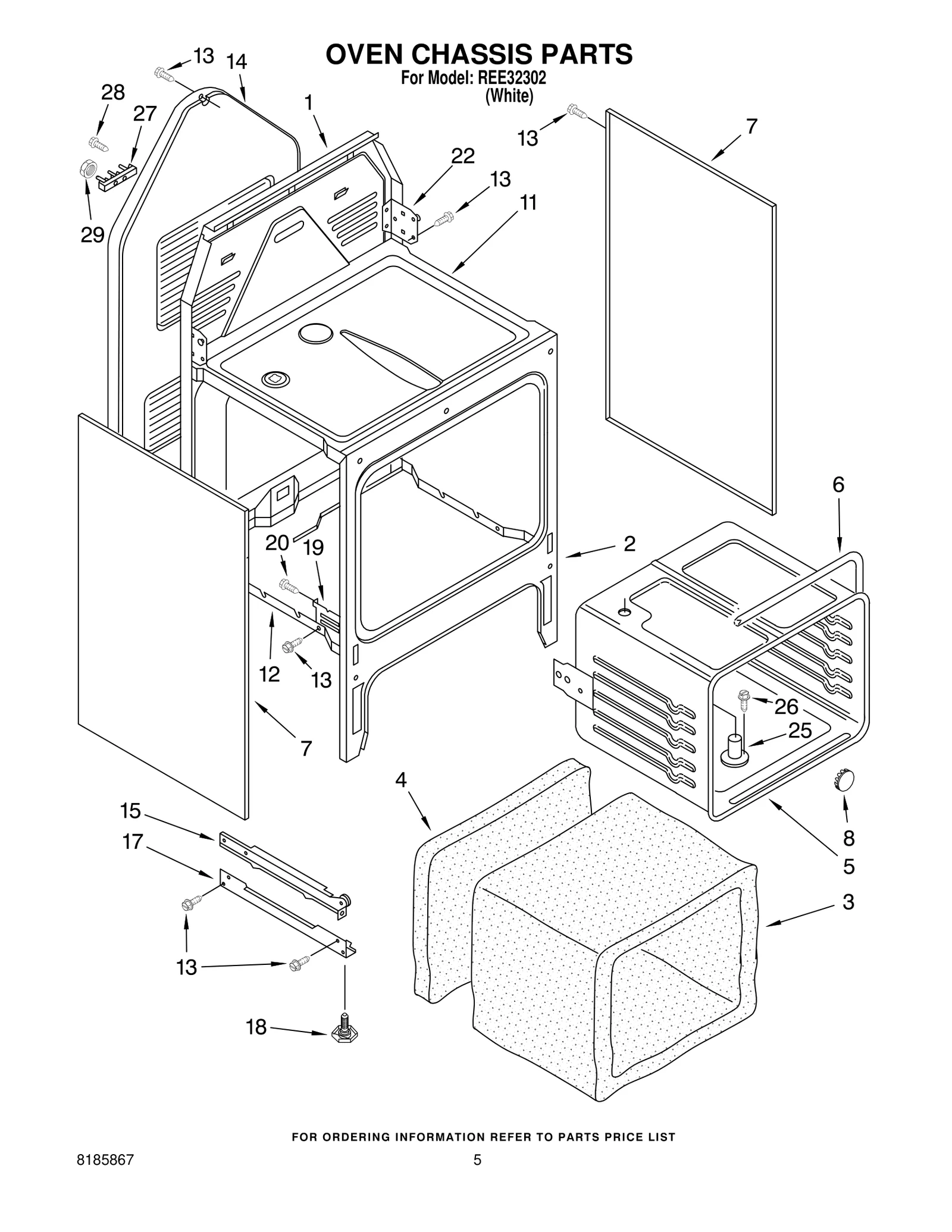

1
Main Chassis, Back
Main Chassis, Back WPL 9750146 Contact Us For Availability
View on Model

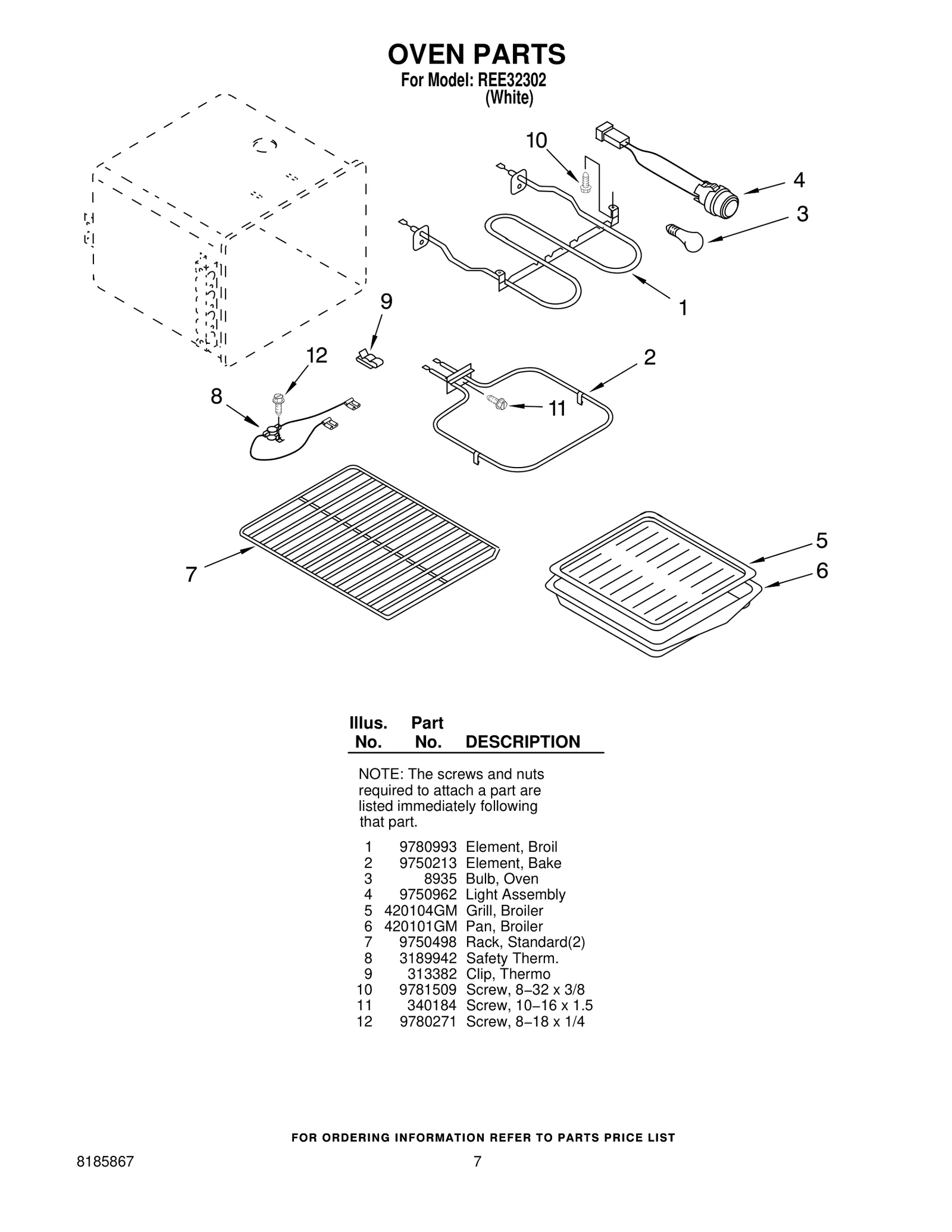

1
Element, Broil
Element, Broil WPL 9780993 Contact Us For Availability
View on Model
2
Element, Bake
Element, Bake WPL 9750213 Contact Us For Availability
View on Model
2
Chassis, Front
Chassis, Front WPL 9750477GM Contact Us For Availability
View on Model
3
Base, Console
Base, Console WPL 9752439 Contact Us For Availability
View on Model
3
Insulation, Wrap
Insulation, Wrap WPL 9754001 Contact Us For Availability
View on Model
4
End Cap — Left
End Cap — Left WPL 9752416FW Contact Us For Availability
View on Model
4
End Cap — Right
End Cap — Right WPL 9752417FW Contact Us For Availability
View on Model
4
Insulation, Rear
Insulation, Rear WPL 9754010 Contact Us For Availability
View on Model
4
Light Assembly 5 420104GM Grill, Broiler
Light Assembly 5 420104GM Grill, Broiler WPL 9750962 Contact Us For Availability
View on Model
5
Oven Liner
Oven Liner WPL 9781294GM Contact Us For Availability
View on Model
6
Panel, Control
Panel, Control WPL 9752478 Contact Us For Availability
View on Model
6
Screw, 8 x 3/8
Screw, 8 x 3/8 WPL 9780852 Contact Us For Availability
View on Model
6

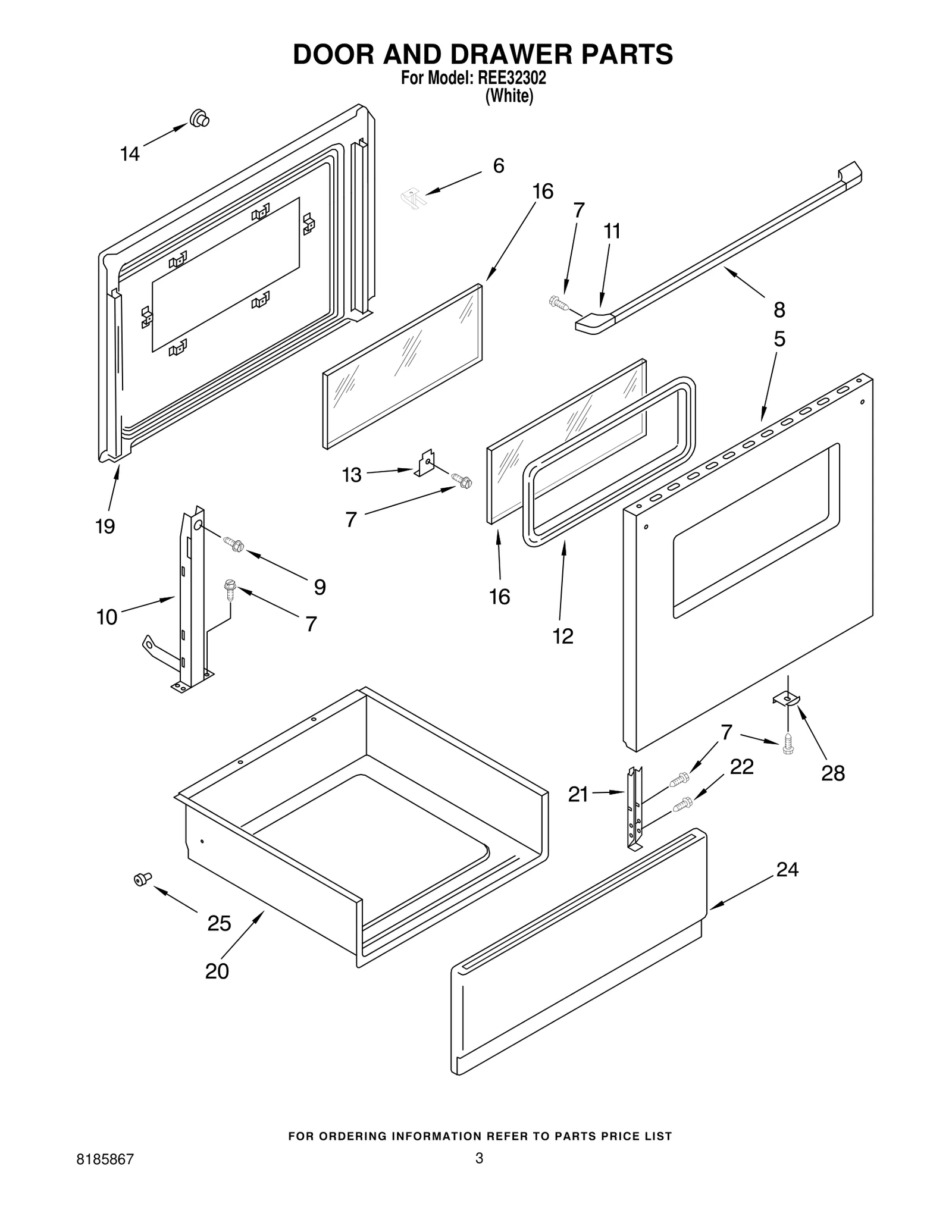

Retainer, Door (2)
Retainer, Door (2) WPL 9750676 Contact Us For Availability
View on Model
6
Gasket Oven
Gasket Oven WPL 9750691 Contact Us For Availability
View on Model
7
Rack, Standard(2)
Rack, Standard(2) WPL 9750498 Contact Us For Availability
View on Model
7
Thermostat
Thermostat WPL 9750401 Contact Us For Availability
View on Model
7
Screw, (2)
Screw, (2) WPL 3400853 Contact Us For Availability
View on Model
7
Oven, Side Panel
Oven, Side Panel WPL 9781907PW Contact Us For Availability
View on Model
8
Knobs, Control (5)
Knobs, Control (5) WPL 9750272FW Contact Us For Availability
View on Model
8
Handle, Door
Handle, Door WPL 9751690PW Contact Us For Availability
View on Model
8
Button, Plug
Button, Plug WPL 9780578 Contact Us For Availability
View on Model
8
Safety Therm.
Safety Therm. WPL 3189942 Contact Us For Availability
View on Model
9
Screw, 10−16 x 1/2
Screw, 10−16 x 1/2 WPL 3149333 Contact Us For Availability
View on Model
9
Light, Indicator
Light, Indicator WPL 9780801 Contact Us For Availability
View on Model
10
Hinge, Door R or L
Hinge, Door R or L WPL 9782032 Contact Us For Availability
View on Model
10
Screw, 8−32 x 3/8
Screw, 8−32 x 3/8 WPL 9781509 Contact Us For Availability
View on Model
11
Light, Indicator (2)
Light, Indicator (2) WPL 313102 Contact Us For Availability
View on Model
11
End Cap, Handle
End Cap, Handle WPL 9781575 Contact Us For Availability
View on Model
11
Burner Box
Burner Box WPL 9750478 Contact Us For Availability
View on Model
12
Trim Strip
Trim Strip WPL 9752441PW Contact Us For Availability
View on Model
12
Gasket, Glass
Gasket, Glass WPL 9750685 Contact Us For Availability
View on Model
12
Oven Bottom
Oven Bottom WPL 9750142 Contact Us For Availability
View on Model
12
Screw, 8−18 x 1/4
Screw, 8−18 x 1/4 WPL 9780271 Contact Us For Availability
View on Model
13
Switch, Oven Light
Switch, Oven Light WPL 3191100FW Contact Us For Availability
View on Model
13
Retainer Glass(6)
Retainer Glass(6) WPL 9781613 Contact Us For Availability
View on Model
14
Panel, Rear
Panel, Rear WPL 9750150 Contact Us For Availability
View on Model
15
Drawer Rail, Right
Drawer Rail, Right WPL 9750224 Contact Us For Availability
View on Model
15
Drawer Rail, Left
Drawer Rail, Left WPL 9750223 Contact Us For Availability
View on Model
16
Inner Glass,Clear
Inner Glass,Clear WPL 9781651 Contact Us For Availability
View on Model
17
Bottom Rail (2)
Bottom Rail (2) WPL 9750147 Contact Us For Availability
View on Model
19
Liner, Door
Liner, Door WPL 9781599GM Contact Us For Availability
View on Model
19
Hinge, Receiver
Hinge, Receiver WPL 9782005 Contact Us For Availability
View on Model
20
Drawer & Roller
Drawer & Roller WPL 9780583 Contact Us For Availability
View on Model
20
Screw, 10−16 x 1/2
Screw, 10−16 x 1/2 WPL 9780272 Contact Us For Availability
View on Model
21
Bracket, Drawer
Bracket, Drawer WPL 9750169 Contact Us For Availability
View on Model
22
Hinge, Cktp.−Left
Hinge, Cktp.−Left WPL 9750258 Contact Us For Availability
View on Model
22
Hinge, Cktp.−Right
Hinge, Cktp.−Right WPL 9750416 Contact Us For Availability
View on Model
24
Front, Drawer
Front, Drawer WPL 9782108PW Contact Us For Availability
View on Model
25
Vent Tube
Vent Tube WPL 9750391 Contact Us For Availability
View on Model
28
Spacer, Door (2)
Spacer, Door (2) WPL 9781502 Contact Us For Availability
View on Model
28
Screw, 10−16 x 1
Screw, 10−16 x 1 WPL 98884 Contact Us For Availability
View on Model
