Model Whirlpool LIT3188578 30" Electric Set−In Range Standard Clean Oven – Common Parts & Diagrams

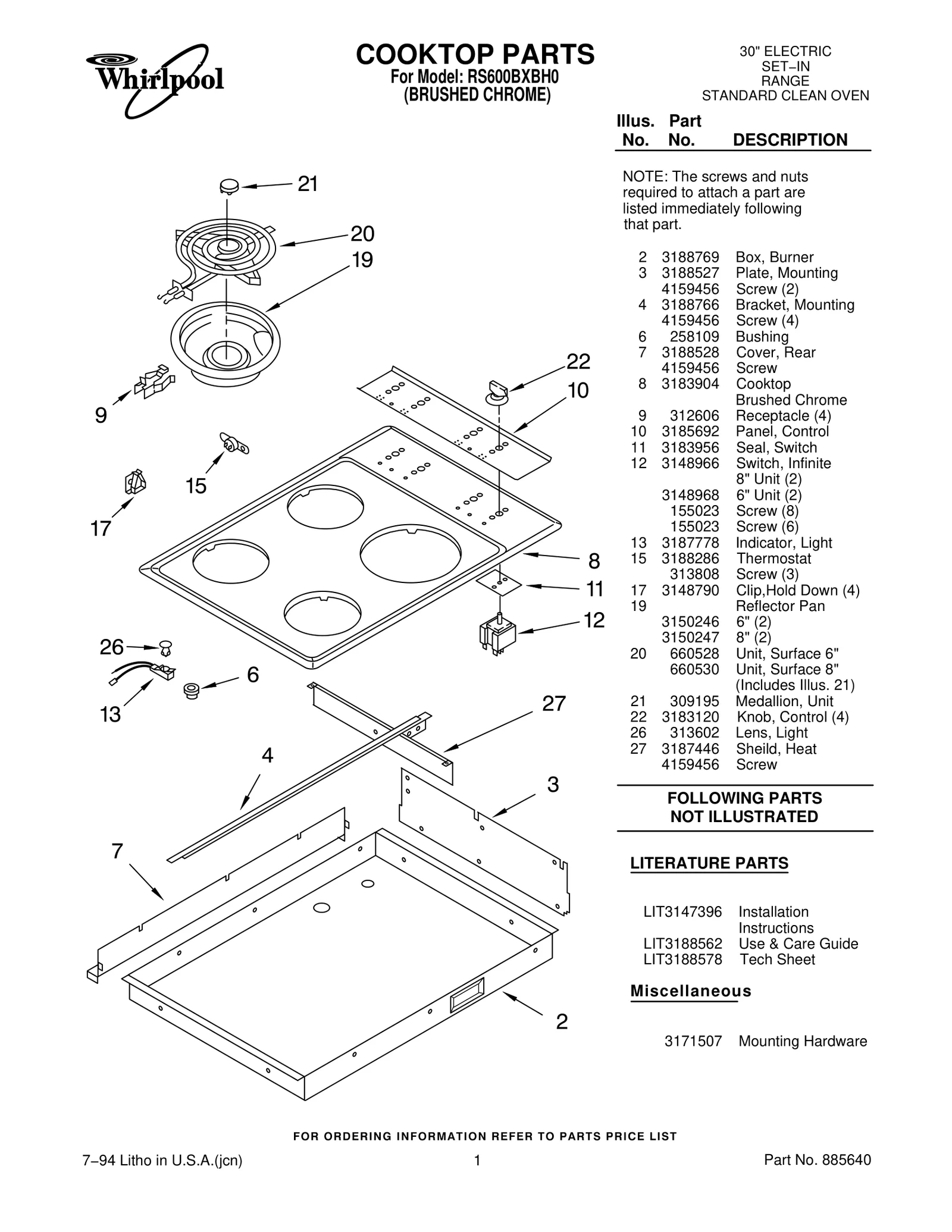

COVER
COOKTOP PARTS

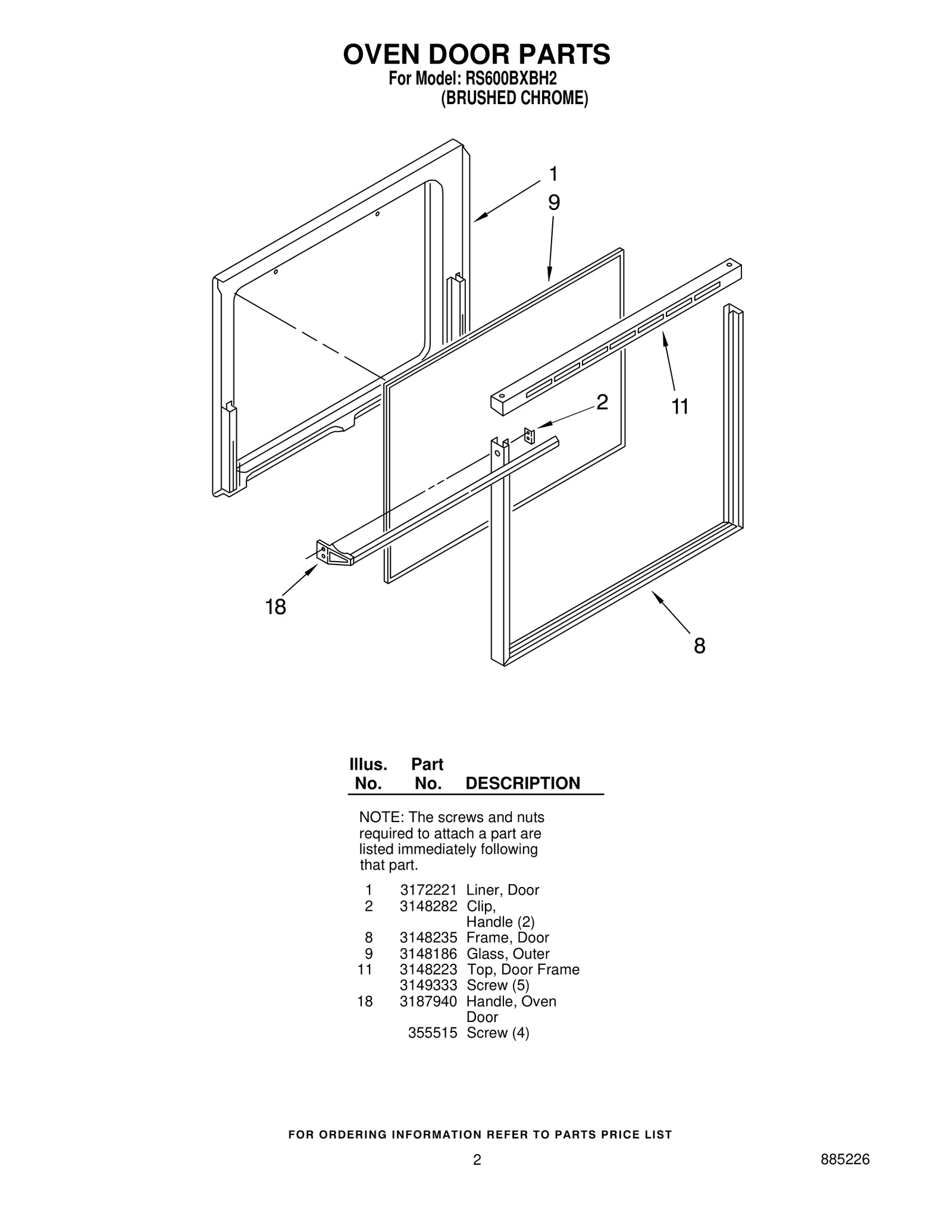

OVEN DOOR PARTS

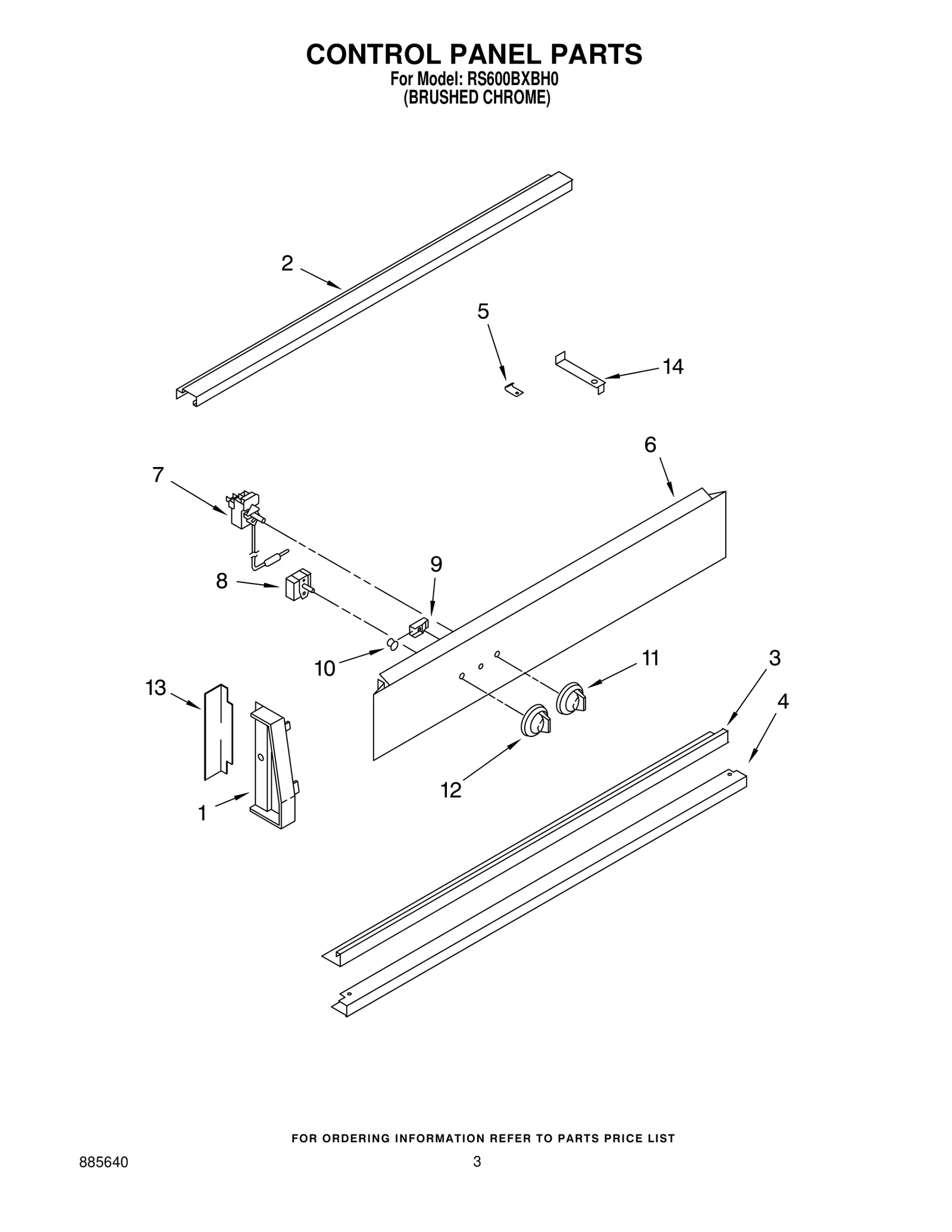

CONTROL PANEL PARTS

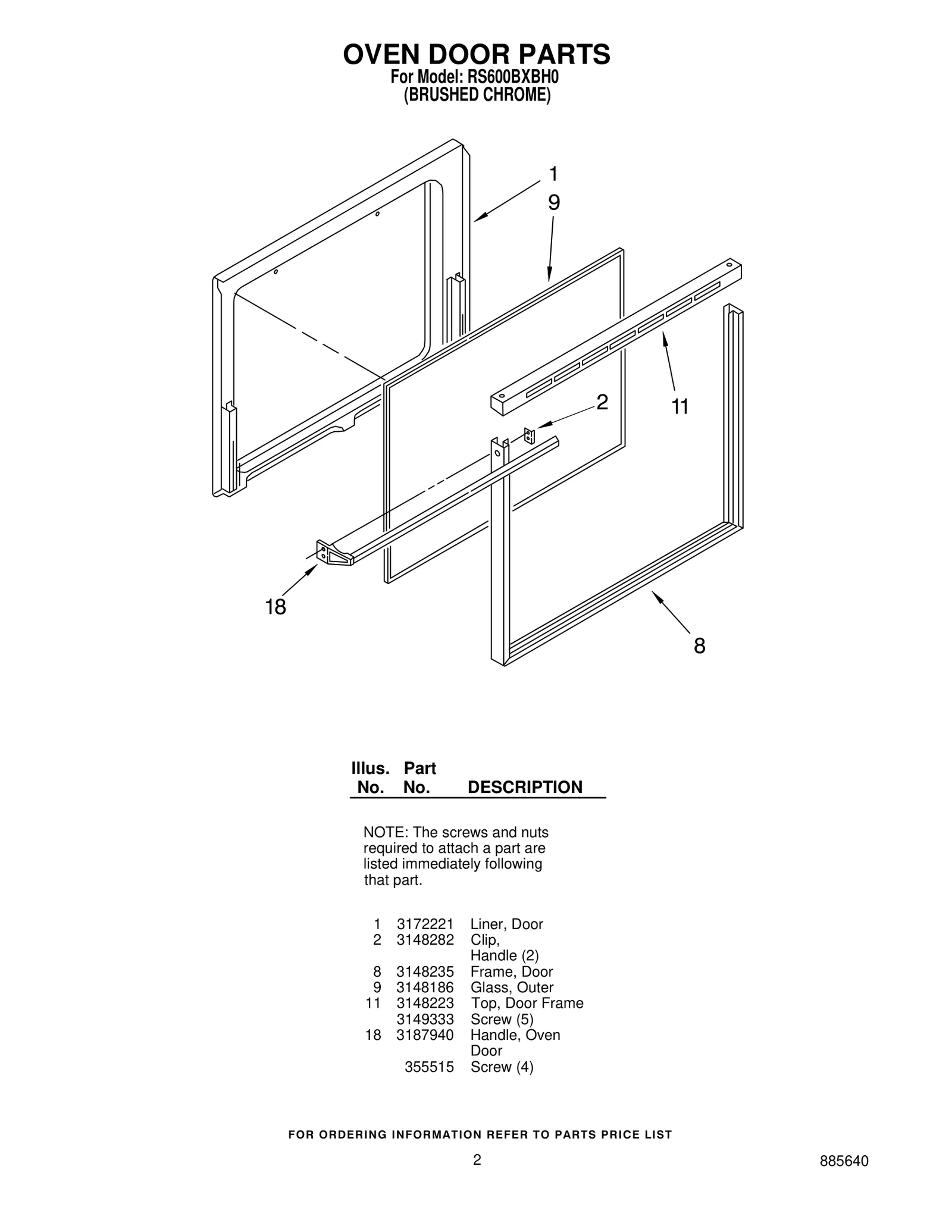

OVEN DOOR PARTS

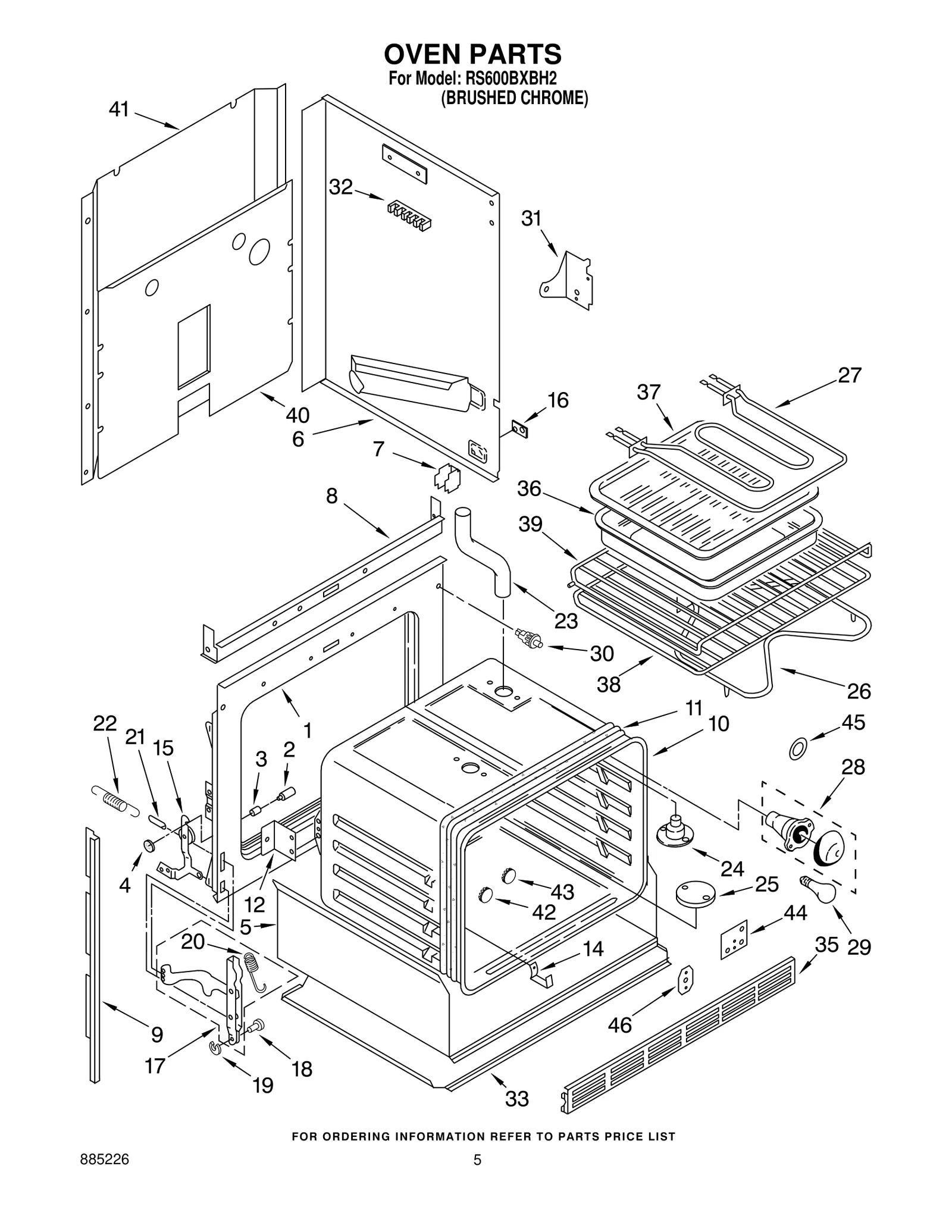

OVEN PARTS

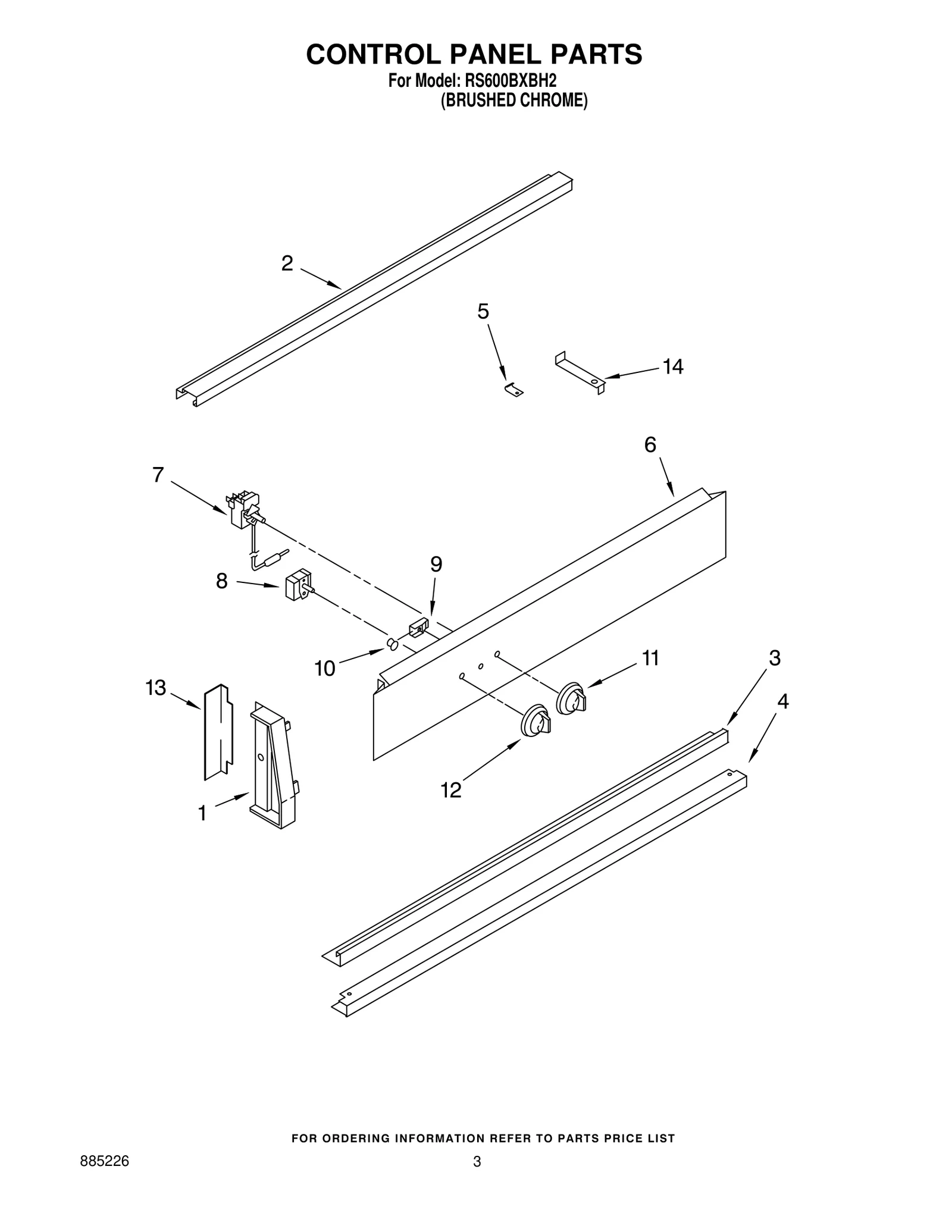

CONTROL PANEL PARTS

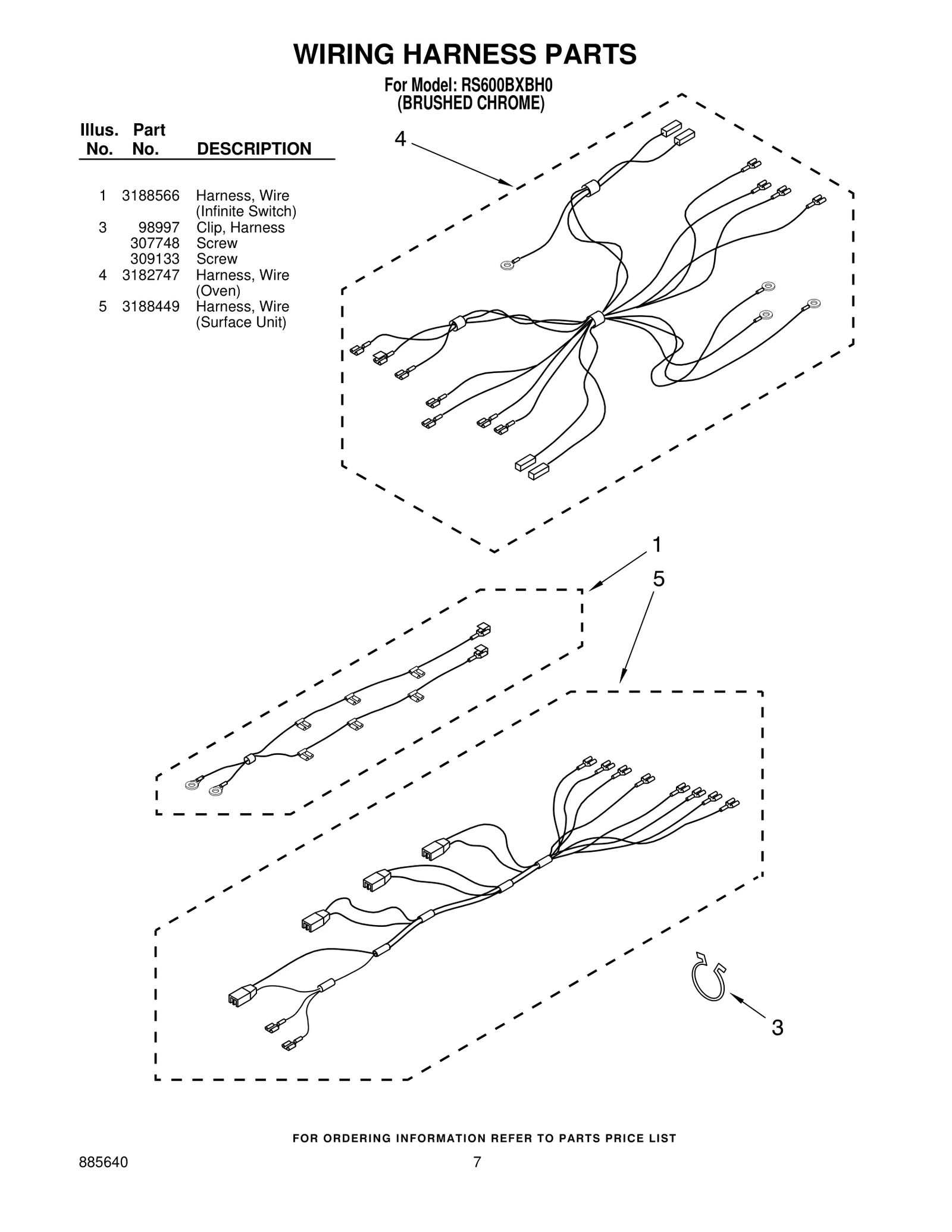

WIRING HARNESS PARTS

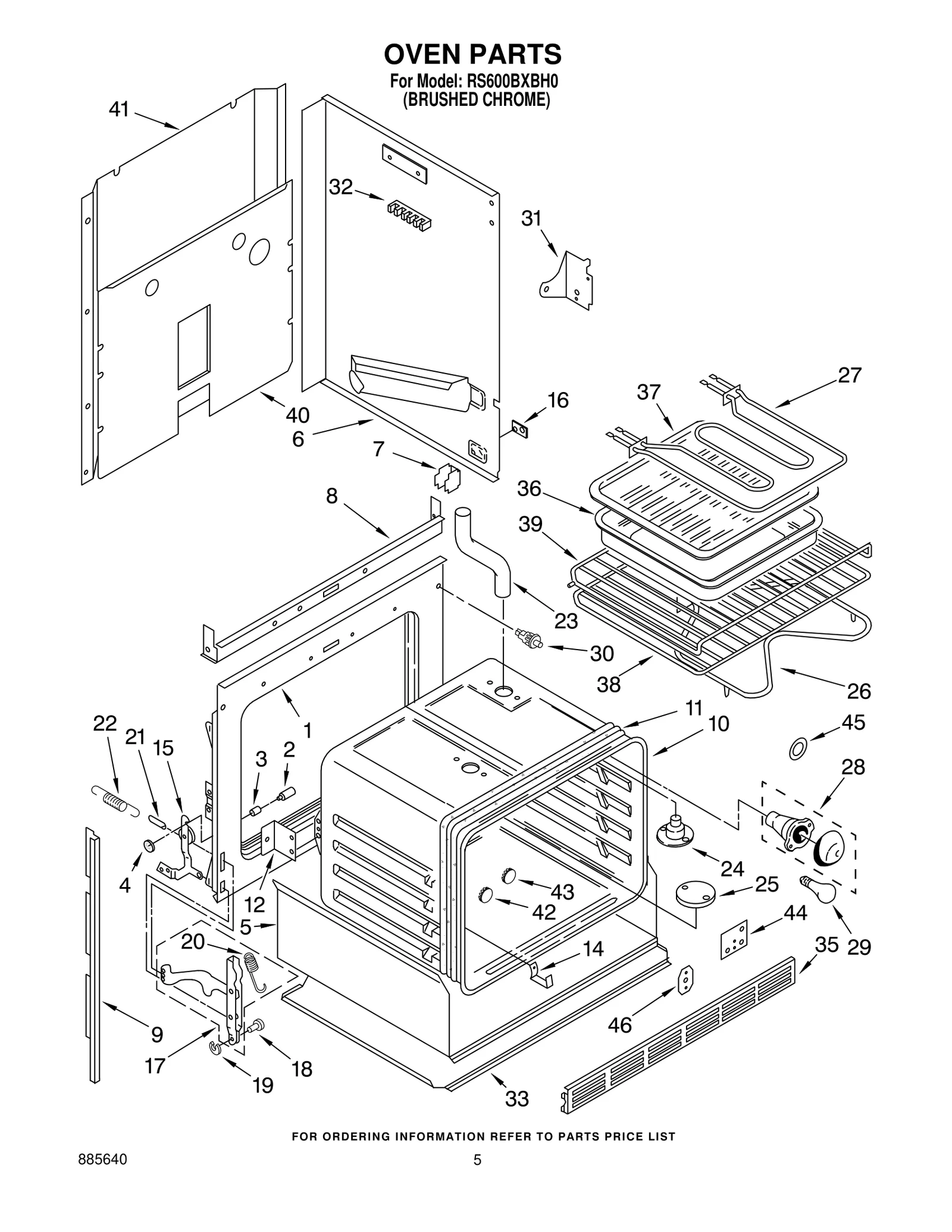

OVEN PARTS

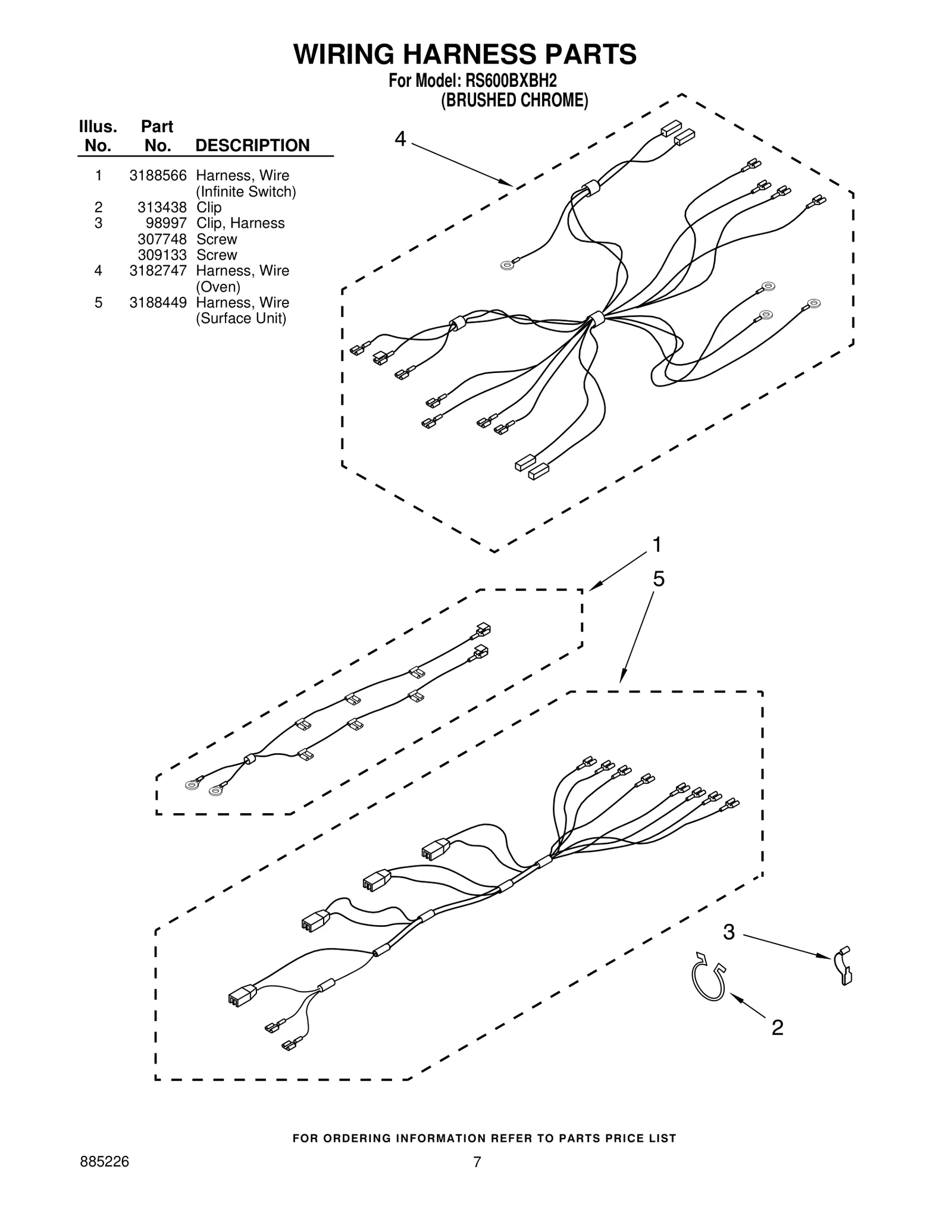

WIRING HARNESS PARTS
Common parts from model Whirlpool LIT3188578 30" Electric Set−In Range Standard Clean Oven
1
Liner, Door WPL 3172221 Contact Us For Availability
1
Frame, Front WPL 3176714 Contact Us For Availability
1
End Cap — L.H. WPL 3148445 Contact Us For Availability
1
End Cap — R.H. WPL 3148444 Contact Us For Availability
1
Harness, Wire WPL 3188566 Contact Us For Availability
1
Frame, Front WPL 3186977 Contact Us For Availability
2
Clip, Handle (2) WPL 3148282 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Trim, Top WPL 3148616 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Trim, Center WPL 3183358 Contact Us For Availability
3
Screw WPL 307748 Contact Us For Availability
3
Screw WPL 309133 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Screw (3) WPL 98520 Contact Us For Availability
4
Trim, Bottom WPL 3184045 Contact Us For Availability
4
Harness, Wire WPL 3182747 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Bracket WPL 3184170 Contact Us For Availability
5
Screw (2) WPL 342043 Contact Us For Availability
5
Harness, Wire WPL 3188449 Contact Us For Availability
6
NOTE: The screws and nuts required to attach WPL N/S Contact Us For Availability
6
Side Wrapper — Right Side WPL 3185954 Contact Us For Availability
6
Side Wrapper — Left Side WPL 3185957 Contact Us For Availability
6
Panel, Control WPL 3182830 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Thermostat, Oven WPL 3169306 Contact Us For Availability
7
Screw (2) WPL 3186941 Contact Us For Availability
8
Switch, Selector WPL 3150430 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
8
Screw (2) WPL 3186940 Contact Us For Availability
9
Light, Indicator WPL 314031 Contact Us For Availability
9
Glass, Outer WPL 3148186 Contact Us For Availability
9
Side Trim R.S. WPL 310689 Contact Us For Availability
9
Side Trim L.S. WPL 310685 Contact Us For Availability
10
Oven, 30" Conventional WPL 3182032 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Lens, Light WPL 313101 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
11
Heat Seal WPL 3169283 Contact Us For Availability
11
Knob, Thermostat WPL 3183106 Contact Us For Availability
12
Switch, Infinite — Use W/ 8" Units WPL 4454533 Contact Us For Availability
12
Knob, Selector WPL 3183109 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Trim, End Cap WPL 3149900 Contact Us For Availability
14
Foil, Aluminum Oven (18" x 25’) WPL 241430 Contact Us For Availability
14
White (Uncut) WPL 799344 Contact Us For Availability
14
Wire, Green 14 Ga. 150 c WPL 242823 Contact Us For Availability
14
Wire, Orange 14 Ga. 150 c WPL 242824 Contact Us For Availability
14
Wire, Red 12 Ga. 150 c WPL 242829 Contact Us For Availability
14
Wire, Red 14 Ga. 150 c WPL 242825 Contact Us For Availability
14
Wire, Red 14 Ga. 200 c WPL 242831 Contact Us For Availability
14
Wire, White 14 Ga. 150 c WPL 242826 Contact Us For Availability
14
Wire, Yellow 14 Ga. 150 c WPL 242827 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200 c PAINT, TOUCH−UP ( WPL 242832 Contact Us For Availability
14
Coffee WPL 72108 Contact Us For Availability
14
New Avocado WPL 261888 Contact Us For Availability
14
Coffee WPL 261886 Contact Us For Availability
14
Harvest Gold WPL 261890 Contact Us For Availability
14
Leveler (Thinner) (2 Oz.) PAINT, BULK (1 qt.) WPL 206925 Contact Us For Availability
14
Almond (Uncut) WPL 978883 Contact Us For Availability
14
New Avocado WPL 261889 Contact Us For Availability
14
Coffee (Uncut) WPL 261887 Contact Us For Availability
14
Harvest Gold WPL 261891 Contact Us For Availability
14
Thinner (1 Gal.) REFINISHING MATERIAL WPL 799351 Contact Us For Availability
14
Kit, Porcelain Repair WPL 799832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
Support, Top Rail WPL 312752 Contact Us For Availability
14
Wire, Black 12 Ga. 150 c WPL 242828 Contact Us For Availability
14
Wire, Black 14 Ga. 150 c WPL 242820 Contact Us For Availability
14
Wire, Blue 14 Ga. 150 c WPL 242821 Contact Us For Availability
14
Wire, Brown 14 Ga. 150 c WPL 242822 Contact Us For Availability
14
Wire, Brown 14 Ga. 200 c WPL 242830 Contact Us For Availability
15
Hinge, Ear — Right Side WPL 3185662 Contact Us For Availability
15
Hinge, Ear — Left Side WPL 3185663 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 3185665 Contact Us For Availability
18
Handle, Oven Door WPL 3187940 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Eliminator, Smoke WPL 3186933 Contact Us For Availability
25
Plate Cover WPL 310662 Contact Us For Availability
27
Screw (2) WPL 312318 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Cover, Side — Right Side WPL 3149027 Contact Us For Availability
31
Cover, Side — Left Side WPL 3149028 Contact Us For Availability
32
Screw, 10−12 x 7/8 (2) WPL 308043 Contact Us For Availability
33
Cover, Bottom & Top WPL 3185945 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
35
Screw, Black 8−15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 3150349 Contact Us For Availability
38
Rack, Oven WPL 3185641 Contact Us For Availability
39
Rack, Oven WPL 3185640 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
Cover, Rear WPL 3185960 Contact Us For Availability
42
Button, Plug WPL 3182814 Contact Us For Availability
43
Button, Plug WPL 3169107 Contact Us For Availability
44
Plate, Cover WPL 3183005 Contact Us For Availability
44
Screw WPL 3150532 Contact Us For Availability
46
Plate, Cover NOT ILLUSTRATED INSULATION WPL 3184208 Contact Us For Availability
46
Insulation, Oven WPL 309961 Contact Us For Availability
46
Insulation, Back WPL 311458 Contact Us For Availability
× ![]()
