Model Whirlpool LIT3187360 Superba 27" Built−In Electric Dual Thermal Convection – Common Parts & Diagrams
CONTROL PANEL PARTS
OPTIONAL PARTS (NOT INCLUDED)
UPPER OVEN PARTS

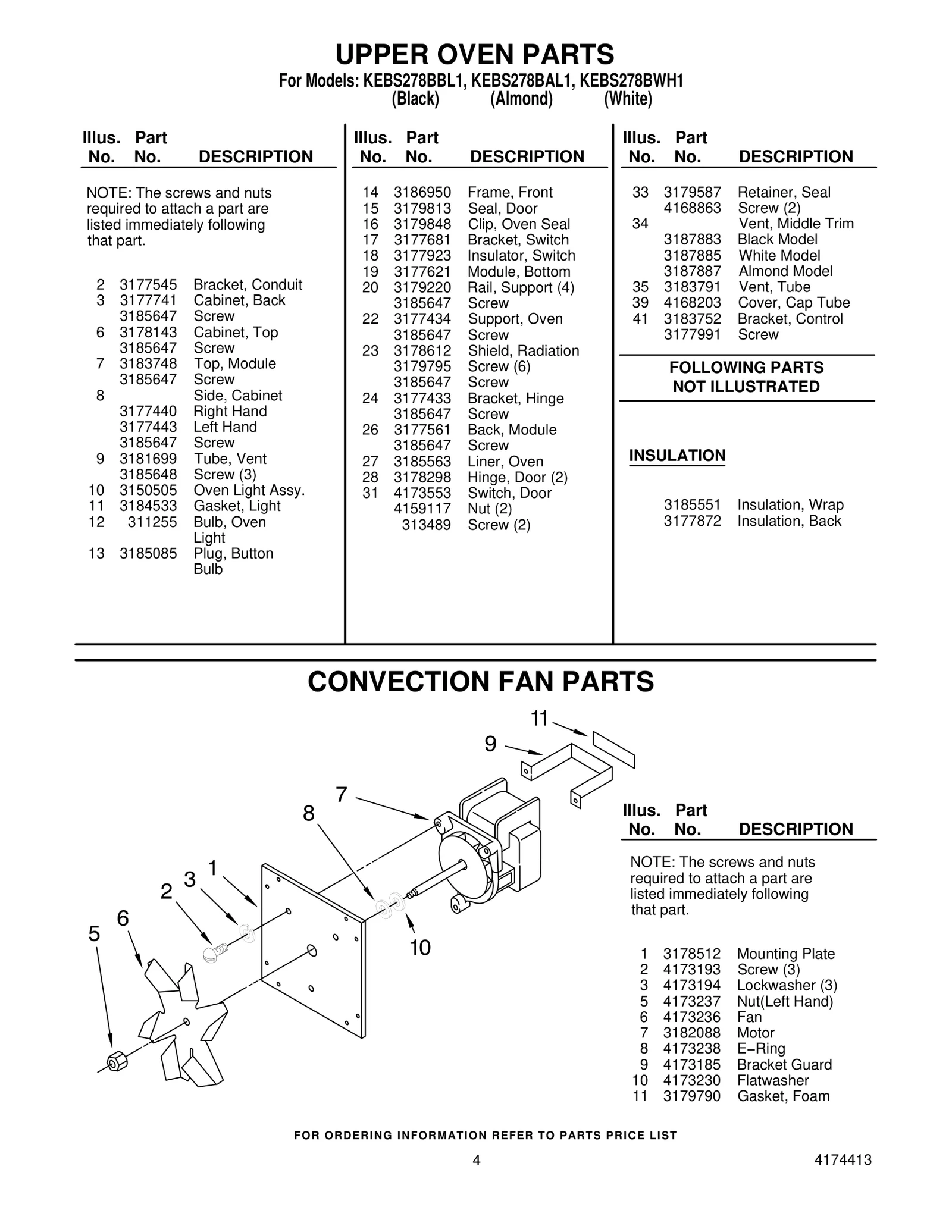

CONVECTION FAN PARTS

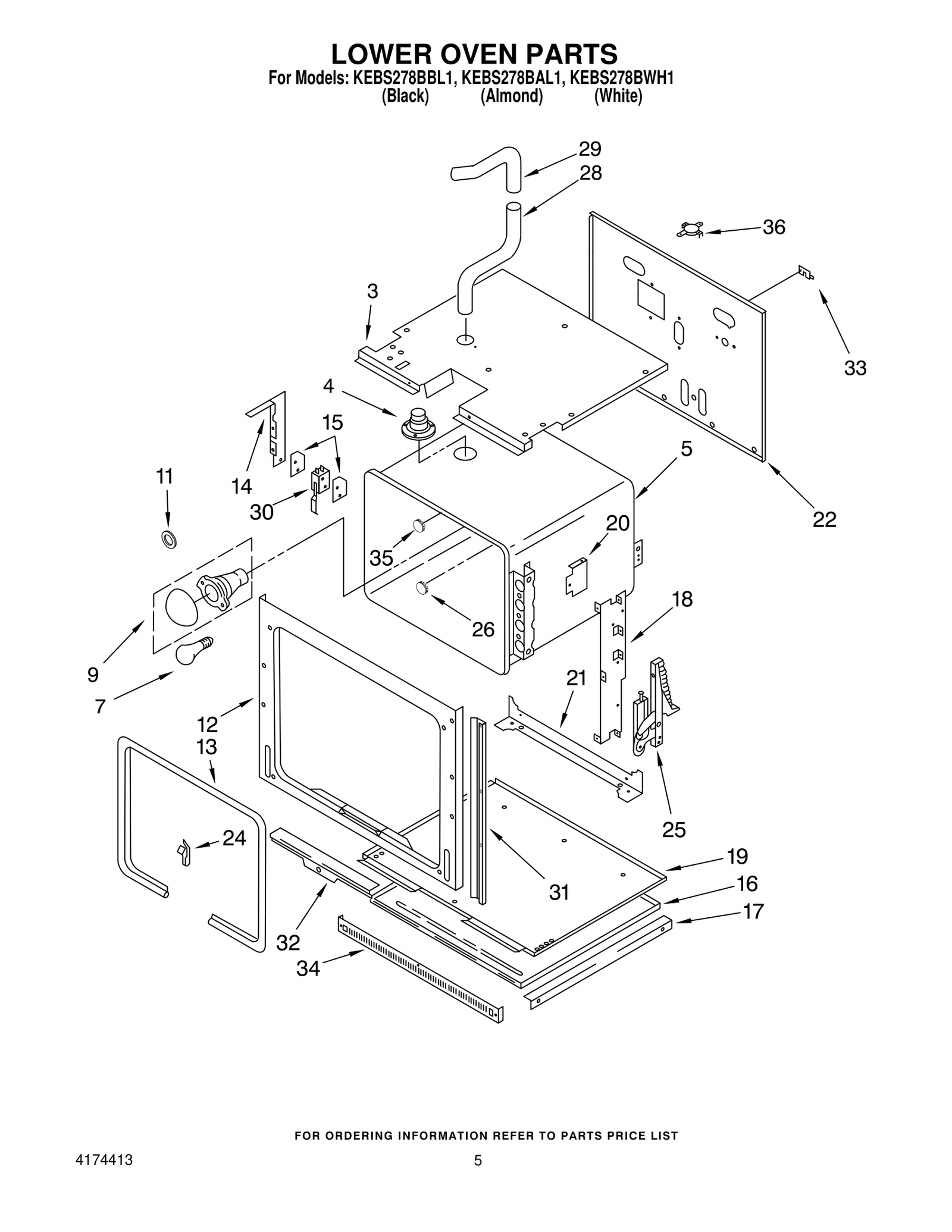

LOWER OVEN PARTS

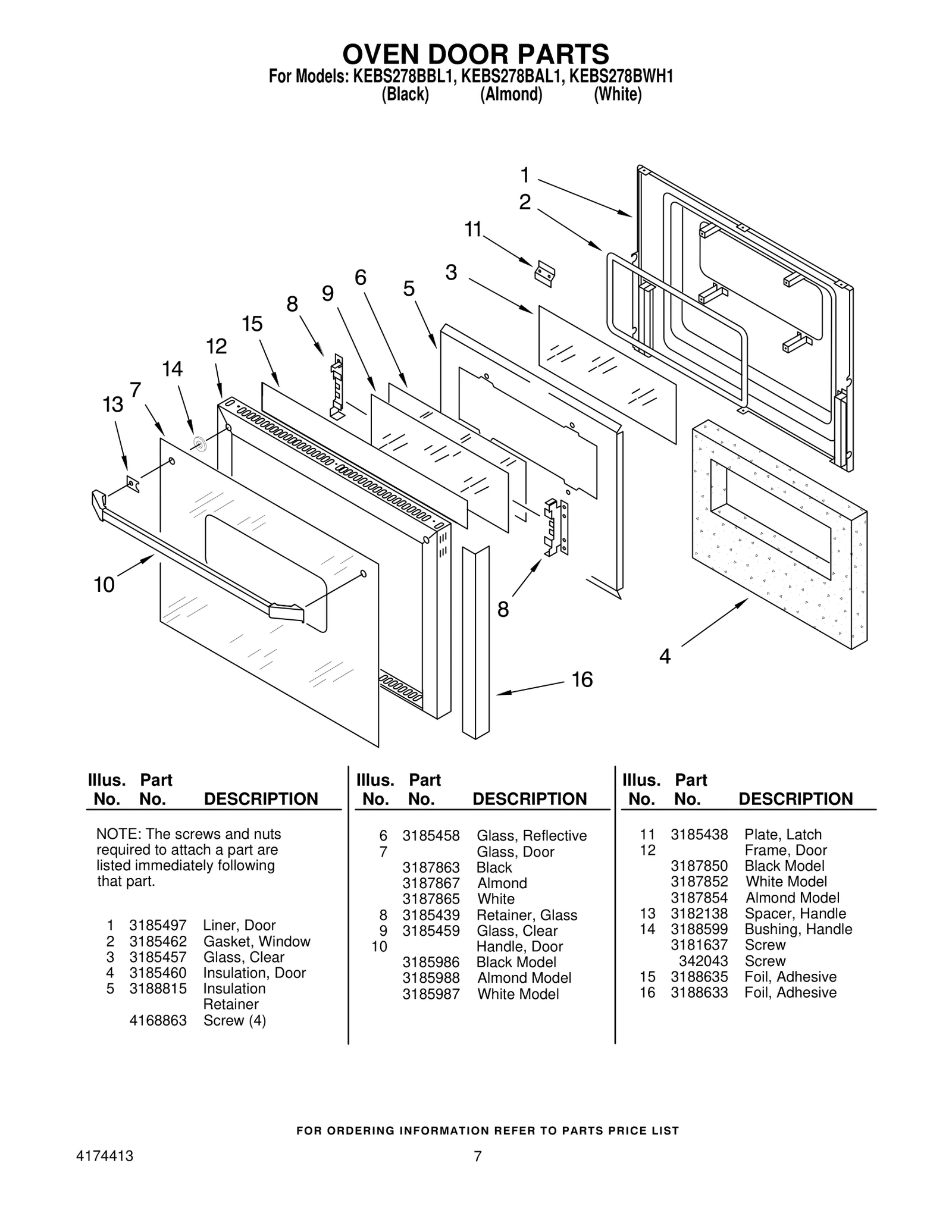

OVEN DOOR PARTS

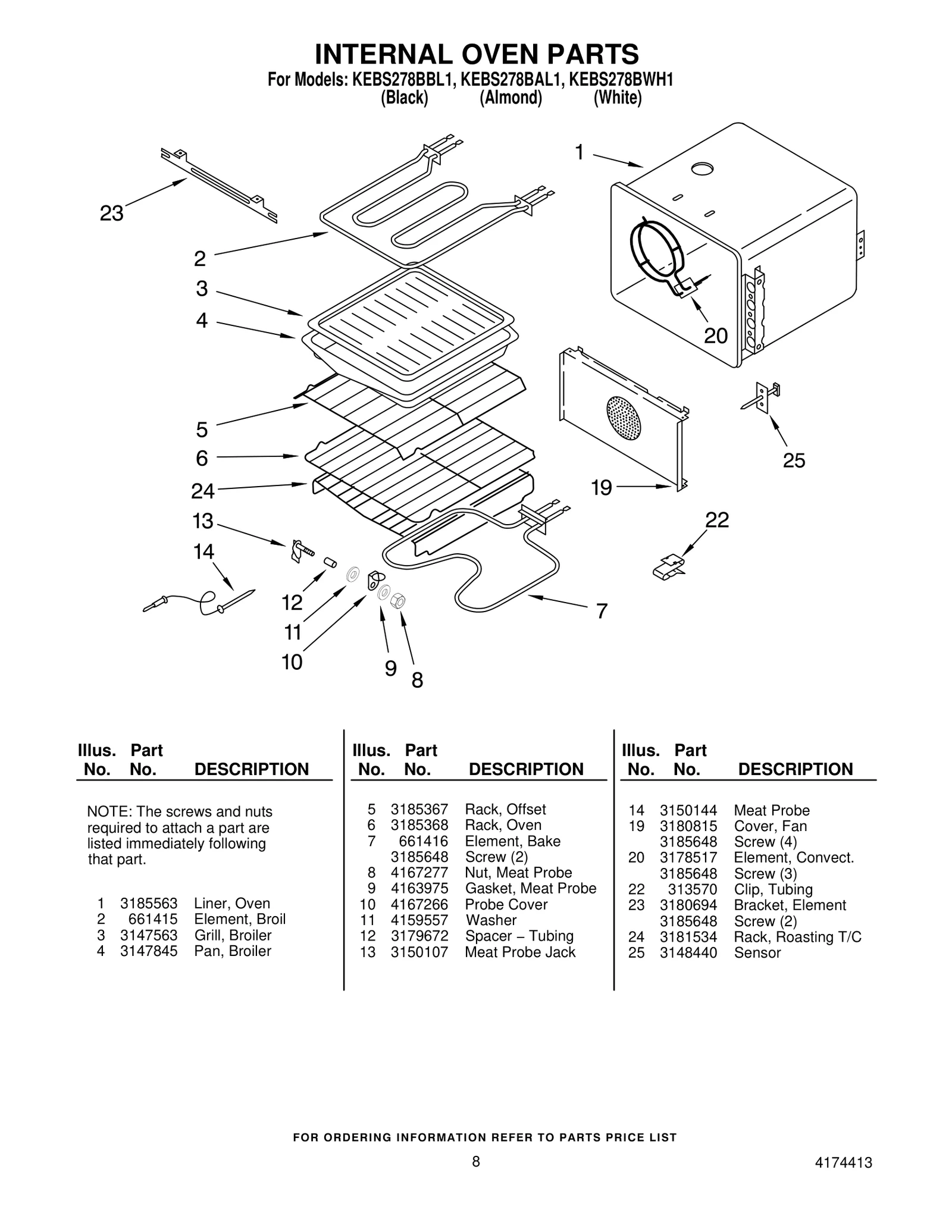

INTERNAL OVEN PARTS

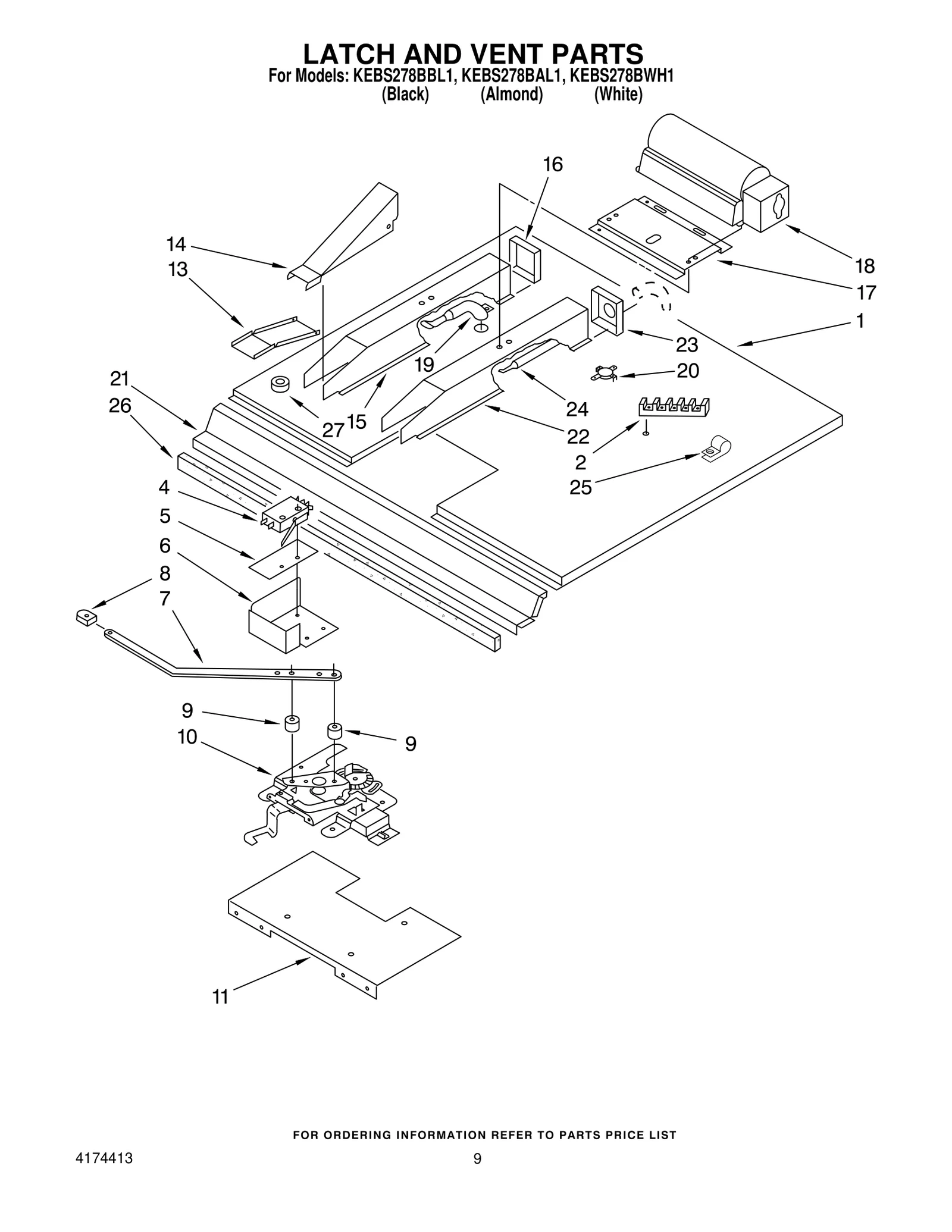

LATCH AND VENT PARTS

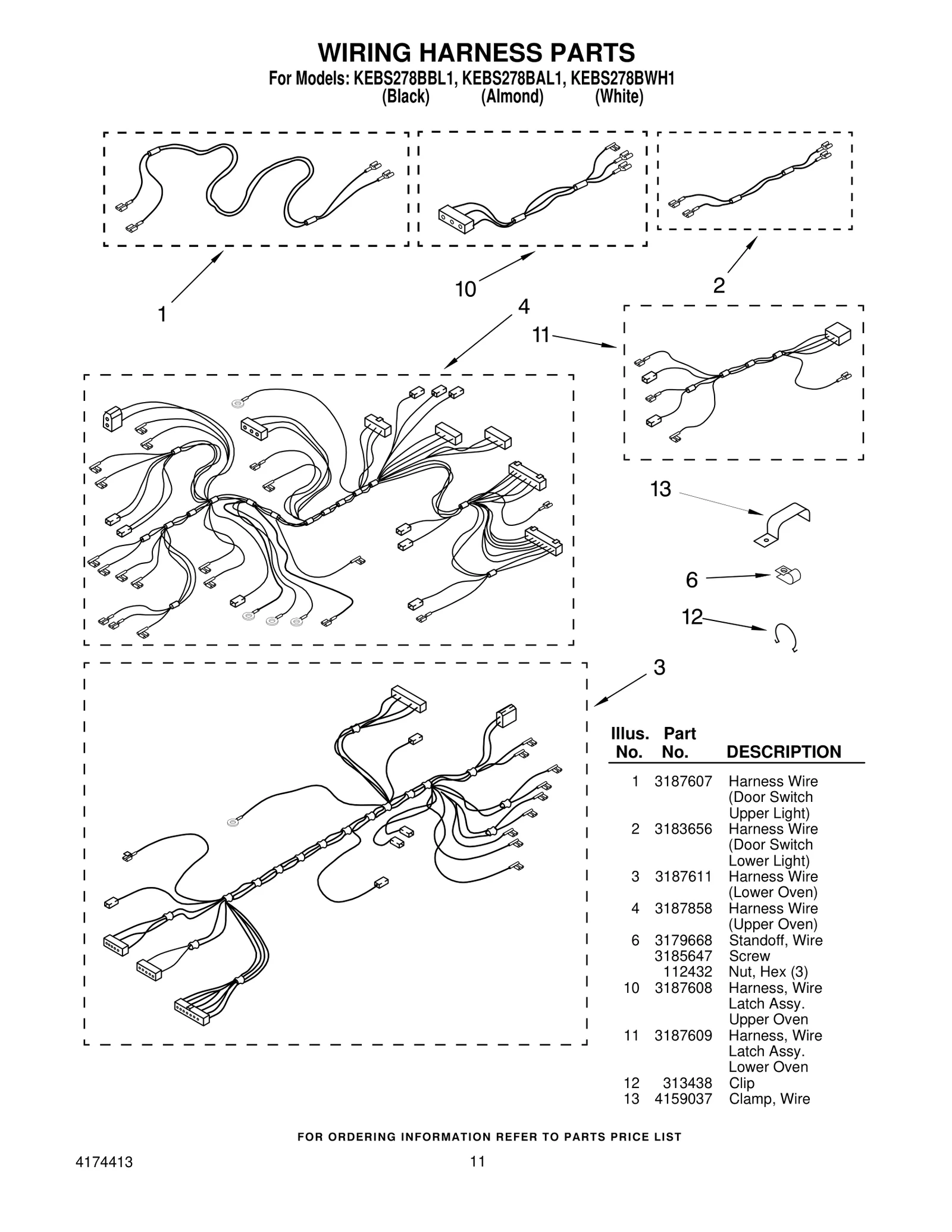

WIRING HARNESS PARTS
Common parts from model Whirlpool LIT3187360 Superba 27" Built−In Electric Dual Thermal Convection
1
Mounting Plate WPL 3178512 Contact Us For Availability
1
Module, Top WPL 3183748 Contact Us For Availability
1
Liner, Oven WPL 3185563 Contact Us For Availability
1
Liner, Door WPL 3185497 Contact Us For Availability
1
Harness Wire (Door Switch Upper Light) WPL 3187607 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Screw (3) WPL 4173193 Contact Us For Availability
2
Gasket, Window WPL 3185462 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
2
Harness Wire (Door Switch Lower Light) WPL 3183656 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Cabinet, Back WPL 3177741 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Harness Wire WPL 3187611 Contact Us For Availability
4
Tube, Vent WPL 3181699 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Switch, Latch WPL 3183784 Contact Us For Availability
4
Screw WPL 98106 Contact Us For Availability
4
Screw WPL 254225 Contact Us For Availability
4
Harness Wire WPL 3187858 Contact Us For Availability
5
Nut(Left Hand) WPL 4173237 Contact Us For Availability
5
Screw (4) WPL 4168863 Contact Us For Availability
5
Insulation Retainer WPL 3188815 Contact Us For Availability
5
Rack, Offset WPL 3185367 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
6
Cabinet, Top WPL 3178143 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Screw WPL 3185647 Contact Us For Availability
6
Glass, Reflective WPL 3185458 Contact Us For Availability
6
Rack, Oven WPL 3185368 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
7
Motor WPL 3182088 Contact Us For Availability
7
Glass, Door — Black WPL 3187863 Contact Us For Availability
7
Glass, Door — Almond WPL 3187867 Contact Us For Availability
7
Glass, Door — White WPL 3187865 Contact Us For Availability
7
Handle, Latch — Upper Oven WPL 3177969 Contact Us For Availability
7
Handle, Latch — Lower Over WPL 3181963 Contact Us For Availability
7
Handle, Latch — Screw WPL 3185414 Contact Us For Availability
8
Side, Cabinet — Right Hand WPL 3177440 Contact Us For Availability
8
Side, Cabinet — Left Hand WPL 3177443 Contact Us For Availability
8
E−Ring WPL 4173238 Contact Us For Availability
8
Retainer, Glass WPL 3185439 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
Knob, Handle WPL 3184039 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
9
Glass, Clear WPL 3185459 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Screw WPL 3184037 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184040 Contact Us For Availability
10
NOTE: The screws and nuts required to attach WPL N/S Contact Us For Availability
10
Flatwasher WPL 4173230 Contact Us For Availability
10
Handle, Door — Black Model WPL 3185986 Contact Us For Availability
10
Handle, Door — Almond Model WPL 3185988 Contact Us For Availability
10
Handle, Door — White Model WPL 3185987 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
10
Latch Mechanism WPL 3178410 Contact Us For Availability
10
Harness, Wire Latch Assy. Upper Oven WPL 3187608 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Gasket, Foam For Models: KEBS278BBL1, KEBS278 WPL 3179790 Contact Us For Availability
11
Plate, Latch WPL 3185438 Contact Us For Availability
11
Washer WPL 4159557 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Harness, Wire Latch Assy. Lower Oven WPL 3187609 Contact Us For Availability
12
Frame, Front WPL 3188161 Contact Us For Availability
12
Frame, Door — Black Model WPL 3187850 Contact Us For Availability
12
Frame, Door — White Model WPL 3187852 Contact Us For Availability
12
Frame, Door — Almond Model WPL 3187854 Contact Us For Availability
12
Spacer − Tubing WPL 3179672 Contact Us For Availability
13
Seal, Door WPL 3179813 Contact Us For Availability
13
Spacer, Handle WPL 3182138 Contact Us For Availability
13
Meat Probe Jack WPL 3150107 Contact Us For Availability
13
Nozzle, Vent Bottom (2) WPL 3183954 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Frame, Front WPL 3186950 Contact Us For Availability
14
Bracket, Switch WPL 3177681 Contact Us For Availability
14
Bushing, Handle WPL 3188599 Contact Us For Availability
14
Screw WPL 3181637 Contact Us For Availability
14
Screw WPL 342043 Contact Us For Availability
14
Nozzle, Vent Top (2) WPL 3183955 Contact Us For Availability
15
Insulator, Switch WPL 3177923 Contact Us For Availability
15
Foil, Adhesive WPL 3188635 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
16
Bottom, Oven WPL 3177551 Contact Us For Availability
16
Foil, Adhesive For Models: KEBS278BBL1, KEBS2 WPL 3188633 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
17
Rail, Support (2) WPL 3179220 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Bracket, Hinge (2) WPL 3177433 Contact Us For Availability
18
Blower, Fan WPL 3183720 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
19
Vent, Tube WPL 3183791 Contact Us For Availability
19
Cover, Fan WPL 3180815 Contact Us For Availability
20
Shield, Radiation WPL 3178612 Contact Us For Availability
20
Screw (6) WPL 3179795 Contact Us For Availability
20
Element, Convect. WPL 3178517 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
21
Support, Oevn WPL 3177434 Contact Us For Availability
21
Shield, Heat WPL 3183785 Contact Us For Availability
22
Back, Module WPL 3177561 Contact Us For Availability
22
Clip, Tubing WPL 313570 Contact Us For Availability
22
Screw WPL 4173231 Contact Us For Availability
22
Box, Vent WPL 3183953 Contact Us For Availability
22
Screw WPL 3179116 Contact Us For Availability
23
Screw (2) WPL 3185648 Contact Us For Availability
23
Bracket, Element WPL 3180694 Contact Us For Availability
23
End, Vent Box WPL 3183965 Contact Us For Availability
24
Clip, Seal (3) WPL 3179848 Contact Us For Availability
24
Rack, Roasting T/C WPL 3181534 Contact Us For Availability
24
Vent Tube, Lower Oven WPL 3183793 Contact Us For Availability
25
Hinge, Door (2) WPL 3178298 Contact Us For Availability
25
Sensor For Models: KEBS278BBL1, KEBS278BAL1, WPL 3148440 Contact Us For Availability
25
Clamp, Tube WPL 3183532 Contact Us For Availability
26
Button, Plug WPL 3185085 Contact Us For Availability
26
Seal, Foam WPL 313755 Contact Us For Availability
27
Bushing For Models: KEBS278BBL1, KEBS278BAL1, WPL 4159035 Contact Us For Availability
28
Vent Tube, Lower WPL 3182159 Contact Us For Availability
29
Vent Tube, Upper WPL 3182160 Contact Us For Availability
30
Switch, Door WPL 4173553 Contact Us For Availability
30
Nut (2) WPL 4159117 Contact Us For Availability
30
Screw (2) WPL 313489 Contact Us For Availability
31
Side Trim, Door (2) — Black Model WPL 3187875 Contact Us For Availability
31
Side Trim, Door (2) — White Model WPL 3187878 Contact Us For Availability
31
Side Trim, Door (2) — Almond Model WPL 3187881 Contact Us For Availability
32
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Cover, Cap Tube WPL 4168203 Contact Us For Availability
33
Screw WPL 4159445 Contact Us For Availability
34
Vent, Middle Trim — Black Model WPL 3187883 Contact Us For Availability
34
Vent, Middle Trim — White Model WPL 3187885 Contact Us For Availability
34
Vent, Middle Trim — Almond Model WPL 3187887 Contact Us For Availability
34
Trim, Lower Vent — Black WPL 3177787 Contact Us For Availability
34
Trim, Lower Vent — Brushed Chrome WPL 3177789 Contact Us For Availability
35
Cover, Probe WPL 4163883 Contact Us For Availability
36
Insulation, Wrap WPL 3185551 Contact Us For Availability
36
Insulation, Back For Models: KEBS278BBL1, KEB WPL 3177872 Contact Us For Availability
36
SPST Thermostat NOT ILLUSTRATED INSULATION WPL 3149652 Contact Us For Availability
41
Bracket, Control WPL 3183752 Contact Us For Availability
OPT-1
LENGTH WPL 350806 Contact Us For Availability
OPT-3
Blue WPL 242820 Contact Us For Availability
OPT-4
Black WPL 242821 Contact Us For Availability
OPT-5
Blue WPL 242822 Contact Us For Availability
OPT-6
Brown WPL 242823 Contact Us For Availability
OPT-7
Green WPL 242824 Contact Us For Availability
OPT-8
Orange WPL 242825 Contact Us For Availability
OPT-9
Red WPL 242826 Contact Us For Availability
OPT-10
White WPL 242827 Contact Us For Availability
OPT-11
Yellow WPL 242830 Contact Us For Availability
OPT-12
Brown WPL 242831 Contact Us For Availability
OPT-13
Red WPL 242832 Contact Us For Availability
OPT-14
Yellow WPL 242828 Contact Us For Availability
OPT-15
Black WPL 242829 Contact Us For Availability
OPT-19
Harvest Gold WPL 72112 Contact Us For Availability
OPT-25
Almond WPL 261890 Contact Us For Availability
OPT-26
Harvest Gold WPL 285365 Contact Us For Availability
OPT-27
Toast WPL 285366 Contact Us For Availability
OPT-30
Primer WPL 350941 Contact Us For Availability
OPT-31
PAINT, BULK (1 qt.) WPL 799344 Contact Us For Availability
OPT-32
White WPL 978883 Contact Us For Availability
OPT-33
Almond WPL 261891 Contact Us For Availability
OPT-34
Harvest Gold WPL 285367 Contact Us For Availability
OPT-35
Toast WPL 285368 Contact Us For Availability
OPT-37
(3 Oz.) WPL 591014 Contact Us For Availability
× ![]()
