Model Whirlpool LIT1185020 Dehumidifier – Common Parts & Diagrams

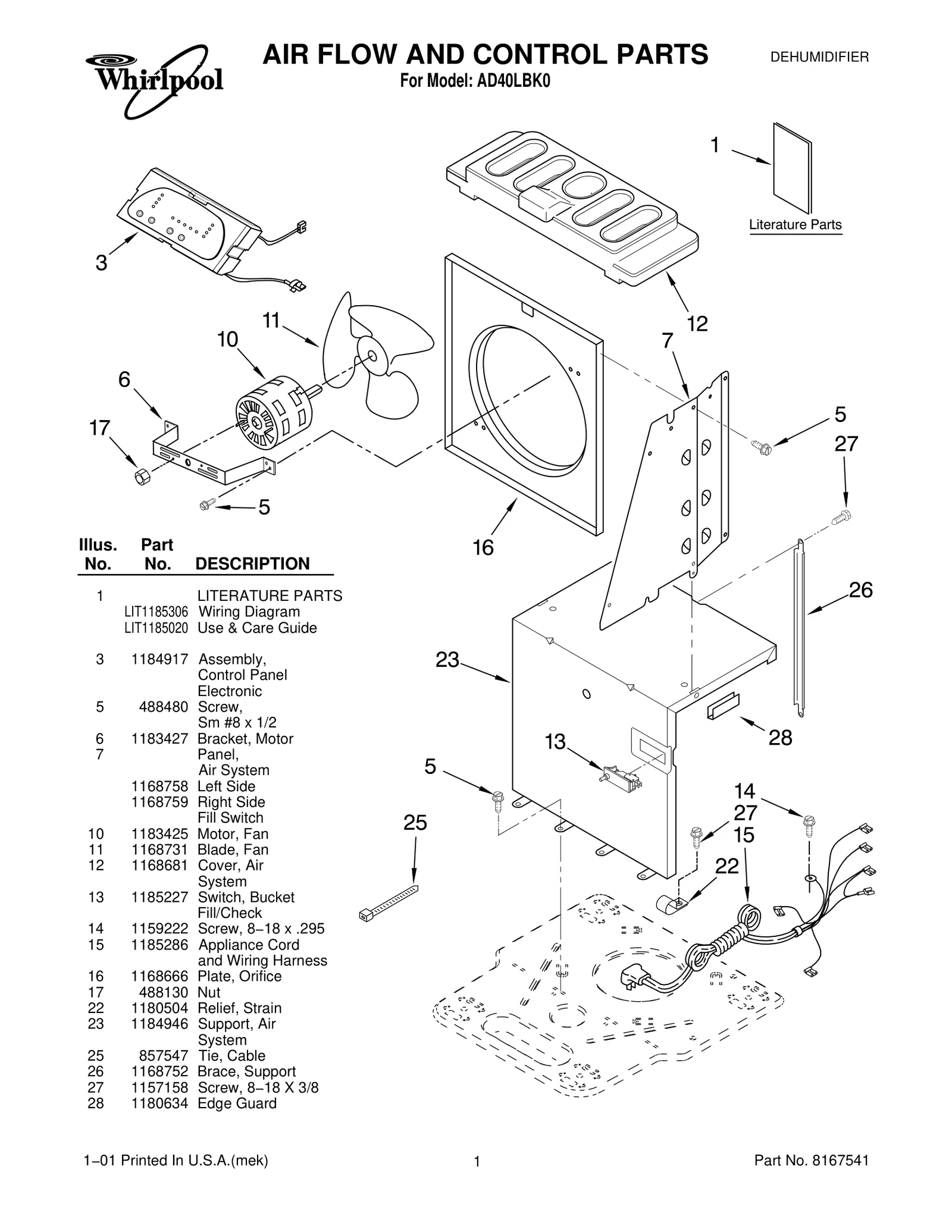

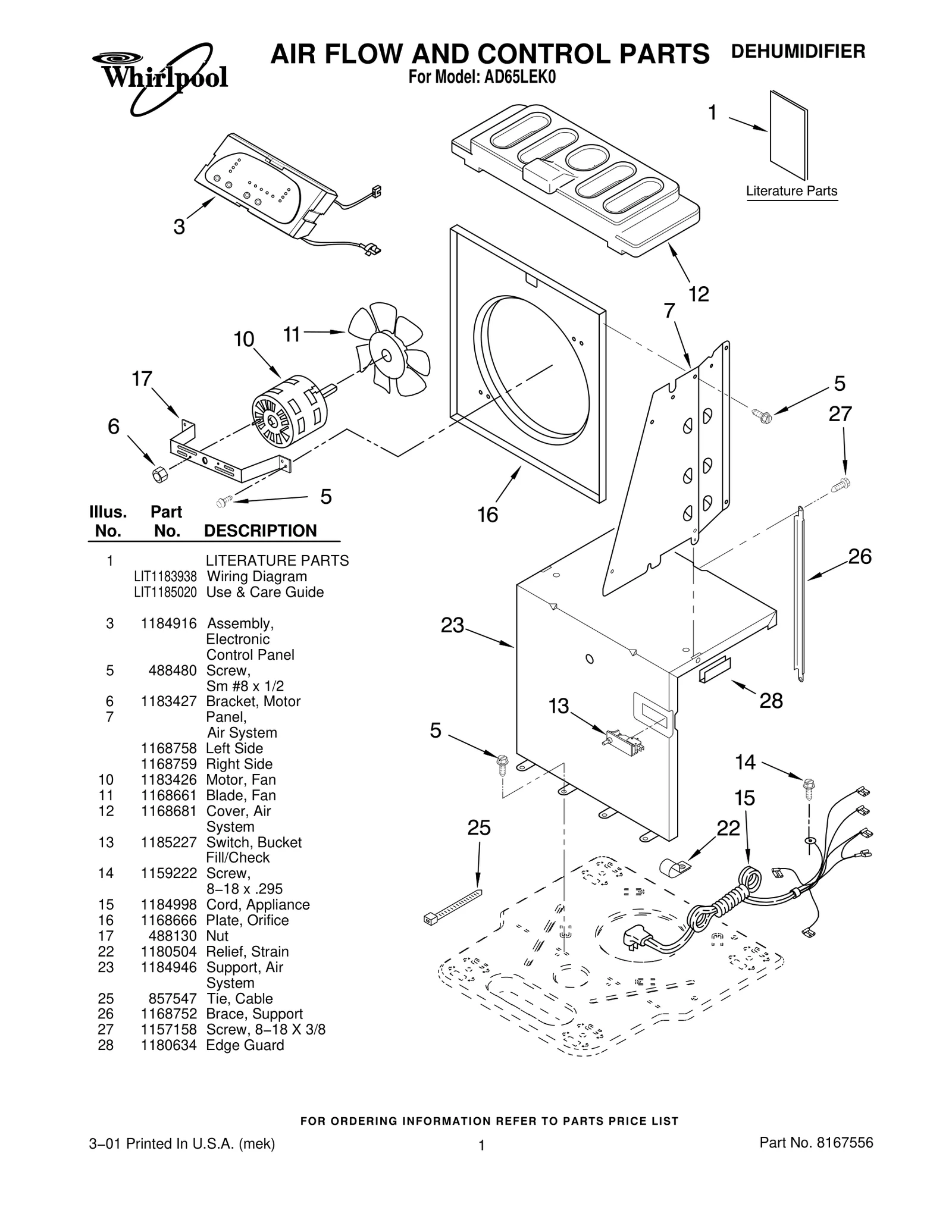

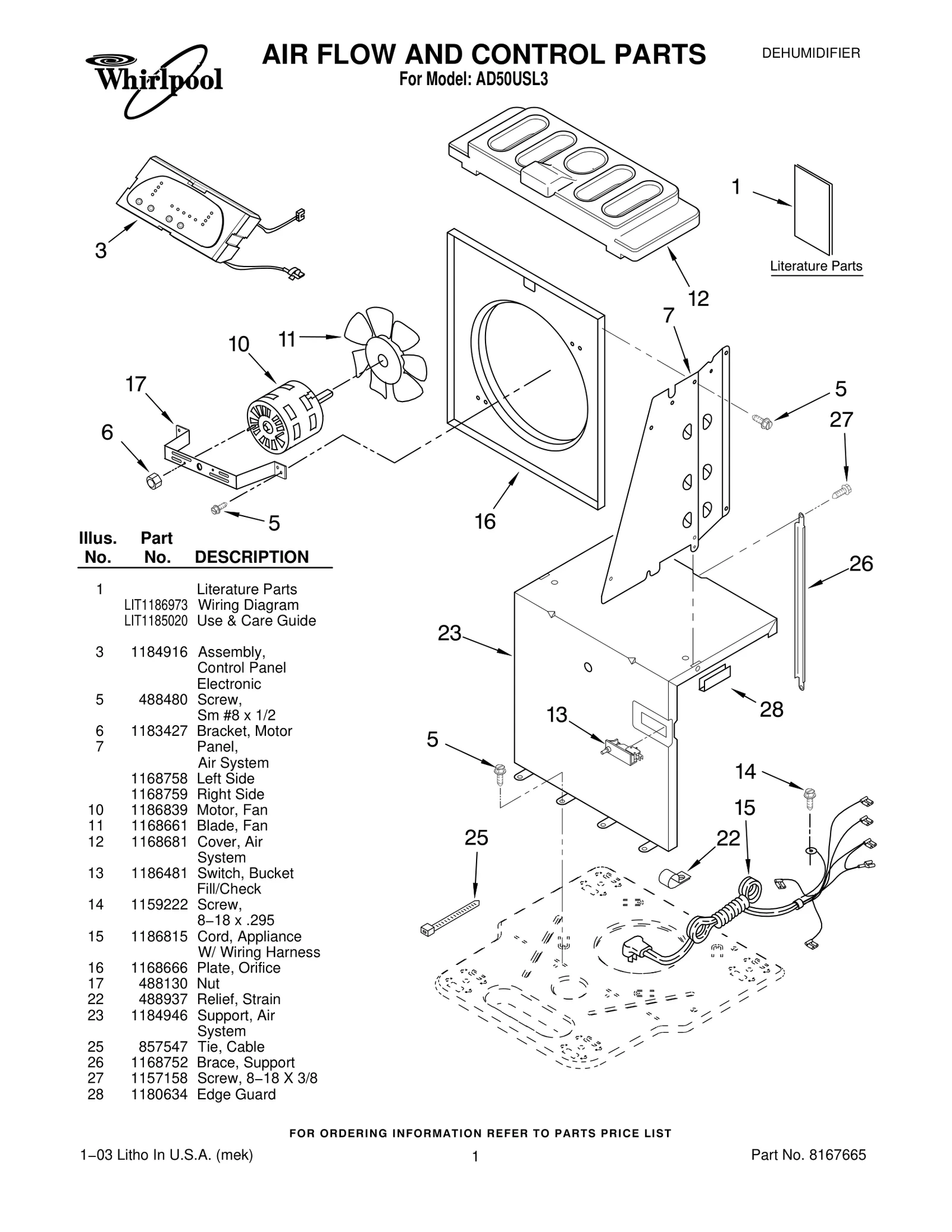

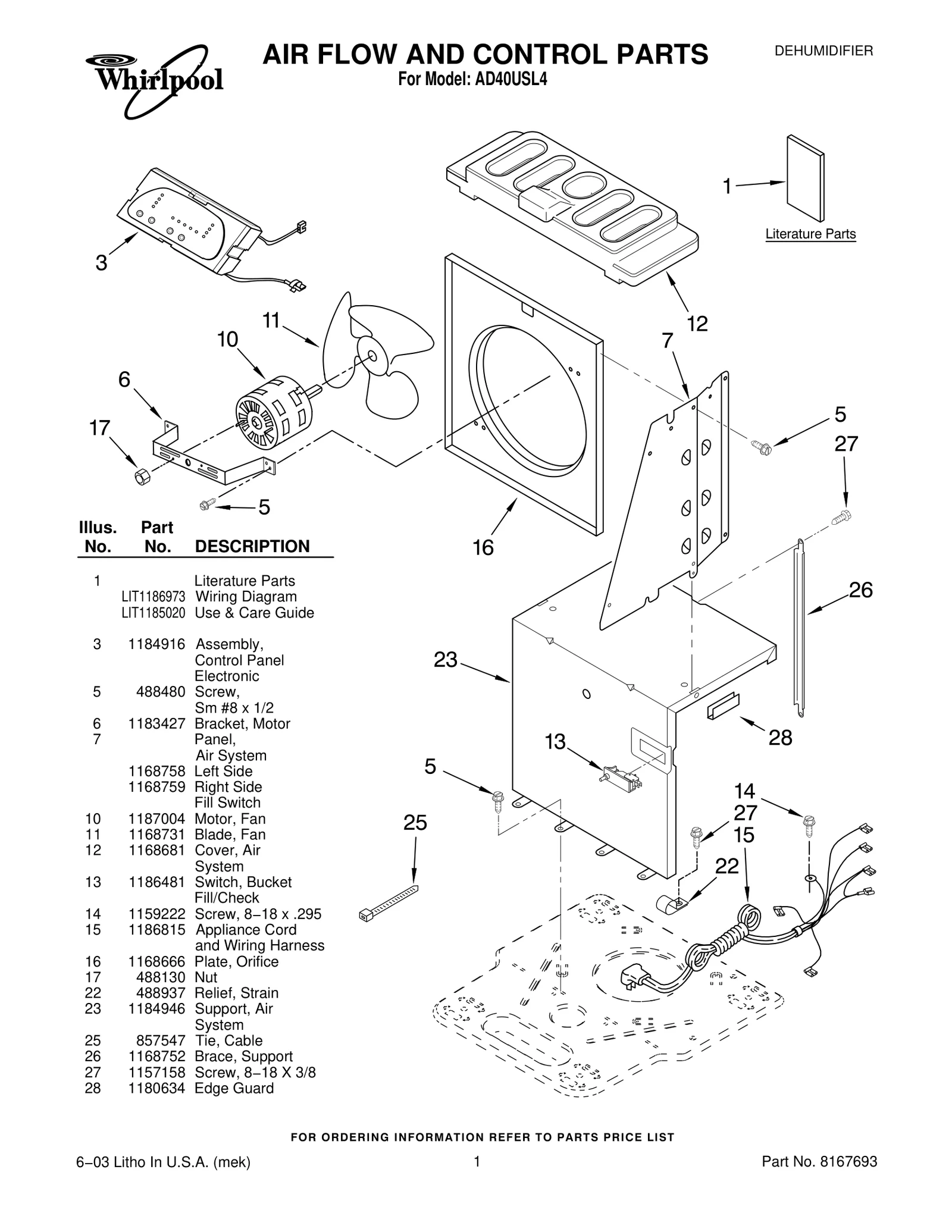

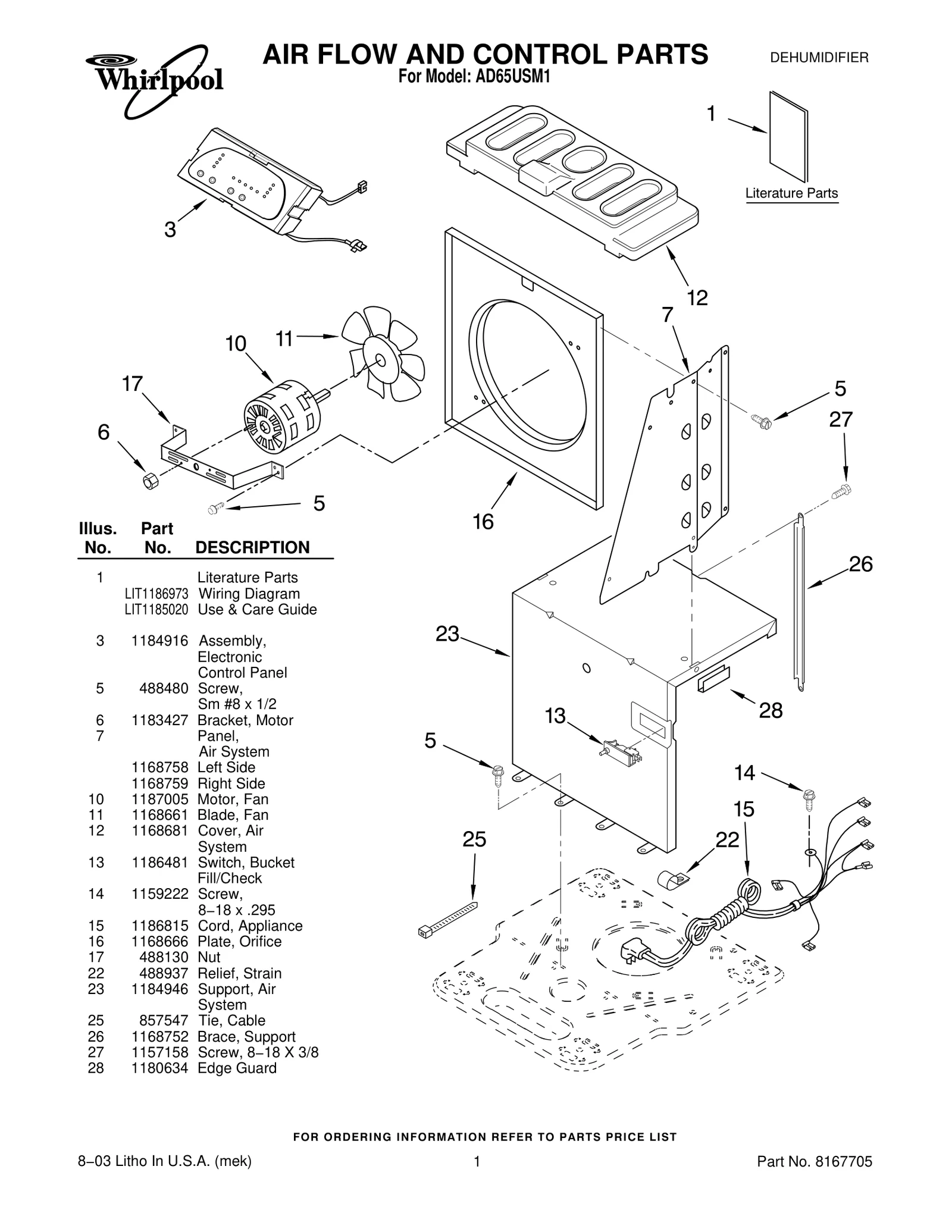

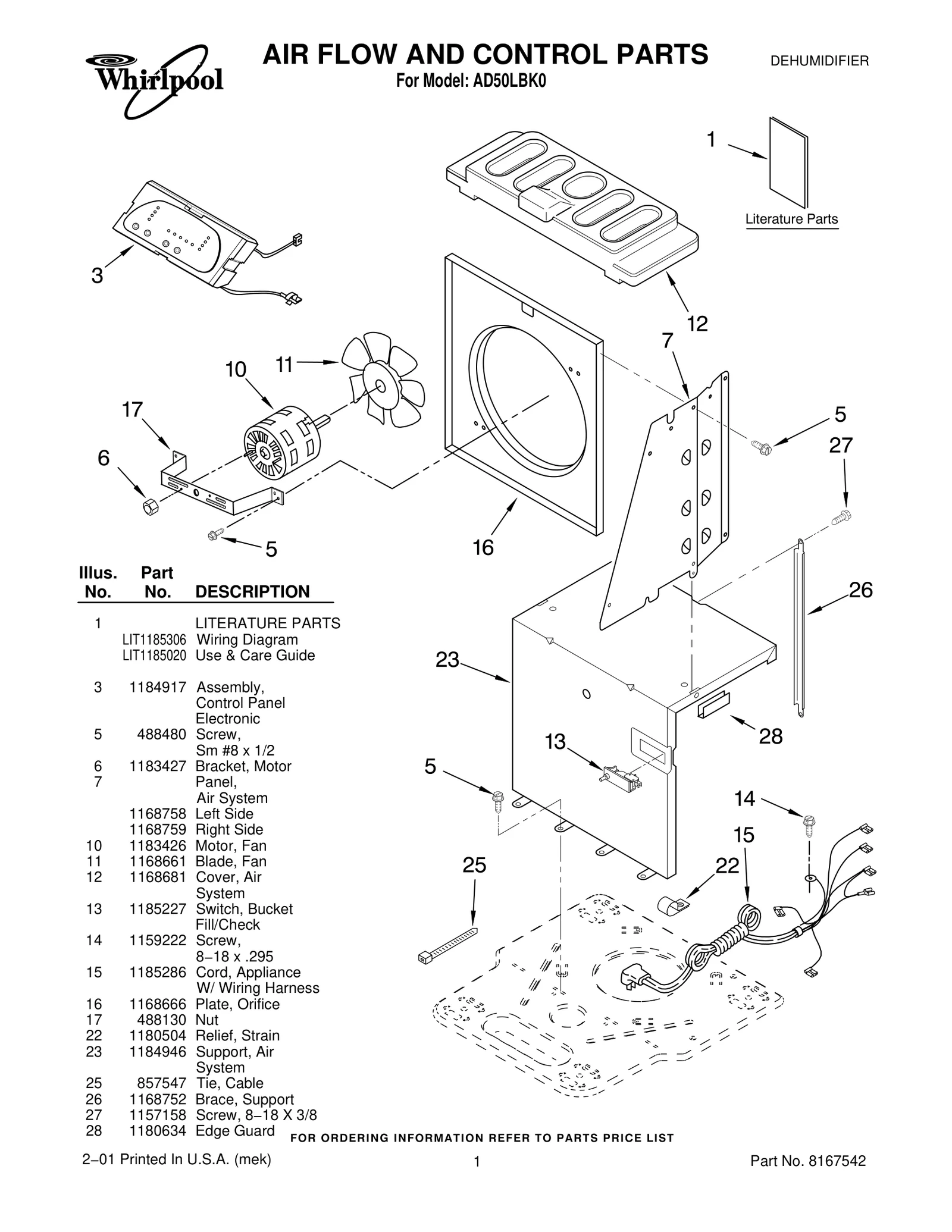

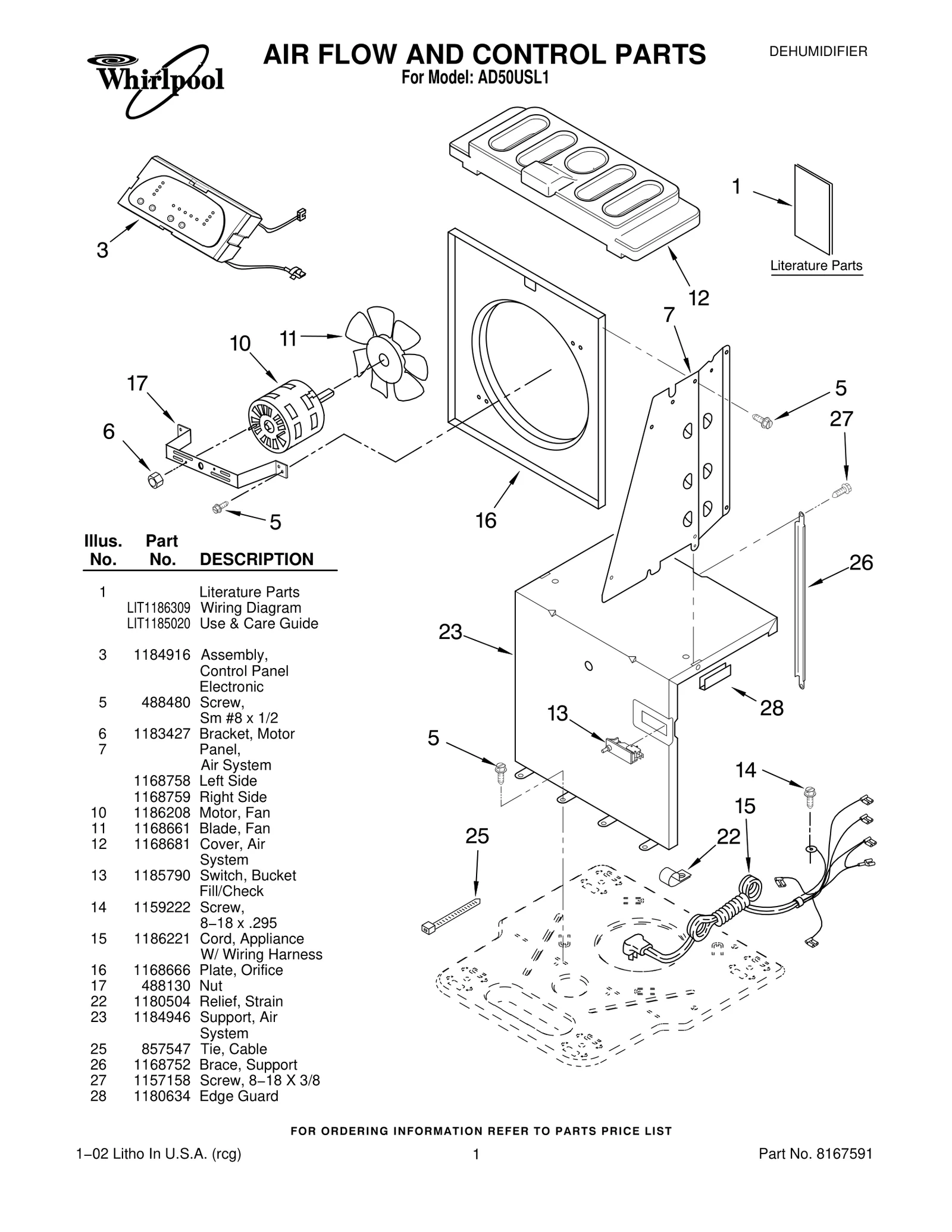

AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS
AIR FLOW AND CONTROL PARTS

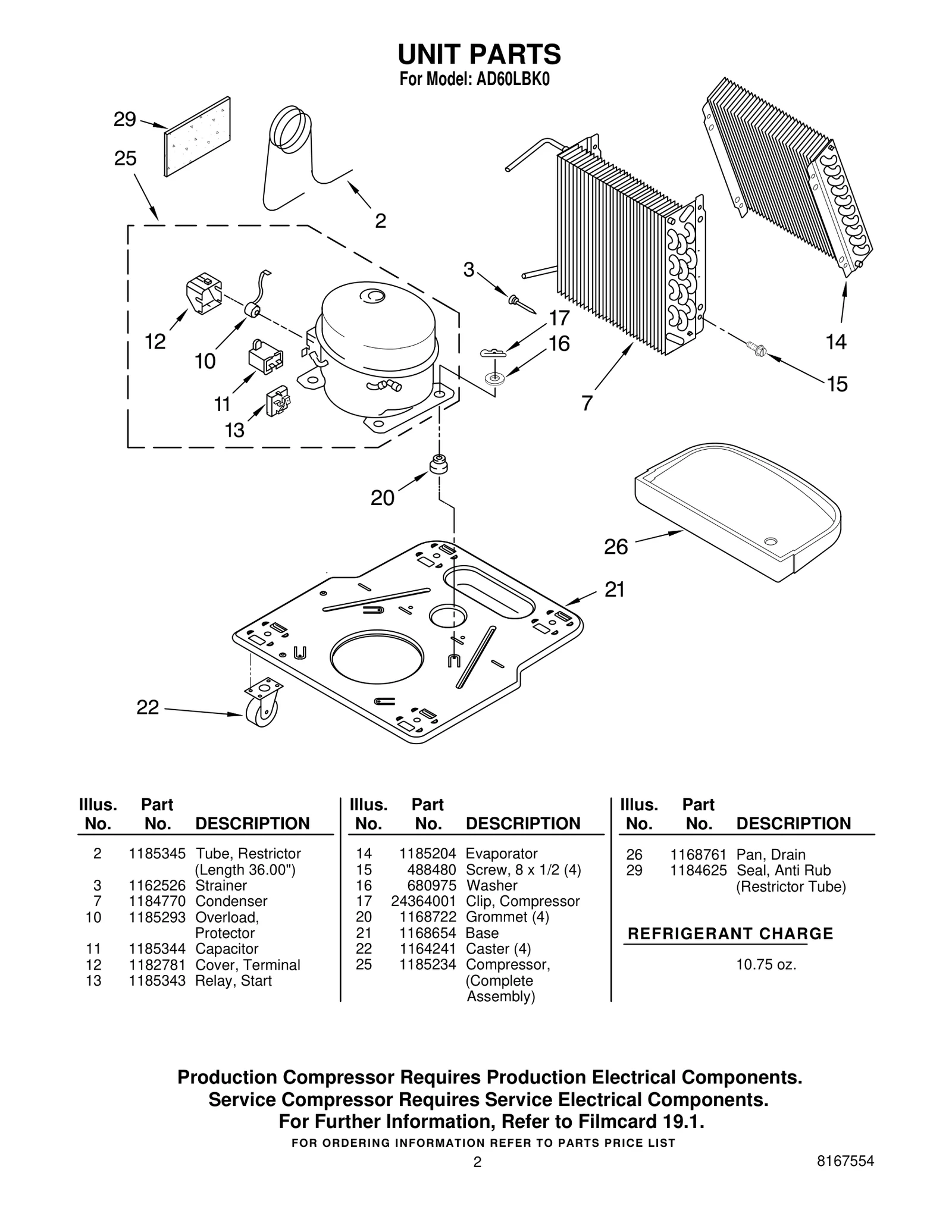

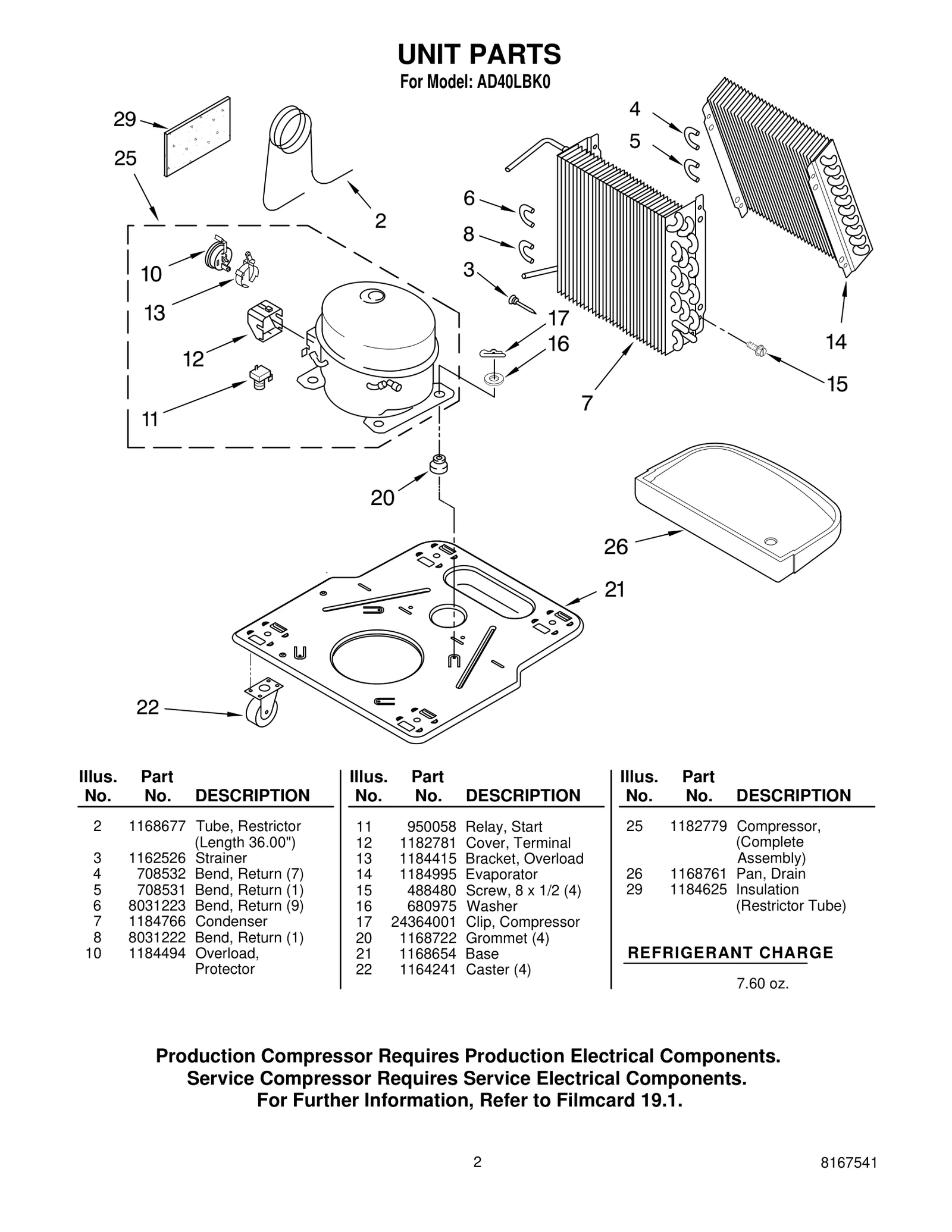

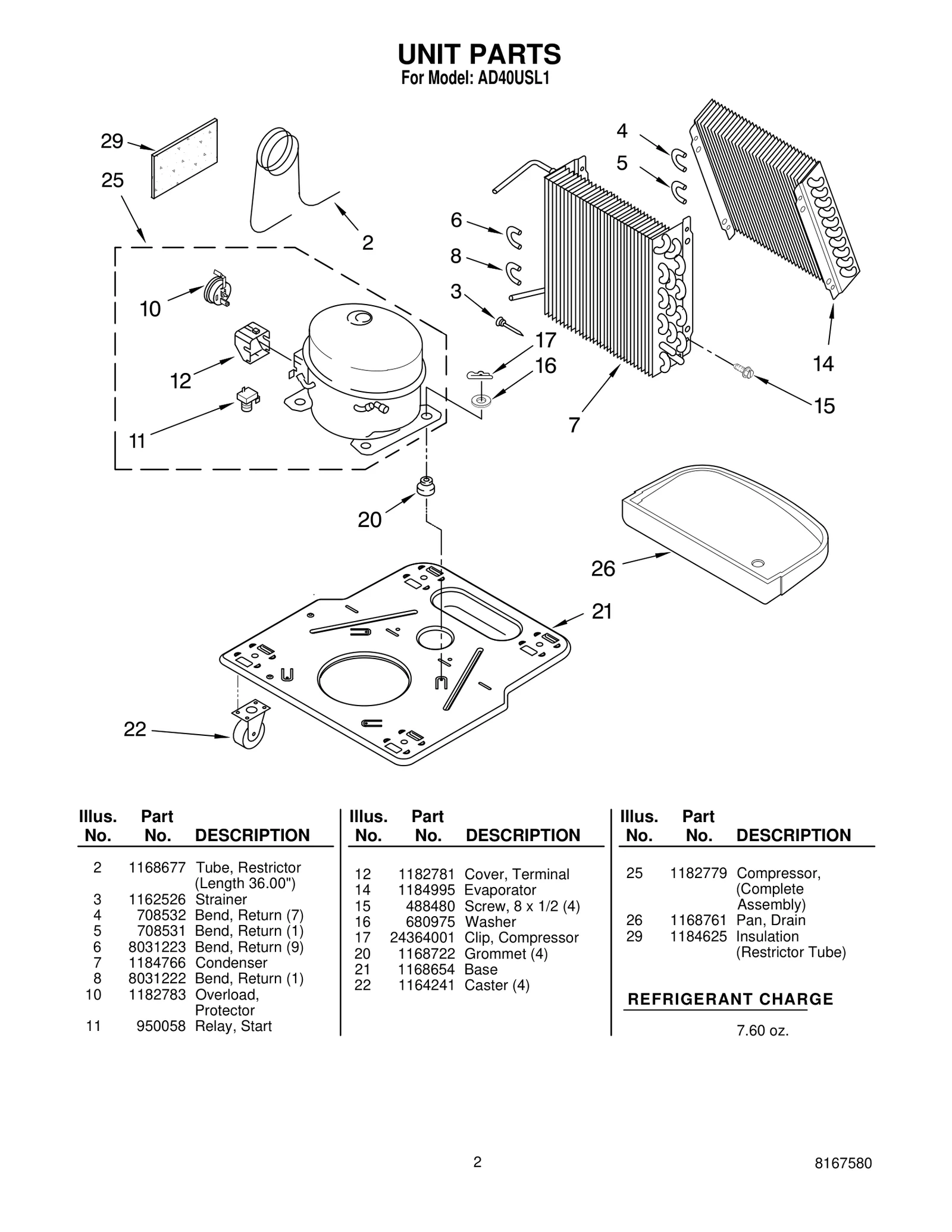

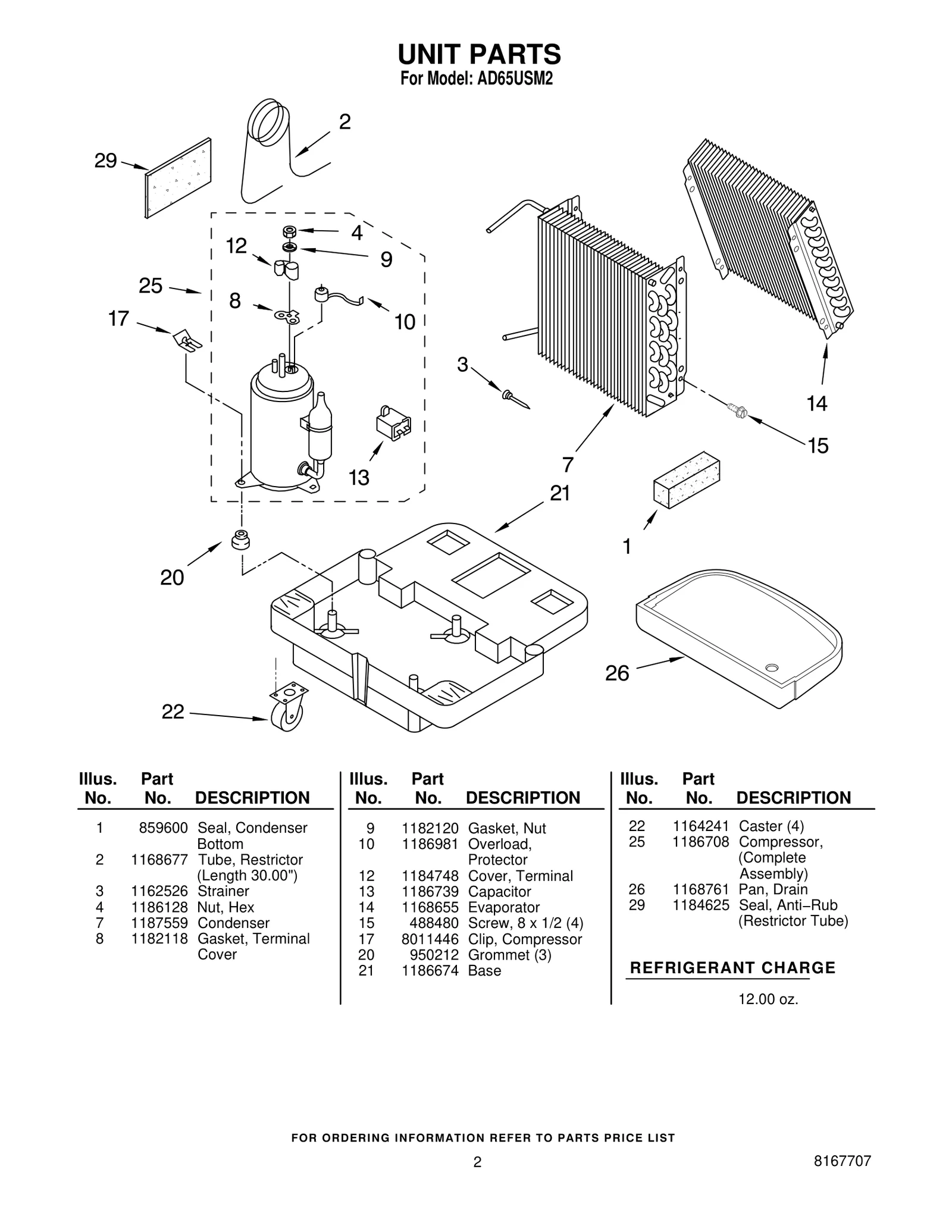

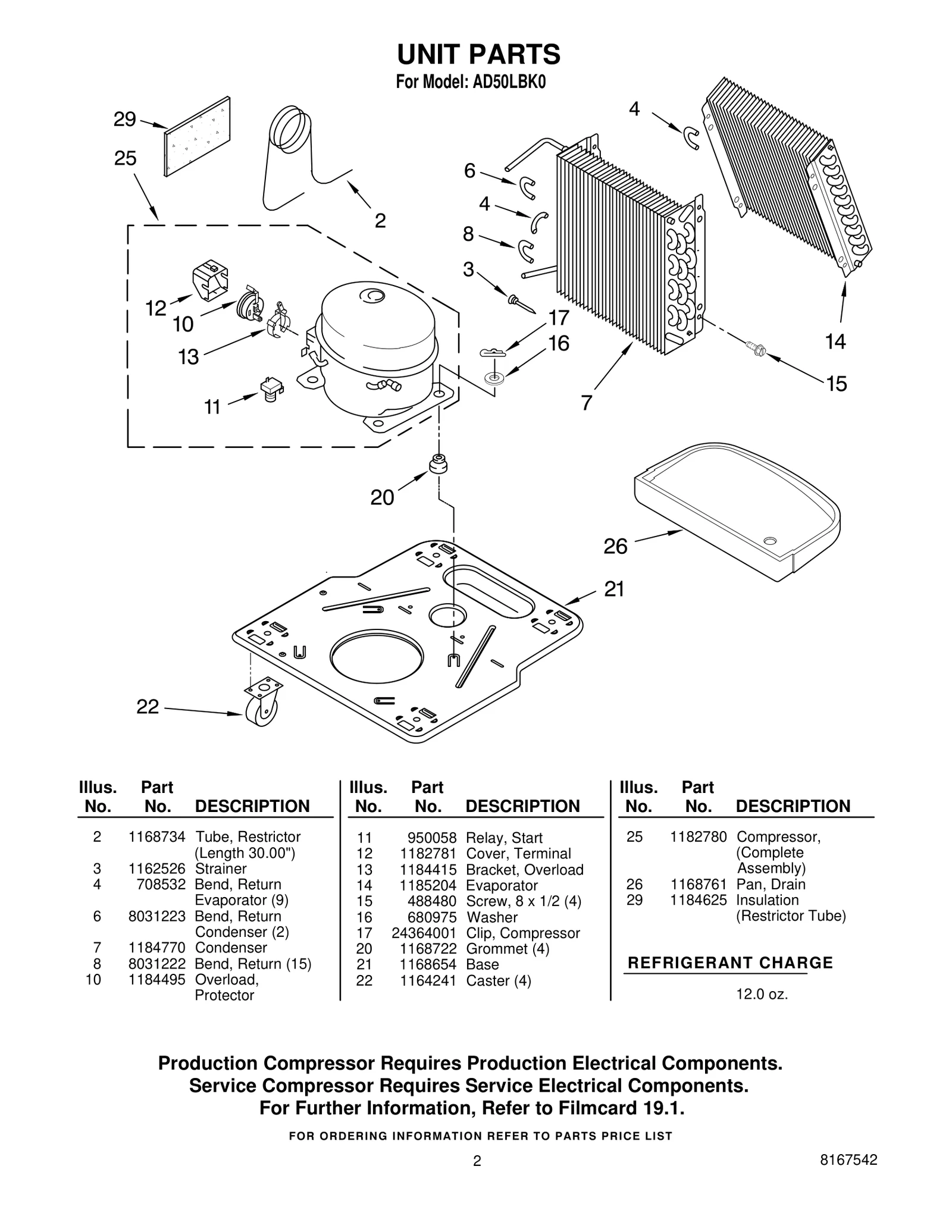

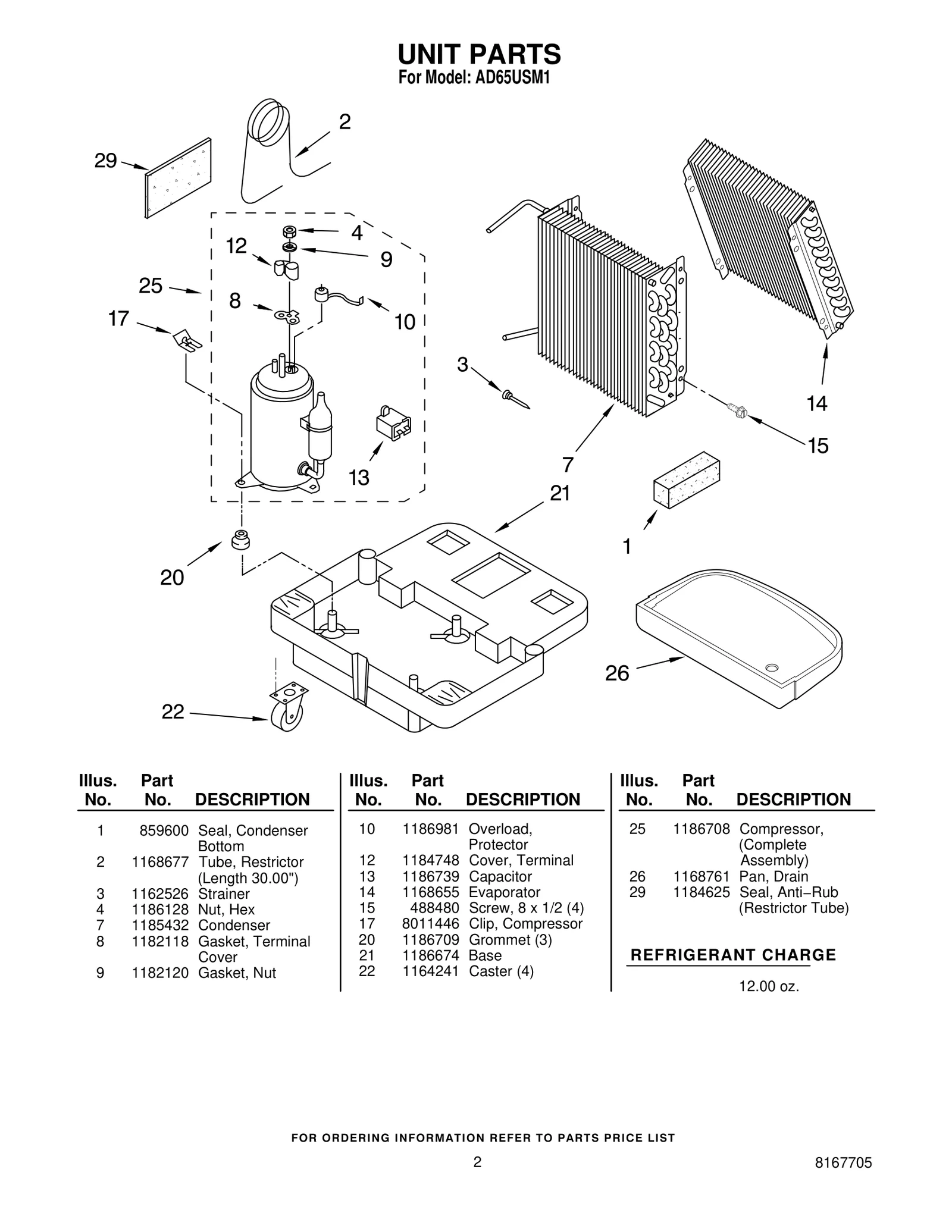

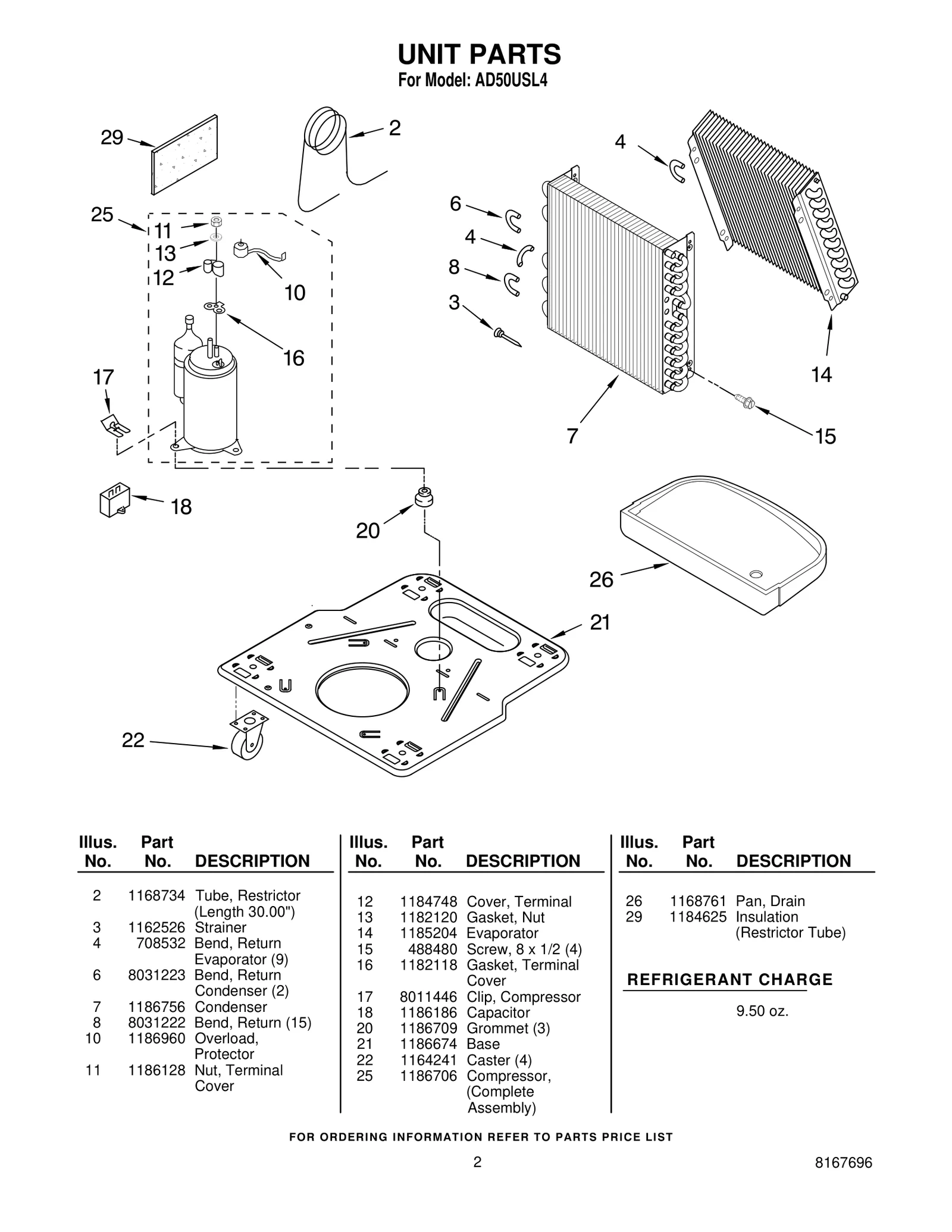

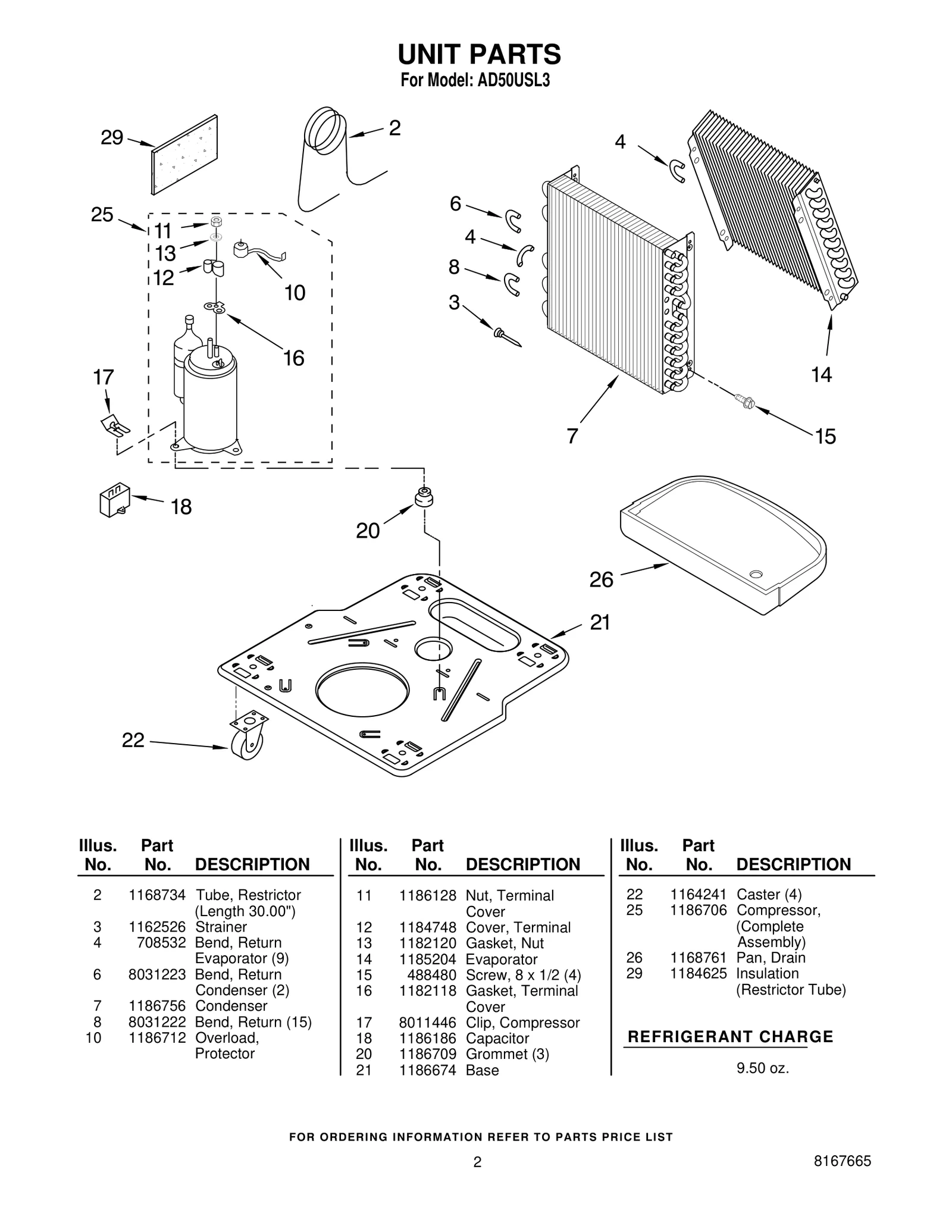

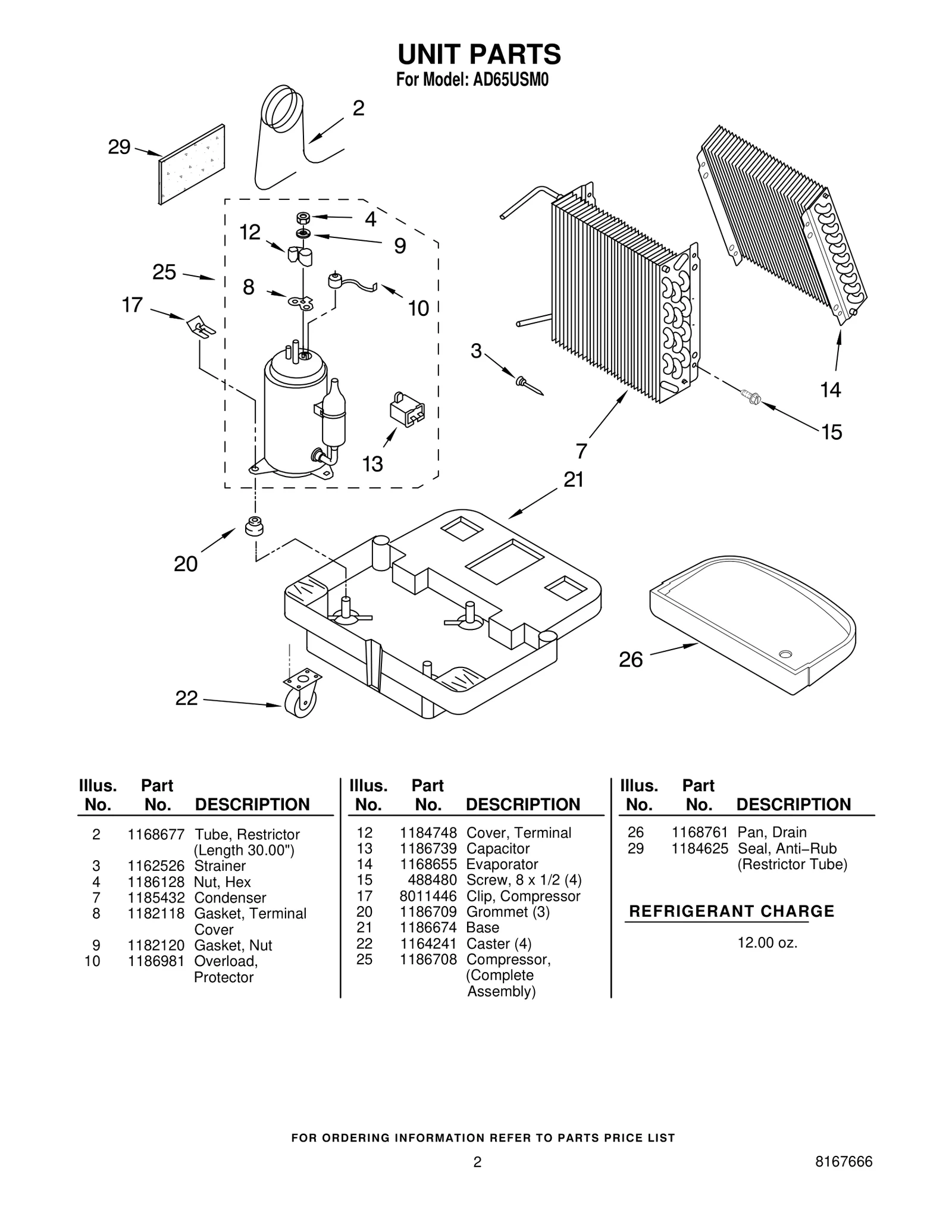

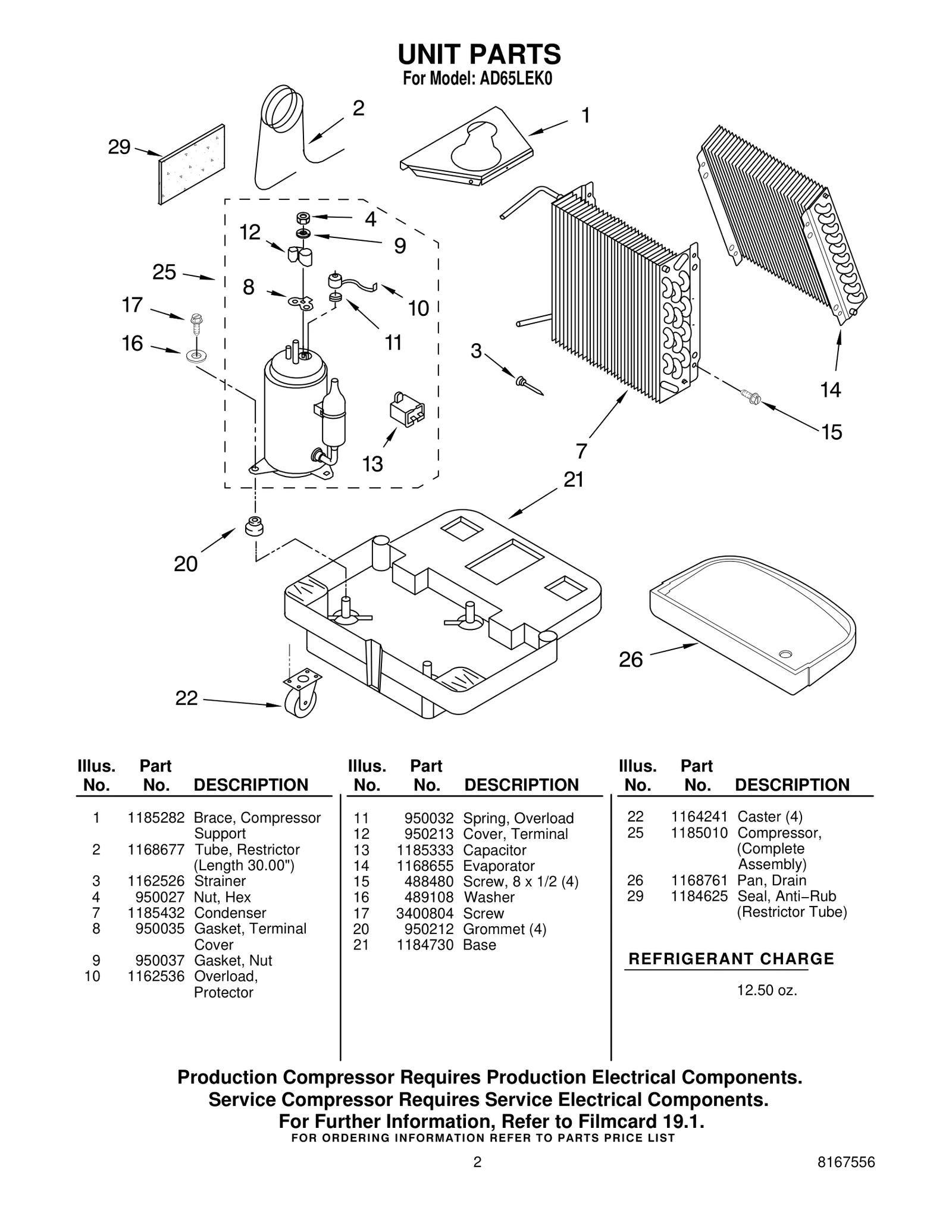

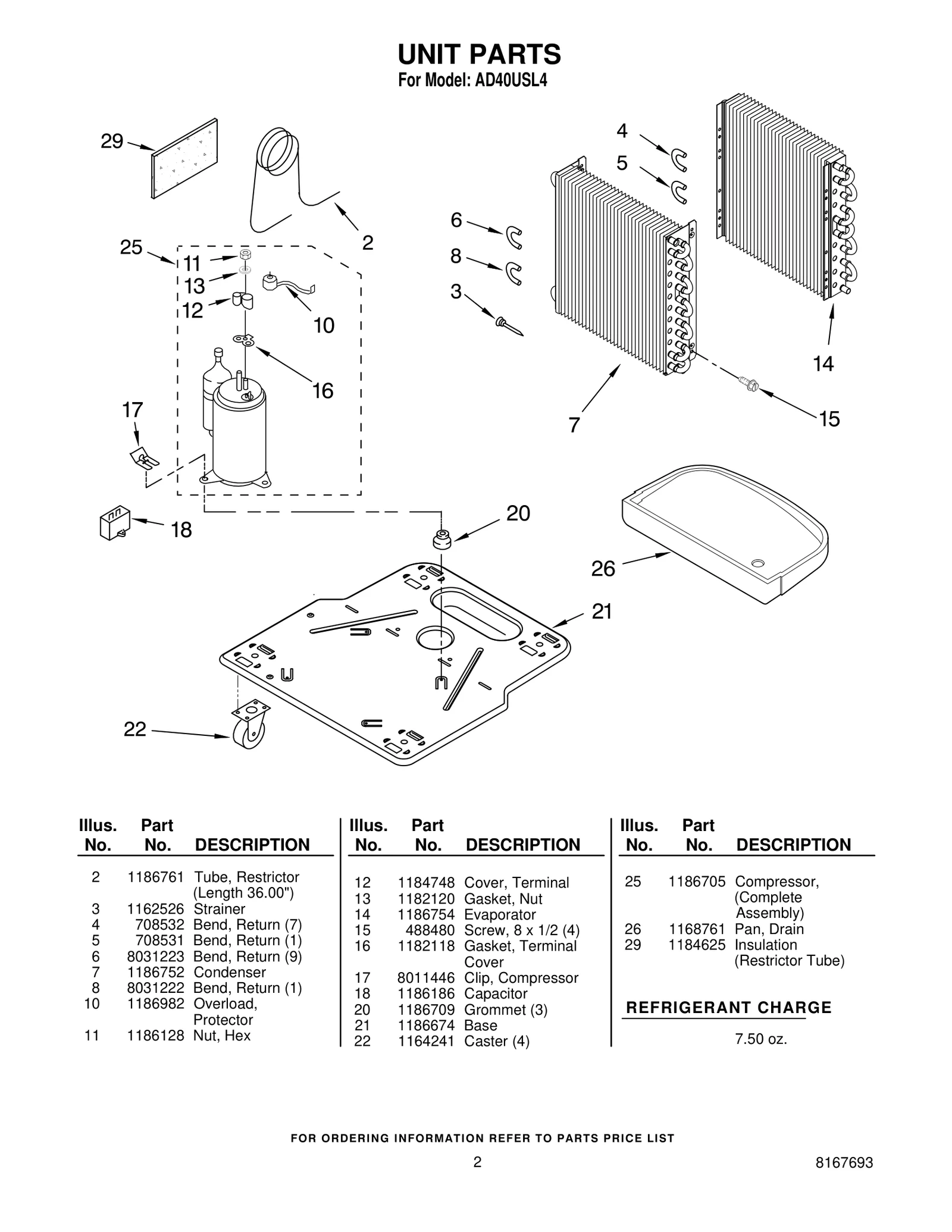

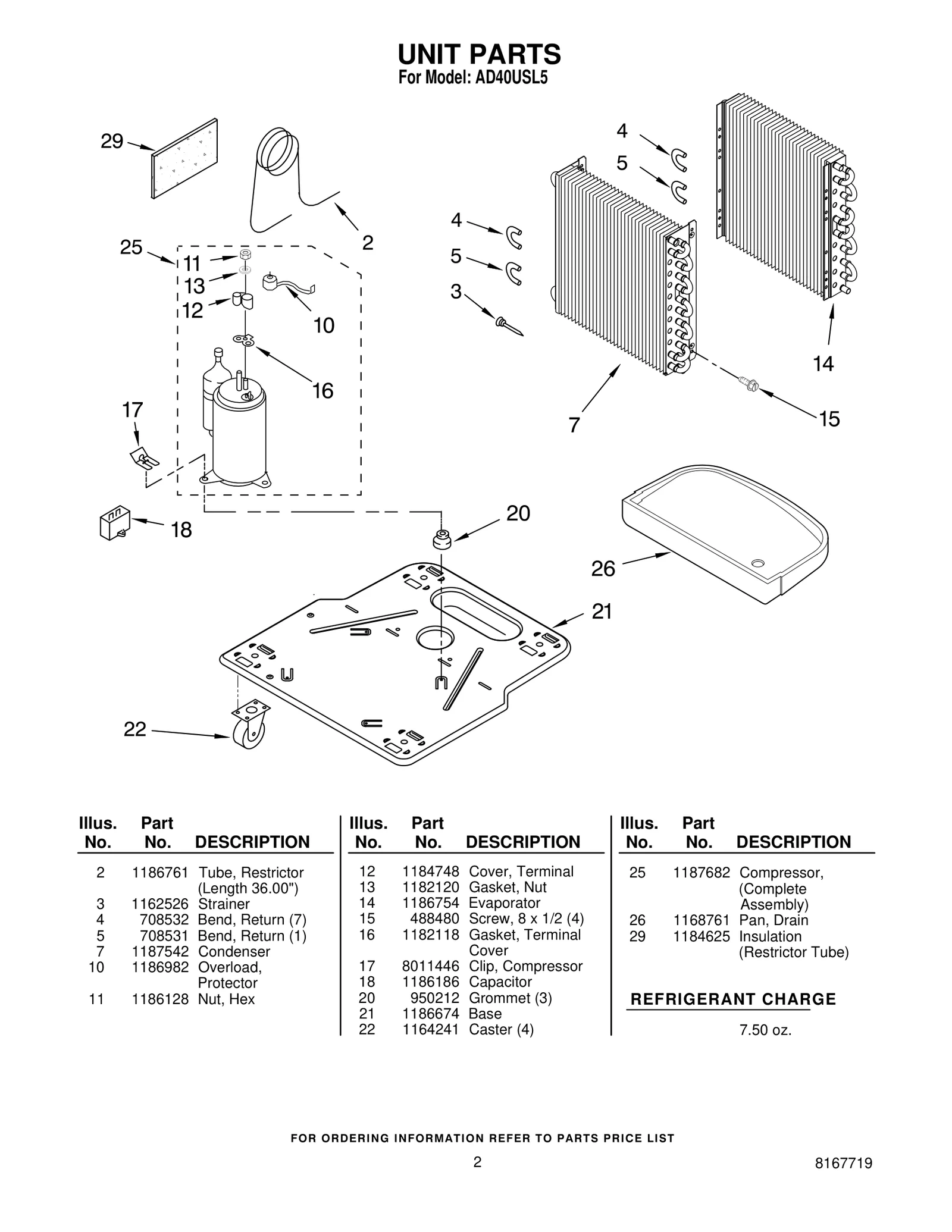

UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS
UNIT PARTS

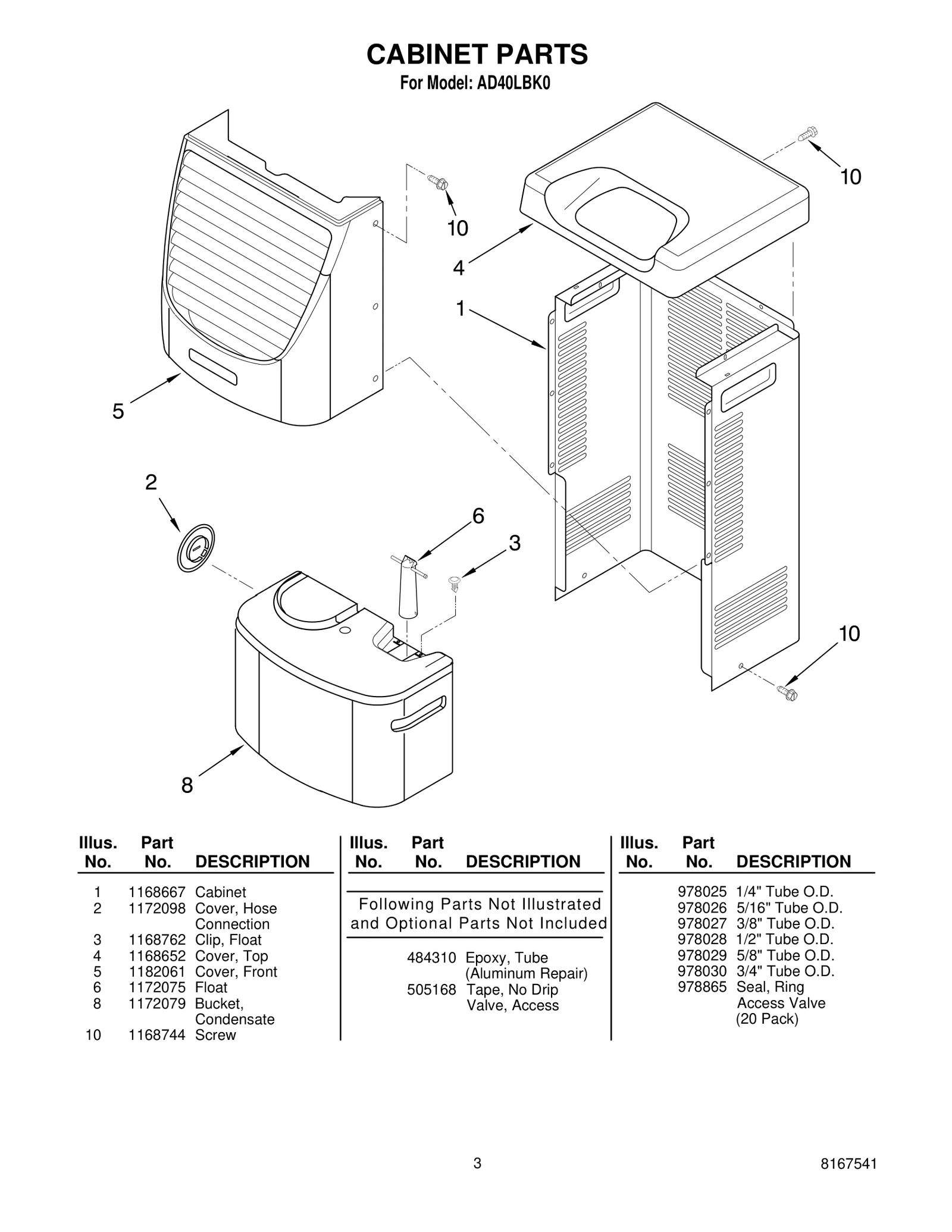

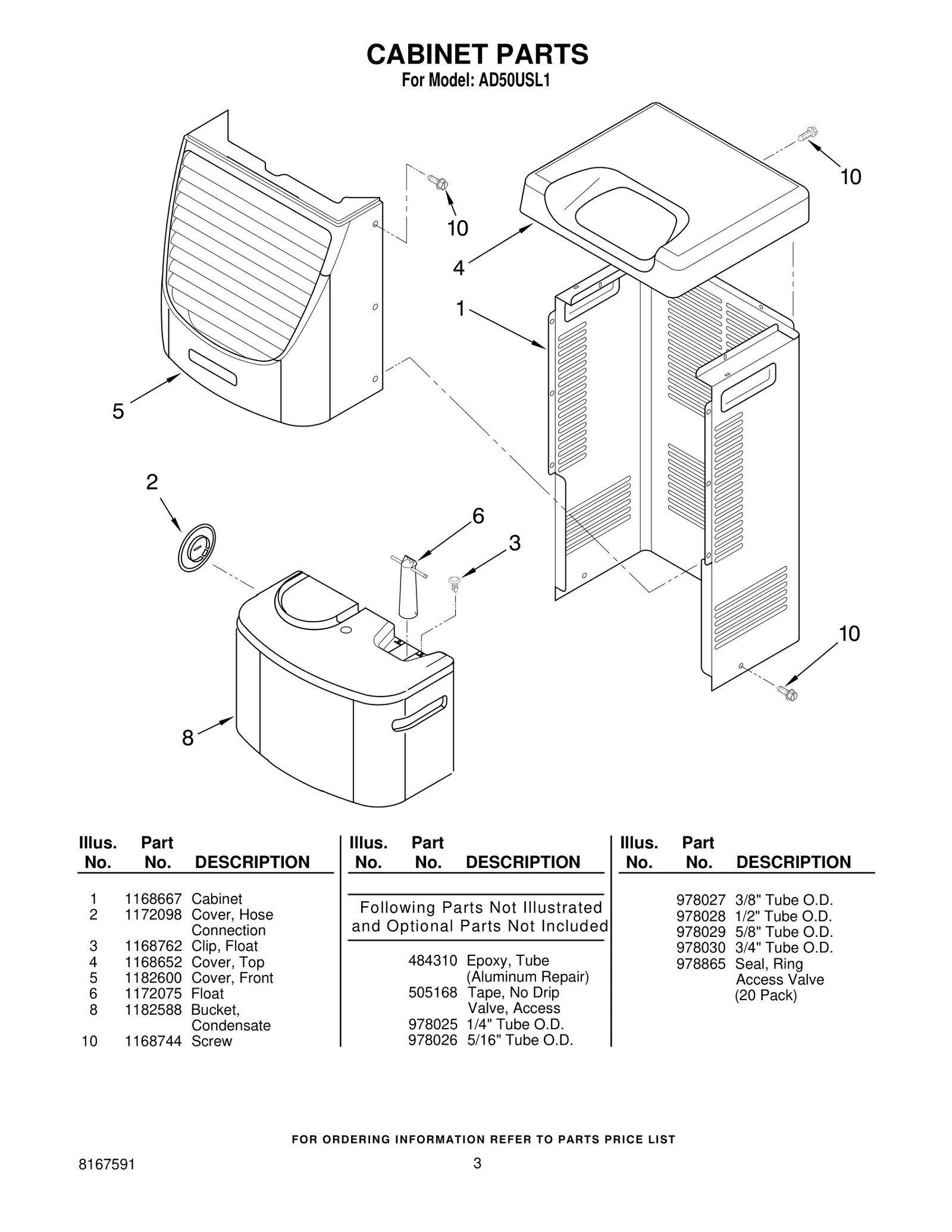

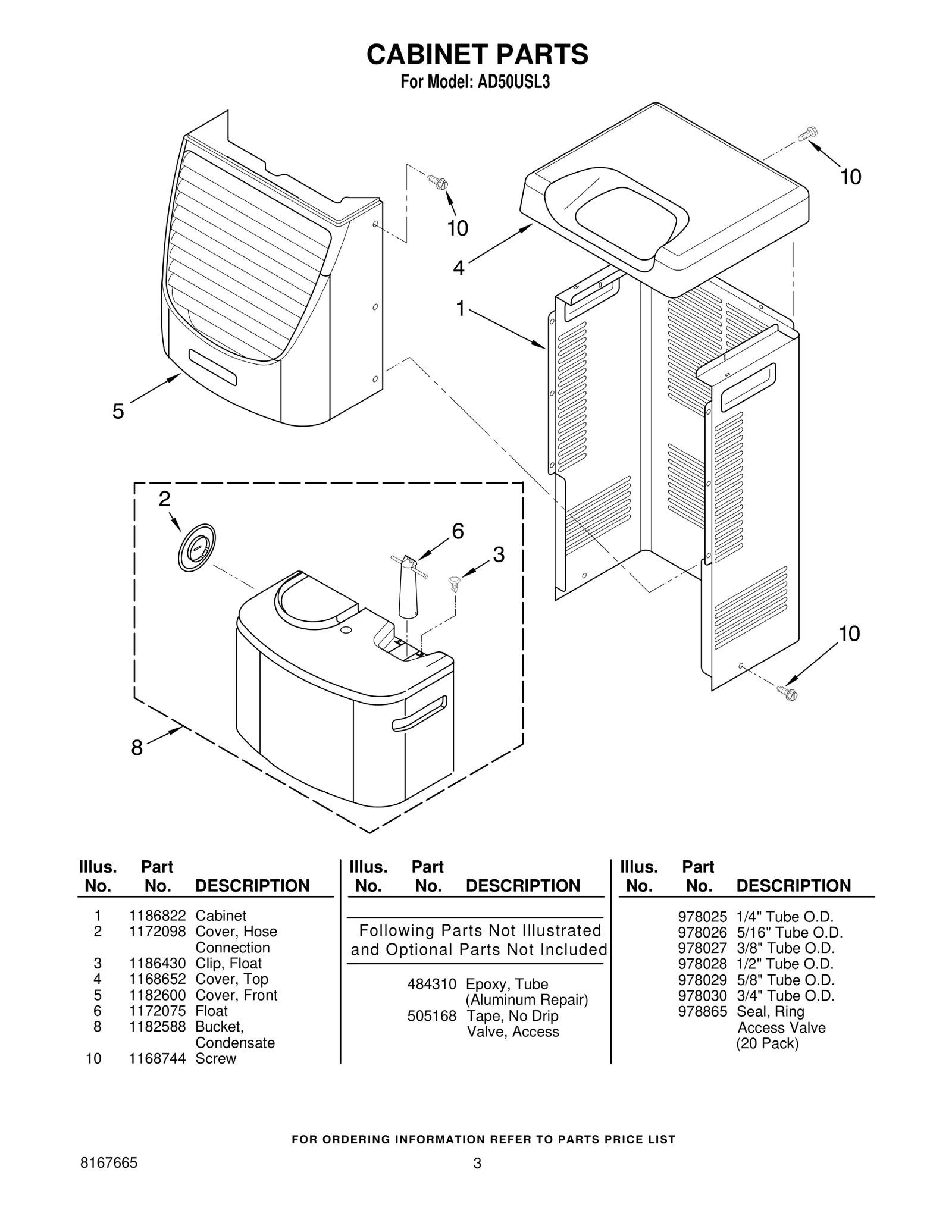

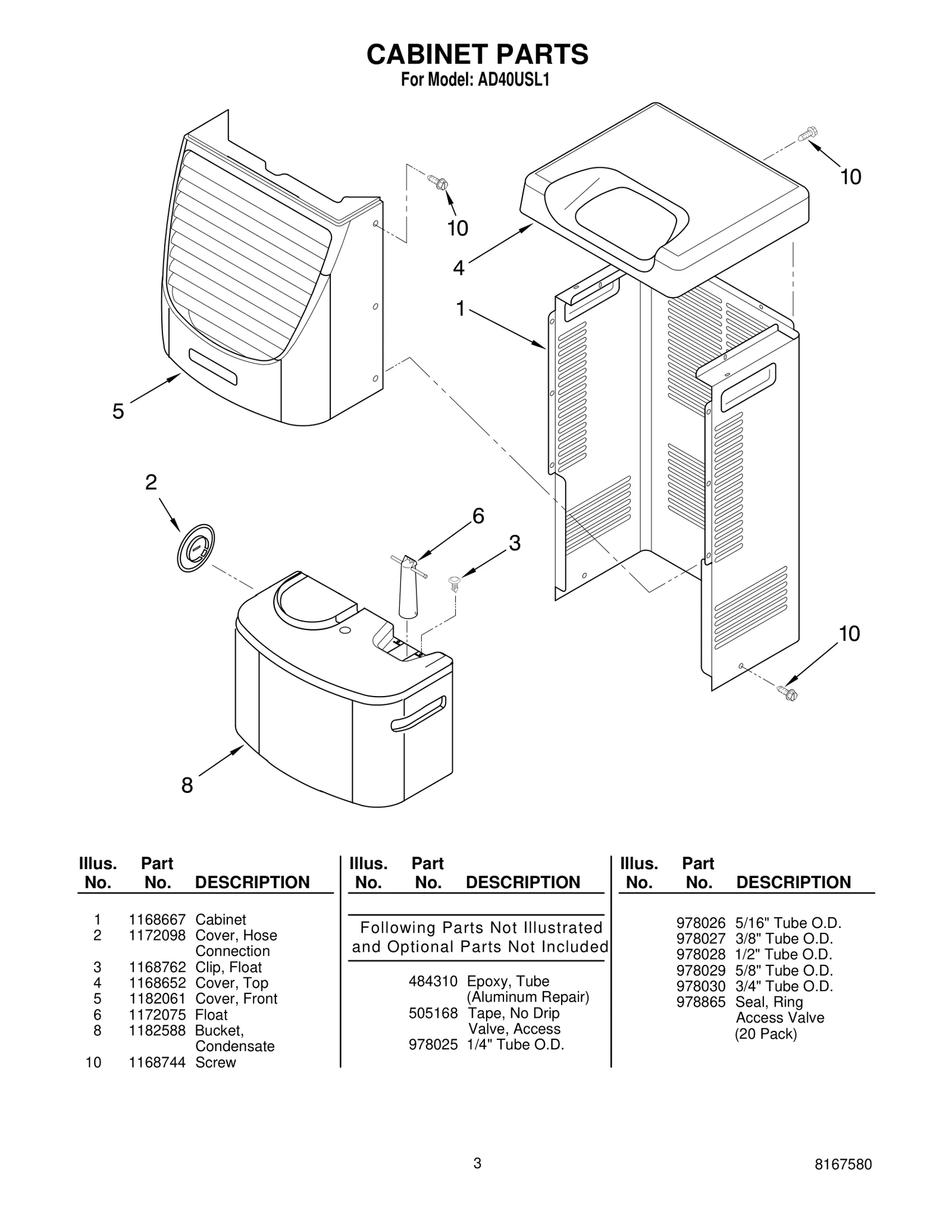

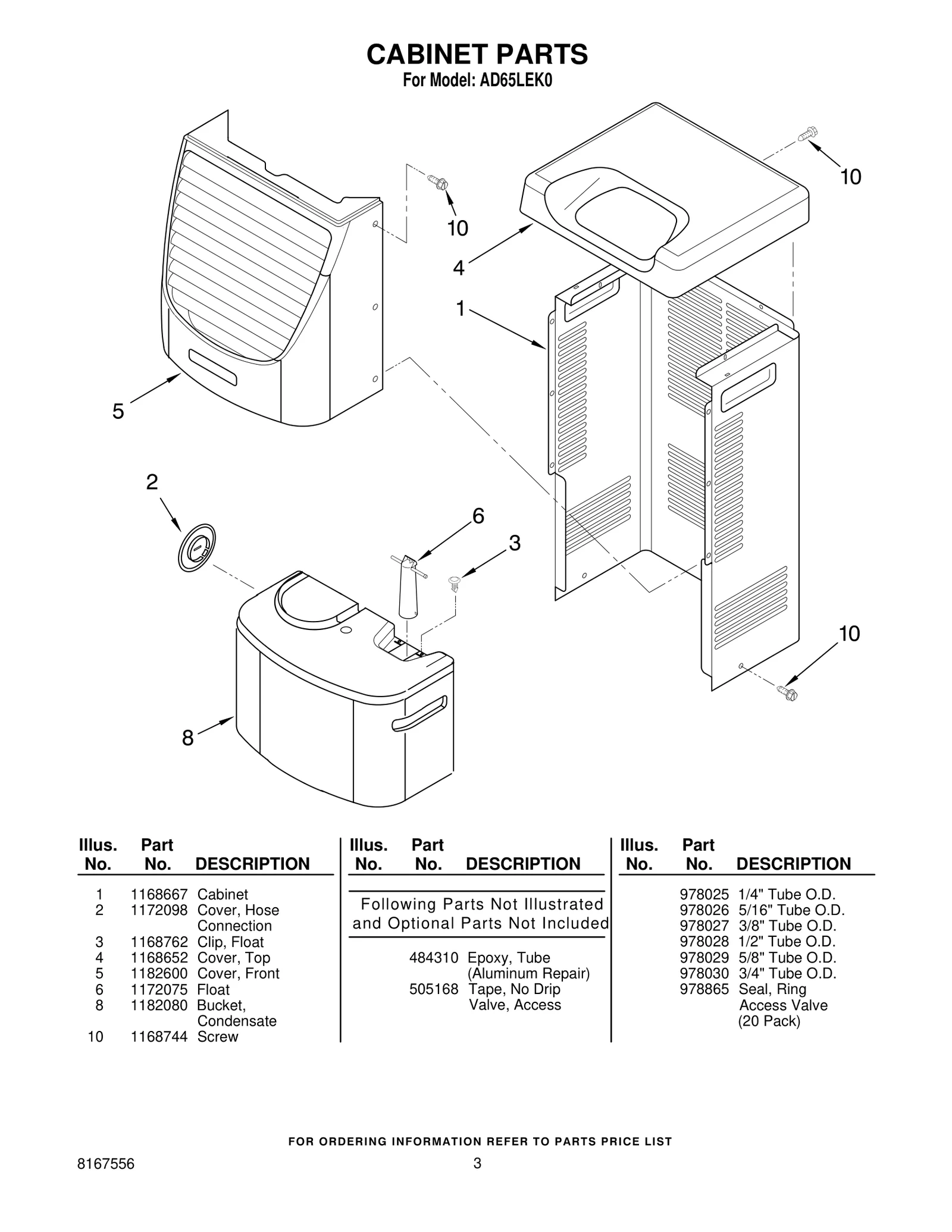

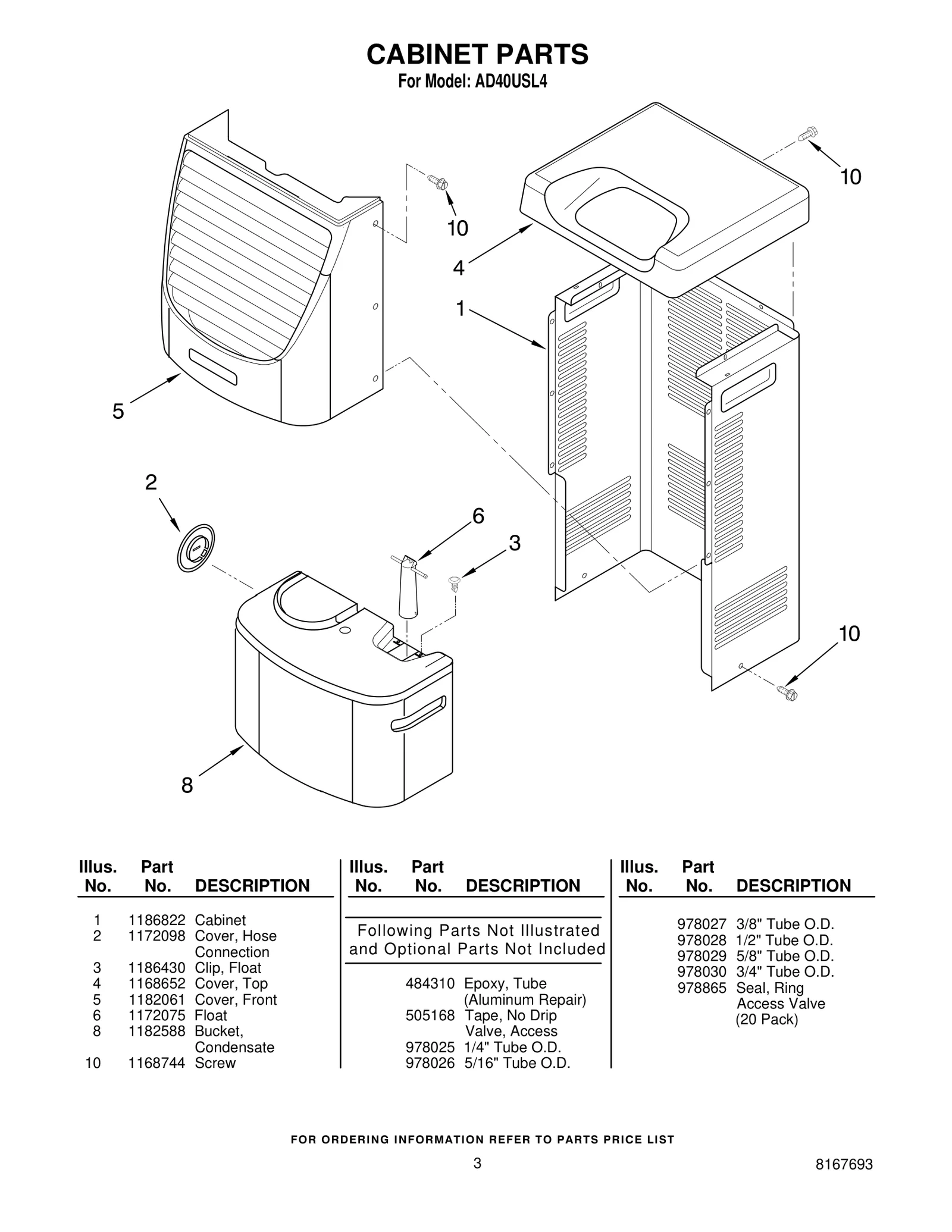

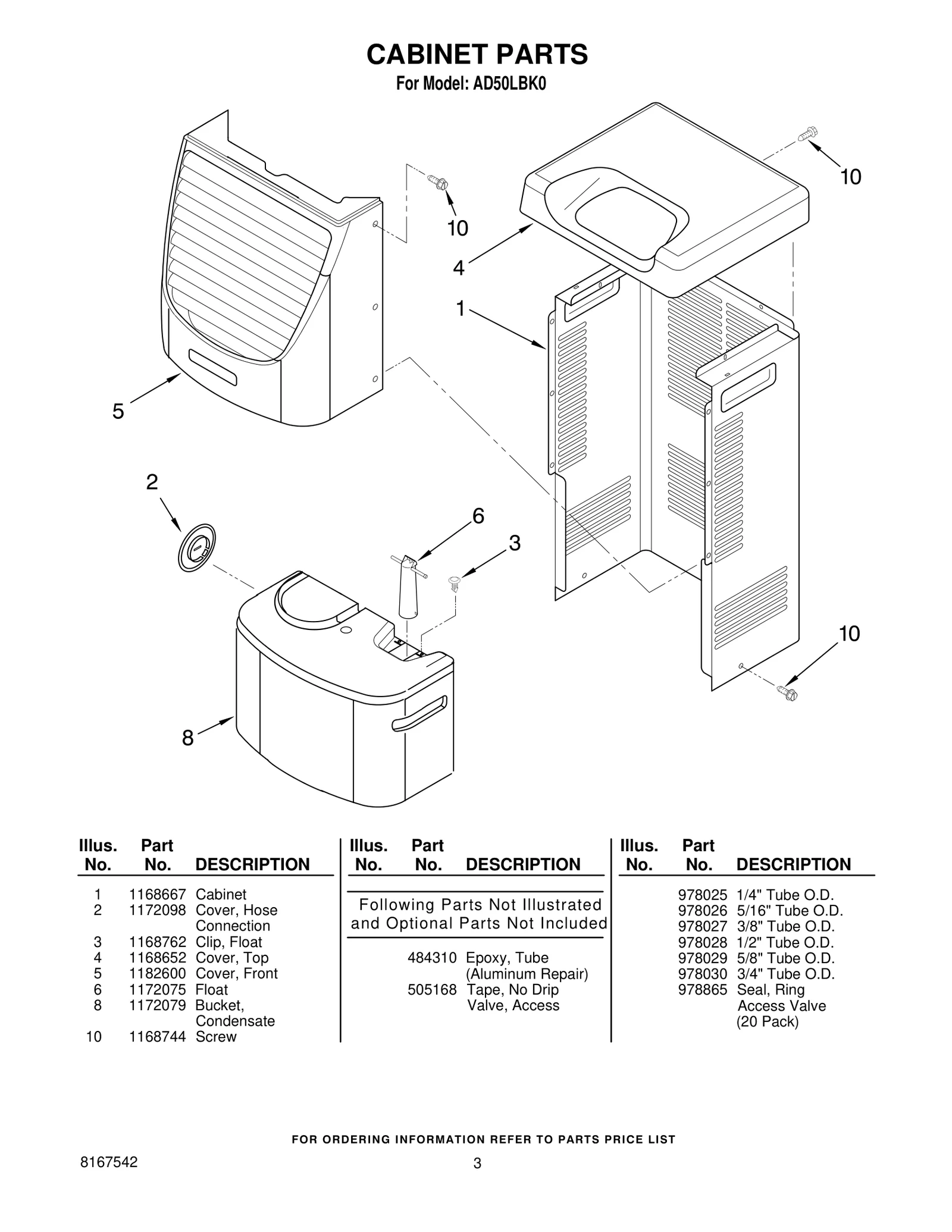

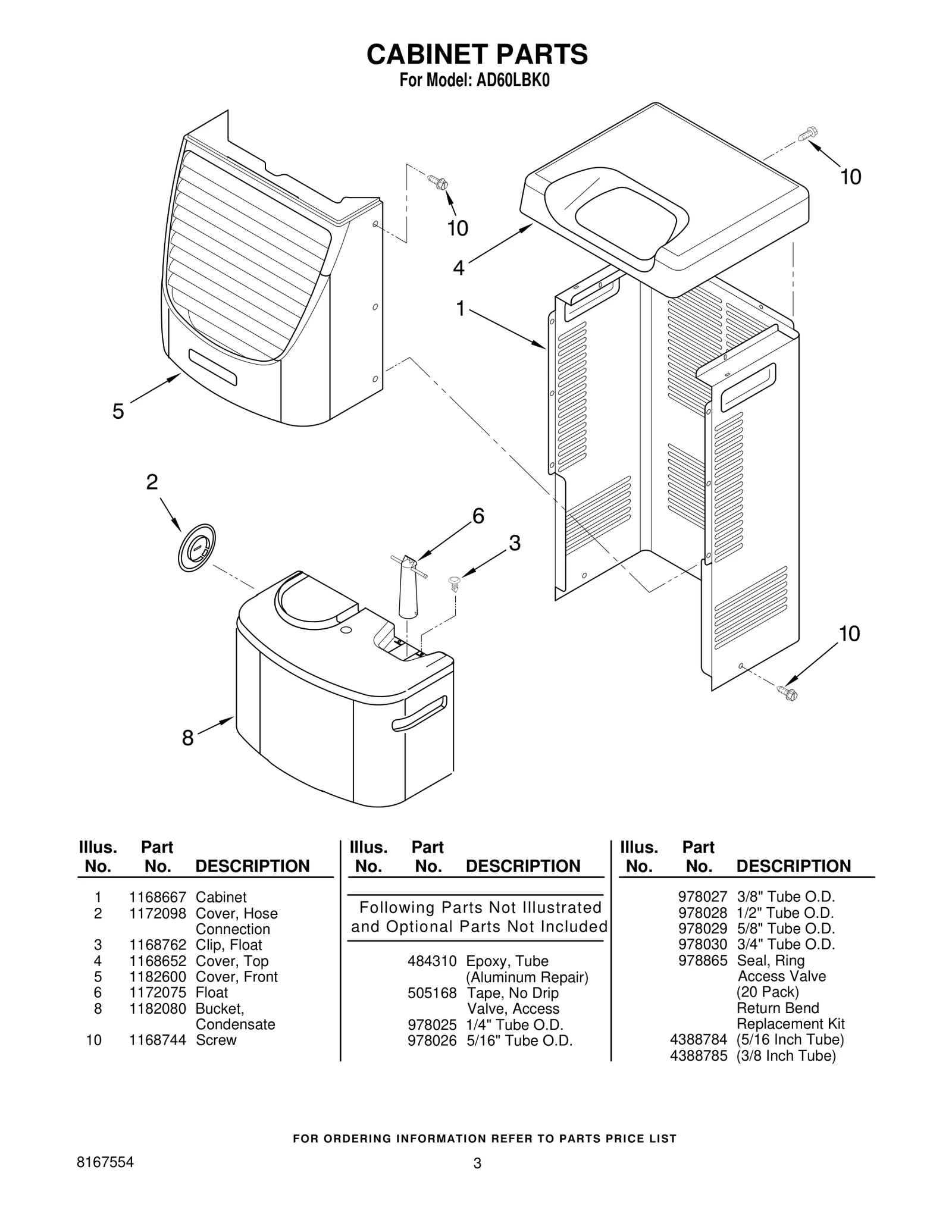

CABINET PARTS
CABINET PARTS
CABINET PARTS
CABINET PARTS
CABINET PARTS
CABINET PARTS
CABINET PARTS
CABINET PARTS
Common parts from model Whirlpool LIT1185020 Dehumidifier
1
LIT1183938 Wiring Diagram LIT1185020 Use & Ca WPL N/S Contact Us For Availability
1
Brace, Compressor Support WPL 1185282 Contact Us For Availability
1
Cabinet WPL 1168667 Contact Us For Availability
1
Cabinet WPL 1186822 Contact Us For Availability
2
Tube, Restrictor WPL 1186761 Contact Us For Availability
2
Tube, Restrictor WPL 1168677 Contact Us For Availability
2
Tube, Restrictor WPL 1168734 Contact Us For Availability
2
Tube, Restrictor WPL 1185345 Contact Us For Availability
2
Cover, Hose Connection WPL 1172098 Contact Us For Availability
3
Assembly, Electronic Control Panel WPL 1184916 Contact Us For Availability
3
Assembly, Control Panel Electronic WPL 1184917 Contact Us For Availability
3
Clip, Float WPL 1168762 Contact Us For Availability
3
Clip, Float WPL 1186430 Contact Us For Availability
4
Bend, Return Evaporator (9) WPL 708532 Contact Us For Availability
4
Cover, Top WPL 1168652 Contact Us For Availability
5
Bend, Return (1) WPL 708531 Contact Us For Availability
5
Cover, Front WPL 1182600 Contact Us For Availability
5
Cover, Front WPL 1182061 Contact Us For Availability
6
Float WPL 1172075 Contact Us For Availability
6
Bracket, Motor WPL 1183427 Contact Us For Availability
6
Bend, Return Condenser (2) WPL 8031223 Contact Us For Availability
7
Panel, Air System — Left Side WPL 1168758 Contact Us For Availability
7
Panel, Air System — Right Side WPL 1168759 Contact Us For Availability
7
Condenser WPL 1187542 Contact Us For Availability
7
Condenser WPL 1184766 Contact Us For Availability
7
Condenser WPL 1184770 Contact Us For Availability
7
Condenser WPL 1185432 Contact Us For Availability
7
Condenser WPL 1186756 Contact Us For Availability
7
Condenser WPL 1186752 Contact Us For Availability
7
Condenser WPL 1187559 Contact Us For Availability
8
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
8
Bend, Return (15) WPL 8031222 Contact Us For Availability
8
Bucket, Condensate WPL 1172079 Contact Us For Availability
8
Bucket, Condensate WPL 1182588 Contact Us For Availability
8
Bucket, Condensate WPL 1182080 Contact Us For Availability
9
Gasket, Nut WPL 1182120 Contact Us For Availability
9
Gasket, Nut WPL 950037 Contact Us For Availability
10
5/8" Tube O.D. WPL 978029 Contact Us For Availability
10
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
10
Overload, Protector WPL 1186982 Contact Us For Availability
10
Overload, Protector WPL 1184494 Contact Us For Availability
10
Overload, Protector WPL 1184495 Contact Us For Availability
10
Overload, Protector WPL 1185293 Contact Us For Availability
10
Overload, Protector WPL 1162536 Contact Us For Availability
10
Overload, Protector WPL 1182783 Contact Us For Availability
10
Overload, Protector WPL 1186712 Contact Us For Availability
10
Overload, Protector WPL 1186981 Contact Us For Availability
10
Overload, Protector WPL 1186960 Contact Us For Availability
10
Epoxy, Tube WPL 484310 Contact Us For Availability
10
1/2" Tube O.D. WPL 978028 Contact Us For Availability
10
Seal, Ring Access Valve WPL 978865 Contact Us For Availability
10
(5/16 Inch Tube) WPL 4388784 Contact Us For Availability
10
(3/8 Inch Tube) WPL 4388785 Contact Us For Availability
11
Blade, Fan WPL 1168661 Contact Us For Availability
11
Blade, Fan WPL 1168731 Contact Us For Availability
11
Relay, Start WPL 950058 Contact Us For Availability
11
Capacitor WPL 1185344 Contact Us For Availability
11
Spring, Overload WPL 950032 Contact Us For Availability
12
Cover, Air System WPL 1168681 Contact Us For Availability
12
Cover, Terminal WPL 1184748 Contact Us For Availability
12
Cover, Terminal WPL 1182781 Contact Us For Availability
13
Switch, Bucket Fill/Check WPL 1185790 Contact Us For Availability
13
Switch, Bucket Fill/Check WPL 1185227 Contact Us For Availability
13
Switch, Bucket Fill/Check WPL 1186481 Contact Us For Availability
13
Bracket, Overload WPL 1184415 Contact Us For Availability
13
Relay, Start WPL 1185343 Contact Us For Availability
13
Capacitor WPL 1185333 Contact Us For Availability
13
Capacitor WPL 1186739 Contact Us For Availability
14
Screw, 8−18 x .295 WPL 1159222 Contact Us For Availability
14
Evaporator WPL 1186754 Contact Us For Availability
14
Evaporator WPL 1184995 Contact Us For Availability
14
Evaporator WPL 1185204 Contact Us For Availability
14
Evaporator WPL 1168655 Contact Us For Availability
15
Cord, Appliance W/ Wiring Harness WPL 1186221 Contact Us For Availability
15
Appliance Cord and Wiring Harness WPL 1185286 Contact Us For Availability
15
Cord, Appliance WPL 1186317 Contact Us For Availability
15
Cord, Appliance WPL 1186815 Contact Us For Availability
15
Cord, Appliance with Wire Harness WPL 1184945 Contact Us For Availability
15
Cord, Appliance WPL 1184998 Contact Us For Availability
16
Plate, Orifice WPL 1168666 Contact Us For Availability
16
Washer WPL 680975 Contact Us For Availability
17
Clip, Compressor WPL 8011446 Contact Us For Availability
17
Clip, Compressor WPL 24364001 Contact Us For Availability
17
Screw WPL 3400804 Contact Us For Availability
18
Capacitor WPL 1186186 Contact Us For Availability
20
Grommet (3) WPL 950212 Contact Us For Availability
20
Grommet (4) WPL 1168722 Contact Us For Availability
20
Grommet (3) WPL 1186709 Contact Us For Availability
21
Base WPL 1186674 Contact Us For Availability
21
Base WPL 1168654 Contact Us For Availability
21
Base WPL 1184730 Contact Us For Availability
22
Relief, Strain WPL 1180504 Contact Us For Availability
22
Relief, Strain WPL 488937 Contact Us For Availability
22
Caster (4) WPL 1164241 Contact Us For Availability
23
Support, Air System WPL 1184946 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1187682 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1182779 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1182780 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1185234 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1185010 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1186706 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1186708 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1186705 Contact Us For Availability
26
Brace, Support WPL 1168752 Contact Us For Availability
26
Pan, Drain WPL 1168761 Contact Us For Availability
28
Edge Guard 3−01 Printed In U.S.A. (mek) Par WPL 1180634 Contact Us For Availability
29
Seal, Anti−Rub REFRIGERANT CHARGE 12.00 oz. WPL 1184625 Contact Us For Availability
× ![]()
