Model LG LHT874 – Common Parts & Diagrams
Diagram 0
Diagram 1

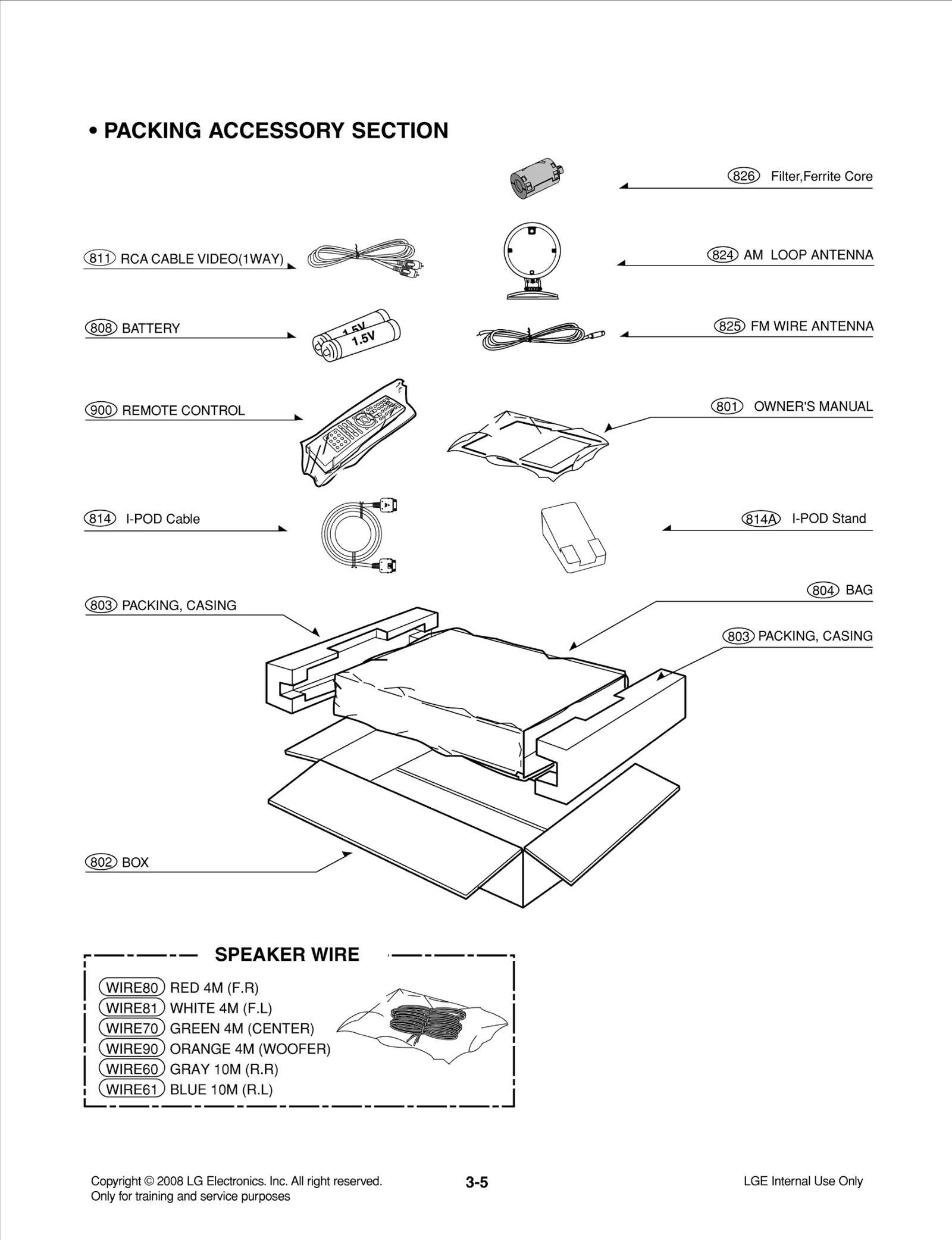

Diagram 2

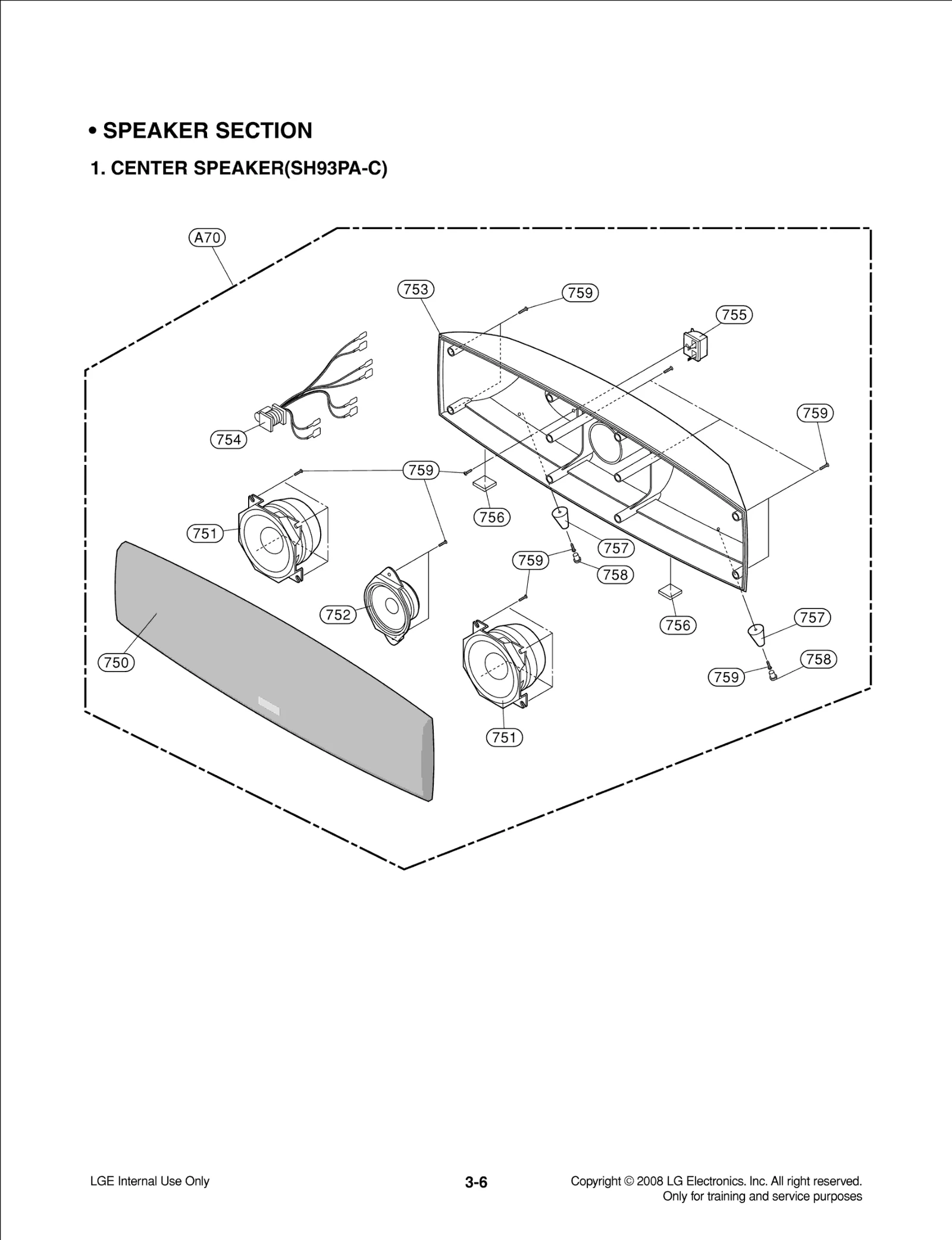

Diagram 3

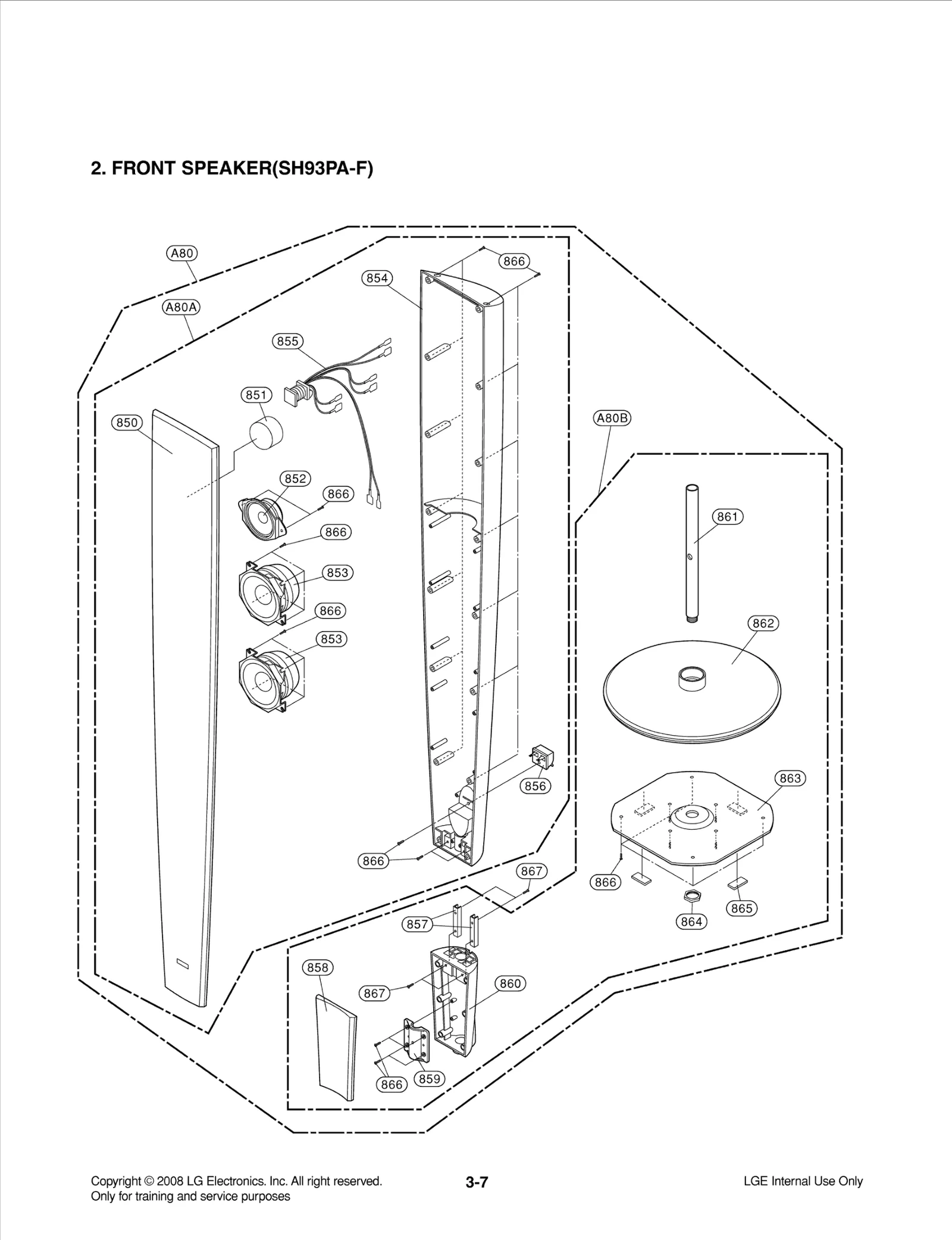

Diagram 4

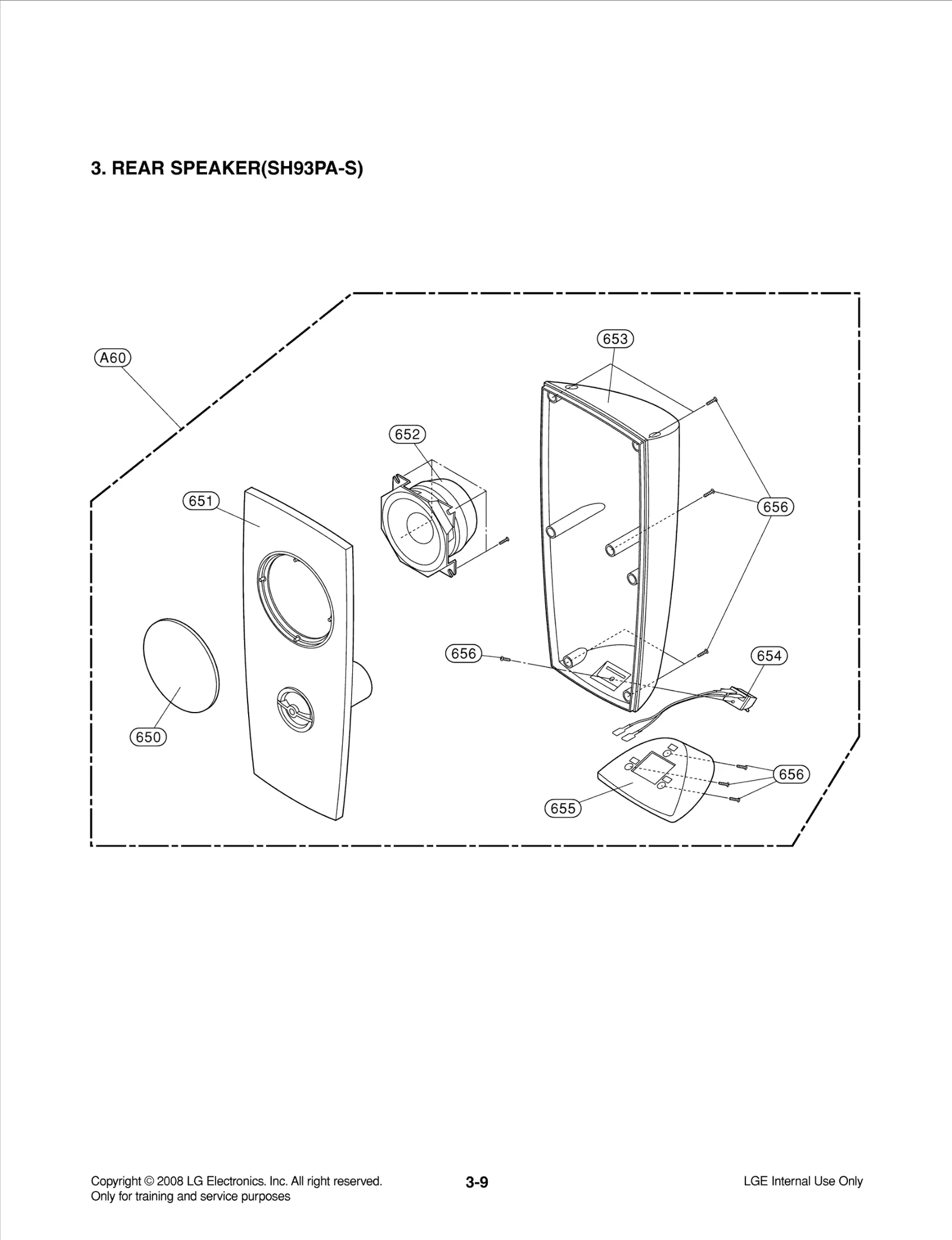

Diagram 5

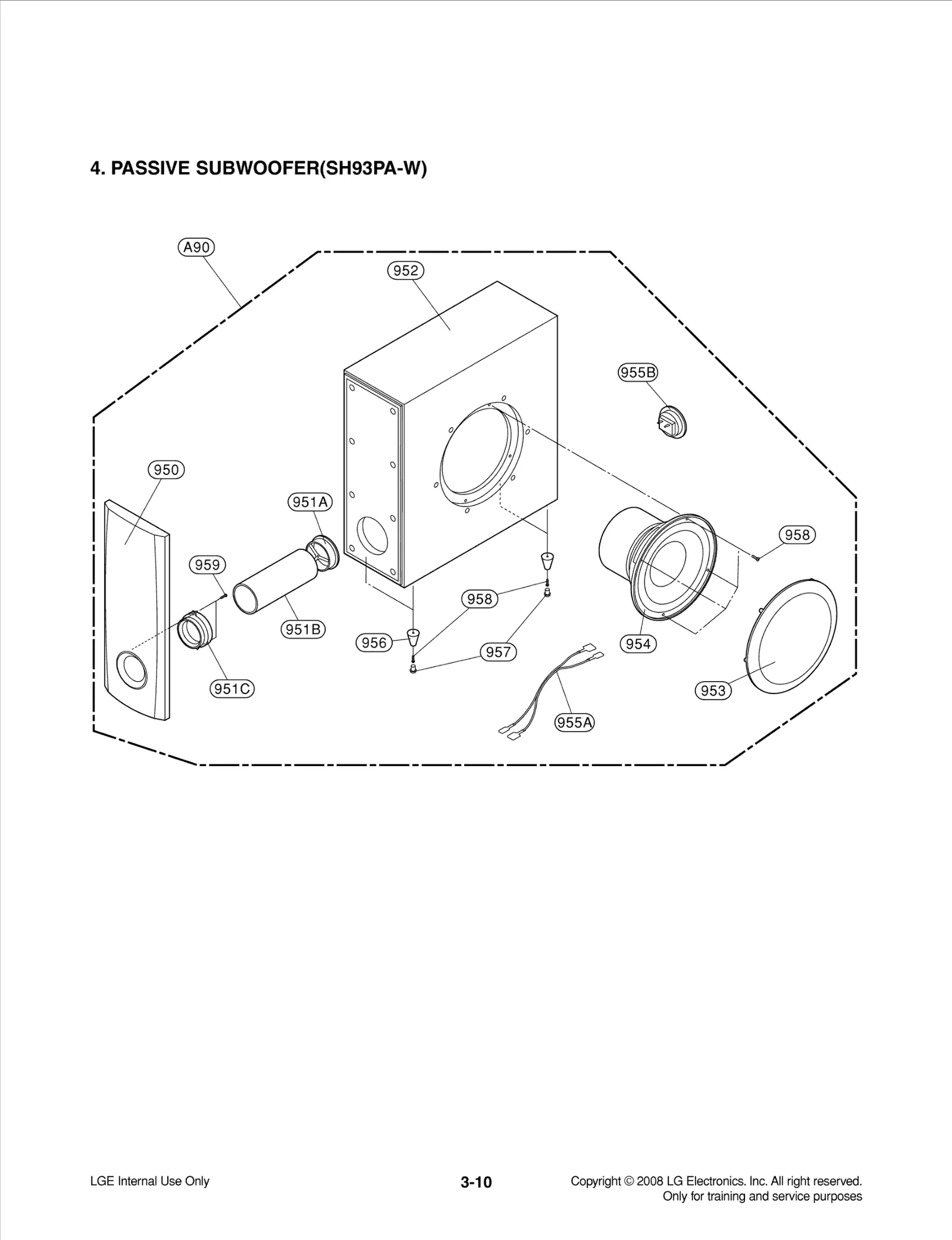

Diagram 6

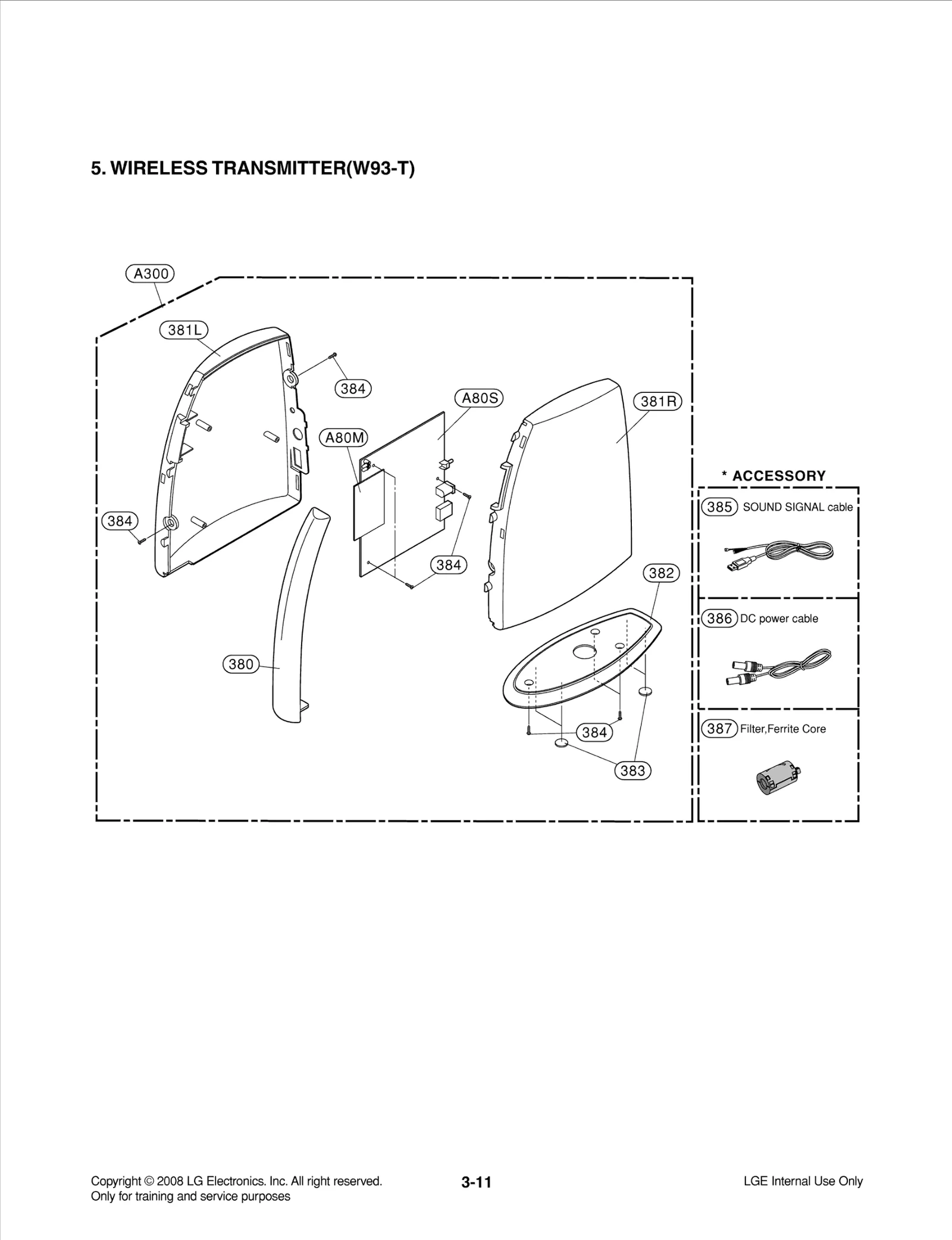

Diagram 7

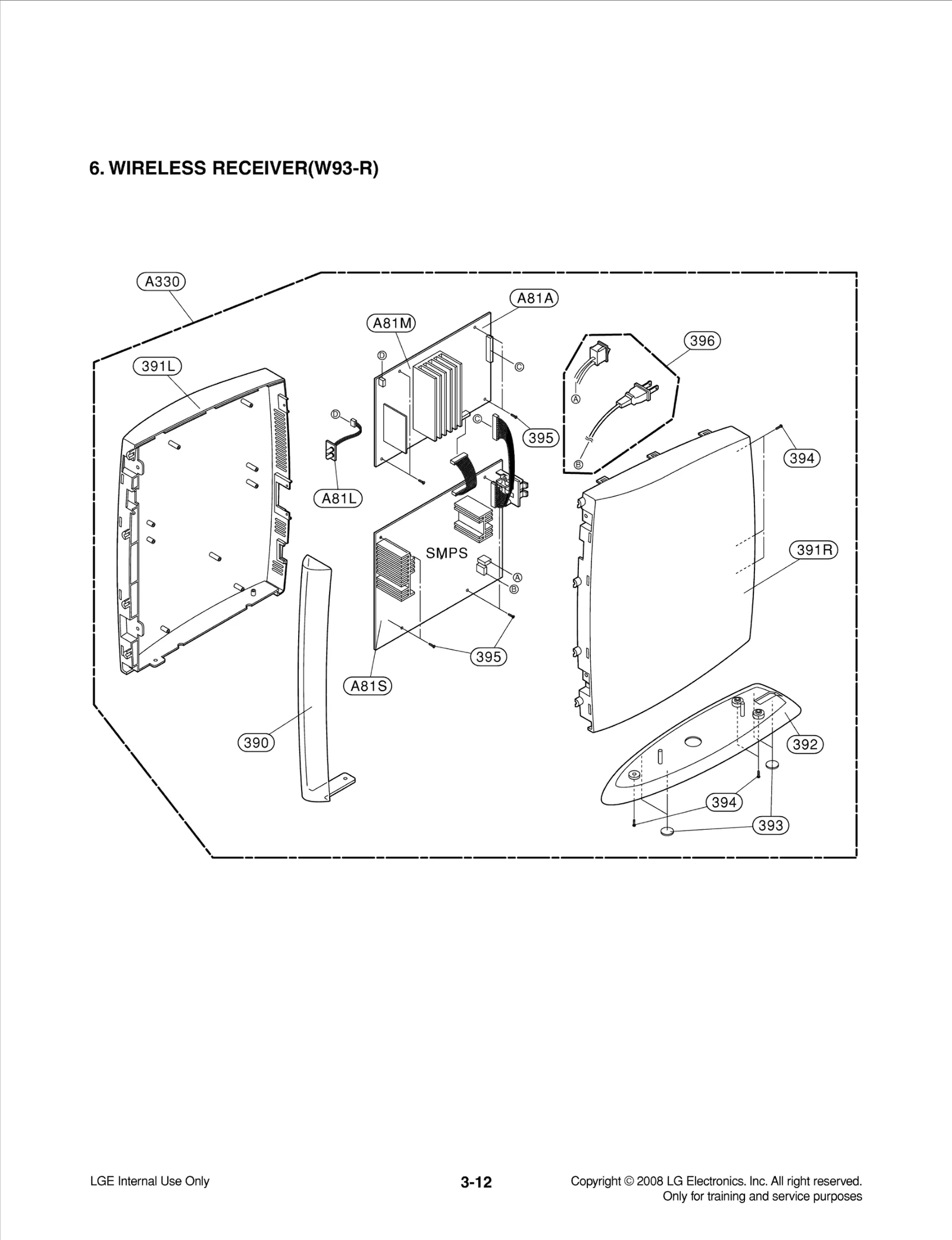

Diagram 8
Diagram 9
Common parts from model LG LHT874
001
FRAME LGE 3210RZM001A Contact Us For Availability
002
FRAME LGE 3210RZM002A Contact Us For Availability
003
TRAY LGE 3390RZ0002A Contact Us For Availability
004
TRAY LGE 3390RZ0002B Contact Us For Availability
005
TRAY LGE 3390RZ0002C Contact Us For Availability
006
TRAY LGE 3390RZ0002D Contact Us For Availability
007
TRAY LGE 3390RZ0002E Contact Us For Availability
011
ARM LGE 4260RZ0001C Contact Us For Availability
023
ARM LGE 4260RZ0004A Contact Us For Availability
031
DECK MECHANISM PARTS LGE 6768RZVP01A Contact Us For Availability
032
MOTOR ASSEMBLY LGE 4681RZ0001A Contact Us For Availability
037
PCB Assembly LGE 6871RZ0045A Contact Us For Availability
038
PCB Assembly LGE 6871RZ0045C Contact Us For Availability
062
BELT LGE 4400RZ0002A Contact Us For Availability
071
Damper LGE 4900RB0005A Contact Us For Availability
072
Pick Up Assembly LGE EAZ41948102 Contact Us For Availability
073
Cable,FFC LGE 6850R-HQ25D Contact Us For Availability
074
Cable,FFC LGE EAD34861302 Contact Us For Availability
075
PCB Assembly LGE 6871RZ0045B Contact Us For Availability
076
Harness,Single LGE 6631R-E103A Contact Us For Availability
250
Cover LGE 3090RCT001E Contact Us For Availability
255
HOLDER LGE 4930RC0185A Contact Us For Availability
260
Chassis LGE MBS36085204 Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
268
Fan Module LGE 5900R-D004G Contact Us For Availability
274
Plate,Ground LGE MGJ42260501 Contact Us For Availability
275
Plate LGE MGJ42705801 Contact Us For Availability
276
Sheet LGE MHK37161701 Contact Us For Availability
277
Bracket LGE MAZ47387101 Contact Us For Availability
279
Knob Assembly LGE AEZ35921201 Contact Us For Availability
283
Door Assembly LGE ADC35921301 Contact Us For Availability
293
Bracket LGE 4810RL0697A Contact Us For Availability
294
Holder LGE MEG32806701 Contact Us For Availability
380
Window LGE MKC41751401 Contact Us For Availability
381L
Cover LGE MCK41750801 Contact Us For Availability
381R
Cover LGE MCK41751001 Contact Us For Availability
382
Supporter LGE MJH41752001 Contact Us For Availability
385
Cable & Wire,Unclass LGE 6631R-Y980U Contact Us For Availability
386
Cable,Assembly LGE 6850RZZAB01 Contact Us For Availability
387
FERRITE CORE LGE 6200JB8010K Contact Us For Availability
390
Window LGE MKC41751501 Contact Us For Availability
391L
Cover LGE MCK41751202 Contact Us For Availability
391R
Cover LGE MCK41751302 Contact Us For Availability
392
Supporter LGE MJH41752101 Contact Us For Availability
393
Foot LGE MDP42256501 Contact Us For Availability
394
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
395
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
396
Power Cord Assembly LGE EAD50515201 Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0104A Contact Us For Availability
457
SCREW,DRAWING LGE 1SZZR-0098E Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
469
Screw,Customzied LGE 353-022S Contact Us For Availability
650
Grille LGE MDX41138551 Contact Us For Availability
651
Panel,Front LGE MGC41129351 Contact Us For Availability
652
Speaker,Full Range LGE EAB48950501 Contact Us For Availability
653
Case LGE MBN41130251 Contact Us For Availability
654
PCB Assembly LGE EBR36205801 Contact Us For Availability
655
Base LGE MAM41130651 Contact Us For Availability
750
Grille LGE MDX41353851 Contact Us For Availability
753
Case LGE MBN41354251 Contact Us For Availability
754
PCB Assembly,Sub LGE EBR48990202 Contact Us For Availability
756
Foot LGE MDP41831501 Contact Us For Availability
757
Foot LGE MDP41132851 Contact Us For Availability
758
Foot LGE MDP41831601 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN37095220 Contact Us For Availability
802
Box,Master LGE MAY48189842 Contact Us For Availability
803
Packing LGE MFZ41605439 Contact Us For Availability
804
Bag LGE MAF37454604 Contact Us For Availability
808
Primary Cell Battery,Carbon Zinc LGE 534-002C Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
814
CABLE, IPOD CONNECTOR LGE EBR36932304 Contact Us For Availability
814A
Accessory Assembly LGE AAA35994501 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
850
Grille LGE MDX41353651 Contact Us For Availability
851
Damper LGE MCQ47325701 Contact Us For Availability
852
Speaker,Tweeter LGE EAB49001301 Contact Us For Availability
853
Speaker,Woofer LGE EAB49001601 Contact Us For Availability
854
Case LGE MBN41354151 Contact Us For Availability
855
PCB Assembly,Sub LGE EBR48990201 Contact Us For Availability
856
PCB Assembly,Jack LGE 6871RJ0001K Contact Us For Availability
857
Bracket LGE MAZ32685801 Contact Us For Availability
858
Decor LGE MCR41354751 Contact Us For Availability
859
Bracket LGE MAZ41354951 Contact Us For Availability
860
Base LGE MAM41354351 Contact Us For Availability
861
Frame LGE MDQ41830301 Contact Us For Availability
862
Base LGE MAM41354551 Contact Us For Availability
863
Base LGE MAM41354601 Contact Us For Availability
864
Nut,Common LGE FAD30146601 Contact Us For Availability
865
Foot LGE MDP37298501 Contact Us For Availability
867
SCREW,DRAWING LGE 353M025H Contact Us For Availability
900
Remote Controller Assembly LGE AKB41681101 Contact Us For Availability
950
Panel,Front LGE MGC41355351 Contact Us For Availability
951A
Duct LGE MCZ36444401 Contact Us For Availability
951B
Duct LGE MCZ47182801 Contact Us For Availability
951C
Duct LGE MCZ41355451 Contact Us For Availability
952
Cover Assembly LGE ACQ52704051 Contact Us For Availability
953
Grille LGE MDX41354051 Contact Us For Availability
954
Speaker,Woofer LGE EAB49000901 Contact Us For Availability
955A
PCB Assembly,Sub LGE EBR43173509 Contact Us For Availability
955B
PCB Assembly,Jack LGE 6871RJ0001G Contact Us For Availability
956
Foot LGE MDP41282851 Contact Us For Availability
957
Foot LGE MDP41831701 Contact Us For Availability
958
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
A26
Mechanism Assembly LGE 4405RLH500C Contact Us For Availability
A41
PCB Assembly LGE EBR44148801 Contact Us For Availability
A42
Holder Assembly LGE AEJ35922402 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL35921101 Contact Us For Availability
A44
Frame Assembly LGE ADV35922004 Contact Us For Availability
A45
PCB Assembly LGE EBR44147001 Contact Us For Availability
A46
Option Code Assembly LGE EBR44229702 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR42560701 Contact Us For Availability
A48
PCB Assembly LGE EBR44150501 Contact Us For Availability
A50
PCB Assembly LGE EBR44148401 Contact Us For Availability
A60
Speaker Assembly LGE EAB48950151 Contact Us For Availability
A70
Speaker Assembly LGE EAB50129151 Contact Us For Availability
A80
Speaker Assembly LGE EAB50129251 Contact Us For Availability
A80A
Panel Assembly,Audio LGE AGL52703851 Contact Us For Availability
A80B
Panel Assembly,Audio LGE AGL52703951 Contact Us For Availability
A80M
PCB Assembly LGE 6871RZ0021G Contact Us For Availability
A80S
PCB Assembly LGE EBR36981011 Contact Us For Availability
A81A
PCB Assembly LGE EBR30210911 Contact Us For Availability
A81L
PCB Assembly LGE EBR48854311 Contact Us For Availability
A81M
PCB Assembly LGE EBR30210211 Contact Us For Availability
A81S
PCB Assembly LGE EBR30211911 Contact Us For Availability
A90
Speaker Assembly LGE EAB50129451 Contact Us For Availability
A300
Board Assembly LGE AAX37118202 Contact Us For Availability
A330
Board Assembly LGE AAX37118302 Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
C3A2
Capacitor,AL,Radial LGE 0CE4764K638 Contact Us For Availability
C3D2
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C3D6
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C3D9
Capacitor,Ceramic,Chip LGE 0CH1682K512 Contact Us For Availability
C5C1
Capacitor,Ceramic,Chip LGE 0CH1681K562 Contact Us For Availability
C7D4
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C7E1
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C7E2
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C7F9
Capacitor,AL,Radial LGE 0CE1063K638 Contact Us For Availability
C7G5
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C114
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C171
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C172
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CH1222K512 Contact Us For Availability
C221
Capacitor,AL,Radial LGE 0CE4774C638 Contact Us For Availability
C232
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C241
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C331
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C451
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CH4080K112 Contact Us For Availability
C517
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C568
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C570
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
C581
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C587
Capacitor,Ceramic,Chip LGE 0CH1154K946 Contact Us For Availability
C620
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C627
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C628
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C722
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C749
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE4763H638 Contact Us For Availability
C777
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C793
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C844
Capacitor,Ceramic,Chip LGE 0CH4300K412 Contact Us For Availability
C849
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C851
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C854
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C874
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C875
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C894
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C898
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CZZR00011H Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE476CV611 Contact Us For Availability
C906
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C907
CAPACITOR LGE 624-087B Contact Us For Availability
C909
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C912
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C913
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C916
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C917
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C918
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C920
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C921
Capacitor,Film,DIP LGE 0CQ3911N449 Contact Us For Availability
C931
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE337CH618 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C937
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C938
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C939
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C942
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C951
CAPACITOR LGE 624-087D Contact Us For Availability
C954
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD43165201 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD43155402 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD43165001 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD43127901 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD43155302 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD43156901 Contact Us For Availability
CM902
Capacitor,Film,Box LGE 624-088S Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN01
Harness,Single LGE EAD42360601 Contact Us For Availability
CN602
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
CN901
Connector,Wafer LGE 561-711O Contact Us For Availability
CN902
Harness,Single LGE EAD35214501 Contact Us For Availability
D101
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D104
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D402
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D507
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
D901
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D933
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D933
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D936
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D942
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D943
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D943
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D951
Diode,Rectifier LGE 0DRNH00121A Contact Us For Availability
DIS301
VFD LGE EAJ35072601 Contact Us For Availability
DIS301
VFD LGE EAJ39332601 Contact Us For Availability
F802
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
F808
Filter,Line Noise LGE 6200J000039 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
FR931
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
IC101A
S/W,System Program LGE SAA31751801 Contact Us For Availability
IC102
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC103
IC,EEPROM LGE EAN35369601 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN40076401 Contact Us For Availability
IC252
IC,LDO Voltage Regul LGE 0IPMG78358A Contact Us For Availability
IC253
IC,LDO Voltage Regulator LGE 0IPMGKE031A Contact Us For Availability
IC301
IC,Display Driver LGE EAN41678501 Contact Us For Availability
IC401
IC,Motor Driver LGE EAN40199101 Contact Us For Availability
IC402
IC,POWER MANAGEMENT LGE 0IPMGKE009C Contact Us For Availability
IC501
IC,Video Processors LGE EAN41510101 Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC503A
S/W,System Program LGE SAA31751701 Contact Us For Availability
IC508
IC,STANDARD LOGIC LGE 0ISTLPH025A Contact Us For Availability
IC601
IC,PWM Controller LGE EAN39871601 Contact Us For Availability
IC703
IC,Power Amplifier LGE EAN41746101 Contact Us For Availability
IC801
IC,Data Controller LGE 0IPRPS5006C Contact Us For Availability
IC802
IC,MEMORIES LGE 0IMMRSE002A Contact Us For Availability
IC803
IC,Analog Switch LGE EAN41683001 Contact Us For Availability
IC804
IC,Analog Switch LGE EAN38680801 Contact Us For Availability
IC805
IC,Tx/Rx LGE EAN40306502 Contact Us For Availability
IC806
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC901
IC,I/O Support Chip LGE EAN42986201 Contact Us For Availability
IC911
IC,POWER MANAGEMENT LGE 0IPMG00045A Contact Us For Availability
IC912
FET LGE 0TFFN10009A Contact Us For Availability
IC912
TRANSISTOR,FETS LGE 0TFFN10008A Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC933
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC934
IC,LDO Voltage Regul LGE 0IPMG78445A Contact Us For Availability
IC942
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC942
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC942
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
JK3D1
Connector,USB LGE 6630S70048D Contact Us For Availability
JK3D2
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK201
Connector,I/O LGE EAG36628902 Contact Us For Availability
JK202
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK601
Jack,RCA LGE 6612JH002XG Contact Us For Availability
JK702
JACK,AC/DC POWER LGE 572-045C Contact Us For Availability
JK703
Conector,Terminal Bl LGE 6640000070A Contact Us For Availability
L3D7
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
L171
Filter,Bead LGE 636-004C Contact Us For Availability
L257
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L401
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L501
Inductor,Multilayer,Chip LGE 0LC2000005B Contact Us For Availability
L504
Inductor,Multilayer,Chip LGE 0LCCE00016A Contact Us For Availability
L507
Inductor,Multilayer,Chip LGE 0LCCE00004N Contact Us For Availability
L607
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L701
Coil,RF LGE 6140RCC008A Contact Us For Availability
L708
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L811
INDUCTOR,CHIP LGE 0LCCE00042A Contact Us For Availability
L931
COIL,CHOKE LGE 633-088G Contact Us For Availability
L951
TRANSFORMER,SMPS[COI LGE 6170RNGW18S Contact Us For Availability
LD303
LED,DIP LGE EAV42966301 Contact Us For Availability
LED905
LED,Chip LGE EAV43250001 Contact Us For Availability
LF901
Filter,Line Noise LGE 6200JB8014E Contact Us For Availability
P1301
Connector,FFC/FPC/PI LGE 6630XF00429 Contact Us For Availability
PC911
SENSOR LGE 6500RDB011B Contact Us For Availability
PC911
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN3D1
CONNECTOR (CIRC),FFC LGE 6630R-FB05K Contact Us For Availability
PN3D2
CONNECTOR (CIRC),WAF LGE 561-712C Contact Us For Availability
PN171
CONNECTOR (CIRC),FFC LGE 6630R-FB10O Contact Us For Availability
PN251
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00122 Contact Us For Availability
PN255
Harness,Single LGE EAD35219501 Contact Us For Availability
PN257
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00115 Contact Us For Availability
PN301
Connector,FFC/FPC/PI LGE 561-7073 Contact Us For Availability
PN303
Connector,FFC/FPC/PI LGE 561-707F Contact Us For Availability
PN400
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
PN401
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
PN402
CONNECTOR (CIRC),FFC LGE 561-686Q Contact Us For Availability
PN602
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
PN603
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PN801
Connector,DSUB LGE EAG40562101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
PN901
Connector,FFC/FPC/PI LGE EAG32731601 Contact Us For Availability
Q204
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q205
TRANSISTOR LGE 0TR129809BB Contact Us For Availability
Q304
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q406
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q408
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q409
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q410
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q411
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q501
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q704
TRANSISTOR LGE 0TR126709AB Contact Us For Availability
Q705
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
Q801
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q803
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q901
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q905
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R3D2
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R3D4
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R4D9
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R5A1
RESISTOR,DRAWING LGE 0RRZVTA0011 Contact Us For Availability
R5N2
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R5N4
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R5P5
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R7A0
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R7A5
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R117
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R126
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R171
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R173
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R177
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R186
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R187
RESISTOR,METAL GLAZE LGE 0RH2400C622 Contact Us For Availability
R188
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R205
Resistor,Chip LGE EBC36543501 Contact Us For Availability
R206
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R210
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R212
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R330
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R335
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R345
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R351
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R354
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R365
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R401
RESISTOR,FIXED METAL LGE 0RS0271K619 Contact Us For Availability
R404
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R412
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R414
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R424
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R444
RESISTOR,METAL GLAZE LGE 0RH9101C422 Contact Us For Availability
R451
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R453
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R482
Resistor,Chip LGE 0RH1502C422 Contact Us For Availability
R490
Resistor,Chip LGE 0RH6201C622 Contact Us For Availability
R510
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R512
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R525
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R531
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R562
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R569
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
R581
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R592
Resistor,Chip LGE 0RJ3900C477 Contact Us For Availability
R609
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R656
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R705
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R731
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R738
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R749
Resistor,Chip LGE 0RH0101G622 Contact Us For Availability
R768
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R769
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R779
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R783
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R789
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD3303F608 Contact Us For Availability
R903
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R904
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0182F608 Contact Us For Availability
R906
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R907
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD0822F608 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
R914
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R914
RESISTOR,FIXED POWER LGE 0RW0150N630 Contact Us For Availability
R916
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R919
RESISTOR,FIXED CARBON FILM LGE 0RD1102F608 Contact Us For Availability
R920
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD3902F608 Contact Us For Availability
R937
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R939
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R942
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R943
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R944
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R945
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R946
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R951
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
R953
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2402F408 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R957
Resistor,Carbon Film LGE 0RD0332F608 Contact Us For Availability
R973
Resistor,Carbon Film LGE 0RD2402F608 Contact Us For Availability
RC2
REMOTE CONTROLLER RE LGE 6712R2038GJ Contact Us For Availability
SW306
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW306
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
T901
Transformer,Switchin LGE 6170RNGW25E Contact Us For Availability
T902
Transformer,Switchin LGE EBJ34969101 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
VOL301
Switch,Encoder LGE 6110E00019C Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR44269705 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR44269706 Contact Us For Availability
WIRE70
PCB Assembly,Sub LGE EBR44269703 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR44269701 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR44269702 Contact Us For Availability
WIRE90
PCB Assembly,Sub LGE EBR44269704 Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270H Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
X801
Crystal LGE EAW32919201 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD903
DIODE,ZENERS LGE 0DZ120009IA Contact Us For Availability
ZD906
DIODE,ZENER LGE 0DZ220009ED Contact Us For Availability
ZD942
Diode,Zener LGE 0DZ510009EC Contact Us For Availability
× ![]()
Login and Registration Form
