Model LG LHT854 – Common Parts & Diagrams

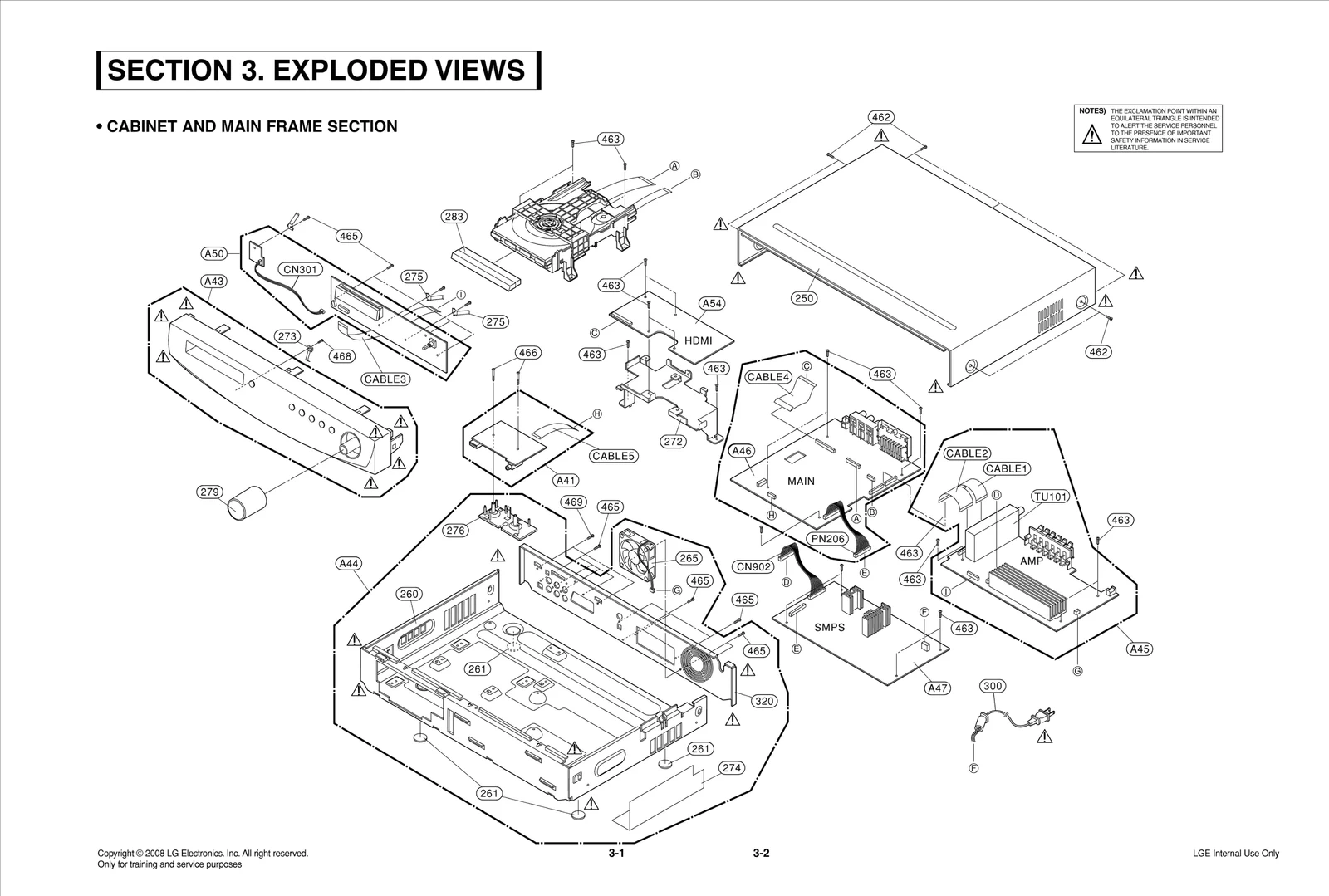

Diagram 0

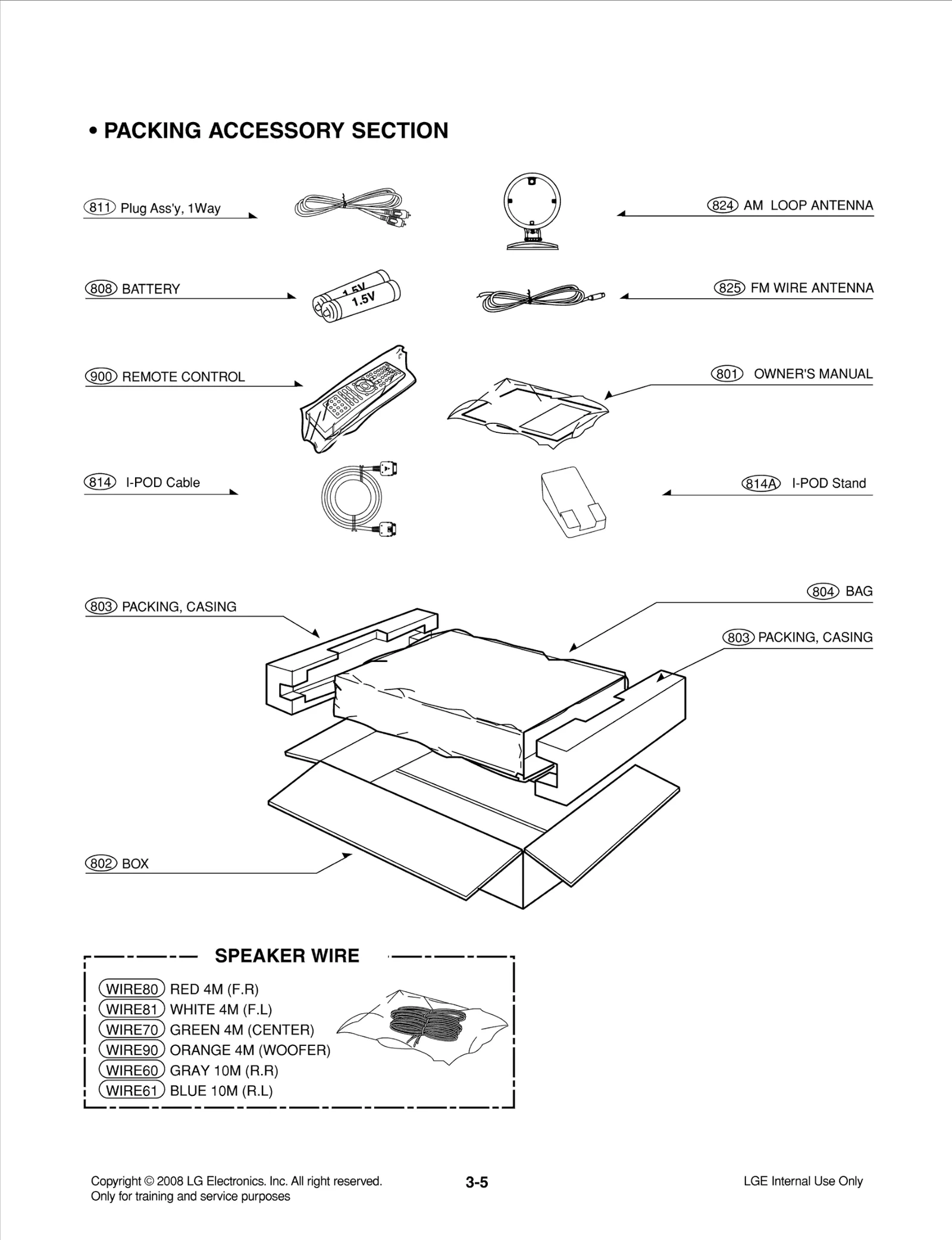

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG LHT854
001
Plate LGE MGJ38556601 Contact Us For Availability
002
Magnet,Ferrite LGE RAB30611501 Contact Us For Availability
003
Clamp LGE MBU38556801 Contact Us For Availability
010
Cable,FFC LGE 6850R-JW12B Contact Us For Availability
012
Damper LGE MCQ41263801 Contact Us For Availability
012A
Damper LGE MCQ38556901 Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
MOTOR ASSEMBLY LGE 4681R-A015A Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015A
Motor,DC LGE EAU36590901 Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PCB Assembly LGE 6871R-9297J Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0067A Contact Us For Availability
019
Frame LGE MDQ39573201 Contact Us For Availability
020
Base LGE MAM39572801 Contact Us For Availability
026
TRAY LGE 3390R-0032A Contact Us For Availability
037
Pick Up Assembly LGE EAZ40060202 Contact Us For Availability
250
Case LGE MBN32696901 Contact Us For Availability
260
Chassis LGE MBS32696701 Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
265
Fan Module LGE 5900R-D004G Contact Us For Availability
272
Bracket LGE MAZ40891901 Contact Us For Availability
273
PLATE LGE 3300R-V127A Contact Us For Availability
274
Sheet LGE MHK34309301 Contact Us For Availability
275
PLATE LGE 3300RCH001B Contact Us For Availability
276
Holder LGE MEG39688601 Contact Us For Availability
279
Knob LGE MEY39687101 Contact Us For Availability
283
Door LGE MCV39687702 Contact Us For Availability
300
POWER CORD LGE 6410RAHZ05B Contact Us For Availability
320
Plate LGE MGJ40851920 Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
442
Screw,Taptite LGE FAB30124101 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
466
Screw,Customized LGE 1SZZR-0098V Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
469
Screw,Customzied LGE 353-022S Contact Us For Availability
650
Frame Assembly LGE ADV53962801 Contact Us For Availability
651
Panel,Front LGE MGC41129301 Contact Us For Availability
652
Speaker,Full Range LGE EAB48950501 Contact Us For Availability
653
Case LGE MBN41130201 Contact Us For Availability
654
PCB Assembly LGE EBR36205801 Contact Us For Availability
655
Base LGE MAM41130601 Contact Us For Availability
656
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
750
Panel,Front LGE MGC41130801 Contact Us For Availability
751
Frame Assembly LGE ADV53962901 Contact Us For Availability
752
Frame Assembly LGE ADV53963001 Contact Us For Availability
754
Case LGE MBN41131101 Contact Us For Availability
756
Foot LGE MDP41831501 Contact Us For Availability
757
Foot LGE MDP41132801 Contact Us For Availability
758
Foot LGE MDP41831601 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN37095212 Contact Us For Availability
802
Box,Master LGE MAY42941510 Contact Us For Availability
803
Packing LGE MFZ41605407 Contact Us For Availability
804
Bag LGE MAF37454601 Contact Us For Availability
808
Battery,Manganese LGE EAC35678601 Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
814
CABLE, IPOD CONNECTOR LGE EBR36932303 Contact Us For Availability
814A
Accessory Assembly LGE AAA35994501 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
950
Panel,Front LGE MGC41130901 Contact Us For Availability
951A
Duct LGE MCZ36444401 Contact Us For Availability
951B
Duct LGE MCZ38083001 Contact Us For Availability
952
Cover Assembly LGE ACQ52744101 Contact Us For Availability
953
Frame Assembly LGE ADV52744301 Contact Us For Availability
954
Speaker,Full Range LGE EAB48950801 Contact Us For Availability
955
PCB Assembly,Jack LGE 6871RJ0001G Contact Us For Availability
956
Foot LGE MDP41282851 Contact Us For Availability
957
Foot LGE MDP41831751 Contact Us For Availability
958
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
A01
Clamp Assembly LGE ACA34280801 Contact Us For Availability
A02
Base Assembly LGE 3041R-T010L Contact Us For Availability
A03
Base Assembly LGE 3041R-T011M Contact Us For Availability
A41
PCB Assembly LGE EBR48190601 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL34515120 Contact Us For Availability
A44
Frame Assembly LGE ADV35863120 Contact Us For Availability
A45
Option Code Assembly LGE EBR42216415 Contact Us For Availability
A46
Option Code Assembly LGE EBR42216213 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR42562702 Contact Us For Availability
A50
PCB Assembly LGE EBR39895201 Contact Us For Availability
A54
Auto SMT PCB Assembly LGE EBR41584602 Contact Us For Availability
A60
Speaker Assembly Front/Rear LGE EAB48950101 Contact Us For Availability
A70
Speaker Assembly, Center LGE EAB48950201 Contact Us For Availability
A90
Speaker Assembly, Subwoofer LGE EAB48950301 Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
C2D1
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C2D3
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C2G4
Capacitor,Ceramic,Chip LGE 0CH1682K566 Contact Us For Availability
C2G9
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
C3A1
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C3A2
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C5C1
Capacitor,Ceramic,Chip LGE 0CH1681K562 Contact Us For Availability
C7E7
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C7G1
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C7G3
Capacitor,AL,Radial LGE 0CE1063K638 Contact Us For Availability
C7H5
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C8A2
Capacitor,TA,Niobium LGE 0CS107ID5DC Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C109
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C218
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C250
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C265
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C290
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C309
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C313
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C410
Capacitor,AL,Radial LGE 0CE2274F638 Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C421
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE 0CH1474H942 Contact Us For Availability
C509
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C515
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
C581
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C587
Capacitor,Ceramic,Chip LGE 0CH1154K946 Contact Us For Availability
C618
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C707
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE4763H638 Contact Us For Availability
C715
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C726
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C737
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C752
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C855
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C856
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C858
Capacitor,TA,Niobium LGE 0CH7106F611 Contact Us For Availability
C891
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C895
CAPACITOR,FIXED TANT LGE 0CS476IF6DC Contact Us For Availability
C898
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CZZR00011H Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE476CV611 Contact Us For Availability
C906
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C907
CAPACITOR LGE 624-087B Contact Us For Availability
C908
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C911
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C913
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C915
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C916
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C918
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C921
Capacitor,Film,DIP LGE 0CQ3911N449 Contact Us For Availability
C931
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE337CH618 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C937
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C939
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C941
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C952
CAPACITOR LGE 624-087D Contact Us For Availability
C953
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C955
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD35201502 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD42219402 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD41757302 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD41756802 Contact Us For Availability
CF806
Filter,Line Noise LGE 6200J000039 Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN301
Harness,Multi LGE EAD35219301 Contact Us For Availability
CN503
Connector,FFC/FPC/PIC LGE EAG42318701 Contact Us For Availability
CN602
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
CN803
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
CN805
Connector,FFC/FPC/PIC LGE EAG30179801 Contact Us For Availability
CN901
Connector,Wafer LGE 561-711O Contact Us For Availability
CN902
Harness,Single LGE EAD35214501 Contact Us For Availability
D102
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D104
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D404
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D507
DIODE,ZENERS LGE 0DZRM00338A Contact Us For Availability
D508
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
D901
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D911
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D934
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D934
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D934
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D942
Diode,Switching LGE EAH32120501 Contact Us For Availability
D942
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D951
Diode,Rectifier LGE 0DRNH00121A Contact Us For Availability
DIS301
VFD LGE EAJ35072601 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
FB901
Filter,Bead LGE 636-004C Contact Us For Availability
FR931
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC101A
S/W,System Program LGE SAA31583301 Contact Us For Availability
IC102
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC103
IC,EEPROM LGE EAN35369601 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN40076401 Contact Us For Availability
IC301
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC401
IC,Motor Driver LGE EAN40199101 Contact Us For Availability
IC501
IC,Video Processors LGE EAN41510101 Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC503A
S/W,System Program LGE SAA31583101 Contact Us For Availability
IC504
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC504
IC,MEMORIES LGE 0IMMRSE002A Contact Us For Availability
IC509
IC,LDO Voltage Regul LGE 0IPMG78358A Contact Us For Availability
IC601
IC,PWM Controller LGE EAN39871601 Contact Us For Availability
IC703
IC,Power Amplifier LGE EAN41746101 Contact Us For Availability
IC804
IC,Analog Switch LGE EAN41683001 Contact Us For Availability
IC805
IC,Tx/Rx LGE EAN40306502 Contact Us For Availability
IC806
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC807
IC,LDO Voltage Regulator LGE 0IPMGKE031A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC911
IC,POWER MANAGEMENT LGE 0IPMG00045A Contact Us For Availability
IC912
TRANSISTOR,FETS LGE 0TFFN10008A Contact Us For Availability
IC912
FET LGE 0TFFN10009A Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC933
IC,LDO Voltage Regulator LGE EAN42369201 Contact Us For Availability
IC933
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC942
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC942
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC942
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
JK2D3
Connector,USB LGE 6630S70048C Contact Us For Availability
JK2D4
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK201
Jack,RCA LGE 6612JH002XG Contact Us For Availability
JK202
Connector,I/O LGE EAG36628901 Contact Us For Availability
JK203
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK703
Conector,Terminal Bl LGE 6640000070A Contact Us For Availability
L2D8
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L218
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L401
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L405
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L503
Inductor,Multilayer,Chip LGE 0LC2000005B Contact Us For Availability
L504
Inductor,Multilayer,Chip LGE 0LCCE00016A Contact Us For Availability
L507
Inductor,Multilayer,Chip LGE 0LCCE00004N Contact Us For Availability
L508
Inductor,Multilayer,Chip LGE 0LCCE00004B Contact Us For Availability
L704
Coil,RF LGE 6140RCC008A Contact Us For Availability
L708
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L931
COIL,CHOKE LGE 633-088G Contact Us For Availability
L951
TRANSFORMER,SMPS[COI LGE 6170RNGW18S Contact Us For Availability
LD301
LED LGE 0DLLT0359AA Contact Us For Availability
LD306
LED LGE 0DLBE0175AA Contact Us For Availability
LF902
Filter,Line Noise LGE 6200JB8014E Contact Us For Availability
P400
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
P401
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
PC911
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC911
SENSOR LGE 6500RDB011B Contact Us For Availability
PN101
CONNECTOR LGE 561-711E Contact Us For Availability
PN103
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
PN202
CONNECTOR (CIRC),FFC LGE 6630R-FB05K Contact Us For Availability
PN204
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
PN206
Harness,Single LGE EAD35219503 Contact Us For Availability
PN301
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
PN302
Connector,Wafer LGE 561-711C Contact Us For Availability
PN602
Connector,FFC/FPC/PI LGE 6630XE00124 Contact Us For Availability
PN602
CONNECTOR (CIRC),FFC LGE 6630XE01224 Contact Us For Availability
PN603
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q2P1
TRANSISTOR LGE 0TR129809BB Contact Us For Availability
Q2P2
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q106
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q301
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q303
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q303
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q304
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q402
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q403
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q406
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q505
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q701
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
Q704
TRANSISTOR LGE 0TR126709AB Contact Us For Availability
Q803
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q901
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
R1A7
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R2D2
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R2Z1
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R5A6
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
R5F1
Filter,Bead LGE 6200RJC002A Contact Us For Availability
R5P4
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R7A1
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R7A4
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R7C4
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R103
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R107
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R108
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R117
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R154
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R161
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R186
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R187
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R188
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R295
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R297
Resistor,Chip LGE EBC36543501 Contact Us For Availability
R299
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R318
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R330
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R335
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R348
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R349
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R350
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R351
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R372
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R401
Resistor,Metal Oxide Film LGE 0RS0101K619 Contact Us For Availability
R402
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R404
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R415
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R423
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R424
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R432
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R444
RESISTOR,METAL GLAZE LGE 0RH9101C422 Contact Us For Availability
R451
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R453
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R499
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R510
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R513
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R531
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R547
Filter,Bead LGE 0LCCE00031A Contact Us For Availability
R563
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R576
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R589
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R592
Resistor,Chip LGE 0RJ3900C477 Contact Us For Availability
R602
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R656
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R703
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R707
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R743
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R749
Resistor,Chip LGE 0RH0101G622 Contact Us For Availability
R857
FILTER(CIRC),EMC LGE 6200RJC003A Contact Us For Availability
R864
Wire Pad LGE EBC40167001 Contact Us For Availability
R876
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R877
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R890
Resistor,Chip LGE 0RH1003C422 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD3303F609 Contact Us For Availability
R903
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R906
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R907
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD0822F609 Contact Us For Availability
R911
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R914
RESISTOR,FIXED POWER LGE 0RW0150N630 Contact Us For Availability
R918
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R919
Resistor,Carbon Film LGE 0RD1102F609 Contact Us For Availability
R920
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R937
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R942
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R943
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R944
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R945
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R946
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R952
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
R953
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R954
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2402F409 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R957
Resistor,Carbon Film LGE 0RD0332F609 Contact Us For Availability
R974
Resistor,Carbon Film LGE 0RD2402F609 Contact Us For Availability
RC2
REMOTE CONTROLLER RE LGE 6712R2038GJ Contact Us For Availability
SW302
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
Transformer,Switchin LGE 6170RNGW25E Contact Us For Availability
T902
Transformer,Switchin LGE EBJ34969101 Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TU101
Tuner,Analog LGE EBL41605401 Contact Us For Availability
VOL301
Switch,Encoder LGE 6110E00018C Contact Us For Availability
VR901
Varistor LGE EAF38754501 Contact Us For Availability
VR901
Varistor LGE EAF43134701 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE60
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
WIRE61
WIRE R,L LGE 6871RU9271E Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271N Contact Us For Availability
WIRE80
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271L Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271M Contact Us For Availability
WIRE90
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271P Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270H Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
ZD901
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ330009AR Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ120009AG Contact Us For Availability
ZD903
Diode,Zener LGE 0DZSE00054A Contact Us For Availability
ZD942
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
× ![]()
Login and Registration Form
