Model LG LHT764 RECEIVER HTS DVD 5DISC – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2

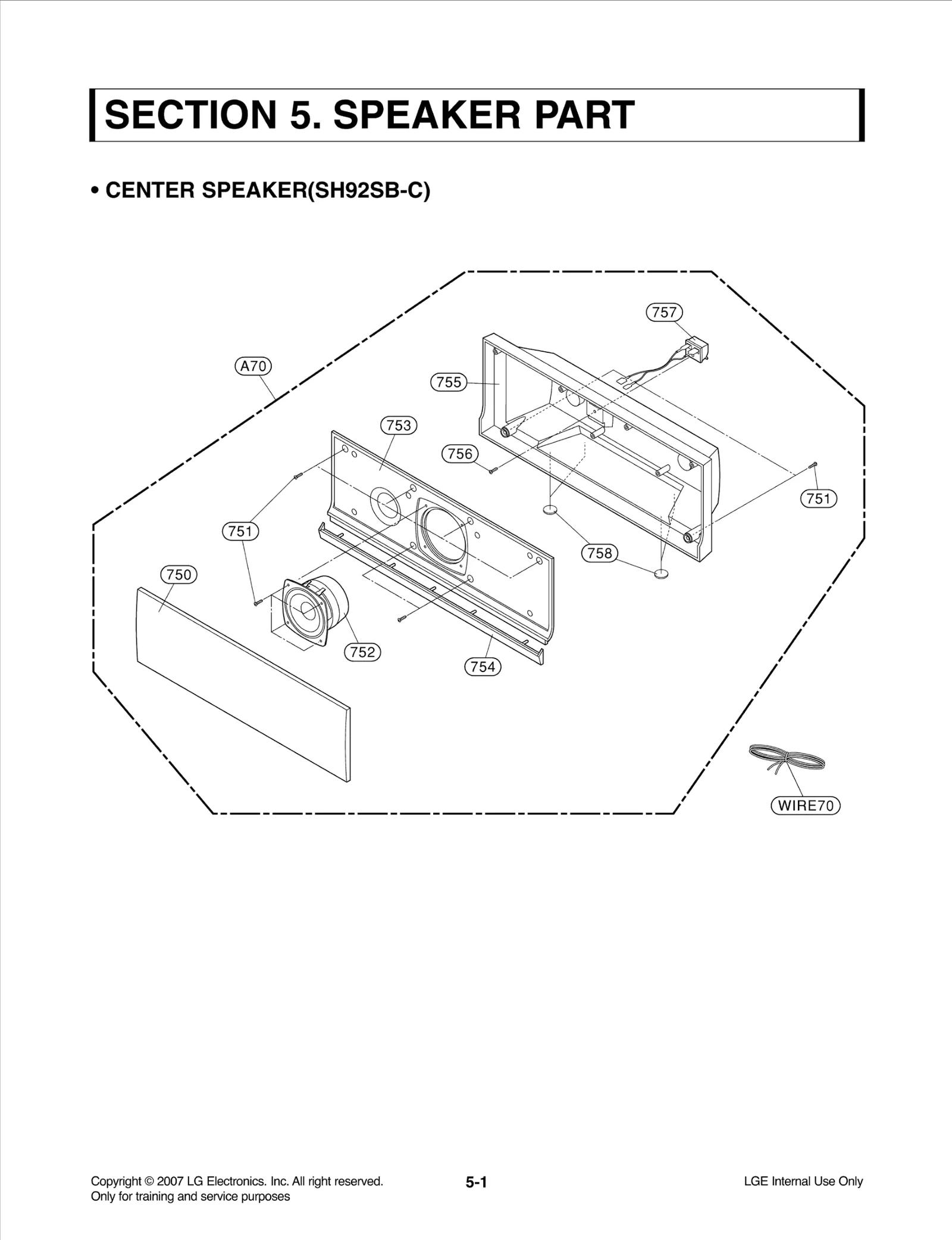

Diagram 3

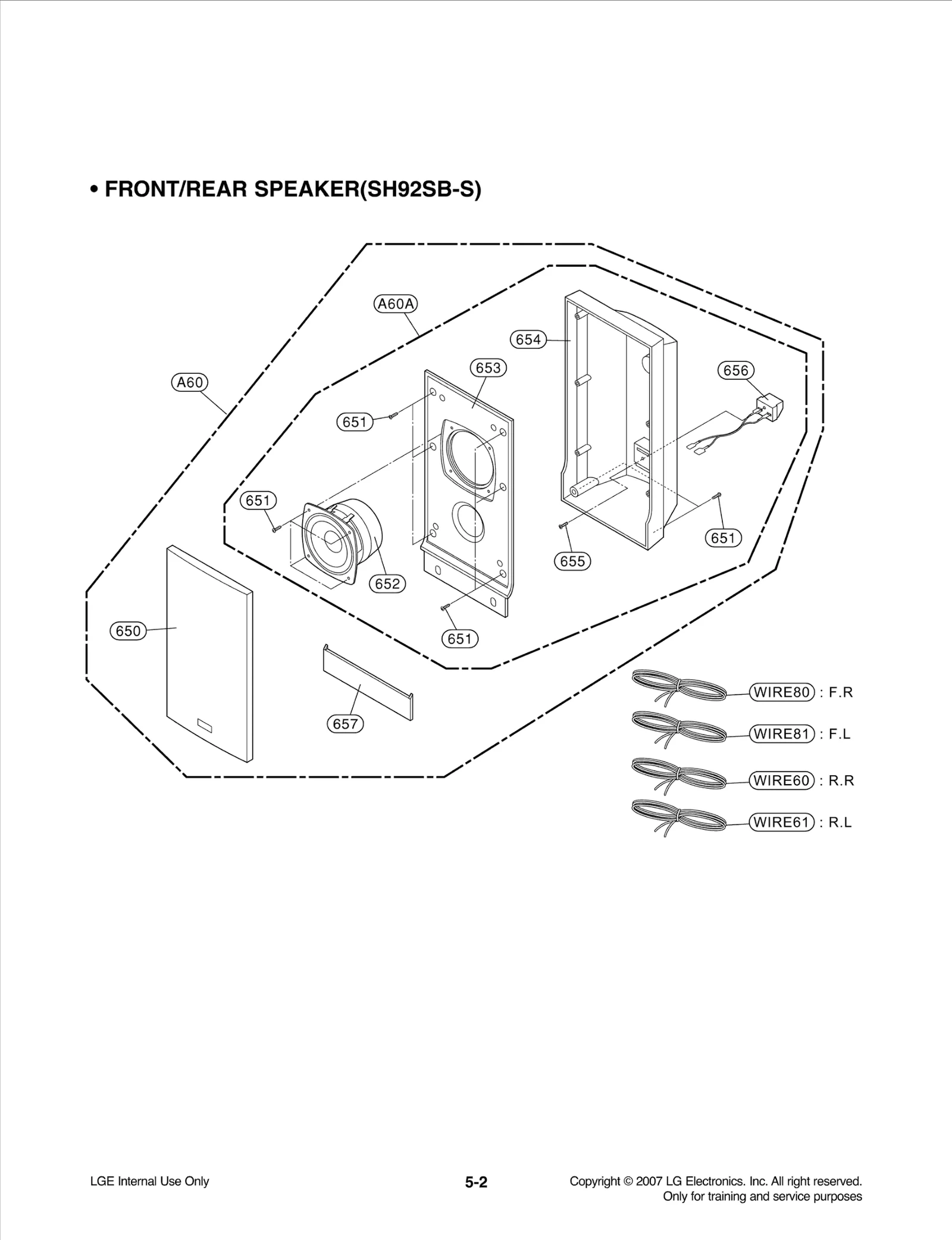

Diagram 4

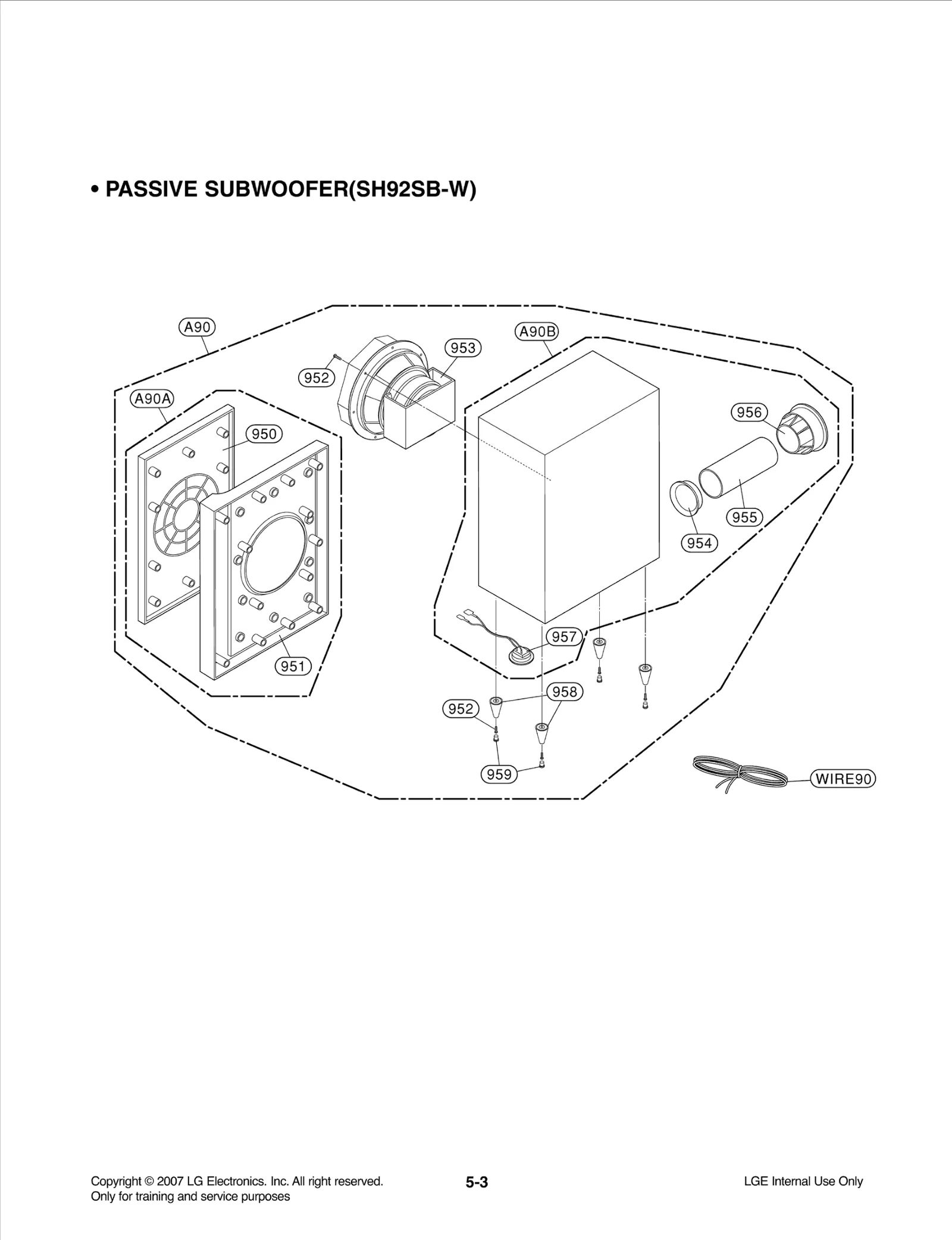

Diagram 5
Diagram 6
Common parts from model LG LHT764 RECEIVER HTS DVD 5DISC
001
FRAME LGE 3210RZM001A Contact Us For Availability
002
FRAME LGE 3210RZM002A Contact Us For Availability
003
TRAY LGE 3390RZ0002A Contact Us For Availability
004
TRAY LGE 3390RZ0002B Contact Us For Availability
005
TRAY LGE 3390RZ0002C Contact Us For Availability
006
TRAY LGE 3390RZ0002D Contact Us For Availability
007
TRAY LGE 3390RZ0002E Contact Us For Availability
011
ARM LGE 4260RZ0001C Contact Us For Availability
023
ARM LGE 4260RZ0004A Contact Us For Availability
031
DECK MECHANISM PARTS LGE 6768RZVP01A Contact Us For Availability
032
MOTOR ASSEMBLY LGE 4681RZ0001A Contact Us For Availability
037
PCB Assembly LGE 6871RZ0045A Contact Us For Availability
038
PCB Assembly LGE 6871RZ0045C Contact Us For Availability
062
BELT LGE 4400RZ0002A Contact Us For Availability
071
Damper LGE 4900RB0005A Contact Us For Availability
072
Pick Up Assembly LGE 6717R-D001C Contact Us For Availability
072
Pick Up Assembly LGE 6717R-D001B Contact Us For Availability
073
Cable,FFC LGE 6850R-HQ25D Contact Us For Availability
074
Cable,FFC LGE 6850R-JW32Z Contact Us For Availability
075
PCB Assembly LGE 6871RZ0045B Contact Us For Availability
076
Harness,Single LGE 6631R-E103A Contact Us For Availability
250
Cover LGE 3090RCT001D Contact Us For Availability
255
HOLDER LGE 4930RC0185A Contact Us For Availability
260
Chassis LGE MBS36085201 Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
268
Fan Module LGE 5900R-D004G Contact Us For Availability
274
Plate LGE MGJ37163601 Contact Us For Availability
275
Plate LGE MGJ37158901 Contact Us For Availability
283
Door LGE MCV32789301 Contact Us For Availability
292
Bracket LGE MAZ38211701 Contact Us For Availability
293
Bracket Assembly LGE 4811RL0001A Contact Us For Availability
294
Holder LGE MEG32806701 Contact Us For Availability
300
POWER CORD LGE 6410RAHK06A Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0104A Contact Us For Availability
452
Screw,Customized LGE 353-025P Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
469
Screw,Customzied LGE 353-022S Contact Us For Availability
650
Frame Assembly LGE ADV32776001 Contact Us For Availability
651
SCREW,DRAWING LGE 353M025K Contact Us For Availability
652
Speaker,Full Range LGE EAB35996601 Contact Us For Availability
653
Panel,Front LGE MGC33916601 Contact Us For Availability
654
Case LGE MBN33916901 Contact Us For Availability
655
SCREW LGE 353M025G Contact Us For Availability
656
PWB(PCB) ASSEMBLY,SU LGE 6871RU4116B Contact Us For Availability
657
Decor LGE MCR33918201 Contact Us For Availability
750
Frame Assembly LGE ADV32961401 Contact Us For Availability
753
Panel,Front LGE MGC33916701 Contact Us For Availability
754
Decor LGE MCR33918401 Contact Us For Availability
755
Case LGE MBN33917001 Contact Us For Availability
758
Foot LGE 3610RM0092A Contact Us For Availability
801
Manual Assembly LGE AFN32950917 Contact Us For Availability
802
Box,Master LGE MAY39266448 Contact Us For Availability
803
Packing LGE MFZ34189144 Contact Us For Availability
804
BAG LGE 3880SCS001F Contact Us For Availability
808
Primary Cell Battery,Carbon Zinc LGE 534-002C Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
814
CABLE, IPOD CONNECTOR LGE EBR36932301 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
835
Accessory Assembly LGE AAA32440701 Contact Us For Availability
900
Remote Controller As LGE AKB32474401 Contact Us For Availability
950
Frame Assembly LGE ADV32752551 Contact Us For Availability
951
Panel,Audio LGE MGC33945401 Contact Us For Availability
952
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
953
Speaker,Woofer LGE EAB35630501 Contact Us For Availability
954
Duct LGE MCZ31139201 Contact Us For Availability
955
Duct LGE MCZ37250851 Contact Us For Availability
956
Duct LGE MCZ31139001 Contact Us For Availability
957
PCB Assembly LGE EBR36213951 Contact Us For Availability
958
Foot LGE MDP36467051 Contact Us For Availability
959
Foot LGE 3610RM0090A Contact Us For Availability
A26
Mechanism Assembly LGE 4405RLH500B Contact Us For Availability
A43
Panel Assembly,Front LGE AGL31838402 Contact Us For Availability
A44
Frame Assembly LGE ADV32368102 Contact Us For Availability
A45
PCB Assembly LGE EBR35218403 Contact Us For Availability
A46
Option Code Assembly LGE EBR36581103 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR34172605 Contact Us For Availability
A50
PCB Assembly LGE EBR35213003 Contact Us For Availability
A60
Speaker Assembly LGE EAB36660601 Contact Us For Availability
A60A
Case Assembly LGE ABQ32775902 Contact Us For Availability
A70
Speaker Assembly LGE EAB36660801 Contact Us For Availability
A90
Speaker Assembly LGE EAB36660901 Contact Us For Availability
A90A
Panel Assembly LGE AGL32752151 Contact Us For Availability
A90B
Cover Assembly LGE ACQ32748051 Contact Us For Availability
AR592
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
C2L3
CAPA,CHIP CERAMIC M/ LGE 0CH4050K172 Contact Us For Availability
C3D3
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C3D6
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C4D9
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C4F7
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C4G1
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C5A4
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C7A0
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C7D4
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C7E7
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C7G3
Capacitor,AL,Radial LGE 0CE1063K638 Contact Us For Availability
C101
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C114
Capacitor,AL,Radial LGE 0CE4743K638 Contact Us For Availability
C117
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C202
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C206
Capacitor,AL,Radial LGE 0CE1066F618 Contact Us For Availability
C208
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C210
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C219
Capacitor,AL,Radial LGE 0CE3366F618 Contact Us For Availability
C220
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C236
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C238
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C309
Capacitor,AL,Radial LGE 0CE2276D638 Contact Us For Availability
C311
Capacitor,AL,Radial LGE 0CE4764K638 Contact Us For Availability
C318
Capacitor,AL,Radial LGE 0CE107CK638 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C418
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C431
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C451
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE 0CH1154K946 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C553
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C554
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C556
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C564
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C572
Capacitor,Ceramic,Chip LGE 0CH4080K112 Contact Us For Availability
C579
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C594
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH1681K562 Contact Us For Availability
C620
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C662
Capacitor,AL,Radial LGE 0CE4774D638 Contact Us For Availability
C726
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C750
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C760
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C785
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE4763H638 Contact Us For Availability
C793
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CZZR00011H Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE476CV611 Contact Us For Availability
C906
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C907
CAPACITOR LGE 624-087B Contact Us For Availability
C913
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C914
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C915
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C916
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C917
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C918
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C920
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C921
Capacitor,Film,DIP LGE 0CQ3911N449 Contact Us For Availability
C922
CAPACITOR LGE 624-087D Contact Us For Availability
C931
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE337CH618 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C935
Capacitor,AL,Radial LGE 0CE1076H618 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C937
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C938
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C939
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C944
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C945
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
C955
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
CABLE1
Harness,Single LGE 6631R-E124D Contact Us For Availability
CABLE2
Cable,FFC LGE EAD36902901 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD36903201 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD36904001 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD35076402 Contact Us For Availability
CF2D1
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN901
Connector,Wafer LGE 561-711O Contact Us For Availability
CN902
Harness,Single LGE EAD35214501 Contact Us For Availability
D2X1
Diode,Schottky LGE 0DRRE00083A Contact Us For Availability
D104
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D401
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D413
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D503
Diode,Switching LGE 0DD204009AA Contact Us For Availability
D901
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D901
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D904
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D914
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D933
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D933
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D933
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D942
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D951
Diode,Rectifier LGE 0DRNH00121A Contact Us For Availability
DIS301
VFD LGE 6302R-V255E Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
FB911
Filter,Bead LGE 636-004C Contact Us For Availability
FR931
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
IC2K1
IC,Unclassified LGE 0IPRP00698A Contact Us For Availability
IC2K1
IC,Transceiver LGE 0IPRP00698B Contact Us For Availability
IC2K3
IC,Analog Switch LGE 0IPRP00717A Contact Us For Availability
IC3A1
IC,Microcontrollers LGE EAN30723601 Contact Us For Availability
IC4D1
IC,PERIPHERALS LGE 0IPRP00666A Contact Us For Availability
IC4D4
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC101A
S/W,System Program LGE SAA30668901 Contact Us For Availability
IC102
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC104
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC201
IC,Audio Codec LGE 0IPRP00766A Contact Us For Availability
IC203
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC301
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC401
IC,Motor Driver LGE 0ILNR00061A Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMRHY015G Contact Us For Availability
IC502
DRAM LGE 0IMMRII009B Contact Us For Availability
IC503A
S/W,System Program LGE SAA30668801 Contact Us For Availability
IC506
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC591
IC,PERIPHERALS LGE 0IPRP00714A Contact Us For Availability
IC591
IC,STANDARD LOGIC LGE 0ISTLFA033B Contact Us For Availability
IC601
IC,LDO Voltage Regul LGE 0IPMG00022C Contact Us For Availability
IC601
IC,PWM Controller LGE 0IPMG00022D Contact Us For Availability
IC602
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
IC701
IC,PERIPHERALS LGE 0IPRP00029A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMGKE009C Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC911
IC,POWER MANAGEMENT LGE 0IPMG00045A Contact Us For Availability
IC912
TRANSISTOR,FETS LGE 0TFFN10008A Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC932
IC,LDO Voltage Regul LGE 0IPMG78358A Contact Us For Availability
IC933
IC,POWER MANAGEMENT LGE 0IPMGKE053B Contact Us For Availability
IC934
IC,LDO Voltage Regul LGE 0IPMG78445A Contact Us For Availability
IC942
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC942
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC942
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
JK2K1
Conector,USB LGE 6630S70054A Contact Us For Availability
JK3D1
Conector,USB LGE 6630S70022A Contact Us For Availability
JK3D1
Connector,USB LGE 6630S70048B Contact Us For Availability
JK3D2
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK4D1
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
JK6A1
Jack,RCA LGE 6612JH003LG Contact Us For Availability
JK201
Connector,I/O LGE EAG36628901 Contact Us For Availability
JK202
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK701
Conector,Terminal Bl LGE 6640000070A Contact Us For Availability
JK702
JACK,AC/DC POWER LGE 572-045C Contact Us For Availability
L2K1
Inductor,Multilayer,Chip LGE 0LCCE00004P Contact Us For Availability
L3D7
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
L6A9
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L405
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L504
INDUCTOR,RADIAL LEAD LGE 0LR0101K035 Contact Us For Availability
L509
Inductor,Wire Wound,Radial LGE 0LR0221K035 Contact Us For Availability
L527
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L530
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L703
Coil,RF LGE 6140RCC008A Contact Us For Availability
L705
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L931
COIL,CHOKE LGE 633-088G Contact Us For Availability
L951
TRANSFORMER,SMPS[COI LGE 6170RNGW18S Contact Us For Availability
LD3A4
LED LGE 0DLBE0175AA Contact Us For Availability
LD310
LED,DIP LGE 0DL307119BA Contact Us For Availability
LF901
Filter,Line Noise LGE 6200JB8014E Contact Us For Availability
P2301
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
P2601
Harness,Single LGE 6631R-E075K Contact Us For Availability
P3101
Connector,FFC/FPC/PIC LGE 6630R-FB05W Contact Us For Availability
P3201
CONNECTOR (CIRC),FFC LGE 6630R-FB05K Contact Us For Availability
P3301
CONNECTOR LGE 561-711E Contact Us For Availability
P3302
Connector,FFC/FPC/PI LGE 561-707F Contact Us For Availability
P3307
Connector,FFC/FPC/PI LGE EAG32731601 Contact Us For Availability
P4401
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
P4402
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
P4403
CONNECTOR (CIRC),FFC LGE 6630XF00417 Contact Us For Availability
P6603
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
P6903
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
P9601
CONNECTOR (CIRC),FFC LGE 6630XE00130 Contact Us For Availability
P9901
Harness,Single LGE EAD35219501 Contact Us For Availability
PC910
SENSOR LGE 6500RDB011B Contact Us For Availability
PC910
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q3A7
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q104
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q402
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q403
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q406
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q408
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q409
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q410
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q501
TRANSISTOR LGE 0TR129809BB Contact Us For Availability
Q506
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q704
TRANSISTOR LGE 0TR126709AB Contact Us For Availability
Q705
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
Q901
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q905
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q931
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q932
TR,Bipolar LGE 0TR102009AF Contact Us For Availability
Q933
TR,Bipolar LGE 0TR102009AE Contact Us For Availability
R2L1
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R2M4
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R3A4
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R3D3
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R4D2
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R4D8
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R5C2
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R5F0
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R7A6
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R7B7
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R124
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R160
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R168
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R170
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R204
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R209
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R212
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R215
Resistor,Chip LGE EBC36543501 Contact Us For Availability
R221
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R226
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R234
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R235
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R328
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R330
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R331
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R347
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R350
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R352
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R361
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R402
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R419
RESISTOR,FIXED METAL LGE 0RS0271K619 Contact Us For Availability
R420
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R422
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R423
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R429
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R438
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ9101C677 Contact Us For Availability
R447
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R489
Resistor,Chip LGE 0RH1502C422 Contact Us For Availability
R514
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R518
Filter,Bead LGE 0LCCE00031A Contact Us For Availability
R532
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R556
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R560
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R588
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R589
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R639
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R641
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R716
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R739
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R753
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R764
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R775
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R783
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R795
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R903
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R905
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0182F608 Contact Us For Availability
R906
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R908
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD0822F608 Contact Us For Availability
R911
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
R914
RESISTOR,FIXED POWER LGE 0RW0150N630 Contact Us For Availability
R916
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R919
RESISTOR,FIXED CARBON FILM LGE 0RD1102F608 Contact Us For Availability
R920
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD3902F608 Contact Us For Availability
R935
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R938
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R939
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R942
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R943
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R944
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R945
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R946
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD4700F608 Contact Us For Availability
R951
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
R953
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2402F408 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R957
Resistor,Carbon Film LGE 0RD0332F608 Contact Us For Availability
R972
Resistor,Carbon Film LGE 0RD2402F608 Contact Us For Availability
RM301
Receiver Module LGE 6712R1638GD Contact Us For Availability
SW305
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
Transformer,Switchin LGE 6170RNGW25G Contact Us For Availability
T902
Transformer,Switchin LGE EBJ34969101 Contact Us For Availability
TH902
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TU201
Tuner,Analog LGE EBL34811201 Contact Us For Availability
V2K1
Varistor LGE 6102R7E001A Contact Us For Availability
VR901
VARISTOR LGE 656-004C Contact Us For Availability
WIRE60
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
WIRE61
WIRE R,L LGE 6871RU9271E Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271N Contact Us For Availability
WIRE80
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271L Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271M Contact Us For Availability
WIRE90
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271P Contact Us For Availability
X2K1
Crystal LGE 6212AB2451F Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270H Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
ZD302
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD906
DIODE,ZENER LGE 0DZ220009ED Contact Us For Availability
ZD941
DIODE,ZENERS LGE 0DZ120009BH Contact Us For Availability
ZD942
Diode,Zener LGE 0DZPC00193A Contact Us For Availability
× ![]()
Login and Registration Form
