Model LG LHT734 – Common Parts & Diagrams

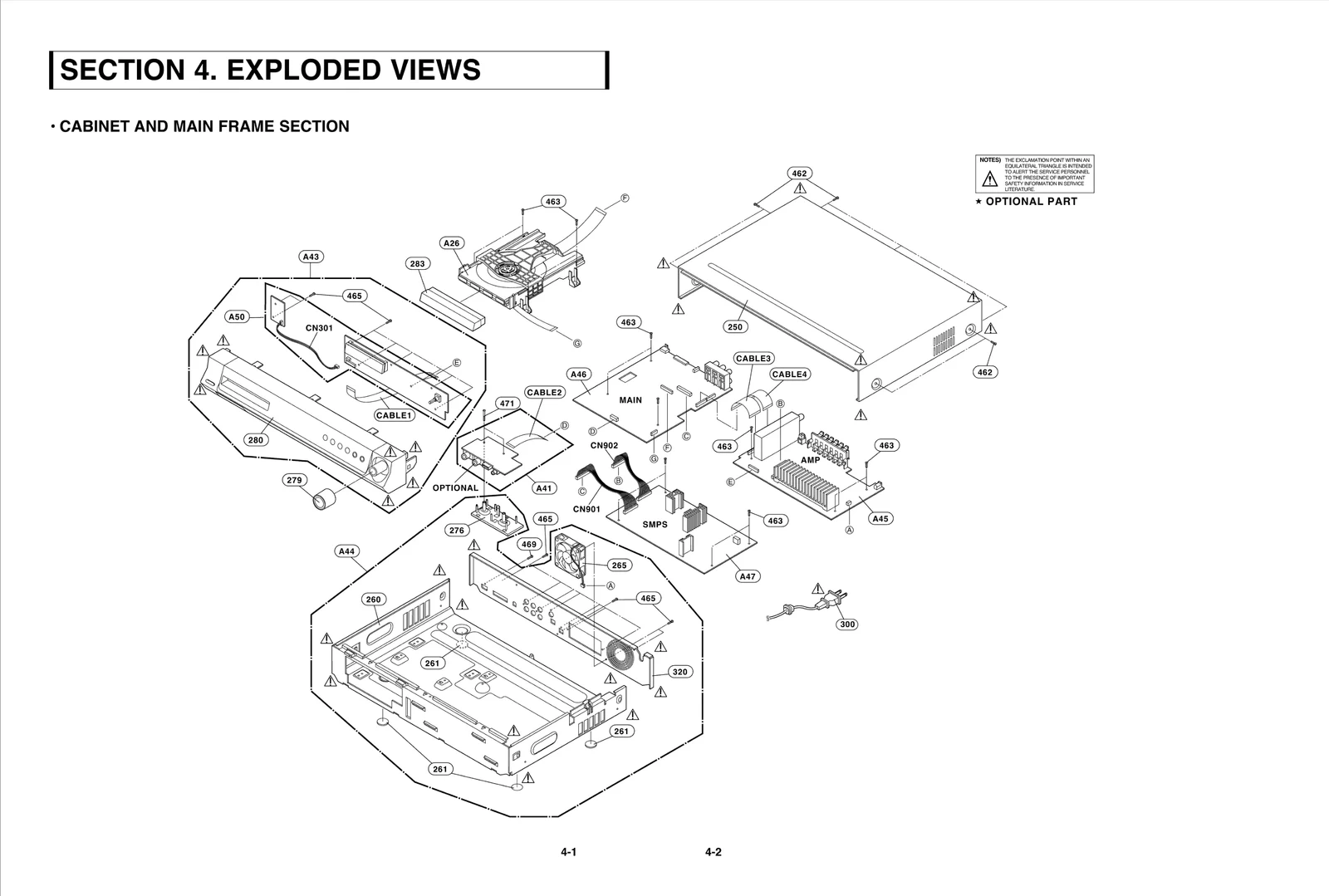

Diagram 0

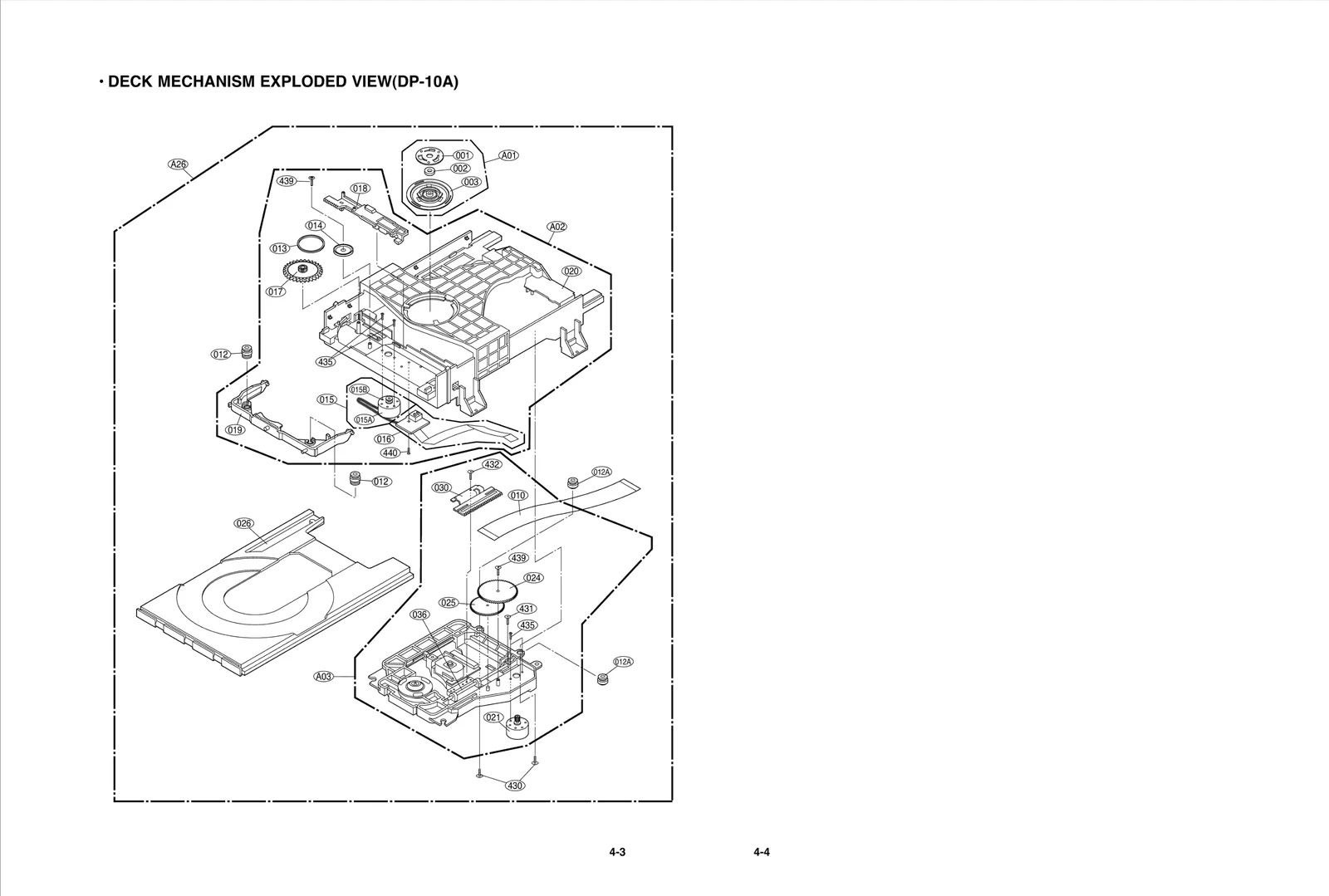

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG LHT734
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-JW14B Contact Us For Availability
012
RUBBER LGE 5040R-0083A Contact Us For Availability
012A
RUBBER LGE 5040R-0110A Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
MOTOR ASSEMBLY LGE 4681R-A015A Contact Us For Availability
015A
Motor,DC LGE EAU36590901 Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PWB(PCB) ASSEMBLY,TO LGE 6871R-9297A Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0067A Contact Us For Availability
019
FRAME LGE 3210R-M008A Contact Us For Availability
020
Base LGE MAM32408101 Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009C Contact Us For Availability
024
GEAR LGE 4470R-0179A Contact Us For Availability
025
GEAR LGE 4470R-0178A Contact Us For Availability
026
TRAY LGE 3390R-0032A Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
250
Case LGE MBN32696901 Contact Us For Availability
260
Chassis LGE MBS32696701 Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
265
Fan Module LGE 5900R-D004G Contact Us For Availability
276
Holder LGE MEG32696501 Contact Us For Availability
279
Knob LGE MEY32695901 Contact Us For Availability
280
Panel Assembly,Front LGE AGL31783147 Contact Us For Availability
283
Door LGE MCV32695602 Contact Us For Availability
300
POWER CORD LGE 6410RAHK06A Contact Us For Availability
320
Panel,Rear LGE MGC32697132 Contact Us For Availability
430
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
469
Screw,Customzied LGE 353-022S Contact Us For Availability
471
Screw,Customized LGE 1SZZR-0098R Contact Us For Availability
650
Frame Assembly LGE ADV32747601 Contact Us For Availability
651
Speaker,Woofer LGE EAB36108901 Contact Us For Availability
652
Screw,Customized LGE 353M025A Contact Us For Availability
653
SCREW LGE 353M025G Contact Us For Availability
654
Decor Assembly LGE ACW32749501 Contact Us For Availability
655
PCB Assembly LGE EBR36205801 Contact Us For Availability
656
SCREW,DRAWING LGE 353M050M Contact Us For Availability
750
Frame Assembly LGE ADV32752001 Contact Us For Availability
751
Speaker,Full Range LGE EAB36109301 Contact Us For Availability
754
Case LGE MBN33942902 Contact Us For Availability
755
Decor LGE MCR33944101 Contact Us For Availability
756
Foot LGE MDP37241401 Contact Us For Availability
757
PCB Assembly LGE EBR36213801 Contact Us For Availability
801
Manual Assembly LGE AFN33538890 Contact Us For Availability
802
Box,Master LGE MAY39302417 Contact Us For Availability
803
Packing LGE MFZ34160501 Contact Us For Availability
804
Bag LGE MAF37454601 Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
814
CABLE, IPOD CONNECTOR LGE EBR36932301 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
900
Remote Controller LGE 6710CDAK17C Contact Us For Availability
950
Frame Assembly LGE ADV32752501 Contact Us For Availability
951
Panel,Audio LGE MGC33945401 Contact Us For Availability
952
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
953
Speaker,Woofer LGE EAB36110601 Contact Us For Availability
954
Duct LGE MCZ31139201 Contact Us For Availability
955
Duct LGE 5208RM0113B Contact Us For Availability
956
Duct LGE MCZ31139001 Contact Us For Availability
957
PCB Assembly LGE EBR36213901 Contact Us For Availability
958
Foot LGE MDP36467001 Contact Us For Availability
959
Foot LGE 3610RM0090A Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016B Contact Us For Availability
A02
Base Assembly LGE 3041R-T010B Contact Us For Availability
A03
Base Assembly LGE 3041R-T011C Contact Us For Availability
A26
Deck Assembly,DVD LGE 6721RJD100T Contact Us For Availability
A41
PCB Assembly LGE EBR34076303 Contact Us For Availability
A43
Board Assembly,Sub LGE AAX31788642 Contact Us For Availability
A44
Frame Assembly LGE ADV31782932 Contact Us For Availability
A45
Option Code Assembly LGE EBR35296474 Contact Us For Availability
A46
Option Code Assembly LGE EBR35334379 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR36296303 Contact Us For Availability
A50
PCB Assembly LGE EBR34102401 Contact Us For Availability
A60
Speaker Assembly LGE EAB36202101 Contact Us For Availability
A60A
Frame Assembly LGE ADV32752301 Contact Us For Availability
A60B
Case Assembly LGE ABQ32747701 Contact Us For Availability
A70
Speaker Assembly LGE EAB36202201 Contact Us For Availability
A70A
Frame Assembly LGE ADV32752401 Contact Us For Availability
A70B
Case Assembly LGE ABQ32751501 Contact Us For Availability
A90
Speaker Assembly LGE EAB36202701 Contact Us For Availability
A90A
Panel Assembly LGE AGL32752101 Contact Us For Availability
A90B
Cover Assembly LGE ACQ32748003 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
BD901
LGE 0DRGS00360A LGE 0DRGS00360A Contact Us For Availability
C2D2
Capacitor,Ceramic,Axial LGE 0CX5600K409 Contact Us For Availability
C2D3
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C2G4
Capacitor,Ceramic,Axial LGE 0CN6820F669 Contact Us For Availability
C3A2
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C4D6
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C4G1
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C4G3
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C5A4
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C7B1
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C7E2
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C7F8
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C7G1
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C7G3
Capacitor,AL,Radial LGE 0CE1063K638 Contact Us For Availability
C7G5
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C102
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C111
Capacitor,AL,Radial LGE 0CE4743K638 Contact Us For Availability
C206
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C228
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C231
Capacitor,Ceramic,Chip LGE 0CH1225D946 Contact Us For Availability
C243
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C252
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C303
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C412
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C445
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE 0CH1154K946 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CH4200K412 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4080K112 Contact Us For Availability
C574
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C578
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C580
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C584
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C587
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C591
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C596
Capacitor,Ceramic,Chip LGE 0CH1681K562 Contact Us For Availability
C609
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C618
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C707
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE4763H638 Contact Us For Availability
C710
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C731
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C902
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C904
Capacitor,AL,Radial LGE EAE35403001 Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE476CV611 Contact Us For Availability
C906
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C907
CAPACITOR LGE 624-087B Contact Us For Availability
C909
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C910
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C912
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C913
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C920
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C922
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C923
Capacitor,Film,DIP LGE 0CQ2721N409 Contact Us For Availability
C931
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE337CH618 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C935
Capacitor,AL,Radial LGE 0CE1076H618 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C937
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C938
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C939
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C943
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C944
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C951
CAPACITOR LGE 624-087D Contact Us For Availability
C952
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD35201101 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD35632101 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD35201502 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD35201302 Contact Us For Availability
CF201
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN301
Harness,Multi LGE EAD35219301 Contact Us For Availability
CN602
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
CN901
Harness,Single LGE EAD35219501 Contact Us For Availability
CN902
Harness,Single LGE EAD35214501 Contact Us For Availability
D102
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D103
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D201
Diode,Schottky LGE 0DRRE00083A Contact Us For Availability
D404
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D501
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
D902
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D911
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D914
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D933
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D933
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D943
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D951
LGE 0DRFC00171B LGE 0DRFC00171B Contact Us For Availability
D951
Diode,Switching LGE EAH30982402 Contact Us For Availability
DIS301
VFD LGE EAJ35072601 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FR931
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC4D1
IC,PERIPHERALS LGE 0IPRP00666A Contact Us For Availability
IC4D4
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC101A
S/W,Firmware LGE SAA30286202 Contact Us For Availability
IC102
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC103
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC201
IC,Audio Codec LGE 0IPRP00766A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC301
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC401
IC,Motor Driver LGE 0ILNR00061B Contact Us For Availability
IC501
IC,Video Processors LGE 0ILNR00173A Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMRHY015G Contact Us For Availability
IC502
IC,A/D Converter LGE EAN30955301 Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC503A
S/W,Firmware LGE SAA30286106 Contact Us For Availability
IC506
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC591
IC,STANDARD LOGIC LGE 0ISTLFA033B Contact Us For Availability
IC591
IC,PERIPHERALS LGE 0IPRP00714A Contact Us For Availability
IC601
IC,PWM Controller LGE 0IPMG00022D Contact Us For Availability
IC601
IC,LDO Voltage Regul LGE 0IPMG00022C Contact Us For Availability
IC602
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
IC704
IC,PERIPHERALS LGE 0IPRP00029A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC902
IC,HIC LGE 0IPMG00043A Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC932
IC,LDO Voltage Regul LGE 0IPMG78358A Contact Us For Availability
IC933
IC,POWER MANAGEMENT LGE 0IPMGKE053B Contact Us For Availability
IC934
IC,LDO Voltage Regul LGE 0IPMG78445A Contact Us For Availability
IC951
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC951
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
JK2D3
Connector,USB LGE 6630S70048C Contact Us For Availability
JK2D4
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK201
Jack,RCA LGE 6612JH002XG Contact Us For Availability
JK202
Connector,I/O LGE EAG36628901 Contact Us For Availability
JK701
Conector,Terminal Bl LGE 6640000070A Contact Us For Availability
JK702
JACK,AC/DC POWER LGE 572-045C Contact Us For Availability
JK703
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
L2D8
Filter,Bead LGE 636-004C Contact Us For Availability
L2E2
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
L216
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L218
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L401
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L406
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L504
Inductor,Wire Wound, LGE 0LR0220M025 Contact Us For Availability
L509
Inductor,Wire Wound,Radial LGE 0LR0221K035 Contact Us For Availability
L510
Inductor,Wire Wound, LGE 0LR0470M025 Contact Us For Availability
L529
Inductor,Wire Wound,Radial LGE 0LR0222K035 Contact Us For Availability
L702
Coil,RF LGE 6140RCC008A Contact Us For Availability
L708
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L931
COIL,RF LGE 6140RCC003H Contact Us For Availability
LD302
LED LGE 0DLRH0049AA Contact Us For Availability
LF901
LGE 6200JB8013N LGE 6200JB8013N Contact Us For Availability
P4401
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
P4402
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
P4403
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
PC911
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC911
SENSOR LGE 6500RDB011B Contact Us For Availability
PN103
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
PN202
CONNECTOR (CIRC),FFC LGE 6630R-FB05K Contact Us For Availability
PN203
Connector,FFC/FPC/PIC LGE 6630XE00120 Contact Us For Availability
PN204
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
PN206
Connector,Wafer LGE 561-711O Contact Us For Availability
PN301
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
PN302
Connector,Wafer LGE 561-711C Contact Us For Availability
PN601
CONNECTOR (CIRC),FFC LGE 6630XE01224 Contact Us For Availability
PN601
Connector,FFC/FPC/PI LGE 6630XE00124 Contact Us For Availability
PN603
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q102
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q104
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q104
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q303
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q303
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q304
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q401
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q404
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q405
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q408
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q501
TR,Bipolar LGE 0TRAU80008A Contact Us For Availability
Q501
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q703
TRANSISTOR LGE 0TR126709AB Contact Us For Availability
Q705
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q901
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q932
TR,Bipolar LGE 0TR102009AF Contact Us For Availability
Q933
TR,Bipolar LGE 0TR102009AE Contact Us For Availability
R2D1
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R2D4
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R2E1
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R4D2
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R4D7
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R5A1
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R5C6
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R5G1
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R5G4
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R7A3
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R102
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R104
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R105
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R110
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R153
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R161
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R179
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R180
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R186
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R187
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R191
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R252
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R254
Resistor,Chip LGE EBC36543501 Contact Us For Availability
R256
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R261
Resistor,Chip LGE 0RH2402C622 Contact Us For Availability
R269
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R270
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R279
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R280
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R287
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R293
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R298
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R324
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R330
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R331
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R337
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R345
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R349
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R350
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R402
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R403
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R408
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R413
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R419
RESISTOR,FIXED METAL LGE 0RS0271K619 Contact Us For Availability
R424
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R429
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R431
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R438
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R439
RESISTOR,METAL GLAZE LGE 0RH9101C422 Contact Us For Availability
R440
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R508
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R524
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R532
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R556
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R558
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R592
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
R602
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R657
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R712
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R724
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R772
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R783
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R786
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R906
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R909
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R911
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R915
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R917
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R936
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R937
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R939
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R943
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R945
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R946
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R948
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2402F409 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R957
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
RC2
REMOTE CONTROLLER RE LGE 6712R1638GB Contact Us For Availability
RC2
Receiver Module LGE 6712R1638GD Contact Us For Availability
S203
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
S301
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
SW304
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
Transformer,Switchin LGE 6170RNGW25E Contact Us For Availability
T902
Transformer,Switchin LGE EBJ34918901 Contact Us For Availability
TH901
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TU101
Tuner,Analog LGE EBL34811201 Contact Us For Availability
VOL301
Switch,Encoder LGE 6110E00018C Contact Us For Availability
VR901
VARISTOR LGE 656-004C Contact Us For Availability
WIRE60
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
WIRE61
WIRE R,L LGE 6871RU9271E Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271N Contact Us For Availability
WIRE80
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271L Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271M Contact Us For Availability
WIRE90
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271P Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270H Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
ZD501
DIODE,ZENERS LGE 0DZRM00338A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ330009AR Contact Us For Availability
ZD902
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
ZD912
Diode,Zener LGE 0DZ120009AG Contact Us For Availability
ZD912
Diode,Zener LGE 0DZSE00054A Contact Us For Availability
ZD942
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
× ![]()
Login and Registration Form
