Model LG LHN428HV.ENWAEUS – Common Parts & Diagrams

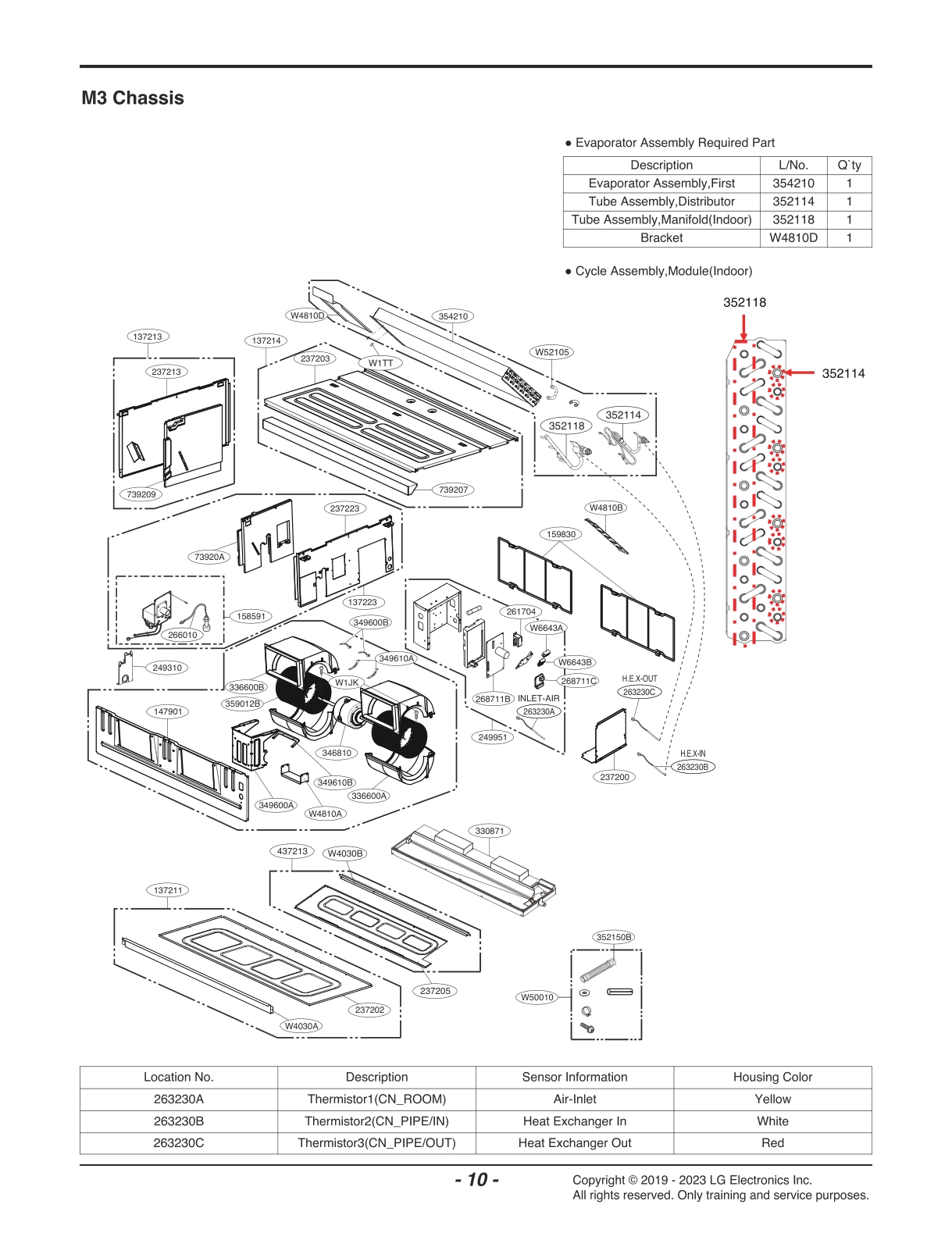

EVAPORATOR ASSEMBLY
Common parts from model LG LHN428HV.ENWAEUS
137213
Panel Assembly,Side LGE AGL74256804 Contact Us For Availability
137214
Panel Assembly,Upper LGE AGL74236403 Contact Us For Availability
137223
Panel Assembly,Side LGE AGL74256832 Contact Us For Availability
147901
Barrier,Indoor LGE MAL62683903 Contact Us For Availability
237200
Panel,Control LGE MGC66161701 Contact Us For Availability
237202
Panel,Front LGE MGC63182103 Contact Us For Availability
237203
Panel,Upper LGE MGC63184403 Contact Us For Availability
237205
Panel,Rear LGE MGC63182205 Contact Us For Availability
237213
Panel,Side LGE MGC63184504 Contact Us For Availability
237223
Panel,Side LGE MGC63184522 Contact Us For Availability
249310
Holder Assembly LGE AEJ76299601 Contact Us For Availability
268711C
PCB Assembly,Sub LGE EBR82249632 Contact Us For Availability
336600A
Housing,Wrapper LGE MEK62786803 Contact Us For Availability
336600B
Housing,Wrapper LGE MEK62786903 Contact Us For Availability
349600B
Bracket,Motor LGE 4960A30012A Contact Us For Availability
352118
Tube Assembly,Manifold(Indoor) LGE AJR74466308 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL74001018 Contact Us For Availability
437213
Panel Assembly,Rear(Indoor) LGE AGL74235008 Contact Us For Availability
739207
Packing,Upper LGE MFZ63776803 Contact Us For Availability
739209
Packing,Left LGE MFZ63777002 Contact Us For Availability
W4030A
Flange LGE MDM61941201 Contact Us For Availability
W4030B
Flange LGE MDM61941301 Contact Us For Availability
W4810A
Bracket LGE MAZ64043902 Contact Us For Availability
W4810B
Bracket LGE MAZ63847903 Contact Us For Availability
W4810D
Bracket LGE MAZ67085701 Contact Us For Availability
W6643A
Connector,Terminal Block LGE EAG38884441 Contact Us For Availability
W52105
Tube,Return Bending LGE 5210AR4124G Contact Us For Availability
× ![]()
