Model LG LHB976 – Common Parts & Diagrams

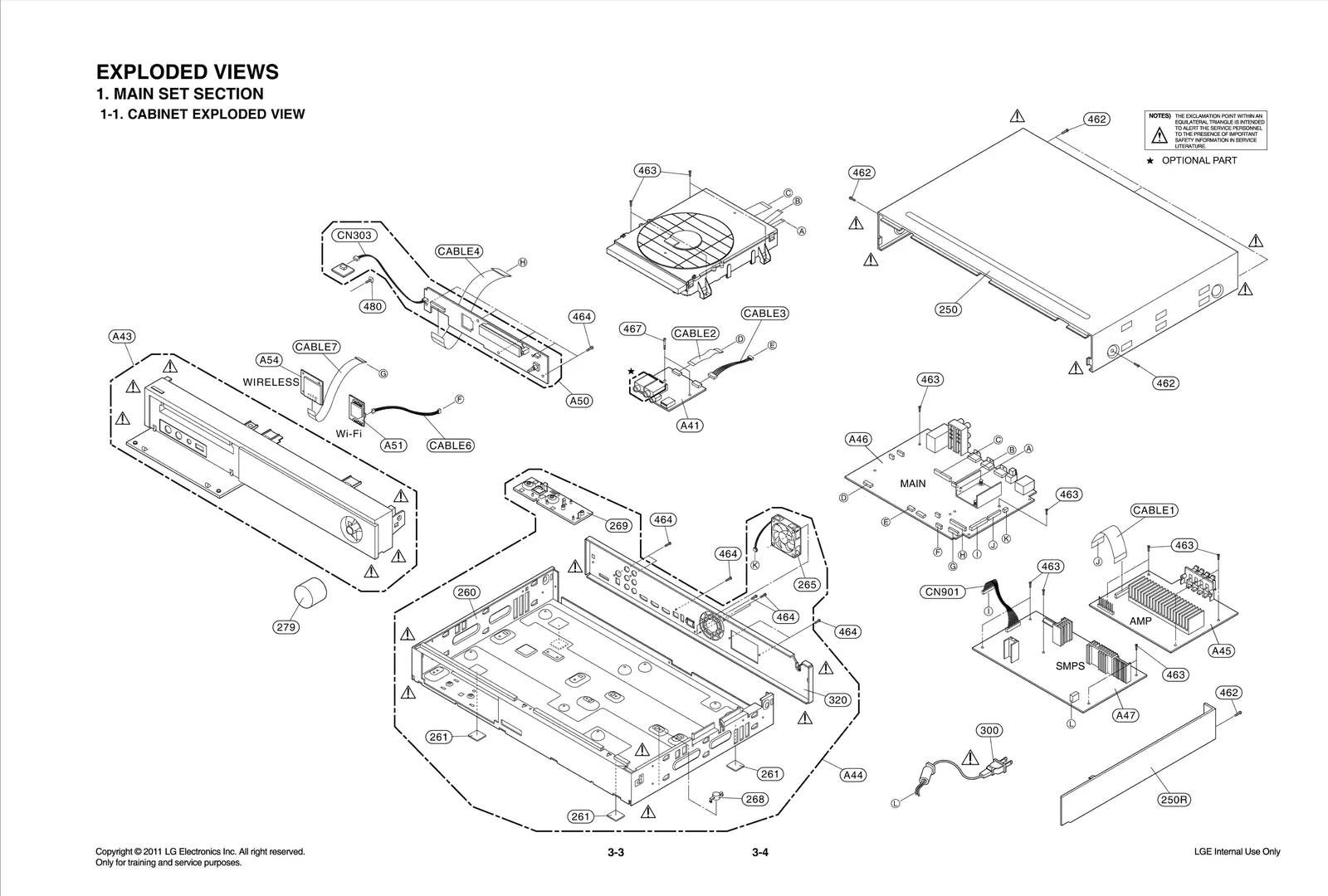

Diagram 0

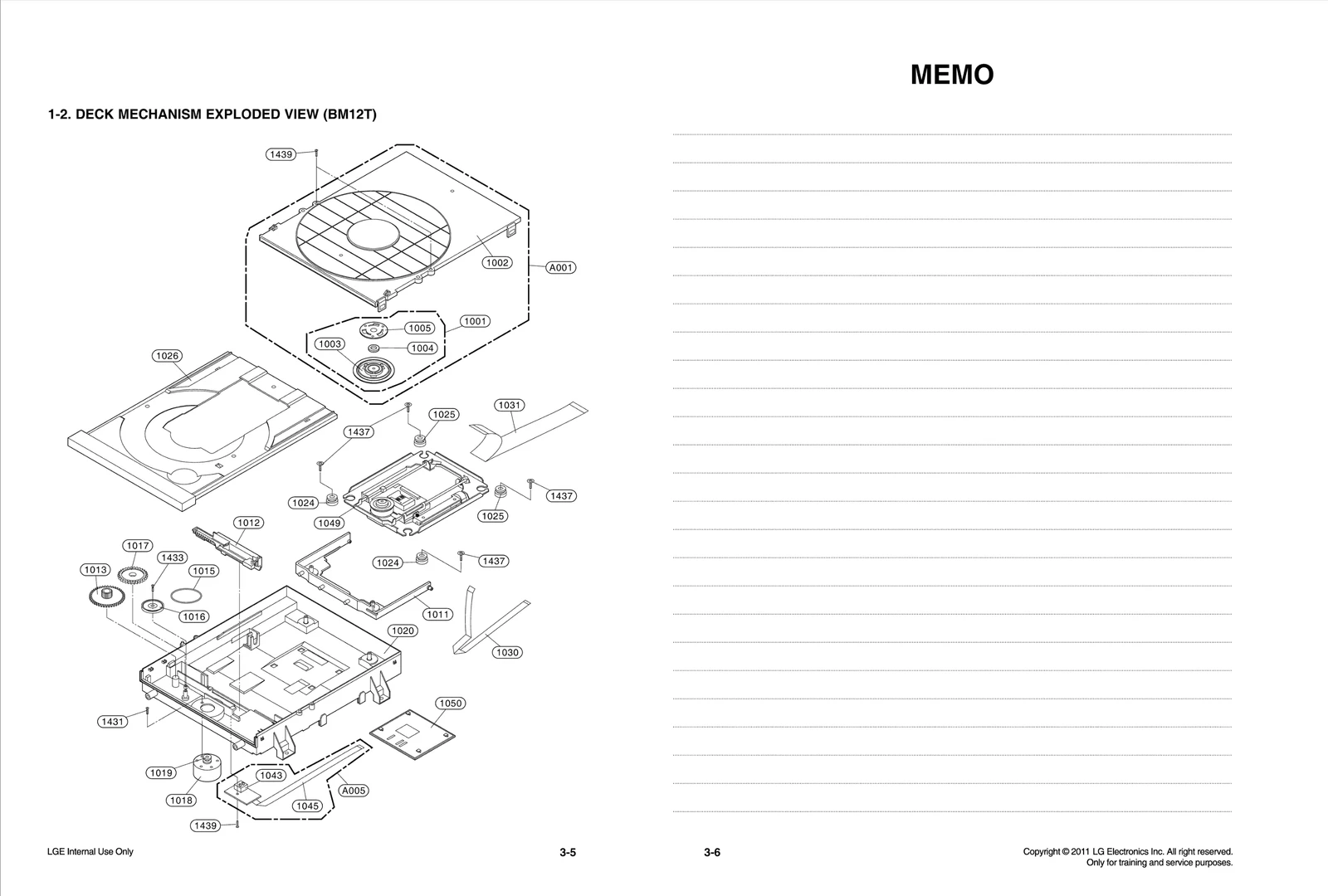

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG LHB976
250
Cover LGE MCK62787306 Contact Us For Availability
250R
Decor LGE MCR64011301 Contact Us For Availability
260
Chassis LGE MBS61845001 Contact Us For Availability
261
RUBBER LGE 5040R-0069X Contact Us For Availability
265
Fan Module LGE EAL60920902 Contact Us For Availability
268
Holder LGE MEG58371702 Contact Us For Availability
269
Holder LGE MEG61895901 Contact Us For Availability
279
Knob LGE MEY62213801 Contact Us For Availability
300
Power Cord LGE EAD60816723 Contact Us For Availability
320
Panel,Rear LGE MGC62302307 Contact Us For Availability
390L
Cover Assembly LGE ACQ83168303 Contact Us For Availability
390R
Cover LGE MCK65213901 Contact Us For Availability
391
Fan Module LGE EAL60740903 Contact Us For Availability
392
Cable,FFC LGE 6850R-EZ06B Contact Us For Availability
393
Holder LGE MEG62340301 Contact Us For Availability
394
Power Cord LGE EAD60816734 Contact Us For Availability
395
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
396
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
397
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
467
SCREW,DRAWING LGE 1SZZR-0098E Contact Us For Availability
480
Screw,Customized LGE 353-100AAAA Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75275808 Contact Us For Availability
802
Box,Master LGE MAY64533216 Contact Us For Availability
803
Packing LGE MFZ62138931 Contact Us For Availability
803A
Packing LGE MFZ62593499 Contact Us For Availability
803B
Packing LGE MFZ62839401 Contact Us For Availability
803C
Packing LGE MFZ62839402 Contact Us For Availability
803D
Packing LGE MFZ62839403 Contact Us For Availability
803E
Packing LGE MFZ62839404 Contact Us For Availability
803W
Packing LGE MFZ47047398 Contact Us For Availability
804
Bag LGE MAF37454611 Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
811
Cable,Assembly LGE 6850R-PAA5M Contact Us For Availability
811
Cable,Assembly LGE EAD38884521 Contact Us For Availability
814A
PCB Assembly LGE EBR36932343 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
824
Antenna,Loop LGE EAA56672101 Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
832
Title LGE SAC35095601 Contact Us For Availability
850
Accessory Assembly LGE AAA73164904 Contact Us For Availability
851
Screw,Customized LGE 353M075V Contact Us For Availability
852
Screw,Customized LGE 1SZZR-0097U Contact Us For Availability
1001
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1002
Cover LGE MCK66030402 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1011
Base LGE MAM62246401 Contact Us For Availability
1012
Guide LGE MEA62411101 Contact Us For Availability
1013
Gear LGE MDT62067301 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT61842401 Contact Us For Availability
1017
Gear LGE MDT62067401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
Pulley LGE 4560R-0008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62225801 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62172101 Contact Us For Availability
1030
Cable,FFC LGE EAD61049005 Contact Us For Availability
1031
Cable,FFC LGE EAD61048209 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD54155311 Contact Us For Availability
1049
Traverse Assembly LGE EAZ61122501 Contact Us For Availability
1050
Cover LGE MCK66014301 Contact Us For Availability
1431
SCREW, LGE 1SZZR-0011A Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
Screw,Customized LGE FAB30840501 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ84674501 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR72909101 Contact Us For Availability
A41
PCB Assembly LGE EBR73068711 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL73472904 Contact Us For Availability
A44
Frame Assembly LGE ADV73845607 Contact Us For Availability
A45
PCB Assembly LGE EBR72869011 Contact Us For Availability
A46
Option Code Assembly LGE EBR72685105 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR72440543 Contact Us For Availability
A50
PCB Assembly LGE EBR72866101 Contact Us For Availability
A51
Module,WLAN LGE EAT61333201 Contact Us For Availability
A81A
Option Code Assembly LGE EBR72767403 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT61013302 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR72919401 Contact Us For Availability
A330
Board Assembly LGE AAX73247717 Contact Us For Availability
A600
Speaker Assembly LGE EAB62292101 Contact Us For Availability
A700
Speaker Assembly LGE EAB62292001 Contact Us For Availability
A800
Speaker Assembly LGE EAB62291301 Contact Us For Availability
A800B
Base Assembly LGE AAN73748901 Contact Us For Availability
A800F
Cover Assembly LGE ACQ85434201 Contact Us For Availability
A900
Speaker Assembly LGE EAB61355601 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD61548302 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD41672708 Contact Us For Availability
CABLE3
Harness,Single LGE EAD33638815 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD35201509 Contact Us For Availability
CABLE6
Harness,Single LGE EAD35863003 Contact Us For Availability
CABLE7
Cable,FFC LGE 6850R-EZ06Q Contact Us For Availability
CN303
Harness,Single LGE EAD35219507 Contact Us For Availability
CN901
Harness,Single LGE EAD43572707 Contact Us For Availability
CN901
Harness,Single LGE EAD52412103 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72896217 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72896218 Contact Us For Availability
WIRE70
PCB Assembly,Sub LGE EBR72896213 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR72896211 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR72896212 Contact Us For Availability
× ![]()
