Model LG LHB953 – Common Parts & Diagrams

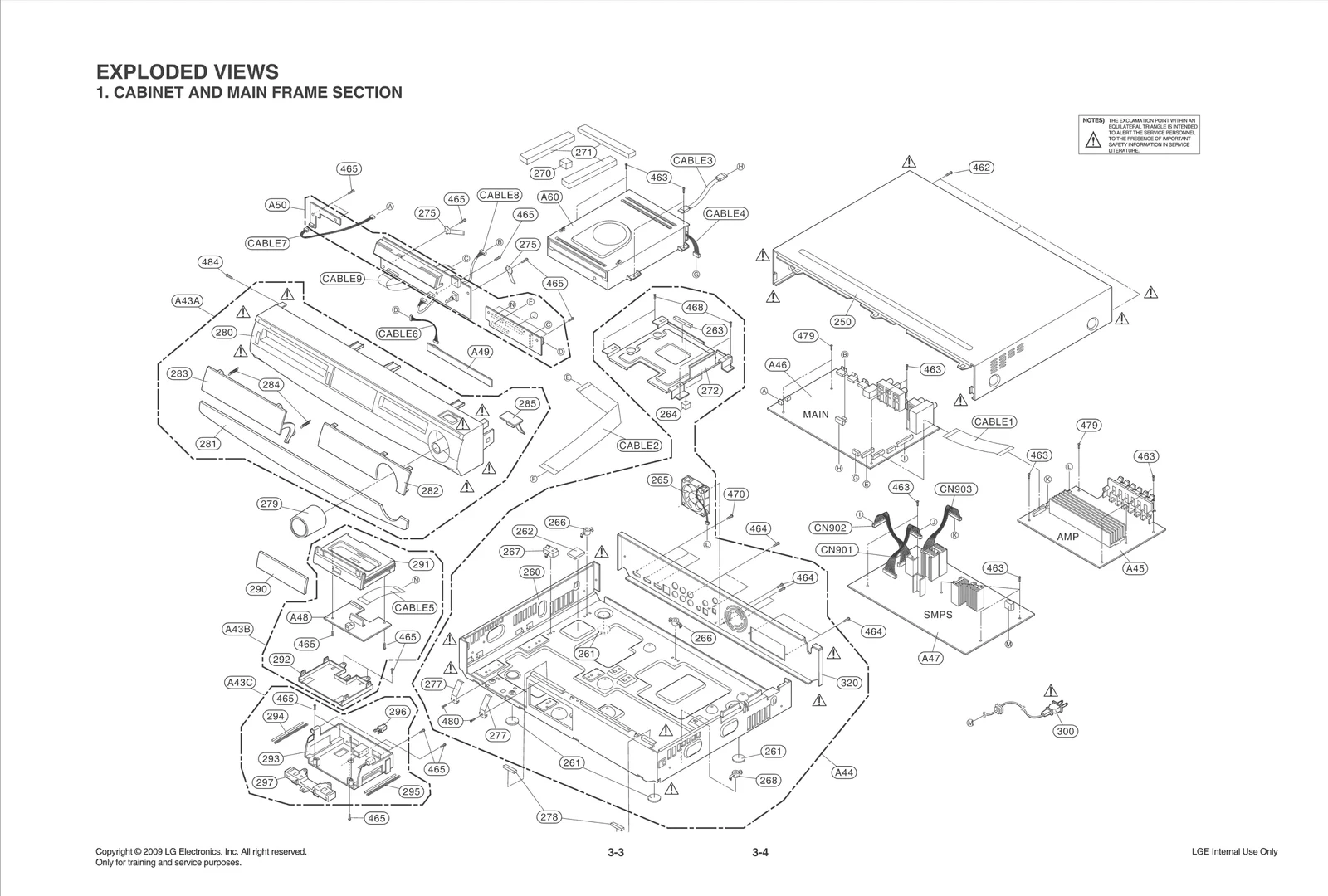

Diagram 0

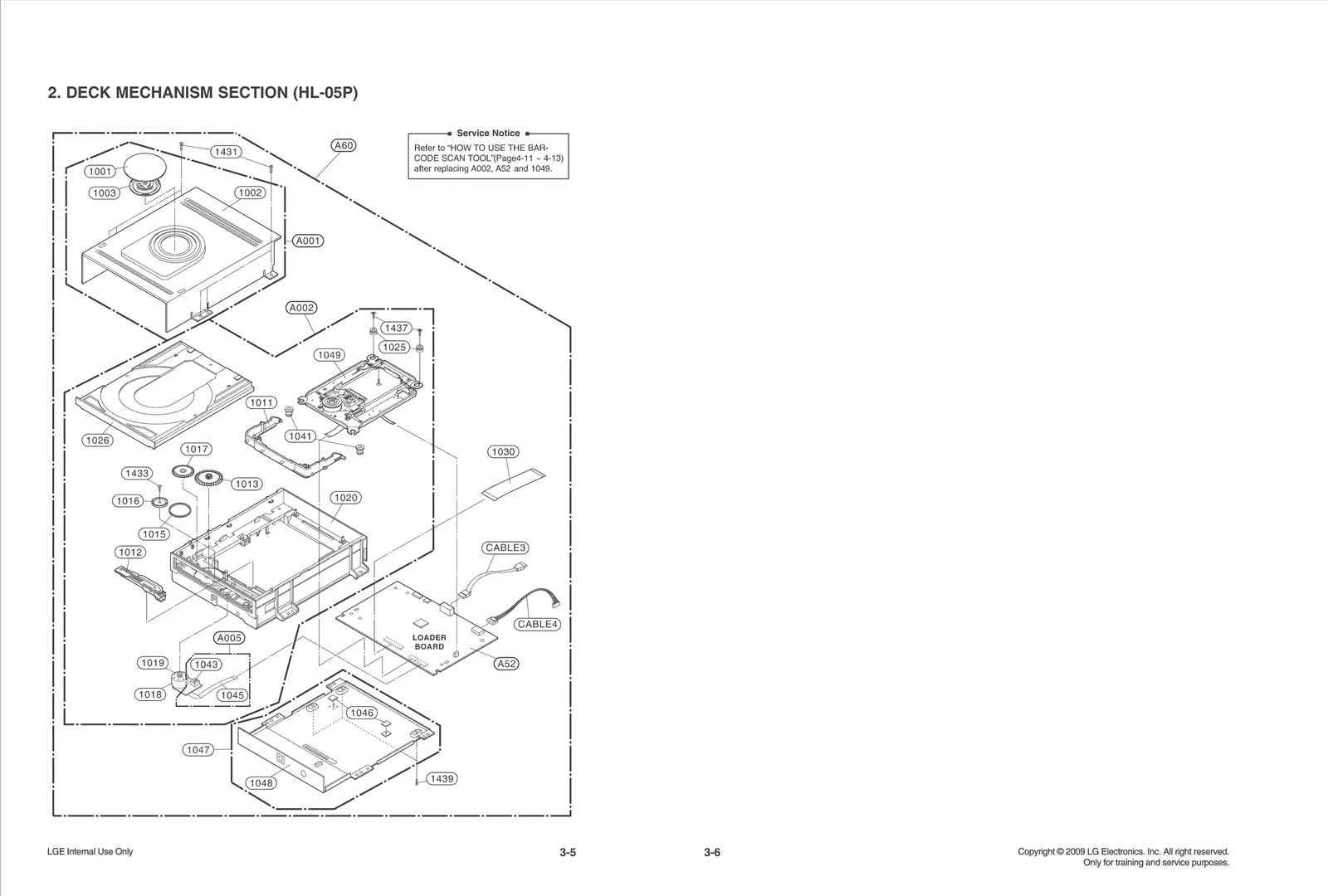

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG LHB953
250
Case LGE MBN57971008 Contact Us For Availability
260
Chassis LGE MBS57970703 Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
262
Damper LGE MCQ61901201 Contact Us For Availability
263
Gasket LGE MDS38891207 Contact Us For Availability
264
Gasket LGE MDS61951101 Contact Us For Availability
265
Fan Module LGE EAL60658102 Contact Us For Availability
266
Holder LGE MEG51770501 Contact Us For Availability
267
Holder LGE MEG58109801 Contact Us For Availability
268
Holder LGE MEG58371701 Contact Us For Availability
270
Gasket LGE MDS61951102 Contact Us For Availability
271
Gasket LGE MDS61951104 Contact Us For Availability
272
Bracket LGE MAZ57970801 Contact Us For Availability
275
PLATE LGE 3300RCH001B Contact Us For Availability
277
Plate,Ground LGE MGJ61868001 Contact Us For Availability
278
Gasket LGE MDS38891206 Contact Us For Availability
279
Knob LGE MEY57948901 Contact Us For Availability
280
Panel,Front LGE MGC57948343 Contact Us For Availability
281
Decor LGE MCR57948601 Contact Us For Availability
282
Window LGE MKC57948401 Contact Us For Availability
283
Door LGE MCV57970301 Contact Us For Availability
284
Spring LGE 4970R-0146G Contact Us For Availability
285
Cover LGE MCK57970401 Contact Us For Availability
290
Decor Assembly LGE ACW72914001 Contact Us For Availability
291
Clamp Assembly LGE ACA69934501 Contact Us For Availability
292
Door LGE MCV57949601 Contact Us For Availability
293
Holder LGE MEG57949101 Contact Us For Availability
294
Guide LGE MEA57971201 Contact Us For Availability
295
Spring LGE MHY57971304 Contact Us For Availability
296
Switch,Push Button LGE 6600M000044 Contact Us For Availability
297
Holder Assembly LGE AEJ72912101 Contact Us For Availability
300
Power Cord Assembly LGE EAD50515201 Contact Us For Availability
320
Panel,Rear LGE MGC57970906 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
479
SCREW,DRAWING LGE 1SZZR-0098D Contact Us For Availability
480
SCREW,DRAWING LGE 1SZZR-0097A Contact Us For Availability
484
Screw,Customized LGE 353-025W Contact Us For Availability
650
Decor LGE MCR58047501 Contact Us For Availability
651
Decor LGE MCR58049401 Contact Us For Availability
652
Grille LGE MDX58047401 Contact Us For Availability
653
Speaker,Full Range LGE EAB60709501 Contact Us For Availability
654
Case LGE MBN58047301 Contact Us For Availability
655A
PCB Assembly,Sub LGE EBR62097101 Contact Us For Availability
655B
PCB Assembly,Jack LGE 6871RJ0001K Contact Us For Availability
656
Foot LGE MDP61844201 Contact Us For Availability
657
NUT,SLOTTED AND CAST LGE 1NNA0500058 Contact Us For Availability
658
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
750
Grille LGE MDX59453201 Contact Us For Availability
753
Case LGE MBN59453301 Contact Us For Availability
755
Foot LGE MDP41831501 Contact Us For Availability
756
Foot LGE MDP41132851 Contact Us For Availability
757
Foot LGE MDP41831601 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN73278406 Contact Us For Availability
802
Box,Master LGE MAY64986235 Contact Us For Availability
803
Packing LGE MFZ47047356 Contact Us For Availability
804
BAG LGE 292-053B Contact Us For Availability
808
Dry Cell Battery LGE EAC44080001 Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
813
CABLE,COAXIAL LGE 6850R-PCA8F Contact Us For Availability
824
Antenna,Loop LGE EAA56672101 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE EAA56671902 Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
900
Remote Controller Assembly LGE AKB69491503 Contact Us For Availability
950
Panel,Front LGE MGC58045851 Contact Us For Availability
951
Grille LGE MDX58057751 Contact Us For Availability
952
Speaker,Full Range LGE EAB60684101 Contact Us For Availability
953
Cover Assembly LGE ACQ73564401 Contact Us For Availability
954
PCB Assembly,Sub LGE EBR61989501 Contact Us For Availability
955
Foot LGE MDP41282851 Contact Us For Availability
956
Foot LGE MDP41831751 Contact Us For Availability
957
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
1001
Cover LGE MCK30125801 Contact Us For Availability
1002
Cover LGE MCK51179601 Contact Us For Availability
1003
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1011
Base LGE MAM51178701 Contact Us For Availability
1012
Guide LGE MEA40275901 Contact Us For Availability
1013
Gear - loc 1017 LGE MDT30123101 Contact Us For Availability
1015
BELT LGE 4400H-1014A Contact Us For Availability
1016
Pulley LGE MGN30124101 Contact Us For Availability
1017
Gear - loc 1013 LGE MDT30122801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM50148901 Contact Us For Availability
1025
RUBBER LGE 5040R-1081B Contact Us For Availability
1026
Tray LGE MJS50149001 Contact Us For Availability
1030
Cable,FFC LGE EAD56949601 Contact Us For Availability
1041
Damper LGE MCQ51197601 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1045
Cable,FFC LGE EAD56950901 Contact Us For Availability
1045
Cable,FFC LGE EAD56950902 Contact Us For Availability
1046
Damper LGE 5040H-1023W Contact Us For Availability
1047
Cover Assembly LGE ACQ67706802 Contact Us For Availability
1048
Cover LGE MCK42305501 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60658001 Contact Us For Availability
1431
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
SCREW,DRAWING LGE 1SZZH-1003E Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ65103211 Contact Us For Availability
A002
Deck Assembly LGE EAZ54852085 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307103 Contact Us For Availability
A43A
Panel Assembly,Front LGE AGL72944230 Contact Us For Availability
A43B
Door Assembly LGE ADC72911802 Contact Us For Availability
A43C
Door Assembly LGE ADC72911901 Contact Us For Availability
A44
Frame Assembly LGE ADV69496206 Contact Us For Availability
A45
PCB Assembly LGE EBR58130811 Contact Us For Availability
A46
Option Code Assembly LGE EBR63825706 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR57841106 Contact Us For Availability
A48
PCB Assembly LGE EBR57697412 Contact Us For Availability
A49
PCB Assembly LGE EBR57697211 Contact Us For Availability
A50
PCB Assembly LGE EBR57696613 Contact Us For Availability
A52
PCB Assembly LGE EBR52819461 Contact Us For Availability
A60
Deck Assembly,DVD LGE EAZ54850412 Contact Us For Availability
A600
Speaker Assembly LGE EAB60770801 Contact Us For Availability
A700
Speaker Assembly LGE EAB60770701 Contact Us For Availability
A900
Speaker Assembly LGE EAB60771101 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C1C2
Capacitor,Ceramic,Chip LGE 0CH1224F942 Contact Us For Availability
C1C8
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C1F1
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C2F1
Capacitor,Ceramic,Chip LGE 0CH1475D946 Contact Us For Availability
C3F7
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C3P8
Capacitor,AL,Chip LGE EAE35846401 Contact Us For Availability
C3P9
Capacitor,TA,Niobium LGE 0CH7106F611 Contact Us For Availability
C5M3
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C7C8
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C7G9
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C7H7
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C7M1
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C112
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C212
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C224
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C229
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C234
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C247
CAPACITOR,FIXED CERA LGE 0CH1105K946 Contact Us For Availability
C259
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C264
Capacitor,Ceramic,Ch LGE 0CK101BF4DA Contact Us For Availability
C304
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C306
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
C315
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C319
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
C322
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C506
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CH4300K412 Contact Us For Availability
C516
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C546
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C593
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C620
Capacitor,AL,Chip LGE EAE56703201 Contact Us For Availability
C703
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C708
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C754
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C843
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C850
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C871
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C902
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C905
Capacitor,AL,Radial LGE EAE60685601 Contact Us For Availability
C905
Capacitor,Unclassified LGE 0CZZR00011F Contact Us For Availability
C910
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C911
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C915
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C916
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE4746K618 Contact Us For Availability
C923
Capacitor,Ceramic,Radial LGE EAE60466201 Contact Us For Availability
C924
CAPACITOR LGE 624-087B Contact Us For Availability
C926
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C929
CAPACITOR LGE 624-087D Contact Us For Availability
C930
Capacitor,Film,Box LGE EAE60508001 Contact Us For Availability
C933
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C950
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C953
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C960
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C961
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C963
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C965
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C966
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C967
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C969
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C972
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C974
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C977
CAPACITOR,AL.ELECTROLYTIC LGE 0CE108EF630 Contact Us For Availability
C979
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
CA153
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
CA155
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
CA215
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
CA507
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
CA811
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
CABLE1
Cable,FFC LGE EAD43155304 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD36079803 Contact Us For Availability
CABLE3
Cable,Assembly LGE EAD55660701 Contact Us For Availability
CABLE4
Harness,Single LGE EAD56862801 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD39814203 Contact Us For Availability
CABLE6
Harness,Single LGE 6631R-C001J Contact Us For Availability
CABLE7
Harness,Single LGE EAD42384002 Contact Us For Availability
CABLE8
Harness,Single LGE EAD42384003 Contact Us For Availability
CABLE9
Cable,FFC LGE EAD43284004 Contact Us For Availability
CF3P1
Filter,Line Noise LGE 6200J00012D Contact Us For Availability
CF3P1
Filter,EMI/Power LGE EAM57733401 Contact Us For Availability
CF3P1
Filter,Line Noise LGE 6200JB8014F Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN3F1
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
CN3F2
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00126 Contact Us For Availability
CN3F3
CONNECTOR (CIRC),WAF LGE 561-711L Contact Us For Availability
CN101
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00122 Contact Us For Availability
CN102
Connector,Wafer LGE 561-711C Contact Us For Availability
CN150
CONNECTOR (CIRC),WAF LGE 561-7150 Contact Us For Availability
CN251
CONNECTOR FH-R20R UG3 LGE 561-711D Contact Us For Availability
CN252
Conector,Wafer LGE EAG35550102 Contact Us For Availability
CN253
Connector,Wafer LGE EAG56285901 Contact Us For Availability
CN303
Connector,FFC/FPC/PIC LGE 6630XE00120 Contact Us For Availability
CN501
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
CN701
Connector,Wafer LGE 561-715J Contact Us For Availability
CN702
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN901
Harness,Single LGE EAD42219302 Contact Us For Availability
CN902
Harness,Single LGE EAD43572704 Contact Us For Availability
CN903
Harness,Single LGE EAD43572703 Contact Us For Availability
D1A0
Diode,Switching LGE 0DS135519AA Contact Us For Availability
D1A1
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D1A2
DIODE,RECTIFIERS LGE 0DRRM00048A Contact Us For Availability
D101
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D910
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D915
Diode,Rectifier LGE EAH60699301 Contact Us For Availability
D915
Diode,Rectifier LGE EAH55456002 Contact Us For Availability
D950,D951
Diode,Schottky LGE EAH60695701 Contact Us For Availability
D950,D951
Diode,Schottky LGE EAH43054502 Contact Us For Availability
D962
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D964
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D966
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D967
DIODE,SWITCHING LGE 0DSKE00141A Contact Us For Availability
D971
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D971
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
DIG301
VFD LGE EAJ57607301 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB3F1
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
FB3P5
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
FB910
Filter,Bead LGE EAM56488801 Contact Us For Availability
FR960
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
IC3A1
IC,Microcontrollers LGE EAN59397901 Contact Us For Availability
IC101A
S/W,System Program LGE SAA34086402 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN60772201 Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN39690601 Contact Us For Availability
IC151
IC,DC,DC Converter LGE EAN31859201 Contact Us For Availability
IC152
IC,LDO Voltage Regul LGE EAN40230101 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC201
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC203
IC,Isolation Amplifier LGE EAN60153201 Contact Us For Availability
IC250
IC,Power Driver LGE 0ILNRMT003A Contact Us For Availability
IC251
IC,Video Amplifier LGE EAN40084701 Contact Us For Availability
IC253
IC,Video Amplifier LGE EAN40083901 Contact Us For Availability
IC254
IC,Isolation Amplifier LGE EAN60668301 Contact Us For Availability
IC301
IC,Display Driver LGE EAN59815801 Contact Us For Availability
IC302
IC,LDO Voltage Regulator LGE EAN40228201 Contact Us For Availability
IC400
IC,Digital Signal Processors LGE EAN59930501 Contact Us For Availability
IC404
IC,CMOS LGE EAN61130301 Contact Us For Availability
IC404
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC405
IC,SDRAM LGE EAN34123101 Contact Us For Availability
IC405
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC405
IC,SDRAM LGE EAN34123102 Contact Us For Availability
IC406A
S/W,System Program LGE SAA34086701 Contact Us For Availability
IC407
IC,LDO Voltage Regul LGE EAN37068001 Contact Us For Availability
IC500
IC,Video Processors LGE EAN60693301 Contact Us For Availability
IC501A
S/W,System Program LGE SAA34086203 Contact Us For Availability
IC504
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC504
IC,DDR2 SDRAM LGE EAN60740501 Contact Us For Availability
IC506
IC,I/O Support Chip LGE EAN42565602 Contact Us For Availability
IC702
IC,Power Amplifier LGE EAN41746102 Contact Us For Availability
IC709
IC,PWM Controller LGE EAN39871601 Contact Us For Availability
IC806
IC,Tx/Rx LGE EAN39308101 Contact Us For Availability
IC808
IC,Tx/Rx LGE EAN60740201 Contact Us For Availability
IC810
IC,Voltage Regulator LGE EAN60772301 Contact Us For Availability
IC911
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC912
IC,PWM Controller LGE EAN60536601 Contact Us For Availability
IC960
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC960
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC961
IC,LDO Voltage Regulator LGE EAN44022001 Contact Us For Availability
IC961
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC962
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC963
IC,POWER MANAGEMENT LGE 0IPMGKE019B Contact Us For Availability
JK3P1
Connector,I/O LGE EAG42342401 Contact Us For Availability
JK201
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK203
Jack,Fiber Optic LGE EAG36157203 Contact Us For Availability
JK250
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK251
Jack,RCA LGE 6612JH002XG Contact Us For Availability
JK301
Connector,USB LGE 6630S70048E Contact Us For Availability
JK701
Connector,Terminal Block LGE 6640000070D Contact Us For Availability
L150
Inductor,Wire Wound, LGE EAP39240301 Contact Us For Availability
L151
Inductor,Wire Wound,Chip LGE EAP60684801 Contact Us For Availability
L216
Inductor,Multilayer,Chip LGE EAP43931505 Contact Us For Availability
L216
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L253
Inductor,Multilayer,Chip LGE EAP36125901 Contact Us For Availability
L756
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L950
Coil,Choke LGE 6140RCC002A Contact Us For Availability
L965
Coil,Choke LGE EAP60792101 Contact Us For Availability
L965
COIL,CHOKE LGE 633-088G Contact Us For Availability
LC5B0
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
LC5C6
Capacitor,Ceramic,Chip LGE 0CH1104K562 Contact Us For Availability
LC203
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
LC240
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
LC575
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
LC601
CAPACITOR,FIXED CERA LGE 0CK225CF94A Contact Us For Availability
LC605
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
LC801
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
LC902
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
LC925
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
LC933
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
LCN700
CONNECTOR (CIRC),FFC LGE 6630HXE440E Contact Us For Availability
LD3A6
LED,Chip LGE 0DLLP0058AC Contact Us For Availability
LD3C1
LED,Chip LGE EAV34144001 Contact Us For Availability
LD304
LED,DIP LGE EAV42966301 Contact Us For Availability
LD801
Diode,Schottky LGE EAH36256501 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM60672501 Contact Us For Availability
LIC100
IC,Serial Flash Memory LGE 0IMMR00188B Contact Us For Availability
LIC100
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
LIC201
IC,Motor Driver LGE EAN56819501 Contact Us For Availability
LIC501
IC,Front End LGE EAN56285401 Contact Us For Availability
LIC601
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
LIC901
IC,LDO Voltage Regulator LGE 0IPMG78430B Contact Us For Availability
LIC902
IC,LDO Voltage Regulator LGE EAN34180901 Contact Us For Availability
LIC903
IC,LDO Voltage Regulator LGE EAN56746801 Contact Us For Availability
LL803
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
LL907
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
LPB800
Connector,Wafer LGE EAG56809201 Contact Us For Availability
LPB801
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
LPF301
Connector,FFC/FPC/PIC LGE 6630X60106A Contact Us For Availability
LPM301
Connector,FFC/FPC/PIC LGE 6630X60088B Contact Us For Availability
LPM302
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
LPT302
Connector,FFC/FPC/PI LGE 6630X60027E Contact Us For Availability
LQ111
TR,Bipolar LGE 0TR390409DA Contact Us For Availability
LQ122
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
LR5C80
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
LR106
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
LR204
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
LR550
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
LR577
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
LR682
Resistor,Chip LGE 0RH0392C622 Contact Us For Availability
LR722
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
LR852
Resistor,Chip LGE 0RH3901C422 Contact Us For Availability
LR903
Resistor,Chip LGE 0RH0000E622 Contact Us For Availability
LR911
RESISTOR,METAL GLAZE LGE 0RJ4300C477 Contact Us For Availability
LR913
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
LR974
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
LR2400
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
LX501
Crystal LGE 6212AB2250E Contact Us For Availability
PC902
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q3P1
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q706
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q707
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q901,Q902
FET LGE 0TFFN10009B Contact Us For Availability
Q901,Q902
FET LGE EBK60665002 Contact Us For Availability
Q910
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q960
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q961
TRANSISTOR KTA1267-GR MINI TP LGE 0TR126709AC Contact Us For Availability
R1A1
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R1A2
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R1A4
Resistor,Chip LGE 0RH3002C422 Contact Us For Availability
R1A5
Resistor,Chip LGE EBC40339401 Contact Us For Availability
R1A6
Resistor,Chip LGE EBC31459601 Contact Us For Availability
R1A9
Resistor,Chip LGE 0RJ0332C477 Contact Us For Availability
R1C1
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
R2A0
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R2A3
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R2E3
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R3A1
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R3A8
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R3F1
Resistor,Chip LGE 0RJ3900C477 Contact Us For Availability
R3P1
Resistor,Chip LGE EBC36543501 Contact Us For Availability
R3P8
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R3P9
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R7M2
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R191
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R207
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R214
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R225
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R234
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R250
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R257
Resistor,Chip LGE 0RJ6804C677 Contact Us For Availability
R304
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R309
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R312
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R321
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R322
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R433
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R444
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ5620C477 Contact Us For Availability
R512
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R519
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R522
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R569
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R571
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R582
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R585
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R596
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R657
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R708
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R749
Resistor,Chip LGE 0RH0101G622 Contact Us For Availability
R771
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R777
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R779
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R796
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R809
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R813
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R842
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R846
Resistor,Chip LGE EBC39488101 Contact Us For Availability
R874
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R886
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R889
Resistor,Chip LGE 0RJ2210C477 Contact Us For Availability
R890
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R912
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R915
Resistor,Metal Oxide Film LGE EBC31729501 Contact Us For Availability
R916
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD5602F608 Contact Us For Availability
R922
Resistor,Carbon Film LGE 0RD3302F608 Contact Us For Availability
R929
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD0332F608 Contact Us For Availability
R935
Resistor,Carbon Film LGE 0RD0392F608 Contact Us For Availability
R937
Resistor,Carbon Film LGE 0RD1204F608 Contact Us For Availability
R950
Resistor,Metal Film LGE 0RN2001F408 Contact Us For Availability
R951
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R952
Resistor,Carbon Film LGE 0RD2402F608 Contact Us For Availability
R966
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R967
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R971
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R972
Resistor,Metal Film LGE 0RN1501F408 Contact Us For Availability
R973
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R974
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R976
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
R977
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
RA803
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
RM3P1
Receiver Module LGE EAV41920201 Contact Us For Availability
SW3C1
Switch,Tact LGE 6600R000005 Contact Us For Availability
T901
Transformer,Switching LGE EBJ59805201 Contact Us For Availability
T902
Transformer,Switching LGE EBJ59805501 Contact Us For Availability
TH702
Thermistor,NTC LGE 6322A00017A Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TUN01
Tuner,Analog LGE EBL57006801 Contact Us For Availability
VR301
Switch,Encoder LGE 6110E00019E Contact Us For Availability
VR901
Varistor LGE EAF38754501 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR61173105 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR61173106 Contact Us For Availability
WIRE70
PCB Assembly,Sub LGE EBR61173103 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR61173101 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR61173102 Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X200
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X500
Crystal LGE EAW60673001 Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
X802
Crystal LGE EAW32919201 Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD250
Diode,TVS LGE EAH31345801 Contact Us For Availability
ZD253
Diode,TVS LGE EAH54696501 Contact Us For Availability
ZD400
Diode,Zener LGE EAH60993201 Contact Us For Availability
ZD400
DIODE,ZENERS LGE 0DZRM00338A Contact Us For Availability
ZD911
DIODE,ZENERS LGE 0DZ120009IA Contact Us For Availability
ZD916
DIODE,ZENER LGE 0DZ220009ED Contact Us For Availability
ZD961
Diode,Zener LGE 0DZPC00193A Contact Us For Availability
ZD961
Diode,Zener LGE 0DZ270009BD Contact Us For Availability
× ![]()
Login and Registration Form
