Model LG LHB755W – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2

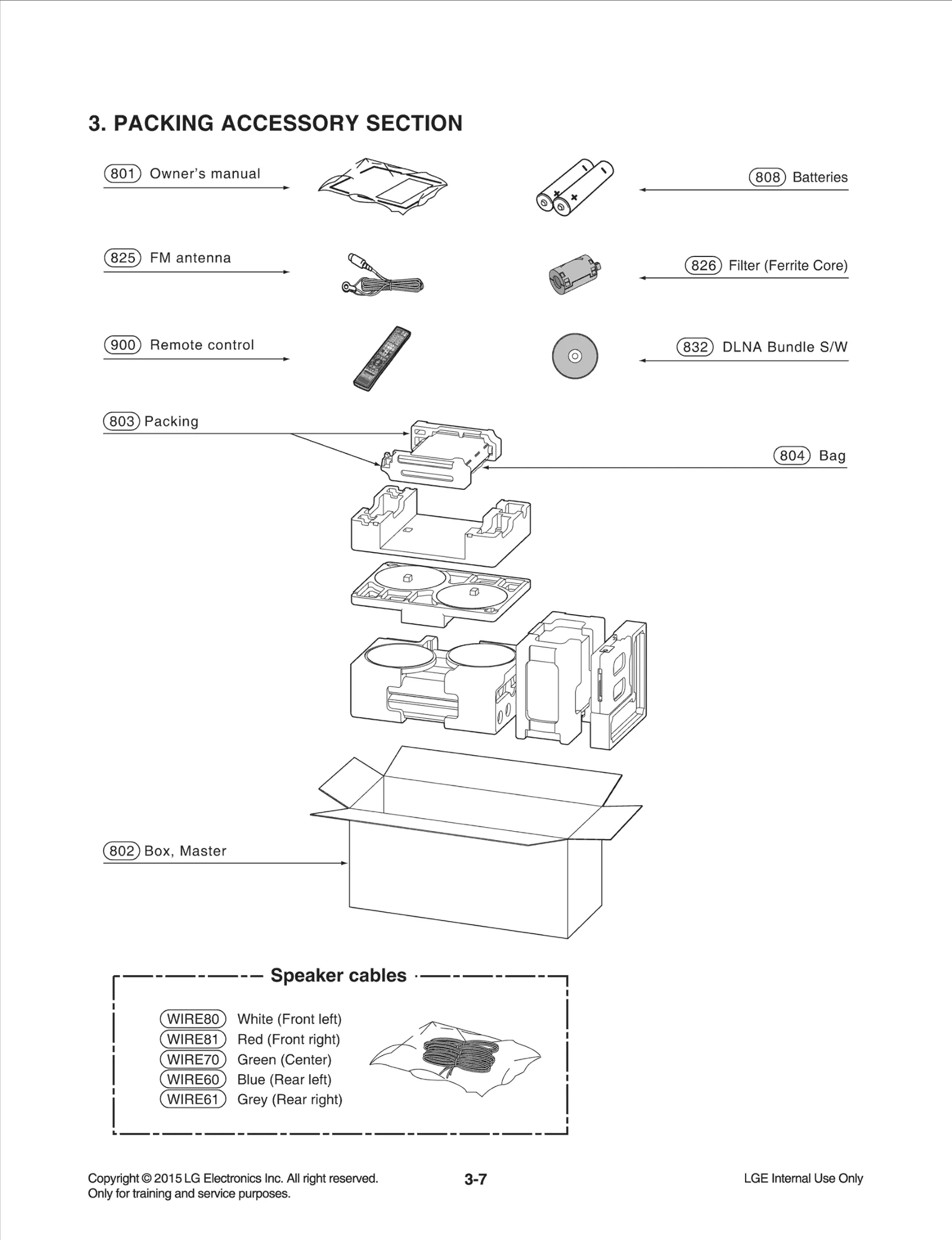

Diagram 3

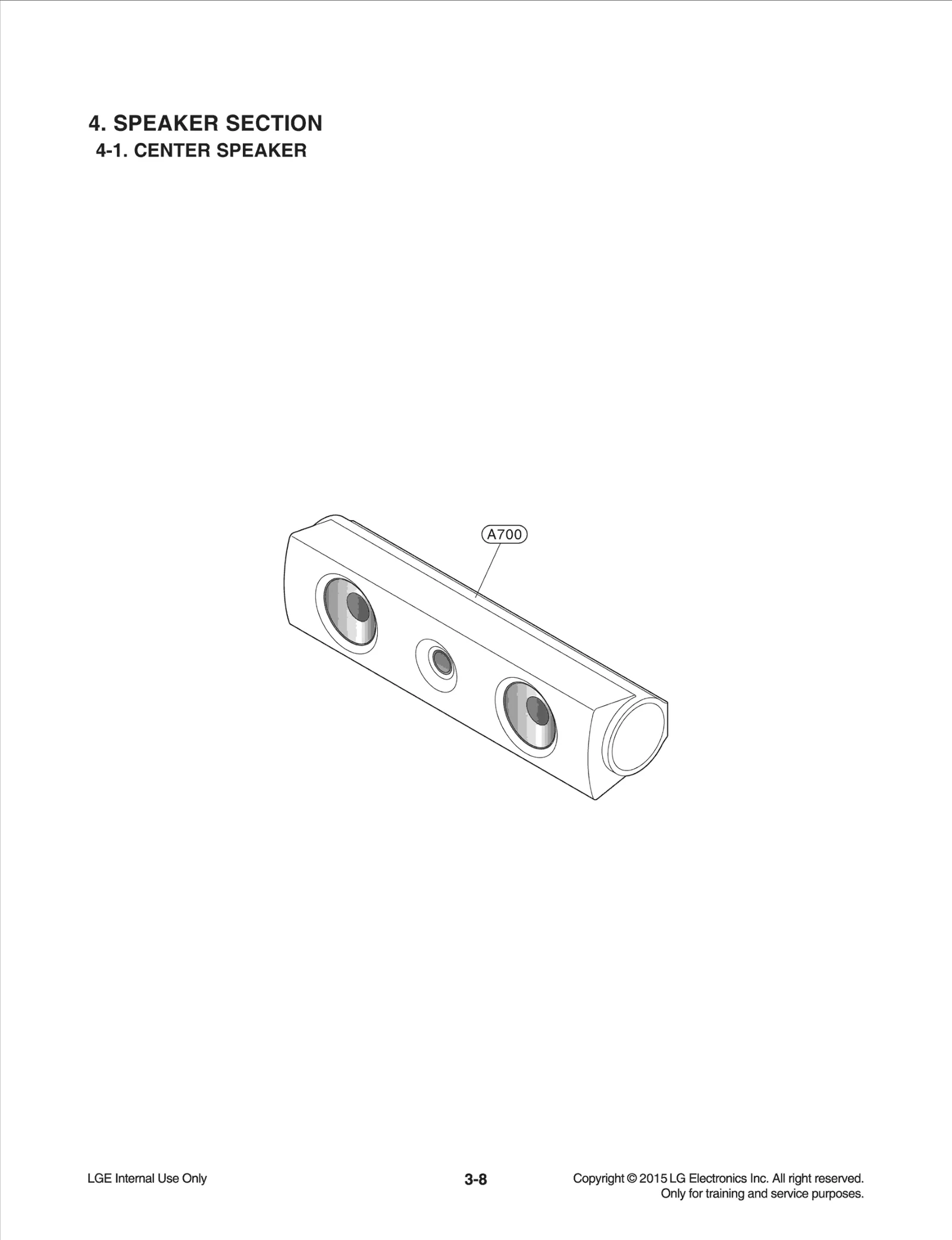

Diagram 4

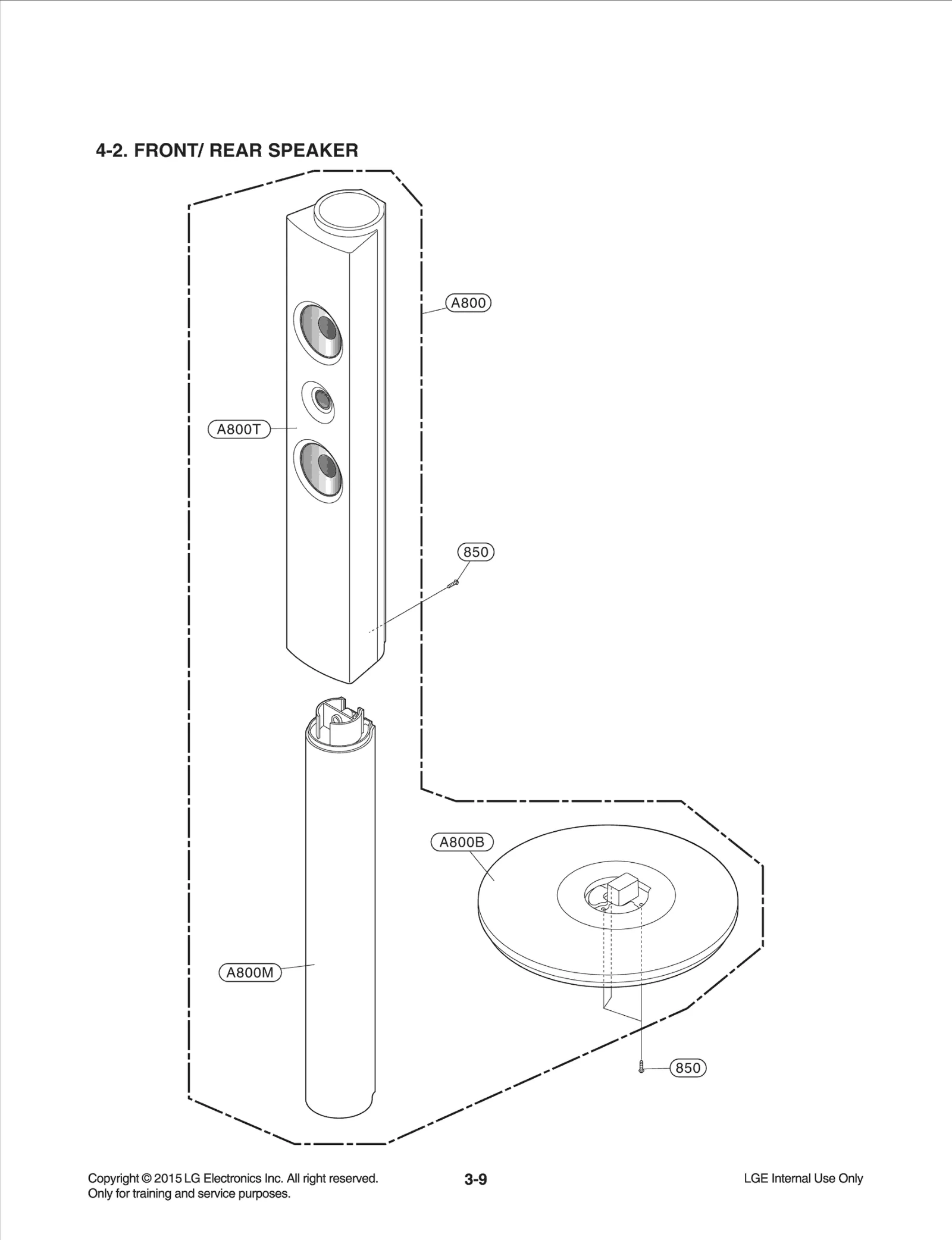

Diagram 5

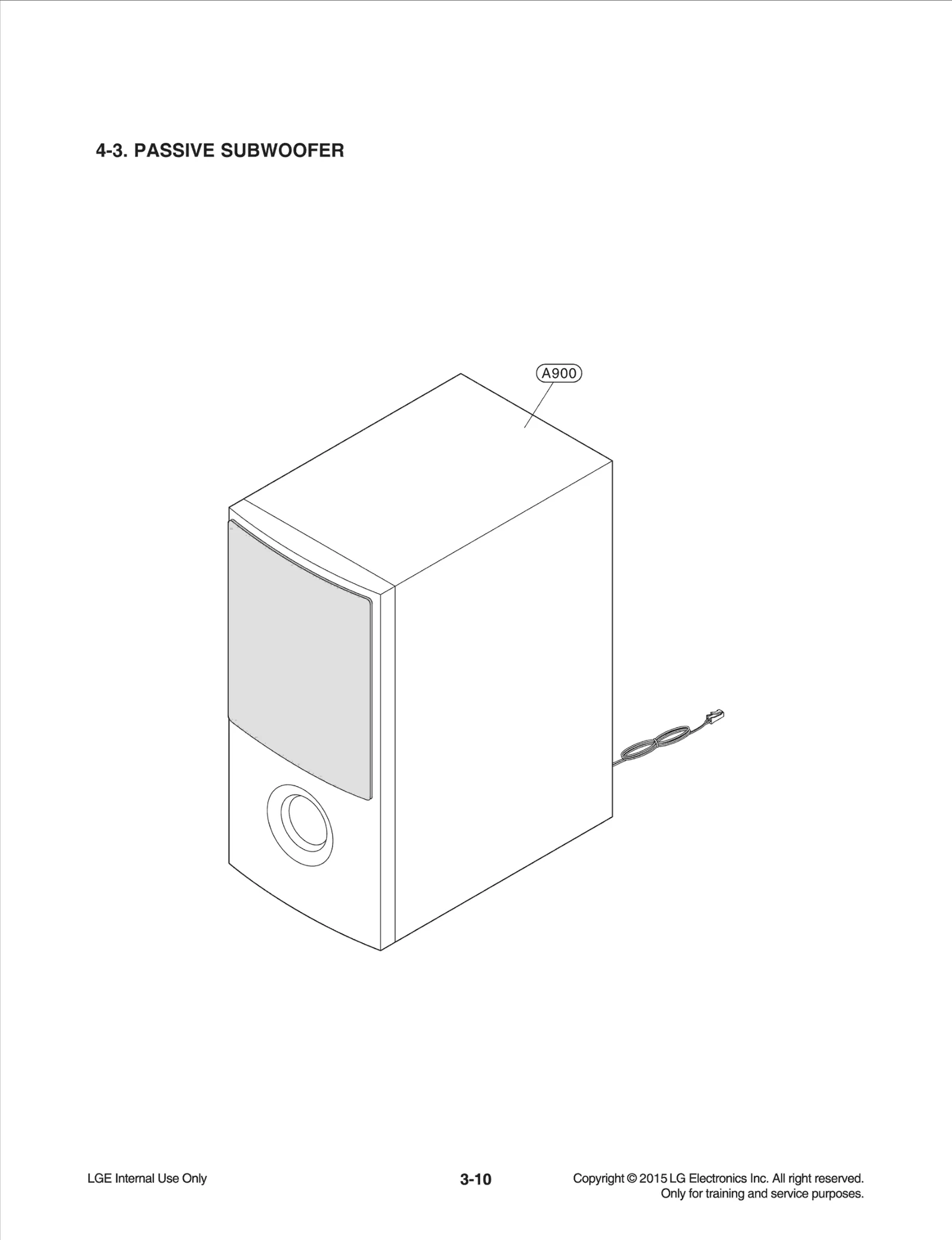

Diagram 6

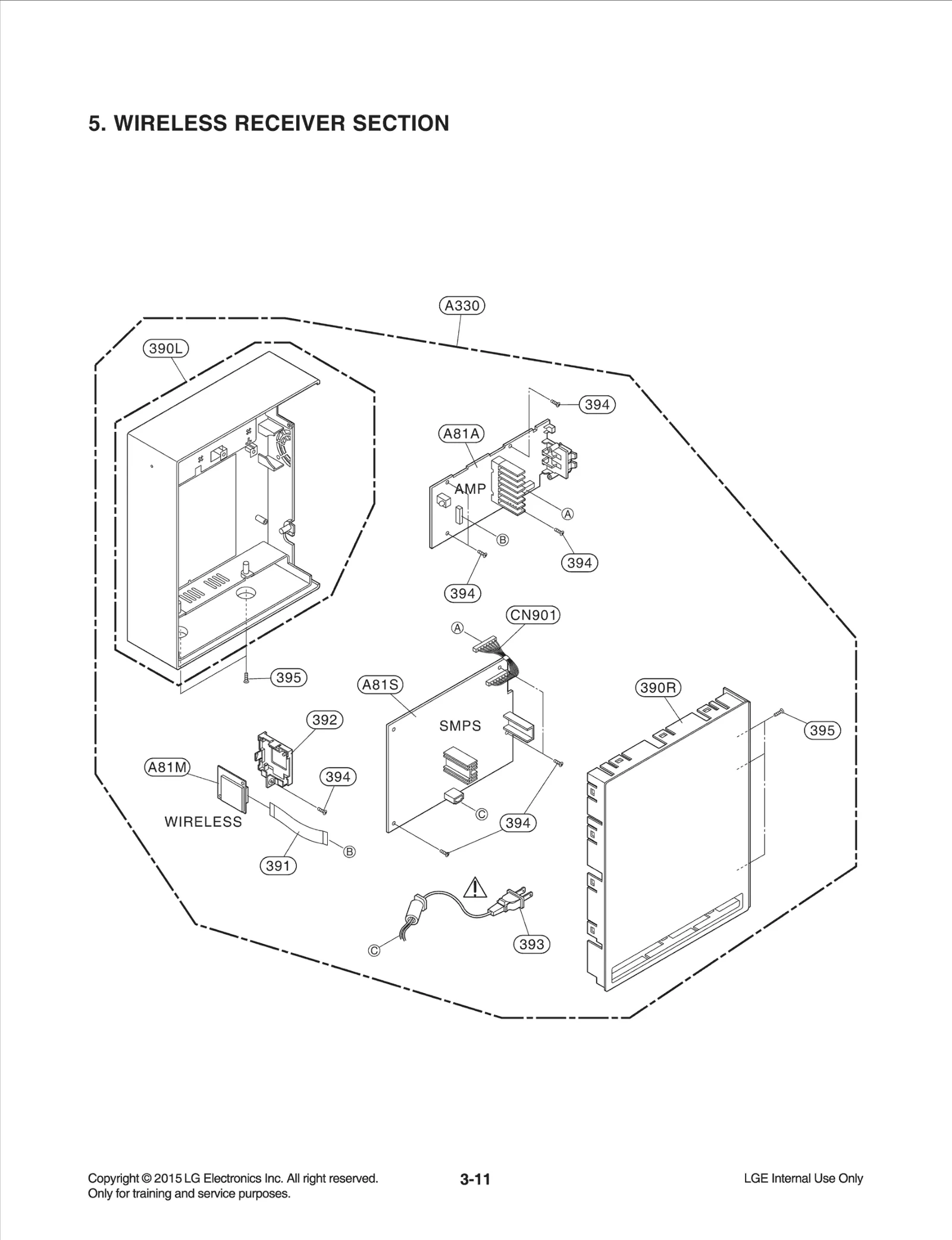

Diagram 7
Common parts from model LG LHB755W
250
Cover Assembly LGE ACQ87880419 Contact Us For Availability
250A
Door LGE MCV63393301 Contact Us For Availability
250B
SPRING LGE 4970R-0146C Contact Us For Availability
251
Holder LGE MEG64258801 Contact Us For Availability
252
Holder LGE MEG64258701 Contact Us For Availability
254
Holder LGE MEG64238801 Contact Us For Availability
260
Frame LGE MDQ64316502 Contact Us For Availability
261
Damper LGE MCQ32325032 Contact Us For Availability
265
Fan Module LGE EAL60700907 Contact Us For Availability
279
Knob LGE MEY63393701 Contact Us For Availability
280
Holder Assembly LGE AEJ74399501 Contact Us For Availability
281
Plate LGE MGJ64461801 Contact Us For Availability
300
Power Cord LGE EAD60816611 Contact Us For Availability
390L
Cover Assembly LGE ACQ85928320 Contact Us For Availability
390R
Cover LGE MCK67107002 Contact Us For Availability
391
Cable,FFC LGE EAD62131501 Contact Us For Availability
392
Holder LGE MEG63059701 Contact Us For Availability
393
Power Cord LGE EAD60816620 Contact Us For Availability
394
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
395
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76853226 Contact Us For Availability
802
Box,Master LGE MAY66848036 Contact Us For Availability
803
Packing LGE MFZ64554905 Contact Us For Availability
804
Bag LGE 3880SCS001E Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
832
S/W Package LGE SAB34053018 Contact Us For Availability
850
Screw,Machine LGE FAB30260401 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73775631 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149501 Contact Us For Availability
1002
Cover LGE MCK66956902 Contact Us For Availability
1003
Clamp LGE MBU62345801 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB33072101 Contact Us For Availability
1005
Plate LGE MGJ63182201 Contact Us For Availability
1011
Base LGE MAM62647801 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62667101 Contact Us For Availability
1024
Damper LGE MCQ66909001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1025
Damper LGE MCQ67073001 Contact Us For Availability
1026
Tray LGE MJS62671801 Contact Us For Availability
1026
Tray LGE MJS62671802 Contact Us For Availability
1030
Cable,FFC LGE EAD61048209 Contact Us For Availability
1035
Cable,FFC LGE EAD61049005 Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1045
Cable,FFC LGE EAD54155311 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ62281301 Contact Us For Availability
1050
Cover LGE MCK66957001 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ85915401 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR74672402 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU61324101 Contact Us For Availability
A43
PCB Assembly LGE EBR79596102 Contact Us For Availability
A44
Frame Assembly LGE ADV75346208 Contact Us For Availability
A46
Option Code Assembly LGE EBR80446318 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR80387012 Contact Us For Availability
A51
Module,Wifi Module LGE EAT62513301 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833301 Contact Us For Availability
A81A
PCB Assembly LGE EBR78412001 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT61653601 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR76843002 Contact Us For Availability
A330
Board Assembly LGE AAX75008007 Contact Us For Availability
A700
Speaker System Total LGE TCG35749151 Contact Us For Availability
A800
Speaker System Total LGE TCG36248151 Contact Us For Availability
A800B
Base Assembly LGE AAN74688951 Contact Us For Availability
A800M
Cover Assembly LGE ACQ87070151 Contact Us For Availability
A800T
Cover Assembly LGE ACQ88029901 Contact Us For Availability
A900
Speaker System Total LGE TCG36248257 Contact Us For Availability
BD901
Diode,Bridge LGE EAH31952201 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
BD901
Diode,Bridge LGE EAH62332801 Contact Us For Availability
C7A7
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C7C5
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C106
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C159
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C164
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C187
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE 0CC223BK5BA Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C308
Capacitor,AL,Chip LGE 0CH8226C621 Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK221BK56A Contact Us For Availability
C326
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C336
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C418
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C436
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C549
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C604
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C722
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C723
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C726
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C734
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
C735
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C737
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C745
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C746
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C752
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C757
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C903
CAPACITOR,FIXED ELEC LGE 0CE277JR6A0 Contact Us For Availability
C903
Capacitor,AL,Chip LGE 0CZZR00033A Contact Us For Availability
C906
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C908
Capacitor,Film,DIP LGE 0CQ2222K409 Contact Us For Availability
C913
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C916
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C925
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C930
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C931
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C934
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C936
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C937
Capacitor,Film,DIP LGE 0CQ4711N449 Contact Us For Availability
C939
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C940
Capacitor,Ceramic,Axial LGE 0CN1030K518 Contact Us For Availability
C941
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C950
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C951
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C955
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C958
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C985
CAPACITOR LGE 624-087D Contact Us For Availability
CA152
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CA303
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CABLE1
Harness,Single LGE EAD35863030 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62185605 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63427101 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131518 Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN101
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN103
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00122 Contact Us For Availability
CN150
Connector,Wafer LGE 6630VK19612 Contact Us For Availability
CN151
Connector,BtoB LGE 6630R-BF07R Contact Us For Availability
CN251
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
CN252
Connector,FFC/FPC/PIC LGE EAG61090207 Contact Us For Availability
CN253
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN301
CONNECTOR (CIRC),FFC LGE 6630R-FB05V Contact Us For Availability
CN301
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN302
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN302
Connector,USB LGE 6630S70048D Contact Us For Availability
CN303
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN901
Harness,Single LGE EAD63426301 Contact Us For Availability
CN901
Harness,Single LGE EAD43572707 Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03H Contact Us For Availability
D102
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D402
Diode,TVS LGE EAH62735501 Contact Us For Availability
D404
Diode,TVS LGE EAH56919501 Contact Us For Availability
D702
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D905
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D922
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D931
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D932
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D933
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D933
Diode,Switching LGE 0DD133009AD Contact Us For Availability
D950
Diode,Schottky LGE EAH60695701 Contact Us For Availability
D950
Diode,Schottky LGE EAH62134501 Contact Us For Availability
D952
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D955
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D981
Diode,Schottky LGE EAH62232901 Contact Us For Availability
DIS301
VFD LGE EAJ60868410 Contact Us For Availability
EC138
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB901
COIL LGE 636-004D Contact Us For Availability
FB902
Filter,Bead LGE EAM56488801 Contact Us For Availability
FR950
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
G4
Damper LGE MCQ67221201 Contact Us For Availability
G6
Gasket LGE MDS63255101 Contact Us For Availability
HS951
Heat Sink LGE MED63470801 Contact Us For Availability
HS981
Heat Sink LGE MED61841613 Contact Us For Availability
IC101A
S/W,System Program LGE SAA37575101 Contact Us For Availability
IC102A
S/W,System Program LGE SAA37575201 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC151
IC,DC,DC Converter LGE EAN63530601 Contact Us For Availability
IC152
IC,LDO Voltage Regulator LGE EAN62670401 Contact Us For Availability
IC156
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC202
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC251A
S/W,System Program LGE SAA35932229 Contact Us For Availability
IC301
IC,Display Driver LGE EAN62790501 Contact Us For Availability
IC301
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC302
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC401
IC,Tx/Rx LGE EAN63547801 Contact Us For Availability
IC403
IC,LDO Voltage Regulator LGE EAN62682301 Contact Us For Availability
IC404
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63626702 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN63053202 Contact Us For Availability
IC503A
S/W,System Program LGE SAA37575001 Contact Us For Availability
IC601
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN63786101 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC902
IC,PMIC LGE 0IPMG00075A Contact Us For Availability
IC903
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC981
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK201
Jack,RCA LGE EAG63036711 Contact Us For Availability
JK251
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK402
Connector,HDMI LGE EAG62611206 Contact Us For Availability
L152
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L155
Filter,Bead LGE EAM62155402 Contact Us For Availability
L201
Inductor,Multilayer,Chip LGE EAP39314704 Contact Us For Availability
L700
Filter,Bead LGE EAM42641607 Contact Us For Availability
L706
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L922
COIL,CHOKE LGE 633-088G Contact Us For Availability
L951
Coil,Choke LGE EAP60792101 Contact Us For Availability
LF902
Filter,Line Noise LGE EAM62712401 Contact Us For Availability
LF902
FILTER(CIRC),EMC LGE 6200JB8014B Contact Us For Availability
PC902
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC902
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC903
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q103
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q302
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q303
TR,Bipolar LGE EBK36400001 Contact Us For Availability
Q403
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q700
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q707
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q902
TRANSISTOR,BIPOLARS LGE 0TRAU90005A Contact Us For Availability
Q910
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q951
FET LGE EBK62911901 Contact Us For Availability
Q951
FET LGE EBK62851601 Contact Us For Availability
Q982
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
R5A3
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R5C1
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R5C7
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R113
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R115
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R172
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R210
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R230
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R231
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R303
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R304
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R318
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R322
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R328
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R409
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R443
Resistor,Chip LGE ERHZ0000217 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R450
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R451
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R464
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R542
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ0482C477 Contact Us For Availability
R557
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R608
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R706
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R717
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R744
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R756
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0101K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD0221F608 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R924
Resistor,Metal Film LGE 0RN3001F408 Contact Us For Availability
R925
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R926
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R931
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R931
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R934
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R934
RESISTOR FIXED CARBON FILM 15 LGE 0RD1500F608 Contact Us For Availability
R935
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R935
Resistor,Carbon Film LGE 0RD3902F608 Contact Us For Availability
R942
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R946
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R947
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD2702F608 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2402F408 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD0681F608 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2001F408 Contact Us For Availability
R961
Resistor,Metal Film LGE 0RN2201F408 Contact Us For Availability
R962
Resistor,Carbon Film LGE 0RD1801F608 Contact Us For Availability
R964
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R965
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R966
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R968
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R972
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R981
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R983
RESISTOR,FIXED METAL FILM LGE 0RN2202F408 Contact Us For Availability
R984
Resistor,Metal Film LGE 0RN1502F408 Contact Us For Availability
R985
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R987
Resistor,Metal Film LGE 0RN3901F408 Contact Us For Availability
R989
Resistor,Carbon Film LGE 0RD3303F608 Contact Us For Availability
RA106
Resistor,Array LGE EBC32260601 Contact Us For Availability
RC301
Receiver Module LGE EAV41920002 Contact Us For Availability
RC313
Capacitor,Ceramic,Chip LGE 0CH1222K566 Contact Us For Availability
RC318
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
RC328
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
RC355
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
RC380
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
RCN301
WAFER LGE 6602T25008J Contact Us For Availability
RIC301
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
RIC302
IC,Sound/Audio Processor LGE EAN62335601 Contact Us For Availability
RIC302
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
RIC303
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
RIC304
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
RIC305A
S/W,System Program LGE SAA35932215 Contact Us For Availability
RIC306
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
RIC308
IC,LDO Voltage Regulator LGE EAN60686001 Contact Us For Availability
RJK301
Connector,Terminal Block LGE 6640000029C Contact Us For Availability
RL305
Coil,Choke LGE EAP62127101 Contact Us For Availability
RL309
Inductor,Multilayer,Chip LGE EAP60946212 Contact Us For Availability
RL311
Filter,Bead LGE EAM38769505 Contact Us For Availability
RLED301
LED Assembly LGE EAV61919501 Contact Us For Availability
RQ305
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
RQ308
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
RR3E1
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
RR305
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
RR313
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
RR321
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
RR364
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
RR366
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
RR368
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
RR377
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
RR379
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
RR393
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
RSW301
Switch,Tact LGE EBF52268801 Contact Us For Availability
RX301
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
RX303
Crystal LGE 6212AB2192K Contact Us For Availability
SW304
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770129 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770120 Contact Us For Availability
T902
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
T902
Transformer,Switching LGE EBJ62630101 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TM700
Connector,Terminal Block LGE EAG63374009 Contact Us For Availability
TUN201
Tuner,Analog LGE EBL60740004 Contact Us For Availability
VOL301
Switch,Encoder LGE EBF61874801 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72912707 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72912708 Contact Us For Availability
WIRE70
PCB Assembly,Sub LGE EBR72912703 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR72912701 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR72912702 Contact Us For Availability
X401
Crystal LGE EAW62583501 Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009CA Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009CG Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ622609AA Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009EA Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD914
DIODE,ZENERS LGE 0DZGD00073A Contact Us For Availability
ZD932
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD933
Diode,Zener LGE 0DZ330009FB Contact Us For Availability
ZD933
Diode,Zener LGE 0DZ330009FC Contact Us For Availability
ZD951
Diode,Zener LGE 0DZ270009BD Contact Us For Availability
ZD981
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
× ![]()
Login and Registration Form
