Model LG LHB655 – Common Parts & Diagrams
Diagram 0
Diagram 1

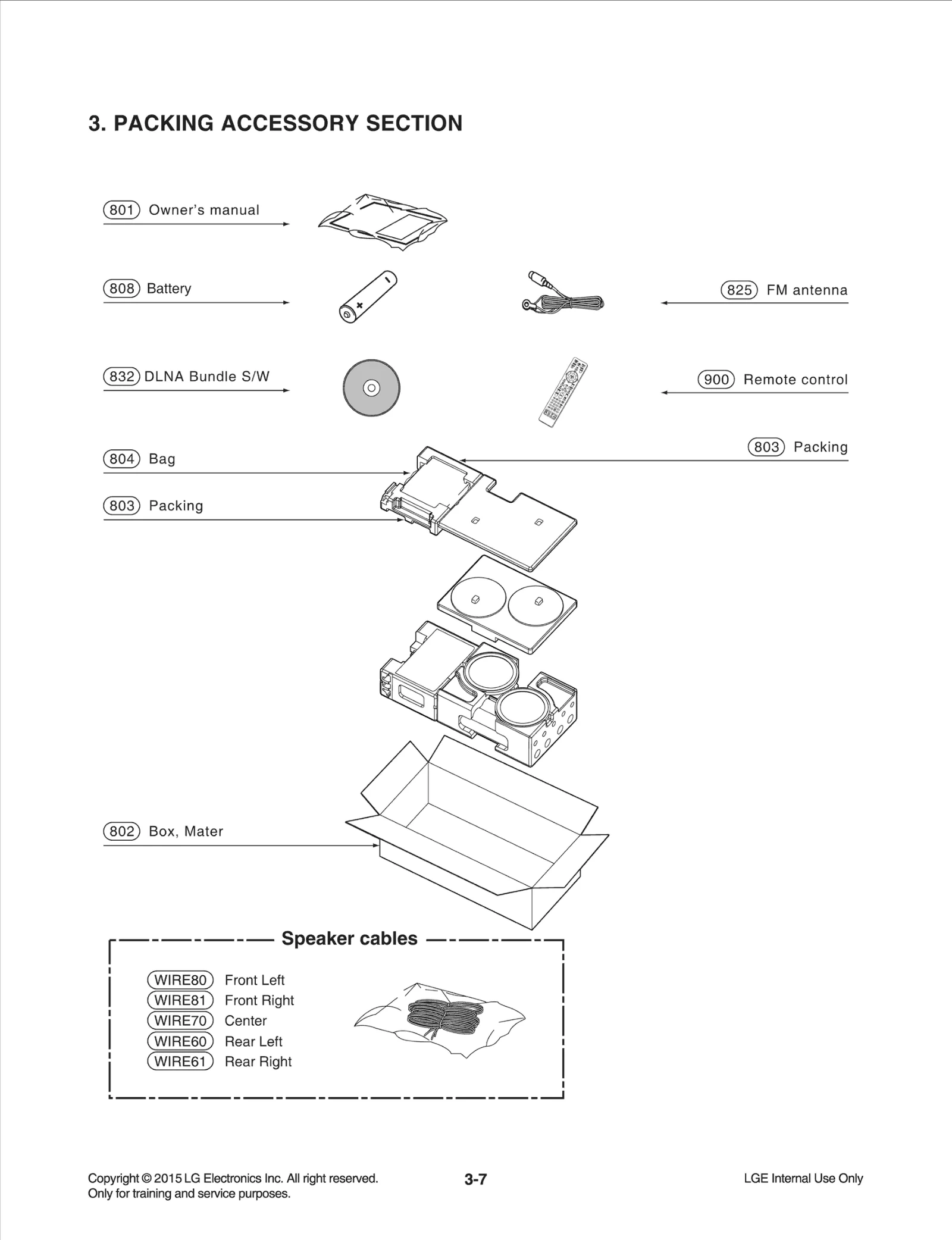

Diagram 2

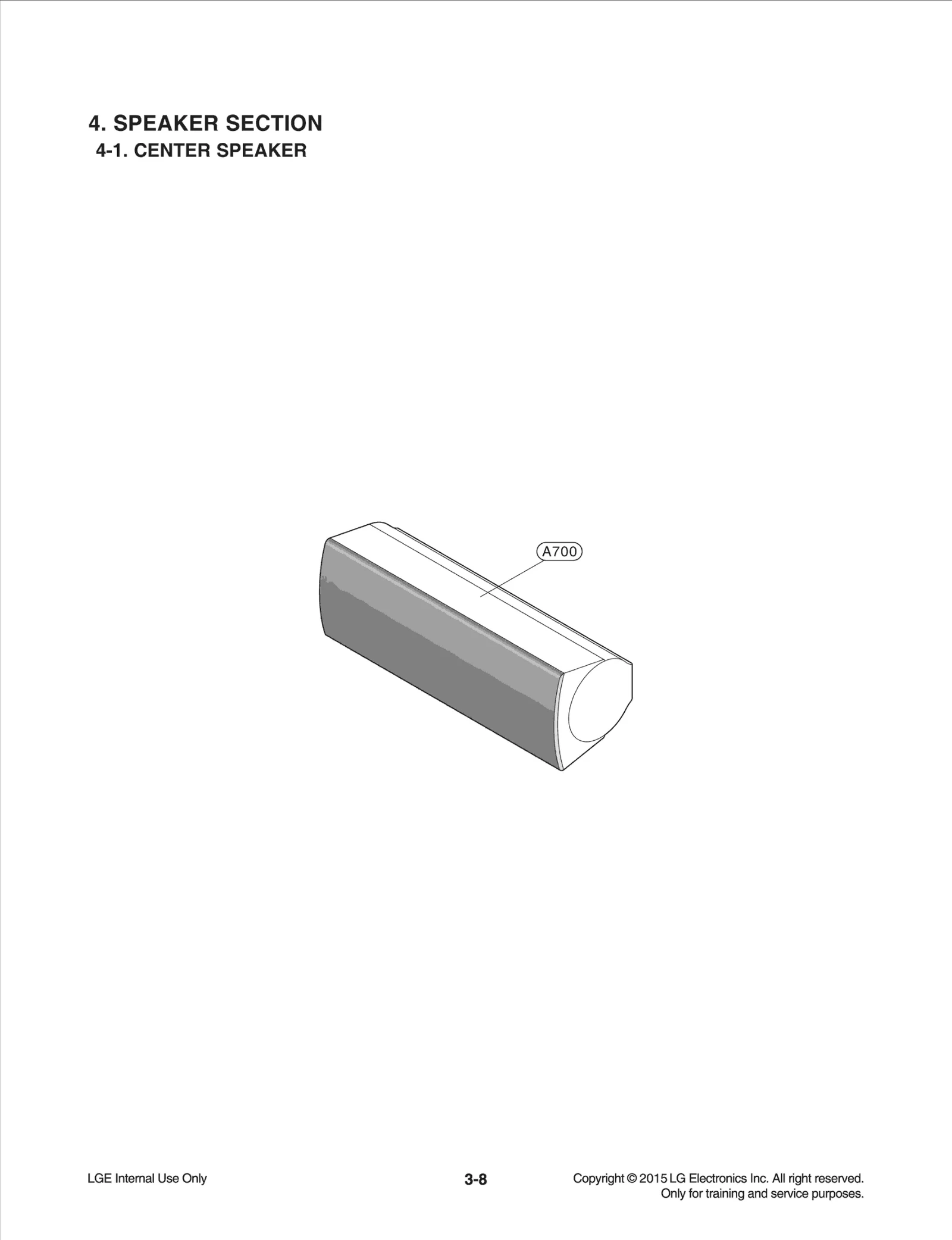

Diagram 3

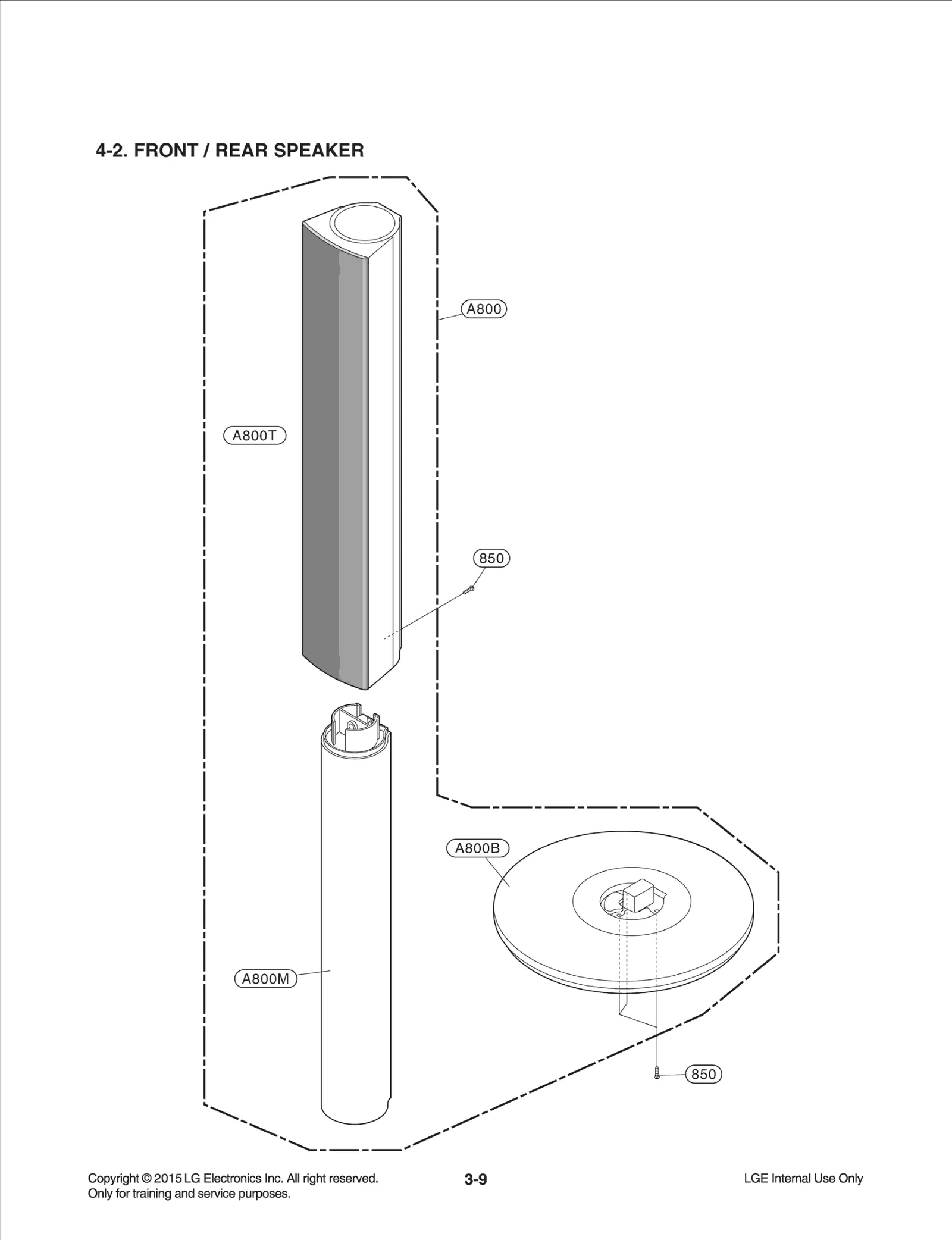

Diagram 4

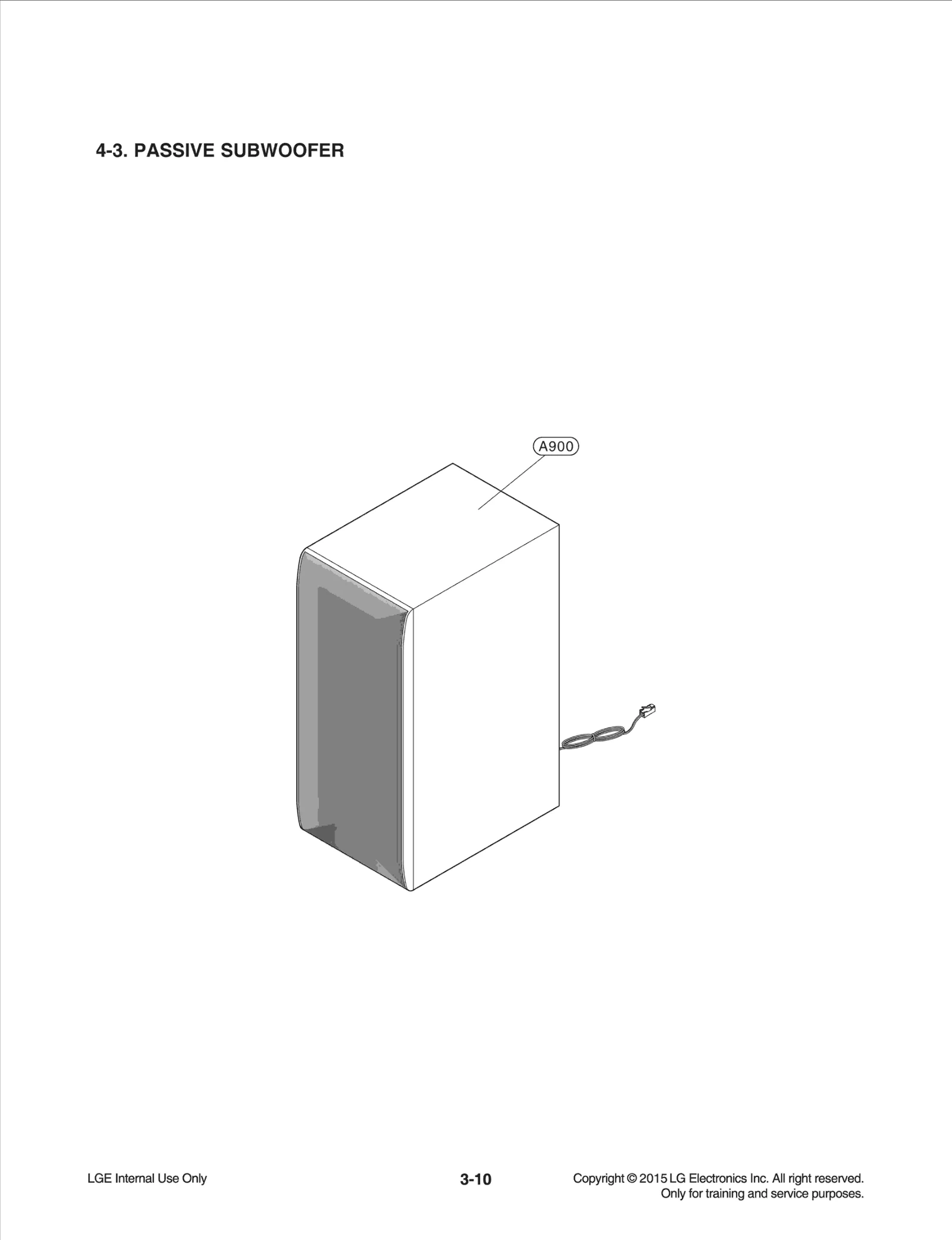

Diagram 5
Diagram 6
Common parts from model LG LHB655
250
Case LGE MBN62627502 Contact Us For Availability
260
Chassis LGE MBS63165601 Contact Us For Availability
261
Damper LGE MCQ32325032 Contact Us For Availability
262
Plate LGE 3300RCH001A Contact Us For Availability
265
Fan Module LGE EAL60700907 Contact Us For Availability
281
Cover LGE MCK66976801 Contact Us For Availability
282
Plate,Ground LGE MGJ63379301 Contact Us For Availability
300
Power Cord LGE EAD60816611 Contact Us For Availability
320
Panel,Rear LGE MGC63899001 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76812328 Contact Us For Availability
802
Box,Master LGE MAY66848032 Contact Us For Availability
803
Packing LGE MFZ64555006 Contact Us For Availability
804
Bag LGE 292-053A Contact Us For Availability
808
Dry Cell Battery LGE EAC44080001 Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
832
S/W Package LGE SAB34053018 Contact Us For Availability
850
Screw,Machine LGE FAB30260401 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73775801 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149501 Contact Us For Availability
1002
Cover LGE MCK66956901 Contact Us For Availability
1002
Cover LGE MCK66956902 Contact Us For Availability
1003
Clamp LGE MBU62345801 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB33072101 Contact Us For Availability
1005
Plate LGE MGJ63182201 Contact Us For Availability
1011
Base LGE MAM62647801 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM62667101 Contact Us For Availability
1024
Damper LGE MCQ66909001 Contact Us For Availability
1025
Damper LGE MCQ67073001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62671801 Contact Us For Availability
1030
Cable,FFC LGE EAD61048209 Contact Us For Availability
1035
Cable,FFC LGE EAD61049005 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD54155311 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ62281301 Contact Us For Availability
1050
Cover LGE MCK66957001 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ85915401 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR74672402 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU61324101 Contact Us For Availability
A41
Panel Assembly,Front LGE AGL74752816 Contact Us For Availability
A42
PCB Assembly LGE EBR76756202 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR76798201 Contact Us For Availability
A44
Frame Assembly LGE ADV75445505 Contact Us For Availability
A46
Option Code Assembly LGE EBR80446207 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR80247712 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833301 Contact Us For Availability
A700
Speaker System Total LGE TCG36108251 Contact Us For Availability
A800
Speaker System Total LGE TCG36108151 Contact Us For Availability
A800B
Base Assembly LGE AAN74688951 Contact Us For Availability
A800M
Cover Assembly LGE ACQ88112151 Contact Us For Availability
A800T
Cover Assembly LGE ACQ88069351 Contact Us For Availability
A900
Speaker System Total LGE TCG36108357 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C2U2
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
C7A4
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C7C5
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C106
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C159
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C164
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C187
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE 0CC223BK5BA Contact Us For Availability
C241
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C246
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C304
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C306
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C309
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C318
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C319
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C326
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C331
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C333
Capacitor,AL,Chip LGE 0CE226VK6DC Contact Us For Availability
C520
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C552
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C604
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C614
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C704
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C738
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C749
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C756
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C767
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
C776
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C779
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C787
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C797
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C903
Capacitor,AL,Radial LGE EAE30396901 Contact Us For Availability
C911
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C913
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C916
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C930
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C933
CAPACITOR LGE 624-087D Contact Us For Availability
C938
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C940
Capacitor,Ceramic,Axial LGE 0CN1030K518 Contact Us For Availability
C941
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C942
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C951
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C952
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE108NH610 Contact Us For Availability
C956
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C957
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C981
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C984
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA152
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CA303
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CABLE1
Cable,FFC LGE EAD63427001 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62185606 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62113109 Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CN101
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN103
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
CN104
Connector,FFC/FPC/PIC LGE 6630R-FB11R Contact Us For Availability
CN150
Connector,Wafer LGE 6630VK19612 Contact Us For Availability
CN151
Connector,BtoB LGE 6630R-BF07R Contact Us For Availability
CN252
Connector,FFC/FPC/PIC LGE EAG64430101 Contact Us For Availability
CN301
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN302
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN303
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN305
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
CN901
Harness,Single LGE EAD63426301 Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03H Contact Us For Availability
D101
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D251
Diode,TVS LGE EAH56919501 Contact Us For Availability
D253
Diode,TVS LGE EAH62735501 Contact Us For Availability
D708
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D932
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D952
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D956
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D981
Diode,Schottky LGE EAH62232801 Contact Us For Availability
DIS301
VFD LGE EAJ60868410 Contact Us For Availability
DIS301
VFD LGE EAJ60868413 Contact Us For Availability
EC103
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB901
COIL LGE 636-004D Contact Us For Availability
FB931
Filter,Bead LGE EAM56488801 Contact Us For Availability
FR950
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
G2
Damper LGE MCQ67221201 Contact Us For Availability
HS981
Heat Sink LGE MED61841613 Contact Us For Availability
IC101A
S/W,System Program LGE SAA37660501 Contact Us For Availability
IC102A
S/W,System Program LGE SAA37660602 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC150
IC,LDO Voltage Regulator LGE EAN60686001 Contact Us For Availability
IC151
IC,DC,DC Converter LGE EAN63530601 Contact Us For Availability
IC155
IC,LDO Voltage Regulator LGE EAN62670401 Contact Us For Availability
IC156
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC202
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC253
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC301
IC,Display Driver LGE EAN62790501 Contact Us For Availability
IC301
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC301
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC302
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63626702 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN63053202 Contact Us For Availability
IC503A
S/W,System Program LGE SAA37575001 Contact Us For Availability
IC601
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC702
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN63786101 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC981
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK2U3
Connector,USB LGE EAG63217801 Contact Us For Availability
JK201
Jack,RCA LGE EAG63036711 Contact Us For Availability
JK251
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK252
Connector,HDMI LGE EAG62611206 Contact Us For Availability
L152
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L156
Filter,Bead LGE EAM38769505 Contact Us For Availability
L167
Filter,Bead LGE EAM62155402 Contact Us For Availability
L201
Inductor,Multilayer,Chip LGE EAP39314704 Contact Us For Availability
L702
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L707
Filter,Bead LGE EAM42641607 Contact Us For Availability
L951
Coil,Choke LGE EAP60792101 Contact Us For Availability
LF902
Filter,Line Noise LGE EAM62712401 Contact Us For Availability
PC902
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC902
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC902
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q105
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q251
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q302
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q303
TR,Bipolar LGE EBK36400001 Contact Us For Availability
Q303
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q308
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q700
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q707
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q902
TRANSISTOR,BIPOLARS LGE 0TRAU90005A Contact Us For Availability
Q951
FET LGE EBK62911801 Contact Us For Availability
Q951
FET LGE EBK62851701 Contact Us For Availability
Q982
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
R5A3
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R5C1
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R5C7
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R113
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R115
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R125
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R165
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R187
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R231
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R239
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R266
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R267
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R270
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R271
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R272
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R303
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R306
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R318
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R322
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R531
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ0482C477 Contact Us For Availability
R557
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R706
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R717
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R743
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R756
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R902
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD0221F608 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R931
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD0472F608 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R936
Resistor,Carbon Film LGE 0RD3303F608 Contact Us For Availability
R941
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R943
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R945
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R947
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R951
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD0681F608 Contact Us For Availability
R961
Resistor,Metal Film LGE 0RN2201F408 Contact Us For Availability
R962
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R964
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R965
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R966
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R968
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R969
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R982
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R983
RESISTOR,FIXED METAL FILM LGE 0RN2202F408 Contact Us For Availability
R984
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R985
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R986
Resistor,Metal Film LGE 0RN5601F408 Contact Us For Availability
R987
Resistor,Metal Film LGE 0RN3901F408 Contact Us For Availability
R990
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
RA108
Resistor,Array LGE EBC32260601 Contact Us For Availability
RC301
Receiver Module LGE EAV61333201 Contact Us For Availability
SW307
Switch,Tact LGE EBF60934601 Contact Us For Availability
SW307
Switch,Tact LGE 6600R000005 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770129 Contact Us For Availability
T902
Transformer,Switching LGE EBJ62630101 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TM700
Connector,Terminal Block LGE EAG63374010 Contact Us For Availability
TUN201
Tuner,Analog LGE EBL60740004 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR72912705 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR72912706 Contact Us For Availability
WIRE70
PCB Assembly,Sub LGE EBR72912703 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR72912701 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR72912702 Contact Us For Availability
X501
Crystal LGE EAW62583501 Contact Us For Availability
X602
Crystal LGE EAW62583505 Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD914
DIODE,ZENERS LGE 0DZGD00073A Contact Us For Availability
ZD951
Diode,Zener LGE 0DZ270009BD Contact Us For Availability
ZD981
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
× ![]()
Login and Registration Form
