Model LG LHB335 – Common Parts & Diagrams
Diagram 0
Diagram 1

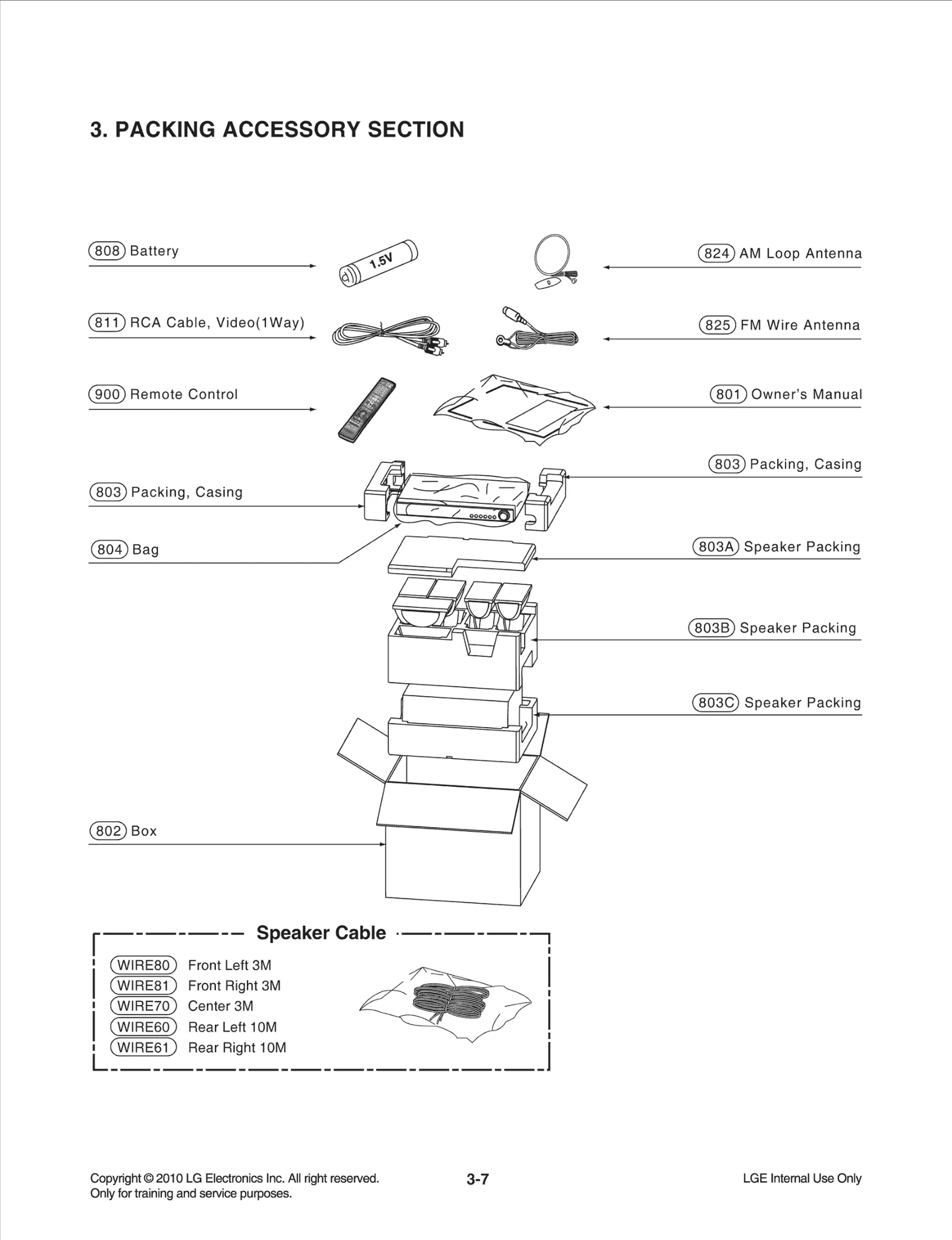

Diagram 2

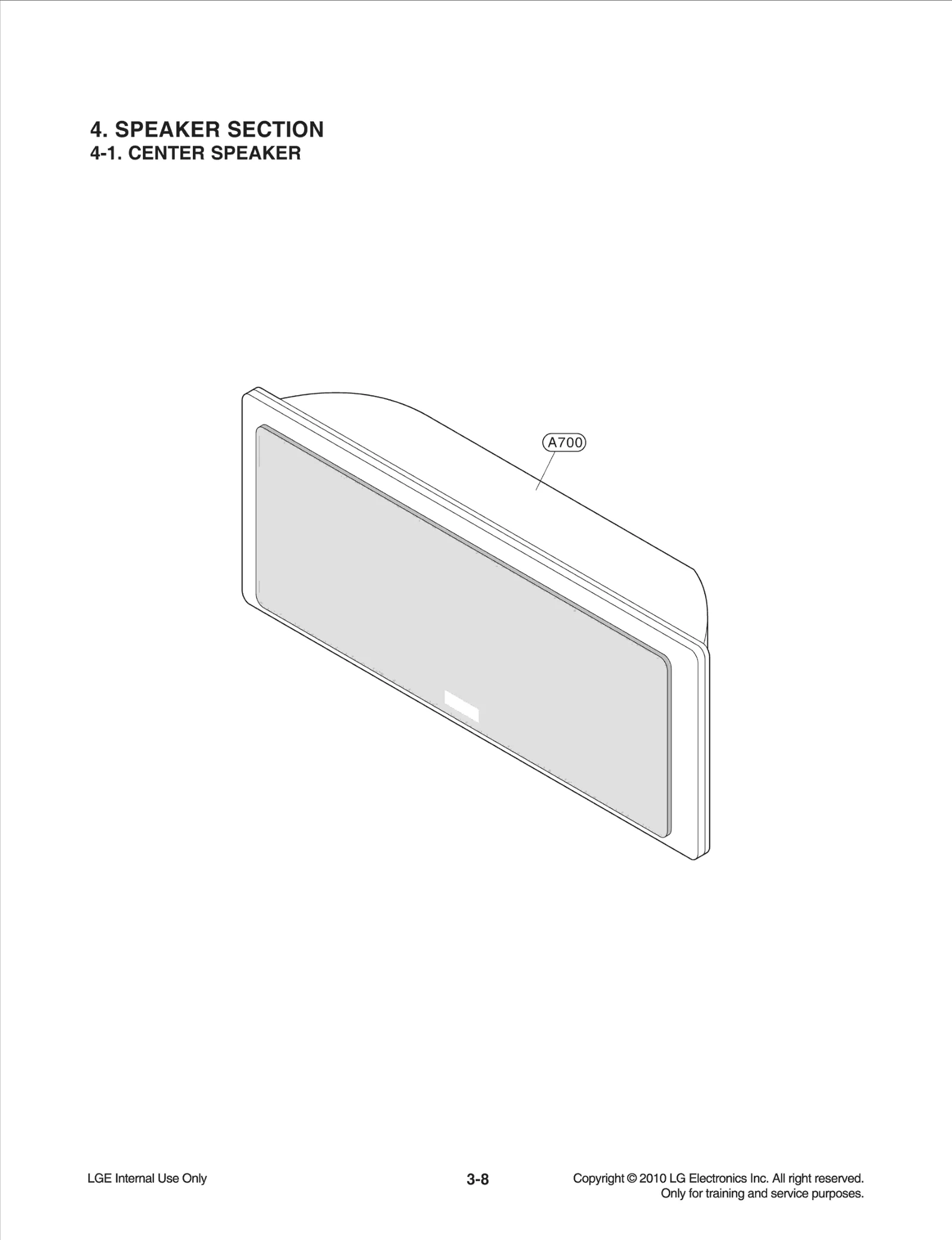

Diagram 3

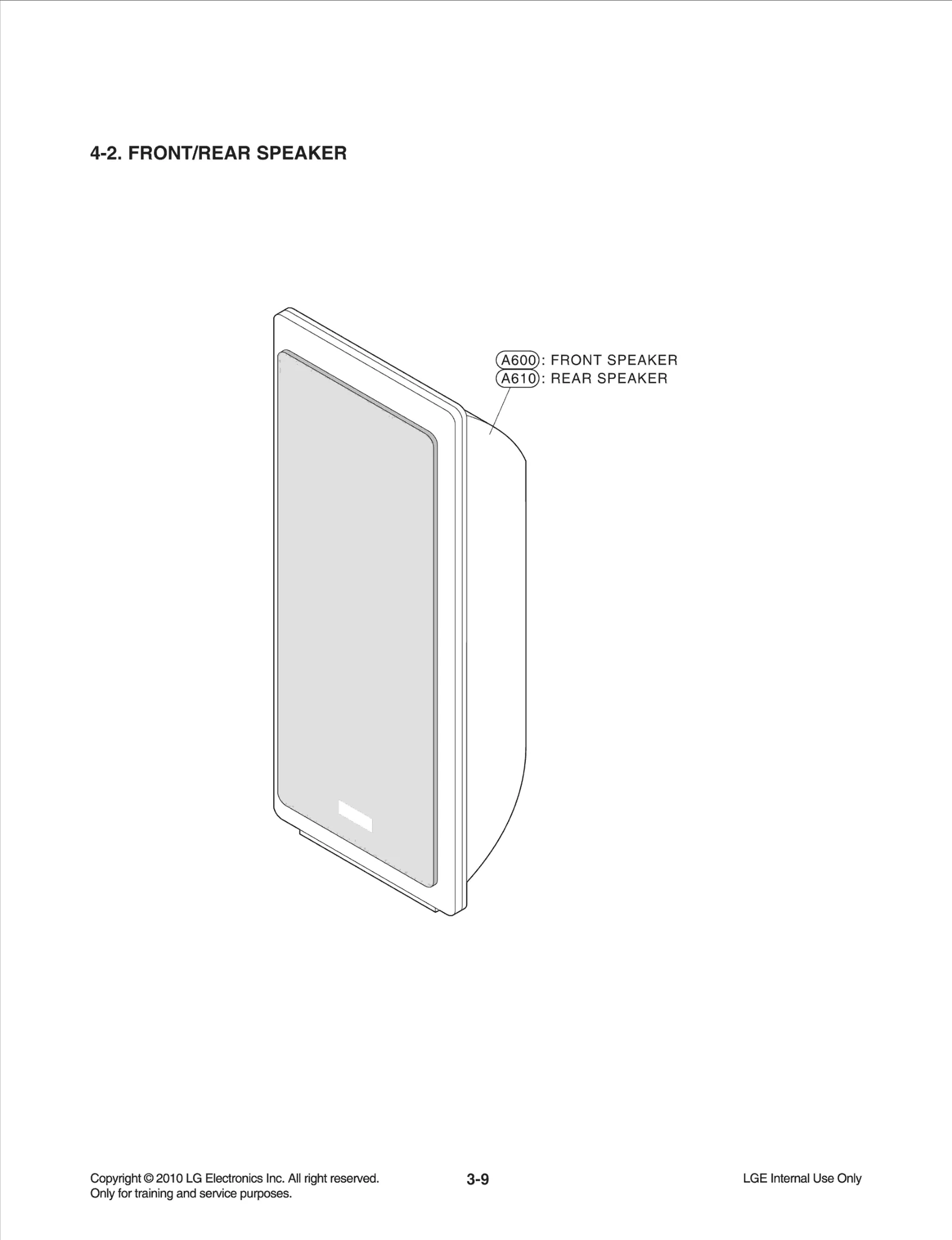

Diagram 4

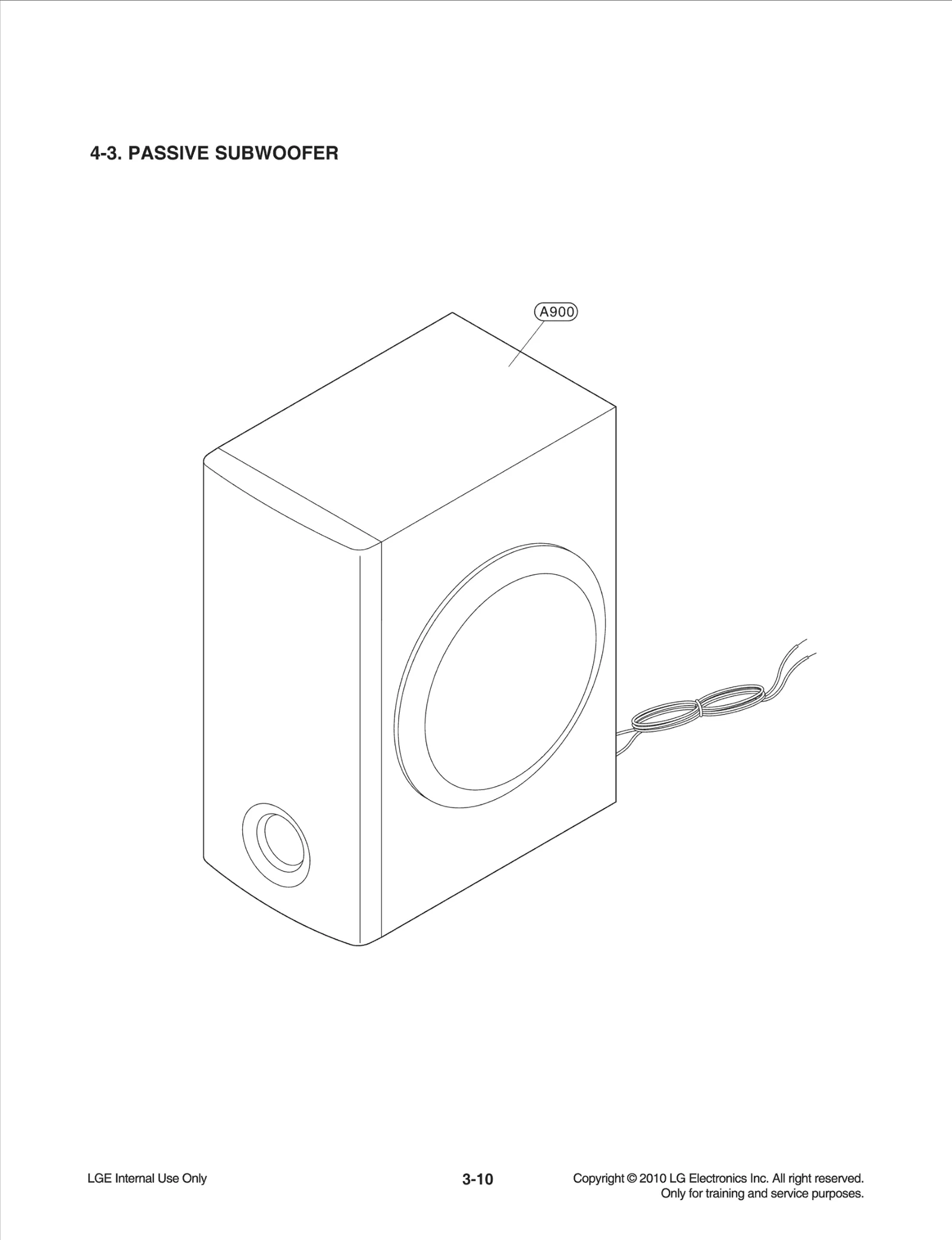

Diagram 5
Diagram 6
Common parts from model LG LHB335
250
Cover LGE MCK62787304 Contact Us For Availability
260
Chassis LGE MBS61845001 Contact Us For Availability
261
RUBBER LGE 5040R-0069X Contact Us For Availability
262
Gasket LGE MDS61951107 Contact Us For Availability
264
Cover LGE MCK63314101 Contact Us For Availability
265
Fan Module LGE EAL60658102 Contact Us For Availability
268
Holder LGE MEG58371702 Contact Us For Availability
269
Holder LGE MEG61895901 Contact Us For Availability
270
Gasket LGE MDS61951105 Contact Us For Availability
271
Gasket LGE MDS61951106 Contact Us For Availability
272
Damper LGE MCQ63084901 Contact Us For Availability
273
Damper LGE MCQ63084902 Contact Us For Availability
275
PLATE LGE 3300RCH001B Contact Us For Availability
276
Damper LGE 4850RL0002J Contact Us For Availability
277
Damper LGE MCQ63106601 Contact Us For Availability
278
Cover LGE MCK63309501 Contact Us For Availability
279
Knob LGE MEY61853201 Contact Us For Availability
281
Cover LGE MCK62787001 Contact Us For Availability
282
Holder LGE MEG61895601 Contact Us For Availability
283
Holder Assembly LGE 4931R-0114B Contact Us For Availability
300
Power Cord LGE EAD60816611 Contact Us For Availability
320
Panel,Rear LGE MGC61877006 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
479
SCREW,DRAWING LGE 1SZZR-0098D Contact Us For Availability
480
Screw,Customized LGE 353-100AAAA Contact Us For Availability
484
Screw,Customized LGE 353-025W Contact Us For Availability
801
Manual Assembly,Owners LGE AFN73278497 Contact Us For Availability
802
Box,Master LGE MAY62810101 Contact Us For Availability
803
Packing LGE MFZ47047397 Contact Us For Availability
803A
Packing LGE MFZ62092717 Contact Us For Availability
803B
Packing LGE MFZ62092718 Contact Us For Availability
803C
Packing LGE MFZ62092719 Contact Us For Availability
804
Bag LGE 3880SCS001E Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
824
Antenna,Loop LGE EAA56672101 Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
900
Remote Controller Assembly LGE AKB72976005 Contact Us For Availability
1001
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1002
Cover LGE MCK62126201 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1006
Cover LGE MCK30125801 Contact Us For Availability
1011
Base LGE MAM61847301 Contact Us For Availability
1012
Guide LGE MEA61856701 Contact Us For Availability
1013
Gear - loc 1017 LGE MDT30123101 Contact Us For Availability
1015
Belt LGE 4400H-1014D Contact Us For Availability
1016
Gear LGE MDT61842401 Contact Us For Availability
1017
Gear LGE MDT61842301 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM61862701 Contact Us For Availability
1024
Damper LGE MCQ62066401 Contact Us For Availability
1025
Damper LGE MCQ62066402 Contact Us For Availability
1026
Tray LGE MJS61851201 Contact Us For Availability
1030
Cable,FFC LGE EAD56949607 Contact Us For Availability
1031
Cable,FFC LGE EAD57536607 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD43082702 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61021101 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ54166606 Contact Us For Availability
1431
SCREW, LGE 1SZZR-0011A Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
SCREW,DRAWING LGE 1SZZH-1003E Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ65103213 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR40307106 Contact Us For Availability
A006
PCB Assembly LGE EBR52819479 Contact Us For Availability
A41
PCB Assembly LGE EBR65262502 Contact Us For Availability
A43
Panel Assembly LGE AGL72995405 Contact Us For Availability
A44
Frame Assembly LGE ADV73205706 Contact Us For Availability
A45
PCB Assembly LGE EBR65262301 Contact Us For Availability
A45
PCB Assembly LGE EBR71655301 Contact Us For Availability
A46
Option Code Assembly LGE EBR65612701 Contact Us For Availability
A47
SMPS,AC/DC LGE EAY60911902 Contact Us For Availability
A48
PCB Assembly LGE EBR65262601 Contact Us For Availability
A50
PCB Assembly LGE EBR65262401 Contact Us For Availability
A60
Deck Assembly,DVD LGE EAZ54850455 Contact Us For Availability
A600
Speaker Assembly LGE EAB61269901 Contact Us For Availability
A610
Speaker Assembly LGE EAB61270001 Contact Us For Availability
A700
Speaker Assembly LGE EAB61269801 Contact Us For Availability
A900
Speaker Assembly LGE EAB61270101 Contact Us For Availability
C1C8
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C1E6
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C2F3
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C3A1
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
C5R2
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C6C2
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C6D5
CAPACITOR,FIXED CERA LGE 0CH1221K562 Contact Us For Availability
C6E8
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C7A2
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C7B2
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C7B8
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C7C1
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C205
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C211
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C221
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C245
CAPACITOR,FIXED CERA LGE 0CH1105K946 Contact Us For Availability
C249
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C259
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C285
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C305
CAPACITOR,FIXED TANT LGE 0CS476IF6DC Contact Us For Availability
C309
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C313
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C512
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C524
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C547
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C565
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C655
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C723
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C750
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
C770
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C774
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
C779
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C787
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C884
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
CA102
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
CA200
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
CA217
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
CA402
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
CA407
Capacitor,AL,Chip LGE EAE56703201 Contact Us For Availability
CA506
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
CA514
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CA806
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD43155305 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD41672704 Contact Us For Availability
CABLE3
Harness,Single LGE EAD33638803 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD38401403 Contact Us For Availability
CABLE5
Harness,Single LGE EAD42218211 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD57337504 Contact Us For Availability
CF812
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
CN3P1
Connector,FFC/FPC/PIC LGE 6630R-FB11N Contact Us For Availability
CN103
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN150
WAFER LGE 6602T25008J Contact Us For Availability
CN202
Connector,FFC/FPC/PI LGE 6630R-FB11I Contact Us For Availability
CN203
Connector,Wafer LGE 561-712D Contact Us For Availability
CN250
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00126 Contact Us For Availability
CN253
Connector,Wafer LGE 6630V90135B Contact Us For Availability
CN306
CONNECTOR (CIRC),HOUSING LGE 561-712G Contact Us For Availability
CN307
Connector,FFC/FPC/PIC LGE 6630R-FB06Z Contact Us For Availability
CN331
Connector,Wafer LGE 6630V90135A Contact Us For Availability
CN401
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00122 Contact Us For Availability
CN402
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
CN501
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
CN602
CONNECTOR (CIRC),BOA LGE 6630R-BF072 Contact Us For Availability
CN701
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
D301
Diode,Schottky LGE 0DSON00098A Contact Us For Availability
D801
DIODE,SWITCHING LGE 0DSON00058A Contact Us For Availability
DIS301
VFD LGE EAJ60868401 Contact Us For Availability
FC802
Filter,EMI/Power LGE SFEY0008901 Contact Us For Availability
IC101A
S/W,System Program LGE SAA34984601 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN60772201 Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN60911601 Contact Us For Availability
IC151
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC154
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC201
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC203
IC,Isolation Amplifier LGE EAN60153201 Contact Us For Availability
IC250
IC,Power Driver LGE 0ILNRMT003A Contact Us For Availability
IC251
IC,Video Amplifier LGE EAN40084701 Contact Us For Availability
IC253
IC,Video Amplifier LGE EAN40083901 Contact Us For Availability
IC254
IC,Isolation Amplifier LGE EAN60668301 Contact Us For Availability
IC301
IC,Display Driver LGE EAN41678501 Contact Us For Availability
IC401
IC,Digital Signal Processors LGE EAN60899601 Contact Us For Availability
IC402
IC,SDRAM LGE 0IMMREB004G Contact Us For Availability
IC402
IC,SDRAM LGE 0IMMREO001E Contact Us For Availability
IC403A
S/W,System Program LGE SAA34984801 Contact Us For Availability
IC500
IC,Video Processors LGE EAN60908901 Contact Us For Availability
IC501A
S/W,System Program LGE SAA34984502 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN60899001 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN60968001 Contact Us For Availability
IC508
IC,I/O Support Chip LGE EAN42565602 Contact Us For Availability
IC509
IC,DDR3 SDRAM LGE EAN60967901 Contact Us For Availability
IC509
IC,DDR3 SDRAM LGE EAN60898901 Contact Us For Availability
IC601
IC,Voltage Regulator LGE EAN60918501 Contact Us For Availability
IC602
IC,D/A Converter LGE EAN60920801 Contact Us For Availability
IC610
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC611
IC,LDO Voltage Regulator LGE EAN34180901 Contact Us For Availability
IC703
IC,Power Amplifier LGE EAN60995901 Contact Us For Availability
IC801
IC,Tx/Rx LGE EAN60923601 Contact Us For Availability
IC802
IC,LDO Voltage Regulator LGE EAN60989401 Contact Us For Availability
IC803
IC,Voltage Regulator LGE EAN61012301 Contact Us For Availability
IC803
IC,LDO Voltage Regul LGE EAN37068001 Contact Us For Availability
IC806
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC811
IC,CMOS LGE EAN60070301 Contact Us For Availability
JK2U3
Connector,USB LGE EAG35130502 Contact Us For Availability
JK2U4
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK3P1
Connector,I/O LGE EAG42342401 Contact Us For Availability
JK204
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK250
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK251
Jack,RCA LGE EAG61072101 Contact Us For Availability
JK701
Connector,Terminal Block LGE 6640000070D Contact Us For Availability
JK801
Connector,DSUB LGE EAG40562101 Contact Us For Availability
L2U2
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L151
Inductor,Wire Wound,Chip LGE EAP60966001 Contact Us For Availability
L216
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L221
Filter,Bead LGE 0LCCE00004Y Contact Us For Availability
L253
Inductor,Multilayer,Chip LGE EAP36125901 Contact Us For Availability
L500
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L704
Coil,RF LGE 6140RCC008A Contact Us For Availability
PN301
Harness,Single LGE EAD34877403 Contact Us For Availability
Q303
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q304
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q701
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q702
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R1A1
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R1A4
Resistor,Chip LGE 0RH1302C622 Contact Us For Availability
R1A5
Resistor,Chip LGE 0RH8203C622 Contact Us For Availability
R1A8
Resistor,Chip LGE 0RH1502C422 Contact Us For Availability
R1C1
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R1C2
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R1C3
Resistor,Chip LGE 0RH2492C422 Contact Us For Availability
R1C5
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
R1C6
Resistor,Chip LGE 0RJ0332C477 Contact Us For Availability
R1C7
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R1C9
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R2A4
Resistor,Chip LGE EBC32554903 Contact Us For Availability
R2A8
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R2C0
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R2E0
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R2E3
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R2U2
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R2U5
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R2U6
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R3P09
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R3P1
Resistor,Chip LGE EBC36543501 Contact Us For Availability
R3P7
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R3P10
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R5F3
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R163
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R190
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R234
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R250
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R330
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R337
Resistor,Chip LGE 0RH3002C622 Contact Us For Availability
R345
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R346
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R347
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R350
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R367
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R369
Resistor,Chip LGE 0RJ7500C477 Contact Us For Availability
R370
RESISTOR,METAL GLAZE LGE 0RH2400C622 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ2210C477 Contact Us For Availability
R404
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R407
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R432
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R433
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R519
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R528
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ1241C477 Contact Us For Availability
R560
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R564
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R572
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R587
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R619
Resistor,Chip LGE 0RH6200C622 Contact Us For Availability
R625
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R632
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R637
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R647
Resistor,Chip LGE 0RH2402C622 Contact Us For Availability
R653
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R665
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R704
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R715
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R738
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R767
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R768
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R772
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R802
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R803
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R804
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R805
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R839
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R844
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R845
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
R846
Resistor,Chip LGE EBC35243001 Contact Us For Availability
R861
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
RC01
Receiver Module LGE 6712R1638GD Contact Us For Availability
SC706
Capacitor,Ceramic,Chip LGE 0CH1475D946 Contact Us For Availability
SC710
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
SC736
CAPACITOR,FIXED CERA LGE 0CK225CF94A Contact Us For Availability
SC737
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
SC739
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
SCA702
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
SCA704
Capacitor,AL,Chip LGE EAE33602601 Contact Us For Availability
SCA709
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
SCN701
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
SCN702
Connector,FFC/FPC/PIC LGE 6630XE00106 Contact Us For Availability
SCN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
SIC704
IC,Motor Driver LGE EAN60732801 Contact Us For Availability
SIC705
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
SIC706
IC,LINEAR LGE 0ILNRUC003A Contact Us For Availability
SIC710
IC,LDO Voltage Regulator LGE EAN60686001 Contact Us For Availability
SL725
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
SQ710
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
SQ714
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
SQ716
TR,Bipolar LGE EBK33822201 Contact Us For Availability
SR7A9
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
SR702
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
SR705
RESISTOR,METAL GLAZE LGE 0RH1101C422 Contact Us For Availability
SR706
Resistor,Chip LGE 0RH3600C622 Contact Us For Availability
SR724
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
SR736
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
SR740
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
SR756
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
SR760
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
SR762
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
SR767
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
SR769
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
SR779
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
SR786
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
SR793
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
SW302
Switch,Tact LGE 6600R000005 Contact Us For Availability
TH701
Thermistor,NTC LGE 6322A00017A Contact Us For Availability
TUN01
Tuner,Analog LGE EBL60739901 Contact Us For Availability
VOL301
Switch,Encoder LGE 6110E00019G Contact Us For Availability
WIRE60
PCB Assembly,Sub LGE EBR61173105 Contact Us For Availability
WIRE61
PCB Assembly,Sub LGE EBR61173106 Contact Us For Availability
WIRE70
PCB Assembly,Sub LGE EBR61173103 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR61173101 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR61173102 Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X500
Crystal LGE EAW32919201 Contact Us For Availability
X802
RESONATOR,CRYSTAL LGE 6212AB2286K Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD253
Diode,TVS LGE EAH54696501 Contact Us For Availability
× ![]()
Login and Registration Form
