Model LG LHB306 – Common Parts & Diagrams

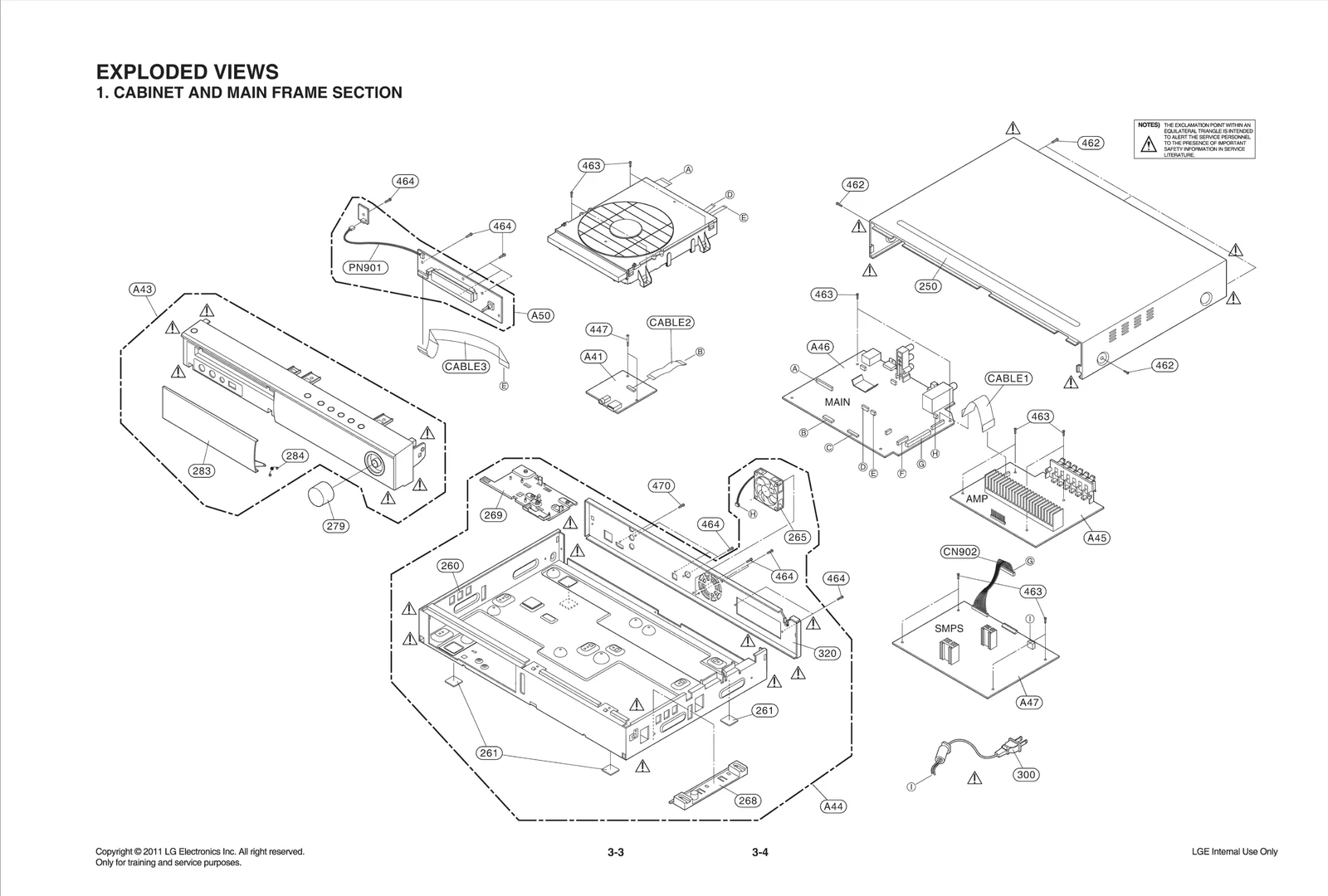

Diagram 0

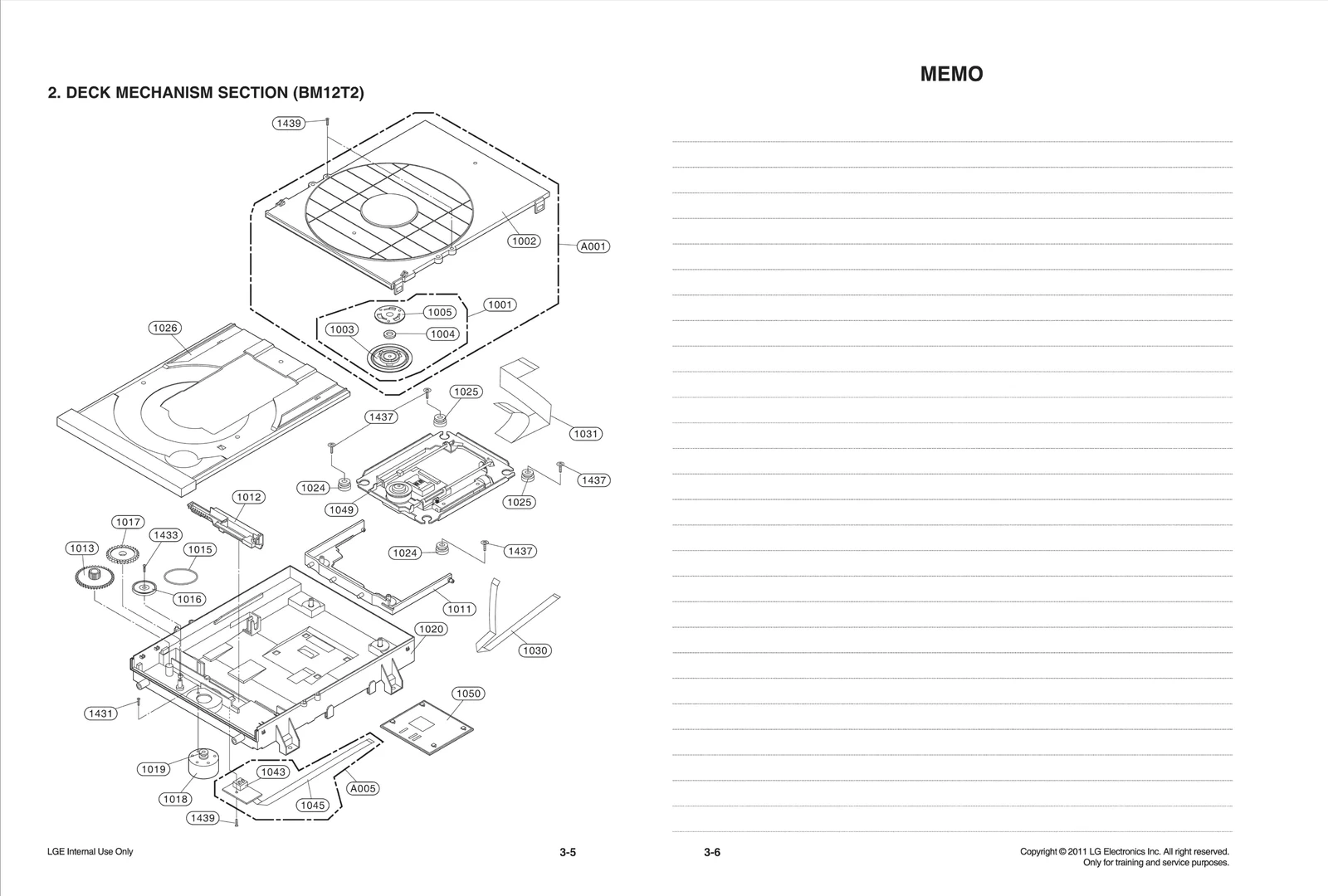

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG LHB306
250
Case LGE MBN61929504 Contact Us For Availability
260
Chassis LGE MBS61886005 Contact Us For Availability
261
RUBBER LGE 5040R-0069X Contact Us For Availability
265
Fan Module LGE EAL60920902 Contact Us For Availability
268
Holder LGE MEG62058901 Contact Us For Availability
269
Holder LGE MEG62520201 Contact Us For Availability
279
Knob LGE MEY62194401 Contact Us For Availability
283
Door LGE MCV62174204 Contact Us For Availability
284
Spring LGE MHY62024201 Contact Us For Availability
300
Power Cord LGE EAD60816612 Contact Us For Availability
320
Panel,Rear LGE MGC61949059 Contact Us For Availability
447
Screw,Customized LGE 353-025P Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75512431 Contact Us For Availability
802
Box,Master LGE MAY65251003 Contact Us For Availability
803
Packing LGE MFZ62138927 Contact Us For Availability
803A
Packing LGE MFZ62593445 Contact Us For Availability
803B
Packing LGE MFZ62593446 Contact Us For Availability
803C
Packing LGE MFZ62593447 Contact Us For Availability
803D
Packing LGE MFZ62593448 Contact Us For Availability
804
Bag LGE 292-053A Contact Us For Availability
808
Dry Cell Battery LGE EAC44080001 Contact Us For Availability
808
Battery,Manganese LGE 6910F00010B Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
832
Title LGE SAC35213905 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73315301 Contact Us For Availability
1001
Clamp Assembly LGE ACA65103311 Contact Us For Availability
1002
Cover LGE MCK66030402 Contact Us For Availability
1003
Clamp LGE MBU51178201 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB31561501 Contact Us For Availability
1005
PLATE LGE 3300R-D049A Contact Us For Availability
1011
Base LGE MAM62246401 Contact Us For Availability
1012
Guide LGE MEA62411101 Contact Us For Availability
1013
Gear LGE MDT62067301 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT61842401 Contact Us For Availability
1017
Gear LGE MDT62067401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM62225801 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62172101 Contact Us For Availability
1030
Cable,FFC LGE EAD61049007 Contact Us For Availability
1031
Cable,FFC LGE EAD61048210 Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD54155311 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61244801 Contact Us For Availability
1049
Traverse Assembly LGE EAZ61122502 Contact Us For Availability
1050
Cover LGE MCK66014301 Contact Us For Availability
1431
SCREW, LGE 1SZZR-0011A Contact Us For Availability
1433
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
1437
Screw,Customized LGE FAB30840501 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ84674501 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR72679501 Contact Us For Availability
A41
PCB Assembly LGE EBR73092001 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL73473630 Contact Us For Availability
A44
Frame Assembly LGE ADV73846714 Contact Us For Availability
A45
PCB Assembly LGE EBR73092601 Contact Us For Availability
A46
Option Code Assembly LGE EBR73101992 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR72658303 Contact Us For Availability
A50
PCB Assembly,Front LGE EBR73092301 Contact Us For Availability
A600
Sub Set-Speaker System LGE TCG35148015 Contact Us For Availability
A600
LGE EAB62293701 LGE EAB62293701 Contact Us For Availability
A700
LGE EAB62293801 LGE EAB62293801 Contact Us For Availability
A700
Sub Set-Speaker System LGE TCG35148017 Contact Us For Availability
A800
Speaker Assembly LGE EAB62293601 Contact Us For Availability
A800
Sub Set-Speaker System LGE TCG35148016 Contact Us For Availability
A900
Sub Set-Speaker System LGE TCG35148020 Contact Us For Availability
A900
LGE EAB61328701 LGE EAB61328701 Contact Us For Availability
AC7A1
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
AC7A3
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
AC7A5
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
AC7B5
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
AC633
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
AC660
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
AC713
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
AC715
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
AC718
Capacitor,Ceramic,Chip LGE 0CH1101K965 Contact Us For Availability
AC720
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
AC750
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
AC762
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
AC797
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
ACN602
CONNECTOR (CIRC),BOA LGE 6630R-BF072 Contact Us For Availability
AIC603
IC,PWM Controller LGE EAN60993101 Contact Us For Availability
AIC701
IC,Power Amplifier LGE EAN60995802 Contact Us For Availability
AJK701
Connector,Terminal Block LGE 6640000070D Contact Us For Availability
AL717
Coil,RF LGE 6140RCC008A Contact Us For Availability
AR604
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
AR662
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
AR715
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
AR720
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
AR741
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
AR769
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
AR772
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
ATH601
Thermistor,NTC LGE 6322A00017A Contact Us For Availability
AX602
Crystal LGE 6212AA2192G Contact Us For Availability
BD901
Diode,Bridge LGE EAH31952201 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRVH00060A Contact Us For Availability
C2G6
Capacitor,Ceramic,Axial LGE 0CN6820F668 Contact Us For Availability
C127
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C224
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C226
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C234
Capacitor,Ceramic,Chip LGE 0CK221BK56A Contact Us For Availability
C242
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
C243
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C245
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE EAE35701401 Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE 0CH1682K566 Contact Us For Availability
C323
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
C329
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C344
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C376
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C446
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C568
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C576
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C701
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C706
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C715
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C720
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C733
Capacitor,Ceramic,Ch LGE 0CK104CK66A Contact Us For Availability
C740
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C808
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C901
Capacitor,AL,Radial LGE EAE30396901 Contact Us For Availability
C904
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C904
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C909
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C911
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C912
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C913
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C916
CAPACITOR,FIXED CERA LGE 0CH1221K562 Contact Us For Availability
C916
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C917
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C918
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C920
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C924
Capacitor,Film,DIP LGE 0CQ4711N449 Contact Us For Availability
C942
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C950
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C952
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C956
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C957
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C958
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C959
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C960
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C963
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C964
Capacitor,Ceramic,Axial LGE 0CN1050K948 Contact Us For Availability
CA401
Capacitor,AL,Chip LGE EAE33602601 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD61548301 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD39304207 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD42219416 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN2G1
Connector,FFC/FPC/PIC LGE 6630R-FB05M Contact Us For Availability
CN101
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE 6630R-FB11M Contact Us For Availability
CN301
Connector,Wafer LGE 6602T25008N Contact Us For Availability
CN401
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00122 Contact Us For Availability
CN402
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN701
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN702
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN901
Connector,BtoB LGE 6630R-BF03J Contact Us For Availability
CN902
Harness,Single LGE EAD42218218 Contact Us For Availability
CN907
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
CN931
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
D101
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D401
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D401
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D804
Diode,Switching LGE EAH35293601 Contact Us For Availability
D910
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D913
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D915
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D916
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D951
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D952
Diode,Switching LGE EAH31951401 Contact Us For Availability
D954
DIODE,SWITCHING LGE 0DSKE00141B Contact Us For Availability
D955
Diode,Switching LGE EAH30982402 Contact Us For Availability
DIS901
VFD LGE EAJ60868401 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FR950
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35482201 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN60772201 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC201
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC301
IC,DC,DC Converter LGE EAN61566901 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC303
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC401
IC,Digital Signal Processors LGE EAN61489101 Contact Us For Availability
IC402
IC,SDRAM LGE 0IMMREO001E Contact Us For Availability
IC403A
S/W,System Program LGE SAA35482401 Contact Us For Availability
IC501
IC,Video Processors LGE EAN61867701 Contact Us For Availability
IC502
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC502
IC,CMOS LGE EAN61130301 Contact Us For Availability
IC602
IC,DDR3 SDRAM LGE EAN60899001 Contact Us For Availability
IC602
IC,DDR3 SDRAM LGE EAN61857101 Contact Us For Availability
IC602
IC,DDR3 SDRAM LGE EAN61857201 Contact Us For Availability
IC604A
S/W,System Program LGE SAA35482101 Contact Us For Availability
IC701
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC702
IC,Motor Driver LGE EAN60732801 Contact Us For Availability
IC703
IC,Motor Driver LGE EAN56680501 Contact Us For Availability
IC901
IC,Display Driver LGE EAN41678501 Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00044A Contact Us For Availability
IC901
IC,HIC LGE 0IPMGSK021A Contact Us For Availability
IC902
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE EAN60921401 Contact Us For Availability
IC951
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC952
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC952
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK2D3
Connector,USB LGE EAG35130502 Contact Us For Availability
JK2D4
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK801
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK802
Connector,DSUB LGE EAG55468503 Contact Us For Availability
JK802
Connector,DSUB LGE EAG55468501 Contact Us For Availability
JK803
JACK,RCA LGE 6612J00056A Contact Us For Availability
JK804
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK806
Tuner,Analog LGE EBL60720802 Contact Us For Availability
L2D9
Filter,Bead LGE EAM56488801 Contact Us For Availability
L103
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L201
Inductor,Multilayer,Chip LGE EAP43931505 Contact Us For Availability
L201
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L221
Filter,Bead LGE 0LCCE00004Y Contact Us For Availability
L221
Filter,Bead LGE EAM60887102 Contact Us For Availability
L306
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L306
Inductor,Wire Wound,Chip LGE EAP61206101 Contact Us For Availability
L309
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
L801
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L803
Inductor,Multilayer,Chip LGE EAP43931509 Contact Us For Availability
L803
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L907
Filter,Bead LGE EAM42641607 Contact Us For Availability
L951
COIL,CHOKE LGE 633-088G Contact Us For Availability
L951
Coil,Choke LGE EAP60792101 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM60672505 Contact Us For Availability
PC901
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PL201
Plate LGE 3300R-D020A Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
PN901
Harness,Single LGE EAD34877405 Contact Us For Availability
Q107
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q401
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q402
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q702
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q705
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
Q900
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q900
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q953
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q953
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q955
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
R2G8
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R151
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R174
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R189
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R191
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R212
Resistor,Chip LGE 0RH3902C422 Contact Us For Availability
R220
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R234
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R303
Resistor,Chip LGE 0RH2001C422 Contact Us For Availability
R305
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R310
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
R311
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R314
RESISTOR,METAL GLAZE LGE 0RH1101C422 Contact Us For Availability
R324
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R328
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
R332
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R333
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R338
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R405
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R412
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R433
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ4300C677 Contact Us For Availability
R450
Resistor,Chip LGE 0RH2002C422 Contact Us For Availability
R451
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R452
Resistor,Chip LGE 0RH2201C422 Contact Us For Availability
R518
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R519
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R535
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R538
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
R551
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R567
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R635
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R722
Resistor,Chip LGE 0RH4700B622 Contact Us For Availability
R723
Resistor,Chip LGE 0RH0392C622 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R727
Resistor,Chip LGE 0RJ1200C477 Contact Us For Availability
R729
Resistor,Chip LGE 0RJ7500C477 Contact Us For Availability
R750
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R757
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R805
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R807
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R910
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R914
Resistor,Carbon Film LGE 0RD0221F608 Contact Us For Availability
R915
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R916
Resistor,Carbon Film LGE 0RD5602F608 Contact Us For Availability
R917
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R918
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R920
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R931
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R937
Resistor,Chip LGE 0RH3002C622 Contact Us For Availability
R945
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R946
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R947
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R948
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R949
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R950
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R954
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R957
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R958
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R959
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R961
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R962
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R963
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R964
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R965
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R967
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R968
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R969
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R970
Resistor,Metal Film LGE 0RN6801F408 Contact Us For Availability
R973
Resistor,Metal Film LGE 0RN2201F408 Contact Us For Availability
R975
Resistor,Carbon Film LGE 0RD3303F608 Contact Us For Availability
RC91
Receiver Module LGE EAV51497202 Contact Us For Availability
RN802
Resistor,Array LGE EBC41813701 Contact Us For Availability
SW904
Switch,Tact LGE 6600R000005 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770129 Contact Us For Availability
T902
Transformer,Switching LGE EBJ60770130 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
VOL901
VOLUME,ENCODER LGE 6110E00018A Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WIRE90
PCB Assembly,Sub LGE EBR72896214 Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X501
Crystal LGE EAW60673001 Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD912
Diode,Zener LGE 0DZ330009CA Contact Us For Availability
ZD912
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD913
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD913
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD950
Diode,Zener LGE 0DZ270009BD Contact Us For Availability
× ![]()
Login and Registration Form
