Model LG LH-T9654S – Common Parts & Diagrams
Diagram 0
Diagram 1

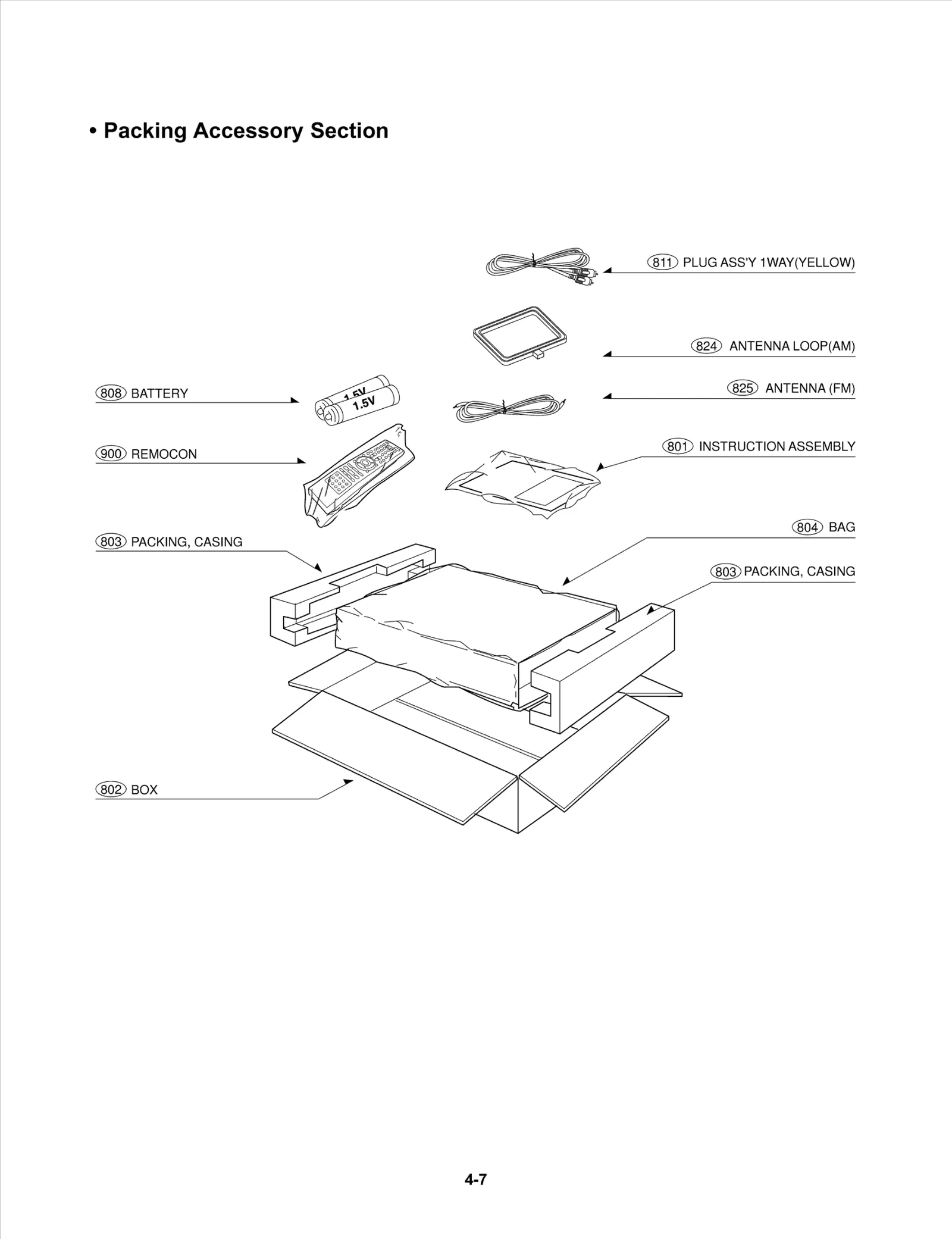

Diagram 2

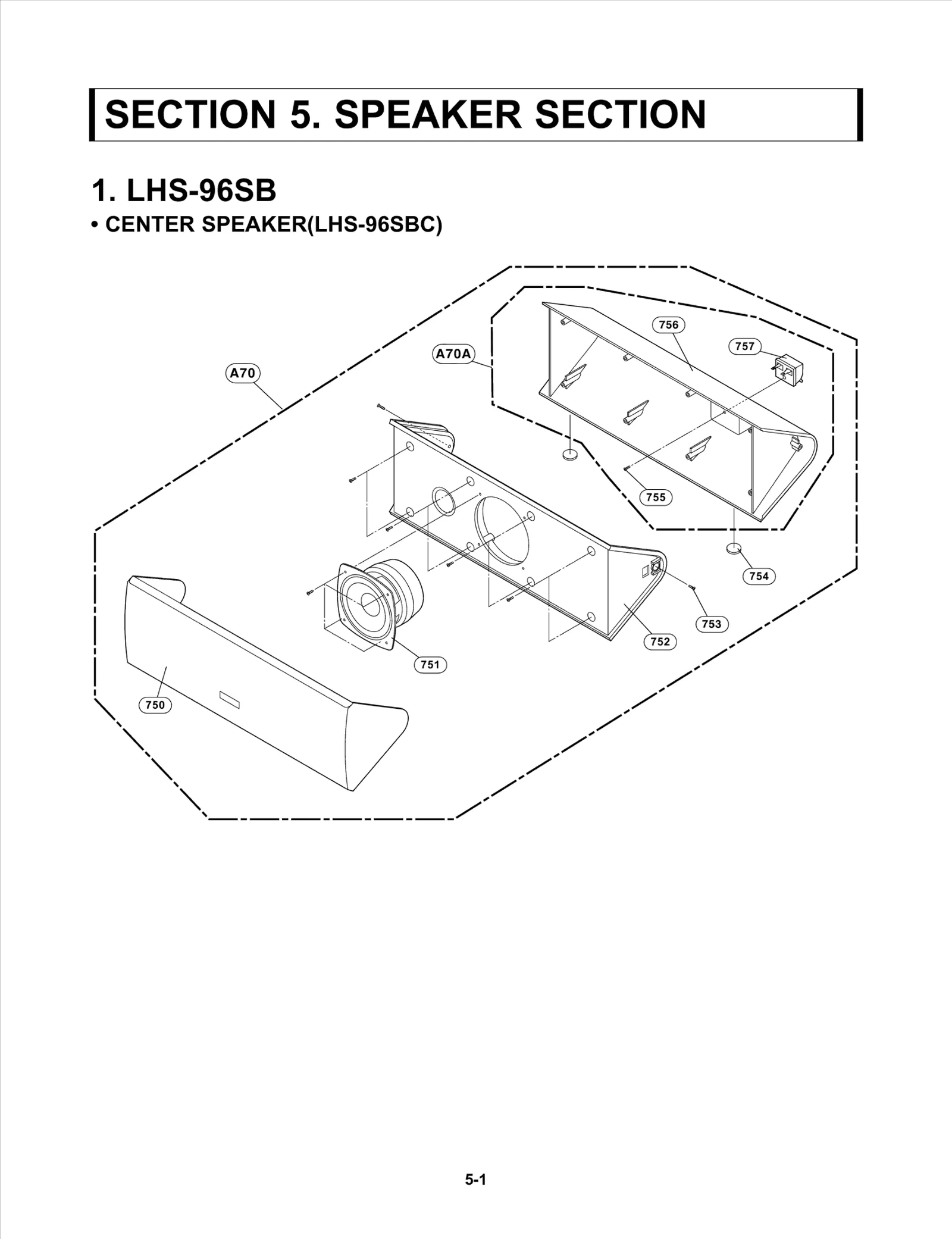

Diagram 3

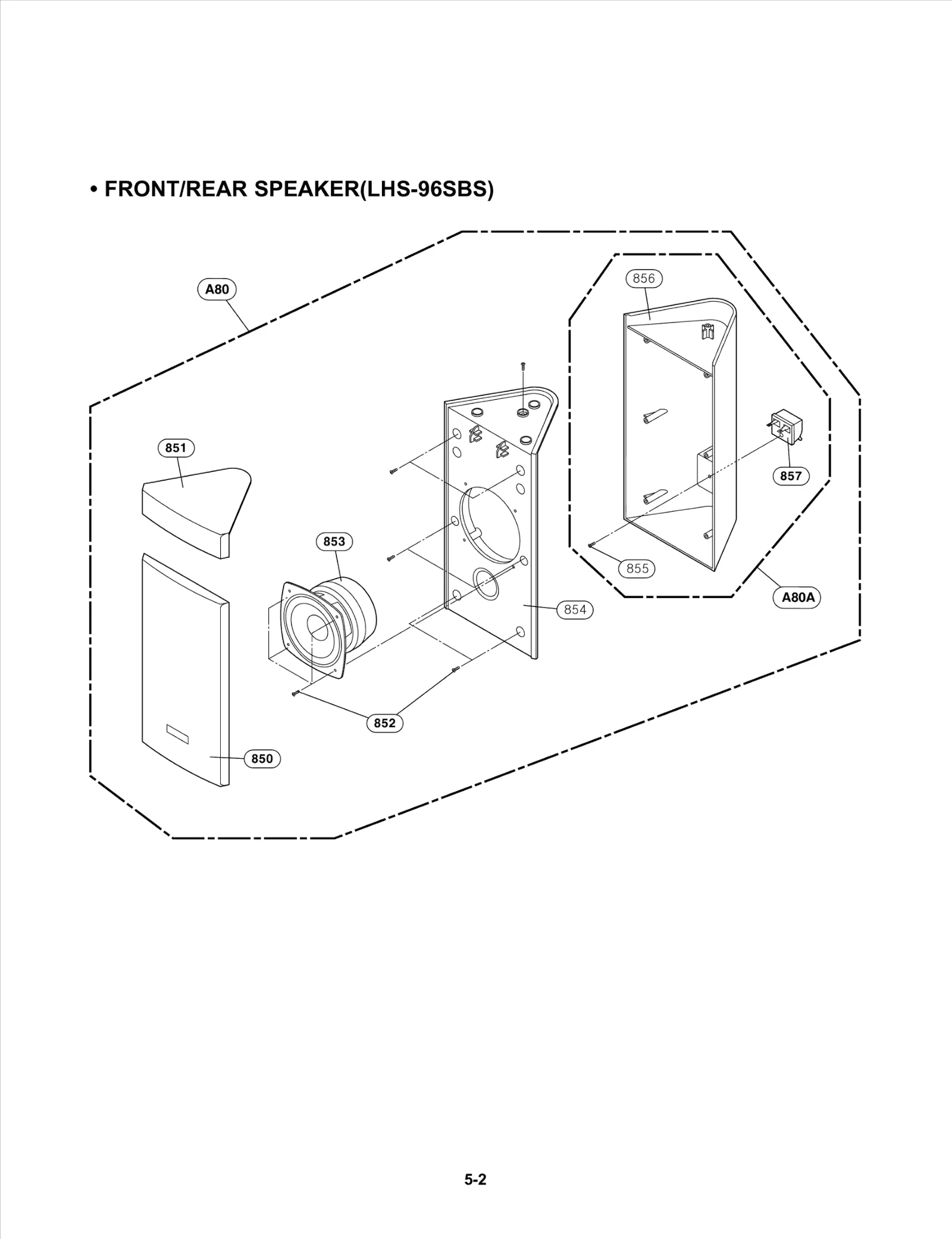

Diagram 4
Diagram 5
Diagram 6
Common parts from model LG LH-T9654S
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
010
Cable,FFC LGE 6850R-JW14D Contact Us For Availability
012
RUBBER LGE 5040R-0083A Contact Us For Availability
012A
RUBBER LGE 5040R-0110A Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
MOTOR ASSEMBLY LGE 4681R-A015A Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015A
Motor,DC LGE EAU43506801 Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PWB(PCB) ASSEMBLY,TO LGE 6871R-9297A Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0067A Contact Us For Availability
019
FRAME LGE 3210R-M008A Contact Us For Availability
020
BASE LGE 3040R-M066A Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009C Contact Us For Availability
024
GEAR LGE 4470R-0179A Contact Us For Availability
025
GEAR LGE 4470R-0178A Contact Us For Availability
026
TRAY LGE 3390R-0033A Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
250
Cover LGE 3090RCT002A Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
264
Holder LGE 4930RC0033A Contact Us For Availability
267
Holder LGE 4930RL1726A Contact Us For Availability
268
Fan Module LGE 5900R-D009D Contact Us For Availability
271
Bracket LGE 4810RC0049A Contact Us For Availability
275
PLATE LGE 3300RCH001B Contact Us For Availability
279
Knob Assembly LGE 4941RL0008C Contact Us For Availability
283
Door LGE 3580RCT045A Contact Us For Availability
300
POWER CORD LGE 6410RAHK06A Contact Us For Availability
320
Panel,Audio LGE 3720RCP061C Contact Us For Availability
321
Sheet LGE 3858RLX010C Contact Us For Availability
330
Chassis LGE 3140RCT003A Contact Us For Availability
430
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
471
Screw,Customized LGE 353-025Q Contact Us For Availability
473
Screw,Customzied LGE 1SZZR-0131A Contact Us For Availability
750
Frame Assembly LGE 3701RM0194A Contact Us For Availability
752
Panel,Front LGE 3720RMF172A Contact Us For Availability
754
Foot LGE 3610RM0092A Contact Us For Availability
756
Case LGE 3110RMP138A Contact Us For Availability
801
Manual Assembly LGE 3835RT0011A Contact Us For Availability
802
Box,Master LGE MAY32146592 Contact Us For Availability
803
Packing LGE 3920R-E203A Contact Us For Availability
804
Bag LGE 3880SCS001E Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
850
Frame Assembly LGE 3701RM0191A Contact Us For Availability
851
Decor LGE 3508RMP148A Contact Us For Availability
852
SCREW,DRAWING LGE 353M025K Contact Us For Availability
853
Speaker,Fullrange LGE 6400GKGC01A Contact Us For Availability
854
Panel,Front LGE 3720RMF173A Contact Us For Availability
855
SCREW LGE 353M025G Contact Us For Availability
856
Case LGE 3110RMP139A Contact Us For Availability
857
PWB(PCB) ASSEMBLY,SU LGE 6871RU4116B Contact Us For Availability
900
Remote Controller LGE 6710CDAK17A Contact Us For Availability
950
Cover LGE 3550RM0070A Contact Us For Availability
951
Decor LGE 3508RMP150A Contact Us For Availability
952
Decor LGE 3508RMP151A Contact Us For Availability
953
SCREW,DRAWING LGE 353M025C Contact Us For Availability
954
Cover LGE 3090RMP125A Contact Us For Availability
955
Foot LGE 3610RM0089A Contact Us For Availability
956
Foot LGE 3610RM0090B Contact Us For Availability
957
Speaker,Tweeter LGE 6400WBHM04A Contact Us For Availability
958
Duct LGE 5208RM0113B Contact Us For Availability
959
PCB Assembly,Sub LGE 6871RU0103A Contact Us For Availability
960
Cover LGE 3550RM0076A Contact Us For Availability
961
Duct LGE 5208RM0114A Contact Us For Availability
962
Duct LGE 5208RM0115A Contact Us For Availability
A00
Deck Assembly,DVD LGE 6721RFD100E Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016B Contact Us For Availability
A02
Base Assembly LGE 3041R-T010A Contact Us For Availability
A03
Base Assembly LGE 3041R-T011A Contact Us For Availability
A43
Panel Assembly,Front LGE 3721RLF590C Contact Us For Availability
A44
Frame Assembly LGE 3141RLT965C Contact Us For Availability
A45
PCB Assembly LGE 6871R-9657B Contact Us For Availability
A46
Option Code Assembly LGE 6885R-7656M Contact Us For Availability
A47
PCB Assembly LGE 6871R-9659B Contact Us For Availability
A48
PCB Assembly LGE 6871R-9658A Contact Us For Availability
A50
PCB Assembly LGE 6871R-9653B Contact Us For Availability
A70
Speaker Assembly LGE 6401RM0316A Contact Us For Availability
A70A
Case Assembly LGE 3111RMP002A Contact Us For Availability
A80
Speaker Assembly LGE 6401RM0317A Contact Us For Availability
A80A
Case Assembly LGE 3111RMP003A Contact Us For Availability
A90
Speaker Assembly LGE 6401RM0318H Contact Us For Availability
A90A
Cover Assembly LGE 3091RMW191C Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
C4D9
CAPACITOR,CHIP[TANTALUM] LGE 0CH7226D621 Contact Us For Availability
C4F5
Capacitor,TA,Niobium LGE 0CH7106F611 Contact Us For Availability
C4F6
CAPACITOR,FIXED TANT LGE 0CS476IF6DC Contact Us For Availability
C4F8
Capacitor,AL,Radial LGE 0CE2276D638 Contact Us For Availability
C4F8
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C4G1
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C4Y5
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C5A4
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C7B2
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C7D6
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C7E0
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C7E7
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C7E9
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C7F3
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
C7F7
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C102
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C106
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C114
Capacitor,AL,Radial LGE 0CE4743K638 Contact Us For Availability
C115
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C117
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C221
Capacitor,AL,Radial LGE 0CE3366F618 Contact Us For Availability
C226
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C228
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C229
Capacitor,Ceramic,Chip LGE 0CH1272K562 Contact Us For Availability
C233
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C241
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C245
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C260
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C266
CAPACITOR,FIXED CERA LGE 0CH1221K562 Contact Us For Availability
C306
Capacitor,AL,Radial LGE 0CE107CK638 Contact Us For Availability
C307
Capacitor,AL,Radial LGE 0CE4766D618 Contact Us For Availability
C315
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C319
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE 0CH1154K946 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C564
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C567
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C580
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C582
Capacitor,TA,Niobium LGE 0CH7476D651 Contact Us For Availability
C586
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH1681K562 Contact Us For Availability
C599
Capacitor,Ceramic,Chip LGE 0CH4080K112 Contact Us For Availability
C618
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C622
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C622
Capacitor,AL,Radial LGE 0CE4775C618 Contact Us For Availability
C629
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE4763H638 Contact Us For Availability
C630
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
C634
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C636
Capacitor,AL,Radial LGE 0CE1063K638 Contact Us For Availability
C645
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C720
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C773
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C775
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C785
Capacitor,AL,Radial LGE 0CE4766H638 Contact Us For Availability
C793
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CZZR00011H Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE476CV611 Contact Us For Availability
C906
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C907
CAPACITOR LGE 624-087B Contact Us For Availability
C908
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C909
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C913
Capacitor,Ceramic,Chip LGE 0CH1472K516 Contact Us For Availability
C914
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C916
Capacitor,Ceramic,Chip LGE 0CH1104K516 Contact Us For Availability
C918
CAPACITOR,FIXED CERA LGE 0CH1473K566 Contact Us For Availability
C921
Capacitor,Ceramic,Ch LGE 0CH1391K566 Contact Us For Availability
C922
CAPACITOR LGE 624-087D Contact Us For Availability
C931
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C937
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C938
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C939
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C941
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C944
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C947
Capacitor,Ceramic,Ch LGE EAE30962801 Contact Us For Availability
C948
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C954
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
CABLE1
CABLE,FLAT LGE 6850R-G406A Contact Us For Availability
CABLE2
Cable,FFC LGE 6850R-GT26W Contact Us For Availability
CF4D2
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
CF218
Filter,LCR LGE 6200JB8010V Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03N Contact Us For Availability
D104
Diode,Rectifier LGE 0DSON00158A Contact Us For Availability
D314
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D501
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
D502
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D902
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D914
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D914
DIODE LGE 0DD221009AA Contact Us For Availability
D931
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D932
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D932
DIODE,SWITCHING LGE 0DSTW00060A Contact Us For Availability
D933
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D938
Diode,Rectifier LGE 0DRON00328B Contact Us For Availability
D942
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D951
Diode,Rectifier LGE 0DRNH00121A Contact Us For Availability
DIS301
VFD LGE 6302R-V240B Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
FB901
Filter,Bead LGE 636-004C Contact Us For Availability
FB911
COIL LGE 636-004D Contact Us For Availability
FH902
HOLDER FUSE LGE 586-008B Contact Us For Availability
FR932
Fuse,Non Time Delay LGE 0FF1251FCN2 Contact Us For Availability
IC4D1
IC,PERIPHERALS LGE 0IPRP00666A Contact Us For Availability
IC4D3
IC,PERIPHERALS LGE 0IPRP00664A Contact Us For Availability
IC4D4
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC101
IC,Microcontrollers LGE EAN33391102 Contact Us For Availability
IC102
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC103
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC104
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC104
IC,EEPROM LGE EAN35369601 Contact Us For Availability
IC201
IC,PERIPHERALS LGE 0IPRPJR004A Contact Us For Availability
IC202
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC204
IC,PERIPHERALS LGE 0IPRPCI013A Contact Us For Availability
IC301
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC401
IC,Motor Driver LGE 0ILNR00061A Contact Us For Availability
IC501
IC,Video Processors LGE 0ILNR00173B Contact Us For Availability
IC501
IC,Video Processors LGE 0ILNR00173A Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC502
DRAM LGE 0IMMRII009B Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMRHY015G Contact Us For Availability
IC503A
S/W,System Program LGE 6957R-765AJ Contact Us For Availability
IC506
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC507
IC,POWER MANAGEMENT LGE 0IPMGON014A Contact Us For Availability
IC591
IC,PERIPHERALS LGE 0IPRP00714A Contact Us For Availability
IC591
IC,STANDARD LOGIC LGE 0ISTLFA033B Contact Us For Availability
IC601
IC,LDO Voltage Regul LGE 0IPMG00022C Contact Us For Availability
IC601
IC,PWM Controller LGE 0IPMG00022D Contact Us For Availability
IC602
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC703
IC,PERIPHERALS LGE 0IPRP00029A Contact Us For Availability
IC705
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC911
IC,LDO Voltage Regul LGE 0IPMG00045B Contact Us For Availability
IC912
TRANSISTOR,FETS LGE 0TFFN10008A Contact Us For Availability
IC931
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC932
IC,LDO Voltage Regul LGE 0IPMG78358A Contact Us For Availability
IC933
IC,POWER MANAGEMENT LGE 0IPMGKE053B Contact Us For Availability
IC934
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC935
IC,LDO Voltage Regul LGE 0IPMG78445A Contact Us For Availability
JK201
JACK,RCA LGE 6612JH002SC Contact Us For Availability
JK301
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK304
Conector,USB LGE 6630S70022A Contact Us For Availability
JK304
Connector,USB LGE 6630S70048B Contact Us For Availability
JK701
Conector,Terminal Bl LGE 6640000070A Contact Us For Availability
JK702
JACK,AC/DC POWER LGE 572-045C Contact Us For Availability
JK703
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
L232
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L406
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L505
Inductor,Wire Wound, LGE 0LR0220M025 Contact Us For Availability
L509
Inductor,Wire Wound,Radial LGE 0LR0221K035 Contact Us For Availability
L510
Inductor,Wire Wound, LGE 0LR0470M025 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0151K035 Contact Us For Availability
L517
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L529
Inductor,Wire Wound,Radial LGE 0LR0222K035 Contact Us For Availability
L601
INDUCTOR,RADIAL LEAD LGE 0LR0272J025 Contact Us For Availability
L712
Coil,RF LGE 6140RCC008A Contact Us For Availability
L931
COIL,RF LGE 6140RCC003H Contact Us For Availability
L951
TRANSFORMER,SMPS[COI LGE 6170RNGW18S Contact Us For Availability
LD303
LED LGE 0DLBE0175AA Contact Us For Availability
LD304
LED LGE 0DLRH0049AA Contact Us For Availability
LF901
Filter,Line Noise LGE 6200JB8014E Contact Us For Availability
P3101
Connector,FFC/FPC/PIC LGE 6630XE00120 Contact Us For Availability
P3401
Harness,Multi LGE 6631R-E132A Contact Us For Availability
P4301
Connector,Wafer LGE 561-711G Contact Us For Availability
P4401
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
P4402
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
P4403
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
P4403
Connector,DSUB LGE EAG33654001 Contact Us For Availability
P6702
Conector,BtoB LGE 561-844S Contact Us For Availability
P7602
Connector,Unclassifi LGE 561-843S Contact Us For Availability
P7701
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
P7902
Conector,BtoB LGE 6630R-BF07N Contact Us For Availability
P9701
CONNECTOR (CIRC),FFC LGE 6630XE00130 Contact Us For Availability
PC910
Sensor,Ambient Light LGE 6500RDT009A Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q103
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q103
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q104
TRANSISTOR,BIPOLARS LGE 0TR127709AB Contact Us For Availability
Q301
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q302
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q401
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q406
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q407
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q407
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q503
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q602
TRANSISTOR CD-340A UG8 CD-945A LGE 0TR130209AA Contact Us For Availability
Q901
TRANSISTOR LGE 0TR129809BB Contact Us For Availability
Q904
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q905
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q931
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q932
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
R2A1
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R4D2
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R5F5
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R7A5
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R7B2
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R7B3
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R110
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R156
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R157
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R163
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R206
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R218
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R231
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R252
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R254
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R256
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R268
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R274
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R276
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R298
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R309
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R327
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R329
Resistor,Chip LGE 0RH3903D622 Contact Us For Availability
R335
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R362
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R408
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R412
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R417
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R424
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R426
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R429
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R431
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R433
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R438
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ9101C677 Contact Us For Availability
R515
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R526
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R532
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R548
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R556
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R558
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R563
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R594
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
R652
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R654
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R655
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R725
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R764
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R771
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R781
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R797
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R903
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R905
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R906
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R907
Resistor,Chip LGE 0RH1302C622 Contact Us For Availability
R908
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R911
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R912
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R914
RESISTOR,FIXED POWER LGE 0RW0150N630 Contact Us For Availability
R919
Resistor,Chip LGE 0RH1102D622 Contact Us For Availability
R920
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R931
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R936
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R937
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R943
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R944
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R945
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
R946
Resistor,Chip LGE 0RH3301D422 Contact Us For Availability
R951
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
R953
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R955
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R956
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R969
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R972
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
RM301
Receiver Module LGE 6712R2038GN Contact Us For Availability
RM301
Receiver Module LGE 6712R2038GQ Contact Us For Availability
SW301
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
Transformer,Switchin LGE 6170RNGW25E Contact Us For Availability
T902
TRANSFORMER,SMPS[COI LGE 6170RNGW18R Contact Us For Availability
TF951
THERMISTOR,PTC LGE 6322B62216A Contact Us For Availability
TH902
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TUN101
Tuner,Analog LGE EBL34811201 Contact Us For Availability
V4D3
Varistor LGE 6102R7E001A Contact Us For Availability
VR301
VOLUME,ENCODER LGE 6110E00018A Contact Us For Availability
VR901
VARISTOR LGE 6102R2A002A Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271N Contact Us For Availability
WIRE80
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
WIRE81
WIRE R,L LGE 6871RU9271E Contact Us For Availability
WIRE82
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271L Contact Us For Availability
WIRE83
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271M Contact Us For Availability
WIRE90
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271P Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983C Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X702
Crystal LGE EAW32919901 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZDI00098D Contact Us For Availability
ZD901
Diode,Zener LGE 0DZON00198A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZON00198B Contact Us For Availability
ZD902
Diode,Zener LGE 0DZDI00098C Contact Us For Availability
ZD941
Diode,Zener LGE 0DZON00198C Contact Us For Availability
ZD941
Diode,Zener LGE 0DZDI00098B Contact Us For Availability
ZD942
Diode,Zener LGE 0DZDI00098A Contact Us For Availability
ZD942
Diode,Zener LGE 0DZON00198D Contact Us For Availability
× ![]()
Login and Registration Form
