Model LG LH-D6530A DVD HTiB – Common Parts & Diagrams

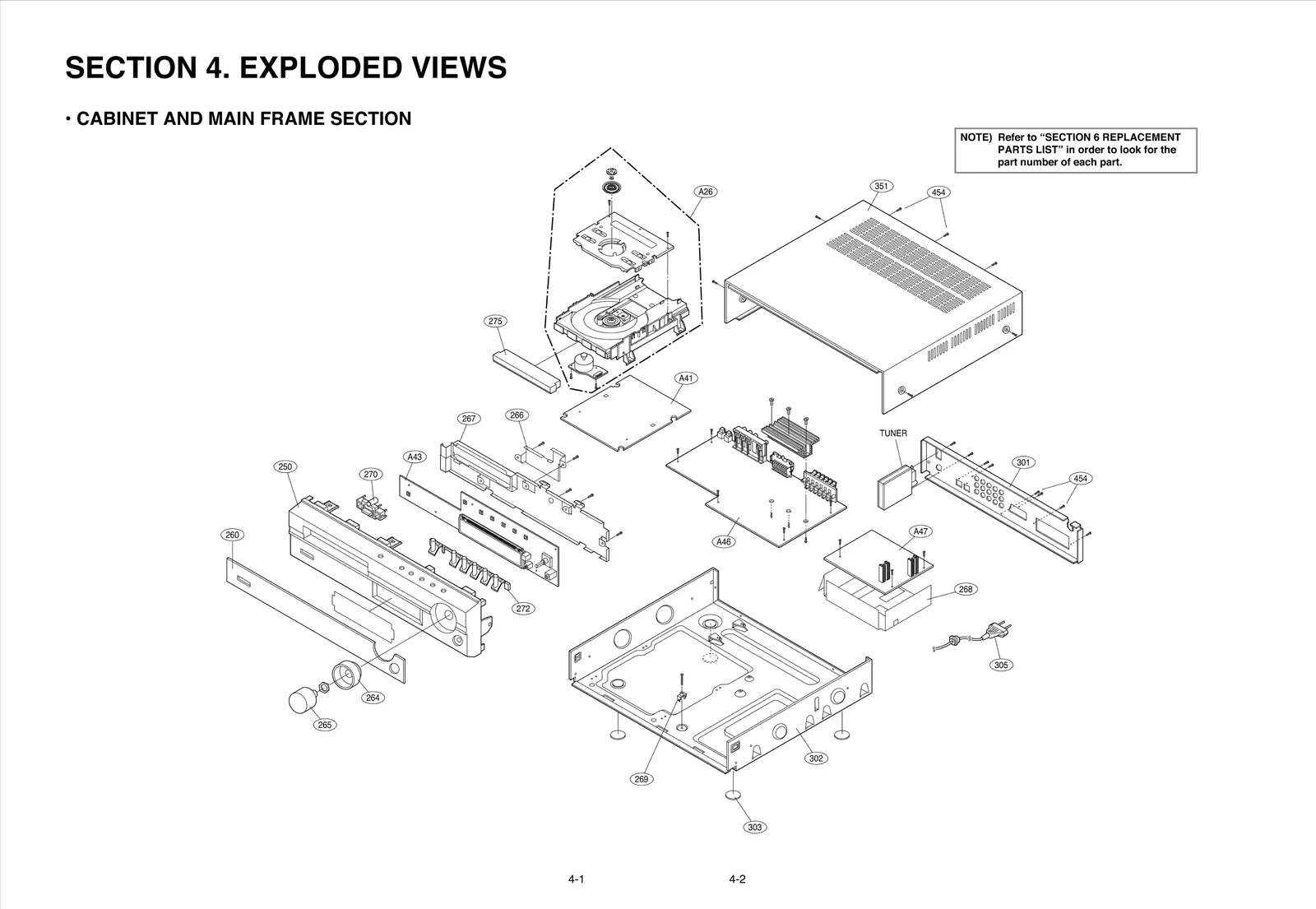

Diagram 0
Diagram 1
Common parts from model LG LH-D6530A DVD HTiB
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
HOLDER LGE 4930R-0402A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK12A Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW14B Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,JA LGE 6871RJ4415A Contact Us For Availability
015A
MOTOR ASSEMBLY LGE 4681R-1023G Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
015C
MOTOR LGE 4680HP2001A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680HP2011A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E010A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-D001A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
MOTOR ASSEMBLY LGE 4681R-0034D Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
024A
CAP LGE 5006R-0044A Contact Us For Availability
024B
CAP LGE 5006R-0043A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
TRAY LGE 3390R-0012A Contact Us For Availability
028
SHAFT LGE 4370R-0082B Contact Us For Availability
029
SHAFT LGE 4370R-0082A Contact Us For Availability
030
LGE 4471R-0013D LGE 4471R-0013D Contact Us For Availability
031
PICK UP,DVD LGE 6716DPH005A Contact Us For Availability
250
PANEL,AUDIO LGE 3720RCM161B Contact Us For Availability
260
LGE 3790R-P058C LGE 3790R-P058C Contact Us For Availability
264
DECORATION LGE 3508RCH007B Contact Us For Availability
265
LGE 4940RCV044A LGE 4940RCV044A Contact Us For Availability
266
LGE 4810RC3642A LGE 4810RC3642A Contact Us For Availability
267
LGE 3300RCH007A LGE 3300RCH007A Contact Us For Availability
268
LGE 3858RCX006A LGE 3858RCX006A Contact Us For Availability
269
Holder LGE 4930RC0033A Contact Us For Availability
270
LGE 4940RCT162A LGE 4940RCT162A Contact Us For Availability
272
LGE 4940RCT161A LGE 4940RCT161A Contact Us For Availability
275
LGE 3580RCC034A LGE 3580RCC034A Contact Us For Availability
301
PANEL,AUDIO LGE 3720RCP025J Contact Us For Availability
302
CHASSIS LGE 3140RCH004A Contact Us For Availability
305
POWER CORD LGE 6410RAHZ05A Contact Us For Availability
351
CABINET LGE 3090RCH004A Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0023B Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
454
Screw,Customized LGE 353-025C Contact Us For Availability
801
LGE 3829RDT031W LGE 3829RDT031W Contact Us For Availability
802
LGE 3890RCC083G LGE 3890RCC083G Contact Us For Availability
803
LGE 3920RCE048A LGE 3920RCE048A Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
811
PLUG ASSY PHONO CORD 1WAY (YL) LGE 564-017B Contact Us For Availability
812
PLUG ASSY PHONO CORD 2WAY (RD/ LGE 564-018B Contact Us For Availability
813
ANTENNA,T LGE 5010SCT001A Contact Us For Availability
814
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710RCAL12D Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016D Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-M018A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M016D Contact Us For Availability
A26
DECK ASSEMBLY,AUDIO LGE 6721RJ0381A Contact Us For Availability
A41
PWB(PCB) ASSEMBLY,TO LGE 6871R-7324A Contact Us For Availability
A43
PWB(PCB) ASSEMBLY,FR LGE 6871RF6531B Contact Us For Availability
A46
PWB(PCB) ASSEMBLY,TO LGE 6871R-6530B Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,PO LGE 6871RP9248C Contact Us For Availability
BD901
LGE 0DRFC00181A LGE 0DRFC00181A Contact Us For Availability
BD901
LGE 0DRGS00360A LGE 0DRGS00360A Contact Us For Availability
C001
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C007
LGE 0CN2230H949 LGE 0CN2230H949 Contact Us For Availability
C007
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C5C1
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C5C6
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C5C9
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C79B
Capacitor,Film,DIP,DC LGE 0CQ6821N409 Contact Us For Availability
C101
Capacitor,AL,Radial LGE 0CE3356K618 Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C105
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C109
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C206
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C244
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C258
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C264
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C273
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C274
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C276
Capacitor,Ceramic,Chip LGE 0CH4100K112 Contact Us For Availability
C278
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C298
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C304
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C322
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C332
Capacitor,AL,Radial LGE 0CE1066F618 Contact Us For Availability
C333
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C338
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C503
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C533
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C534
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C536
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C547
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C548
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C552
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C556
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C558
LGE 0CE1066J618 LGE 0CE1066J618 Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C602
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C610
LGE 0CE4776F618 LGE 0CE4776F618 Contact Us For Availability
C639
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C701
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C736
Capacitor,AL,Radial LGE 0CE106BK638 Contact Us For Availability
C773
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C777
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C789
LGE 0CQ2242L439 LGE 0CQ2242L439 Contact Us For Availability
C833
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C900
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C904
CAPACITOR,AL.ELECTRO LGE 0CE337RV6A0 Contact Us For Availability
C905
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C910
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C911
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ2721N409 Contact Us For Availability
C913
Capacitor,Film,DIP LGE 0CF56111410 Contact Us For Availability
C914
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C915
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C924
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 0CE1076H618 Contact Us For Availability
C927
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C928
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C929
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C931
Capacitor,AL,Radial LGE 0CE227CF638 Contact Us For Availability
C933
LGE 0CE2286F610 LGE 0CE2286F610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108CC618 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C940
CAPACITOR CERAMIC(HIGH DIELE) LGE 0CK1030K945 Contact Us For Availability
C941
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C942
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C943
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C944
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C952
LGE 0CE228NK610 LGE 0CE228NK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C974
Capacitor,AL,Radial LGE 0CE107CK638 Contact Us For Availability
C975
LGE 0CE476CD638 LGE 0CE476CD638 Contact Us For Availability
C990
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
D102
Diode,Rectifier LGE 0DR102109AA Contact Us For Availability
D901
DIODE LGE 0DD010009CA Contact Us For Availability
D922
DIODE,RECTIFIERS LGE 0DRVH00030A Contact Us For Availability
D923
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D926
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D928
DIODE,SWITCHING LGE 0DS141489AB Contact Us For Availability
D929
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D942
DIODE 1N5402,RECT,SILTER,FORM LGE 0DD540200CA Contact Us For Availability
D951
Diode,Rectifier LGE 0DRFC00191A Contact Us For Availability
D951
DIODE,RECTIFIERS LGE 0DRFC00171A Contact Us For Availability
D951
LGE 4921RCE016A LGE 4921RCE016A Contact Us For Availability
F502
Filter,LCR LGE 6200JB8010V Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB501
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FB902
Filter,Bead LGE 636-004C Contact Us For Availability
IC5A1
LGE 0IMMRFU011A LGE 0IMMRFU011A Contact Us For Availability
IC5C1
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC101
LGE 0IMCRSA051B LGE 0IMCRSA051B Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRNF006A Contact Us For Availability
IC201
LGE 0IPRPAK007A LGE 0IPRPAK007A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC202
LGE 0IPRPAK006A LGE 0IPRPAK006A Contact Us For Availability
IC203
LGE 0IFA742440H LGE 0IFA742440H Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGPV002A Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF008B Contact Us For Availability
IC503
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC506
IC MEMORIES LGE 0IMMRHY001E Contact Us For Availability
IC506
IC,MEMORIES LGE 0IMMRII006A Contact Us For Availability
IC601
LGE 0IJR229600A LGE 0IJR229600A Contact Us For Availability
IC730
IC,PERIPHERALS LGE 0IPRPSG009A Contact Us For Availability
IC750
LGE 0IPRPSG024A LGE 0IPRPSG024A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMGFA005A Contact Us For Availability
IC901
LGE 4921RCE050A LGE 4921RCE050A Contact Us For Availability
IC902
LGE 4921RCE041A LGE 4921RCE041A Contact Us For Availability
IC902
LGE 0IPMGFA035A LGE 0IPMGFA035A Contact Us For Availability
IC921
IC,POWER MANAGEMENT LGE 0IPMGFA006C Contact Us For Availability
IC922
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC923
IC,POWER MANAGEMENT LGE 0IPMGFA015A Contact Us For Availability
IC924
IC,POWER MANAGEMENT LGE 0IPMGKE009C Contact Us For Availability
IC941
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
JK001
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK200
JACK,FIBER OPTIC LGE 6612K00010A Contact Us For Availability
JK201
JACK,FIBER OPTIC LGE 6612K00003B Contact Us For Availability
JK601
LGE 6612JH004AA LGE 6612JH004AA Contact Us For Availability
JK700
TERMINAL BLOCK LGE 664000009AA Contact Us For Availability
L002
LGE 0LA0102K019 LGE 0LA0102K019 Contact Us For Availability
L201
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L304
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L700
Coil,Choke LGE 6140RCC002A Contact Us For Availability
L711
LGE 6140RCC007A LGE 6140RCC007A Contact Us For Availability
L781
Coil,RF LGE 6140RCC008A Contact Us For Availability
L921
COIL,CHOKE LGE 633-088G Contact Us For Availability
LD001
LED LGE 0DL325319AA Contact Us For Availability
LD004
LGE 0DLEO0039AA LGE 0DLEO0039AA Contact Us For Availability
LF901
Filter,Line Noise LGE 6200JB8009P Contact Us For Availability
PC911
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
Q001
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q002
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q102
TR,Bipolar LGE 0TR102009AF Contact Us For Availability
Q203
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q204
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q501
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q503
LGE 0TR319800AC LGE 0TR319800AC Contact Us For Availability
Q910
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q921
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q922
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q971
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q973
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
R028
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R030
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R031
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R050
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R5C5
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R135
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R143
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R151
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R204
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R207
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R211
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R213
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R213
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R216
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R219
Resistor,Chip LGE 0RH2402C622 Contact Us For Availability
R221
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R231
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R240
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R242
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R251
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R310
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R323
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R334
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R501
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R503
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R520
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R527
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R542
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R543
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R565
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R567
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R572
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R578
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R590
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R602
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R610
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R721
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R775
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R788
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R904
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R906
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R909
LGE 0RS4703K618 LGE 0RS4703K618 Contact Us For Availability
R911
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R932
RESISTOR FIXED CARBON FILM AEG LGE 0RD1203F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R934
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD0562F609 Contact Us For Availability
R942
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R944
RESISTOR FIXED CARBON FILM SKN LGE 0RD2001F609 Contact Us For Availability
R945
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R946
Resistor,Carbon Film LGE 0RD1802F609 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD1201F609 Contact Us For Availability
R949
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R950
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD0822F609 Contact Us For Availability
R978
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R979
RESISTOR FIXED CARBON FILM SKN LGE 0RD3302F609 Contact Us For Availability
R980
Resistor,Carbon Film LGE 0RD3903F609 Contact Us For Availability
R983
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
RMC001
REMOTE CONTROLLER RE LGE 6712R1638GB Contact Us For Availability
SW006
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
TRANSFORMER,SMPS[COI LGE 6170RNGW17E Contact Us For Availability
T902
TRANSFORMER,SMPS[COI LGE 6170RNGW17F Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TUNER
TUNER LGE 6700FM0029B Contact Us For Availability
VFD001
LGE 6302R-V209A LGE 6302R-V209A Contact Us For Availability
VR001
VOLUME,ROTARY LGE 6110S-ET01A Contact Us For Availability
VR901
VARISTOR LGE 6102R2A002A Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983C Contact Us For Availability
X201
OSCILLATOR,STD LGE 6204R-HK01C Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
ZD100
DIODE,ZENERS LGE 0DZ910009AG Contact Us For Availability
ZD921
Diode,Zener LGE 0DZ120009AG Contact Us For Availability
ZD971
Diode,Zener LGE 0DZ330009AR Contact Us For Availability
ZD972
Diode,Zener LGE 0DZ510009AH Contact Us For Availability
ZD981
Diode,Zener LGE 0DZ470009AD Contact Us For Availability
× ![]()
Login and Registration Form
