Model LG LH-D6235A DVD HTiB(150W) – Common Parts & Diagrams

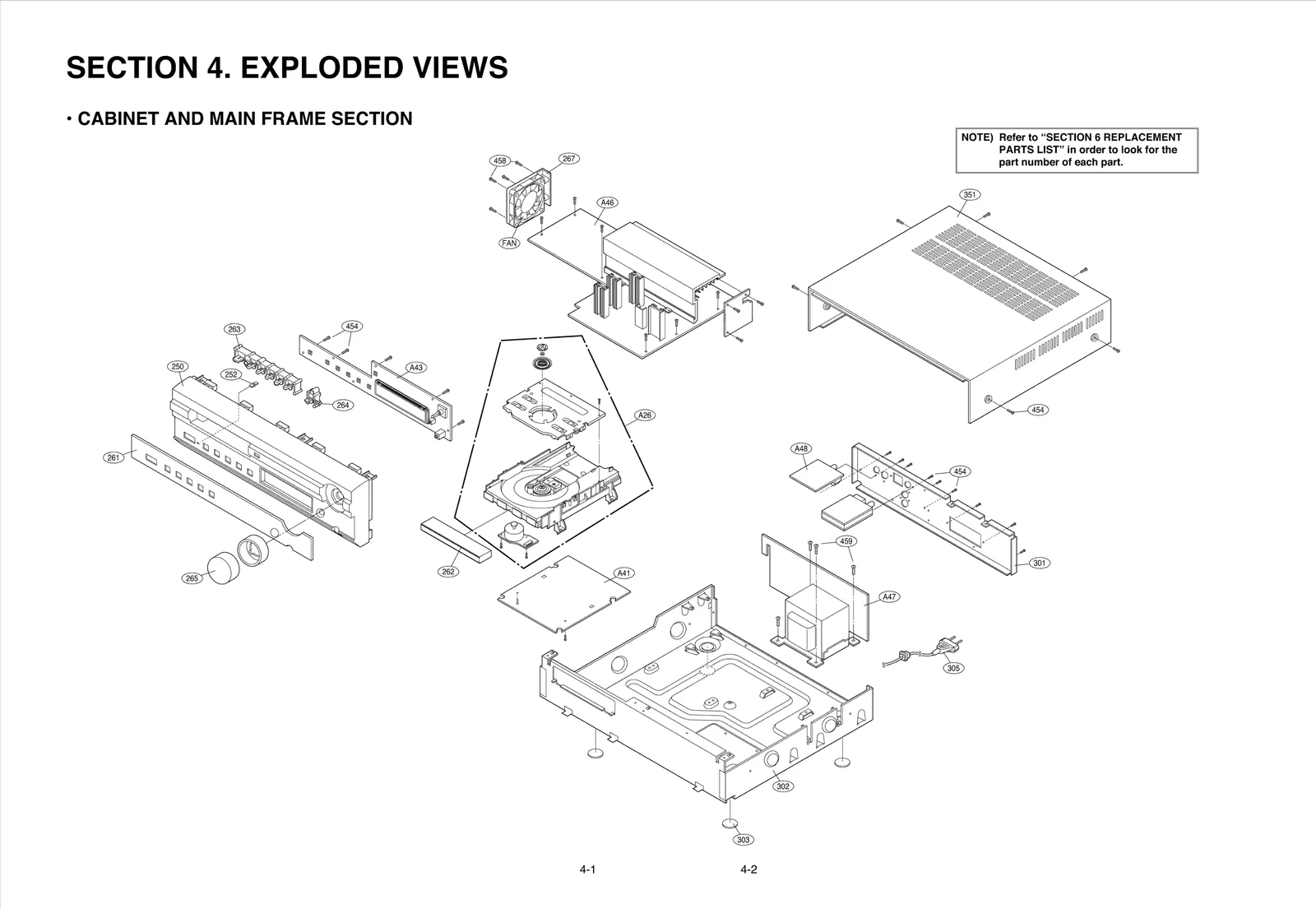

Diagram 0
Diagram 1
Common parts from model LG LH-D6235A DVD HTiB(150W)
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
HOLDER LGE 4930R-0402A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK12A Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW14B Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,JA LGE 6871RJ4415A Contact Us For Availability
015A
MOTOR ASSEMBLY LGE 4681R-1023G Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680HP2011A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E010A Contact Us For Availability
015C
MOTOR LGE 4680HP2001A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-D001A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
MOTOR ASSEMBLY LGE 4681R-0034D Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
TRAY LGE 3390R-0012A Contact Us For Availability
030
LGE 4471R-0013D LGE 4471R-0013D Contact Us For Availability
250
LGE 3720RCM052B LGE 3720RCM052B Contact Us For Availability
261
LGE 3790RCP080B LGE 3790RCP080B Contact Us For Availability
262
LGE 3580RCT031A LGE 3580RCT031A Contact Us For Availability
263
LGE 4940RCT168A LGE 4940RCT168A Contact Us For Availability
264
LGE 4940RCT167A LGE 4940RCT167A Contact Us For Availability
265
LGE 4940RCV044A LGE 4940RCV044A Contact Us For Availability
267
LGE 4930RC0062A LGE 4930RC0062A Contact Us For Availability
301
LGE 3720RCP023B LGE 3720RCP023B Contact Us For Availability
302
LGE 3140RCD001A LGE 3140RCD001A Contact Us For Availability
303
LGE 5040H-1016T LGE 5040H-1016T Contact Us For Availability
305
POWER CORD LGE 6410RAHZ05B Contact Us For Availability
351
CABINET LGE 3090RCP004A Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0023B Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
454
Screw,Customized LGE 353-025C Contact Us For Availability
458
Screw,Customized LGE 353-025R Contact Us For Availability
459
LGE 1TRL0402418 LGE 1TRL0402418 Contact Us For Availability
801
LGE 3829RDT026Z LGE 3829RDT026Z Contact Us For Availability
802
LGE 3890RCC074V LGE 3890RCC074V Contact Us For Availability
803
LGE 3920RCE024A LGE 3920RCE024A Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
811
PLUG ASSY PHONO CORD 1WAY (YL) LGE 564-017B Contact Us For Availability
813
ANTENNA,T LGE 5010SCT001A Contact Us For Availability
814
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710RCAL12C Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016D Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-M018A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M016D Contact Us For Availability
A26
DECK ASSEMBLY,AUDIO LGE 6721RJ0381A Contact Us For Availability
A40
BOARD ASSEMBLY LGE 3501R-7424A Contact Us For Availability
A41
PWB(PCB) ASSEMBLY,TO LGE 6871R-7424A Contact Us For Availability
A43
PWB(PCB) ASSEMBLY,FR LGE 6871RF4017F Contact Us For Availability
A46
PWB(PCB) ASSEMBLY,MA LGE 6871RM4021C Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,PO LGE 6871RP4021U Contact Us For Availability
A48
PWB(PCB) ASSEMBLY,JA LGE 6871RJ4021A Contact Us For Availability
AR602
LGE 614-013I LGE 614-013I Contact Us For Availability
BD501
LGE 4921RCE046A LGE 4921RCE046A Contact Us For Availability
C5C4
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C5C9
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C113
Capacitor,AL,Radial LGE 0CE4743K638 Contact Us For Availability
C115
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C120
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C205
LGE 0CE3365H638 LGE 0CE3365H638 Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C272
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C273
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C274
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C276
Capacitor,Ceramic,Chip LGE 0CH4100K112 Contact Us For Availability
C277
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C278
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C309
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C317
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C413
Capacitor,Ceramic,Axial LGE 0CN4730K949 Contact Us For Availability
C429
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C432
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C438
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C443
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C452
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C461
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C468
Capacitor,AL,Radial LGE 0CE1066F638 Contact Us For Availability
C502
Capacitor,AL,Radial LGE 0CE4766D618 Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C508
LGE 0CE688CH650 LGE 0CE688CH650 Contact Us For Availability
C508
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C510
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C510
LGE 0CE227ED638 LGE 0CE227ED638 Contact Us For Availability
C511
LGE 0CE228XF630 LGE 0CE228XF630 Contact Us For Availability
C512
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C513
LGE 0CE688EF650 LGE 0CE688EF650 Contact Us For Availability
C516
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C519
LGE 0CE1076J618 LGE 0CE1076J618 Contact Us For Availability
C521
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C522
Capacitor,AL,Radial LGE 0CE3366K638 Contact Us For Availability
C527
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C529
CAPACITOR ELECTROLYTIC FH-R20R LGE 0CE2276H618 Contact Us For Availability
C533
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C536
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C568
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C577
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C583
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C597
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C650
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C674
LGE 0CX3300K409 LGE 0CX3300K409 Contact Us For Availability
C676
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C677
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C684
LGE 0CN2230H949 LGE 0CN2230H949 Contact Us For Availability
C901
Capacitor,AL,Radial LGE 0CE4775C618 Contact Us For Availability
C904
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
D507
Diode,Rectifier LGE 0DR154020BA Contact Us For Availability
D513
Diode,Rectifier LGE 0DR102109AA Contact Us For Availability
D654
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
F500
FUSE,SLOW BLOW LGE 0FS6301B51D Contact Us For Availability
F502
Filter,LCR LGE 6200JB8010V Contact Us For Availability
F503
LGE 0FS2001B51D LGE 0FS2001B51D Contact Us For Availability
FAN
FAN LGE 5900R-D001A Contact Us For Availability
FAN
FAN,DC LGE 5900R-D010A Contact Us For Availability
FB100
LGE 631T603R LGE 631T603R Contact Us For Availability
FIP650
LGE 6302RCV206A LGE 6302RCV206A Contact Us For Availability
IC5A1
IC,MEMORIES LGE 0IMMRFU010A Contact Us For Availability
IC5C1
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC102
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC103
LGE 0ITO405200B LGE 0ITO405200B Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRNF006A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC300
IC,SGS-THOMSON LGE 0ISG726500A Contact Us For Availability
IC450
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
IC451
LGE 0IPRPBB004A LGE 0IPRPBB004A Contact Us For Availability
IC452
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC500
IC,POWER MANAGEMENT LGE 0IPMGKE009C Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF007A Contact Us For Availability
IC501
LGE 4921RCE010A LGE 4921RCE010A Contact Us For Availability
IC502
IC,KEC LGE 0IKE790900A Contact Us For Availability
IC503
IC,MEMORIES LGE 0IMMREB006A Contact Us For Availability
IC503
LGE 4921RCE034A LGE 4921RCE034A Contact Us For Availability
IC504
HEAT SINK ASSEMBLY LGE 4921RCE047A Contact Us For Availability
IC505
HEAT SINK ASSEMBLY LGE 4921RCE048A Contact Us For Availability
IC601
IC,MITSUBISHI LGE 0IMI624460B Contact Us For Availability
IC650
IC,MICRO CONTROLLER LGE 0IMCRSA041C Contact Us For Availability
JK101
JACK,RCA LGE 6612J00009C Contact Us For Availability
JK400
TERMINAL BLOCK LGE 664000009AA Contact Us For Availability
JK651
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK901
JACK,DIN LGE 6612R-H001A Contact Us For Availability
JK902
JACK,RCA LGE 576-005R Contact Us For Availability
L203
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L603
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
LED650
LED LGE 0DL325319AA Contact Us For Availability
LF500
FILTER(CIRC),EMI LGE 6200RLB007A Contact Us For Availability
PT501
TRANSFORMER,POWER LGE 6170RCK07RS Contact Us For Availability
Q201
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q202
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q204
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q304
LGE 0TR320609AB LGE 0TR320609AB Contact Us For Availability
Q400
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q502
LGE 0TR102309AA LGE 0TR102309AA Contact Us For Availability
Q650
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q651
TR,Bipolar LGE 0TR102009AE Contact Us For Availability
Q653
TRANSISTOR CD-340A UG8 CD-945A LGE 0TR130209AA Contact Us For Availability
R5C1
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R113
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R137
Resistor,Carbon Film LGE 0RD0332F609 Contact Us For Availability
R146
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R150
Resistor,Carbon Film LGE 0RD3303F609 Contact Us For Availability
R213
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R216
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R221
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R231
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R233
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R236
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R242
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R245
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R251
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R268
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R305
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R306
RESISTOR FIXED CARBON FILM SKN LGE 0RD5602F609 Contact Us For Availability
R307
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R312
Resistor,Carbon Film LGE 0RD1802F609 Contact Us For Availability
R313
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R315
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R410
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R413
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R432
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R453
Resistor,Carbon Film LGE 0RD1201F609 Contact Us For Availability
R460
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R465
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R468
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R473
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R501
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R512
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R521
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R523
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R557
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R564
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R576
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R581
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R618
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R680
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R698
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R717
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R718
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R723
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R724
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R735
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
RM650
REMOTE CONTROLLER RECEIVER LGE 6712R2038GF Contact Us For Availability
SW651
SWITCH,TACT LGE 556-219B Contact Us For Availability
TH300
THERMISTOR,PTC LGE 6322R-0005A Contact Us For Availability
TH600
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
TUNER
TUNER LGE 6700FM0029A Contact Us For Availability
VT650
VOLUME,ENCODER LGE 6110E00009A Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X650
RESONATOR,CRYSTAL LGE 6212AA2983C Contact Us For Availability
ZD301
LGE 0DZ330009BD LGE 0DZ330009BD Contact Us For Availability
ZD501
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD502
Diode,Zener LGE 0DZ510009AH Contact Us For Availability
ZD650
LGE 0DZ820009AG LGE 0DZ820009AG Contact Us For Availability
ZD663
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
× ![]()
Login and Registration Form
