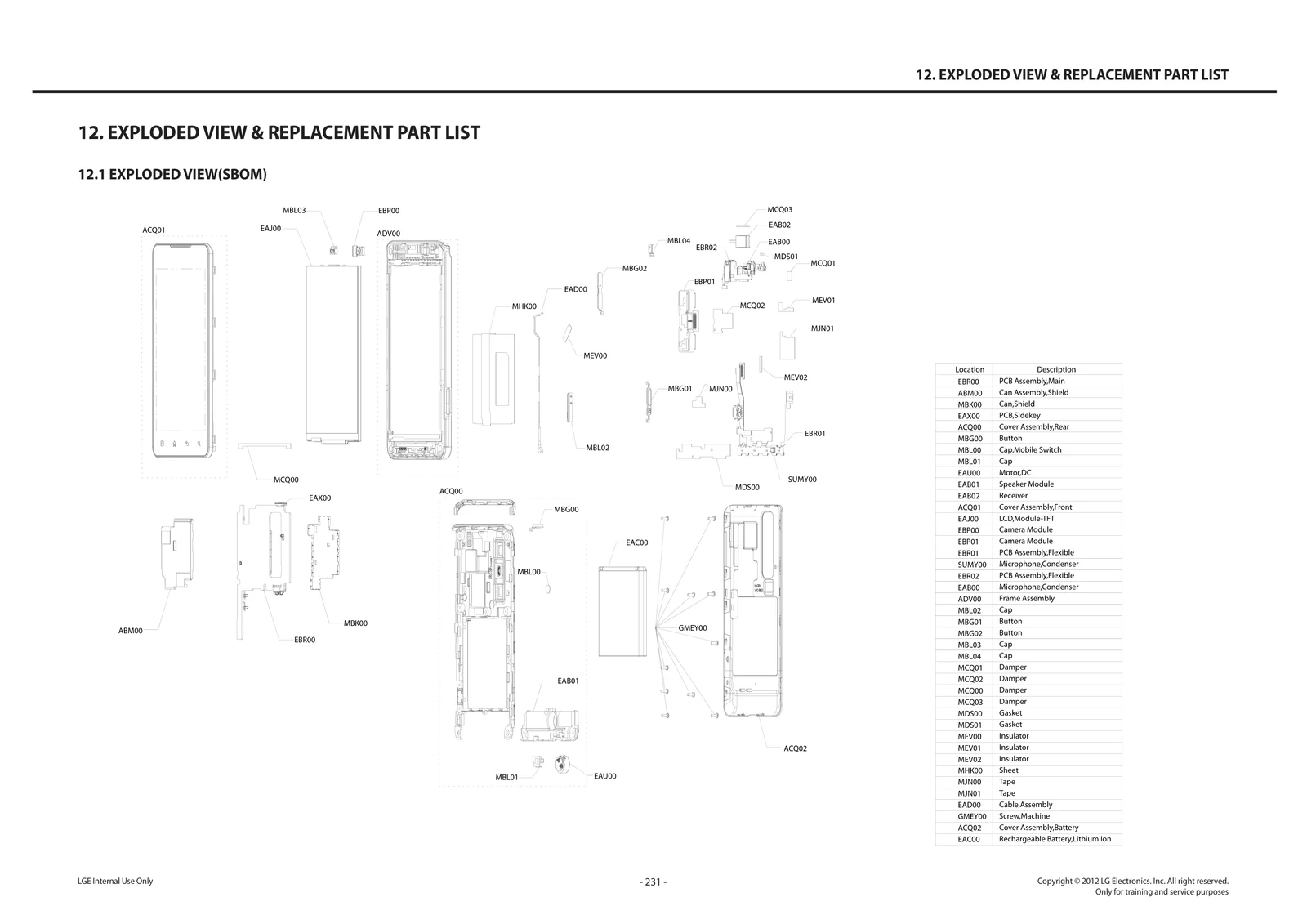

Diagram 1
Common parts from model LG LGP720H LG-P720h
ABM00
Can Assembly,Shield LGE ABM73758601 Contact Us For Availability
ACQ00
Cover Assembly,Rear LGE ACQ86009303 Contact Us For Availability
ACQ01
Cover Assembly,Front LGE ACQ86009101 Contact Us For Availability
ACQ02
Cover Assembly,Battery LGE ACQ86009703 Contact Us For Availability
ADV00
Frame Assembly LGE ADV74308501 Contact Us For Availability
CN570
Connector,BtoB LGE ENBY0053801 Contact Us For Availability
CN800
Connector,Terminal Block LGE EAG63050101 Contact Us For Availability
CN1162
CONNECTOR,BOARD TO BOARD LGE ENBY0040701 Contact Us For Availability
CN1171
Connector,BtoB LGE ENBY0057501 Contact Us For Availability
CN1221
Conector,BtoB- VX9700/CU920/GR500/GT365 LGE ENBY0036001 Contact Us For Availability
CN1240
Connector,BtoB LGE ENBY0051001 Contact Us For Availability
CN1301
Contact LGE MCIZ0008501 Contact Us For Availability
CN1800
Contact LGE MCE62252901 Contact Us For Availability
CN2502
Connector,I/O LGE ENRY0012101 Contact Us For Availability
CRB32
PCB Assembly,Main,Recycle Board LGE CRB32883901 Contact Us For Availability
EAB00
Microphone,Condenser LGE EAB62429201 Contact Us For Availability
EAB01
Speaker Module LGE EAB62651801 Contact Us For Availability
EAB010200
Earphone,Stereo LGE EAB62209301 Contact Us For Availability
EAB010200
Earphone,Stereo LGE EAB62209303 Contact Us For Availability
EAB010200
Earphone,Stereo LGE EAB62209302 Contact Us For Availability
EAB02
Receiver LGE EAB62491301 Contact Us For Availability
EAC00
Rechargeable Battery,Lithium Ion LGE EAC61700601 Contact Us For Availability
EAD00
Cable,Assembly LGE EAD62099201 Contact Us For Availability
EAD010000
Cable,Assembly LGE EAD61965801 Contact Us For Availability
EAJ00
LCD,Module-TFT LGE EAJ62088901 Contact Us For Availability
EAU00
Motor,DC LGE EAU61504701 Contact Us For Availability
EAX00
PCB,Sidekey LGE EAX64670901 Contact Us For Availability
EAY060000
Adapters LGE EAY62709803 Contact Us For Availability
EAY060000
Adapters LGE EAY62709804 Contact Us For Availability
EAY060000
Adapters LGE EAY62709801 Contact Us For Availability
EAY060000
Adapters LGE EAY62709802 Contact Us For Availability
EBP00
Camera Module LGE EBP61582001 Contact Us For Availability
EBP01
Camera Module LGE EBP61621901 Contact Us For Availability
EBR00
PCB Assembly,Main LGE EBR74610509 Contact Us For Availability
EBR01
PCB Assembly,Flexible LGE EBR75577501 Contact Us For Availability
EBR02
PCB Assembly,Flexible LGE EBR75194701 Contact Us For Availability
FB201
Filter,Bead LGE SFBH0002302 Contact Us For Availability
FB803
Filter,Bead LGE EAM62071001 Contact Us For Availability
FB806
Filter,Bead LGE EAM62071101 Contact Us For Availability
FB901
Filter,Bead LGE SFBH0007101 Contact Us For Availability
FB1305
Filter,Bead LGE SFBH0007103 Contact Us For Availability
FB1800
Filter,Bead LGE EAM62150301 Contact Us For Availability
FL111
Filter,Separator LGE EAM62450101 Contact Us For Availability
FL211
Filter,Saw LGE SFSY0035004 Contact Us For Availability
FL800
Filter, EMI/Power LGE SFEY0015301 Contact Us For Availability
FL1143
Filter,LCR LGE EAM62451101 Contact Us For Availability
FL1172
Filter,EMI/Power LGE SFEY0016301 Contact Us For Availability
FL1221
Filter,EMI/Power LGE SFEY0015901 Contact Us For Availability
FL1300
Filter,Ceramic LGE EAM62250401 Contact Us For Availability
FL1800
Filter,Separator,Spdt LGE SFAC0002701 Contact Us For Availability
GMEY00
SCREW MACHINE,BIND-CU515/CT810/VX9700/GT365 LGE GMEY0009201 Contact Us For Availability
J2600
Jack,Phone LGE EAG63010701 Contact Us For Availability
MBG00
Button LGE MBG64508801 Contact Us For Availability
MBG01
Button LGE MBG64508701 Contact Us For Availability
MBG02
Button LGE MBG64508601 Contact Us For Availability
MBK00
Can,Shield LGE MBK63233901 Contact Us For Availability
MBL00
Cap,Mobile Switch LGE MBL65223501 Contact Us For Availability
MBL01
Cap LGE MBL65261001 Contact Us For Availability
MBL02
Cap LGE MBL65222401 Contact Us For Availability
MBL03
Cap LGE MBL65222301 Contact Us For Availability
MBL04
Cap LGE MBL65260901 Contact Us For Availability
MCQ00
Damper LGE MCQ67067901 Contact Us For Availability
MCQ01
Damper LGE MCQ67028201 Contact Us For Availability
MCQ02
Damper LGE MCQ67028301 Contact Us For Availability
MCQ03
Damper LGE MCQ67125301 Contact Us For Availability
MDS00
Gasket LGE MDS63973501 Contact Us For Availability
MDS01
Gasket LGE MDS64013001 Contact Us For Availability
MEV00
Insulator LGE MEV64085301 Contact Us For Availability
MEV01
Insulator LGE MEV64159201 Contact Us For Availability
MEV02
Insulator LGE MEV64175101 Contact Us For Availability
MHK00
Sheet LGE MHK63845601 Contact Us For Availability
MJN00
Tape LGE MJN68102201 Contact Us For Availability
MJN01
Tape LGE MJN68102301 Contact Us For Availability
PT801
Thermistor,NTC LGE SETY0005701 Contact Us For Availability
Q301
FET,Array LGE EBK61693301 Contact Us For Availability
Q1186
TR,Bipolar LGE EQBN0020501 Contact Us For Availability
SC777
Can,Shield LGE MBK63214401 Contact Us For Availability
SC793
Clip LGE MCGY0003801 Contact Us For Availability
SUMY00
Microphone,Condenser LGE SUMY0010616 Contact Us For Availability
SW100
Connector,RF LGE ENWY0008701 Contact Us For Availability
U121
Filter,Duplexer LGE EAM62492801 Contact Us For Availability
U171
Module,Tx Module LGE SMRH0006901 Contact Us For Availability
U181
IC,RF Transceiver,3G LGE EUSY0432901 Contact Us For Availability
U220
IC,DC,DC Converter LGE EUSY0264510 Contact Us For Availability
U241
IC,MM PMIC LGE EUSY0264511 Contact Us For Availability
U301
IC,Digital Baseband Processor,3G LGE EUSY0432001 Contact Us For Availability
U303
IC,Analog Switch LGE EUSY0186504 Contact Us For Availability
U350
IC,MCP,NAND LGE EUSY0425901 Contact Us For Availability
U500
IC,Application Processor LGE EAN62346603 Contact Us For Availability
U502
IC,Buffer LGE EUSY0428301 Contact Us For Availability
U701
IC,Mobile SDRAM LGE EAN62409901 Contact Us For Availability
U721
IC,MCP,eMMC LGE EAN62247201 Contact Us For Availability
U800
IC,PMIC LGE EAN62093401 Contact Us For Availability
U801
IC,Charger LGE EUSY0410801 Contact Us For Availability
U811
IC,MUIC LGE EAN62210001 Contact Us For Availability
U851
IC,Analog Switch LGE EAN61871401 Contact Us For Availability
U891
IC,Fuel Gauge LGE EAN61958601 Contact Us For Availability
U892
IC LGE EUSY0365101 Contact Us For Availability
U901
IC,Audio Codec LGE EUSY0424501 Contact Us For Availability
U961
IC,Gyro Sensor LGE EUSY0434601 Contact Us For Availability
U971
IC,Acceleration Sensor LGE EUSY0410101 Contact Us For Availability
U975
IC,Magnetic Sensor LGE EBD60985501 Contact Us For Availability
U981
IC LGE EUSY0238306 Contact Us For Availability
U991
IC,LDO Voltage Regulator LGE EUSY0416401 Contact Us For Availability
U1128
IC,DC,DC Converter LGE EAN62186901 Contact Us For Availability
U1201
IC LGE EUSY0227205 Contact Us For Availability
U1240
IC,LDO Voltage Regulator LGE EUSY0373901 Contact Us For Availability
U1241
IC,DC,DC Converter LGE EAN61850201 Contact Us For Availability
U1242
IC-CF360 LGE EUSY0355501 Contact Us For Availability
U1243
IC,Analog Switch LGE EAN61828001 Contact Us For Availability
U1300
IC,LAN LGE EAN61970501 Contact Us For Availability
U1301
Filter,Separator,FEM LGE SMZY0028001 Contact Us For Availability
U1800
IC- VX9700 LGE EUSY0355701 Contact Us For Availability
U1801
Module,RF Amplifier LGE SMZY0027801 Contact Us For Availability
U1802
IC,GPS LGE EUSY0415301 Contact Us For Availability
U2201
IC,LDO Voltage Regulator LGE EUSY0374201 Contact Us For Availability
U2203
IC LGE EUSY0353801 Contact Us For Availability
U2204
IC,Signal Bridge LGE EAN62095001 Contact Us For Availability
U2205
IC- GR500 LGE EUSY0334201 Contact Us For Availability
U2206
IC,Analog Switch LGE EAN61839701 Contact Us For Availability
X184
Oscillator,VCTCXO LGE EAW61443801 Contact Us For Availability
X500
Oscillator,TCXO LGE EXST0002601 Contact Us For Availability
X800
X-TAL- VX8700/VX8800/CU720/GT365 LGE EXXY0018701 Contact Us For Availability
X1300
Crystal LGE EAW61645401 Contact Us For Availability
X1800
Oscillator,TCXO LGE EXST0002501 Contact Us For Availability
ZD1101
Diode,TVS LGE EAH61872601 Contact Us For Availability
ZD1105
DIODE,TVS LGE EDTY0010501 Contact Us For Availability
ZD1122
Diode,Switching LGE EDSY0018601 Contact Us For Availability
× ![]()
