Model Electrolux LGHT2137LE9 REFRIGERATOR – Common Parts & Diagrams

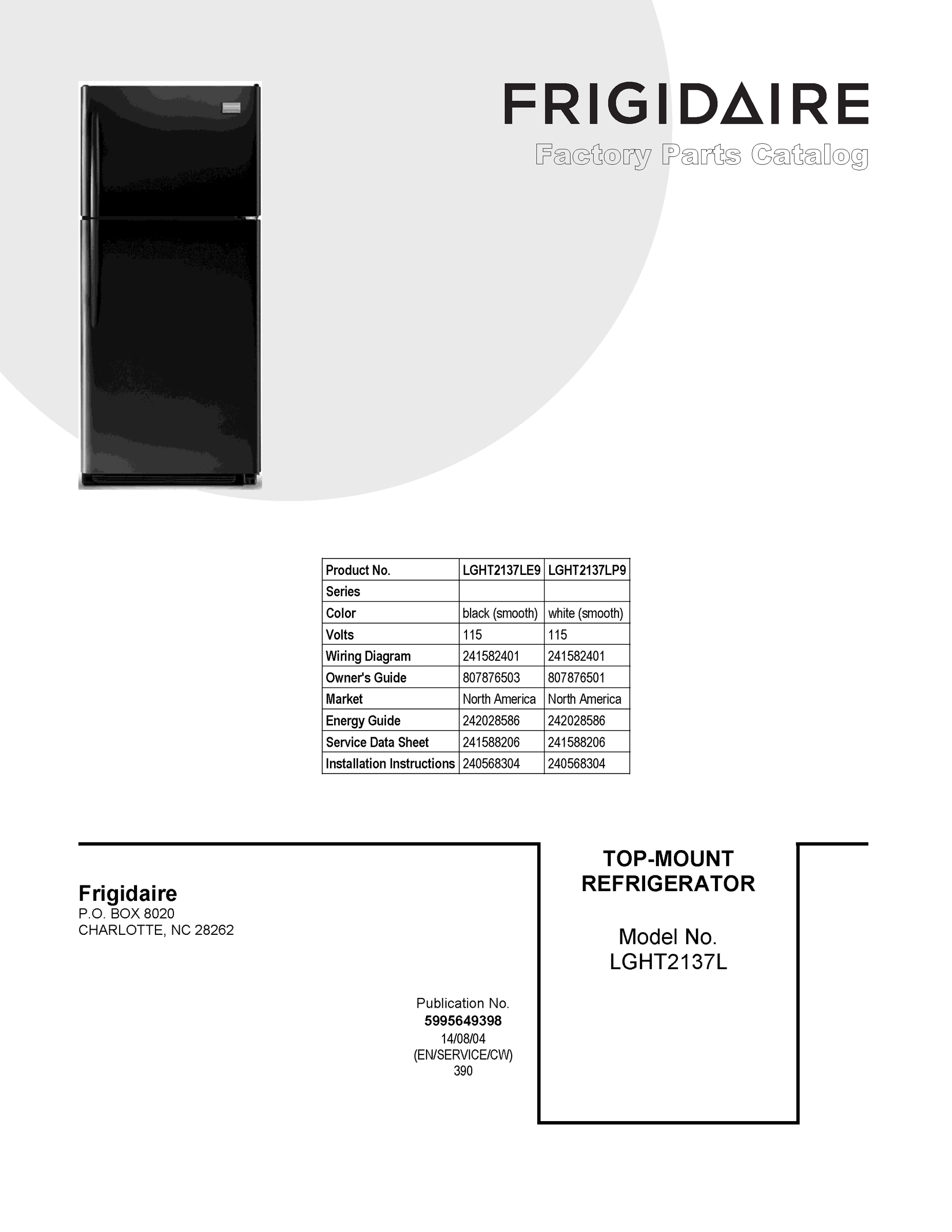

01 - COVER SHEET

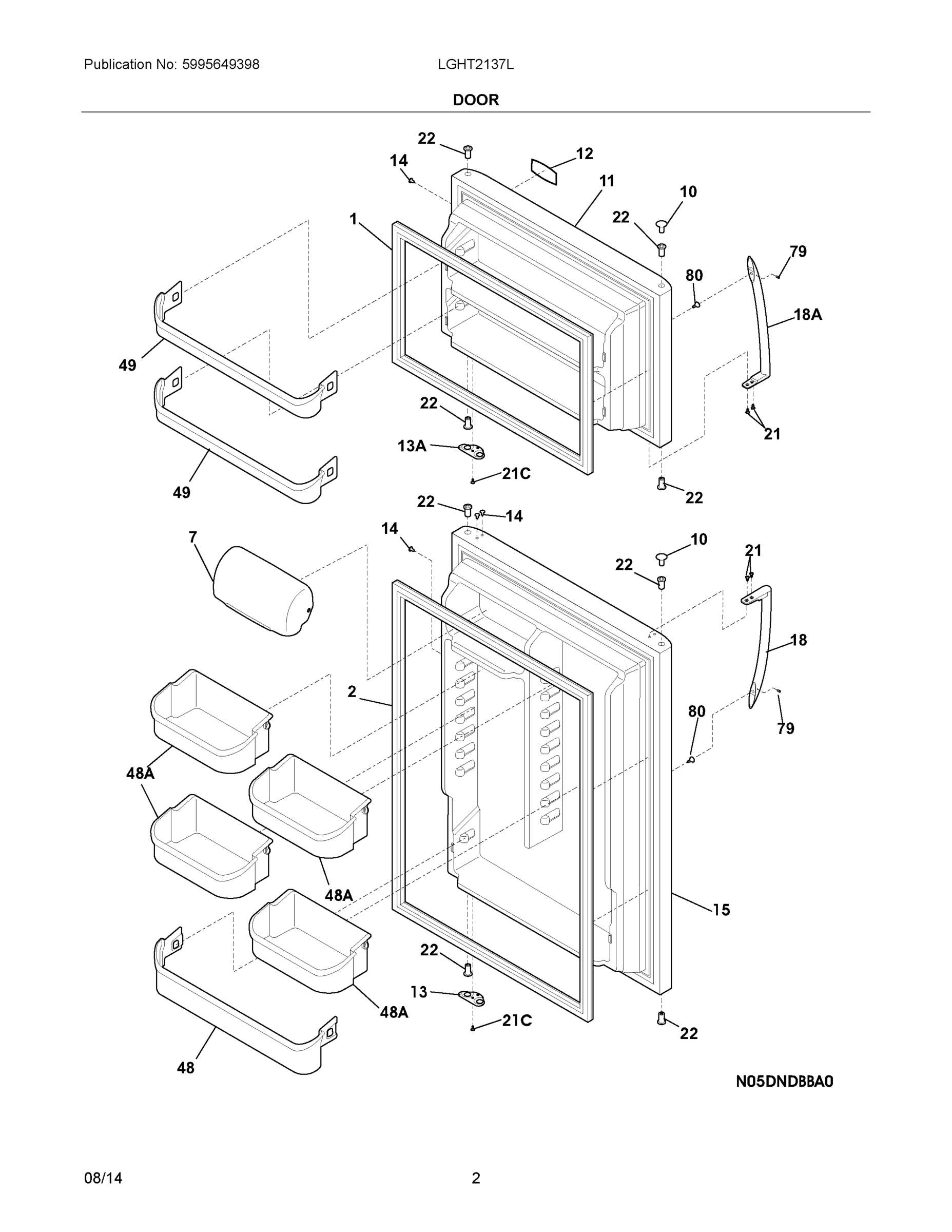

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux LGHT2137LE9 REFRIGERATOR
1
WCI 242193211 WCI 242193211 Contact Us For Availability
1
WCI 241785405 WCI 241785405 Contact Us For Availability
1
WCI 240355407 WCI 240355407 Contact Us For Availability
1A
DEFLECTOR, AIR WCI 242213901 Contact Us For Availability
2
GASKET-FRZR DOOR, BLACK, MAGNETIC WCI 242193214 Contact Us For Availability
2
WCI 240367001 WCI 240367001 Contact Us For Availability
3
NUT WCI 5303212803 Contact Us For Availability
4
WCI 241523701 WCI 241523701 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
9
BRACKET-MOTOR MTG, FRONT WCI 5303292396 Contact Us For Availability
10
PLUG-BUTTON, BLACK, HINGE BRG HOLE WCI 240381303 Contact Us For Availability
10
COVER-COIL 21' WCI 240313613 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
WCI 241798425 WCI 241798425 Contact Us For Availability
12
WCI 242015201 WCI 242015201 Contact Us For Availability
12
DIFFUSER-AIR, TOP WCI 240545901 Contact Us For Availability
12
COVER, I/M CONNECTION WCI 242210102 Contact Us For Availability
13
DIFFUSER, AIR, BOTTOM WCI 240362601 Contact Us For Availability
13
MOTOR-EVAP FAN, W/HARNESS WCI 241854501 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240312415 Contact Us For Availability
14
WCI 241554901 WCI 241554901 Contact Us For Availability
14
WCI 242044021 WCI 242044021 Contact Us For Availability
14
PLUG-BUTTON, BLACK WCI 240494003 Contact Us For Availability
15
WCI 5303918274 WCI 5303918274 Contact Us For Availability
16
WCI 241559801 WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
WCI 241801301 WCI 241801301 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 240360801 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
THERMOSTAT KIT, DEFROST, W/CONNECTOR WCI 5303918634 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22
WCI 215774918 WCI 215774918 Contact Us For Availability
22A
WCI 240468202 WCI 240468202 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
24
SHELF-"SPILL-SAFE", FIXED WCI 240355261 Contact Us For Availability
24B
SHELF-"SPILL-SAFE", CANTILEVER FIXE WCI 240408909 Contact Us For Availability
25
WCI 240364790 WCI 240364790 Contact Us For Availability
25
WCI 242037701 WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN, CRISPER, (2) WCI 240343803 Contact Us For Availability
29
WCI 242110902 WCI 242110902 Contact Us For Availability
30
WCI 241941005 WCI 241941005 Contact Us For Availability
32
CLAMP, ELEC CONT MTG, COMPRESSOR WCI 297030500 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, BLACK WCI 240313803 Contact Us For Availability
35A
SPACER-HINGE, CENTER, BLACK WCI 240336803 Contact Us For Availability
37
WCI 242161202 WCI 242161202 Contact Us For Availability
38
WCI 240313703 WCI 240313703 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 240354404 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
TRACK, MEAT PAN HANGER, RH WCI 240356501 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42A
TRACK, MEAT PAN HANGER, LH WCI 240365401 Contact Us For Availability
45
SCREW, HEX WSHR HD, 8-15A X 0.500 WCI 218843801 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 240350609 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE, (2) WCI 218233302 Contact Us For Availability
48
BIN-DOOR WCI 240338101 Contact Us For Availability
48A
BIN-DOOR WCI 241808201 Contact Us For Availability
49
BIN-DOOR, PSEUDO, FRZR WCI 240495804 Contact Us For Availability
49
SCREW, HEX WASHER HEAD, 8-18AB X 1.250, SPACE WCI 218362501 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
56
WCI 240516502 WCI 240516502 Contact Us For Availability
59
WCI 241946106 WCI 241946106 Contact Us For Availability
59
SCREW-#10-32 X 3/4, BLACK WCI 240442707 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
64
CLAMP, .31 ID, STEEL, WATER TUBE WCI 5304455846 Contact Us For Availability
72
GRILLE/KICKPLATE, BLACK WCI 241839407 Contact Us For Availability
74
SHIELD-LIGHT, FRZR WCI 240354302 Contact Us For Availability
79
SCREW-SET, 10-32 X 0.375 WCI 218755401 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
83
RIVE WCI 5304455655 Contact Us For Availability
85
TUBE-CONNECTOR, SUCTION WCI 241871501 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
92
WCI 241710601 WCI 241710601 Contact Us For Availability
114
WCI 240505801 WCI 240505801 Contact Us For Availability
123
SCREW, HANGER/RLR MTG, 8-10 X 7/16 WCI 215005101 Contact Us For Availability
NI
WCI 5303321321 WCI 5303321321 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918330 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
SPACER, SHELF WCI 5303299664 Contact Us For Availability
NIA
WCI 240568606 WCI 240568606 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WCI 215474201 WCI 215474201 Contact Us For Availability
NIA
WCI 240561701 WCI 240561701 Contact Us For Availability
NIA
WIRING HARNESS, CONTROL BOX WCI 240388701 Contact Us For Availability
NIA
WCI 241500303 WCI 241500303 Contact Us For Availability
NIB
WCI 218515401 WCI 218515401 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
