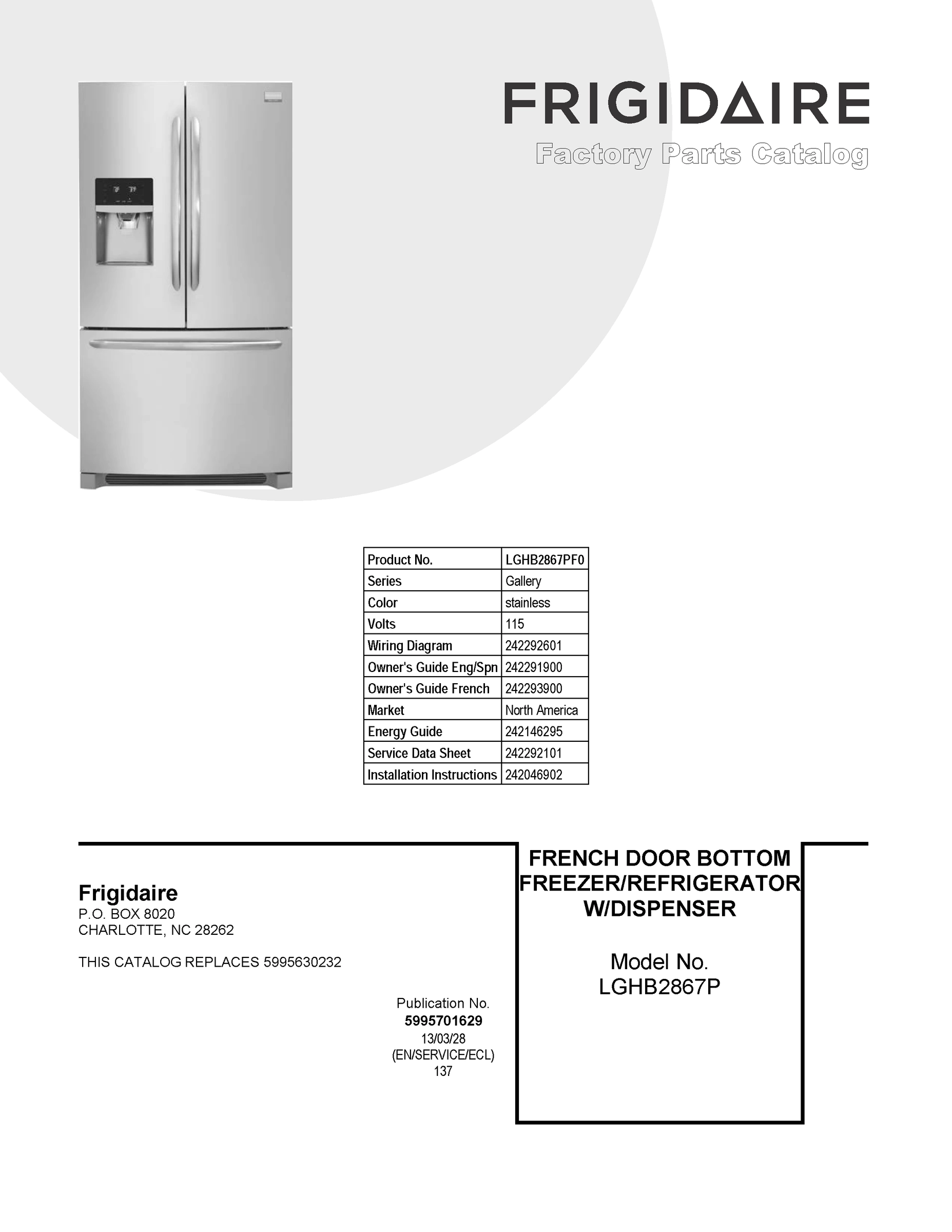

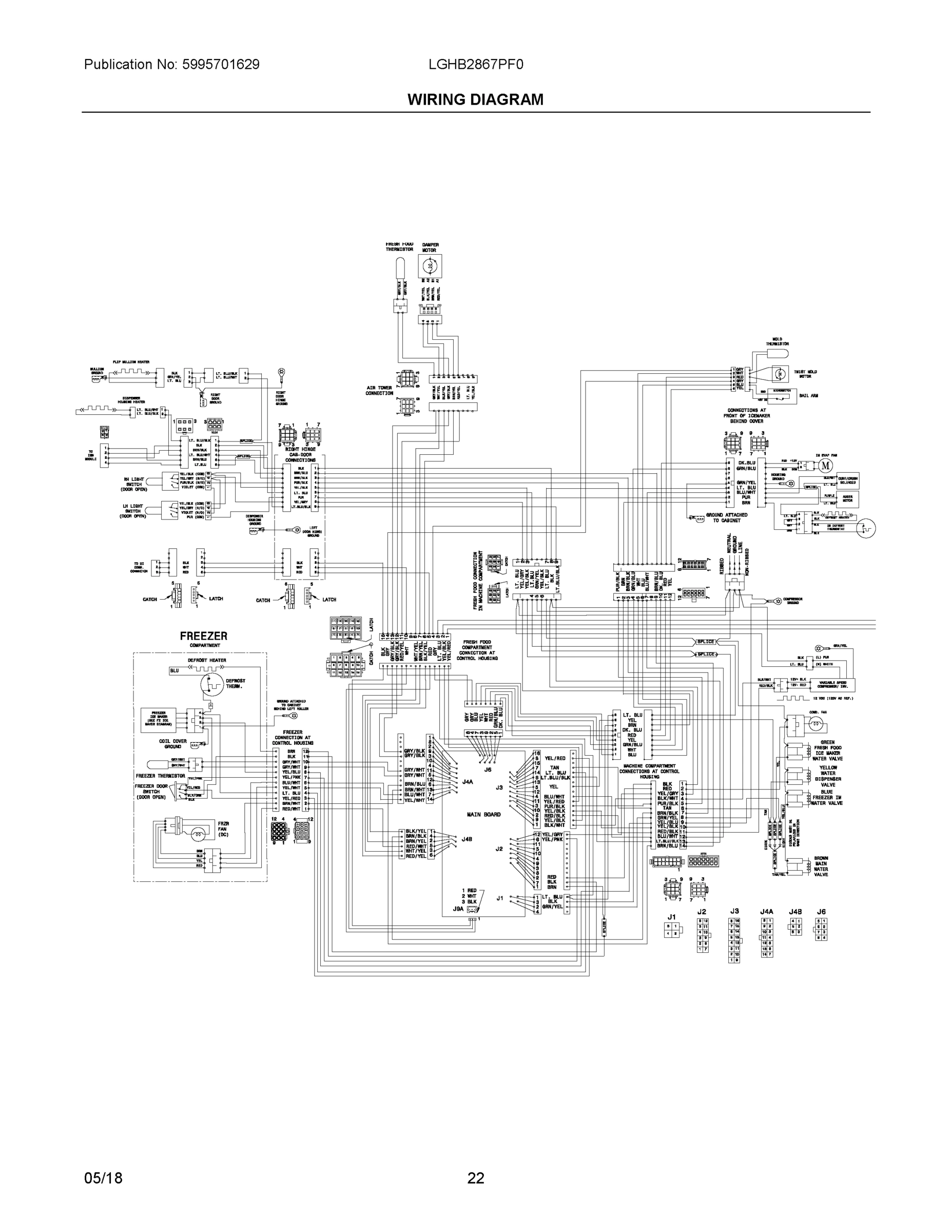

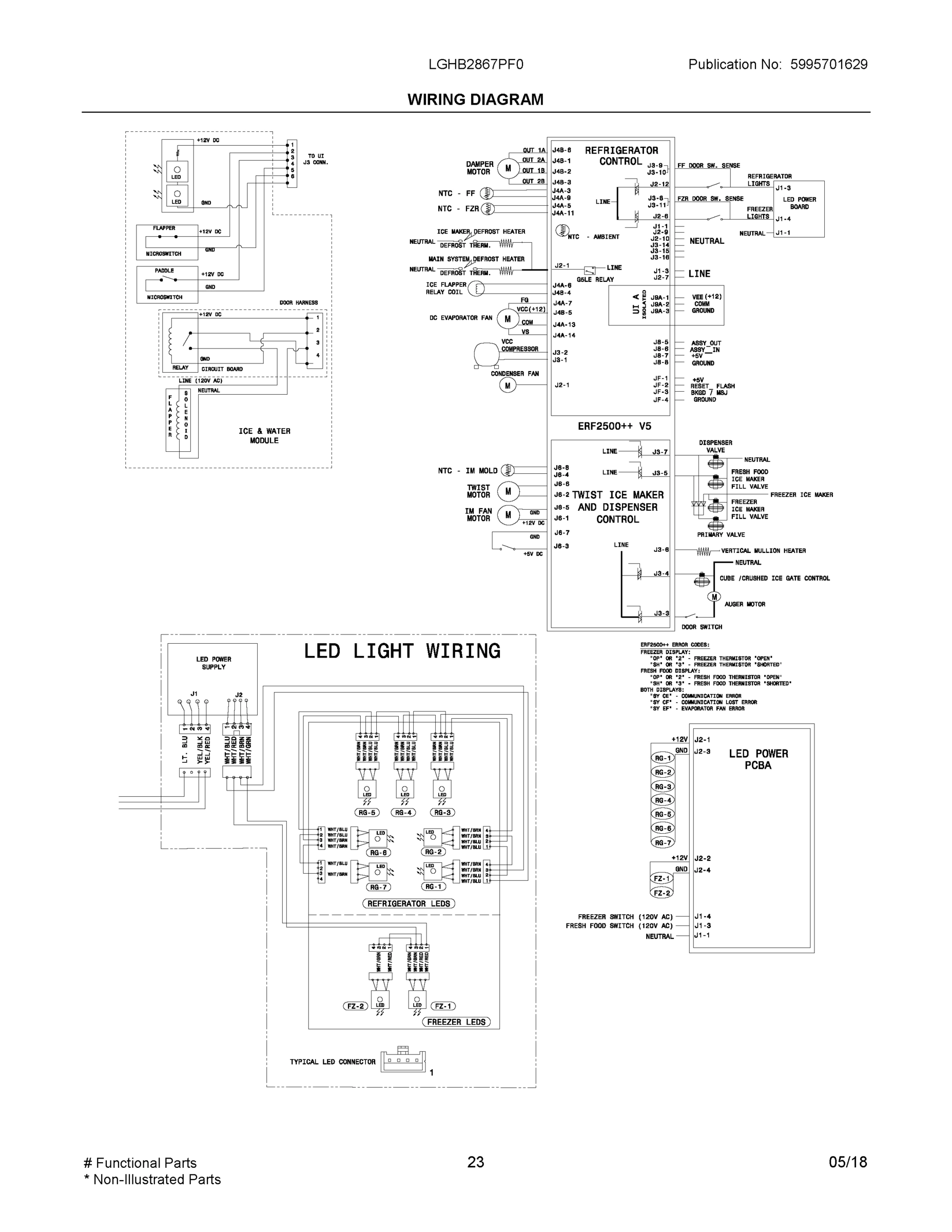

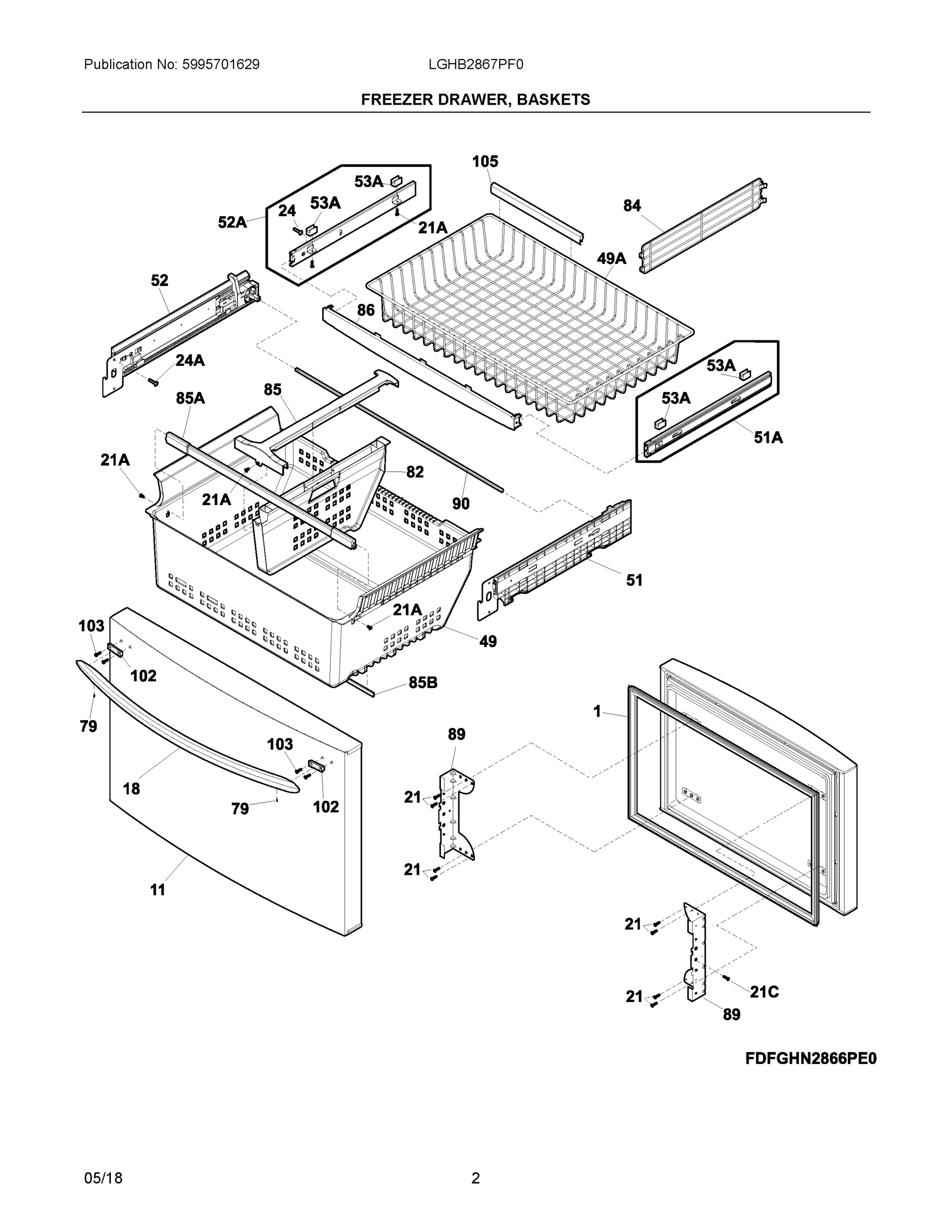

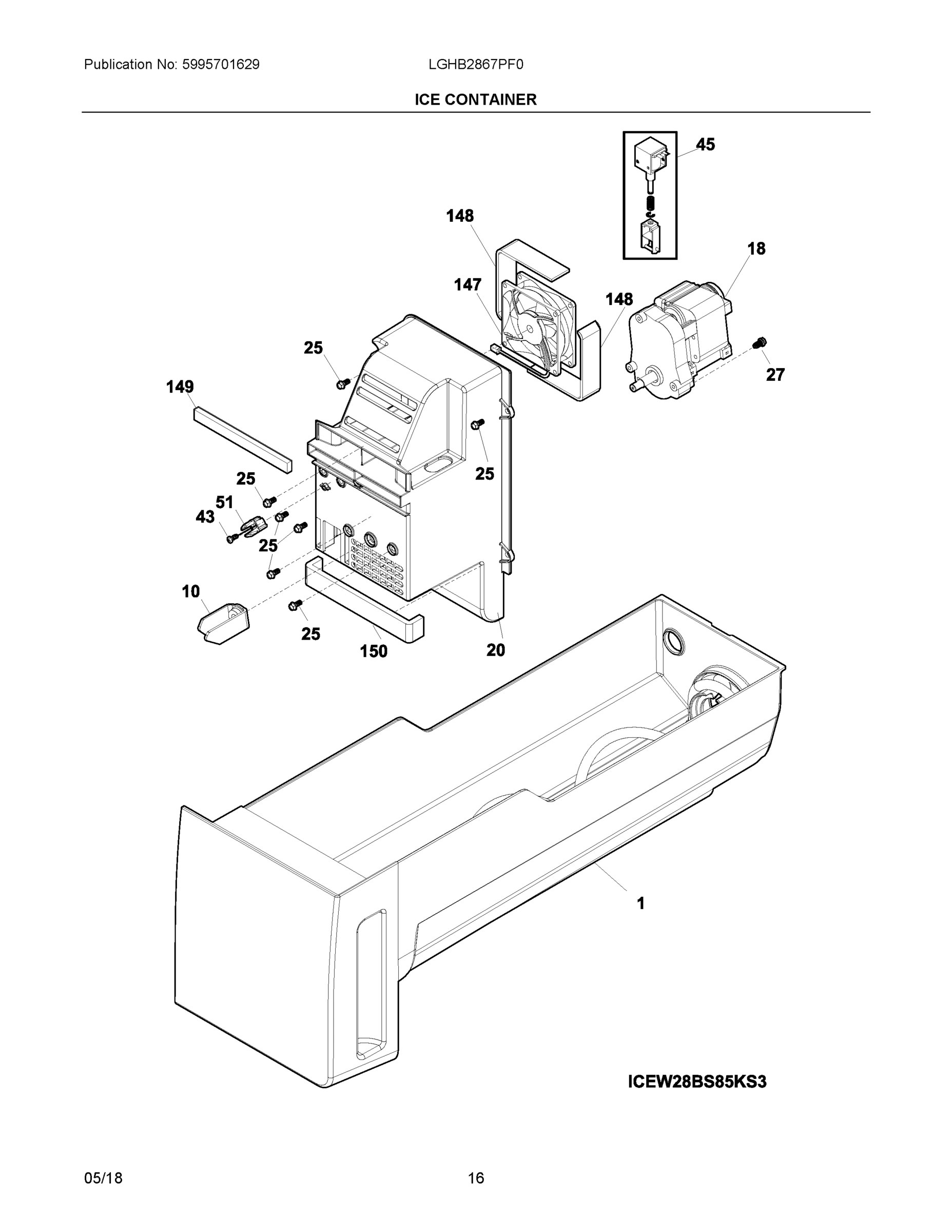

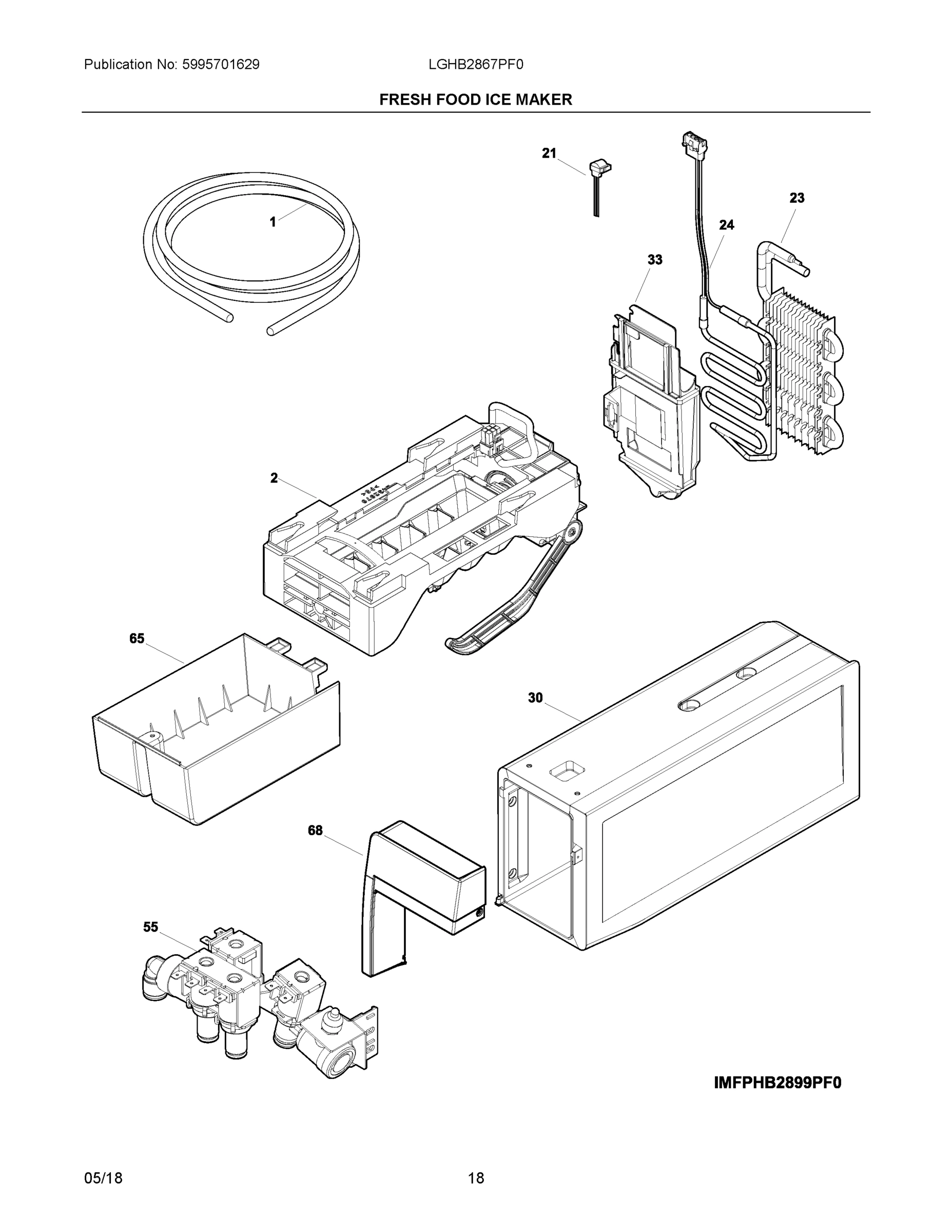

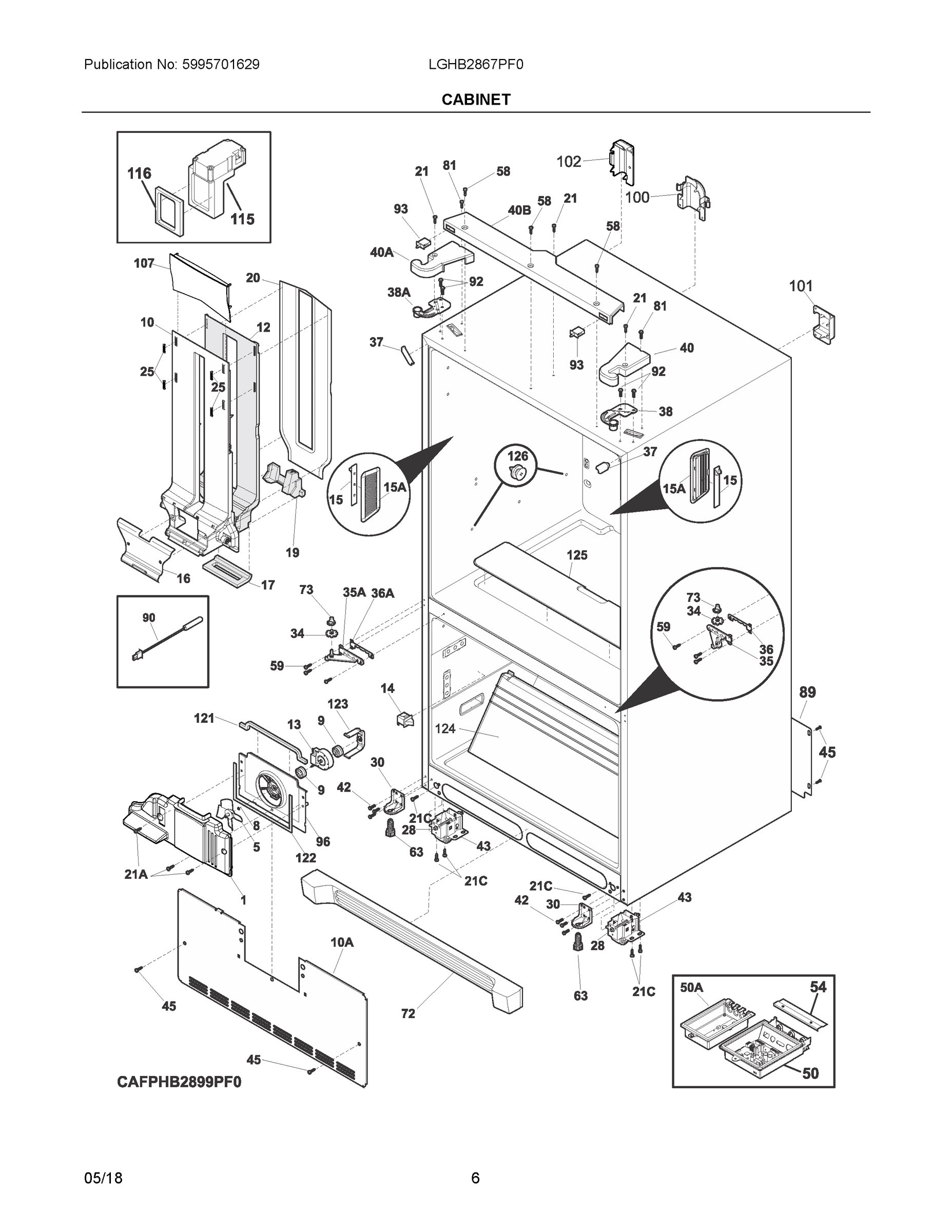

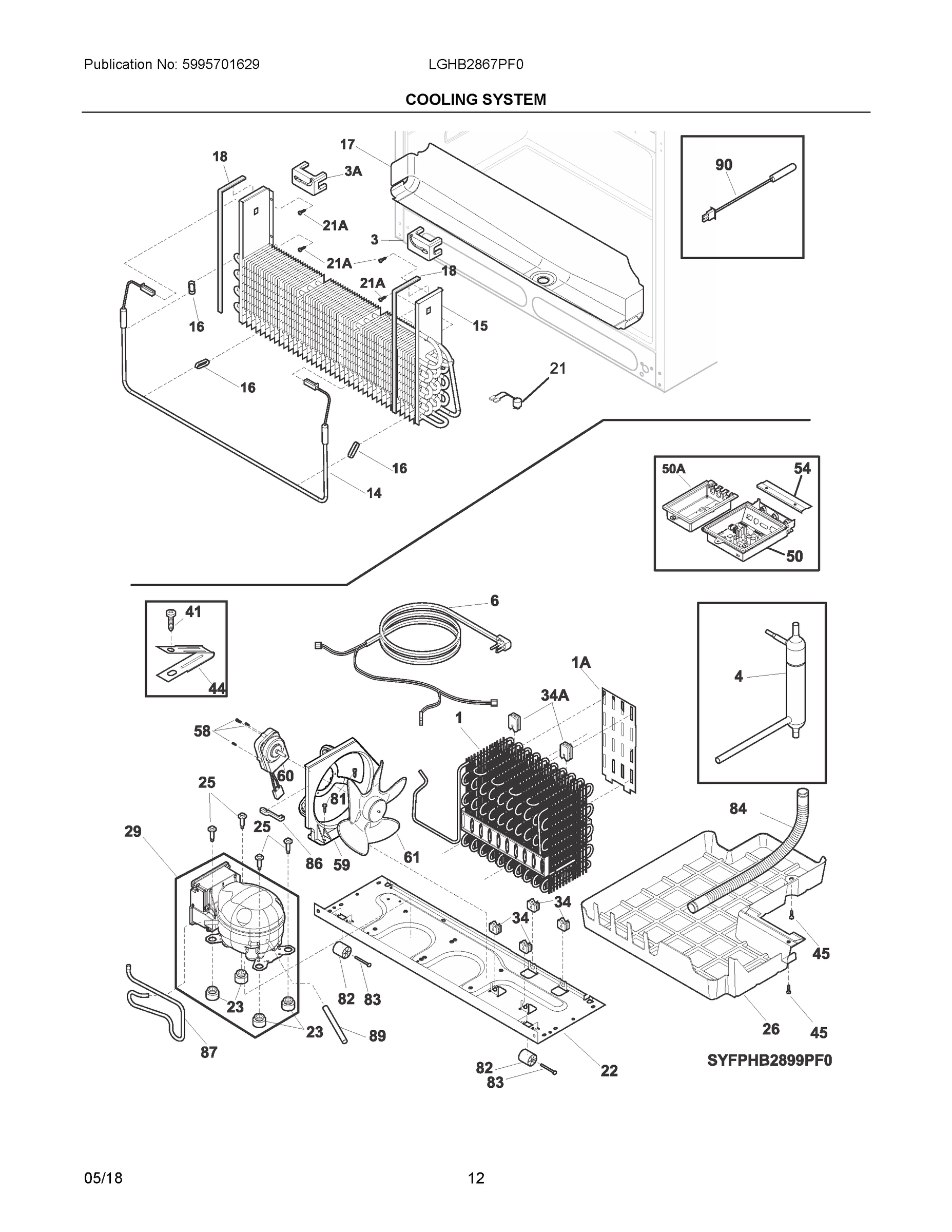

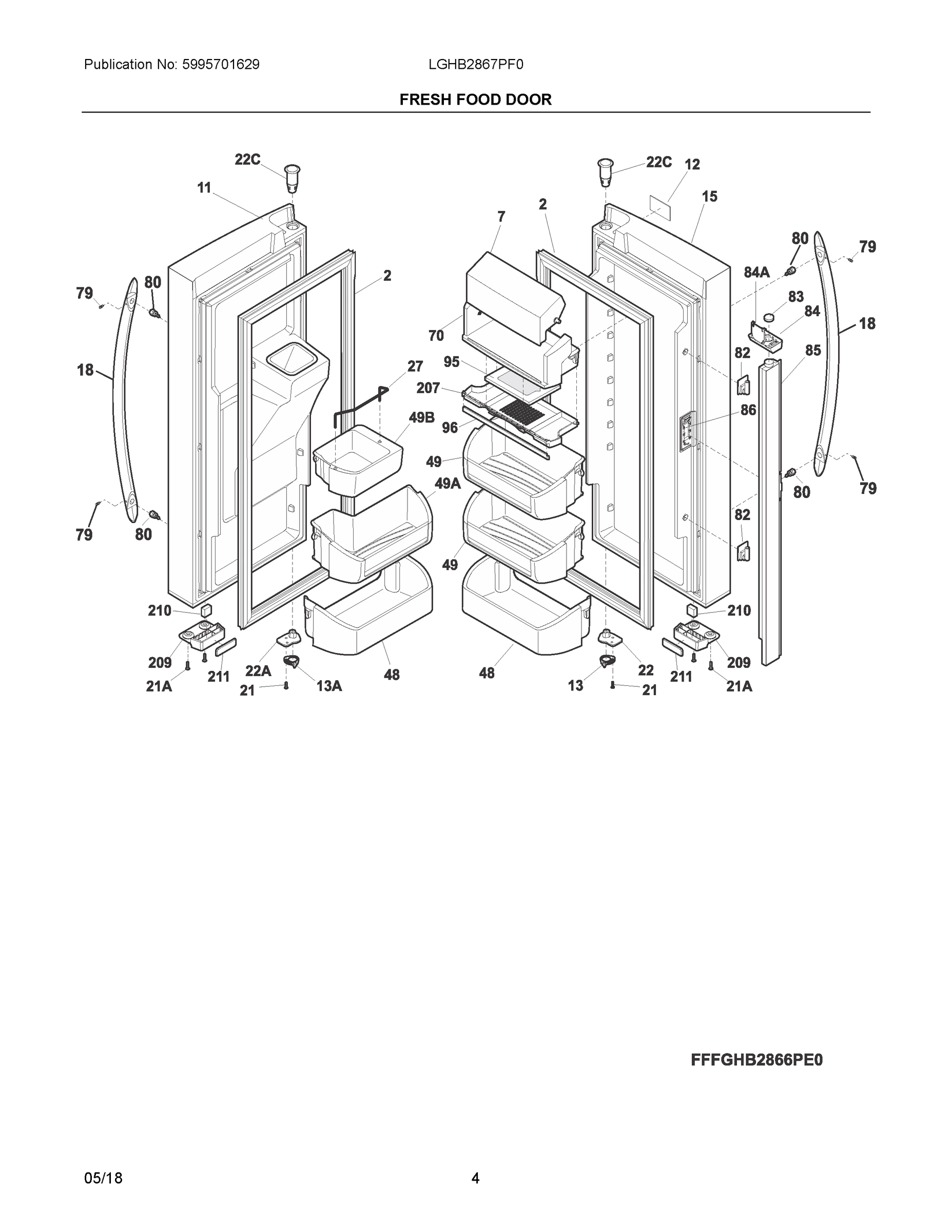

Model Electrolux LGHB2867PF0 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE – Common Parts &amp; Diagrams

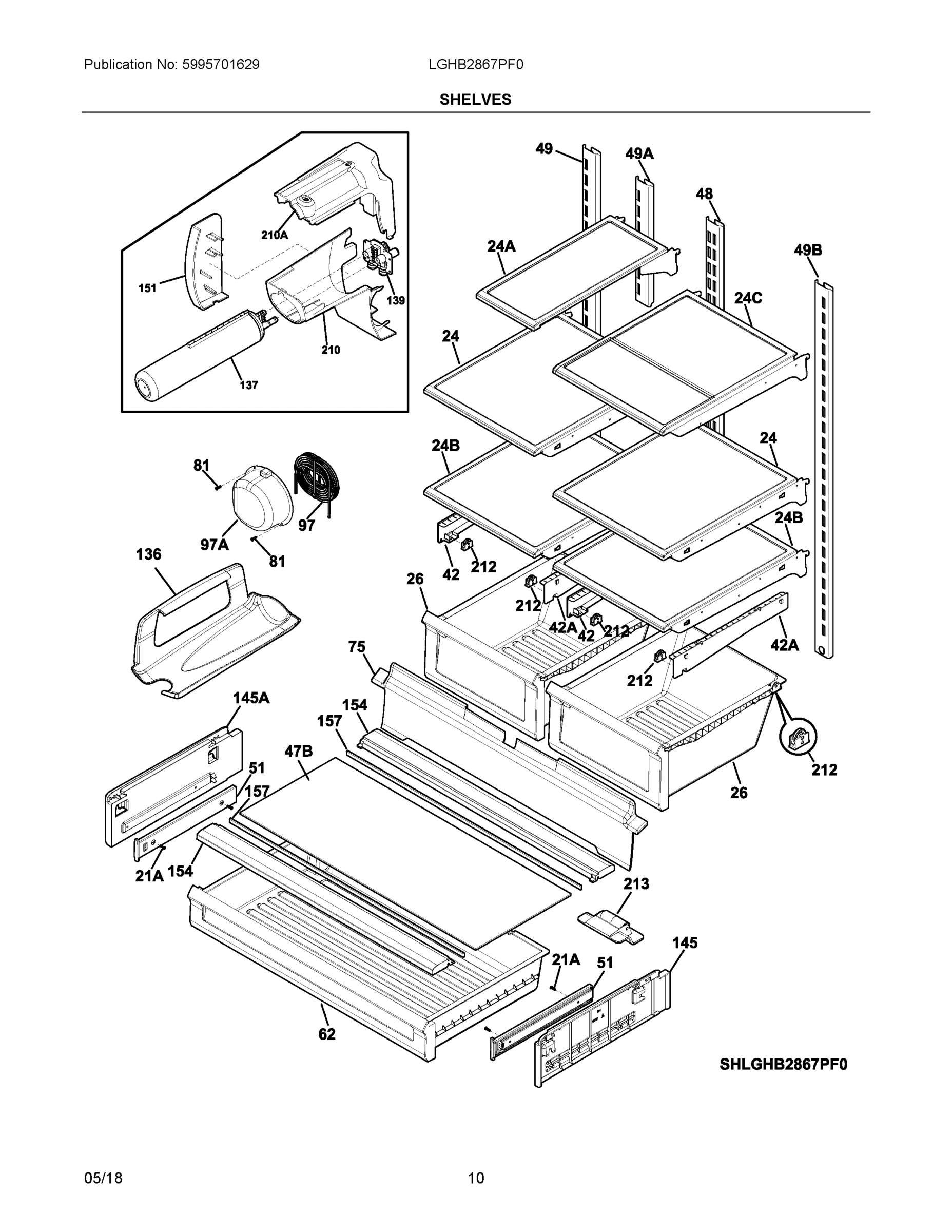

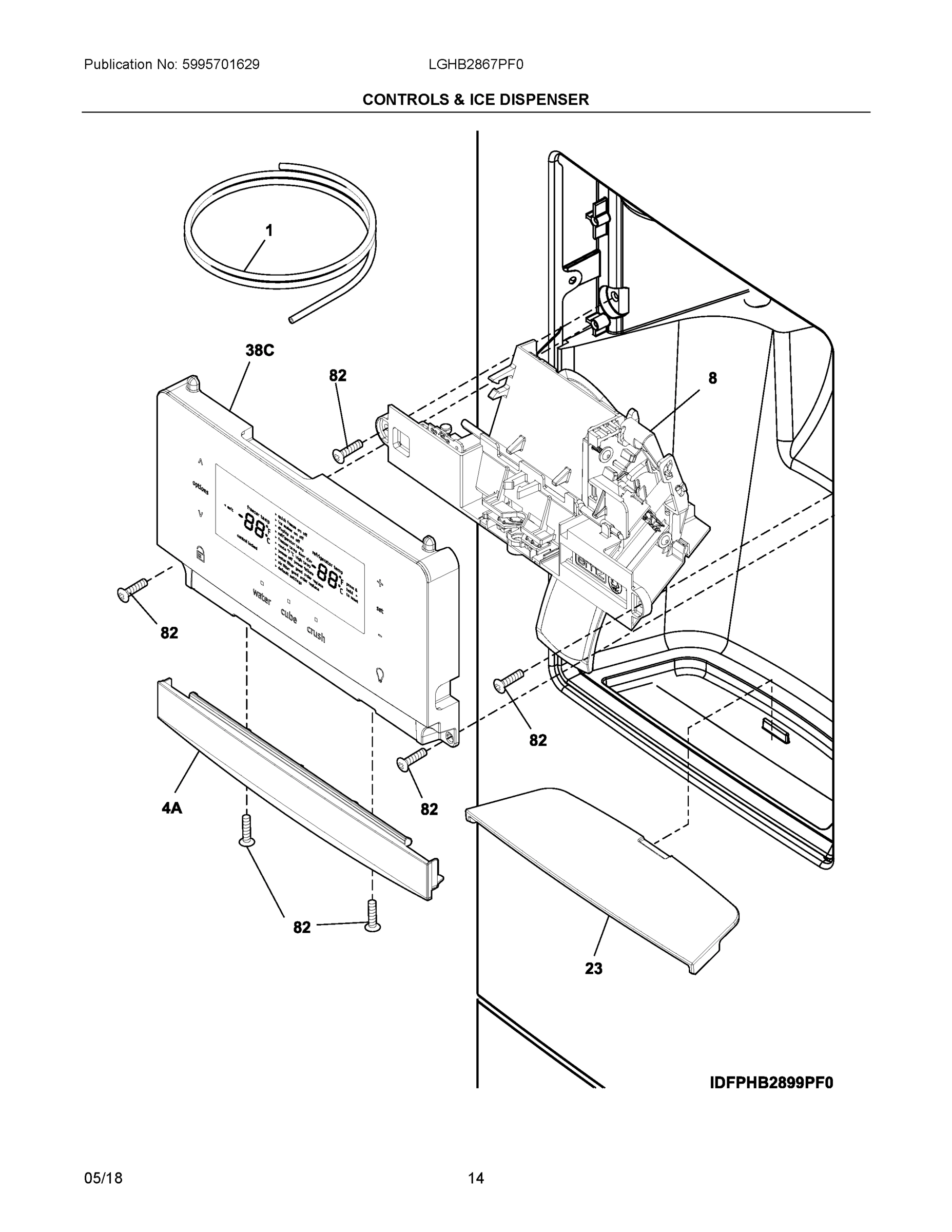

1

242093003 Frigidaire Refrigerator Ice Contain In Stock WCI 242093003 $144.52

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $51.94

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $62.39

2

243297613 Frigidaire Refrigerator Ice Maker In Stock WCI 243297613 $83.30

2

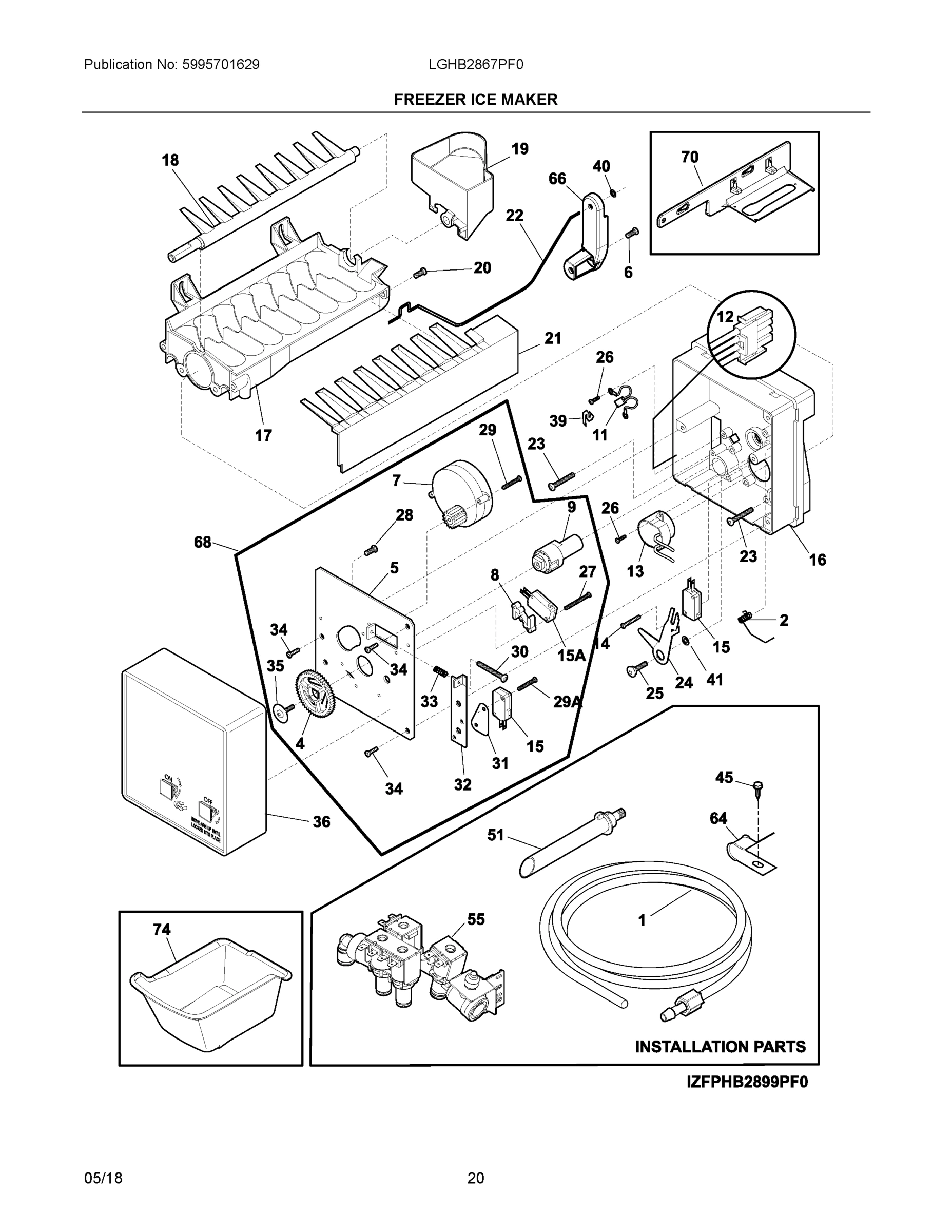

SPRING-SHUTOFF ARM, ICE MAKER WCI 5304469396 Contact Us For Availability

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $16.79

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4A

242194301 Frigidaire Refrigerator Trim Backorder WCI 242194301 $65.29

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

7

5304469407 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469407 $97.46

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $42.12

9

CAM WCI 5304469402 Contact Us For Availability

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $36.99

10

COVER-AIR DUCT WCI 242072002 No Longer Available

10A

241860402 Frigidaire Refrigerator Evaporator Backorder WCI 241860402 $78.78

11

DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 241987921 Contact Us For Availability

11

DOOR-REFR, STAINLESS, LH WCI 242185617 Contact Us For Availability

12

242015201 Frigidaire Nameplate In Stock WCI 242015201 $4.38

12

INSULATION-AIR DUCT WCI 242072401 Contact Us For Availability

12

HARNESS-WIRING WCI 5304469390 Contact Us For Availability

13

241868401 Frigidaire Refrigerator Door Stop Backorder WCI 241868401 $11.78

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $83.07

13

THERMOSTAT ASSY, ICE MAKER WCI 5304469387 Contact Us For Availability

13A

241868402 Frigidaire Refrigerator Door Stop Backorder WCI 241868402 $11.78

14

242060202 Frigidaire Refrigerator Light Switc Backorder WCI 242060202 $25.81

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $67.51

242196204 Frigidaire Refrigerator Light Board Backorder WCI 242196204 $37.65

5303918569 Frigidaire Refrigerator Evaporator In Stock WCI 5303918569 $161.98

DOOR-REFR, STAINLESS, RH WCI 241988076 Contact Us For Availability

SWITCH-MICRO, 2 WCI 5304469388 Contact Us For Availability

15A

242202701 Frigidaire Refrigerator Lens In Stock WCI 242202701 $19.45

15A

SWITCH-MICRO WCI 5304469405 Contact Us For Availability

16

242072101 Frigidaire Refrigerator Cover Backorder WCI 242072101 $30.79

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

HOUSING, CONTROL WCI 5304469379 Contact Us For Availability

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $69.03

17

5304469413 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469413 $122.90

241816602 Frigidaire Refrigerator Auger Motor In Stock WCI 241816602 $117.28

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $11.32

241930101 Frigidaire Refrigerator Stainless S In Stock WCI 241930101 $98.99

242029401 Frigidaire Refrigerator Brushed Doo Backorder WCI 242029401 $118.66

EJECTOR-ICE WCI 5304469384 Contact Us For Availability

19

242072601 Frigidaire Refrigerator Support Backorder WCI 242072601 $28.53

19

CUP-WATER INLET, W/BEARING WCI 242051201 Contact Us For Availability

20

242072201 Frigidaire Refrigerator Cover In Stock WCI 242072201 $58.31

20

242095702 Frigidaire Refrigerator Air Handler In Stock WCI 242095702 $56.92

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.79

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.97

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $9.95

242046001 Frigidaire Refrigerator Defrost The In Stock WCI 242046001 $47.93

5303918568 Frigidaire Thermostat Defrost In Stock WCI 5303918568 $57.81

ICE STRIPPER WCI 5304469378 Contact Us For Availability

21C

241899703 Frigidaire Refrigerator Screw In Stock WCI 241899703 $9.50

22

CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability

22

SHUT-OFF ARM WCI 242051301 Contact Us For Availability

22A

242075602 Frigidaire Refrigerator Cam Assembl In Stock WCI 242075602 $14.92

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $12.20

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

242094603 Frigidaire Refrigerator Evaporator In Stock WCI 242094603 $84.96

23

242176503 Frigidaire Refrigerator Sump In Stock WCI 242176503 $72.16

24

242068701 Frigidaire Refrigerator Shelf Backorder WCI 242068701 $116.13

24

242094802 Frigidaire Defrost Heater In Stock WCI 242094802 $72.01

24A

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $7.30

24A

242200501 Frigidaire Refrigerator "Spill-Safe Backorder WCI 242200501 $113.39

24B

242068703 Frigidaire Refrigerator Shelf Backorder WCI 242068703 $123.76

24C

242235501 Frigidaire Refrigerator Shelf "Spil Backorder WCI 242235501 $132.66

25

241949502 Frigidaire Refrigerator Clip Backorder WCI 241949502 $12.20

25

SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability

26

241801802 Frigidaire Refrigerator Crisper Pan In Stock WCI 241801802 $122.78

26

241920609 Frigidaire Side-by-Side Defrost Pan Backorder WCI 241920609 $80.76

27

241752703 Frigidaire Refrigerator Retainer Backorder WCI 241752703 $33.06

30

241778701 Frigidaire Refrigerator Anti-Tip Br In Stock WCI 241778701 $15.86

33

HOUSING-EVAPORATOR WCI 242094401 Contact Us For Availability

34

241868301 Frigidaire Refrigerator Washer Asse In Stock WCI 241868301 $19.91

36

241868201 Frigidaire Refrigerator Spacer Backorder WCI 241868201 $31.69

36

COVER-ICE MAKER WCI 5304469385 Contact Us For Availability

36A

241868202 Frigidaire Refrigerator Spacer Backorder WCI 241868202 $14.03

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $41.88

38A

241761302 Frigidaire Refrigerator Upper Hinge In Stock WCI 241761302 $40.78

38C

USER INTERFACE, ASSEMBLY, COMPLETE, W/GASKET WCI 242058218 Contact Us For Availability

40

5304504483 Frigidaire Refrigerator Gray Upper Backorder WCI 5304504483 $40.01

40

CLIP-RETAINER WCI 5304458401 Contact Us For Availability

40A

5304504482 Frigidaire Refrigerator Upper Left Backorder WCI 5304504482 $39.15

40B

241862405 Frigidaire Refrigerator Upper Hinge Backorder WCI 241862405 $63.01

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

42

242067901 Frigidaire Refrigerator Roller Supp Backorder WCI 242067901 $14.48

42A

242067801 Frigidaire Refrigerator Door Suppor In Stock WCI 242067801 $28.07

43

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $5.40

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

47B

242082303 Frigidaire Refrigerator Glass Backorder WCI 242082303 $64.07

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $55.34

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $50.66

49

242037201 Frigidaire Door Bin Shelf In Stock WCI 242037201 $59.54

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $42.57

49

5303918736 Frigidaire Refrigerator Lower Bask Backorder WCI 5303918736 $132.88

49A

242037202 Frigidaire Refrigerator Door Bin Backorder WCI 242037202 $63.45

49A

242122001 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122001 $28.07

49A

BASKET-FRZR, UPPER WCI 241780810 Contact Us For Availability

49B

242011701 Frigidaire Bin Shelf Door Backorder WCI 242011701 $31.25

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $49.31

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $13.13

51

242197901 Frigidaire Refrigerator Slide Backorder WCI 242197901 $82.43

51

SLIDE ASSEMBLY, BASKET LOWER, RH, FREEZER DRA WCI 242130508 Contact Us For Availability

51A

241894223 Frigidaire Drawer Right Slide Rail Backorder WCI 241894223 $81.54

52

SLIDE ASSEMBLY, BASKET LOWER, LH, FREEZER DRA WCI 242130507 Contact Us For Availability

52A

241894224 Frigidaire Refrigerator Slide Assem Backorder WCI 241894224 $81.10

53A

5303918801 Frigidaire Refrigerator Retainer S Backorder WCI 5303918801 $7.69

54

241532401 Frigidaire Refrigerator Channel In Stock WCI 241532401 $19.45

55

242253002 Frigidaire Refrigerator Water Valve In Stock WCI 242253002 $117.64

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.32

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $80.30

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

PAN-DELI WCI 242096802 Contact Us For Availability

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $14.92

65

242232701 Frigidaire Refrigerator Cover Backorder WCI 242232701 $20.38

68

242095002 Frigidaire Refrigerator Cover In Stock WCI 242095002 $57.06

68

MOUNTING PLATE, ASSY WCI 5304469398 Contact Us For Availability

70

242041701 Frigidaire Refrigerator Ice Maker B Backorder WCI 242041701 $44.80

72

242054804 Frigidaire Refrigerator Kickplate G Backorder WCI 242054804 $52.87

73

242075701 Frigidaire Refrigerator Lower Hinge Backorder WCI 242075701 $13.59

74

242127901 Frigidaire Refrigerator Ice Contain Backorder WCI 242127901 $113.37

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.62

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $11.43

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

82

5304503705 Frigidaire Refrigerator Divider Backorder WCI 5304503705 $74.84

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $45.70

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $16.75

85

241778811 Frigidaire Refrigerator Flipper Mul In Stock WCI 241778811 $159.78

85

242130901 Frigidaire Refrigerator Divider Backorder WCI 242130901 $54.24

85A

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $46.62

85B

241872203 Frigidaire Refrigerator Beam Suppor Backorder WCI 241872203 $32.17

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $22.06

86

5304507340 Frigidaire Refrigerator Trim Backorder WCI 5304507340 $28.53

89

241972302 Frigidaire Refrigerator Drawer Brac In Stock WCI 241972302 $64.54

89

TUBE-PROCESS WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

90

BAR-TIMING WCI 242136901 Contact Us For Availability

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

93

241835505 Frigidaire Refrigerator Light Switc In Stock WCI 241835505 $44.38

96

241860601 Frigidaire Refrigerator Evaporator In Stock WCI 241860601 $81.10

96

242048006 Frigidaire Air Filter-Door Trim Backorder WCI 242048006 $9.95

97A

COVER-WATER TANK WCI 242117301 Contact Us For Availability

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $7.23

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $14.50

102

242029301 Frigidaire Refrigerator Door Handle Backorder WCI 242029301 $15.86

102

242157501 Frigidaire Refrigerator Cover Backorder WCI 242157501 $14.50

103

242077302 Frigidaire Screw Backorder WCI 242077302 $4.97

105

242116801 Frigidaire Refrigerator Basket Trim Backorder WCI 242116801 $11.32

107

241963102 Frigidaire Refrigerator Air Duct Backorder WCI 241963102 $21.74

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $47.66

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $5.88

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $6.82

123

242135301 Frigidaire Refrigerator Evaporator In Stock WCI 242135301 $4.97

124

242006903 Frigidaire Refrigerator Air Duct Backorder WCI 242006903 $37.65

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $72.59

136

DISPENSER-CAN, WHITE WCI 241657701 Contact Us For Availability

139

242009602 Frigidaire Refrigerator Water Filte In Stock WCI 242009602 $17.88

145

242200003 Frigidaire Refrigerator Right Deli Backorder WCI 242200003 $46.16

145A

242200004 Frigidaire Refrigerator Left Hand D Backorder WCI 242200004 $48.83

147

5304493604 Frigidaire Refrigerator Gasket & F In Stock WCI 5304493604 $55.76

148

242095406 Frigidaire Refrigerator Gasket Backorder WCI 242095406 $11.35

149

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $70.55

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $37.45

154

SUPPORT WCI 242082401 Contact Us For Availability

157

BEAM-CRISPER COVER WCI 241872201 No Longer Available

207

242047901 Frigidaire Refrigerator Air Filter Backorder WCI 242047901 $47.49

209

242291001 Frigidaire Refrigerator Housing Backorder WCI 242291001 $12.22

210

241779101 Frigidaire Refrigerator Magnet In Stock WCI 241779101 $19.91

210

241983816 Frigidaire Refrigerator Water Filte Backorder WCI 241983816 $46.63

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $6.51

211

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $14.48

212

242236801 Frigidaire Refrigerator Roller Asse Backorder WCI 242236801 $13.13

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $31.71

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

241503901 Frigidaire Refrigerator P-1 Tube Ad In Stock WCI 241503901 $32.75

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $38.53

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $59.15

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $9.12

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

WCI 5303918553 WCI 5303918553 Contact Us For Availability

HARNESS-WIRING, DOOR WCI 242040802 Contact Us For Availability

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.15

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $8.60

241842301 Frigidaire Refrigerator Thermistor Backorder WCI 241842301 $21.73

241844403 Frigidaire Refrigerator Tube Backorder WCI 241844403 $14.92

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $7.67

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $9.06

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $10.41

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

242095804 Frigidaire Refrigerator Wiring Harn Backorder WCI 242095804 $54.68

242096001 Frigidaire Refrigerator Insulation Backorder WCI 242096001 $11.78

242119001 Frigidaire Refrigerator Wiring Harn Backorder WCI 242119001 $72.16

242141401 Frigidaire Refrigerator Harness Wir In Stock WCI 242141401 $122.48

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.40

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $25.07

5304521649 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521649 $60.03

NIAA

241852501 Frigidaire Refrigerator Clip Backorder WCI 241852501 $9.93

NIAB

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $19.03

NIAC

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $10.85

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $8.58

241810104 Frigidaire Refrigerator Seal Backorder WCI 241810104 $7.23

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $3.61

NIBA

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

241964707 Frigidaire Refrigerator Water Tube In Stock WCI 241964707 $11.76

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $8.60

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $8.60

242072501 Frigidaire Refrigerator Insulation Backorder WCI 242072501 $11.76

NID

241965906 Frigidaire Refrigerator Water Tube Backorder WCI 241965906 $15.38

NIE

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $23.11

NIH

242095425 Frigidaire Gasket Backorder WCI 242095425 $6.47
