Model LG LGDVT418 RECEIVER DVD – Common Parts & Diagrams

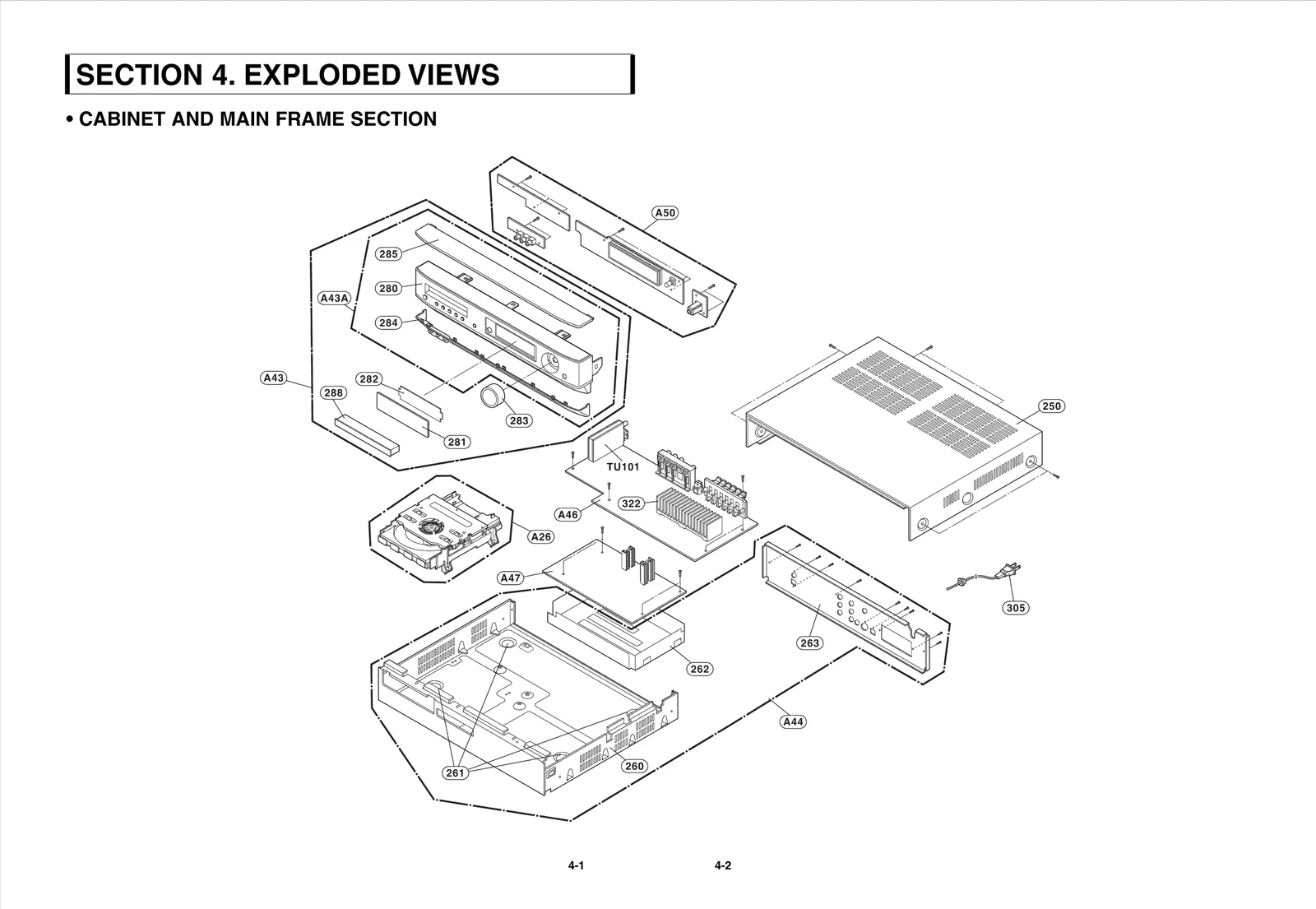

Diagram 0

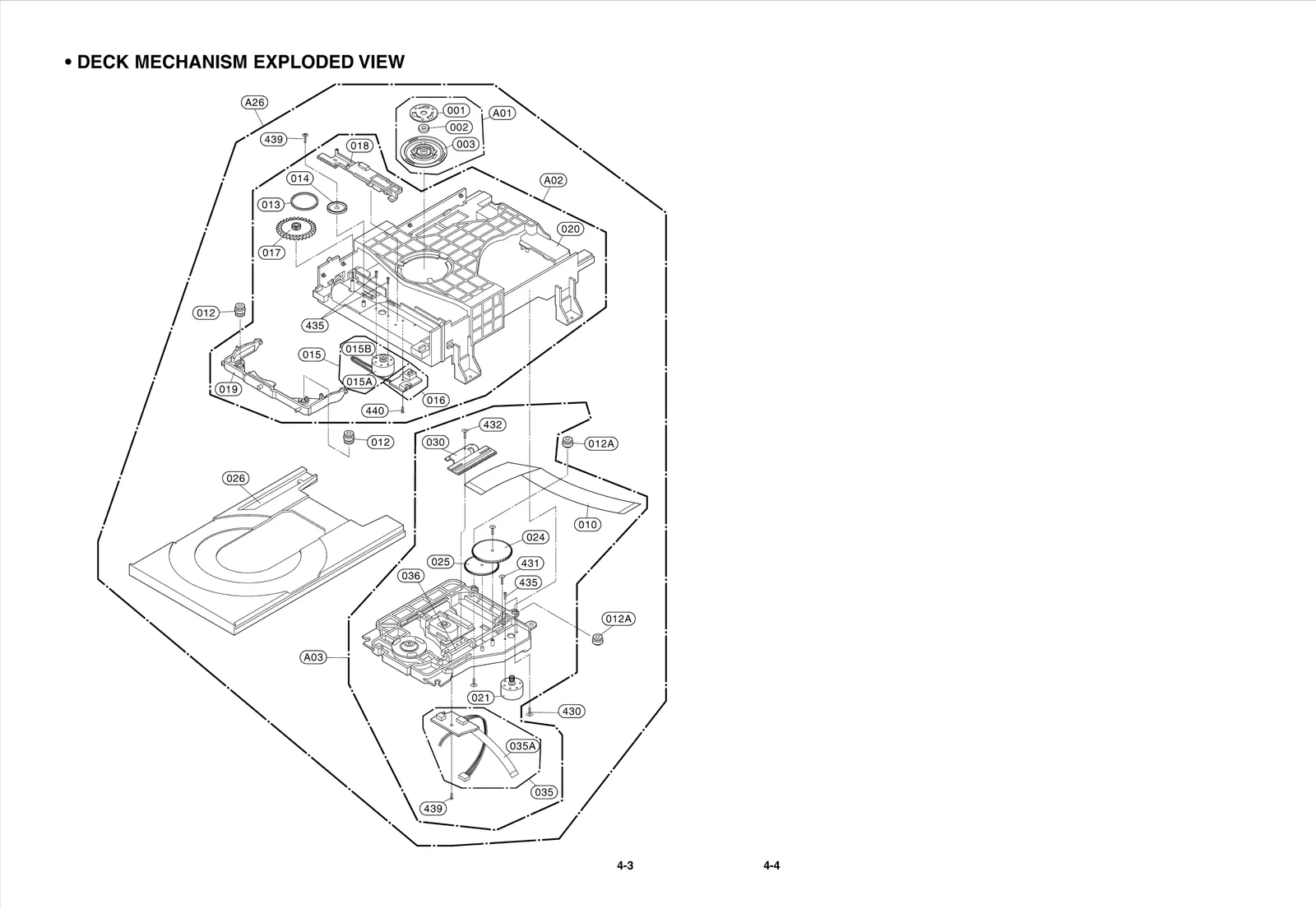

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Common parts from model LG LGDVT418 RECEIVER DVD
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-JW16B Contact Us For Availability
012
RUBBER LGE 5040R-0083A Contact Us For Availability
012A
RUBBER LGE 5040R-0110A Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
MOTOR ASSEMBLY LGE 4681R-A015A Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PWB(PCB) ASSEMBLY,TO LGE 6871R-9294A Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0067A Contact Us For Availability
019
FRAME LGE 3210R-M008A Contact Us For Availability
020
BASE LGE 3040R-M066A Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009B Contact Us For Availability
024
GEAR LGE 4470R-0179A Contact Us For Availability
025
GEAR LGE 4470R-0178A Contact Us For Availability
026
TRAY LGE 3390R-0033A Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
035
PWB(PCB) ASSEMBLY,TO LGE 6871R-9295B Contact Us For Availability
035A
CABLE,FLAT LGE 6850R-GK22Y Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
250
CABINET LGE 3090RCH013D Contact Us For Availability
260
CHASSIS LGE 3140RCH018A Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
262
LGE 3858RCX048A LGE 3858RCX048A Contact Us For Availability
263
PANEL,AUDIO LGE 3720RCP069B Contact Us For Availability
280
PANEL,AUDIO LGE 3720RCM189J Contact Us For Availability
281
LGE 3790R-P093B LGE 3790R-P093B Contact Us For Availability
282
LGE 3858RCX054A LGE 3858RCX054A Contact Us For Availability
283
Knob LGE 4940RCV072B Contact Us For Availability
284
COVER LGE 3550RC0424C Contact Us For Availability
285
COVER LGE 3550RC0423F Contact Us For Availability
288
DOOR LGE 3580RCC056B Contact Us For Availability
305
POWER CORD LGE 6410RAHZ05B Contact Us For Availability
322
HEAT SINK LGE 4920RCE055A Contact Us For Availability
430
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
452
Screw,Customized LGE 353-025C Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
650
DECORATION LGE 3508RMP094A Contact Us For Availability
651
DECORATION LGE 3508RMP092A Contact Us For Availability
652
PANEL,FRONT LGE 3720RMF127A Contact Us For Availability
653
DECORATION LGE 3508RMP093A Contact Us For Availability
654
CABINET ASSEMBLY LGE 3091RMW134A Contact Us For Availability
655
FOOT LGE 3610RM0041A Contact Us For Availability
656
FOOT LGE 3610RM0043A Contact Us For Availability
657
PWB(PCB) ASSEMBLY,SU LGE 6871RU9251A Contact Us For Availability
658
NET ASSEMBLY LGE 3701RM0005E Contact Us For Availability
659
SPEAKER,WOOFER LGE 6400WSMK01A Contact Us For Availability
750
NET ASSEMBLY LGE 3701RM0142A Contact Us For Availability
751
PANEL,FRONT LGE 3720RMF126A Contact Us For Availability
754
PWB(PCB) ASSEMBLY,SU LGE 6871RU9302A Contact Us For Availability
755
COVER LGE 3550RM0035A Contact Us For Availability
756
CASE LGE 3110RMP080A Contact Us For Availability
758
FOOT LGE 3610RM0060A Contact Us For Availability
759
BASE LGE 3040RMP040A Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RH0055W Contact Us For Availability
802
Box,Master LGE 3890RCC179B Contact Us For Availability
803
LGE 3920R-E120A LGE 3920R-E120A Contact Us For Availability
804
Bag LGE 3880SCS001E Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA5H Contact Us For Availability
813
Antenna,T LGE 5010R-T001D Contact Us For Availability
814
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
850
NET ASSEMBLY LGE 3701RM0141A Contact Us For Availability
851
COVER LGE 3550RM0034A Contact Us For Availability
852
PANEL,FRONT LGE 3720RMF124A Contact Us For Availability
853
SPEAKER,WOOFER LGE 6400WSMB01A Contact Us For Availability
854
SPEAKER,TWEETER LGE 6400DSMZ01A Contact Us For Availability
855
PWB(PCB) ASSEMBLY,SU LGE 6871RU9300A Contact Us For Availability
856
CASE LGE 3110RMP078A Contact Us For Availability
857
DECORATION BOT LGE 3508RMP088A Contact Us For Availability
858
PWB(PCB) ASSEMBLY,SU LGE 6871RU0047A Contact Us For Availability
859
DECORATION TOP LGE 3508RMP089A Contact Us For Availability
860
PWB(PCB) ASSEMBLY,SU LGE 6871RU0046A Contact Us For Availability
861
PANEL,FRONT LGE 3720RMF125A Contact Us For Availability
862
CASE LGE 3110RMP079A Contact Us For Availability
863
DECORATION LGE 3508RMP090A Contact Us For Availability
864
BASE LGE 3040RMP039A Contact Us For Availability
865
BASE LGE 3040RMP041A Contact Us For Availability
866
FOOT LGE 3610RM0038B Contact Us For Availability
867
PWB(PCB) ASSEMBLY,SU LGE 6871RU9301A Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710CDAL01B Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016B Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-T001A Contact Us For Availability
A03
Base Assembly LGE 3041R-T001E Contact Us For Availability
A26
Deck Assembly,Audio LGE 6721RJ0871A Contact Us For Availability
A43
PANEL ASSEMBLY,FRONT LGE 3721RCF190T Contact Us For Availability
A43A
Panel Assembly,Front LGE AGL32380809 Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141RCT069B Contact Us For Availability
A46
PWB(PCB) ASSEMBLY,TO LGE 6871R-6760B Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,TO LGE 6871R-6740B Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-6761B Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
C001
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C003
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C008
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C6B1
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C6C2
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C6C7
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C109
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C113
Capacitor,AL,Radial LGE 0CE3356K618 Contact Us For Availability
C116
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C206
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE 0CH1821K562 Contact Us For Availability
C225
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C301
Capacitor,AL,Radial LGE 0CE1066F618 Contact Us For Availability
C303
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C332
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C333
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C341
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C343
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C344
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C346
Capacitor,Ceramic,Chip LGE 0CH1272K512 Contact Us For Availability
C354
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C381
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C536
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C541
LGE 0CE1066J618 LGE 0CE1066J618 Contact Us For Availability
C545
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C553
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C604
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C612
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C614
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C618
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C636
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C637
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C649
Capacitor,Ceramic,Chip LGE 0CH1474H942 Contact Us For Availability
C653
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C663
Capacitor,Ceramic,Chip LGE 0CH4200K412 Contact Us For Availability
C665
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C676
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C754
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C757
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C760
LGE 0CE337EK638 LGE 0CE337EK638 Contact Us For Availability
C762
CAPACITOR,FIXED CERA LGE 0CK105EK94A Contact Us For Availability
C763
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C779
Capacitor,Ceramic,Chip LGE 0CH1682K566 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C901
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CE687RR640 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CE687RQ610 Contact Us For Availability
C906
Capacitor,AL,Radial LGE 0CE107CK638 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C908
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C908
LGE 0CE476CD638 LGE 0CE476CD638 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C910
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C910
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C912
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C914
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C915
Capacitor,Film,DIP,DC LGE 0CQ6821N409 Contact Us For Availability
C916
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C917
CAPACITOR LGE 624-087B Contact Us For Availability
C924
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C925
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 0CE1076H618 Contact Us For Availability
C927
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C928
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C929
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108CC618 Contact Us For Availability
C935
LGE 0CE1086F630 LGE 0CE1086F630 Contact Us For Availability
C941
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C943
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C952
Capacitor,Film,DIP LGE 0CF56111410 Contact Us For Availability
C954
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
CABL05
CONNECTOR ASSEMBLY LGE 6631R-E039B Contact Us For Availability
CABL23
CABLE,FLAT (23PIN) LGE 6850R-GW34Z Contact Us For Availability
CABL24
CABLE,FLAT (24PIN) LGE 6850R-GX36W Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
CN601
CONNECTOR FH-R20R UG3 LGE 561-711D Contact Us For Availability
CN901
Connector,Wafer LGE 561-715J Contact Us For Availability
CN902
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
D103
Diode,Rectifier LGE 0DR102109AA Contact Us For Availability
D906
DIODE LGE 0DD010009CA Contact Us For Availability
D922
DIODE,RECTIFIERS LGE 0DRVH00030A Contact Us For Availability
D923
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D927
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D928
DIODE,SWITCHING LGE 0DS141489AB Contact Us For Availability
D933
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSSD00010A Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSFC00020A Contact Us For Availability
DB901
LGE 0DRGF00039A LGE 0DRGF00039A Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FAN
FAN,DC LGE 5900R-D006C Contact Us For Availability
FILTER
FILTER(CIRC),EMC LGE 6200J000034 Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCRSA100B Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRIJ001B Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMG00022A Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGPV002B Contact Us For Availability
IC302
IC,PERIPHERALS LGE 0IPRPCI014A Contact Us For Availability
IC302
IC,Audio Codec LGE 0IPRPCI014B Contact Us For Availability
IC303
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC305
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC502
LGE 0IJR229600A LGE 0IJR229600A Contact Us For Availability
IC601
LGE 0ILNRNF009B LGE 0ILNRNF009B Contact Us For Availability
IC602
LGE 0IMMRFU011A LGE 0IMMRFU011A Contact Us For Availability
IC602
IC,MEMORIES LGE 0IMMRHY040D Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMREB006A Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMRHY001A Contact Us For Availability
IC603
IC MEMORIES LGE 0IMMRHY001E Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMREB004A Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMREB004D Contact Us For Availability
IC604
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC605
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC606
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC702
IC,PERIPHERALS LGE 0IPRPSG033A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMGFA058A Contact Us For Availability
IC902
IC,POWER MANAGEMENT LGE 0IPMGFA010A Contact Us For Availability
IC921
IC,POWER MANAGEMENT LGE 0IPMGFA006C Contact Us For Availability
IC922
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC922
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC923
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC924
IC,POWER MANAGEMENT LGE 0IPMGKE009C Contact Us For Availability
IC942
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC942
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC942
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
JK001
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK002
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK003
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK301
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK501
Jack,Complex LGE 6612JH002UE Contact Us For Availability
JK701
TERMINAL BLOCK LGE 664000009AA Contact Us For Availability
L002
LGE 0LA0102K019 LGE 0LA0102K019 Contact Us For Availability
L203
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L205
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L510
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L711
COIL,RF LGE 6140RCC007G Contact Us For Availability
L901
Coil,Choke LGE 6140RCC002A Contact Us For Availability
L921
COIL,CHOKE LGE 633-088G Contact Us For Availability
L951
TRANSFORMER,SMPS[COI LGE 6170RNGW18C Contact Us For Availability
LD001
LED LGE 0DL325319AA Contact Us For Availability
LF901
LGE 6200JB8013N LGE 6200JB8013N Contact Us For Availability
PC911
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN001
LGE 6630XE01124 LGE 6630XE01124 Contact Us For Availability
PN002
Connector,FFC/FPC/PIC LGE 6630R-FB05W Contact Us For Availability
PN004
LGE 6631R-E078E LGE 6631R-E078E Contact Us For Availability
PN005
LGE 6631R-E078D LGE 6631R-E078D Contact Us For Availability
PN007
CONNECTOR LGE 561-711E Contact Us For Availability
PN103
CONNECTOR (CIRC),FFC LGE 6630XE01224 Contact Us For Availability
PN104
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
PN105
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PN901
LGE 6631R-F039A LGE 6631R-F039A Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
PN902
LGE 6631R-F039B LGE 6631R-F039B Contact Us For Availability
Q002
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q103
TRANSISTOR LGE 0TR126709AB Contact Us For Availability
Q104
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q201
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q201
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
Q202
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q204
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q506
TRANSISTOR CD-340A UG8 CD-945A LGE 0TR130209AA Contact Us For Availability
Q901
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q904
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q904
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q910
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q921
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q922
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
R031
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R033
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R034
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R036
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R037
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R038
Resistor,Carbon Film LGE 0RD1201F609 Contact Us For Availability
R039
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R6B1
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R6B2
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R6H4
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R114
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R115
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R202
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R214
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R221
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R222
RESISTOR CHIP LGE 0RH0201D622 Contact Us For Availability
R227
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R228
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R232
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R240
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R301
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R307
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R314
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R336
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R349
Resistor,Chip LGE 0RH6200C622 Contact Us For Availability
R381
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R386
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R388
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R391
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R393
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R507
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R518
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R541
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R551
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R571
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R607
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R608
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R616
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R625
Resistor,Chip LGE 0RH0681C622 Contact Us For Availability
R627
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R632
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R659
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R683
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R701
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R716
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R747
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R758
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R901
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R903
Resistor,Chip LGE 0RH3903D622 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R904
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R904
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R905
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R906
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R911
Resistor,Carbon Film LGE 0RD3903F609 Contact Us For Availability
R912
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R914
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R915
Resistor,Metal Oxide Film LGE 0RS1000K619 Contact Us For Availability
R932
RESISTOR FIXED CARBON FILM AEG LGE 0RD1203F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R934
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD0562F609 Contact Us For Availability
R943
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R944
RESISTOR FIXED CARBON FILM SKN LGE 0RD2001F609 Contact Us For Availability
R945
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R946
Resistor,Carbon Film LGE 0RD1802F609 Contact Us For Availability
R949
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R952
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
RMC001
Receiver Module LGE 6712R2038GP Contact Us For Availability
RMC001
REMOTE CONTROLLER RECEIVER LGE 6712R2038GF Contact Us For Availability
SW005
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
TRANSFORMER,SMPS[COI LGE 6170RNGW18D Contact Us For Availability
T902
TRANSFORMER,SMPS[COI LGE 6170RNGW18B Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TRC901
Diode,Rectifier LGE 0DRON00041A Contact Us For Availability
TU101
TUNER LGE 6700FM0091A Contact Us For Availability
VFD001
VFD LGE 6302R-V221B Contact Us For Availability
VR001
VOLUME,ENCODER LGE 6110E00012B Contact Us For Availability
VR901
VARISTOR LGE 6102R2A002A Contact Us For Availability
WIRE60
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271K Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271C Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271A Contact Us For Availability
WIRE82
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X301
OSCILLATOR,STD LGE 6204R-HK01C Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6212AA2270H Contact Us For Availability
ZD101
Diode,Zener LGE 0DZSE00224A Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZ910009AG Contact Us For Availability
ZD901
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ330009AR Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ510009AH Contact Us For Availability
ZD903
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00054A Contact Us For Availability
ZD921
Diode,Zener LGE 0DZ120009AG Contact Us For Availability
× ![]()
Login and Registration Form
