Model LG LGDVDR313 DVD-R 1 BASIC – Common Parts & Diagrams

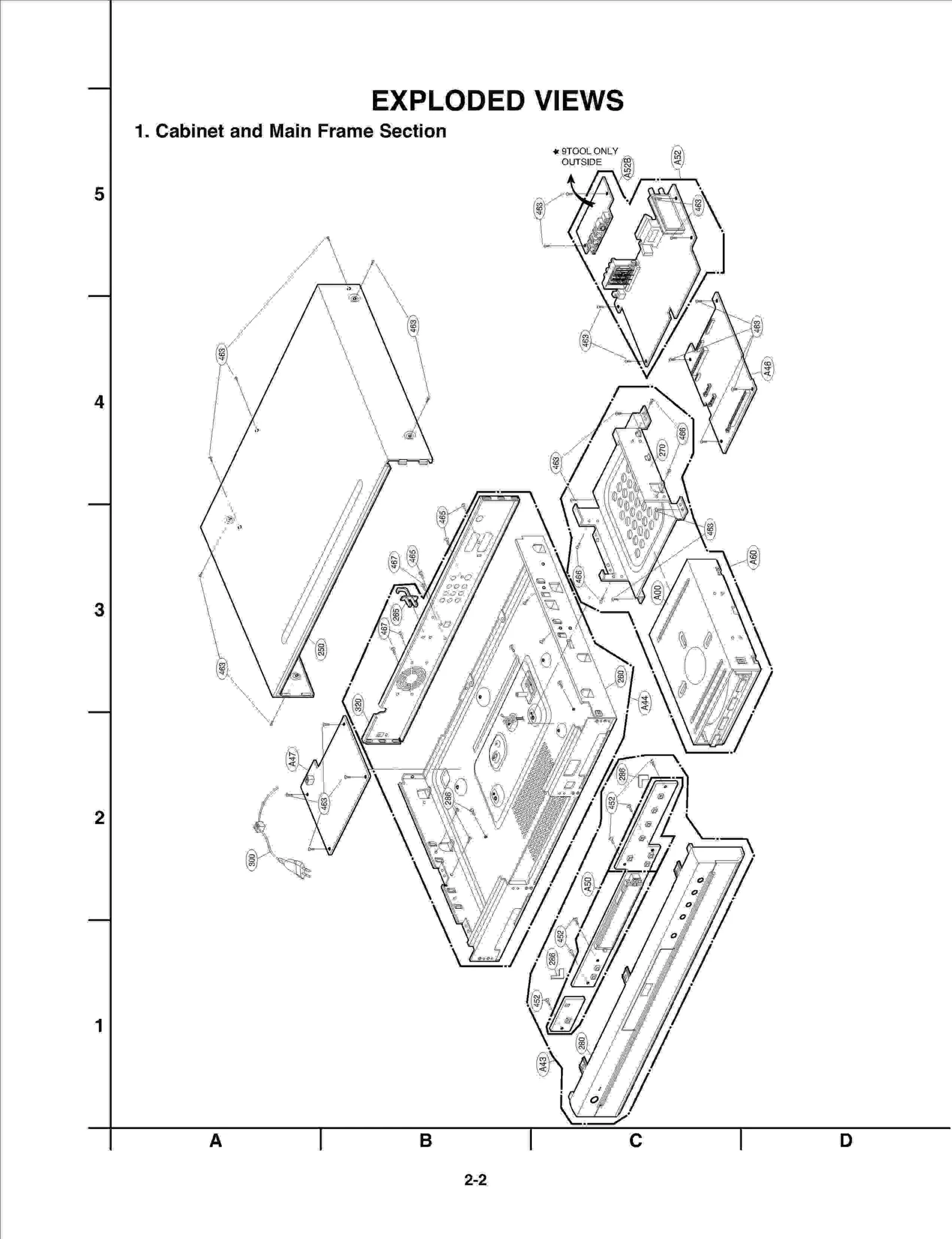

Diagram 0

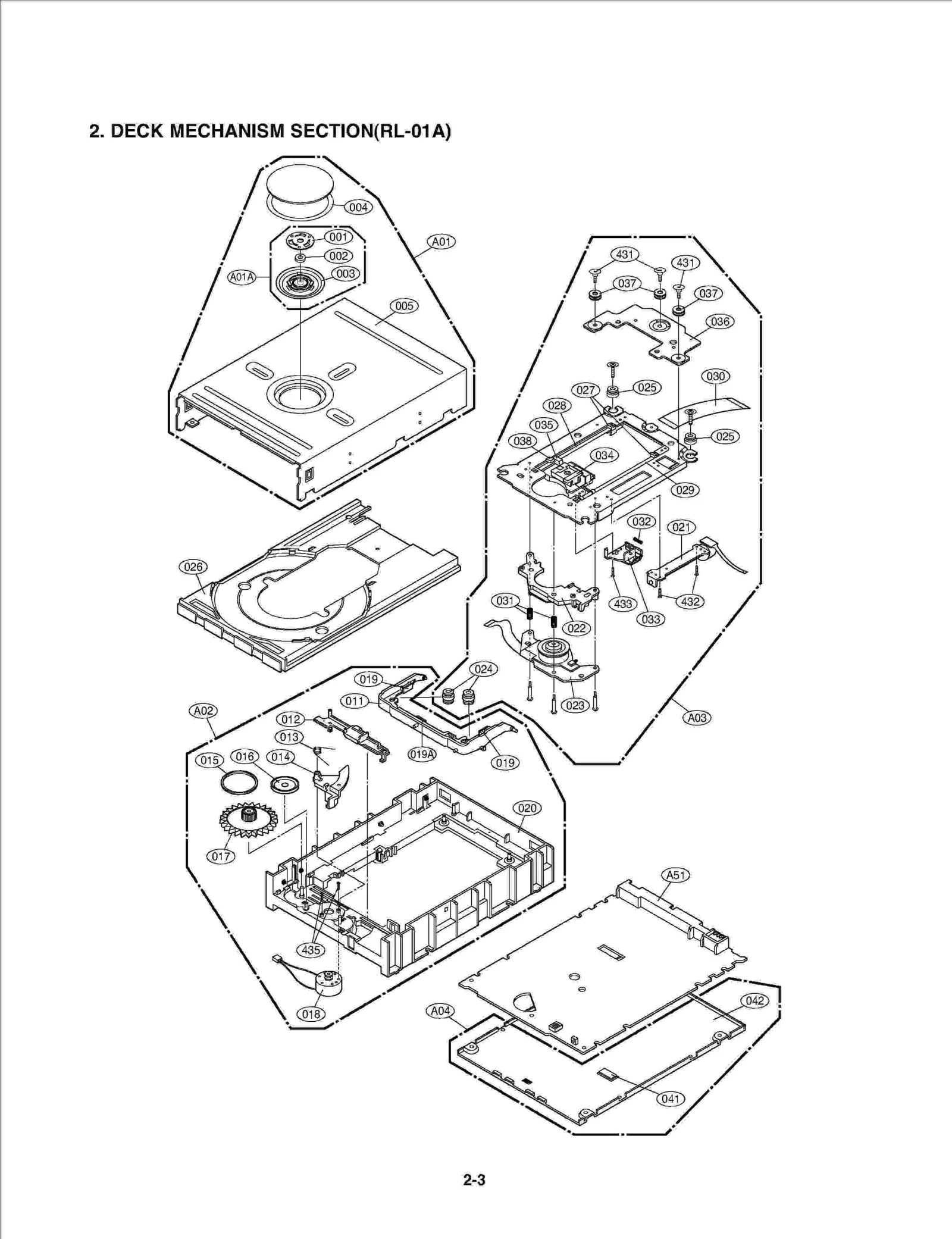

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG LGDVDR313 DVD-R 1 BASIC
001
PLATE LGE 3300H-1144A Contact Us For Availability
002
MAGNET LGE 5016H-1005C Contact Us For Availability
003
CLAMP LGE 4860H-1022A Contact Us For Availability
004
COVER LGE 3550H-1072A Contact Us For Availability
005
CABINET LGE 3090H-1026C Contact Us For Availability
011
BASE LGE 3040H-1093A Contact Us For Availability
012
GUIDE LGE 4974H-1034A Contact Us For Availability
013
Spring LGE 4970H-1087A Contact Us For Availability
014
Lever LGE 4510H-1054A Contact Us For Availability
015
BELT LGE 4400H-1012A Contact Us For Availability
016
Pulley LGE 4560H-1015A Contact Us For Availability
017
GEAR LGE 4470H-1115A Contact Us For Availability
018
MOTOR ASSEMBLY LGE 4681R-A008A Contact Us For Availability
019
LGE 4850H-1011B LGE 4850H-1011B Contact Us For Availability
019A
LGE 4850H-1011J LGE 4850H-1011J Contact Us For Availability
020
BASE LGE 3040R-D002A Contact Us For Availability
021
MOTOR(MECH) LGE 4680HP5011D Contact Us For Availability
022
HOLDER LGE 4930R-0445A Contact Us For Availability
023
MOTOR(MECH) LGE 4680HB1053A Contact Us For Availability
024
RUBBER LGE 5040H-1071A Contact Us For Availability
025
RUBBER LGE 5040H-1081C Contact Us For Availability
026
TRAY LGE 3390R-0022A Contact Us For Availability
027
HOLDER LGE 4930H-1092A Contact Us For Availability
028
SHAFT LGE 4370H-1079A Contact Us For Availability
029
SHAFT LGE 4370H-1079B Contact Us For Availability
030
CABLE,FLAT LGE 6850R-EA08A Contact Us For Availability
031
SPRING LGE 4970H-1138B Contact Us For Availability
032
SPRING LGE 4970H-1136B Contact Us For Availability
033
GUIDE LGE 4974R-0054A Contact Us For Availability
034
PICK UP,DVD LGE 6716DMD001A Contact Us For Availability
035
BASE LGE 3040H-1094B Contact Us For Availability
036
BRACKET LGE 4810H-1091A Contact Us For Availability
037
RUBBER LGE 5040H-1086A Contact Us For Availability
038
RUBBER LGE 5040H-1078A Contact Us For Availability
041
RUBBER LGE 5040H-1023Q Contact Us For Availability
042
LGE 3080H-1019F LGE 3080H-1019F Contact Us For Availability
250
CASE LGE 3110R-D006D Contact Us For Availability
260
CHASSIS LGE 3140R-D008A Contact Us For Availability
265
HOLDER LGE 4930R-0348A Contact Us For Availability
270
COVER LGE 3550R-4078A Contact Us For Availability
280
PANEL ASSEMBLY,FRONT LGE 3721R-F827H Contact Us For Availability
286
Plate LGE 3300R-0211A Contact Us For Availability
300
POWER CORD LGE 6410RAHK02D Contact Us For Availability
320
PANEL,VIDEO LGE 3720R-D098E Contact Us For Availability
431
SCREW D2.0 10.6MM LGE 1SZZH-1062A Contact Us For Availability
432
SCREW LGE 1SZZH-1020B Contact Us For Availability
433
SCREW LGE 1SZZH-1011B Contact Us For Availability
435
SCREW LGE 4000H-1006B Contact Us For Availability
463
SCREW,DRAWING LGE 353-051G Contact Us For Availability
466
Screw,Customized LGE 353-022M Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RD0021H Contact Us For Availability
802
LGE 3890R-C104C LGE 3890R-C104C Contact Us For Availability
803
LGE 3920R-E107A LGE 3920R-E107A Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA8E Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0039A Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R1N168B Contact Us For Availability
A00
DECK ASSEMBLY,VIDEO LGE 6721R-N005D Contact Us For Availability
A01
COVER ASSEMBLY LGE 3551R-6912A Contact Us For Availability
A01A
LGE 4861R-0018A LGE 4861R-0018A Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-D005A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-D004A Contact Us For Availability
A04
COVER ASSEMBLY LGE 3551R-6911A Contact Us For Availability
A42
PWB(PCB) ASSEMBLY,TO LGE 6871R-6752A Contact Us For Availability
A43
BOARD ASSEMBLY LGE 3501R-3990H Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141R-D027E Contact Us For Availability
A46
PWB(PCB) ASSEMBLY,TO LGE 6871R-6894B Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,TO LGE 6871R-6125E Contact Us For Availability
A49
PWB(PCB) ASSEMBLY,TO LGE 6871R-6750A Contact Us For Availability
A51
PWB(PCB) ASSEMBLY,TO LGE 6871R-6678A Contact Us For Availability
A52A
PWB(PCB) ASSEMBLY,TO LGE 6871R-6981E Contact Us For Availability
A52B
PWB(PCB) ASSEMBLY,TO LGE 6871R-6985A Contact Us For Availability
A60
COVER ASSEMBLY LGE 3551R-6917E Contact Us For Availability
AR206
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
AR209
Resistor,Array LGE 0RRZVTA001V Contact Us For Availability
AR302
Resistor,Array LGE 0RR1500Q621 Contact Us For Availability
BC102
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRVH00060A Contact Us For Availability
C1E8
LGE 0CE827ZX6DC LGE 0CE827ZX6DC Contact Us For Availability
C1E9
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C1F3
Capacitor,TA,Niobium LGE 0CS337GC6DC Contact Us For Availability
C1V10
LGE 0CH1393K512 LGE 0CH1393K512 Contact Us For Availability
C1V11
Capacitor,Ceramic,Chip LGE 0CH1821K562 Contact Us For Availability
C101
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C103
LGE 0CE477JQ6A0 LGE 0CE477JQ6A0 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C105
Capacitor,Ceramic,Chip LGE 0CH1333K512 Contact Us For Availability
C108
Capacitor,AL,Radial LGE 0CE3366H638 Contact Us For Availability
C109
Capacitor,Ceramic,Chip LGE 0CK151CK94A Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C110
Capacitor,Ceramic,Chip LGE 0CH1152K512 Contact Us For Availability
C111
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C116
Capacitor,Ceramic,Chip LGE 0CH1222K512 Contact Us For Availability
C116
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C119
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C126
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C132
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C133
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C135
Capacitor,AL,Chip LGE 0CH8226C621 Contact Us For Availability
C136
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C138
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C140
Capacitor,AL,Radial LGE 624-082G Contact Us For Availability
C140
Capacitor,TA,Niobium LGE 0CS475ED6DC Contact Us For Availability
C140
Capacitor,TA,Niobium LGE 0CH7475D611 Contact Us For Availability
C141
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C146
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C151
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C151
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
C152
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C155
Capacitor,Ceramic,Chip LGE 0CH1334H946 Contact Us For Availability
C157
Capacitor,Ceramic,Chip LGE 0CH1330K412 Contact Us For Availability
C168
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C173
Capacitor,Ceramic,Chip LGE 0CH1475D946 Contact Us For Availability
C178
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C185
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
C190
Capacitor,Ceramic,Chip LGE 0CH1471K512 Contact Us For Availability
C195
Capacitor,Ceramic,Chip LGE 0CH1101K965 Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE 0CH1681K562 Contact Us For Availability
C218
CAPACITOR,CHIP[TANTALUM] LGE 0CH7226D621 Contact Us For Availability
C227
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C229
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C237
Capacitor,Ceramic,Chip LGE 0CH1103K512 Contact Us For Availability
C239
Capacitor,Ceramic,Chip LGE 0CK154CK94A Contact Us For Availability
C247
Capacitor,TA,Niobium LGE 0CH7106C611 Contact Us For Availability
C324
Capacitor,Ceramic,Chip LGE 0CH1106F944 Contact Us For Availability
C332
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C333
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
C335
CAPA,CHIP TANTALUM LGE 0CH7105F611 Contact Us For Availability
C338
CAPACITOR,CHIP[CERAMIC M/L HD LGE 0CH1104H942 Contact Us For Availability
C348
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C350
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
C417
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C425
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C434
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C443
Capacitor,TA,Niobium LGE 0CS106HF6DC Contact Us For Availability
C629
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C714
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C717
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE 0CH1332K512 Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C724
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C731
Capacitor,AL,Radial LGE 0CE1043K638 Contact Us For Availability
C739
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C746
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C812
Capacitor,Ceramic,Chip LGE 0CH1104K562 Contact Us For Availability
C823
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C836
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C844
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C846
Capacitor,Ceramic,Chip LGE 0CH1272K512 Contact Us For Availability
C853
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C854
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C857
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C865
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C867
Capacitor,Ceramic,Chip LGE 0CH4050K012 Contact Us For Availability
C891
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C897
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C906
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C914
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C920
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
C921
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 0CE4775C618 Contact Us For Availability
C965
Capacitor,Ceramic,Chip LGE 0CH4680K412 Contact Us For Availability
C976
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C1001
Capacitor,Ceramic,Chip LGE 0CH1474H946 Contact Us For Availability
C1003
Capacitor,TA,Niobium LGE 0CS476HD6DC Contact Us For Availability
D103
DIODE LGE 0DD221009AA Contact Us For Availability
D103
DIODE LGE 0DD010009CA Contact Us For Availability
D122
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D124
DIODE,RECTIFIERS LGE 0DRSD00210A Contact Us For Availability
D126
Diode,Rectifier LGE 0DD400000AD Contact Us For Availability
D130
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D135
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D201
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D704
Diode,Switching LGE 0DS121009AA Contact Us For Availability
D817
LGE 0DZAU00038A LGE 0DZAU00038A Contact Us For Availability
D817
LGE 0DZ026809CA LGE 0DZ026809CA Contact Us For Availability
D817
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
D902
LED LGE 0DLEO0050AA Contact Us For Availability
F801
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
FLD901
LGE 6302R-V215B LGE 6302R-V215B Contact Us For Availability
IC101
IC,Gate LGE 0ISTLKE014A Contact Us For Availability
IC102
IC,OP Amplifier LGE 0IJR340400B Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC103
LGE 0IPRPRH008A LGE 0IPRPRH008A Contact Us For Availability
IC104
IC,POWER MANAGEMENT LGE 0IPMGFF001A Contact Us For Availability
IC104
IC,LINEAR LGE 0ILNRRH015A Contact Us For Availability
IC105
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC105
LGE 0ILNRRH025A LGE 0ILNRRH025A Contact Us For Availability
IC106
IC,OP Amplifier LGE 0IJR340300A Contact Us For Availability
IC107
LGE 0ILNRNE006A LGE 0ILNRNE006A Contact Us For Availability
IC108
IC,Multiplexer LGE 0IPRPFA011A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGFA050A Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGFA046A Contact Us For Availability
IC156
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC156
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC158
IC,POWER MANAGEMENT LGE 0IPMGFA031A Contact Us For Availability
IC159
LGE 0IPMGSJ013C LGE 0IPMGSJ013C Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMREB006A Contact Us For Availability
IC202
LGE 0ILNRNE007A LGE 0ILNRNE007A Contact Us For Availability
IC203
IC,Reset LGE 0IPMGA1007A Contact Us For Availability
IC301
IC,EEPROM LGE 0IMMRAL007A Contact Us For Availability
IC302
IC,Microcontrollers LGE 0IMCRNE029A Contact Us For Availability
IC303
LGE 0IPMGRH009A LGE 0IPMGRH009A Contact Us For Availability
IC304
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
IC701
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC702
LGE 0IMCRHI011A LGE 0IMCRHI011A Contact Us For Availability
IC703
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC705
LGE 0IPRPMT005A LGE 0IPRPMT005A Contact Us For Availability
IC802
IC,Audio Codec LGE 0IPRPCI010A Contact Us For Availability
IC805
IC,PERIPHERALS LGE 0IPRPMT002A Contact Us For Availability
IC806
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC807
LGE 0ILNRMN002B LGE 0ILNRMN002B Contact Us For Availability
IC809
LGE 0IPRPJR011A LGE 0IPRPJR011A Contact Us For Availability
IC810
IC,OP Amplifier LGE 0IJR553200A Contact Us For Availability
IC815
IC,LINEAR LGE 0ILNRON005A Contact Us For Availability
IC901
LGE 0IMCRNE036A LGE 0IMCRNE036A Contact Us For Availability
IC902
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC1057A
PROGRAM LGE 6957R-9922A Contact Us For Availability
IC1095
LGE 0IMMREB009A LGE 0IMMREB009A Contact Us For Availability
IC1095
IC,DDR SDRAM LGE 0IMMRHY052B Contact Us For Availability
IC1097
IC,POWER MANAGEMENT LGE 0IPMGNS020A Contact Us For Availability
IC1099
LGE 0ILNRLL004B LGE 0ILNRLL004B Contact Us For Availability
IC2033
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC2075
IC,Gate LGE 0ISTLPH028A Contact Us For Availability
IC2085
IC,STANDARD LOGIC LGE 0ISTLPH043A Contact Us For Availability
IC3048
IC,PERIPHERALS LGE 0IPRPTI044A Contact Us For Availability
IC4003
LGE 0IPRPAD020A LGE 0IPRPAD020A Contact Us For Availability
IC4009
IC,LINEAR LGE 0ILNRPH007A Contact Us For Availability
JK761
JACK,DIN LGE 6612B00010A Contact Us For Availability
JK762
JACK,RCA LGE 6612JH002NA Contact Us For Availability
JK763
JACK,RCA LGE 6612JH002NB Contact Us For Availability
JK764
JACK,RCA LGE 6612JH002NC Contact Us For Availability
JK765
CONNECTOR (CIRC),USB LGE 6630SD01104 Contact Us For Availability
JK801
JACK,RCA LGE 6612JH002UA Contact Us For Availability
JK802
JACK,FIBER OPTIC LGE 6612K00003A Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 6200RLB007B Contact Us For Availability
L102
FILTER(CIRC),EMC LGE 6200JB8013J Contact Us For Availability
L110
COIL LGE 6140H-A001A Contact Us For Availability
L122
COIL,CHOKE LGE 633-088G Contact Us For Availability
L125
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L128
Coil,Choke LGE 633-088D Contact Us For Availability
L304
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L701
Inductor,Multilayer,Chip LGE 0LCCE00027C Contact Us For Availability
L803
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L816
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
L818
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L901
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
P9702
CONNECTOR ASSEMBLY LGE 6631R-E051B Contact Us For Availability
Q120
TRANSISTOR LGE 0TR115100AA Contact Us For Availability
Q121
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q123
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q301
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q703
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q704
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q801
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q803
TRANSISTOR KTA1267-GR MINI TP LGE 0TR126709AC Contact Us For Availability
Q809
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q953
TRANSISTOR LGE 0TR100309AA Contact Us For Availability
R1V16
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R1V17
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R8A2
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R104
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
R106
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R107
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
R109
RESISTOR,FIXED METAL LGE 0RS0600K619 Contact Us For Availability
R110
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R112
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R113
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R114
RESISTOR,FIXED METAL OXIDE FIL LGE 0RS0510K619 Contact Us For Availability
R120
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R120
Resistor,Chip LGE 0RH0512C622 Contact Us For Availability
R121
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R122
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R122
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R124
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R126
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R127
Resistor,Metal Oxide Film LGE 0RS0562K619 Contact Us For Availability
R128
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R128
Resistor,Carbon Film LGE 0RD0332F608 Contact Us For Availability
R130
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R131
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R132
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R134
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R136
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R137
Resistor,Carbon Film LGE 0RD1801F608 Contact Us For Availability
R140
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R140
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R141
Resistor,Chip LGE 0RH0181D622 Contact Us For Availability
R141
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R145
LGE 0RD1200F608 LGE 0RD1200F608 Contact Us For Availability
R149
RESISTOR FIX METAL FILM 120 1W LGE 0RS1200J619 Contact Us For Availability
R151
Resistor,Metal Film LGE 0RN1501F408 Contact Us For Availability
R153
Resistor,Metal Film LGE 0RN2201F408 Contact Us For Availability
R160
Resistor,Carbon Film LGE 0RD4700F608 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ6201C677 Contact Us For Availability
R161
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R162
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R198
Resistor,Chip LGE 0RJ0622C677 Contact Us For Availability
R205
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R215
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R216
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R229
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R230
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R236
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R259
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R309
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R316
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R349
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R359
Resistor,Chip LGE 0RH0562C422 Contact Us For Availability
R364
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R366
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R374
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R434
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R442
Resistor,Chip LGE 0RH0562C622 Contact Us For Availability
R448
Resistor,Chip LGE 0RH6803C622 Contact Us For Availability
R702
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R704
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R707
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R714
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R728
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R742
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R744
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R745
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R762
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R821
Resistor,Chip LGE 0RH0681C622 Contact Us For Availability
R840
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R862
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R879
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R889
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R895
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R899
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R901
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R904
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R912
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R917
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R918
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R919
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R920
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R920
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R923
RESISTOR,METAL GLAZE LGE 0RH1602C622 Contact Us For Availability
R925
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R927
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R931
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R954
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R956
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
RC901
REMOTE CONTROLLER RE LGE 6712R1238GA Contact Us For Availability
RR107
Resistor,Array LGE 0RR0622Q621 Contact Us For Availability
RR122
Resistor,Array LGE 0RR0222Q62A Contact Us For Availability
RR301
Resistor,Array LGE 0RR1002Q62C Contact Us For Availability
RR403
Resistor,Array LGE 0RRZVTA001G Contact Us For Availability
SW301
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
SW302
Switch,Tact LGE 558-026I Contact Us For Availability
SW911
SWITCH,TACT LGE 556-219B Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW05D Contact Us For Availability
T102
TRANSFORMER,SMPS[COI LGE 6170RNGW05E Contact Us For Availability
TH01
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TU801
TUNER LGE 6700NFNL04A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X101
LGE 6204B42700C LGE 6204B42700C Contact Us For Availability
X101
LGE 6204B42700A LGE 6204B42700A Contact Us For Availability
X201
RESONATOR,CERAMIC LGE 6212BB3241A Contact Us For Availability
X301
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X301
Resonator,Ceramic LGE 6212BB3242A Contact Us For Availability
X701
LGE 6202R-DA01A LGE 6202R-DA01A Contact Us For Availability
X702
LGE 6212AA2100C LGE 6212AA2100C Contact Us For Availability
X801
LGE 6212AA2184F LGE 6212AA2184F Contact Us For Availability
X901
Crystal LGE 6202R-BJ01A Contact Us For Availability
ZD103
LGE 0DZPC00243A LGE 0DZPC00243A Contact Us For Availability
ZD151
LGE 0DZ330009CD LGE 0DZ330009CD Contact Us For Availability
ZD151
Diode,Zener LGE 0DZ337729AA Contact Us For Availability
ZD151
LGE 0DZ330009BF LGE 0DZ330009BF Contact Us For Availability
ZD152
DIODE,ZENERS LGE 0DZ332609BA Contact Us For Availability
ZD763
LGE 0DZ026809AA LGE 0DZ026809AA Contact Us For Availability
ZD907
LGE 0DZ025609AA LGE 0DZ025609AA Contact Us For Availability
× ![]()
Login and Registration Form
