Model RCA LGB336GEV2WH Gas Range Or Dual Fuel – Common Parts & Diagrams
BODY PARTS
CONTROL PANEL & COOKTOP

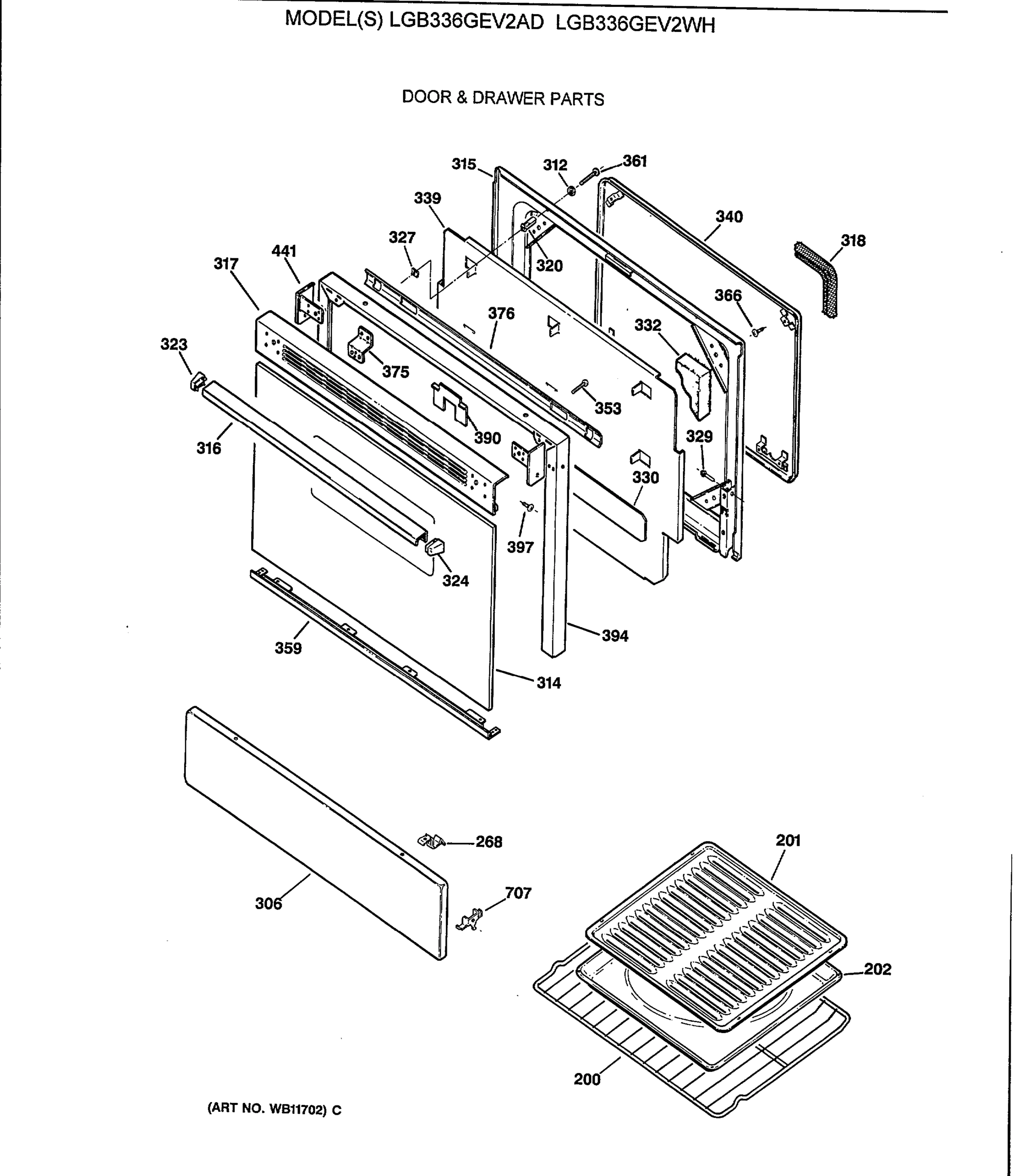

DOOR & DRAWER PARTS

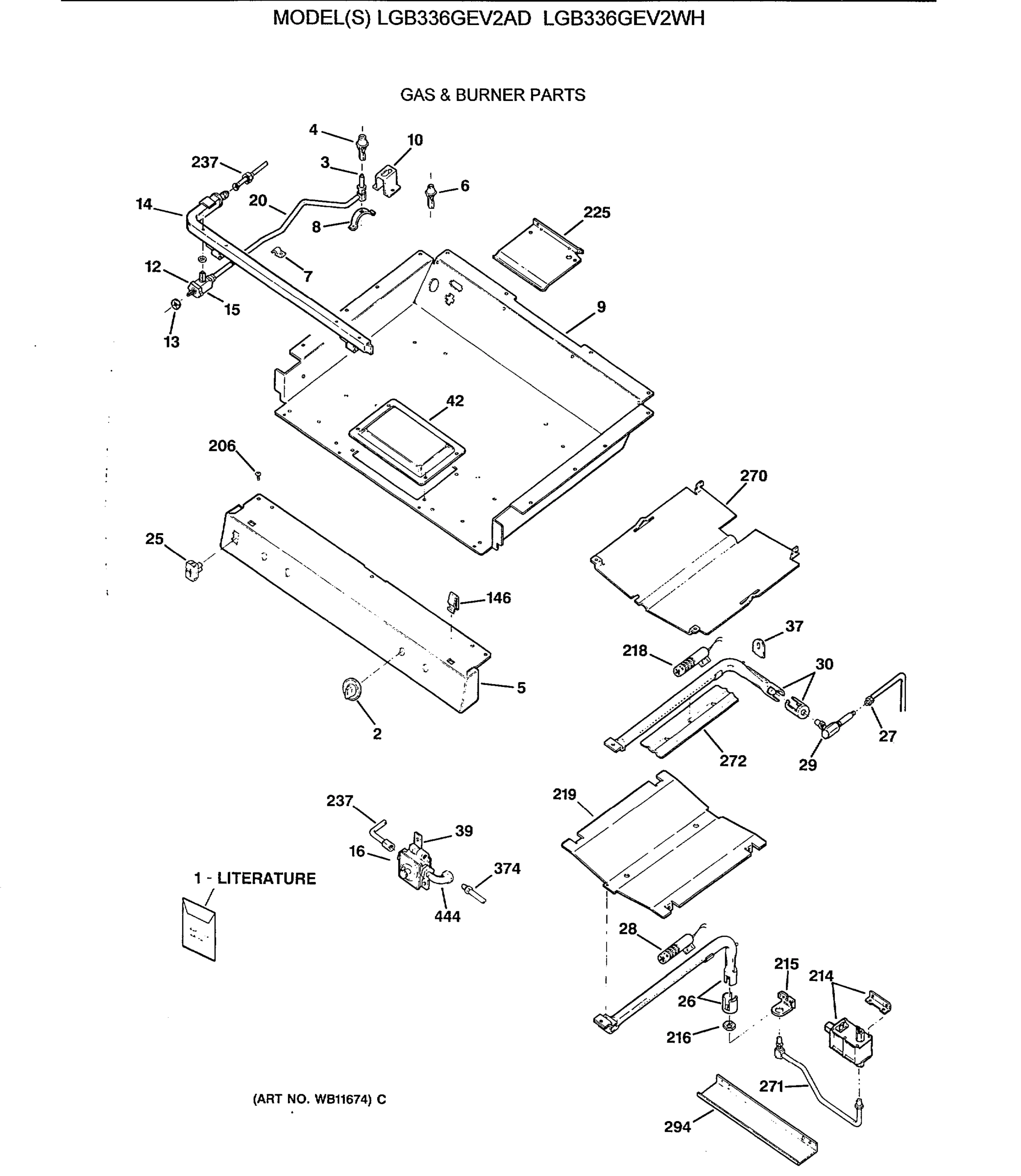

GAS & BURNER PARTS
Common parts from model RCA LGB336GEV2WH Gas Range Or Dual Fuel
1
GEN WB02K0020 GEN WB02K0020 Contact Us For Availability
2
KNOB SURFACE BURNER (BK) GEN WB03K0190 Contact Us For Availability
3
GEN WB28K0141 GEN WB28K0141 Contact Us For Availability
3
GEN WB28K0142 GEN WB28K0142 Contact Us For Availability
3
GEN WB28K0143 GEN WB28K0143 Contact Us For Availability
4
GEN WB16K0013 GEN WB16K0013 Contact Us For Availability
5
GEN WB36K0078 GEN WB36K0078 Contact Us For Availability
6
GEN WB16K0014 GEN WB16K0014 Contact Us For Availability
7
GEN WB02K0087 GEN WB02K0087 Contact Us For Availability
8
GEN WB09K0007 GEN WB09K0007 Contact Us For Availability
10
GEN WB01K0004 GEN WB01K0004 Contact Us For Availability
10
GEN WB02K0061 GEN WB02K0061 Contact Us For Availability
12
GEN WB24K0014 GEN WB24K0014 Contact Us For Availability
14
GEN WB28K0065 GEN WB28K0065 Contact Us For Availability
15
VALVE LT FRONT,LT REAR GEN WB21K0020 Contact Us For Availability
15
VALVE BURNER RT RR GEN WB21K0021 Contact Us For Availability
16
GEN WB19K0026 GEN WB19K0026 Contact Us For Availability
16
GEN WB19K0028 GEN WB19K0028 Contact Us For Availability
17
GEN WB20K0003 GEN WB20K0003 Contact Us For Availability
17
GEN WB20K0002 GEN WB20K0002 Contact Us For Availability
20
GEN WB28K0095 GEN WB28K0095 Contact Us For Availability
20
GEN WB28K0096 GEN WB28K0096 Contact Us For Availability
20
GEN WB28K0097 GEN WB28K0097 Contact Us For Availability
20
GEN WB28K0098 GEN WB28K0098 Contact Us For Availability
22
GEN WB19K0005 GEN WB19K0005 Contact Us For Availability
23
GEN WB02K0021 GEN WB02K0021 Contact Us For Availability
24
GEN WB01K0011 GEN WB01K0011 Contact Us For Availability
25
GEN WB24K0003 GEN WB24K0003 Contact Us For Availability
26
GEN WB16K0022 GEN WB16K0022 Contact Us For Availability
27
GEN WB28K0055 GEN WB28K0055 Contact Us For Availability
29
GEN WB28K0030 GEN WB28K0030 Contact Us For Availability
30
GEN WB16K0008 GEN WB16K0008 Contact Us For Availability
32
GEN WB01K0017 GEN WB01K0017 Contact Us For Availability
36
GEN WB03K0068 GEN WB03K0068 Contact Us For Availability
39
GEN WB02K0088 GEN WB02K0088 Contact Us For Availability
42
GEN WB63K0022 GEN WB63K0022 Contact Us For Availability
100
COVER END RIGHT (BK) GEN WB07K0089 Contact Us For Availability
100
COVER END LFT (BK) GEN WB07K0090 Contact Us For Availability
101
GEN WB37K0011 GEN WB37K0011 Contact Us For Availability
101
GEN WB37K0012 GEN WB37K0012 Contact Us For Availability
102
GEN WB07K0005 GEN WB07K0005 Contact Us For Availability
103
GEN WB37K0016 GEN WB37K0016 Contact Us For Availability
104
TRIM CONTROL (BK) GEN WB36K0079 Contact Us For Availability
106
GEN WB36K0017 GEN WB36K0017 Contact Us For Availability
107
GEN WB36K0002 GEN WB36K0002 Contact Us For Availability
110
SPARK MODULE GEN WB13K0025 Contact Us For Availability
110
HARNESS HV GEN WB18K0006 Contact Us For Availability
111
GEN WB34K0005 GEN WB34K0005 Contact Us For Availability
113
GEN WB31K0046 GEN WB31K0046 Contact Us For Availability
114
GEN WB62K0026 GEN WB62K0026 Contact Us For Availability
115
GEN WB02K0091 GEN WB02K0091 Contact Us For Availability
117
GEN WB02K0017 GEN WB02K0017 Contact Us For Availability
123
GEN WB01K0082 GEN WB01K0082 Contact Us For Availability
125
GEN WB32K0009 GEN WB32K0009 Contact Us For Availability
128
GEN WB11K0021 GEN WB11K0021 Contact Us For Availability
129
GEN WB12K0020 GEN WB12K0020 Contact Us For Availability
130
GEN WB24K0005 GEN WB24K0005 Contact Us For Availability
131
GEN WB25K0004 GEN WB25K0004 Contact Us For Availability
132
GEN WB25K0003 GEN WB25K0003 Contact Us For Availability
133
GEN WB01K0022 GEN WB01K0022 Contact Us For Availability
135
GEN WB37K0010 GEN WB37K0010 Contact Us For Availability
143
GEN WB01X5754 GEN WB01X5754 Contact Us For Availability
146
GEN WB02K0052 GEN WB02K0052 Contact Us For Availability
151
GEN WB29K0041 GEN WB29K0041 Contact Us For Availability
152
BURNER CAP-MED-BLK GEN WB29K0044 Contact Us For Availability
153
GEN WB29K0047 GEN WB29K0047 Contact Us For Availability
155
GEN WB16K0012 GEN WB16K0012 Contact Us For Availability
156
HEAD BURNER-MED GEN WB16K0011 Contact Us For Availability
157
BURNER HEAD-LG GEN WB16K0010 Contact Us For Availability
168
ELECTRODE CLIP GEN WB01K0056 Contact Us For Availability
201
GEN WB48K0002 GEN WB48K0002 Contact Us For Availability
202
GEN WB49K0002 GEN WB49K0002 Contact Us For Availability
205
GEN WB34K0006 GEN WB34K0006 Contact Us For Availability
209
GEN WB63K0050 GEN WB63K0050 Contact Us For Availability
210
GEN WB53K0035 GEN WB53K0035 Contact Us For Availability
216
GEN WB01K0006 GEN WB01K0006 Contact Us For Availability
219
GEN WB49K0044 GEN WB49K0044 Contact Us For Availability
220
GEN WB02K0008 GEN WB02K0008 Contact Us For Availability
223
GEN WB02X6195 GEN WB02X6195 Contact Us For Availability
224
RING RETAINING GEN WB02X1082 Contact Us For Availability
225
GEN WB34K0002 GEN WB34K0002 Contact Us For Availability
226
GEN WB02K0011 GEN WB02K0011 Contact Us For Availability
227
GEN WB09K0005 GEN WB09K0005 Contact Us For Availability
228
GEN WB02X7066 GEN WB02X7066 Contact Us For Availability
229
GEN WB08K0001 GEN WB08K0001 Contact Us For Availability
230
GEN WB08K0002 GEN WB08K0002 Contact Us For Availability
231
GEN WB02K0012 GEN WB02K0012 Contact Us For Availability
234
GEN WB02K0066 GEN WB02K0066 Contact Us For Availability
236
GEN WB02K0022 GEN WB02K0022 Contact Us For Availability
237
GEN WB28K0148 GEN WB28K0148 Contact Us For Availability
239
GEN WB63K0025 GEN WB63K0025 Contact Us For Availability
239
GEN WB63K0001 GEN WB63K0001 Contact Us For Availability
240
GEN WB63K0002 GEN WB63K0002 Contact Us For Availability
241
RANGE BOTTOM GEN WB63K0004 Contact Us For Availability
242
GEN WB63K0005 GEN WB63K0005 Contact Us For Availability
243
GEN WB63K0006 GEN WB63K0006 Contact Us For Availability
243
GEN WB63K0007 GEN WB63K0007 Contact Us For Availability
244
GEN WB02K0001 GEN WB02K0001 Contact Us For Availability
245
GEN WB02X7701 GEN WB02X7701 Contact Us For Availability
246
GEN WB63K0036 GEN WB63K0036 Contact Us For Availability
246
GEN WB63K0031 GEN WB63K0031 Contact Us For Availability
247
GEN WB53K0014 GEN WB53K0014 Contact Us For Availability
247
GEN WB53K0001 GEN WB53K0001 Contact Us For Availability
248
GEN WB53K0002 GEN WB53K0002 Contact Us For Availability
249
GEN WB53K0003 GEN WB53K0003 Contact Us For Availability
250
GEN WB53K0015 GEN WB53K0015 Contact Us For Availability
250
GEN WB53K0010 GEN WB53K0010 Contact Us For Availability
254
GEN WB01K0053 GEN WB01K0053 Contact Us For Availability
254
GEN WB10K0013 GEN WB10K0013 Contact Us For Availability
254
GEN WB10K0014 GEN WB10K0014 Contact Us For Availability
256
GEN WB32K0001 GEN WB32K0001 Contact Us For Availability
257
GEN WB38K0001 GEN WB38K0001 Contact Us For Availability
257
GEN WB38K0004 GEN WB38K0004 Contact Us For Availability
258
GEN WB38K0003 GEN WB38K0003 Contact Us For Availability
261
GEN WB35K0007 GEN WB35K0007 Contact Us For Availability
262
GEN WB35K0008 GEN WB35K0008 Contact Us For Availability
266
GEN WB01K0012 GEN WB01K0012 Contact Us For Availability
266
GEN WZ05X0124 GEN WZ05X0124 Contact Us For Availability
268
GEN WB02K0025 GEN WB02K0025 Contact Us For Availability
270
GEN WB34K0009 GEN WB34K0009 Contact Us For Availability
271
GEN WB28K0060 GEN WB28K0060 Contact Us For Availability
271
GEN WB28K0202 GEN WB28K0202 Contact Us For Availability
272
GEN WB34K0010 GEN WB34K0010 Contact Us For Availability
273
GEN WB53K0011 GEN WB53K0011 Contact Us For Availability
273
GEN WB53K0012 GEN WB53K0012 Contact Us For Availability
274
GEN WB01K0044 GEN WB01K0044 Contact Us For Availability
277
GEN WB32K0005 GEN WB32K0005 Contact Us For Availability
278
GUARDTOP INSULATION GEN WB53K0018 Contact Us For Availability
279
GEN WB02K0042 GEN WB02K0042 Contact Us For Availability
280
GEN WB02K0029 GEN WB02K0029 Contact Us For Availability
281
GEN WB24K0015 GEN WB24K0015 Contact Us For Availability
282
RETAINER KNOB GEN WB02K0030 Contact Us For Availability
285
GEN WB15K0028 GEN WB15K0028 Contact Us For Availability
287
GEN WB34K0031 GEN WB34K0031 Contact Us For Availability
288
BRACE GEN WB63K0015 Contact Us For Availability
290
GEN WB34K0012 GEN WB34K0012 Contact Us For Availability
292
GEN WB63K0017 GEN WB63K0017 Contact Us For Availability
293
GEN WB63K0018 GEN WB63K0018 Contact Us For Availability
294
GEN WB63K0019 GEN WB63K0019 Contact Us For Availability
295
GEN WB38K0005 GEN WB38K0005 Contact Us For Availability
296
GEN WB34K0013 GEN WB34K0013 Contact Us For Availability
298
GEN WB02K0037 GEN WB02K0037 Contact Us For Availability
299
GEN WB02K0038 GEN WB02K0038 Contact Us For Availability
302
GEN WB01K0007 GEN WB01K0007 Contact Us For Availability
302
GEN WB01K0040 GEN WB01K0040 Contact Us For Availability
306
GEN WB39K0029 GEN WB39K0029 Contact Us For Availability
314
GEN WB56K0031 GEN WB56K0031 Contact Us For Availability
315
GEN WB55K0007 GEN WB55K0007 Contact Us For Availability
315
GEN WB55K0022 GEN WB55K0022 Contact Us For Availability
316
GEN WB15K0023 GEN WB15K0023 Contact Us For Availability
317
GEN WB07K0239 GEN WB07K0239 Contact Us For Availability
323
GEN WB07K0087 GEN WB07K0087 Contact Us For Availability
324
GEN WB07K0088 GEN WB07K0088 Contact Us For Availability
330
GEN WB35K0021 GEN WB35K0021 Contact Us For Availability
330
GEN WB35K0022 GEN WB35K0022 Contact Us For Availability
330
GEN WB55K0001 GEN WB55K0001 Contact Us For Availability
332
GEN WB35K0026 GEN WB35K0026 Contact Us For Availability
339
GEN WB56K0007 GEN WB56K0007 Contact Us For Availability
374
GEN WB28K0150 GEN WB28K0150 Contact Us For Availability
375
GEN WB02K0067 GEN WB02K0067 Contact Us For Availability
390
GEN WB34K0027 GEN WB34K0027 Contact Us For Availability
391
GEN WB34K0026 GEN WB34K0026 Contact Us For Availability
394
GEN WB07K0265 GEN WB07K0265 Contact Us For Availability
444
GEN WB28K0061 GEN WB28K0061 Contact Us For Availability
700
GEN WB02K0034 GEN WB02K0034 Contact Us For Availability
701
SHIELD SWITCH GEN WB02K0039 Contact Us For Availability
702
GEN WB01K0024 GEN WB01K0024 Contact Us For Availability
703
BRACKET OVEN GEN WB02K0041 Contact Us For Availability
707
GEN WB02K0033 GEN WB02K0033 Contact Us For Availability
709
GEN WB08K0004 GEN WB08K0004 Contact Us For Availability
711
THERMOSTAT KNOB (BK) GEN WB03K0070 Contact Us For Availability
× ![]()
