Model RCA LGB156WET2WW Gas Range Or Dual Fuel – Common Parts & Diagrams
BODY PARTS

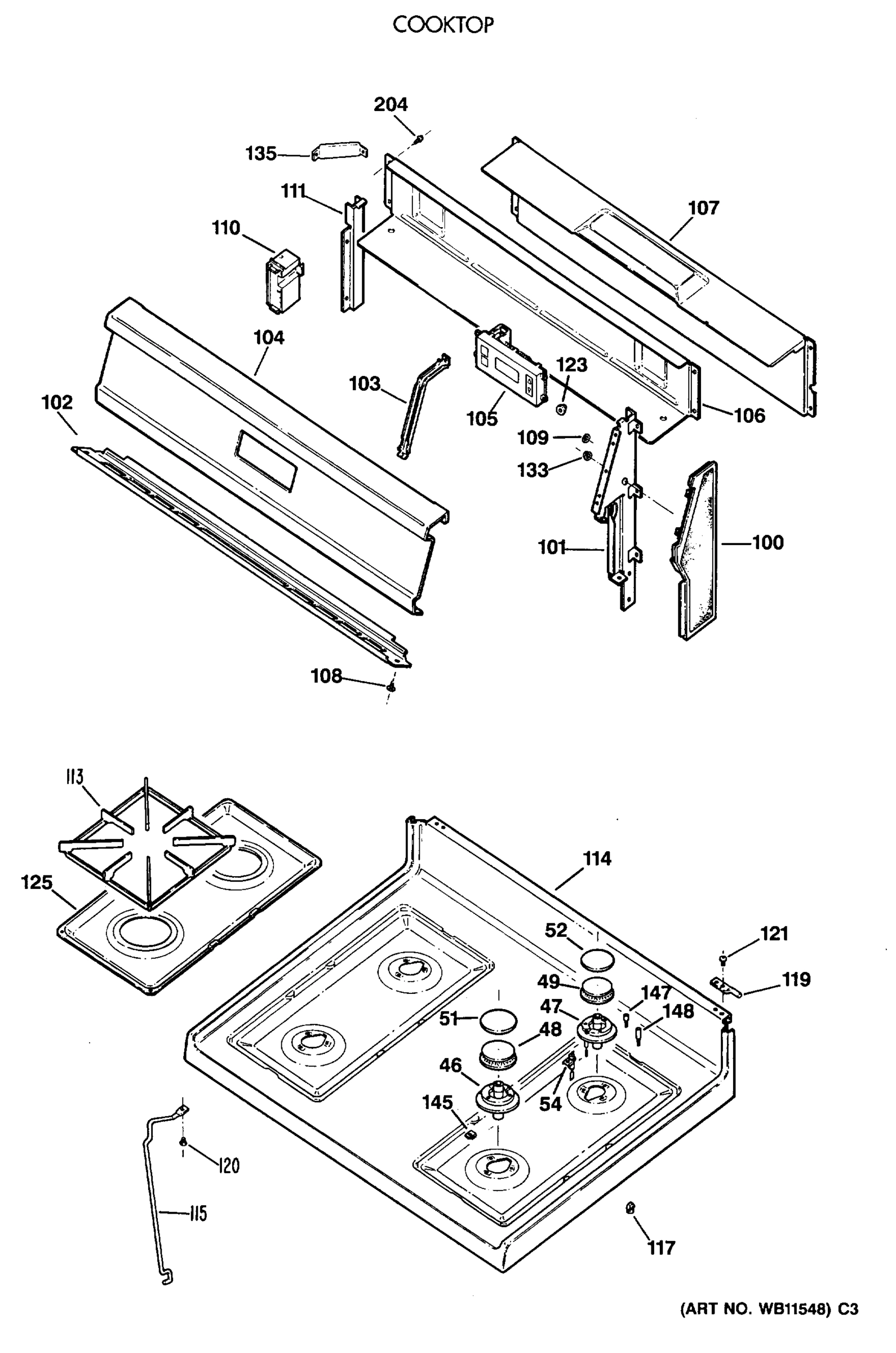

COOKTOP

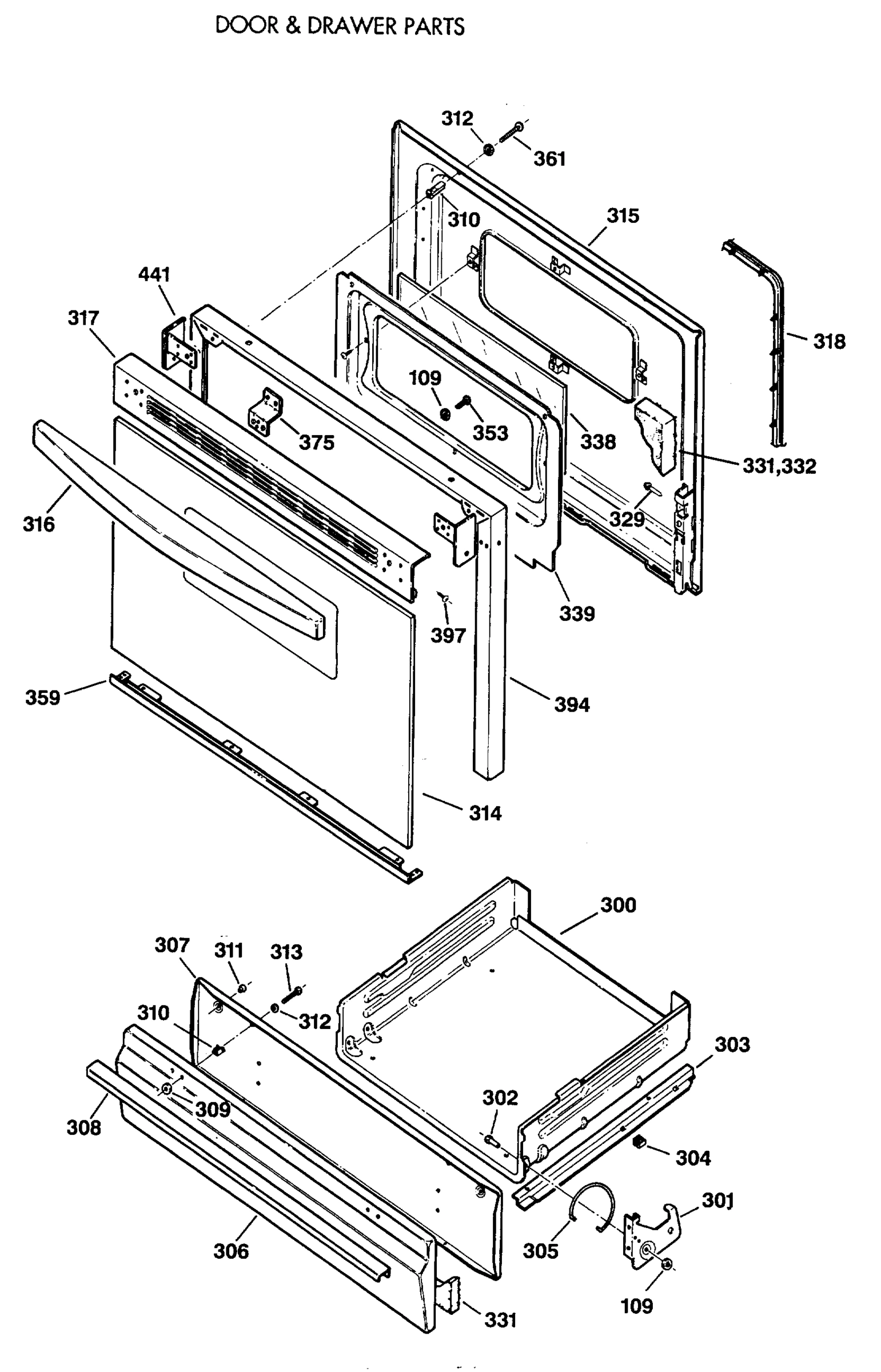

DOOR & DRAWER PARTS

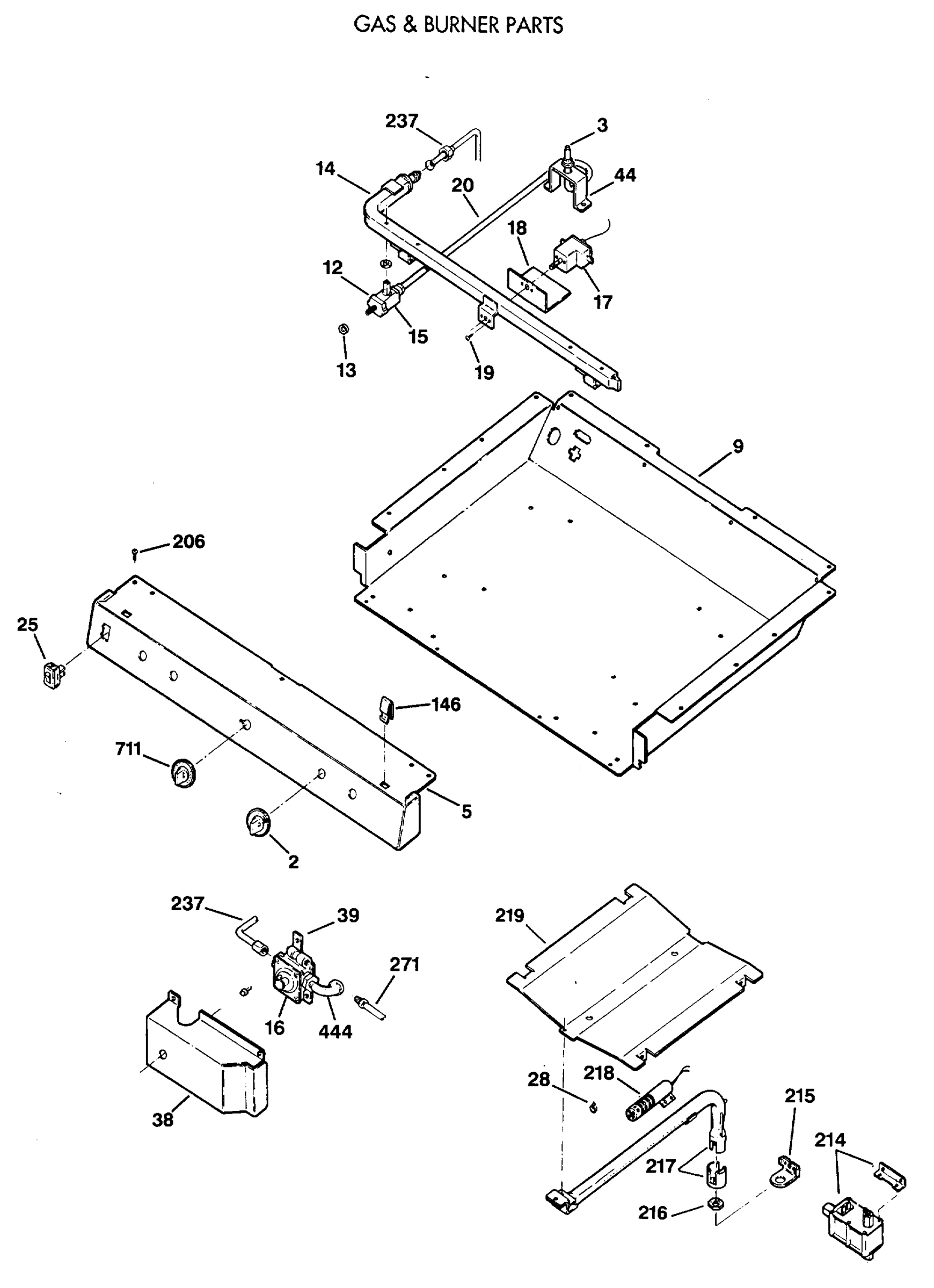

GAS & BURNER PARTS
Common parts from model RCA LGB156WET2WW Gas Range Or Dual Fuel
2
GEN WB03K0189 GEN WB03K0189 Contact Us For Availability
3
GEN WB28K0019 GEN WB28K0019 Contact Us For Availability
3
GEN WB28K0022 GEN WB28K0022 Contact Us For Availability
3
GEN WB28K0023 GEN WB28K0023 Contact Us For Availability
3
GEN WB28K0086 GEN WB28K0086 Contact Us For Availability
3
GEN WB28K0087 GEN WB28K0087 Contact Us For Availability
5
GEN WB07K0160 GEN WB07K0160 Contact Us For Availability
9
BOX BURNER GEN WB63K0024 Contact Us For Availability
12
GEN WB24K0014 GEN WB24K0014 Contact Us For Availability
14
GEN WB28K0066 GEN WB28K0066 Contact Us For Availability
15
GEN WB21K0014 GEN WB21K0014 Contact Us For Availability
15
GEN WB21K0018 GEN WB21K0018 Contact Us For Availability
16
GEN WB19K0028 GEN WB19K0028 Contact Us For Availability
18
GEN WB02K0006 GEN WB02K0006 Contact Us For Availability
20
ORIFICE HLDR RHT FRONT GEN WB28K0036 Contact Us For Availability
20
ORIFICE HLDR LEFT FRONT GEN WB28K0037 Contact Us For Availability
20
ORF HOLDER RIGHT REAR GEN WB28K0038 Contact Us For Availability
20
ORF HOLDER LEFT REAR GEN WB28K0039 Contact Us For Availability
38
GEN WB34K0029 GEN WB34K0029 Contact Us For Availability
39
GEN WB02K0088 GEN WB02K0088 Contact Us For Availability
44
GEN WB02K0049 GEN WB02K0049 Contact Us For Availability
47
GEN WB29K0032 GEN WB29K0032 Contact Us For Availability
48
GEN WB29K0025 GEN WB29K0025 Contact Us For Availability
49
GEN WB29K0026 GEN WB29K0026 Contact Us For Availability
51
CAP MEDALION LG (GR) GEN WB29K0014 Contact Us For Availability
52
CAP MEDALION SM (GR) GEN WB29K0015 Contact Us For Availability
100
COVER END RIGHT (CR) GEN WB07K0047 Contact Us For Availability
100
COVER END LEFT (CR) GEN WB07K0048 Contact Us For Availability
101
GEN WB37K0011 GEN WB37K0011 Contact Us For Availability
101
GEN WB37K0012 GEN WB37K0012 Contact Us For Availability
102
GEN WB07K0005 GEN WB07K0005 Contact Us For Availability
103
GEN WB37K0009 GEN WB37K0009 Contact Us For Availability
104
TRIM CONTROL (WH) GEN WB36K0058 Contact Us For Availability
105
GEN WB11K0035 GEN WB11K0035 Contact Us For Availability
106
GEN WB36K0017 GEN WB36K0017 Contact Us For Availability
107
GEN WB36K0002 GEN WB36K0002 Contact Us For Availability
108
SCREW (WH) GEN WB01X5874 Contact Us For Availability
109
GEN WB01X5743 GEN WB01X5743 Contact Us For Availability
110
SPARK MODULE GEN WB13K0025 Contact Us For Availability
110
GEN WB18K0006 GEN WB18K0006 Contact Us For Availability
111
GEN WB34K0005 GEN WB34K0005 Contact Us For Availability
113
GRATE GRAY GEN WB31K0029 Contact Us For Availability
114
GEN WB62K0010 GEN WB62K0010 Contact Us For Availability
115
GEN WB06K0008 GEN WB06K0008 Contact Us For Availability
117
GEN WB02K0017 GEN WB02K0017 Contact Us For Availability
123
GEN WB01K0079 GEN WB01K0079 Contact Us For Availability
125
PAN UNIT RT (CR) GEN WB49K0013 Contact Us For Availability
125
PAN UNIT LFT (CR) GEN WB49K0014 Contact Us For Availability
133
GEN WB01K0022 GEN WB01K0022 Contact Us For Availability
135
GEN WB37K0010 GEN WB37K0010 Contact Us For Availability
145
GEN WB01K0027 GEN WB01K0027 Contact Us For Availability
146
GEN WB02K0052 GEN WB02K0052 Contact Us For Availability
147
GEN WB01K0028 GEN WB01K0028 Contact Us For Availability
148
GEN WB01K0029 GEN WB01K0029 Contact Us For Availability
201
GEN WB48K0002 GEN WB48K0002 Contact Us For Availability
202
GEN WB49K0002 GEN WB49K0002 Contact Us For Availability
205
GEN WB34K0021 GEN WB34K0021 Contact Us For Availability
209
GEN WB63K0045 GEN WB63K0045 Contact Us For Availability
210
GEN WB53K0035 GEN WB53K0035 Contact Us For Availability
216
GEN WB01K0006 GEN WB01K0006 Contact Us For Availability
217
GEN WB16K0018 GEN WB16K0018 Contact Us For Availability
219
GEN WB49K0044 GEN WB49K0044 Contact Us For Availability
220
GEN WB02K0008 GEN WB02K0008 Contact Us For Availability
223
GEN WB02X6195 GEN WB02X6195 Contact Us For Availability
224
RING RETAINING GEN WB02X1082 Contact Us For Availability
225
GEN WB34K0002 GEN WB34K0002 Contact Us For Availability
226
GEN WB02K0011 GEN WB02K0011 Contact Us For Availability
227
GEN WB09K0004 GEN WB09K0004 Contact Us For Availability
228
GEN WB02X7066 GEN WB02X7066 Contact Us For Availability
229
GEN WB08K0001 GEN WB08K0001 Contact Us For Availability
230
GEN WB08K0002 GEN WB08K0002 Contact Us For Availability
231
GEN WB02K0012 GEN WB02K0012 Contact Us For Availability
232
GEN WB34K0003 GEN WB34K0003 Contact Us For Availability
232
GEN WB34K0004 GEN WB34K0004 Contact Us For Availability
234
GEN WB02K0066 GEN WB02K0066 Contact Us For Availability
236
GEN WB02K0022 GEN WB02K0022 Contact Us For Availability
237
GEN WB28K0148 GEN WB28K0148 Contact Us For Availability
239
GEN WB63K0025 GEN WB63K0025 Contact Us For Availability
240
GEN WB63K0002 GEN WB63K0002 Contact Us For Availability
241
RANGE BOTTOM GEN WB63K0004 Contact Us For Availability
242
GEN WB63K0005 GEN WB63K0005 Contact Us For Availability
243
GEN WB63K0006 GEN WB63K0006 Contact Us For Availability
243
GEN WB63K0007 GEN WB63K0007 Contact Us For Availability
244
GEN WB02K0001 GEN WB02K0001 Contact Us For Availability
245
GEN WB02X7701 GEN WB02X7701 Contact Us For Availability
246
GEN WB63K0031 GEN WB63K0031 Contact Us For Availability
247
GEN WB53K0001 GEN WB53K0001 Contact Us For Availability
248
GEN WB53K0002 GEN WB53K0002 Contact Us For Availability
249
GEN WB53K0003 GEN WB53K0003 Contact Us For Availability
250
GEN WB53K0004 GEN WB53K0004 Contact Us For Availability
254
GEN WB01K0053 GEN WB01K0053 Contact Us For Availability
254
GEN WB10K0013 GEN WB10K0013 Contact Us For Availability
254
GEN WB10K0014 GEN WB10K0014 Contact Us For Availability
256
GEN WB32K0001 GEN WB32K0001 Contact Us For Availability
257
GEN WB38K0001 GEN WB38K0001 Contact Us For Availability
259
GEN WB39K0001 GEN WB39K0001 Contact Us For Availability
259
GEN WB39K0002 GEN WB39K0002 Contact Us For Availability
261
GEN WB35K0001 GEN WB35K0001 Contact Us For Availability
271
GEN WB28K0149 GEN WB28K0149 Contact Us For Availability
302
GEN WB01K0007 GEN WB01K0007 Contact Us For Availability
303
GEN WB39K0007 GEN WB39K0007 Contact Us For Availability
303
GEN WB39K0008 GEN WB39K0008 Contact Us For Availability
304
GEN WB39K0009 GEN WB39K0009 Contact Us For Availability
305
GEN WB09K0002 GEN WB09K0002 Contact Us For Availability
306
GEN WB39K0013 GEN WB39K0013 Contact Us For Availability
307
GEN WB39K0005 GEN WB39K0005 Contact Us For Availability
308
GEN WB15K0017 GEN WB15K0017 Contact Us For Availability
309
WASHER GEN WB01X0560 Contact Us For Availability
312
WASHER MTG DR-HDL GEN WB01K0068 Contact Us For Availability
313
GEN WB01K0016 GEN WB01K0016 Contact Us For Availability
315
GEN WB55K0006 GEN WB55K0006 Contact Us For Availability
316
GEN WB15K0027 GEN WB15K0027 Contact Us For Availability
317
GEN WB07K0271 GEN WB07K0271 Contact Us For Availability
331
GEN WB35K0003 GEN WB35K0003 Contact Us For Availability
332
GEN WB35K0005 GEN WB35K0005 Contact Us For Availability
375
GEN WB02K0067 GEN WB02K0067 Contact Us For Availability
394
GEN WB07K0268 GEN WB07K0268 Contact Us For Availability
444
GEN WB28K0061 GEN WB28K0061 Contact Us For Availability
711
THERMOSTAT KNOB (WH) GEN WB03K0093 Contact Us For Availability
32767
GEN 31-1384 GEN 31-1384 Contact Us For Availability
32767
GEN 79-4087 GEN 79-4087 Contact Us For Availability
32767
GEN WB02K0020 GEN WB02K0020 Contact Us For Availability
× ![]()
