Model Electrolux LG400MXW2 LAUNDRY CENTER – Common Parts & Diagrams

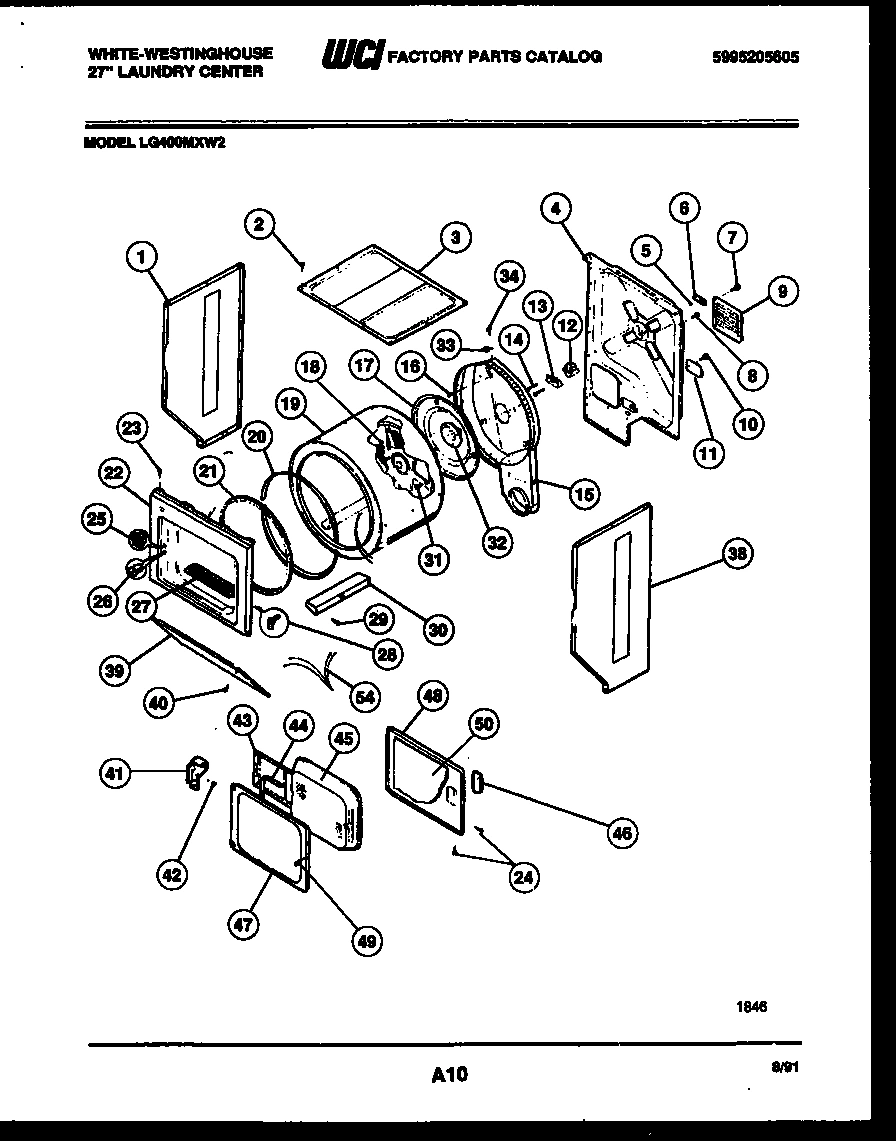

02 - CABINET AND COMPONENT PARTS

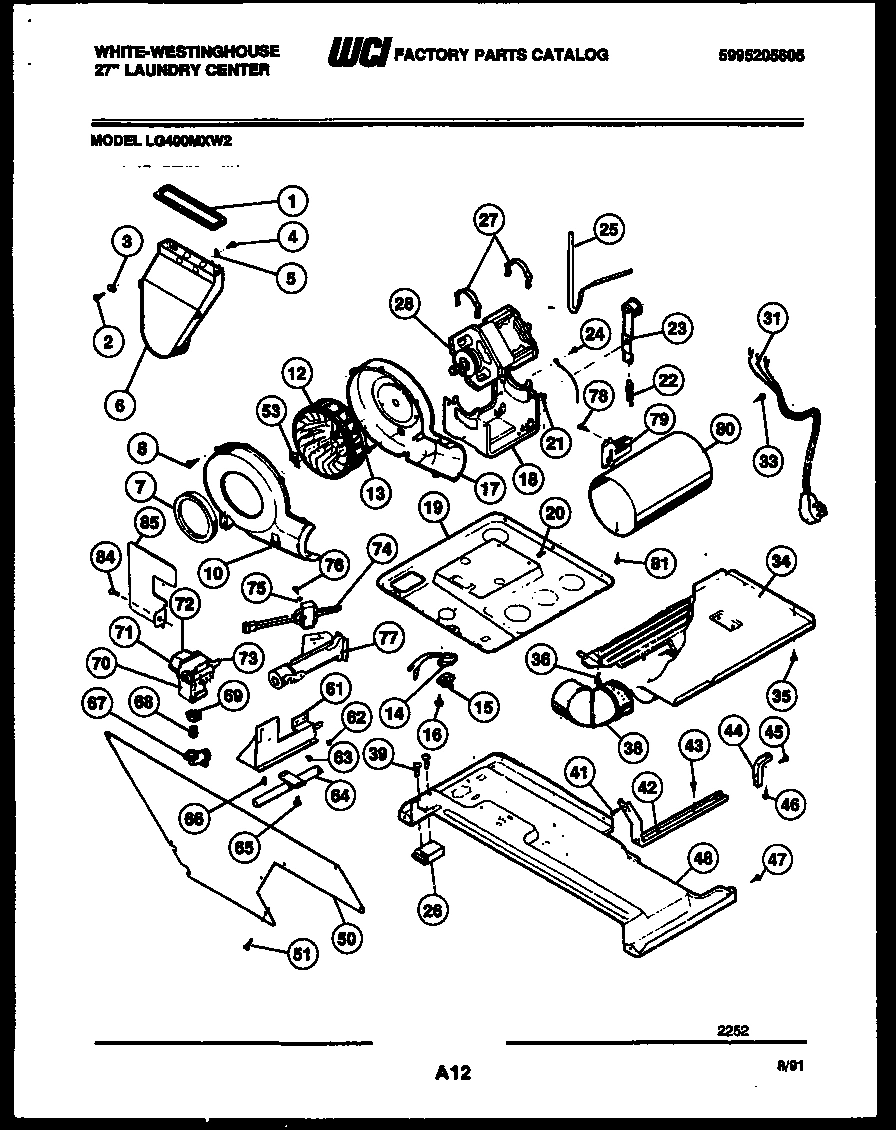

03 - MOTOR, BLOWER AND CABINET PARTS
04 - CONSOLE AND CONTROL PARTS
05 - CABINET PARTS
06 - TUB DETAIL
07 - TRANSMISSION PARTS
Common parts from model Electrolux LG400MXW2 LAUNDRY CENTER
*50068
SPACER PAD-CONTROL PANEL BRACKET WCI 5303210651 Contact Us For Availability
*50089
WCI 5303212877 WCI 5303212877 Contact Us For Availability
*50097
SHIM-DRIVE HUB WCI 5303161222 Contact Us For Availability
1
STUD WCI 3204461 Contact Us For Availability
1
TIMER-DRYER WCI 5303212897 Contact Us For Availability
1
SCREW WCI 5303211089 Contact Us For Availability
1
WCI 5303211002 WCI 5303211002 Contact Us For Availability
2
SEAL WCI 3204396 Contact Us For Availability
2
WCI 5303209890 WCI 5303209890 Contact Us For Availability
3
WCI 5303211052 WCI 5303211052 Contact Us For Availability
3
WCI 5308057580 WCI 5308057580 Contact Us For Availability
5
WCI 5303937062 WCI 5303937062 Contact Us For Availability
5
GROMMET-LEFT WCI 3204362 Contact Us For Availability
6
WCI 5303209895 WCI 5303209895 Contact Us For Availability
6
WCI 5308027582 WCI 5308027582 Contact Us For Availability
7
PLUG-PIPE WCI 5303161224 Contact Us For Availability
8
SCREW (6) WCI 3205245 Contact Us For Availability
8
WCI 5303209896 WCI 5303209896 Contact Us For Availability
8
SCREW (6) WCI 08002804 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
9
CLAMP WCI 5303012110 Contact Us For Availability
10
WCI 3205632 WCI 3205632 Contact Us For Availability
10
WCI 5308002408 WCI 5308002408 Contact Us For Availability
10
NOZZLE & HOSE ASSEMBLY WCI 3204400 Contact Us For Availability
10
WCI F000130405 WCI F000130405 Contact Us For Availability
11
WCI 08001544 WCI 08001544 Contact Us For Availability
11
WCI 5303211003 WCI 5303211003 Contact Us For Availability
11
ROD-CONNECTING WCI 5303161169 Contact Us For Availability
12
WCI 3204402 WCI 3204402 Contact Us For Availability
12
GEAR-CRANK WCI 5308015496 Contact Us For Availability
13
WCI 3205877 WCI 3205877 Contact Us For Availability
13
SCREW (5) WCI 5308027519 Contact Us For Availability
13
SHAFT-LOWER WCI 5308014905 Contact Us For Availability
15
HEAT HSG & DUCT ASSY WCI 5303207394 Contact Us For Availability
15
WCI 5308014346 WCI 5308014346 Contact Us For Availability
15
PIN WCI 5303161227 Contact Us For Availability
16
SCREW WCI 3161188 Contact Us For Availability
16
WCI 5308014908 WCI 5308014908 Contact Us For Availability
16
HOUSING-LOWER WCI 5303912535 Contact Us For Availability
17
RING-RETAINING WCI 5303161223 Contact Us For Availability
17
BRACKET WCI 3205639 Contact Us For Availability
18
WCI 5303270949 WCI 5303270949 Contact Us For Availability
18
WCI 3204373 WCI 3204373 Contact Us For Availability
18
TUB SPLASH & BEARING ASSEMBLY WCI 3204404 Contact Us For Availability
18
WASHER-SPACER WCI 5308002475 Contact Us For Availability
19
WASHER-THRUST WCI 5303161226 Contact Us For Availability
19
WCI 5308057419 WCI 5308057419 Contact Us For Availability
20
WCI 5303209671 WCI 5303209671 Contact Us For Availability
21
SEAL WCI 3204260 Contact Us For Availability
21
WCI 3281077 WCI 3281077 Contact Us For Availability
21
WCI 5308014903 WCI 5308014903 Contact Us For Availability
21
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
22
SPRING-SMALL L.G.S. WCI 5303161174 Contact Us For Availability
22
WCI 3161259 WCI 3161259 Contact Us For Availability
22
BRACKET WCI 5303161252 Contact Us For Availability
22
LEG & DOME WCI 3204408 Contact Us For Availability
23
ARM-IDLER WCI 3205242 Contact Us For Availability
23
WCI 5303271182 WCI 5303271182 Contact Us For Availability
23
WCI 3205414 WCI 3205414 Contact Us For Availability
23
GEAR-IDLER WCI 5303161175 Contact Us For Availability
24
RETAINER WCI 5303204987 Contact Us For Availability
24
WCI 5303210341 WCI 5303210341 Contact Us For Availability
24
SPRING-HORIZONTAL (3) WCI 5303208859 Contact Us For Availability
24
WCI 3205151 WCI 3205151 Contact Us For Availability
25
VALVE CHECK WCI 3204375 Contact Us For Availability
25
WCI 3204314 WCI 3204314 Contact Us For Availability
25
INDICATOR WCI 5303209901 Contact Us For Availability
25
WCI 5303205527 WCI 5303205527 Contact Us For Availability
26
SEAL-TUB WCI 5308950197 No Longer Available
26
SPACER-SHAFT WCI 3205248 Contact Us For Availability
26
BLOCK (2) WCI 5303212870 Contact Us For Availability
26
WCI 5364154013 WCI 5364154013 Contact Us For Availability
27
GRILL-AIR, WHITE WCI 3204263 Contact Us For Availability
27
SCREW WCI 5303270023 Contact Us For Availability
27
CLAMP WCI 5303212834 Contact Us For Availability
27
SCREW WCI 3205253 Contact Us For Availability
27
WASHER WCI 5303161232 Contact Us For Availability
28
CLIP (4) WCI 5303281074 Contact Us For Availability
28
MOTOR & PULLEY (DRYER) WCI 5303209662 Contact Us For Availability
28
WCI 3204376 WCI 3204376 Contact Us For Availability
28
BEARING HOUSING WCI 5308950058 Contact Us For Availability
29
HARNESS-WASHER WCI 3205645 Contact Us For Availability
29
WCI 3204420 WCI 3204420 Contact Us For Availability
29
SLEEVE WCI 5303161182 Contact Us For Availability
30
WCI 5303010202 WCI 5303010202 Contact Us For Availability
30
WCI 3204422 WCI 3204422 Contact Us For Availability
30
WASHER WCI 5308057430 Contact Us For Availability
31
WCI 3204423 WCI 3204423 Contact Us For Availability
31
WCI 5303207402 WCI 5303207402 Contact Us For Availability
31
WCI 5303210650 WCI 5303210650 Contact Us For Availability
31
RING-RETAINING WCI 5308015536 Contact Us For Availability
32
PIN WCI 3204424 Contact Us For Availability
32
CLIP - GROUND WCI 3204357 Contact Us For Availability
32
BRACKET WCI 3204378 Contact Us For Availability
32
WCI 5303207426 WCI 5303207426 Contact Us For Availability
33
SPRING WCI 3204425 Contact Us For Availability
33
WCI 08010789 WCI 08010789 Contact Us For Availability
33
WCI 5303161231 WCI 5303161231 Contact Us For Availability
34
SHIELD WCI 3204319 Contact Us For Availability
34
SLEEVE WCI 3205426 Contact Us For Availability
34
WCI 5377009100 WCI 5377009100 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
35
WCI 5308014350 WCI 5308014350 Contact Us For Availability
36
WASHER WCI 5303261031 Contact Us For Availability
36
WCI 3204380 WCI 3204380 Contact Us For Availability
37
WASHER-SPRING WCI 5303161306 Contact Us For Availability
37
WCI 3204381 WCI 3204381 Contact Us For Availability
38
ELBOW WCI 3204320 Contact Us For Availability
38
WCI 3204382 WCI 3204382 Contact Us For Availability
38
NUT-HEX (4) WCI 5308001875 Contact Us For Availability
39
LEVELING LEG & PAD (2) WCI 5303937004 Contact Us For Availability
40
PAD-LEGS (2) WCI 3204383 Contact Us For Availability
40
WCI 3205647 WCI 3205647 Contact Us For Availability
41
WCI 5303211074 WCI 5303211074 Contact Us For Availability
42
BRACKET WCI 3204324 Contact Us For Availability
42
WCI 5303209676 WCI 5303209676 Contact Us For Availability
42
WCI 3204451 WCI 3204451 Contact Us For Availability
43
PIN WCI 3204350 Contact Us For Availability
43
PUMP-COMPL WCI 3204452 Contact Us For Availability
44
WCI 3204453 WCI 3204453 Contact Us For Availability
45
WCI 3204454 WCI 3204454 Contact Us For Availability
46
SCREW WCI 3204325 Contact Us For Availability
46
WCI 3204387 WCI 3204387 Contact Us For Availability
46
WCI 3204455 WCI 3204455 Contact Us For Availability
47
BRACKET (2) WCI 3204389 Contact Us For Availability
48
SCREW WCI 08001578 Contact Us For Availability
49
WCI 3204458 WCI 3204458 Contact Us For Availability
49
SCREW WCI 5303206864 Contact Us For Availability
50
COVER WCI 3204329 Contact Us For Availability
50
WCI 3205646 WCI 3205646 Contact Us For Availability
50
CLAMP WCI 3204456 Contact Us For Availability
51
BRACKET WCI 3204391 Contact Us For Availability
52
RIVET (3) WCI 08002420 Contact Us For Availability
52
PLATE (3) WCI 3204460 Contact Us For Availability
53
PANEL TOP-WHITE WCI 5303212874 Contact Us For Availability
54
WCI 3204394 WCI 3204394 Contact Us For Availability
56
PAD LEGS (2) WCI 5303201463 Contact Us For Availability
61
BRACKET WCI 5303207404 Contact Us For Availability
64
WCI 5303207405 WCI 5303207405 Contact Us For Availability
67
VALVE-SHUT OFF WCI 5303207407 Contact Us For Availability
68
TAIL PIECE WCI 5362791200 Contact Us For Availability
69
NUT-UNION WCI 08015194 Contact Us For Availability
76
WCI 5303281150 WCI 5303281150 Contact Us For Availability
77
BURNER ASSEMBLY WCI 5303207412 Contact Us For Availability
81
WCI 08011280 WCI 08011280 Contact Us For Availability
85
WCI 5303212889 WCI 5303212889 Contact Us For Availability
× ![]()
