Model LG LFU850 – Common Parts & Diagrams

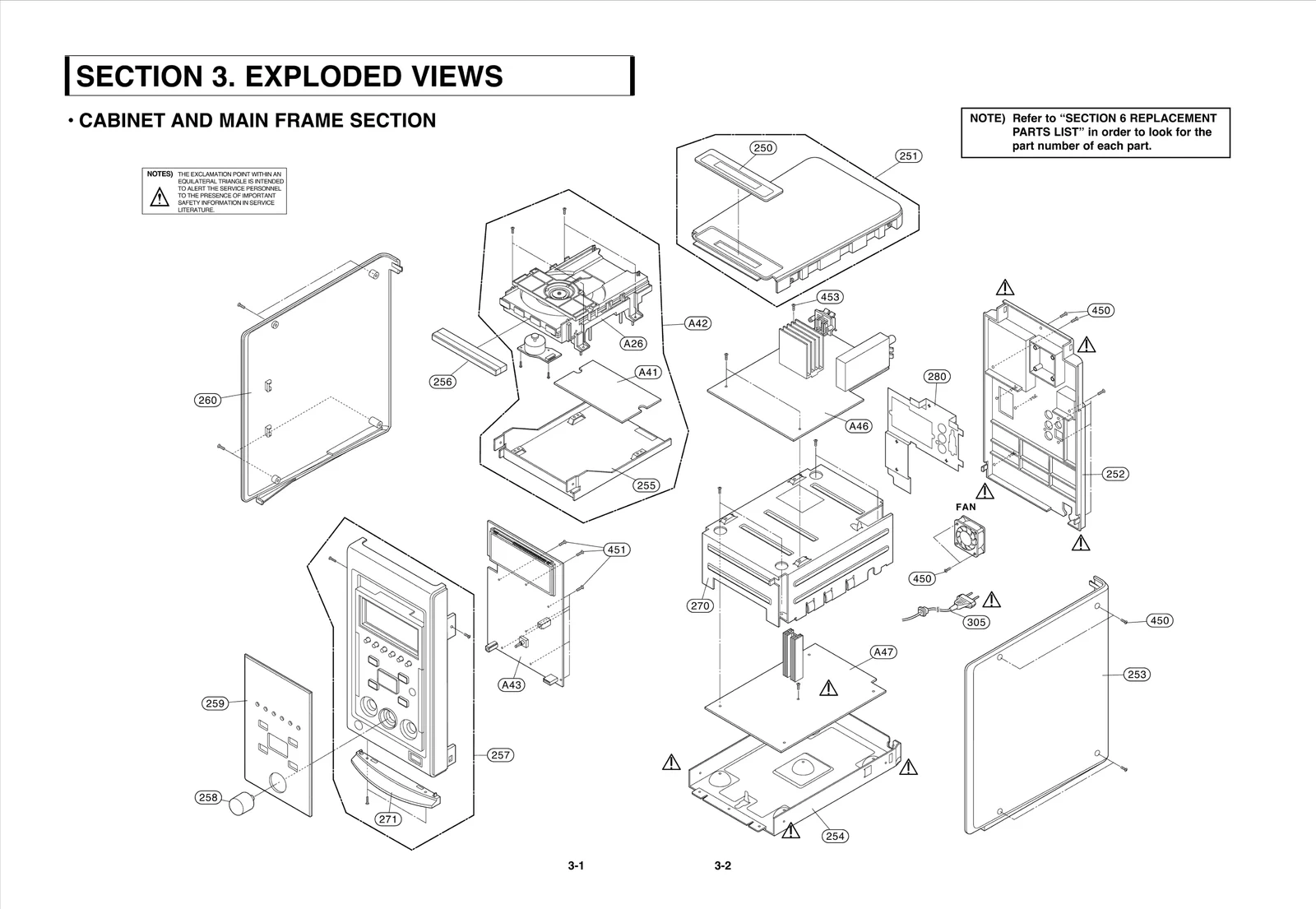

Diagram 0

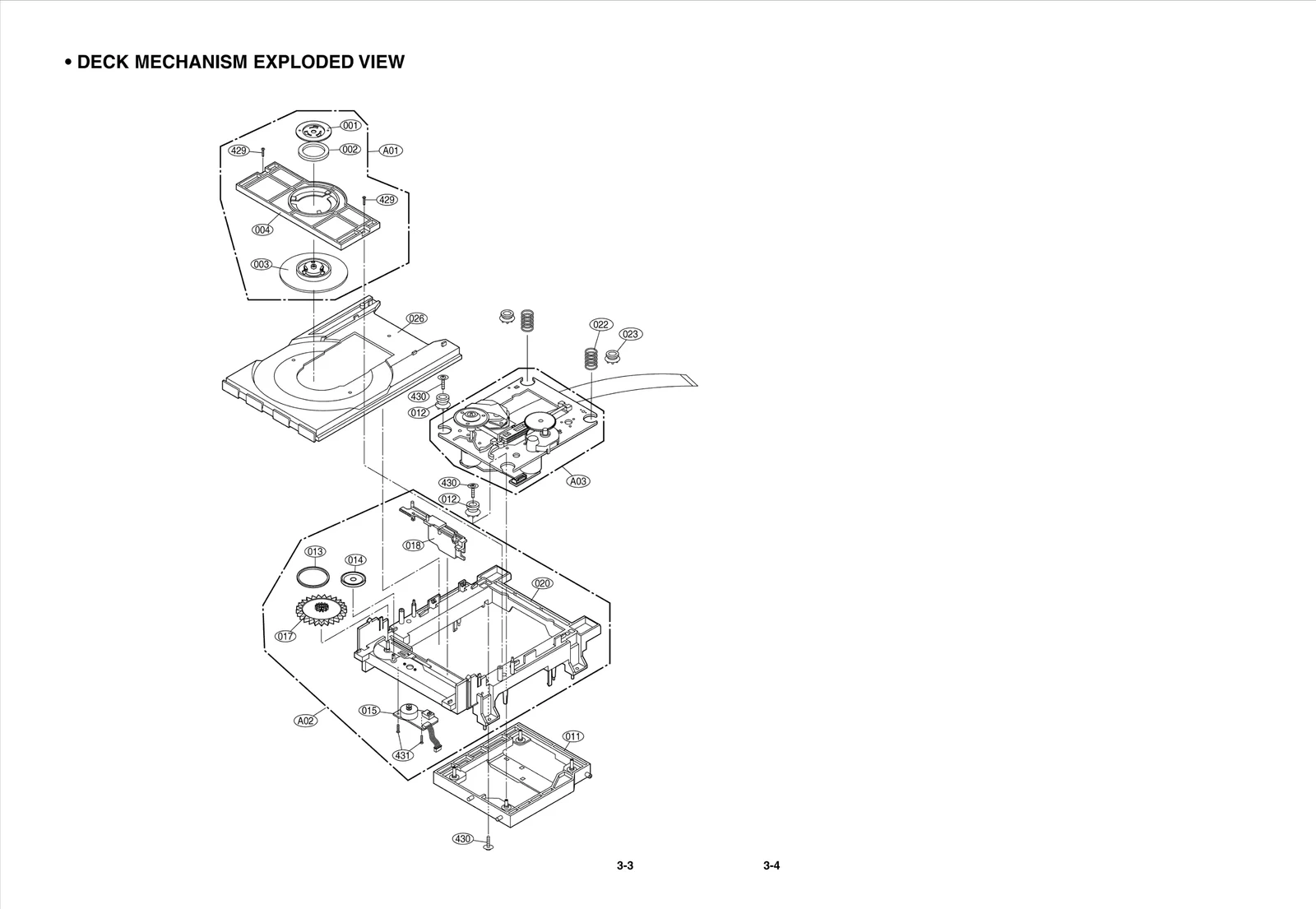

Diagram 1

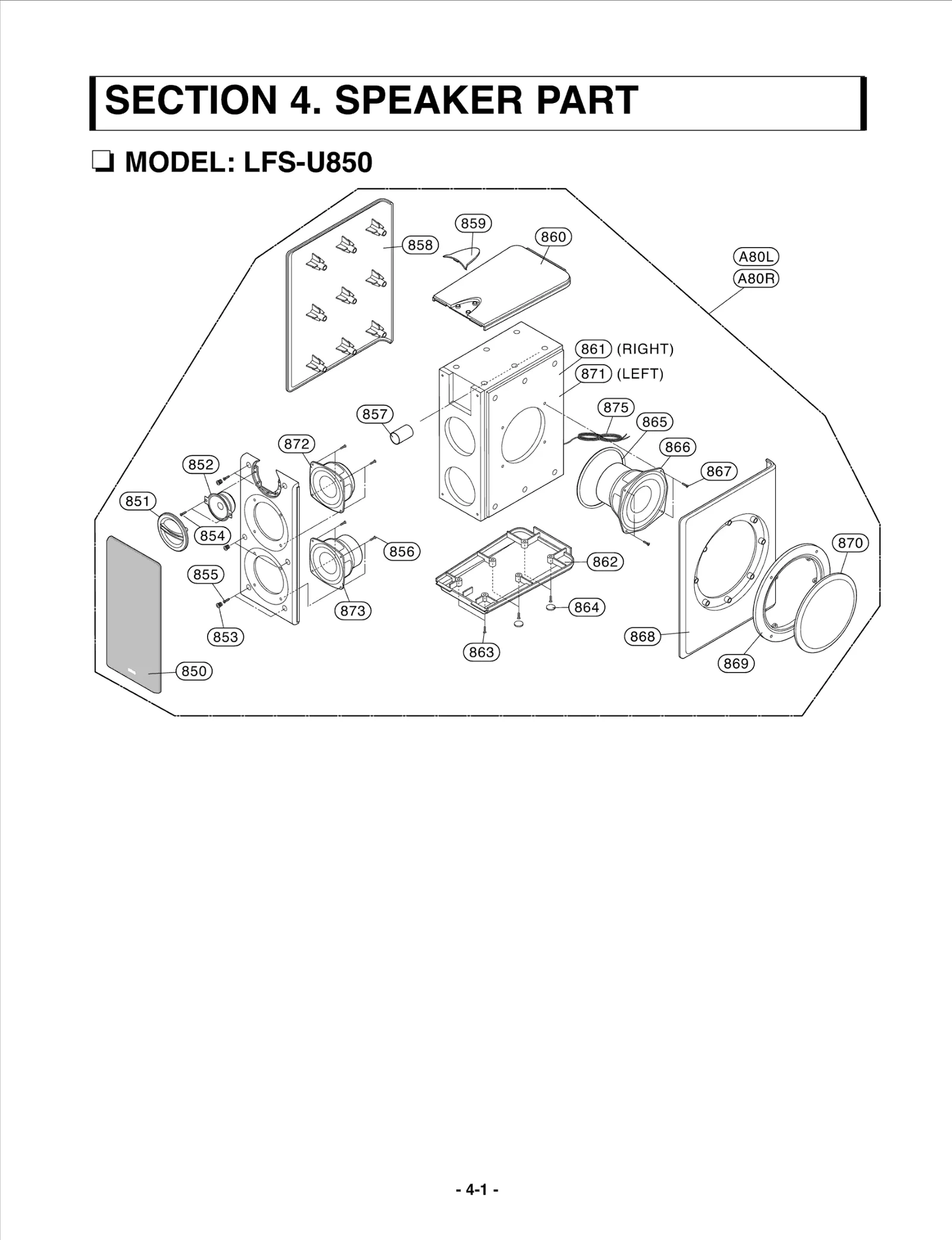

Diagram 2
Diagram 3
Common parts from model LG LFU850
001
COVER LGE 3550SB0001A Contact Us For Availability
002
COVER LGE 524-012AAAA Contact Us For Availability
003
CLAMP LGE 4860RB0002A Contact Us For Availability
004
HOLDER LGE 4930R-0526A Contact Us For Availability
011
BASE LGE 3040R-0073A Contact Us For Availability
012
Damper LGE 5040R-0131A Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,CD LGE 6871RC2016A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-M059A Contact Us For Availability
022
Spring LGE 4970RB0001C Contact Us For Availability
023
Damper LGE 4900RB0002A Contact Us For Availability
026
Tray LGE 3390R-0028A Contact Us For Availability
250
WINDOW,DECO LGE 3790RCZ656A Contact Us For Availability
251
Cover Assembly LGE 3091RCX240L Contact Us For Availability
252
Panel,Audio LGE 3720RCM667H Contact Us For Availability
253
Panel,Audio LGE 3720RCM668E Contact Us For Availability
254
CHASSIS ASSEMBLY LGE 3141RCH240A Contact Us For Availability
255
BRACKET LGE 4810RC0677A Contact Us For Availability
256
Door Assembly LGE 3581RCC657E Contact Us For Availability
257
Panel Assembly,Audio LGE 3721RCM666N Contact Us For Availability
258
Knob LGE 4940RCV857B Contact Us For Availability
259
Window,Decor LGE 3790R-P669A Contact Us For Availability
260
Panel,Audio LGE 3720RCM668F Contact Us For Availability
270
BRACKET LGE 4810RC0679A Contact Us For Availability
271
Decor LGE 3508RCH858B Contact Us For Availability
280
PLATE LGE 3300RCH139A Contact Us For Availability
305
POWER CORD LGE 6410RAHK06A Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
CD MECHANISM PARTS LGE 6756SBX001A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
450
LGE 353-025N LGE 353-025N Contact Us For Availability
801
Manual Assembly LGE 3835RH0148G Contact Us For Availability
802
Box,Master LGE MAY32775957 Contact Us For Availability
803
PACKING LGE 3920R-E169A Contact Us For Availability
804
Bag LGE 3880SCS001P Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-NAA81 Contact Us For Availability
813
BATTERY,MN LGE 841N0015 Contact Us For Availability
814
ANTENNA,LOOP LGE 5010R-L004A Contact Us For Availability
815
ANTENNA,T LGE 5010R-T001E Contact Us For Availability
850
NET ASSEMBLY LGE 3701RM0177A Contact Us For Availability
851
DECORATION LGE 3508RMP116A Contact Us For Availability
852
Speaker,Tweeter LGE 6400TSPA01A Contact Us For Availability
853
HOLDER LGE 4930RM0080A Contact Us For Availability
854
SCREW,DRAWING LGE 353M025F Contact Us For Availability
855
SCREW,DRAWING LGE 353M051Y Contact Us For Availability
856
SCREW,DRAWING LGE 353M025E Contact Us For Availability
857
DUCT LGE 5208RM0105A Contact Us For Availability
858
PANEL,AUDIO LGE 3720RMM040A Contact Us For Availability
859
DECORATION LGE 3508RMP115A Contact Us For Availability
860
PANEL,AUDIO LGE 3720RMM041A Contact Us For Availability
861
CABINET ASSEMBLY LGE 3091RMW157A Contact Us For Availability
862
PANEL,AUDIO LGE 3720RMM042A Contact Us For Availability
863
SCREW,DRAWING LGE 353M051G Contact Us For Availability
864
FOOT LGE 3610RM0079A Contact Us For Availability
865
FELT LGE 4766RM0210C Contact Us For Availability
866
Speaker,Woofer LGE 6400WSPH01A Contact Us For Availability
867
SCREW,DRAWING LGE 353M053B Contact Us For Availability
868
PANEL,AUDIO LGE 3720RMM039A Contact Us For Availability
869
DECORATION LGE 3508RMP114A Contact Us For Availability
870
NET ASSEMBLY LGE 3701RM0159A Contact Us For Availability
871
CABINET ASSEMBLY LGE 3091RMW156A Contact Us For Availability
872
DECORATION LGE 3508RMP137A Contact Us For Availability
873
Speaker,MID,Range LGE 6400MSPC01A Contact Us For Availability
875
PWB(PCB) ASSEMBLY,SU LGE 6871RU0099A Contact Us For Availability
900
Remote Controller LGE 6710CMAQ05B Contact Us For Availability
A01
Clamp LGE 4860RB0003A Contact Us For Availability
A02
Mechanism Assembly LGE 4405RCD002A Contact Us For Availability
A03
Pick Up Assembly LGE 6717R-A002A Contact Us For Availability
A03
Pick Up Assembly LGE 6717R-A002B Contact Us For Availability
A03
Pick Up Assembly LGE 6717RCA001B Contact Us For Availability
A26
Deck Assembly,Audio LGE 6721RJ0572A Contact Us For Availability
A41
PCB Assembly LGE 6871R-6856C Contact Us For Availability
A42
Board Assembly LGE 3501R-6856C Contact Us For Availability
A43
PCB Assembly,Front LGE 6871R-7851G Contact Us For Availability
A46
PCB Assembly LGE 6871R-7856B Contact Us For Availability
A47
PCB Assembly LGE 6871R-7814E Contact Us For Availability
A80L
Speaker Assembly LGE EAB35761901 Contact Us For Availability
A80R
Speaker Assembly LGE EAB35761902 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CH1332K516 Contact Us For Availability
C309
CAPACITOR,FIXED CERA LGE 0CH1473K566 Contact Us For Availability
C318
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C322
LGE 0CH4220K406 LGE 0CH4220K406 Contact Us For Availability
C326
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C328
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
C330
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C332
LGE 0CH4330K406 LGE 0CH4330K406 Contact Us For Availability
C334
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C335
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C345
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C516
Capacitor,AL,Radial LGE 0CE3356K618 Contact Us For Availability
C517
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C524
LGE 0CE4776F618 LGE 0CE4776F618 Contact Us For Availability
C544
Capacitor,AL,Radial LGE 0CE1066F618 Contact Us For Availability
C557
CAPACITOR ELECTROLYTIC SCMT270 LGE 0CE2266F618 Contact Us For Availability
C578
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C579
Capacitor,AL,Radial LGE 0CE2246K618 Contact Us For Availability
C583
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE 0CH1272K512 Contact Us For Availability
C607
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C610
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C615
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C617
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C624
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C625
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C635
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C654
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C808
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH1563K512 Contact Us For Availability
C814
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C817
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C818
Capacitor,Ceramic,Chip LGE 0CH1473H942 Contact Us For Availability
C824
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C825
CAPACITOR,CHIP[CERAMIC M/L HD LGE 0CH1104H942 Contact Us For Availability
C832
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C835
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C836
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C837
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C841
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C842
Capacitor,Ceramic,Chip LGE 0CH1223H562 Contact Us For Availability
C843
LGE 0CE4766J618 LGE 0CE4766J618 Contact Us For Availability
C851
CAPACITOR,FIXED CERA LGE 0CH1103K464 Contact Us For Availability
C851
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C859
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C863
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C867
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C872
Capacitor,Ceramic,Chip LGE 0CH1224K514 Contact Us For Availability
C879
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C881
Capacitor,Ceramic,Chip LGE 0CH4200K412 Contact Us For Availability
C895
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C898
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C901
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C905
CAPACITOR,FIXED ELEC LGE 0CE337RQ610 Contact Us For Availability
C906
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C907
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C910
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C911
Capacitor,Ceramic,Axial LGE 0CN1220F669 Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C916
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C919
CAPACITOR,FIXED FILM LGE 0CQ1031N449 Contact Us For Availability
C920
Capacitor,AL,Radial LGE 0CE2266K618 Contact Us For Availability
C927
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C930
CAPACITOR LGE 624-087D Contact Us For Availability
C932
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C943
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C948
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C951
LGE 0CE228NK610 LGE 0CE228NK610 Contact Us For Availability
C951
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
C970
LGE 0CE1076H638 LGE 0CE1076H638 Contact Us For Availability
C979
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C981
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C992
Capacitor,AL,Radial LGE 0CE4774F638 Contact Us For Availability
CABLE
Cable,FFC LGE 6850R-JP10A Contact Us For Availability
CABLE
LGE 6850R-HP30C LGE 6850R-HP30C Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-H718A Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN301
Harness,Single LGE 6631R-F046C Contact Us For Availability
CN302
CONNECTOR (CIRC),FFC LGE 561-707P Contact Us For Availability
CN304
CONNECTOR (CIRC),FFC/FPC LGE 561-7077 Contact Us For Availability
CN601
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN941
LGE 6631R-F039B LGE 6631R-F039B Contact Us For Availability
CN943
CONNECTOR ASSEMBLY LGE 6631R-E078A Contact Us For Availability
CONNECTOR
LGE 563-801U LGE 563-801U Contact Us For Availability
CONNECTOR
LGE 563-801V LGE 563-801V Contact Us For Availability
D601
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D802
Diode,Switching LGE 0DD226009AA Contact Us For Availability
D901
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D908
DIODE LGE 0DD010009CA Contact Us For Availability
D940
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D941
DIODE,RECTIFIERS LGE 0DRFC00171A Contact Us For Availability
D941
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D948
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D948
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D948
Diode,Rectifier LGE 0DD220609AA Contact Us For Availability
D959
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D959
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D977
DIODE 1N5402,RECT,SILTER,FORM LGE 0DD540200CA Contact Us For Availability
D998
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D999
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D999
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
DIG301
DIGITRON LGE 6302R-V252A Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FAN
FAN,DC LGE 5900R-D010A Contact Us For Availability
FB605
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
FB902
Filter,Bead LGE 636-004C Contact Us For Availability
IC301
IC,Microcontrollers LGE 0IMCR02138B Contact Us For Availability
IC302
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC303
IC,MSI LGE 0IMY700000A Contact Us For Availability
IC503
Power Supply Circuit LGE 0IPMG00060A Contact Us For Availability
IC601
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC602
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC603
IC,PERIPHERALS LGE 0IPRPCI013A Contact Us For Availability
IC801
IC,Digital Signal Processors LGE 0ILNR00006A Contact Us For Availability
IC802
IC,Power Driver LGE 0ILNR00042A Contact Us For Availability
IC803
IC,PERIPHERALS LGE 0IPRP00534B Contact Us For Availability
IC804
IC,POWER MANAGEMENT LGE 0IPMGUC005A Contact Us For Availability
IC805
IC,I/O Support Chip LGE 0IPRPOB001B Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00044A Contact Us For Availability
IC902
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC947
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC947
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC949
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC949
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC949
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC955
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC957
IC,POWER MANAGEMENT LGE 0IPMGKE047B Contact Us For Availability
JK301
CONNECTOR (CIRC),USB LGE 6630S70035A Contact Us For Availability
JK302
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK601
JACK,RCA LGE 6612J00009C Contact Us For Availability
JK801
TERMINAL BLOCK LGE 6640000029A Contact Us For Availability
L304
Inductor,Multilayer,Chip LGE 0LCCE00004G Contact Us For Availability
L801
Inductor,Multilayer,Chip LGE 0LCCE00004N Contact Us For Availability
L801
Coil,RF LGE 6140RCC008A Contact Us For Availability
L941
Coil,Choke LGE 6140RCC002A Contact Us For Availability
L943
COIL,CHOKE LGE 633-088G Contact Us For Availability
LD301
LED,DIP LGE 0DL307119BA Contact Us For Availability
LD308
LED LGE 0DLBE0175AA Contact Us For Availability
LD308
LGE 0DLEO0039AA LGE 0DLEO0039AA Contact Us For Availability
LF901
LGE 6200JB8008V LGE 6200JB8008V Contact Us For Availability
LF902
Line Noise Filter LGE 6200JB8009X Contact Us For Availability
PC901
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC901
SENSOR LGE 6500RDB011B Contact Us For Availability
PN102
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
PN304
CONNECTOR (CIRC),FFC LGE 6630XF00233 Contact Us For Availability
PN801
CONNECTOR (CIRC),FFC LGE 6630XE00816 Contact Us For Availability
PN802
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
PN804
CONNECTOR (CIRC),WAF LGE 561-712E Contact Us For Availability
PN805
CONNECTOR (CIRC),FFC LGE 6630XF00416 Contact Us For Availability
PN806
Connector,Wafer LGE 561-711H Contact Us For Availability
PN806
Harness,Single LGE 6631R-E009K Contact Us For Availability
PN810
Connector,Wafer LGE 561-715D Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q303
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q303
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q305
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q307
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q501
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q501
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q502
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q801
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q801
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q802
TR,Bipolar LGE 0TR102009AF Contact Us For Availability
Q803
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q904
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q941
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q941
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q951
TRANSISTOR KTA1267-GR MINI TP LGE 0TR126709AC Contact Us For Availability
R302
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R309
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R328
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R344
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R346
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R347
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R351
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R352
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R363
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R391
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R396
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R508
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R513
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R516
RESISTOR CHIP 18K 1/10W 5 D.R LGE 0RH1802D622 Contact Us For Availability
R517
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R522
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R523
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R527
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R552
Resistor,Chip LGE 0RH0392C622 Contact Us For Availability
R553
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R557
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R571
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R573
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R577
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R578
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R611
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R631
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R646
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R652
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R656
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R657
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R660
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R668
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R806
Resistor,Chip LGE 0RH2204C622 Contact Us For Availability
R809
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R814
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R815
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R815
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R817
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R819
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R825
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R826
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R827
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R828
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R828
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R830
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R833
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R834
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R836
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R837
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R845
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R864
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R868
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R872
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R881
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R886
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R906
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R908
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R910
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R912
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R917
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R919
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R934
Resistor,Metal Oxide Film LGE 0RS1803K619 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R942
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R944
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R948
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R949
RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability
R959
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R964
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R969
Resistor,Carbon Film LGE 0RD1201F609 Contact Us For Availability
R970
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R973
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R976
Resistor,Carbon Film LGE 0RD1802F609 Contact Us For Availability
R977
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R985
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R986
RESISTOR FIXED CARBON FILM SKN LGE 0RD2001F609 Contact Us For Availability
R987
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R990
Resistor,Carbon Film LGE 0RD1202F609 Contact Us For Availability
R993
IC,ROHM LGE GIRH200000B Contact Us For Availability
R997
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R999
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
RA304
LGE 614-013X LGE 614-013X Contact Us For Availability
RMC301
REMOTE CONTROLLER RE LGE 6712R2038GJ Contact Us For Availability
S109
LGE 1SZZRC0001A LGE 1SZZRC0001A Contact Us For Availability
S111
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
SW305
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
T901
TRANSFORMER,SMPS[COI LGE 6170RNGW19S Contact Us For Availability
T902
TRANSFORMER,SMPS[COI LGE 6170RNGW19T Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TU601
TUNER LGE 6700FM0131B Contact Us For Availability
VR301
VOLUME,ENCODER LGE 6110E00019A Contact Us For Availability
VR901
VARISTOR LGE 6102R2A002A Contact Us For Availability
X301
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X302
Crystal LGE 617-602F Contact Us For Availability
X501
OSCILLATOR LGE 6204A41228G Contact Us For Availability
X801
Crystal LGE 6212AA2169F Contact Us For Availability
X802
RESONATOR,CRYSTAL LGE 6212AA2148F Contact Us For Availability
ZD303
DIODE,ZENERS LGE 0DZ680009EB Contact Us For Availability
ZD303
DIODE,ZENERS LGE 0DZSE00194B Contact Us For Availability
ZD501
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
ZD501
Diode,Zener LGE 0DZ510009AH Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD906
DIODE,ZENERS LGE 0DZ120009IA Contact Us For Availability
ZD941
Diode,Zener LGE 0DZ330009AR Contact Us For Availability
ZD941
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
× ![]()
Login and Registration Form
