Model Frigidaire LFTR2045VF9 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

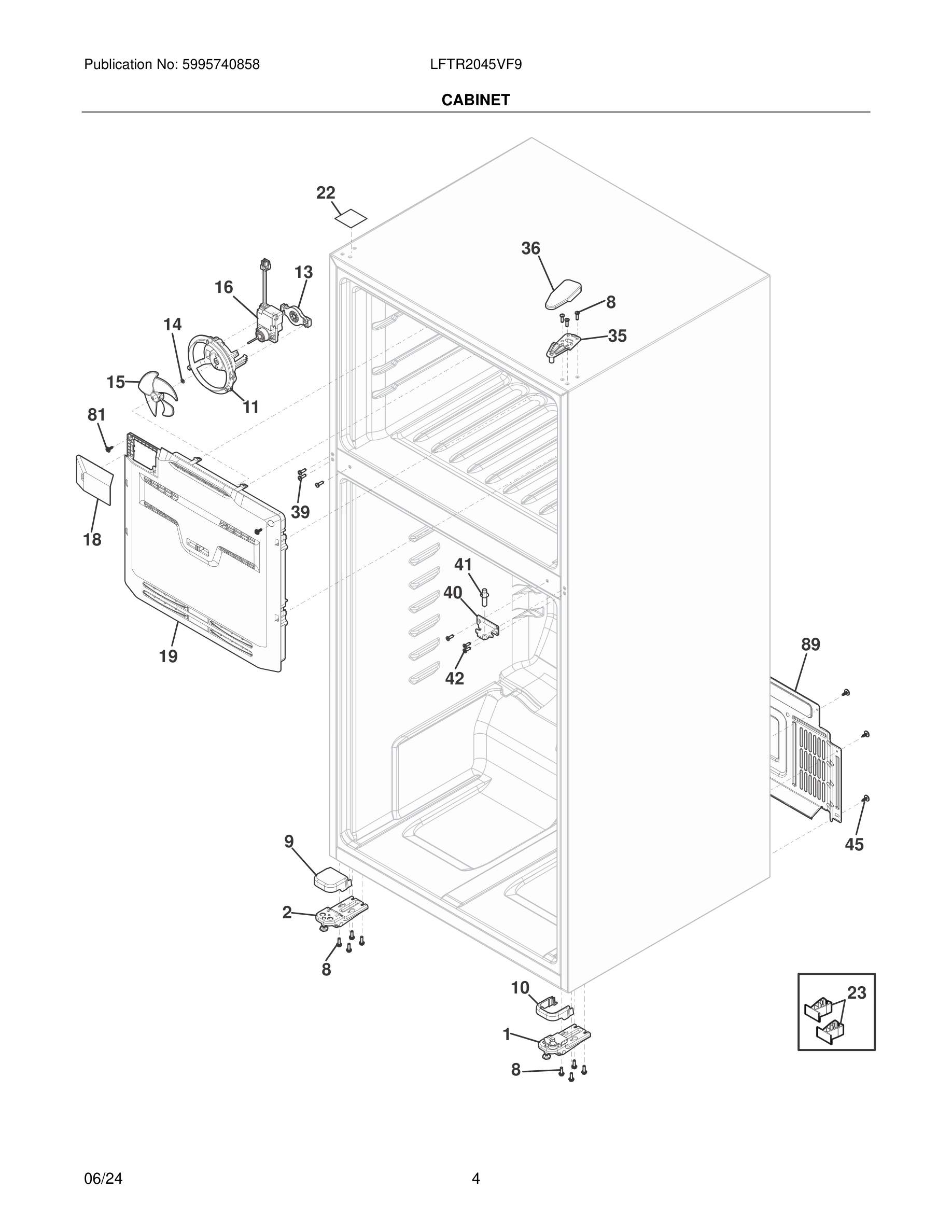

05 - CABINET

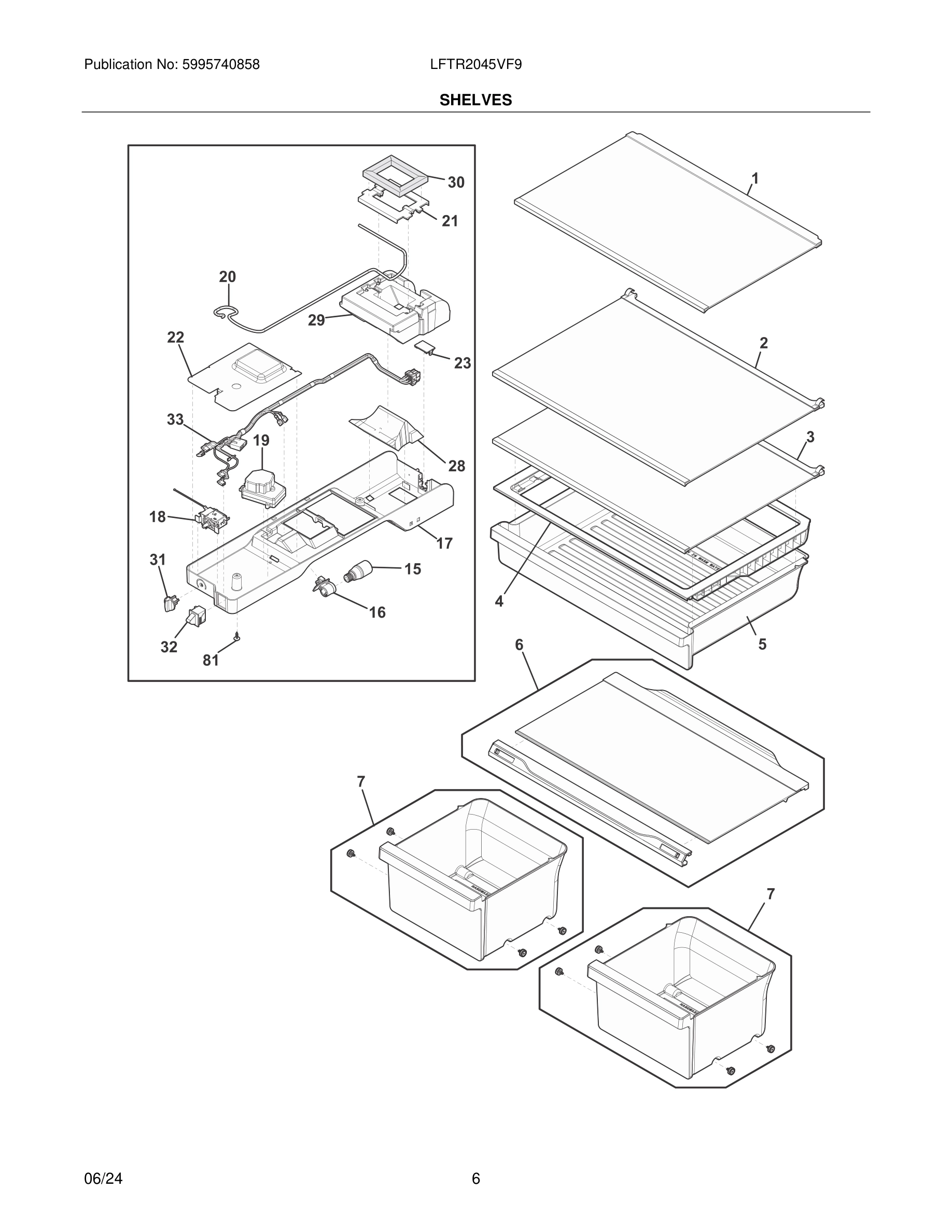

07 - SHELVES

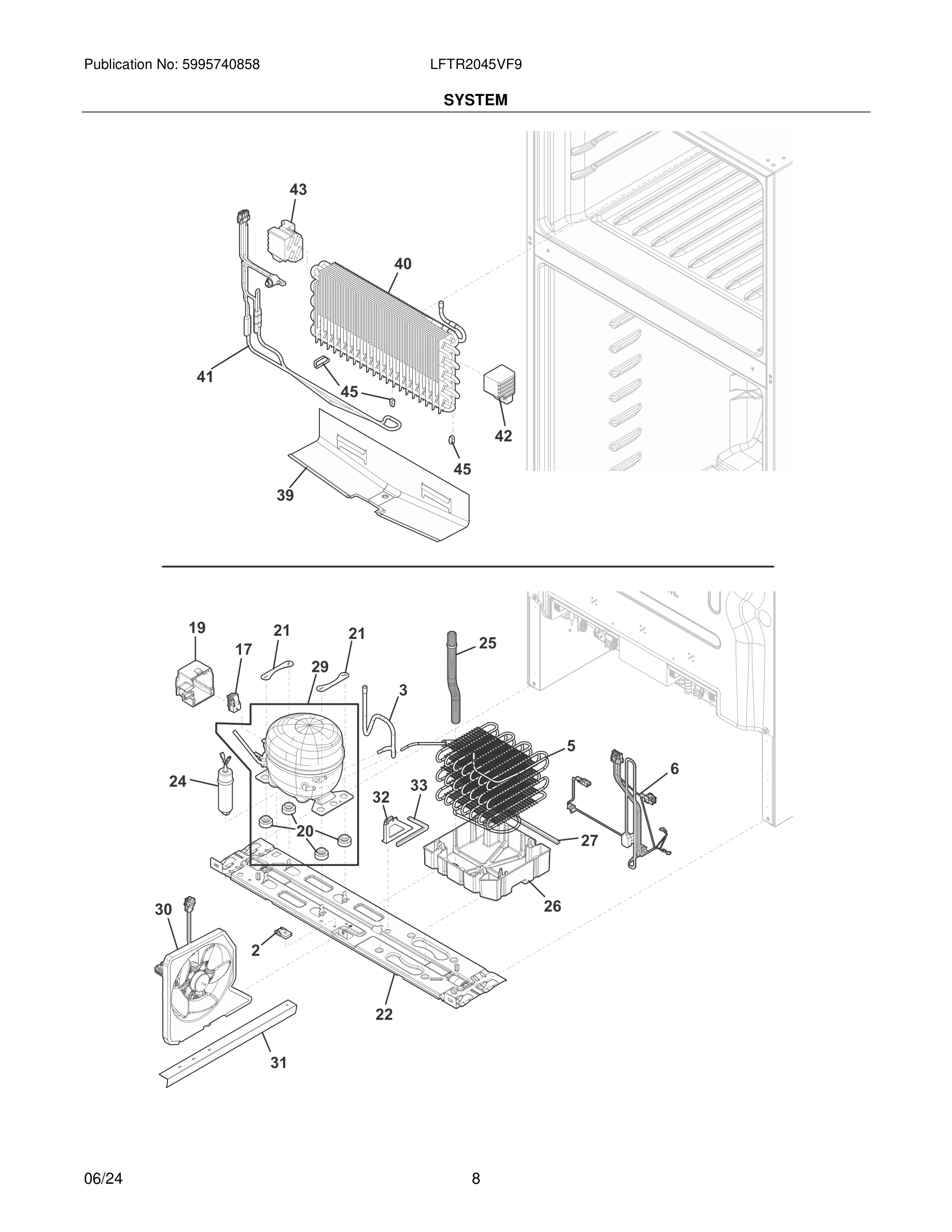

09 - SYSTEM

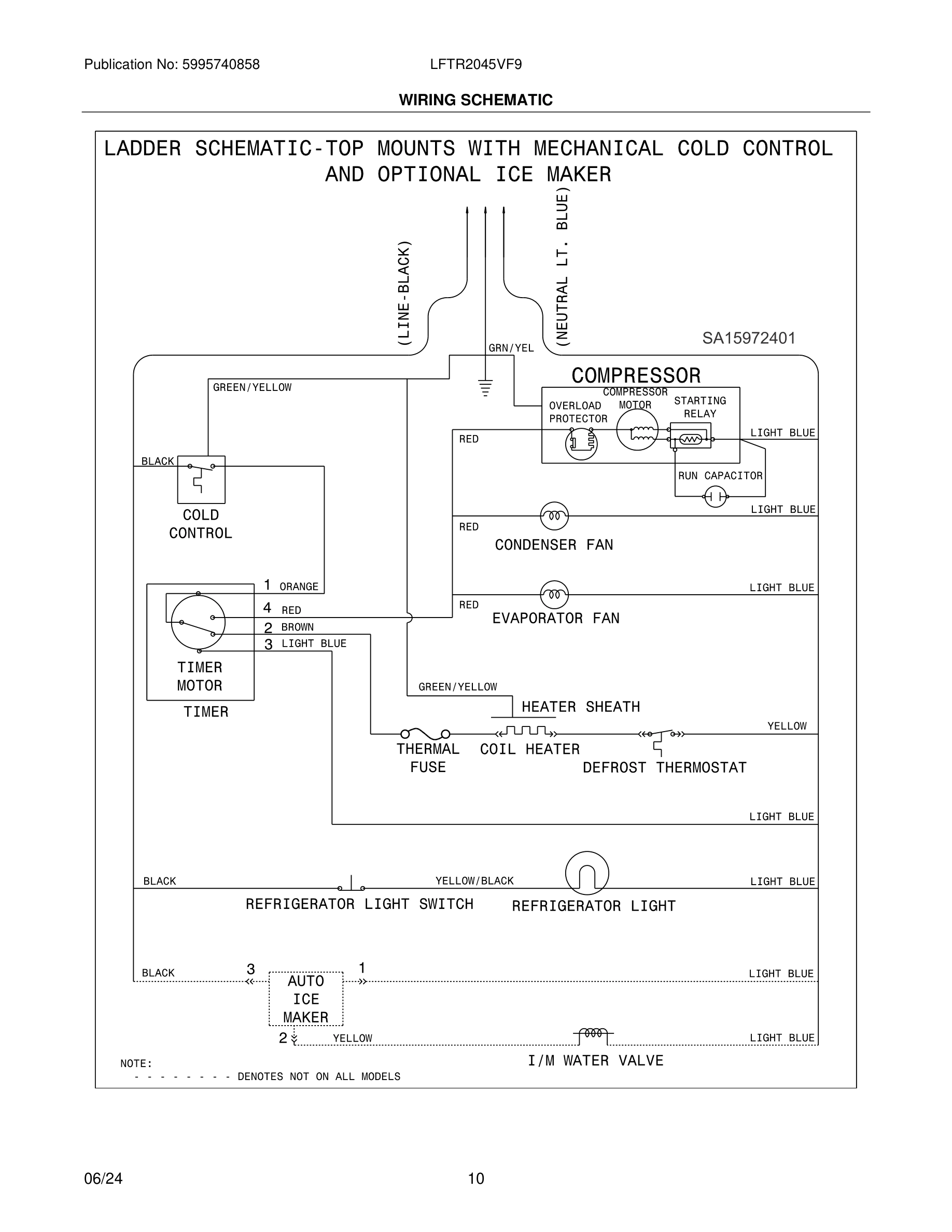

10 - WIRING SCHEMATIC

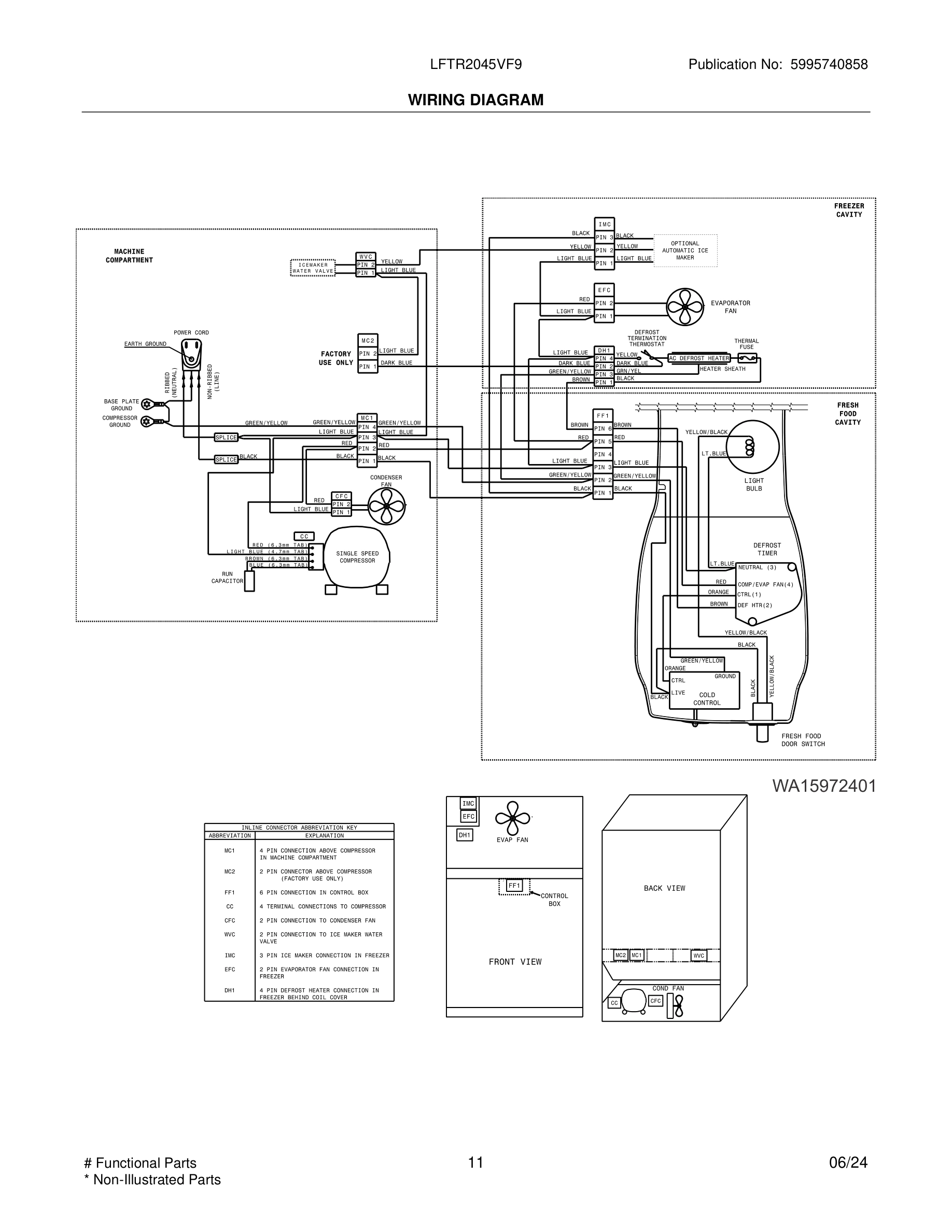

11 - WIRING DIAGRAM
Common parts from model Frigidaire LFTR2045VF9 REFRIGERATOR
*
Screw, hex washer head, 8-18 x 5/16 WCI 240433204 Contact Us For Availability
*
Screw, type AB, #10-16 WCI 5304534034 Contact Us For Availability
1
Badge, Frigidaire, chrome WCI 5304511146 Contact Us For Availability
1#
TUBE, PROCESS, 1 # WCI 5304534455 Contact Us For Availability
2
Hinge Assembly, bottom, LH WCI 5304519776 Contact Us For Availability
2
Clamp, wiring harness, galv steel, strn relie WCI 5304456288 Contact Us For Availability
3#
TUBE-SUCTION JUMPER ES COMP WCI 5304537689 Contact Us For Availability
5#
Condenser, dynamic WCI 5304530007 Contact Us For Availability
6#
Harness, wiring, machine compt. WCI 5304519649 Contact Us For Availability
8
Screw, hex wsh hd quad, M5 x 16 WCI 5304522279 Contact Us For Availability
9
Bearing, hinge, gray WCI 5304522194 Contact Us For Availability
9
Cover, hinge, gray, lower, non-hinged WCI 5304522221 Contact Us For Availability
11
Shroud, evaporator fan WCI 5304519752 Contact Us For Availability
12
Screw, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
13
Grommet, evaporator fan, rear WCI 242287501 Contact Us For Availability
14
Washer, "slinger", nylon, evap fan shaft WCI 215474201 Contact Us For Availability
15
Fan Blade, evaporator WCI 242219302 Contact Us For Availability
15
BULB, light, E17/12 LED WCI 5304522314 Contact Us For Availability
16#
Socket, LED light WCI 5304522315 Contact Us For Availability
17#
Starter WCI 5304536666 Contact Us For Availability
18
Cold Control, assembly, w/capillary WCI 5304522330 Contact Us For Availability
18
Cover, I/M Connector WCI 5304519662 Contact Us For Availability
19
Cover Assembly, evaporator, w/frz slide WCI 5304519654 Contact Us For Availability
19
Cover, electricals, compressor WCI 5304528888 Contact Us For Availability
20
Grommet, compressor WCI 5304522323 Contact Us For Availability
21
Clamp, compressor WCI 5304524607 Contact Us For Availability
22
Base Assembly, compressor, w/rollers WCI 5304519667 Contact Us For Availability
24#
CAPACITOR-RUN NGM 12uF WCI 297286812 Contact Us For Availability
25
Tube, drain extension WCI 5304519743 Contact Us For Availability
26
Pan, drain WCI 5304519674 Contact Us For Availability
27
Seal, foam, drain pan WCI 5304519750 Contact Us For Availability
28
Diffuser, control box, bottom WCI 5304522317 Contact Us For Availability
29
Diffuser, control box, top WCI 5304522336 Contact Us For Availability
30#
Fan Assembly, condenser, w/shroud-foam WCI 5304519734 Contact Us For Availability
31
Knob, control WCI 5304522337 Contact Us For Availability
31
Baffle, divider, high side WCI 5304524032 Contact Us For Availability
32
Baffle, drain pan, air block WCI 5304519745 Contact Us For Availability
32#
Switch, door/light, white WCI 5304520495 Contact Us For Availability
33
Seal, foam, air block WCI 5304519751 Contact Us For Availability
35
Hinge, door, upper WCI 5304519646 Contact Us For Availability
39
Trough, evap drain WCI 5304519679 Contact Us For Availability
40
Hinge, door, gray, center WCI 5304522100 Contact Us For Availability
40#
Evaporator, assembly WCI 5304529495 Contact Us For Availability
41
Pin, center hinge, door WCI 5304519642 Contact Us For Availability
41#
Heater, evap defrost, w/thermostat WCI 5304522340 Contact Us For Availability
42
Support, evaporator, RH WCI 5304522326 Contact Us For Availability
43
Support, evaporator, LH WCI 5304522327 Contact Us For Availability
45
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
58
Screw, 8-18 X .500 WCI 240569202 Contact Us For Availability
61
Blade, condenser fan WCI 241639502 Contact Us For Availability
81
Screw, hx wash hd, M4.2 x 12 WCI 5304519765 Contact Us For Availability
89
Access Cover, rear WCI 5304522114 Contact Us For Availability
× ![]()
