Model Electrolux LFSC2324VF3 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams

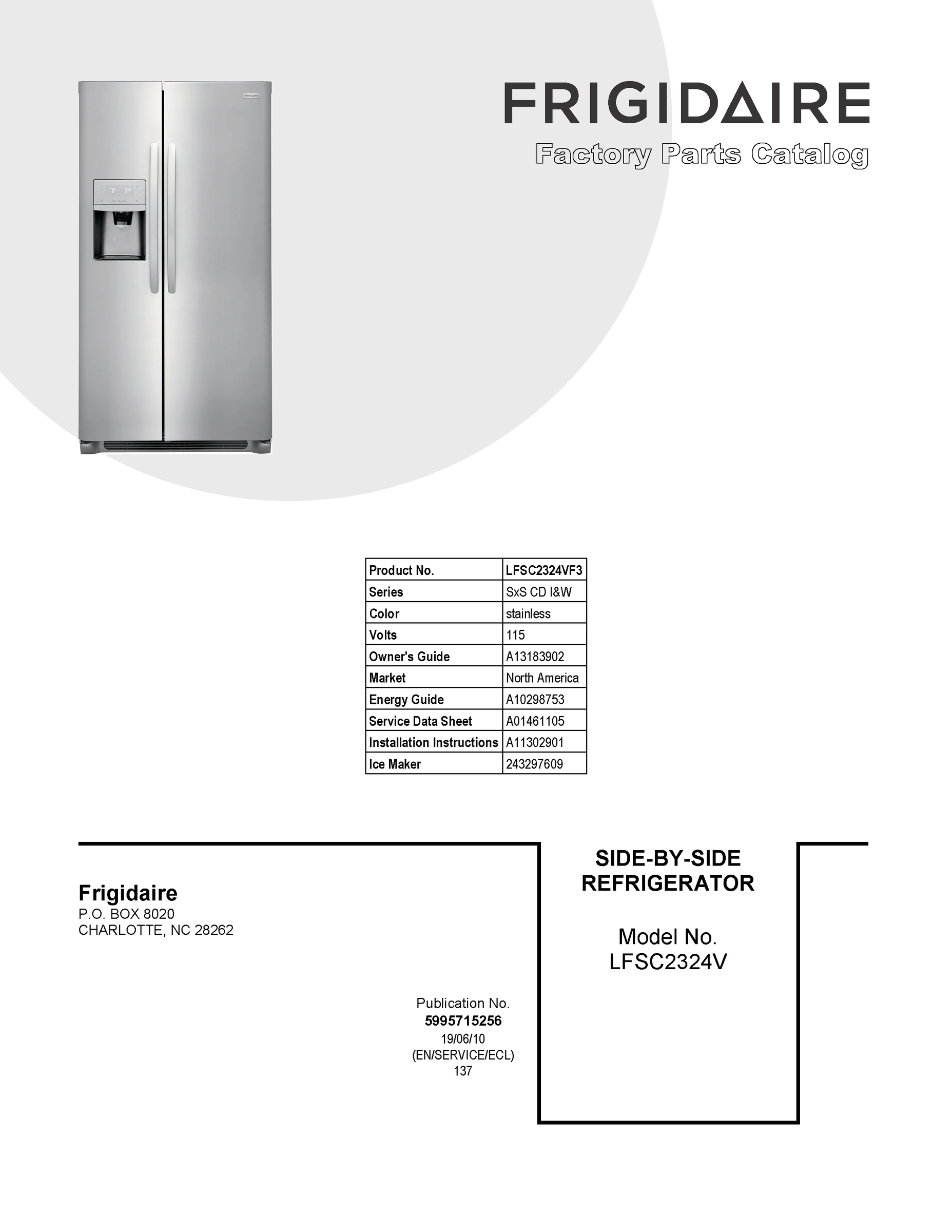

01 - COVER SHEET

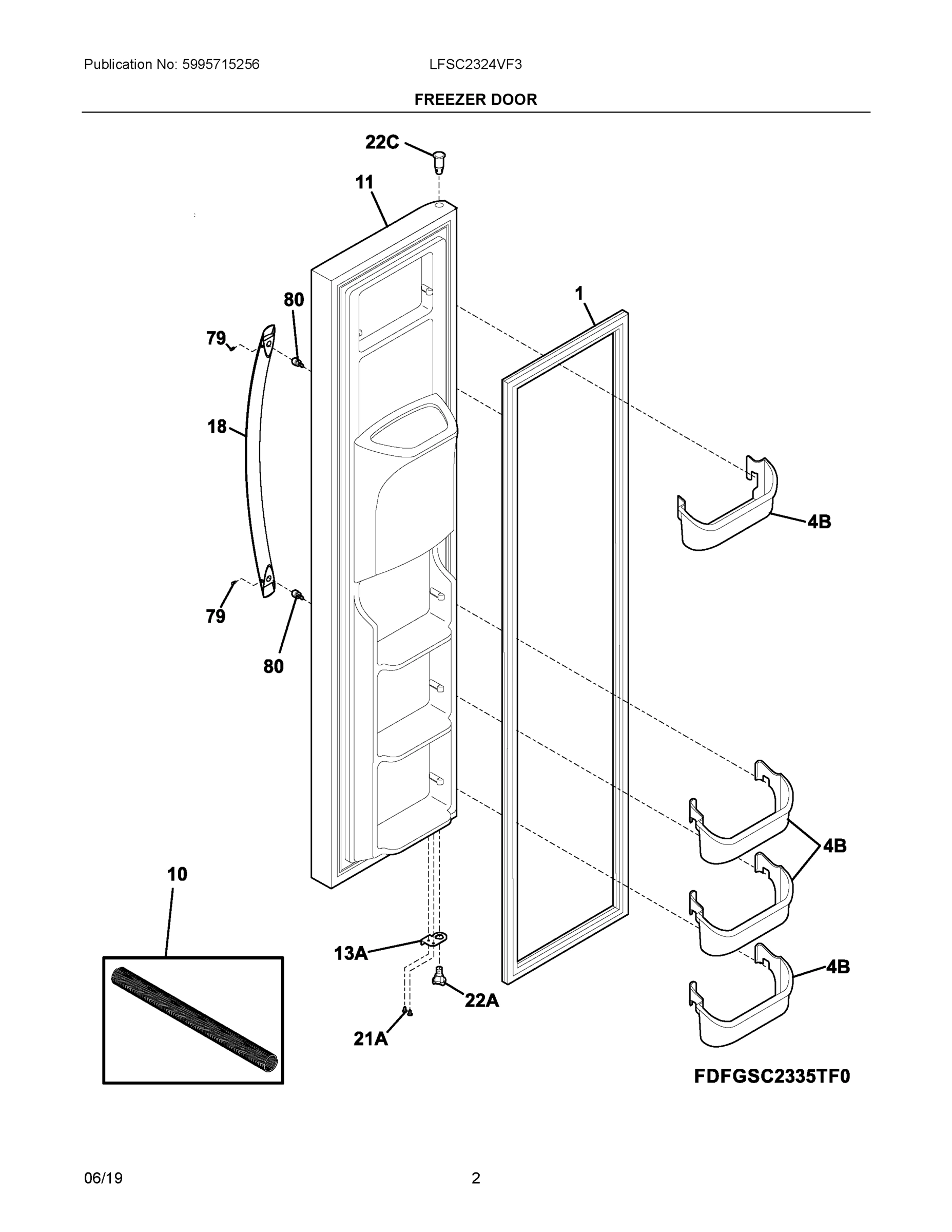

02 - FREEZER DOOR
03 - REFRIGERATOR DOOR
04 - CABINET
05 - SHELVES
06 - CONTROLS
07 - SYSTEM
08 - ICE & WATER DISPENSER
09 - ICE CONTAINER
10 - ICE MAKER
11 - WIRING DIAGRAM
Common parts from model Electrolux LFSC2324VF3 REFRIGERATOR, SIDE-BY-SIDE
1
TUBE, WATER, 62", NATURAL 62", DOOR, BTM DOOR WCI 218976438 Contact Us For Availability
1
TUBE-WATER, GRN 68"VLV TO I WCI 218976822 Contact Us For Availability
2
GASKET-REFR DOOR, GRAY, MAGNETIC WCI 241510205 Contact Us For Availability
3
BLOCK-EVAP COIL, STYROFOAM, (2) WCI 218679614 Contact Us For Availability
4A
TRIM, FACADE, GREY WCI 242176404 Contact Us For Availability
4B
BIN-DOOR WCI 241511601 Contact Us For Availability
5
FAN BLADE, EVAPORATOR WCI 242219302 Contact Us For Availability
6
LUG-DAIRY COMPARTMENT WCI 241515901 Contact Us For Availability
8
MODULE, DISPENSER, CLEAR, W/PADDLE WCI 242270107 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
BUSHING-MOTOR MTG WCI 241563601 Contact Us For Availability
9A
BUSHING-MOTOR MTG WCI 241845301 Contact Us For Availability
10
BAR-DRIVE WCI 241829001 Contact Us For Availability
10
SPRING, WATER HOSE, FRZ DOOR WCI 807688301 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11A
SHELF-FREEZER, FLIP-UP WCI 241657605 Contact Us For Availability
11B
SHELF-FREEZER, FIXED WIRE WCI 241657506 Contact Us For Availability
12
BADGE, FRIGIDAIRE, CHROME WCI 5304511146 Contact Us For Availability
13
DOOR STOP, BLACK, REF WCI 241990201 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 241990202 Contact Us For Availability
14
HEATER-DEFROST WCI 242044113 Contact Us For Availability
14
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918284 Contact Us For Availability
15A
LENS, 3 LED CLUSTER WCI 242202701 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
18
MOTOR-AUGER WCI 241816602 Contact Us For Availability
18
HANDLE, DOOR, STAINLESS, W/SET SCREWS WCI 5304511770 Contact Us For Availability
19
WCI 5304521770 WCI 5304521770 Contact Us For Availability
20
HOUSING, SLIM ICE MAKER WCI 242303501 Contact Us For Availability
20A
HOUSING, OUTER COVER, SLIM ICEMAKER WCI 242303701 Contact Us For Availability
21
WCI 5304521276 WCI 5304521276 Contact Us For Availability
21D
SCREW, PAN HEAD, 8-18 X 0.625 WCI 218781101 Contact Us For Availability
22
PLATE-DOOR CLOSER WCI 241917801 Contact Us For Availability
22
BEARING-HINGE, GRAY WCI 241990301 Contact Us For Availability
22
BASE-COMPRESSOR WCI 240330014 Contact Us For Availability
22A
BEARING-HINGE(FRZ), CLOSER WCI 241990302 Contact Us For Availability
22B
BEARING, HINGE, TOP WCI 241760404 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760402 Contact Us For Availability
23
SUMP, DISPENSER, GREY WCI 242176503 Contact Us For Availability
23
FILL CUP, W/HEATER WCI 5304504455 Contact Us For Availability
23
COVER-SENSOR WCI 241512901 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24
SHELF ASSEMBLY, CANTILEVER, GLASS, W/TRIM WCI 5304515413 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 240350702 Contact Us For Availability
25
SCREW, HEX WASHER HEAD, 8-32 X 3/8 WCI 240555005 Contact Us For Availability
25
CLIP-SPRING WCI 242037702 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 240350903 Contact Us For Availability
25B
FRAME-DELI COVER, UPPER WCI 240599803 Contact Us For Availability
27
PAN-CRISPER, LOWER WCI 240351207 Contact Us For Availability
29
COMPRESSOR, PANASONIC, SVA57, W/GROMMETS WCI 5304512654 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/HINGE PIN, RH, AND SCR WCI 241918001 Contact Us For Availability
30
WCI 5304521262 WCI 5304521262 Contact Us For Availability
30A
BRACKET-LOWER HINGE, W/HINGE PIN, LH, AND SCR WCI 241918004 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
37
WCI 5304519618 WCI 5304519618 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
38C
CONTROL ASSEMBLY, USER INTERFACE, W/HOUSING WCI 5304510322 Contact Us For Availability
40
COVER-UPPER HINGE, GRAY, RH WCI 241946709 Contact Us For Availability
40A
COVER-UPPER HINGE, GRAY, LH WCI 241946710 Contact Us For Availability
41
GROMMET-SHELF MTG, 1.40" LONG WCI 241550801 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
41
BAFFLE-AIR WCI 241637601 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
43
SCREW, PAN HEAD, 8-32 X 0.250 WCI 218359202 Contact Us For Availability
45
SOLENOID ASSY, 115V WCI 241675704 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 240350649 Contact Us For Availability
47A
INSERT-PAN COVER, GLASS WCI 240350603 Contact Us For Availability
47B
INSERT-PAN COVER, GLASS WCI 240443391 Contact Us For Availability
48
BIN-DOOR, REF WCI 241511701 Contact Us For Availability
49
BIN-DOOR, 2-LITER WCI 241505301 Contact Us For Availability
49
BASKET-SLIDING WCI 241515001 Contact Us For Availability
49A
BIN-DOOR, GALLON WCI 241505501 Contact Us For Availability
49B
BASKET-SLIDING, UPPER, FULL WCI 241514901 Contact Us For Availability
50
WCI 5304521260 WCI 5304521260 Contact Us For Availability
51
PIN-ANTI TWIST BKT GEN II IM WCI 242095501 Contact Us For Availability
51
HANGER-BASKET, RH WCI 241514501 Contact Us For Availability
52
HANGER-BASKET, LH WCI 241514601 Contact Us For Availability
54
SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability
58
SCREW, 10-32 X 3/8 WCI 241548003 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
WCI 5304521279 WCI 5304521279 Contact Us For Availability
60
HOUSING-DIFFUSER & AIR FILTER WCI 242286101 Contact Us For Availability
62
TROUGH-DRAIN WCI 240429406 Contact Us For Availability
70
COMPARTMENT-DAIRY, REMOVABLE WCI 241515801 Contact Us For Availability
72
GRILLE/KICKPLATE, GRAY WCI 241969405 Contact Us For Availability
74
SCREW-SET, 10-32 X .500 IN WCI 218755402 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
80
SCREW, QUAD HILO, #8-18 WCI 241953908 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, LOWER WCI 241830905 Contact Us For Availability
85
TUBE-CONNECTOR, SUCTION WCI 5304502967 Contact Us For Availability
89
TUBE-PROCESS WCI 215346900 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
93
SWITCH-LIGHT, GREY, (2) WCI 241911705 Contact Us For Availability
97
TUBE-WATER, 97.5", NATURAL, FILTER BASE TO, S WCI 242220119 Contact Us For Availability
100
SUPPORT-CRISPER CVR WCI 241993101 Contact Us For Availability
101
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
101
COVER, TUBING, EPS BLOCK WCI 242157801 Contact Us For Availability
115
DAMPER ASSY, W/SEAL WCI 241853801 Contact Us For Availability
147
MOTOR, COVER WCI 5304504451 Contact Us For Availability
148
DUCT AIR, SLIM ICEMAKER, ASSEMBLY WCI 5304504447 Contact Us For Availability
149
WCI 5304521275 WCI 5304521275 Contact Us For Availability
208
SLEEVE, AIR FILTER, FRONT WCI 241754301 Contact Us For Availability
210
HOUSING, WATER FILTER, W/DRIP PAD WCI 807747304 Contact Us For Availability
211
PLUG, FILTER HOUSING WCI 807932201 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918328 Contact Us For Availability
NI
WCI 240494001 WCI 240494001 Contact Us For Availability
NI
CLIP-SLIDE, COVER WCI 240362101 Contact Us For Availability
NI
KIT, DSPNSR HEATER, DC WCI 5303918744 Contact Us For Availability
NI
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
NI
WCI 5304521767 WCI 5304521767 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NIA
WCI 241993001 WCI 241993001 Contact Us For Availability
NIA
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WCI 241550701 WCI 241550701 Contact Us For Availability
NIA
WCI 808835601 WCI 808835601 Contact Us For Availability
NIA
TUBE-WATER INLET, VALVE TO DOOR WCI 218976421 Contact Us For Availability
NIA
CLIP, SENSOR WCI 241519401 Contact Us For Availability
NIA
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
NIB
CLIP, TUBING, 90 DEG ELBOW WCI 242200102 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
× ![]()
