Model Electrolux LFHB2741PF3 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - FREEZER DRAWER, BASKETS

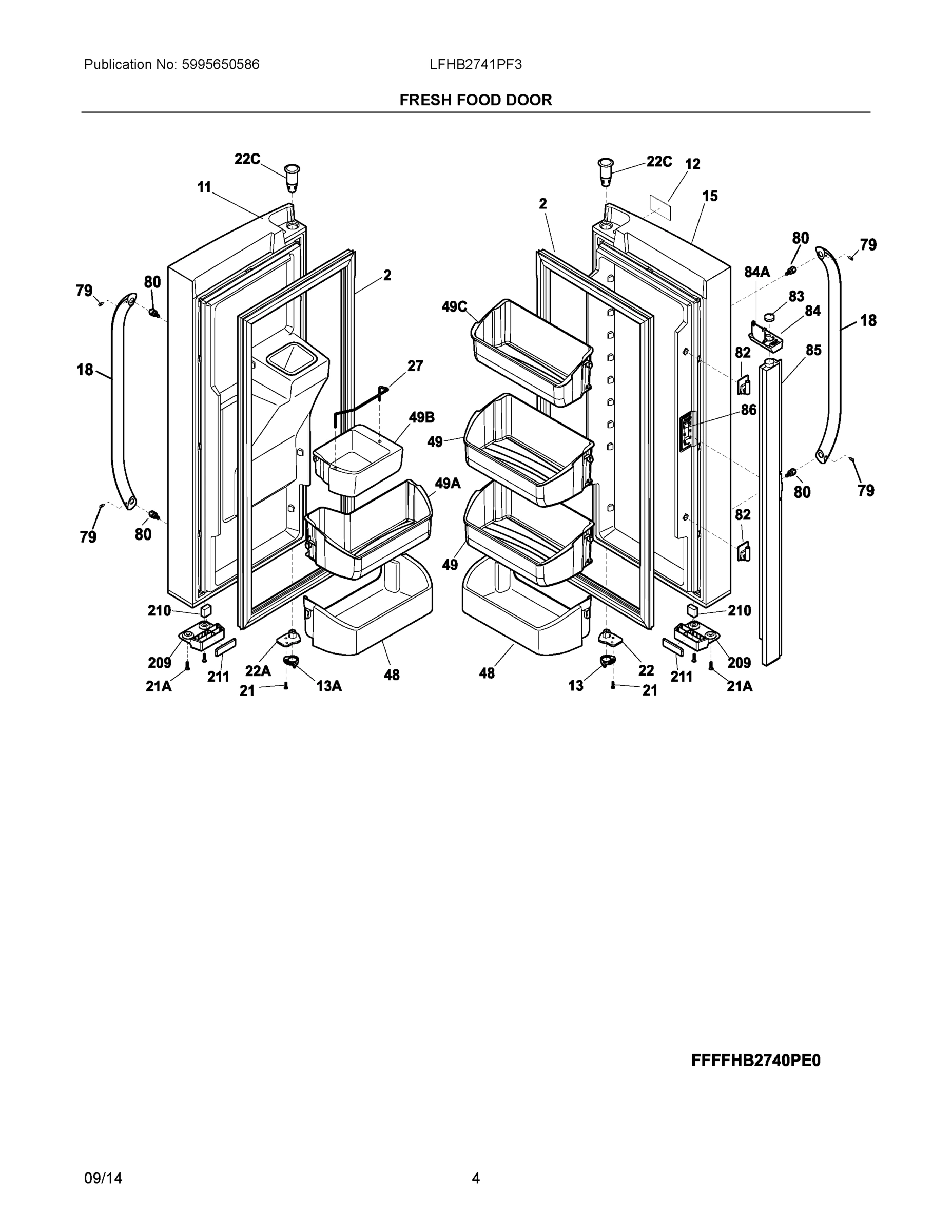

03 - FRESH FOOD DOOR

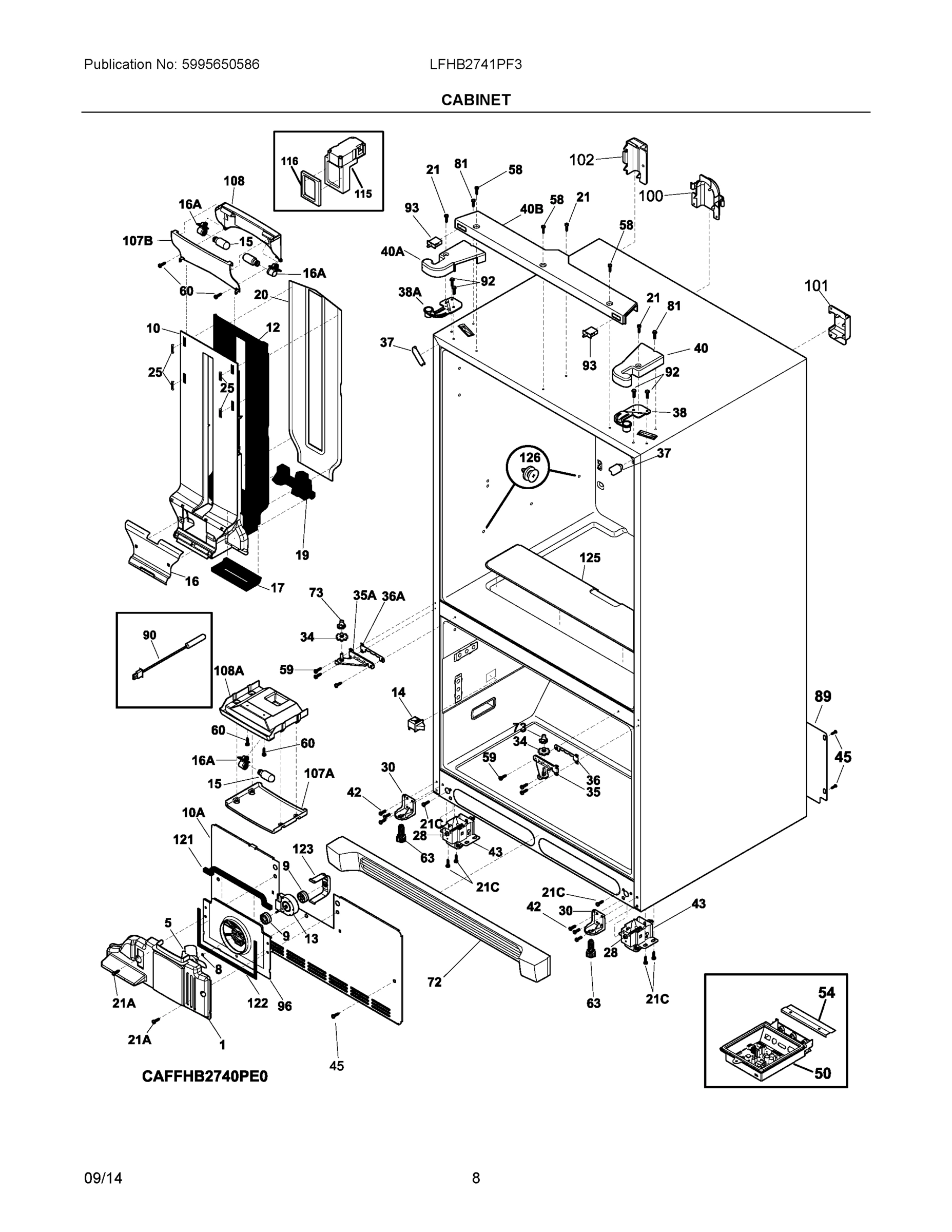

04 - CABINET

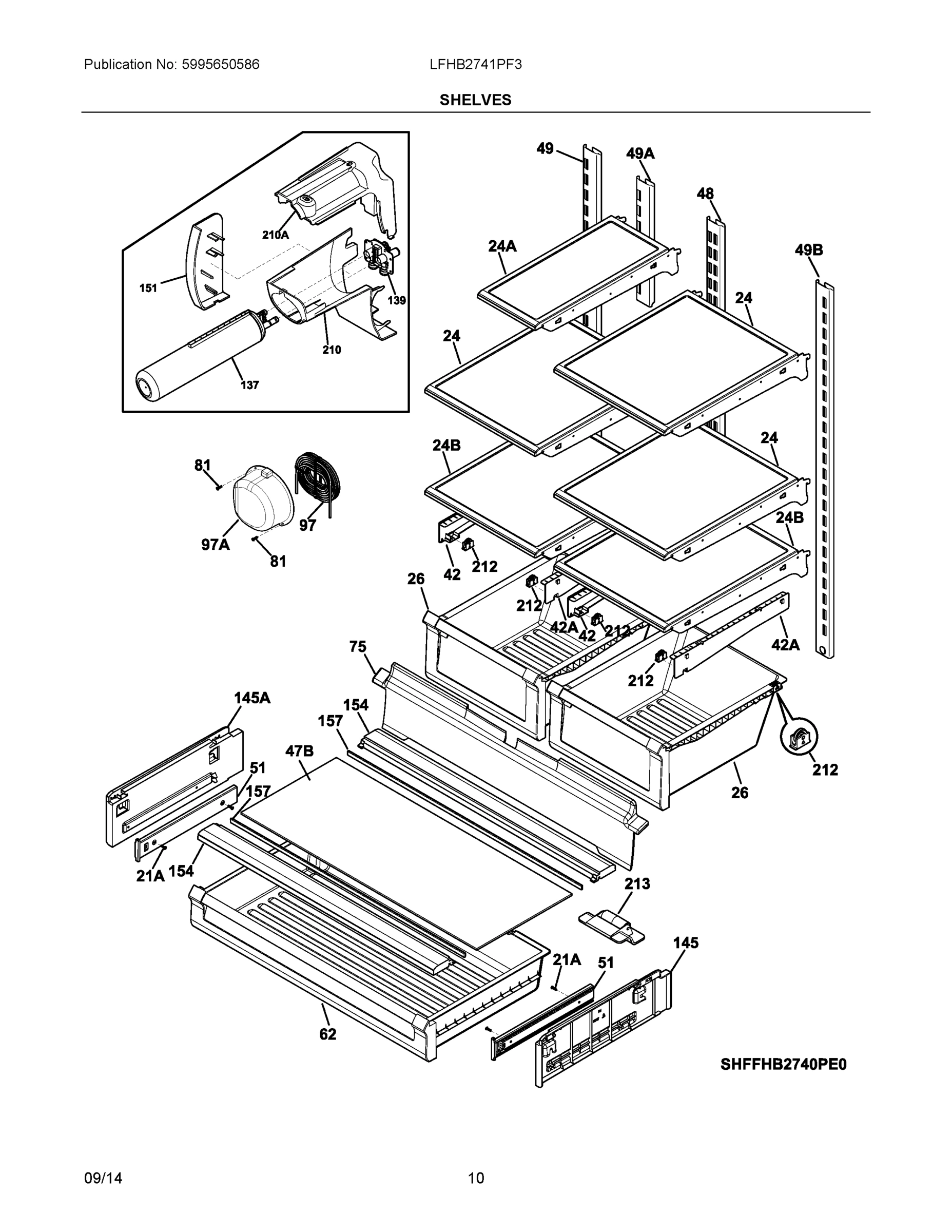

05 - SHELVES

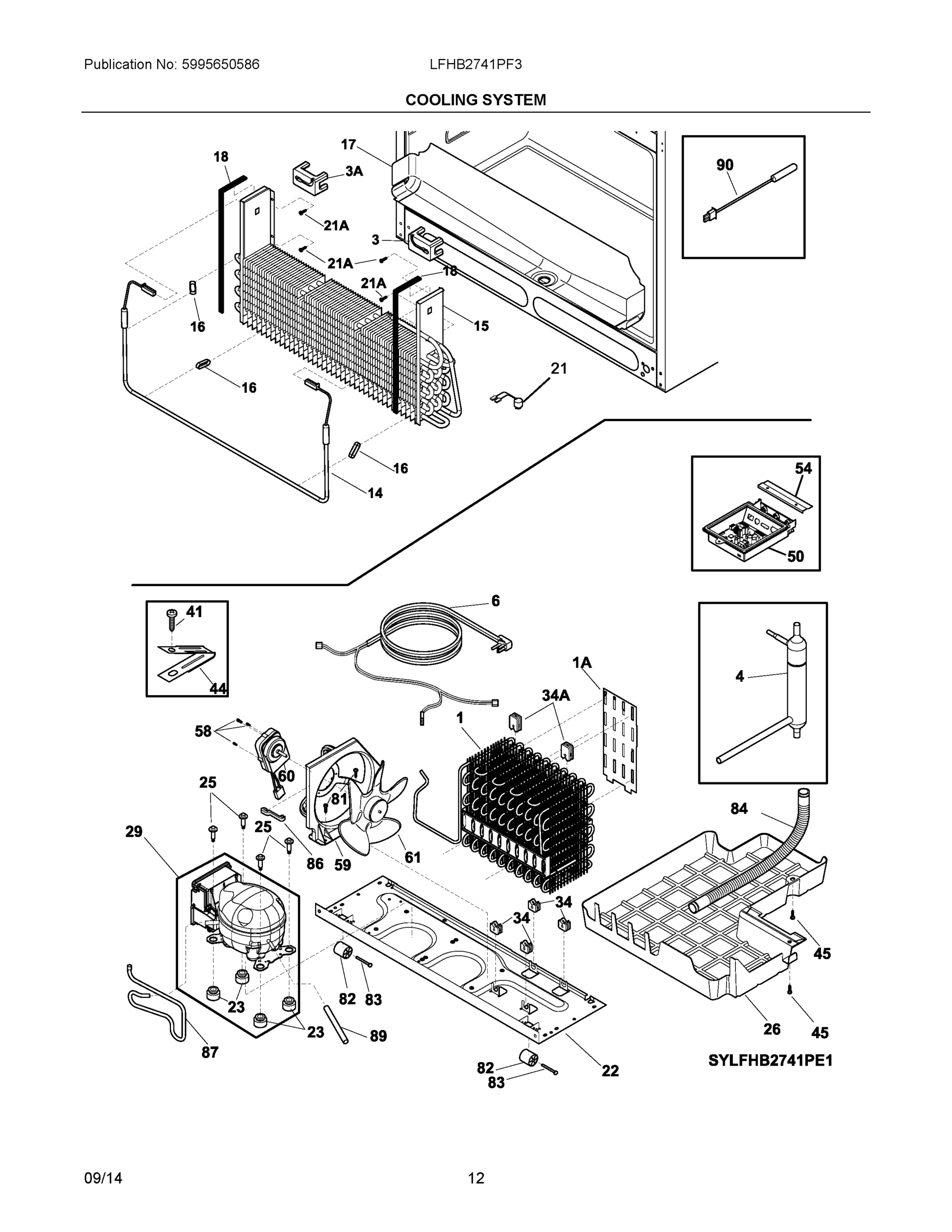

06 - COOLING SYSTEM

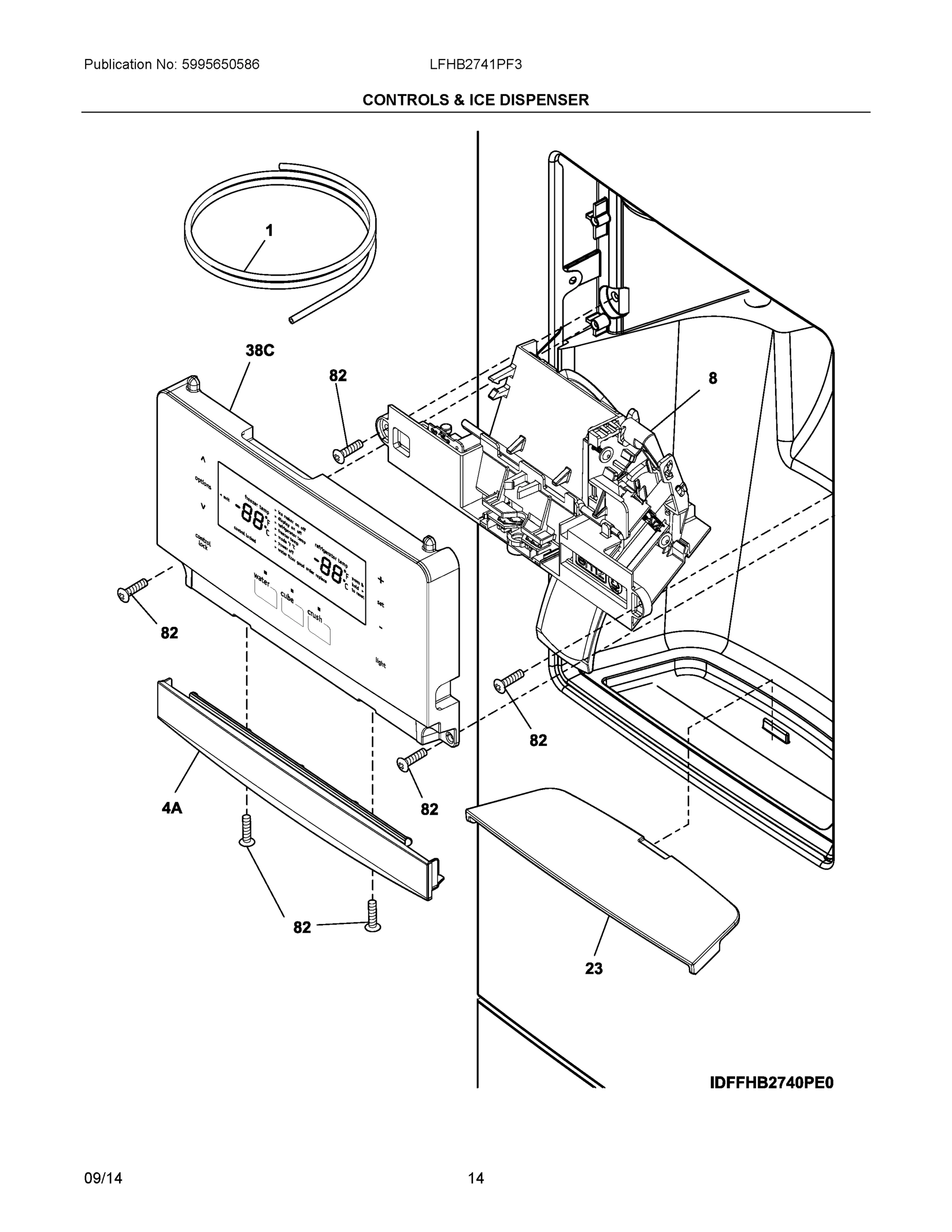

07 - CONTROLS & ICE DISPENSER

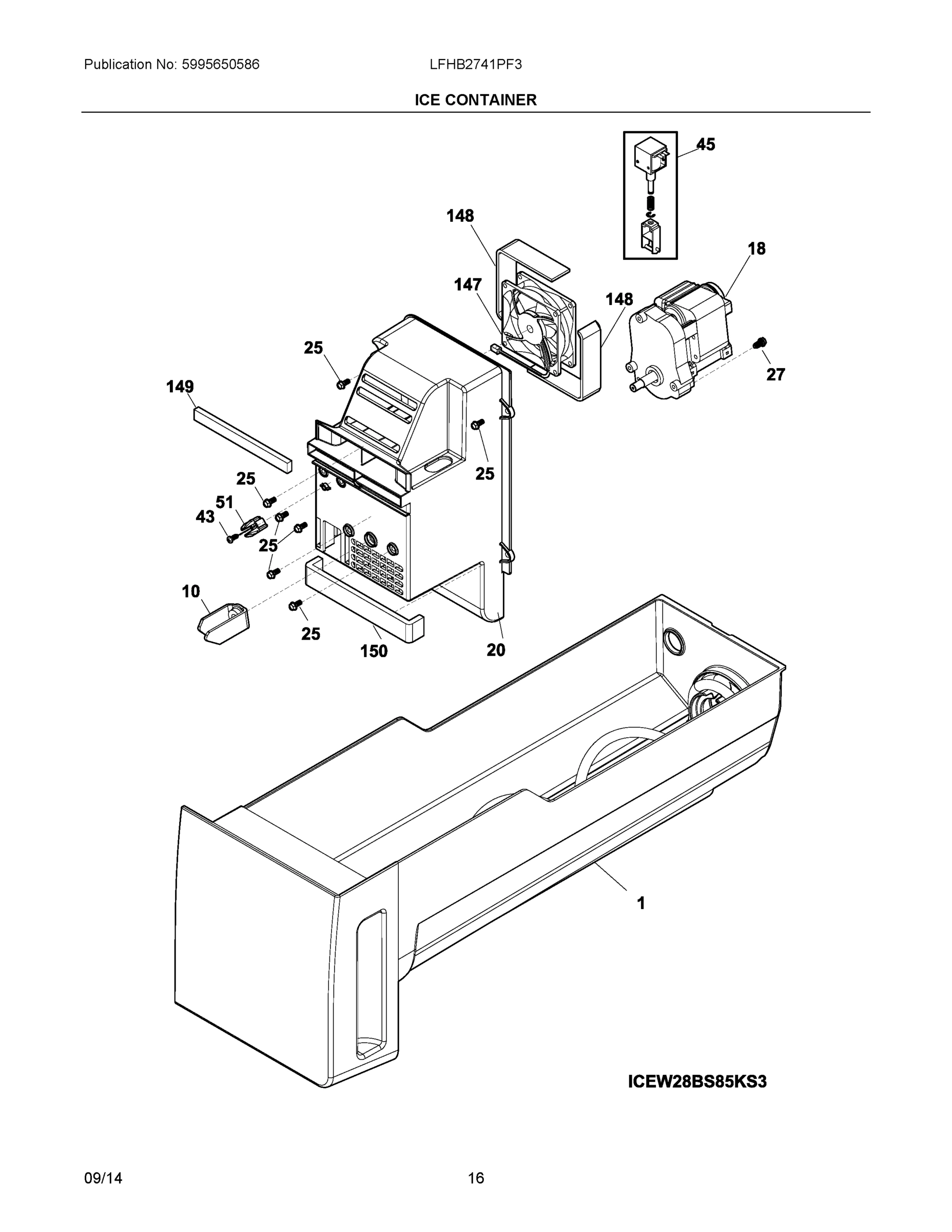

08 - ICE CONTAINER

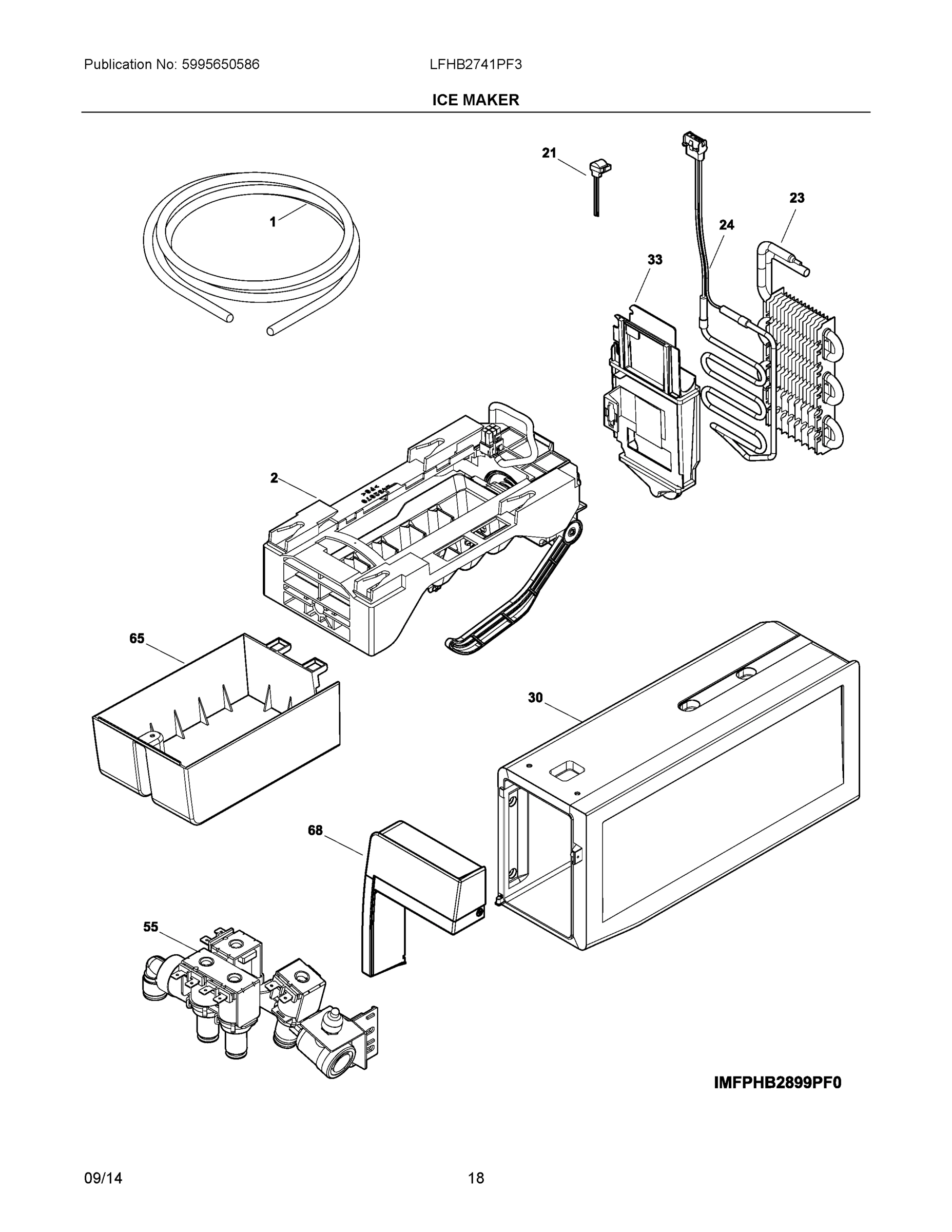

09 - ICE MAKER
10 - WIRING DIAGRAM

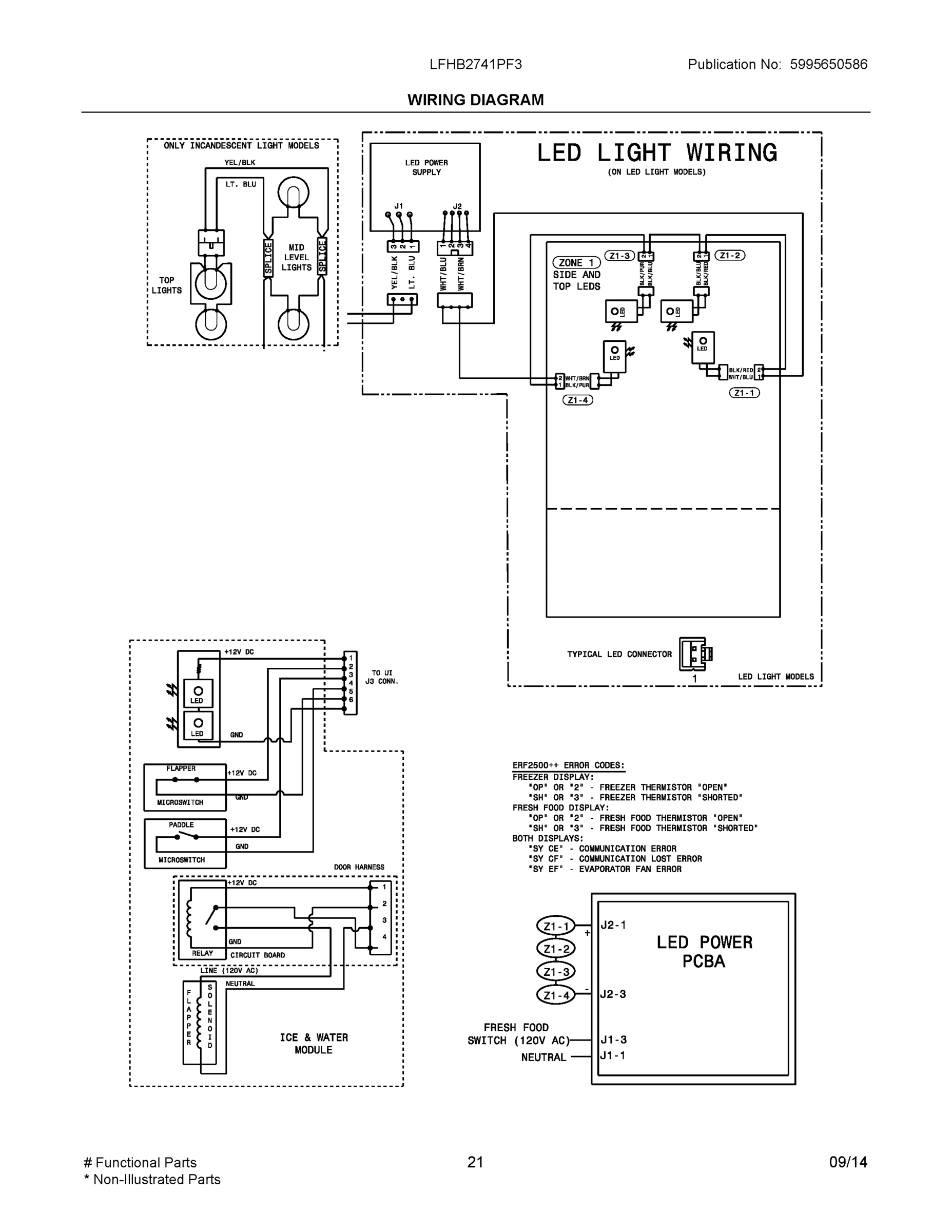

11 - WIRING DIAGRAM

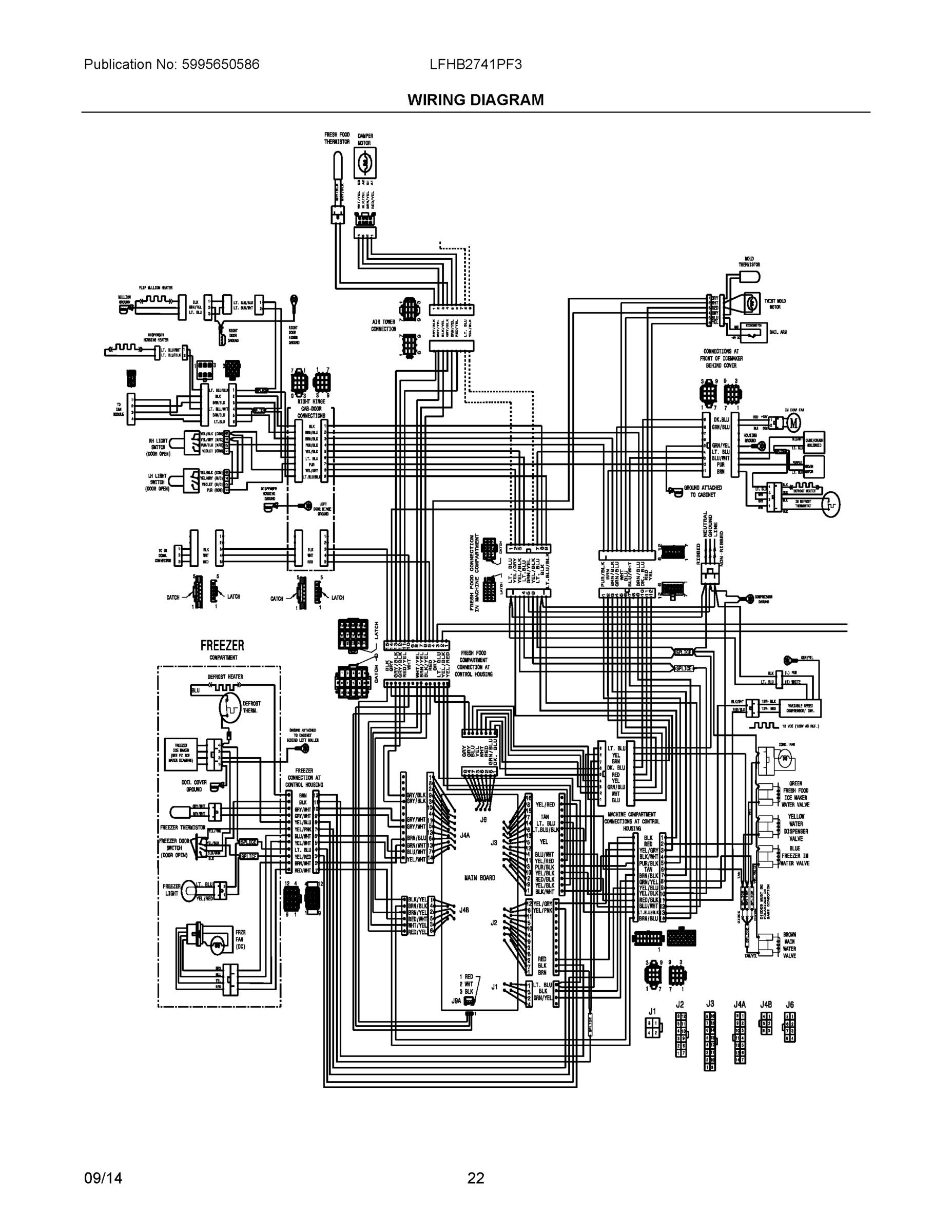

12 - WIRING DIAGRAM
Common parts from model Electrolux LFHB2741PF3 REFRIGERATOR
1
ICE CONTAINER ASSY, W/MOVING PARTS WCI 242093003 Contact Us For Availability
4A
TRIM, FACADE, GREY WCI 242176404 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
BUSHING, MOTOR MOUNTING WCI 241518301 Contact Us For Availability
10
WCI 241829001 WCI 241829001 Contact Us For Availability
10
WCI 242072002 WCI 242072002 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 242084102 Contact Us For Availability
11
DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 241987936 Contact Us For Availability
11
DOOR-REFR, STAINLESS, W/DISP WCI 242185635 Contact Us For Availability
12
NAMEPLATE, FRIGIDAIRE WCI 242016301 Contact Us For Availability
12
WCI 242072401 WCI 242072401 Contact Us For Availability
13
DOOR STOP, REFRIG RH, PLATED WCI 241868401 Contact Us For Availability
13A
DOOR STOP, REFR LH, PLATED WCI 241868402 Contact Us For Availability
14
DEFROST HEATER KIT, 28' WCI 5303918410 Contact Us For Availability
14
SWITCH-LIGHT/LAMP, FRZR DOOR WCI 242060202 Contact Us For Availability
15
EVAPORATOR KIT, C/D FDBM WCI 5303918569 Contact Us For Availability
15
DOOR-REFR, STAINLESS WCI 242185634 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
16
WCI 242072101 WCI 242072101 Contact Us For Availability
16A
SOCKET-LIGHT, TOP & MID WCI 240590403 Contact Us For Availability
17
WCI 241928201 WCI 241928201 Contact Us For Availability
17
WCI 242084201 WCI 242084201 Contact Us For Availability
18
WCI 241816602 WCI 241816602 Contact Us For Availability
18
HANDLE-DOOR, STAINLESS, W/SET SCREWS WCI 242059301 Contact Us For Availability
18
HANDLE-DOOR, STAINLESS, W/SET SCREWS WCI 242090501 Contact Us For Availability
18
GASKET, CLOSED CELL WCI 241860101 Contact Us For Availability
19
WCI 242072601 WCI 242072601 Contact Us For Availability
20
WCI 242095702 WCI 242095702 Contact Us For Availability
20
COVER-AIR DUCT, REAR WCI 242072201 Contact Us For Availability
21
WCI 242046001 WCI 242046001 Contact Us For Availability
21
THERMOSTAT-DEFROST, DEFROST, ICEMAKER EVAP WCI 5303918568 Contact Us For Availability
21
SCREW, QUADREX, #10-16 HILO WCI 241690602 Contact Us For Availability
21
SCREW, 10-32 X 1/2 WCI 241732101 Contact Us For Availability
21
SCREW, 10-32 X 0.750 WCI 242017501 Contact Us For Availability
21A
SCREW, #8 - 18 X .380, 3 WCI 241953902 Contact Us For Availability
21A
SCREW, HEX WASHER HEAD, 8-18AB X 1.250, SPACE WCI 218362501 Contact Us For Availability
21C
SCREW, TRUSS HEAD, #10-32 X 1/4, ZINC WCI 241899703 Contact Us For Availability
22
CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability
22A
CAM, UPPER HINGE, LH WCI 242075602 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760401 Contact Us For Availability
23
EVAPORATOR, ICE MAKER WCI 242094603 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
WCI 242094802 WCI 242094802 Contact Us For Availability
24
SHELF-"SPILL-SAFE", CANTILEVER, SLIDING WCI 242068701 Contact Us For Availability
24A
SCREW, TRUSS HD QUAD, #10-16 X .750, ZINC WCI 240383412 Contact Us For Availability
24B
SHELF-"SPILL-SAFE", FIXED WCI 242068703 Contact Us For Availability
25
CLIP, AIR VENT WCI 241949502 Contact Us For Availability
25
SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability
26
PAN, CRISPER WCI 241801801 Contact Us For Availability
27
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
27
RETAINER, TALL BOTTLE WCI 241752703 Contact Us For Availability
30
WCI 241577505 WCI 241577505 Contact Us For Availability
30
WCI 241778701 WCI 241778701 Contact Us For Availability
33
WCI 242094401 WCI 242094401 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 241868301 Contact Us For Availability
36
SPACER, DOOR, LOWER RH WCI 241868201 Contact Us For Availability
36A
SPACER, DOOR, LOWER LH WCI 241868202 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
38C
USER INTERFACE, ASSEMBLY, BLACK, COMPLETE, W/ WCI 242058223 Contact Us For Availability
40B
COVER-UPPER HINGE, GREY, CENTER WCI 241862405 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
SUPPORT, CRSPR PAN ROLLE WCI 242067901 Contact Us For Availability
42A
SUPPORT, CRSPR PAN ROLLE WCI 242067801 Contact Us For Availability
43
WCI 241641502 WCI 241641502 Contact Us For Availability
47B
GLASS, DELI COVER WCI 242082303 Contact Us For Availability
48
BIN-DOOR, PSEUDO, WHITE WCI 242071401 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 242122101 Contact Us For Availability
49
CHANNEL-SHELF MTG, SIDE, LH WCI 242122202 Contact Us For Availability
49
BASKET, FREEZER, PLASTIC, LOWER WCI 242159401 Contact Us For Availability
49A
BIN-DOOR, 2-LITER WCI 242071301 Contact Us For Availability
49A
BASKET-FRZR, UPPER WCI 241780815 Contact Us For Availability
49A
CHANNEL-SHELF MTG, CENTER, ICEMAKER SHELF WCI 242122001 Contact Us For Availability
49B
BIN-DOOR, DISPENSER WCI 242011701 Contact Us For Availability
49B
CHANNEL-SHELF MTG, SIDE, RH WCI 242122301 Contact Us For Availability
49C
BIN-DOOR, 1/2 GALLON WCI 242079901 Contact Us For Availability
51
SLIDE, DELI, (2) WCI 242197901 Contact Us For Availability
51
WCI 242095501 WCI 242095501 Contact Us For Availability
51A
SLIDE ASSEMBLY, BASKET, RH, FREEZER DRAWER WCI 241894223 Contact Us For Availability
52
SLIDE ASSEMBLY, BASKET LOWER, LH, FREEZER DRA WCI 242130507 Contact Us For Availability
52A
SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER WCI 241894224 Contact Us For Availability
54
WCI 241532401 WCI 241532401 Contact Us For Availability
55
VALVE-WATER, QUAD SOLENOID WCI 242253002 Contact Us For Availability
58
WCI 241853202 WCI 241853202 Contact Us For Availability
59
WCI 241946106 WCI 241946106 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
62
WCI 242096801 WCI 242096801 Contact Us For Availability
63
WCI 216396900 WCI 216396900 Contact Us For Availability
65
COVER, WIRING WCI 242232701 Contact Us For Availability
68
COVER, -FRONT, BUCKET TRIM WCI 242095002 Contact Us For Availability
72
WCI 242054804 WCI 242054804 Contact Us For Availability
73
WCI 242075701 WCI 242075701 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, TRUSS HD QUAD, #10-16 X .500, WHITE WCI 240383407 Contact Us For Availability
81
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
82
HINGE-MULLION, UPPER/LOWER, FLIPPER WCI 241779401 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
82
DIVIDER, BASKET WCI 242168701 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
83
MAGNET, FREEZER DRAWER WCI 241812202 Contact Us For Availability
84A
COVER-MULLION, MAGNET COVER WCI 242190501 Contact Us For Availability
85
FLIPPER MULLION ASSEMBLY, W/HEATER WCI 241778811 Contact Us For Availability
85
DIVIDER, BASKET, LOWER WCI 242130901 Contact Us For Availability
85A
SUPPORT-BEAM, DIVIDER, LOWER BASKET WCI 242168501 Contact Us For Availability
85B
SUPPORT-BEAM, LOWER BASKET WCI 241872204 Contact Us For Availability
86
BAR-STABILIZER, FREEZER DRAWER WCI 242090701 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
87
TUBE-CONNECTOR, SUCTION WCI 241871501 Contact Us For Availability
89
WCI 241972302 WCI 241972302 Contact Us For Availability
89
WCI 215346900 WCI 215346900 Contact Us For Availability
90
WCI 242136903 WCI 242136903 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
93
SWITCH-LIGHT, GREY WCI 241835505 Contact Us For Availability
96
WCI 241860601 WCI 241860601 Contact Us For Availability
97A
WCI 242117301 WCI 242117301 Contact Us For Availability
100
COVER, TUBING, WCI 242157601 Contact Us For Availability
101
WCI 242157801 WCI 242157801 Contact Us For Availability
102
WCI 242157501 WCI 242157501 Contact Us For Availability
107A
WCI 241971601 WCI 241971601 Contact Us For Availability
107B
WCI 241971202 WCI 241971202 Contact Us For Availability
108
WCI 241971402 WCI 241971402 Contact Us For Availability
108A
WCI 241971801 WCI 241971801 Contact Us For Availability
116
WCI 241518601 WCI 241518601 Contact Us For Availability
123
WCI 242135301 WCI 242135301 Contact Us For Availability
125
WCI 242071201 WCI 242071201 Contact Us For Availability
148
WCI 242095406 WCI 242095406 Contact Us For Availability
151
WCI 242069701 WCI 242069701 Contact Us For Availability
154
WCI 242082401 WCI 242082401 Contact Us For Availability
157
WCI 241872201 WCI 241872201 Contact Us For Availability
209
HOUSING, MAGNET, WHITE WCI 242291001 Contact Us For Availability
210
MAGNET, DOOR WCI 241779101 Contact Us For Availability
210
WCI 241983816 WCI 241983816 Contact Us For Availability
211
BUMPER, RUBBER, WHITE WCI 241979601 Contact Us For Availability
212
ROLLER ASSEMBLY, CRISPER PAN WCI 242236801 Contact Us For Availability
213
ROLLER ASSY, DELI PAN WCI 242010901 Contact Us For Availability
NI
WCI 240494001 WCI 240494001 Contact Us For Availability
NI
CONNECTOR-WATER, STRAIGHT, 5/16 TO 1/4 WCI 241503901 Contact Us For Availability
NI
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
NI
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
NI
SCREW, SER HEX WASH HD, 1/4-20 X 5/8, (4) WCI 242146401 Contact Us For Availability
NI
SCREW, 8-18 X 1/2 WCI 242015001 Contact Us For Availability
NI
HARNESS-DISPENSER, GROUNDING WCI 241510904 Contact Us For Availability
NI
HARNESS-WIRING, DOOR WCI 242040802 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918553 Contact Us For Availability
NI
WCI 241510802 WCI 241510802 Contact Us For Availability
NI
SPACER, HEAT EXCHANGER WCI 241947701 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
WCI 241695904 WCI 241695904 Contact Us For Availability
NIA
TUBE-WATER, ICE MOLD FILL, BLACK, EXTENSION WCI 241844403 Contact Us For Availability
NIA
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHRO WCI 240346701 Contact Us For Availability
NIA
HARNESS-WIRING, AIR HANDLER WCI 242095804 Contact Us For Availability
NIA
WCI 242141401 WCI 242141401 Contact Us For Availability
NIA
BUMPER, FLIPPER MULLION WCI 242068601 Contact Us For Availability
NIA
INSULATION, I/CONTAINER FRT WCI 242096001 Contact Us For Availability
NIA
WCI 241842301 WCI 241842301 Contact Us For Availability
NIA
FOAM STRIP WCI 242004802 Contact Us For Availability
NIA
WCI 218515401 WCI 218515401 Contact Us For Availability
NIA
SCREW, BASKET SLIDES WCI 242039701 Contact Us For Availability
NIA
WCI 241810104 WCI 241810104 Contact Us For Availability
NIA
WCI 241860111 WCI 241860111 Contact Us For Availability
NIA
WCI 242036801 WCI 242036801 Contact Us For Availability
NIA
WCI 242011101 WCI 242011101 Contact Us For Availability
NIB
WCI 242119001 WCI 242119001 Contact Us For Availability
NIB
WCI 242061606 WCI 242061606 Contact Us For Availability
NIB
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NIB
WCI 240363602 WCI 240363602 Contact Us For Availability
NIC
TUBE-WATER, 1/4 - 36", GREEN WCI 241964707 Contact Us For Availability
NIC
WCI 242072501 WCI 242072501 Contact Us For Availability
NID
TUBE-WATER, 5/16 - 67", NATURAL WCI 241965906 Contact Us For Availability
× ![]()
