Model Electrolux LFEW3026TFD WALL OVEN, ELECTRIC, SINGLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

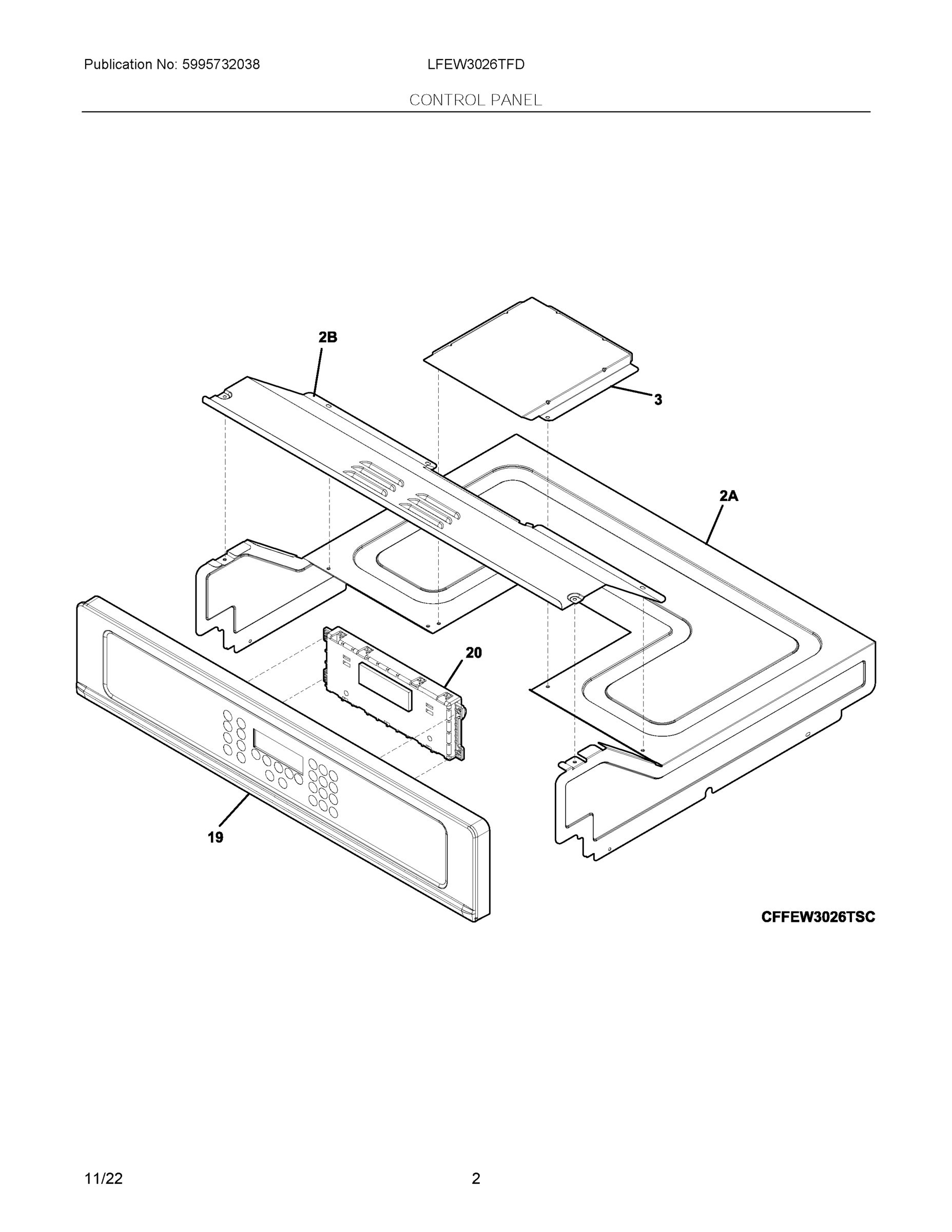

02 - CONTROL PANEL
03 - BODY
04 - DOOR
05 - WIRING DIAGRAM
06 - WIRING DIAGRAM
Common parts from model Electrolux LFEW3026TFD WALL OVEN, ELECTRIC, SINGLE, 30 INCH
2
SHIELD, INSULATION, TOP WCI 139028107 Contact Us For Availability
2A
COVER, OVEN TOP WCI 139017901 Contact Us For Availability
2B
COVER, CONTROL ACCESS WCI 139017801 Contact Us For Availability
3A
TRIM, OVEN DOOR, BLACK, SIDE, (2), VENTED WCI 139014401 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 139011800 Contact Us For Availability
6
BAFFLE, DOOR WCI 139006905 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7A
INSULATION, DOOR WCI 318372016 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139000411 Contact Us For Availability
9
PAN, BROILER WCI 318138801 Contact Us For Availability
10
SCREW, HANDLE MTG. WCI 5304414648 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545502 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, W/TRIM WCI 5304510984 Contact Us For Availability
15
LAMP ASSEMBLY, ROUND, HALOGEN WCI 5304528790 Contact Us For Availability
19
CONTROL PANEL ASSEMBLY, STEEL/GLASS, STAINLES WCI 5304510995 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, ES525 WCI 5304514065 Contact Us For Availability
23
HINGE, OVEN DOOR, RED WCI 316575917 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
40
BRACKET, GLASS HOLDER, DOOR, (2) WCI 318242702 Contact Us For Availability
41
BRACKET, GLASS PANEL, (2) WCI 318370602 Contact Us For Availability
42
BRACKET, GLASS RETAINER, (4) WCI 318382302 Contact Us For Availability
56A
SCREW, 8-18 X 5/16, BLACK WCI 5303324184 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
64
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
66
ELEMENT, BROIL, 3400W, 6 PASS WCI 5304521498 Contact Us For Availability
67
ELEMENT, HIDDEN BAKE, 2500W WCI 5304506946 Contact Us For Availability
70
SHIELD, INSULATION, SIDES, (2) WCI 139000601 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318561100 Contact Us For Availability
87
BRACKET, CABLE MTG. WCI 139020100 Contact Us For Availability
90
TRIM, LOWER VENT, STAINLESS WCI 5304517116 Contact Us For Availability
99
BRACKET, SIDE, BOTTOM, (2) WCI 318256201 Contact Us For Availability
108
MOTOR ASSEMBLY, COOLING FAN WCI 318575612 Contact Us For Availability
127
TUBE ASSEMBLY, VENT, W/CATALYST WCI 139042600 Contact Us For Availability
131
DUCT, COOLING FAN, LOWER WCI 139027700 Contact Us For Availability
264
WCI 139017601 WCI 139017601 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
WCI 316021105 WCI 316021105 Contact Us For Availability
NI
WCI 5304517285 WCI 5304517285 Contact Us For Availability
NI
WCI 5304506983 WCI 5304506983 Contact Us For Availability
NI
WCI 5304517373 WCI 5304517373 Contact Us For Availability
NI
WCI 5304470882 WCI 5304470882 Contact Us For Availability
NIA
WCI 316205500 WCI 316205500 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIB
WCI 5304517384 WCI 5304517384 Contact Us For Availability
NIB
WCI 5303289910 WCI 5303289910 Contact Us For Availability
× ![]()
