Model LG LFD790 – Common Parts & Diagrams

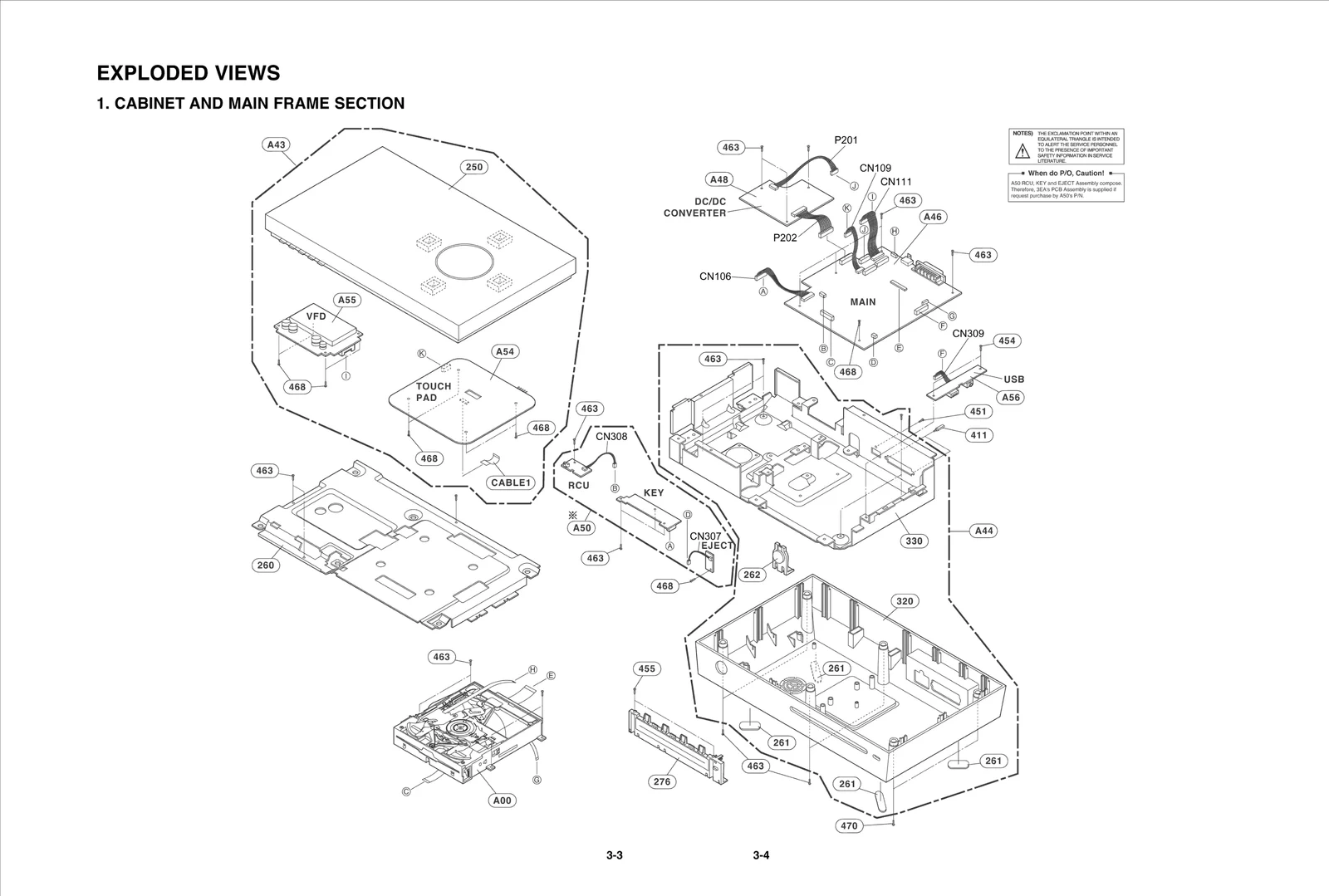

Diagram 0

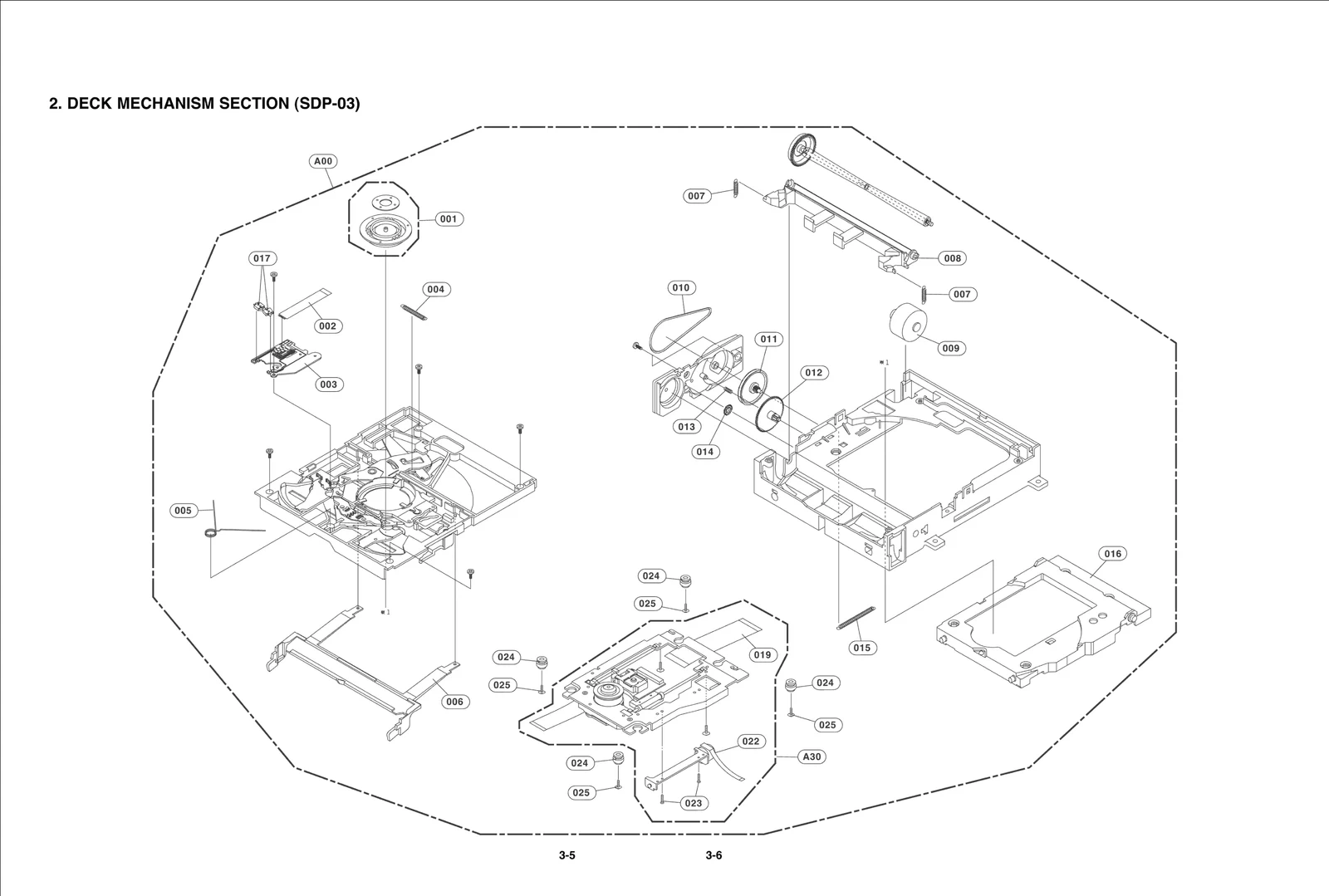

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Common parts from model LG LFD790
001
Clamp LGE MBU34817201 Contact Us For Availability
002
Lever LGE MFC35715801 Contact Us For Availability
003
Bracket LGE MAZ34974101 Contact Us For Availability
004
Spring LGE MHY34825001 Contact Us For Availability
005
Spring LGE MHY34825201 Contact Us For Availability
006
Guide LGE MEA34817601 Contact Us For Availability
007
Spring LGE MHY34825101 Contact Us For Availability
008
Arm LGE MAC34818401 Contact Us For Availability
009
Lever LGE MFC35716001 Contact Us For Availability
010
Belt LGE MAS34822001 Contact Us For Availability
011
Gear LGE MDT34821901 Contact Us For Availability
012
Gear LGE MDT34821801 Contact Us For Availability
013
Spring LGE MHY34822101 Contact Us For Availability
014
Gear LGE MDT34821701 Contact Us For Availability
015
Spring LGE MHY34824801 Contact Us For Availability
016
Base LGE MAM34818201 Contact Us For Availability
017
Lever LGE MFC35715901 Contact Us For Availability
019
Cable,FFC LGE EAD34977301 Contact Us For Availability
022
MOTOR(MECH) LGE 4680HP5025C Contact Us For Availability
023
SCREW,DRAWING LGE 1SZZH-1072D Contact Us For Availability
024
RUBBER LGE 5040R-0110A Contact Us For Availability
025
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
250
Panel Assembly,Audio LGE AGL30862204 Contact Us For Availability
260
Bracket LGE MAZ30114401 Contact Us For Availability
261
Foot LGE MDP30320001 Contact Us For Availability
262
Lens LGE MFB30114001 Contact Us For Availability
267
FAN,DC LGE 5900R-D006A Contact Us For Availability
276
Decor Assembly LGE ACW30868703 Contact Us For Availability
300
POWER CORD LGE 6410RAHZ05A Contact Us For Availability
320
Case LGE MBN30113506 Contact Us For Availability
330
Bracket LGE MAZ30114301 Contact Us For Availability
411
Screw,Machine LGE FAB30102501 Contact Us For Availability
451
Screw,Customzied LGE 353-022S Contact Us For Availability
454
Screw,Customized LGE 353-100AAAA Contact Us For Availability
455
SCREW,DRAWING LGE 353-025TAAA Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
466
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
SCREW,DRAWING LGE 1SZZR-0098L Contact Us For Availability
801
Manual Assembly LGE AFN33508514 Contact Us For Availability
802
Box,Master LGE MAY37194433 Contact Us For Availability
803
Packing LGE MFZ30471401 Contact Us For Availability
804
BAG LGE 3880SCS001G Contact Us For Availability
808
Battery,Manganese LGE EAC35678601 Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA5F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA5H Contact Us For Availability
816
Cable,Assembly LGE EAD35001402 Contact Us For Availability
817
Cable,Assembly LGE EAD35001602 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
850
Panel,Front LGE 3720RMF190A Contact Us For Availability
851
Ring LGE 4350RM0029A Contact Us For Availability
852
Speaker,Tweeter LGE EAB35447701 Contact Us For Availability
853
Screw,Customized LGE 353M052Z Contact Us For Availability
854
SCREW,DRAWING LGE 353M075S Contact Us For Availability
855
Speaker,Woofer LGE EAB35447001 Contact Us For Availability
856
PCB Assembly LGE EBR35449201 Contact Us For Availability
857
SCREW, LGE 353M025Q Contact Us For Availability
858
Duct LGE MCZ30292001 Contact Us For Availability
859
Screw,Customized LGE 353M075T Contact Us For Availability
860
Terminal LGE MJP36455101 Contact Us For Availability
861
FOOT LGE 3610RM0046A Contact Us For Availability
900
Remote Controller LGE AKB30283501 Contact Us For Availability
950
Cover LGE MCK30067601 Contact Us For Availability
951
Lens LGE MFB30127601 Contact Us For Availability
952
Reflector LGE MGW36306901 Contact Us For Availability
954
Lens LGE MFB30067101 Contact Us For Availability
955
Panel,Front LGE MGC31672601 Contact Us For Availability
956
Frame Assembly LGE ADV32343001 Contact Us For Availability
956A
Holder LGE MEG36307001 Contact Us For Availability
957
SCREW,DRAWING LGE 353M050E Contact Us For Availability
958
Speaker,Woofer LGE EAB35448001 Contact Us For Availability
960
Harness,Multi LGE EAD35071701 Contact Us For Availability
961
Duct LGE MCZ30065401 Contact Us For Availability
962
SCREW,DRAWING LGE 353M075Z Contact Us For Availability
963
Foot LGE MDP37092601 Contact Us For Availability
964
Panel,Audio LGE MGC30065001 Contact Us For Availability
965
Panel,Audio LGE MGC30065203 Contact Us For Availability
966
Chassis LGE MBS30064601 Contact Us For Availability
A00
Mechanism Assembly LGE AFP31007201 Contact Us For Availability
A30
Base Assembly LGE AAN30973301 Contact Us For Availability
A43
Board Assembly LGE AAX30861904 Contact Us For Availability
A44
Case Assembly LGE ABQ32249003 Contact Us For Availability
A45
PCB Assembly LGE EBR35412202 Contact Us For Availability
A46
Option Code Assembly LGE EBR36717201 Contact Us For Availability
A47
PCB Assembly LGE 6871R-8583D Contact Us For Availability
A48
PCB Assembly,Power LGE EBR31776704 Contact Us For Availability
A50
PCB Assembly LGE EBR35355202 Contact Us For Availability
A54
PCB Assembly LGE EBR35357402 Contact Us For Availability
A55
PCB Assembly LGE EBR36719601 Contact Us For Availability
A56
PCB Assembly LGE EBR35904901 Contact Us For Availability
A80
Speaker Assembly LGE EAB35489301 Contact Us For Availability
A80A
Cover Assembly LGE ACQ32268301 Contact Us For Availability
A90
Speaker Assembly LGE EAB35489401 Contact Us For Availability
A90A
Board Assembly LGE AAX32255803 Contact Us For Availability
A90B
Cover Assembly LGE ACQ32250401 Contact Us For Availability
AR607
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307601 Contact Us For Availability
BD901
Diode,Bridge LGE 0DRVH00050B Contact Us For Availability
C2D2
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
C2M6
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C2M7
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C105
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1475D946 Contact Us For Availability
C128
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C173
Capacitor,Ceramic,Ch LGE 0CH4090K112 Contact Us For Availability
C174
Capacitor,Ceramic,Chip LGE 0CH4680K412 Contact Us For Availability
C208
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C208
Capacitor,AL,Radial LGE 0CE4776F638 Contact Us For Availability
C211
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C214
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C232
Capacitor,AL,Radial LGE 0CE107EH638 Contact Us For Availability
C234
CAPACITOR,FIXED ELEC LGE 0CE477CH638 Contact Us For Availability
C238
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C241
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C244
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C251
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C262
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C263
Capacitor,Ceramic,Chip LGE 0CH1220K462 Contact Us For Availability
C310
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C382
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C383
Capacitor,Ceramic,Chip LGE 0CH1104K516 Contact Us For Availability
C385
Capacitor,Ceramic,Chip LGE 0CH1474F946 Contact Us For Availability
C387
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C389
Capacitor,AL,Chip LGE 0CH8226K691 Contact Us For Availability
C390
Capacitor,AL,Chip LGE 0CH8107H621 Contact Us For Availability
C396
Capacitor,Ceramic,Chip LGE 0CH4470K416 Contact Us For Availability
C398
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C399
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C401
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C402
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
C403
Capacitor,Ceramic,Chip LGE 0CH1103K512 Contact Us For Availability
C413
Capacitor,Ceramic,Chip LGE 0CH1222K512 Contact Us For Availability
C452
Capacitor,Ceramic,Chip LGE 0CH1182K512 Contact Us For Availability
C455
Capacitor,Ceramic,Chip LGE 0CH1471K512 Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE 0CH1472K512 Contact Us For Availability
C461
Capacitor,Ceramic,Chip LGE 0CH1822K512 Contact Us For Availability
C465
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C472
CAPACITOR,FIXED CERA LGE 0CH1334K942 Contact Us For Availability
C522
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8476C611 Contact Us For Availability
C566
LGE 0CH4180K442 LGE 0CH4180K442 Contact Us For Availability
C573
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C575
Capacitor,Ceramic,Chip LGE 0CH1106F944 Contact Us For Availability
C604
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C614
Capacitor,AL,Radial LGE 0CE4775C618 Contact Us For Availability
C620
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C621
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C625
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C634
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C647
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C649
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C705
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE4763H638 Contact Us For Availability
C723
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C742
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C749
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C754
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C756
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C774
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C777
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C780
Capacitor,AL,Radial LGE 0CE1063K638 Contact Us For Availability
C781
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C811
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C904
CAPACITOR,AL.ELECTROLYTIC LGE 0CE157CR610 Contact Us For Availability
C905
CAPACITOR,FIXED ELEC LGE 0CE277JR6A0 Contact Us For Availability
C906
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C908
Capacitor,Ceramic,Ra LGE 624-087L Contact Us For Availability
C909
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C910
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C911
Capacitor,Film,DIP LGE 0CQ4711N449 Contact Us For Availability
C915
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C916
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C917
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C919
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C920
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C921
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C930
CAPACITOR LGE 624-087D Contact Us For Availability
C949
Capacitor,Ceramic,Chip LGE 0CK106EC56A Contact Us For Availability
C951
LGE 0CE228NK610 LGE 0CE228NK610 Contact Us For Availability
C953
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C955
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C961
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C962
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C977
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C990
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD35076801 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD35076401 Contact Us For Availability
CF205
Filter,LCR LGE 6200JB8010V Contact Us For Availability
CF803
Filter,Line Noise LGE 6200JB8014A Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN101
Connector,DSUB LGE EAG35137801 Contact Us For Availability
CN102
Harness,Single LGE EAD34878001 Contact Us For Availability
CN105
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
CN106
Harness,Single LGE EAD34878302 Contact Us For Availability
CN107
CONNECTOR(CIRC),DRAW LGE 6630R3S006G Contact Us For Availability
CN109
Harness,Single LGE EAD34877702 Contact Us For Availability
CN111
Harness,Single LGE EAD34878303 Contact Us For Availability
CN112
LGE 6630R3S006C LGE 6630R3S006C Contact Us For Availability
CN301
Connector,FFC/FPC/PI LGE 6630R-FB11I Contact Us For Availability
CN303
CONNECTOR LGE 561-711E Contact Us For Availability
CN306
Connector,Wafer LGE 561-711H Contact Us For Availability
CN307
Harness,Single LGE EAD34876601 Contact Us For Availability
CN308
Harness,Single LGE EAD34877401 Contact Us For Availability
CN400
Connector,FFC/FPC/PI LGE 6630R-FB11W Contact Us For Availability
CN401
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
CN402
CONNECTOR (CIRC),FFC LGE 6630XE00313 Contact Us For Availability
CN403
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN901
Connector,Wafer LGE 6630R3S006A Contact Us For Availability
D2D1
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D3F2
Diode,Schottky LGE EAH35946301 Contact Us For Availability
D201
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D206
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D207
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D403
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D901
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D908
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D908
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D940
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D941
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D941
DIODE,RECTIFIERS LGE 0DRFC00171A Contact Us For Availability
D943
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D943
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D944
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D949
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
DIG301
VFD LGE 6302R-V240C Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB303
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
FB901
Filter,Bead LGE 636-004C Contact Us For Availability
IC2K1
IC,Transceiver LGE 0IPRP00698B Contact Us For Availability
IC2K1
IC,Unclassified LGE 0IPRP00698A Contact Us For Availability
IC2K2
IC,PERIPHERALS LGE 0IPRP00664A Contact Us For Availability
IC2K3
IC,Analog Switch LGE 0IPRP00717A Contact Us For Availability
IC3F1
Driver IC LGE EAN30142101 Contact Us For Availability
IC3F2
IC,DC,DC Converter LGE EAN35947301 Contact Us For Availability
IC3F3
FET LGE EBK36850101 Contact Us For Availability
IC3F3
FET LGE EBK35946501 Contact Us For Availability
IC101A
S/W,System Program LGE SAA30685401 Contact Us For Availability
IC104
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC105
IC,PERIPHERALS LGE 0IPRP00714A Contact Us For Availability
IC106
IC,PERIPHERALS LGE 0IPRPRH017A Contact Us For Availability
IC108
IC,STANDARD LOGIC LGE 0ISTLPH027A Contact Us For Availability
IC111
IC,STANDARD LOGIC LGE 0ISTLFA112A Contact Us For Availability
IC203
IC,ROHM LGE 0IRH209000A Contact Us For Availability
IC204
IC,Audio Codec LGE 0IPRP00766A Contact Us For Availability
IC205
IC,CRYSTAL SEMICONDU LGE 0ICB841500B Contact Us For Availability
IC206
IC,CMOS LGE 0ISTLPH073A Contact Us For Availability
IC207
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC260
IC,POWER MANAGEMENT LGE 0IPMGKE048A Contact Us For Availability
IC301
IC,Microcontrollers LGE EAN30723601 Contact Us For Availability
IC401
IC,LINEAR LGE 0ILNRRH034A Contact Us For Availability
IC403
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC404
IC,RF Amplifier LGE EAN30677301 Contact Us For Availability
IC503A
S/W,System Program LGE SAA30685301 Contact Us For Availability
IC505
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC506
IC,EPROM LGE EAN34010501 Contact Us For Availability
IC507
IC,Video Processors LGE EAN33460501 Contact Us For Availability
IC600
IC,Digital Signal Pr LGE EAN33383501 Contact Us For Availability
IC601
IC,PWM Controller LGE 0IPMG00022D Contact Us For Availability
IC601
IC,STANDARD LOGIC LGE 0ISTLPH025A Contact Us For Availability
IC700
IC,Transceiver LGE EAN33756701 Contact Us For Availability
IC701
IC,PERIPHERALS LGE 0IPRP00029A Contact Us For Availability
IC801
IC,Data Controller LGE EAN30490201 Contact Us For Availability
IC901
IC,LDO Voltage Regul LGE EAN34009601 Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00044A Contact Us For Availability
IC902
IC,PMIC LGE 0IPMG78446A Contact Us For Availability
IC902
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC903
IC,OP Amplifier LGE EAN34008501 Contact Us For Availability
IC904
IC,Analog Multiplexer LGE 0ILNR00169A Contact Us For Availability
IC947
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC947
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC949
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC949
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC949
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC955
IC,POWER MANAGEMENT LGE 0IPMGKE046A Contact Us For Availability
JK2D2
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK2K1
Conector,USB LGE 6630S70054A Contact Us For Availability
JK201
Jack,RCA LGE 6612JH002XF Contact Us For Availability
JK203
JACK 3.5 LGE 571-112Z Contact Us For Availability
JK301
Connector,USB LGE 6630SK00904 Contact Us For Availability
JK702
CONNECTOR (CIRC),WAF LGE 6630VM01802 Contact Us For Availability
JK801
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
L2K1
Inductor,Multilayer,Chip LGE 0LCCE00004P Contact Us For Availability
L3F1
Coil,Choke LGE EAP36558101 Contact Us For Availability
L101
Inductor,Multilayer, LGE 6210TCE001T Contact Us For Availability
L202
Inductor,Wire Wound, LGE EAP32850601 Contact Us For Availability
L401
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
L604
INDUCTOR,RADIAL LEAD LGE 0LR0272J025 Contact Us For Availability
L701
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L707
Coil,RF LGE 6140RCC008A Contact Us For Availability
L941
Coil,Choke LGE 6140RCC002A Contact Us For Availability
L942
COIL,RF LGE 6140RCC009A Contact Us For Availability
L943
COIL,CHOKE LGE 633-088G Contact Us For Availability
LD2D1
LED,Chip LGE EAV34141201 Contact Us For Availability
LD305
LED,Chip LGE EAV34143301 Contact Us For Availability
LD315
LED,Chip LGE EAV34142201 Contact Us For Availability
LF901
Filter,Line Noise LGE 6200JB8009P Contact Us For Availability
LF902
LGE 6200JB8013N LGE 6200JB8013N Contact Us For Availability
P201
Harness,Single LGE EAD34877901 Contact Us For Availability
P202
Harness,Single LGE EAD34879001 Contact Us For Availability
P2202
CONNECTOR (CIRC),FFC LGE 6630XE00130 Contact Us For Availability
P2208
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
P2301
CONNECTOR (CIRC),WAF LGE 561-712C Contact Us For Availability
P2401
Connector,Wafer LGE 561-711C Contact Us For Availability
P2402
Harness,Single LGE EAD35071901 Contact Us For Availability
P2901
Conector,BtoB LGE 6630R-BF07N Contact Us For Availability
P2902
Harness,Single LGE EAD35072201 Contact Us For Availability
P3201
Harness,Single LGE EAD35072001 Contact Us For Availability
P3302
Harness,Single LGE EAD35071501 Contact Us For Availability
P9701
CONNECTOR (CIRC),BOA LGE 6630R-BF03N Contact Us For Availability
P9702
Connector,Wafer LGE 561-715J Contact Us For Availability
P9900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
PC902
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN301
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
Q102
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q106
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q108
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q302
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q310
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q403
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q701
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q702
TRANSISTOR LGE 0TR126709AB Contact Us For Availability
Q902
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q902
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q903
TR,Bipolar LGE 0TRKE80077A Contact Us For Availability
Q904
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q904
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q950
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q951
TRANSISTOR KTA1267-GR MINI TP LGE 0TR126709AC Contact Us For Availability
R2D6
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R2E3
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R2I2
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R2K2
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R108
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R145
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R216
RESISTOR,METAL GLAZED(CHIP) LGE 0RH5602D422 Contact Us For Availability
R217
Resistor,Chip LGE 0RH8201D422 Contact Us For Availability
R218
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R220
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R224
Resistor,Chip LGE 0RH3002D422 Contact Us For Availability
R225
Resistor,Chip LGE 0RH2001D422 Contact Us For Availability
R226
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R233
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R250
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R266
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R310
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R319
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R381
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R383
Resistor,Chip LGE EBC01902802 Contact Us For Availability
R383
Resistor,Chip LGE 0RH0100E622 Contact Us For Availability
R391
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R394
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R399
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R408
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R412
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R430
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R441
Resistor,Chip LGE 0RH5603C622 Contact Us For Availability
R442
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R447
Resistor,Chip LGE 0RH0181D622 Contact Us For Availability
R452
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R456
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R458
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R465
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R468
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R473
Resistor,Chip LGE 0RH6201C622 Contact Us For Availability
R475
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R479
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R492
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R493
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R524
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R586
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R603
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R604
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R615
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R618
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R618
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R626
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R631
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R633
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R644
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R648
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R709
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R716
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R725
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R735
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R739
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R749
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R802
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R807
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R823
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R903
Resistor,Chip LGE 0RH1302C622 Contact Us For Availability
R904
Resistor,Chip LGE 0RH0681C622 Contact Us For Availability
R906
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R908
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R911
RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability
R912
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R913
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R916
RESISTOR FIXED CARBON FILM SKN LGE 0RD2001F609 Contact Us For Availability
R917
RESISTOR,FIXED METAL LGE 0RS0330K618 Contact Us For Availability
R919
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R948
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R954
Resistor,Carbon Film LGE 0RD0332F609 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R963
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
R964
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R969
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R973
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R974
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R977
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R985
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R986
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R1003
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R1029
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
R1067
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R1418
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R1560
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
RM301
Receiver Module LGE 6712R1538GJ Contact Us For Availability
SW305
SWITCH,TACT LGE 6600R000028 Contact Us For Availability
SW306
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
T901
Transformer,Switchin LGE 6170RNGW25D Contact Us For Availability
T902
Transformer,Switchin LGE EBJ34011401 Contact Us For Availability
TH902
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TU201
Tuner,Analog LGE EBL34811201 Contact Us For Availability
V810
Varistor LGE 6102R7E001A Contact Us For Availability
VR901
VARISTOR LGE 656-004C Contact Us For Availability
X2K1
Crystal LGE 6212AB2451F Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X103
Oscillator,Crystal LGE 6204B41228C Contact Us For Availability
X201
Crystal LGE EAW32919901 Contact Us For Availability
X601
Crystal LGE 6212AB2130C Contact Us For Availability
X701
Crystal LGE 6212AB2240G Contact Us For Availability
ZD3F1
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
ZD905
DIODE,ZENERS LGE 0DZ910009AG Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00054A Contact Us For Availability
ZD906
Diode,Zener LGE 0DZ120009AG Contact Us For Availability
ZD911
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
× ![]()
Login and Registration Form
