Model LG LFA840 – Common Parts & Diagrams
Diagram 0
Diagram 1

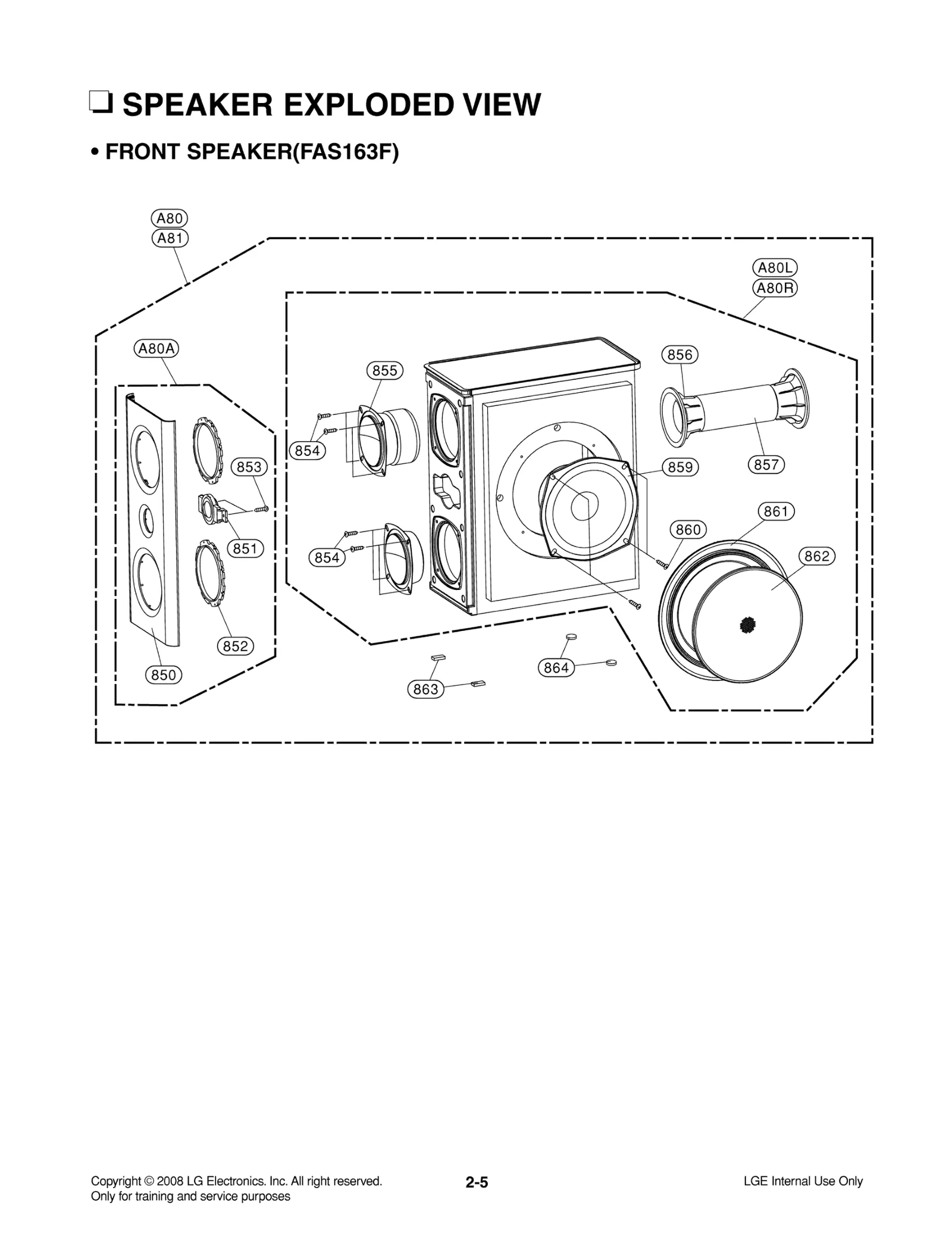

Diagram 2

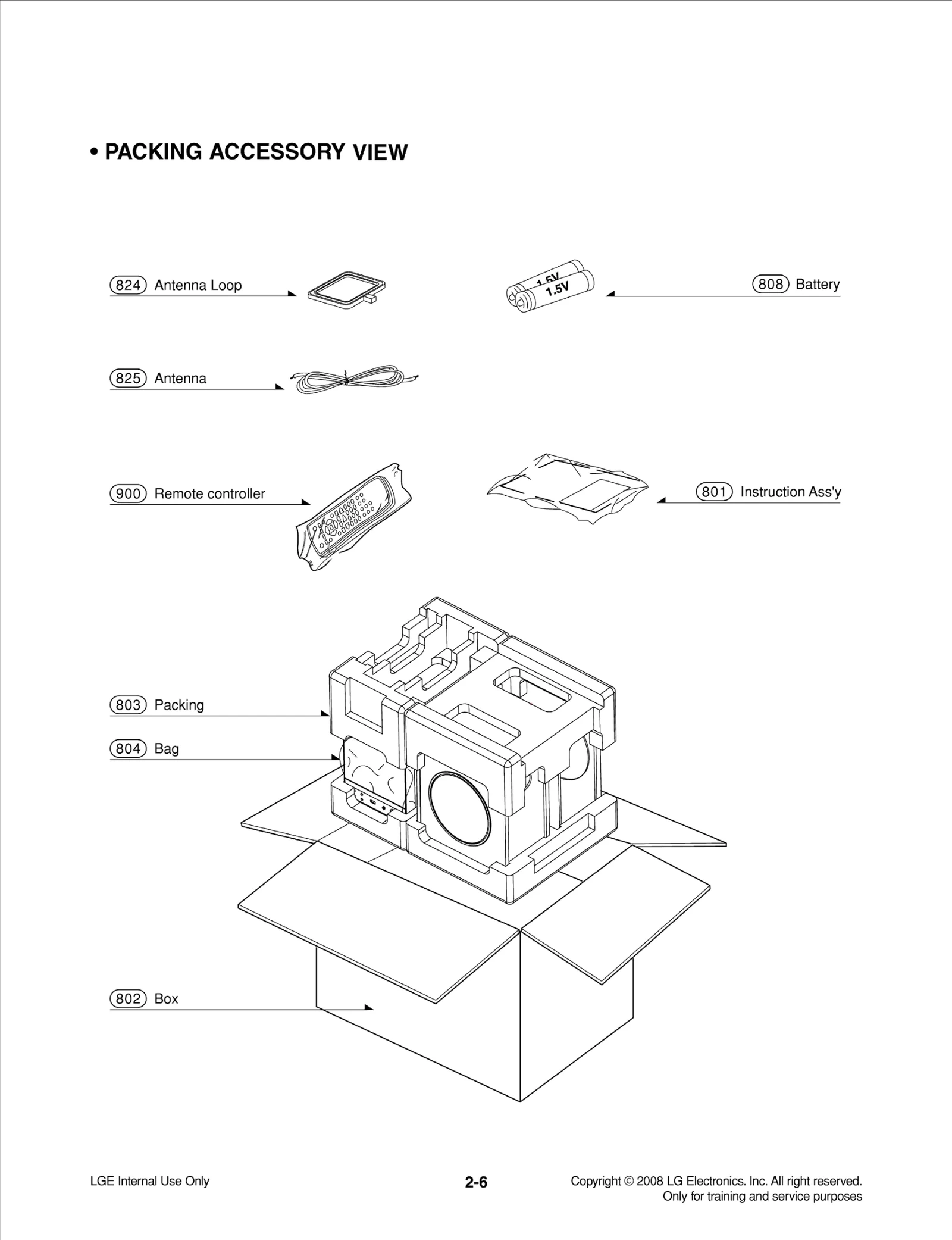

Diagram 3
Diagram 4
Common parts from model LG LFA840
001
Clamp LGE MBU34816901 Contact Us For Availability
002
Lever LGE MFC35715801 Contact Us For Availability
003
Bracket LGE MAZ34974101 Contact Us For Availability
004
Spring LGE MHY34825001 Contact Us For Availability
005
Spring LGE MHY34825201 Contact Us For Availability
006
Guide LGE MEA34817601 Contact Us For Availability
007
Spring LGE MHY34825101 Contact Us For Availability
008
Arm LGE MAC34818401 Contact Us For Availability
009
Lever LGE MFC35716001 Contact Us For Availability
010
Belt LGE MAS34822001 Contact Us For Availability
011
Gear LGE MDT34821901 Contact Us For Availability
012
Gear LGE MDT34821801 Contact Us For Availability
013
Spring LGE MHY34822101 Contact Us For Availability
014
Gear LGE MDT34821701 Contact Us For Availability
015
Spring LGE MHY34824801 Contact Us For Availability
016
Base LGE MAM34818201 Contact Us For Availability
017
Lever LGE MFC35715901 Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009B Contact Us For Availability
024
RUBBER LGE 5040R-0110A Contact Us For Availability
025
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
031
GEAR LGE 4470R-0178A Contact Us For Availability
032
GEAR LGE 4470R-0179A Contact Us For Availability
033
Cable,FFC LGE EAD42342201 Contact Us For Availability
035
Board Assembly LGE AAX37038101 Contact Us For Availability
035A
Cable,FFC LGE EAD42342603 Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
250
Panel Assembly,Front LGE AGL36023205 Contact Us For Availability
251
Sheet LGE MHK41526501 Contact Us For Availability
252
Cover Assembly LGE ACQ36037406 Contact Us For Availability
253
Decor LGE MCR42210107 Contact Us For Availability
254
PLATE LGE 3300R-V127A Contact Us For Availability
255
Decor LGE MCR40257101 Contact Us For Availability
259
Panel,Rear LGE MGC40257212 Contact Us For Availability
261
Panel,Audio LGE MGC40256802 Contact Us For Availability
262
Fan Module LGE 5900R-D010C Contact Us For Availability
263
Panel,Audio LGE MGC40257002 Contact Us For Availability
264
Plate LGE MGJ35928801 Contact Us For Availability
265
Bracket LGE MAZ40257501 Contact Us For Availability
272
Chassis LGE MBS40256601 Contact Us For Availability
273
HOLDER LGE 4930R-0506A Contact Us For Availability
274
Foot LGE MDP30320005 Contact Us For Availability
275
Plate LGE MGJ33054601 Contact Us For Availability
276
Holder LGE 4930RC0033A Contact Us For Availability
305
POWER CORD LGE 6410RAHK02D Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
455
Screw,Customized LGE 1SZZR-0081B Contact Us For Availability
463
Screw,Customized LGE 353-025C Contact Us For Availability
468
Screw,Customized LGE 353-025HAAA Contact Us For Availability
801
Manual Assembly,Owners LGE AFN35537710 Contact Us For Availability
802
Box,Master LGE MAY47319797 Contact Us For Availability
803
Packing LGE MFZ34189176 Contact Us For Availability
804
Bag LGE 3880SCS001E Contact Us For Availability
808
Battery,Manganese LGE EAC42053701 Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
850
Panel,Front LGE MGC39961501 Contact Us For Availability
851
Speaker,Tweeter LGE EAB48776501 Contact Us For Availability
852
Ring LGE 4350RM0029A Contact Us For Availability
853
SCREW,DRAWING LGE 353M025F Contact Us For Availability
854
Screw,Customized LGE 353M025X Contact Us For Availability
855
Speaker,MID,Range LGE EAB44223701 Contact Us For Availability
856
Duct LGE MCZ30292001 Contact Us For Availability
857
Duct LGE MCZ41913801 Contact Us For Availability
859
Speaker,Woofer LGE EAB44223901 Contact Us For Availability
860
SCREW, LGE 353M025Q Contact Us For Availability
861
Decor LGE MCR39962501 Contact Us For Availability
862
Grille LGE MDX39962601 Contact Us For Availability
863
Foot LGE MDP47178201 Contact Us For Availability
864
Foot LGE MDP47178401 Contact Us For Availability
900
Remote Controller Assembly LGE AKB36638204 Contact Us For Availability
9701
Harness,Single LGE EAD42218201 Contact Us For Availability
A26
Mechanism Assembly LGE AFP34979601 Contact Us For Availability
A26
Damper LGE MCQ54165301 Contact Us For Availability
A30
Base Assembly LGE AAN34979801 Contact Us For Availability
A43
PCB Assembly LGE EBR43447303 Contact Us For Availability
A44
Frame Assembly LGE ADV36030902 Contact Us For Availability
A46
Option Code Assembly LGE EBR44001110 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR40326103 Contact Us For Availability
A53
PCB Assembly LGE EBR43571801 Contact Us For Availability
A80
Speaker Assembly LGE EAB48947201 Contact Us For Availability
A80A
Panel Assembly,Audio LGE AGL52705901 Contact Us For Availability
A80L
Cover Assembly LGE ACQ52714801 Contact Us For Availability
A80R
Cover Assembly LGE ACQ52715001 Contact Us For Availability
A81
Speaker Assembly LGE EAB48947101 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
C3A2
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C7A3
Capacitor,AL,Radial LGE 0CE4774C638 Contact Us For Availability
C7F3
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C7H5
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C7H8
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C8A9
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C149
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C153
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C158
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C269
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1471K516 Contact Us For Availability
C333
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CH1473K566 Contact Us For Availability
C343
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
C347
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C401
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
C409
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
C410
Capacitor,AL,Radial LGE 0CE2266K618 Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C425
Capacitor,Ceramic,Chip LGE 0CH1272K562 Contact Us For Availability
C427
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C431
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C435
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C707
CAPACITOR ELECTROLYTIC AEGMG7 LGE 0CE4766H618 Contact Us For Availability
C716
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C727
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C735
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C737
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C741
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C743
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C744
Capacitor,AL,Radial LGE 0CE1046K618 Contact Us For Availability
C787
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C798
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C808
Capacitor,Ceramic,Chip LGE 0CH1122K562 Contact Us For Availability
C813
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C837
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C905
Capacitor,AL,Radial LGE EAE30400901 Contact Us For Availability
C906
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C906
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C910
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ4711N449 Contact Us For Availability
C915
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C916
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C917
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C919
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C920
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE4776F638 Contact Us For Availability
C927
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C934
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C948
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C965
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C971
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C977
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C978
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C979
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C987
CAPACITOR LGE 624-087D Contact Us For Availability
CABLE1
Cable,FFC LGE EAD35665105 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD42742301 Contact Us For Availability
CABLE3
Harness,Single LGE EAD42744303 Contact Us For Availability
CF3C1
Filter,Line Noise LGE 6200J000039 Contact Us For Availability
CM902
Capacitor,Film,Box LGE 624-088S Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN101
Harness,Single LGE EAD42744901 Contact Us For Availability
CN302
Harness,Single LGE EAD42743301 Contact Us For Availability
CN401
Connector,FFC/FPC/PIC LGE EAG38938701 Contact Us For Availability
CN402
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN403
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
CN3201
Harness,Single LGE EAD44367601 Contact Us For Availability
CN4021
CONNECTOR (CIRC),WAF LGE 561-711L Contact Us For Availability
D101
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D103
Diode,Zener LGE 0DZPH00069A Contact Us For Availability
D106
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D301
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D401
Diode,Switching LGE 0DD226009AA Contact Us For Availability
D903
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D903
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D904
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D908
DIODE LGE 0DD010009CA Contact Us For Availability
D909
Diode,Switching LGE EAH38080101 Contact Us For Availability
D940
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D941
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D943
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D943
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D943
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D945
Diode,Rectifier LGE 0DR202000AB Contact Us For Availability
D953
Diode,Schottky LGE 0DRRE00083A Contact Us For Availability
DIG301
VFD LGE EAJ42378801 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB902
Filter,Bead LGE 636-004C Contact Us For Availability
IC3A1A
S/W,System Program LGE SAA31718501 Contact Us For Availability
IC100A
S/W,System Program LGE SAA31727801 Contact Us For Availability
IC103
IC,EEPROM LGE EAN35369601 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN40076401 Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGUC005A Contact Us For Availability
IC304
IC,Keyboard Controller LGE 0IPRP00732A Contact Us For Availability
IC401
IC,Motor Driver LGE EAN40199101 Contact Us For Availability
IC402
IC,RF Amplifier LGE EAN40169301 Contact Us For Availability
IC700
IC,Power Amplifier LGE EAN41711301 Contact Us For Availability
IC702
IC,PWM Controller LGE EAN39871601 Contact Us For Availability
IC703
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC801
IC,Digital Signal Processors LGE EAN40345701 Contact Us For Availability
IC802
IC,MEMORIES LGE 0IMMREO002A Contact Us For Availability
IC803
IC,FIFO/LIFO memory LGE 0IMMREJ001B Contact Us For Availability
IC804
IC,CMOS LGE 0ISTLPH020A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00044A Contact Us For Availability
IC902
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC924
IC,POWER MANAGEMENT LGE 0IPMGKE009C Contact Us For Availability
IC942
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC942
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC947
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC955
IC,LDO Voltage Regulator LGE 0IPMG78358B Contact Us For Availability
IC957
IC,LDO Voltage Regulator LGE EAN42369201 Contact Us For Availability
JK3C1
Connector,I/O LGE EAG42342401 Contact Us For Availability
JK302
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK303
Connector,USB LGE 6630S70048B Contact Us For Availability
JK701
Connector,Terminal B LGE 6640000071B Contact Us For Availability
L3C3
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L307
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L703
Coil,RF LGE 6140RCC008A Contact Us For Availability
L805
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L945
COIL,CHOKE LGE 633-088G Contact Us For Availability
LD301
LED,DIP LGE 0DL307119BA Contact Us For Availability
LD305
LED,DIP LGE EAV42876001 Contact Us For Availability
LF902
Line Noise Filter LGE 6200JB8009X Contact Us For Availability
P3101
Connector,FFC/FPC/PI LGE 561-7073 Contact Us For Availability
P9701
CONNECTOR (CIRC),WAF LGE 561-7150 Contact Us For Availability
P9702
Connector,Wafer LGE 561-711H Contact Us For Availability
P9900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
PC903
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN3A2
Connector,FFC/FPC/PIC LGE EAG32731602 Contact Us For Availability
PN3A3
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
PN3C1
CONNECTOR (CIRC),WAF LGE 561-712L Contact Us For Availability
PN100
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PN101
Connector,FFC/FPC/PI LGE 6630XF00429 Contact Us For Availability
PN103
Connector,Wafer LGE 6630R3S006F Contact Us For Availability
PN301
Connector,FFC/FPC/PIC LGE 561-707L Contact Us For Availability
PN801
Connector,Wafer LGE 561-715D Contact Us For Availability
PN2301
CONNECTOR(CIRC),DRAW LGE 6630R3S006L Contact Us For Availability
Q3C1
TRANSISTOR LGE 0TR129809BB Contact Us For Availability
Q308
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q700
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q705
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q706
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q904
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q941
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q941
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q942
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q942
TRANSISTOR,BIPOLARS LGE 0TR127709AB Contact Us For Availability
Q951
TRANSISTOR KTA1267-GR MINI TP LGE 0TR126709AC Contact Us For Availability
Q951
TR,Bipolar LGE 0TR198009CA Contact Us For Availability
R3C1
Resistor,Chip LGE EBC36543501 Contact Us For Availability
R3C6
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R3D2
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R3D5
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R3D8
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R7F3
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R7G1
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R110
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R127
Resistor,Chip LGE 0RH4704C622 Contact Us For Availability
R156
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R159
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R181
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R193
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R211
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R224
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R267
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R301
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R302
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R307
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R318
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R326
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R333
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R338
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R405
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R418
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R434
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R439
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R446
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R450
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R700
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R721
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R724
Resistor,Chip LGE 0RH0221E622 Contact Us For Availability
R726
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R729
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R756
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R759
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R761
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R764
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R772
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R791
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R792
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R810
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R812
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R818
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R849
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R872
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R902
Resistor,Metal Oxide Film LGE 0RS1500J619 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R908
Resistor,Metal Oxide LGE 0RS0300K618 Contact Us For Availability
R909
Resistor,Metal Oxide Film LGE EBC31729501 Contact Us For Availability
R911
RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability
R912
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R916
RESISTOR FIXED CARBON FILM SKN LGE 0RD2001F609 Contact Us For Availability
R917
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R918
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R919
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R941
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R948
Resistor,Metal Film LGE 0RN1102F409 Contact Us For Availability
R959
RESISTOR FIXED CARBON FILM SKN LGE 0RD5602F609 Contact Us For Availability
R963
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
R964
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R973
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R974
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R975
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R976
Resistor,Carbon Film LGE 0RD1802F609 Contact Us For Availability
R977
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R986
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R990
Resistor,Carbon Film LGE 0RD1202F609 Contact Us For Availability
R997
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
RC301
REMOTE CONTROLLER RE LGE 6712R1638GB Contact Us For Availability
SW34
Switch,Tact LGE 6600R000005 Contact Us For Availability
SW305
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
T901
Transformer,Switchin LGE EBJ34934901 Contact Us For Availability
T902
Transformer,Switching LGE EBJ40392102 Contact Us For Availability
TH901
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TU100
Tuner,Analog LGE EBL41605401 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
VR901
Varistor LGE EAF38754501 Contact Us For Availability
WIRE80
PCB Assembly,Sub LGE EBR50263001 Contact Us For Availability
WIRE81
PCB Assembly,Sub LGE EBR50263901 Contact Us For Availability
X100
Crystal LGE 6212AB2327X Contact Us For Availability
X101
Crystal LGE EAW32918901 Contact Us For Availability
X401
Crystal LGE 6212AB2884A Contact Us For Availability
X701
Crystal LGE EAW32919901 Contact Us For Availability
X801
Crystal LGE 6212AB2120E Contact Us For Availability
ZD905
DIODE,ZENERS LGE 0DZ910009AG Contact Us For Availability
ZD905
Diode,Zener LGE 0DZSE00224A Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00054A Contact Us For Availability
ZD911
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD960
Diode,Zener LGE 0DZPC00193A Contact Us For Availability
ZD960
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
ZD990
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
× ![]()
Login and Registration Form
